Chapter 10: Debugging & Logic - Finding Errors and Stepping Through Code

Theoretical Foundations

In the previous chapters, you learned how to write code that does things: it calculates numbers, makes decisions, and loops through tasks. You have built a mental model of how your program should flow from line to line. However, in the real world—especially when building complex logic for AI applications—programs rarely work perfectly the first time. The "Theoretical Foundations" section establishes the mindset and the fundamental concepts required to understand why code behaves unexpectedly and how to systematically find and fix these issues.

The Concept of State and Execution Flow

At its core, a computer program is a sequence of instructions executed one after another. When you write a loop using for or while (Chapter 9), you are defining a path for the computer to follow. But what happens when the path leads to an unexpected destination?

Consider a simple AI calculator that determines if a user's input is a "positive" or "negative" sentiment score. You might write an if statement (Chapter 6) to check if the score is greater than 0.

int sentimentScore = -5;
if (sentimentScore > 0)
{
    Console.WriteLine("Positive sentiment detected.");
}

You expect nothing to print because -5 is not greater than 0. But what if you accidentally wrote if (sentimentScore < 0)? Or what if sentimentScore was somehow changed to 10 before this check? This is where State comes in.

State refers to the values stored in your variables at a specific moment in time. As your program runs, variables change state (Chapter 2). Debugging is the process of inspecting this state as the execution flow moves through your code.

The Analogy: The Assembly Line

Imagine a factory assembly line (your program). Workers (variables) hold parts. As the parts move down the line (execution flow), workers add or remove parts (state changes). If a final product is defective (a bug), you cannot simply look at the finished product. You must stop the conveyor belt at various points to inspect what each worker is holding. If a worker is holding the wrong part, you know exactly where the error occurred.

The Role of Logic Errors

Syntax errors (like a missing semicolon) are caught immediately by the compiler. Logic errors, however, are more insidious. The code runs, but it produces the wrong result.

Defining Logic Errors

A logic error occurs when the syntax is correct, but the intent of the programmer is not achieved. This usually stems from incorrect comparisons or flawed mathematical operations.

For example, in Chapter 4, you learned about arithmetic operators. A common logic error in AI data normalization is dividing by zero or using the wrong precedence of operations.

double temperature = 25.0;
double normalizedTemp = 100 / temperature + 5;
// You might expect: 100 / (25 + 5) = 3.33
// But C# does: (100 / 25) + 5 = 4 + 5 = 9

To understand these errors, we must look at how the computer "thinks."

How the Computer Executes Code (The Call Stack and Memory)

Although we haven't covered custom methods or classes (forbidden concepts), it is vital to understand the basic mechanism of execution flow.

The Instruction Pointer

The computer has an invisible marker called an Instruction Pointer (or Instruction Cursor). It starts at the first line of your Main method and moves down one line at a time.

Line 1: int x = 5; — The computer allocates memory for x and stores 5.
Line 2: int y = 10; — The computer allocates memory for y and stores 10.
Line 3: int z = x + y; — The computer reads x (5), reads y (10), adds them, and stores 15 in z.

If you introduce a while loop (Chapter 8), the instruction pointer does not move strictly downward; it jumps back up to the start of the loop condition.

The Stack (Basic Concept)

When your program starts, it reserves a block of memory called the Stack. Think of the Stack as a stack of plates. Every time you start a task (like entering a loop), you put a plate on top. When you finish the task, you take the plate off.

In this foundational book, we are mostly dealing with the "Main" stack frame. When you run a loop, the variables inside that loop exist in that stack frame. If you have a nested loop (Chapter 10), you are essentially putting a new plate on top of the stack for the inner loop.

Why this matters for AI: In AI applications, you often process large datasets (even if just one number at a time for now). If you don't understand that variables hold state only as long as they are in scope, you might accidentally overwrite a critical value needed for a later calculation.

Defensive Coding: Anticipating Failure

Defensive coding is the practice of assuming that things will go wrong and writing code to handle it. In AI, data is often messy. A sensor might send a null value, or a calculation might result in a number that breaks your logic.

The Philosophy of "Fail Fast"

It is better for a program to crash immediately with a clear error message than to run silently with incorrect data. This is the foundation of the Debug.Assert concept (which we will explore in code later). It asserts that a condition must be true; if it isn't, the program stops.

Handling Exceptions (The `try-catch` Model)

While we won't write full try-catch blocks in this theoretical section (as error handling mechanisms vary), the concept is vital.

Try: Attempt a risky operation (e.g., converting a string to a number using int.Parse from Chapter 5).
Catch: If the operation fails (e.g., the string was "abc" instead of "123"), catch the failure and handle it gracefully rather than crashing the entire AI application.

Debugging Tools: The Microscope

To inspect the state of your program, you need tools. Visual Studio provides a powerful debugger. Understanding these tools theoretically allows you to use them effectively when we get to the practical sections.

1. Breakpoints

A breakpoint is a marker you place on a line of code. When the instruction pointer reaches a breakpoint, the program pauses. It does not exit; it freezes in time. This allows you to look at the "assembly line" while it is stopped.

2. Stepping Through Code

Once paused, you can manually control the instruction pointer.

Step Over: Execute the current line and move to the next one. If the line contains a loop, the loop runs entirely before stopping at the next line.
Step Into: If the current line calls a function (or a loop), Step Into moves the instruction pointer to the very first line inside that function/loop.
Step Out: If you are currently inside a loop or function, Step Out runs the rest of it and returns to the line where it was called.

3. Inspecting Variables

While paused, you can hover your mouse over variables (like int x) to see their current value. This is the equivalent of checking the worker's hands on the assembly line.

4. The Immediate Window

The Immediate Window allows you to type code expressions and see the result while the program is paused. You can test logic in real-time.

Example: If you are unsure why a calculation is wrong, you can type 100 / 25 + 5 into the Immediate Window and see that it evaluates to 9, confirming your arithmetic precedence theory.

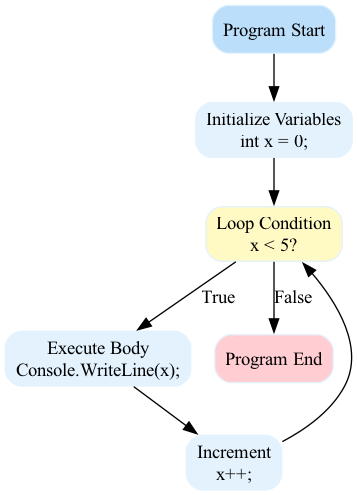

Visualizing the Execution Flow

To visualize how the instruction pointer moves through code, specifically when loops are involved, we can use a flow diagram.

A flow diagram visually traces the instruction pointer's path through code, clarifying control flow and arithmetic precedence by showing each step of execution.

Explanation of the Diagram:

Start: The program begins.
Initialize: Variables are set to their starting state.
Check: The computer evaluates the loop condition (using logic from Chapter 6 and 7).
Decision: If true, it enters the Body. If false, it jumps to End.
Increment: After the body executes, the variable changes state (x++ from Chapter 4).
Loop: The flow returns to the Check to re-evaluate the condition with the new variable state.

Debugging often involves tracing this path manually. If x never reaches 5, you might have an infinite loop. If x skips a number, you might have an incorrect increment.

Theoretical Application to AI Logic

Why is this important for building AI? Even simple AI logic relies heavily on precise state management.

Example: Simple Threshold Logic

Imagine a basic AI that decides whether to turn on a heater based on a temperature sensor. It uses a while loop to keep checking the temperature.

// Hypothetical AI Logic (Simplified)
int currentTemp = 20;
int targetTemp = 25;

// Loop until target is reached
while (currentTemp < targetTemp)
{
    // Simulate heating
    currentTemp = currentTemp + 1;

    // Debugging Check:
    // If currentTemp somehow becomes 30, something is wrong.
    // We need to pause and inspect 'currentTemp' here.
}

If this code runs forever (infinite loop), a debugger helps us pause execution to see that perhaps currentTemp is not increasing as expected, or targetTemp was set incorrectly.

The Importance of the Immediate Window in AI

When building AI, you often deal with probabilities (numbers between 0.0 and 1.0). Using the Immediate Window, you can test specific edge cases without restarting the program.

Scenario: Your AI rejects a valid input.
Action: Pause at the decision point. Type probability > 0.5 into the Immediate Window. See the result. If it returns false when you expect true, you know the logic is correct, but the value of probability is lower than you thought.

Summary of Concepts

In this theoretical foundation, we established:

State: Variables hold values that change over time.
Execution Flow: The instruction pointer moves through lines of code, jumping based on loops and decisions.
Logic Errors: The code runs but is wrong due to incorrect comparisons or math.
Debugging Tools: Breakpoints pause execution; Stepping moves the instruction pointer; Inspection reveals variable state.
Defensive Mindset: Always assume data might be wrong and use tools to verify it.

By mastering these foundations, you move from simply writing code to understanding code. This is the bridge between a beginner and a professional developer capable of debugging complex AI systems.

Basic Code Example

Here is a simple code example designed to introduce debugging concepts by simulating a common real-world scenario: a simple inventory counter.

The Scenario: Inventory Counting

Imagine you are writing a program for a small store to track the number of items sold in a day. The store starts with 0 items sold. As customers buy items, the count should go up. However, you want to observe exactly how the program behaves step-by-step to ensure the logic is correct.

This example uses a for loop to simulate 5 customers buying items and uses the break statement to handle a special condition (the store closing early).

using System;

namespace InventoryTracker
{
    class Program
    {
        static void Main(string[] args)
        {
            // 1. Initialize the variable to track items sold.
            int itemsSold = 0;

            // 2. Simulate 5 customers entering the store.
            // We use a 'for' loop (Chapter 9) to count iterations.
            for (int customerNumber = 1; customerNumber <= 5; customerNumber++)
            {
                // 3. Simulate a random purchase amount for this customer.
                // In a real app, this might come from user input or a calculation.
                // Here, we hardcode it to 2 items per customer for simplicity.
                int purchaseAmount = 2;

                // 4. Add the purchase to the total.
                itemsSold = itemsSold + purchaseAmount;

                // 5. Display the current status using String Interpolation (Chapter 3).
                Console.WriteLine($"Customer {customerNumber} bought items. Total sold: {itemsSold}");

                // 6. Check if we have reached the daily limit (Logic from Chapter 6).
                // If we sell more than 8 items, the store closes early.
                if (itemsSold > 8)
                {
                    Console.WriteLine("Daily limit reached! Closing store early.");

                    // 7. The 'break' statement (Chapter 10).
                    // This immediately exits the loop, skipping any remaining customers.
                    break;
                }
            }

            // 8. Final message indicating the program has finished.
            Console.WriteLine("Inventory update complete.");
        }
    }
}

Explanation of the Code

Here is a step-by-step breakdown of what happens when this code runs:

Variable Initialization: We create an integer variable itemsSold and set it to 0. This represents the starting state of our inventory system.
Loop Setup: The for loop initializes a counter customerNumber to 1. It will continue running as long as customerNumber is less than or equal to 5.
Purchase Simulation: Inside the loop, we define purchaseAmount as 2. This simulates a customer buying two items.
Accumulation: We update itemsSold by adding the purchaseAmount to the current total. This is a classic accumulation pattern.
Console Output: We print a status update. This is crucial for debugging because it lets us see the state of variables at specific points in time.
Conditional Logic: The if statement checks if itemsSold is greater than 8.
Breaking the Loop: When the condition itemsSold > 8 becomes true (after the 5th customer, total is 10), the break keyword executes. This terminates the loop immediately, preventing the code from processing any further customers.
Final Execution: After the loop ends (either by finishing all 5 customers or by hitting the break), the program prints the final completion message.

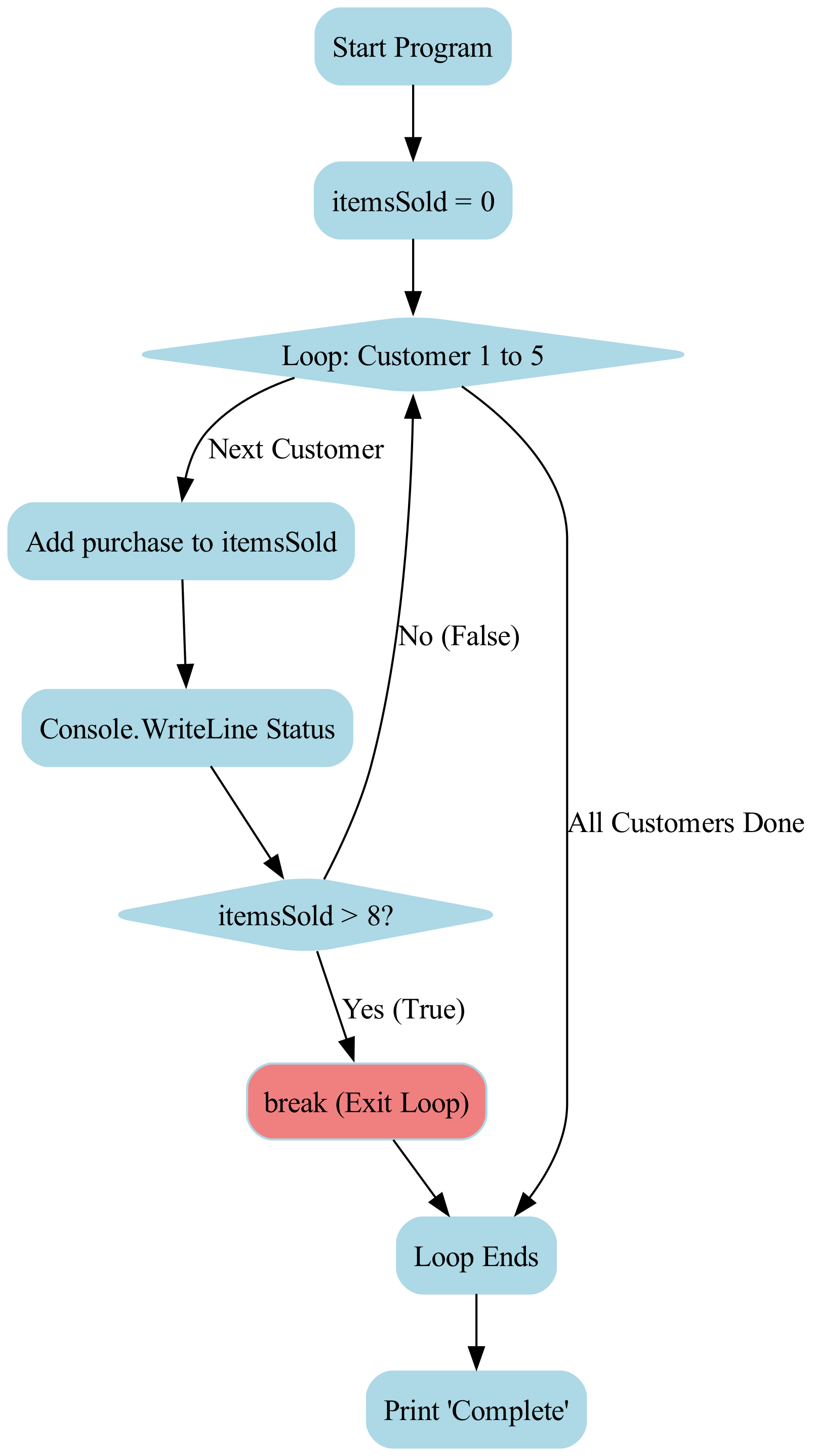

Visualization of Execution Flow

The following diagram illustrates how the program flows, highlighting where the loop might terminate early due to the break statement.

Common Pitfalls

When using loops and conditional logic for debugging, beginners often encounter the following issues:

Infinite Loops: If you forget to increment the counter (e.g., customerNumber++) or set the wrong condition (e.g., customerNumber < 5 instead of customerNumber <= 5), the loop might run forever. In Visual Studio, you can stop this by pressing the red "Stop" button or Shift + F5.
Off-by-One Errors: This happens when the loop runs one time too many or one time too few. Always check if your loop should include the final number (use <=) or stop just before it (use <).
Misplacing the Break: If you place the break statement outside the if block, it will execute on the very first iteration, stopping the loop prematurely. Ensure break is inside the specific condition where you want to stop.
Forgetting to Initialize: Using itemsSold without setting it to 0 first would result in unpredictable behavior or a compiler error, depending on the context. Always initialize your variables before using them in calculations.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
