Chapter 15: Scope & Memory - Stack vs Heap and Variable Lifetime

Theoretical Foundations

Theoretical Foundations of Scope & Memory

Imagine you are a chef in a kitchen. You have a recipe book (your code) and ingredients (your data). To cook a meal (execute a program), you need space to work. You use a small, organized counter space for immediate chopping (the Stack) and a large refrigerator for long-term storage (the Heap). Understanding where you put your ingredients determines how efficiently you cook and whether your kitchen stays clean.

The Stack: The Fast, Temporary Workspace

In C#, the Stack is a region of memory that operates in a strict Last-In-First-Out (LIFO) order. Think of it like a stack of plates. You can only add a plate to the top or remove a plate from the top. You cannot remove a plate from the middle without first removing the ones on top.

When your program runs, every method call creates a Stack Frame. This frame holds the method's local variables. Once the method finishes, its frame is immediately popped off the stack, and all memory used by that method is instantly freed. This is deterministic and extremely fast.

Let's look at how this works with a simple method using concepts from Chapter 14: Method Parameters and Return Values.

using System;

class Program
{
    static void Main()
    {
        // We call a method to do some math.
        int result = CalculateSum(5, 10);
        Console.WriteLine($"The result is {result}");
    }

    // This is a static method defined in Chapter 13.
    static int CalculateSum(int a, int b)
    {
        // 'sum' is a local variable. It lives on the Stack.
        int sum = a + b;
        return sum;
    }
    // When this method ends, 'sum', 'a', and 'b' are popped off the Stack immediately.
}

What happens in memory?

Main starts. A stack frame for Main is created.
CalculateSum(5, 10) is called. A new stack frame is pushed on top of Main's frame.
- Inside this frame: a (value 5), b (value 10), and sum (value 15) are stored.
CalculateSum returns 15. The stack frame is popped (removed).
The result variable in Main receives 15.

Key Characteristics of the Stack:

Fast Allocation: Moving a pointer to the top of the stack is instant.
Automatic Cleanup: You don't need a garbage collector. The moment a method exits, its data is gone.
Fixed Size: The stack has a limited size. If you put too many plates (deep recursion or huge local arrays), you get a StackOverflowException (like dropping the stack of plates).

The Heap: The Long-Term Storage

The Heap is a large pool of memory used for data that needs to persist beyond the life of a single method or whose size is unknown at compile time. Unlike the stack, the heap is not organized in a strict order. It’s a vast warehouse.

When we declare variables on the heap, we are actually creating an object that lives independently of the method that created it. To track this, C# uses Reference Types.

Let's look at an Array (from Chapter 11: Arrays). Arrays are reference types. Even though the array variable (the reference) might be local, the actual array data lives on the heap.

using System;

class Program
{
    static void Main()
    {
        // 'numbers' is a variable holding a reference to an array.
        // The variable 'numbers' lives on the Stack.
        // The actual array data [1, 2, 3] lives on the Heap.
        int[] numbers = { 1, 2, 3 };

        // We pass the reference to a method.
        ModifyArray(numbers);

        Console.WriteLine($"First element: {numbers[0]}");
    }

    static void ModifyArray(int[] arr)
    {
        // 'arr' is a copy of the reference.
        // It points to the SAME array on the Heap as 'numbers' in Main.
        arr[0] = 100;
    }
}

Visualizing the Memory Layout

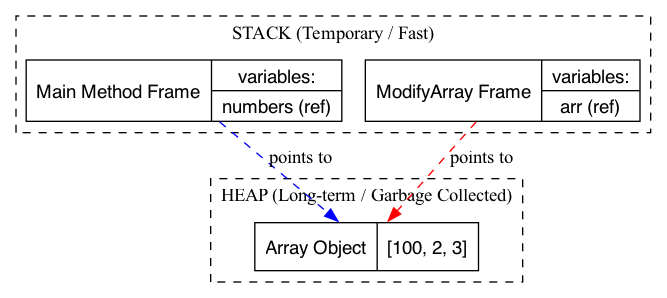

Here is a diagram showing how the Stack and Heap interact during the execution of the code above.

In this memory diagram, the arr parameter in the ModifyArray method points to the same array object on the Heap as the numbers variable in the Main method, illustrating how reference types share data rather than copying it. — In this memory diagram, the `arr` parameter in the `ModifyArray` method points to the same array object on the Heap as the `numbers` variable in the `Main` method, illustrating how reference types share data rather than copying it.

Why is this distinction critical for AI Development?

In AI applications, we often process massive datasets or complex model configurations.

Performance: When iterating through millions of data points (using a for loop from Chapter 9), if you allocate large objects on the Stack (which you can't easily do for large data), you will crash the program. Instead, you allocate arrays on the Heap.
Model State: Imagine you have a configuration for an AI model (e.g., learning rate, batch size). If you pass this configuration to various processing methods, you want those methods to modify the same configuration object (on the Heap), not create disconnected copies. This allows different parts of your AI pipeline to share state efficiently.

Variable Lifetime and Scope

Scope determines where a variable is visible. Lifetime determines how long it exists in memory.

Local Scope (Stack): Variables declared inside a method (like int sum in CalculateSum) are local. They are only visible inside that method. Their lifetime is the duration of the method call.
- Example: You cannot access the variable sum inside Main after CalculateSum finishes.
Global Scope (Static - Heap): We have used static methods (Chapter 13). If we declare a variable as static inside a class, it behaves differently. It is allocated on the Heap (specifically, in a special area called the Managed Heap) but exists for the entire lifetime of the application.
- Note: While we haven't covered custom classes fully, static variables are allowed in this chapter. They bridge the gap between local and global.

using System;

class Program
{
    // This is a static variable. It lives on the Heap.
    // It is accessible from any static method in this class.
    static int globalCounter = 0;

    static void Main()
    {
        // We can access globalCounter here.
        Console.WriteLine($"Start: {globalCounter}");

        IncrementCounter();
        IncrementCounter();

        Console.WriteLine($"End: {globalCounter}");
    }

    static void IncrementCounter()
    {
        // We modify the same variable that lives on the Heap.
        globalCounter++;
    }
}

The Garbage Collector (GC)

You might ask: "If the Stack cleans itself automatically, who cleans the Heap?"

C# has an automatic memory manager called the Garbage Collector (GC). It runs periodically in the background.

It identifies objects on the Heap that are no longer referenced by any variable (like an array that no variable points to).
It reclaims that memory.

Practical Implications and Pitfalls

Copying vs. Referencing:
- Value Types (int, double, bool): When you pass them to a method, a copy is made. Changes inside the method do not affect the original.
- Reference Types (Arrays, strings): When you pass them to a method, a copy of the reference is made. Both variables point to the same data. Changes inside the method affect the original.
Analogy: Giving someone a photocopy of a document (Value Type) vs. giving someone the link to a shared Google Doc (Reference Type).
Performance in Loops: When writing for loops (Chapter 9) or while loops (Chapter 8), avoid creating new arrays or large objects inside the loop if possible. Since those objects go on the Heap, the Garbage Collector has to work harder to clean them up, which can cause pauses in your AI application's responsiveness.

Bad Practice (creates garbage every iteration):
```
for (int i = 0; i < 1000; i++)
{
    int[] tempArray = new int[10]; // New array on Heap every time
    // do work...
} // 1000 arrays created, 1000 arrays to be collected.
```
Better Practice (reuse memory):
```
int[] tempArray = new int[10]; // Create once on Heap
for (int i = 0; i < 1000; i++)
{
    // Reuse the same array
    // do work...
}
```

Summary

Stack: Fast, temporary, local variables. Used for method execution flow.
Heap: Slower, long-term storage. Used for data that must survive method calls (like Arrays).
Scope: Defines visibility. Local variables are hidden outside their method.
Lifetime: Stack variables die when the method ends. Heap variables die when the Garbage Collector sees they are unused.

Understanding this separation is the foundation of writing efficient code. In AI, where data volumes are high, managing the Heap effectively prevents memory leaks and ensures your models run smoothly.

Basic Code Example

Let's write a simple program that tracks a user's current balance and attempts to make a purchase. This is a perfect scenario to visualize where different types of data live in memory and how long they last.

using System;

public class Program
{
    // 'globalBalance' is a variable declared at the class level (Global Scope).
    // It will exist as long as the Program class exists.
    // We will use this to demonstrate how variables behave differently depending on where they are declared.
    public static int globalBalance = 100;

    public static void Main()
    {
        // --- BLOCK 1: The Stack (Local Value Types) ---

        // 'itemPrice' is a local variable of type 'int' (Value Type).
        // It is created immediately on the Stack when Main() is called.
        // It only exists while the Main method is running.
        int itemPrice = 25;

        // 'isCheaperThanLimit' is a local 'bool' (Value Type).
        // It is pushed onto the Stack right next to 'itemPrice'.
        bool isCheaperThanLimit = false;

        Console.WriteLine($"Attempting to buy an item for: ${itemPrice}.");
        Console.WriteLine($"Current Global Balance: ${globalBalance}");


        // --- BLOCK 2: The Heap (Reference Types via Arrays) ---

        // 'shoppingCart' is an Array of integers.
        // The Array itself is a Reference Type.
        // 1. The variable 'shoppingCart' (the reference/address) lives on the Stack.
        // 2. The actual data [5, 10, 25] lives on the Heap.
        int[] shoppingCart = new int[] { 5, 10, 25 };

        Console.WriteLine("\nIterating through the shopping cart (Heap data):");

        // We use a foreach loop (Chapter 12) to read the data.
        foreach (int cartItem in shoppingCart)
        {
            Console.Write($"Item: ${cartItem} ");
        }
        Console.WriteLine(); // New line for formatting


        // --- BLOCK 3: Scope and Logic ---

        // We enter a new scope here. Variables declared inside these brackets
        // are LOCAL to this block.
        if (globalBalance >= itemPrice)
        {
            // 'transactionSuccess' is a local variable inside this 'if' block.
            // It is a Value Type (bool) on the Stack.
            bool transactionSuccess = true;

            // We modify the global variable defined at the top of the class.
            // This changes the value in the global scope.
            globalBalance = globalBalance - itemPrice;

            Console.WriteLine($"\nTransaction Successful! Remaining Balance: ${globalBalance}");
        }
        // 'transactionSuccess' is DESTROYED here. It falls out of scope.
        // The memory on the Stack used by 'transactionSuccess' is now free.

        // --- BLOCK 4: Variable Lifetime End ---

        // 'itemPrice' and 'shoppingCart' (the reference) are still valid here
        // because we are still inside the Main method.
        Console.WriteLine($"Final check: Item price was ${itemPrice}.");

    } // END OF MAIN METHOD
      // 1. 'itemPrice', 'isCheaperThanLimit', and 'shoppingCart' are DESTROYED from the Stack.
      // 2. The Array data [5, 10, 25] on the Heap is marked for Garbage Collection.
      // 3. 'globalBalance' stays alive (conceptually) because the program hasn't fully terminated yet.
}

Code Breakdown

Global Variable (globalBalance):
- Definition: public static int globalBalance = 100;
- Location: This variable is defined outside any method. It belongs to the class.
- Lifetime: It exists for the duration of the program.
- Usage: We use it to show that a variable declared here can be read and modified from anywhere inside Main.
Local Value Types (itemPrice, isCheaperThanLimit):
- Definition: int itemPrice = 25;
- Location: Inside the Main method.
- Storage: These are stored directly on the Stack. The Stack is a quick, temporary memory area.
- Lifetime: They are born when Main starts and die immediately when Main ends.
Reference Types (shoppingCart):
- Definition: int[] shoppingCart = new int[] { 5, 10, 25 };
- Storage (The Split):
  - The Reference (the name shoppingCart) lives on the Stack.
  - The Data (the numbers 5, 10, 25) lives on the Heap.
- Why? Arrays can be large. The Stack is small and fast, meant for small values. The Heap is large and managed, meant for larger or dynamic data.
The foreach Loop:
- This loop (Chapter 12) iterates over the array. It reads the data from the Heap using the reference stored in shoppingCart on the Stack.
Scope Blocks (if statement):
- Inside the if block, we declare bool transactionSuccess.
- This variable is strictly local to the if block. Once the closing brace } is reached, transactionSuccess ceases to exist.
Method Exit:
- When Main finishes, everything on the Stack is wiped clean instantly. This is deterministic memory management.

Visualizing the Memory

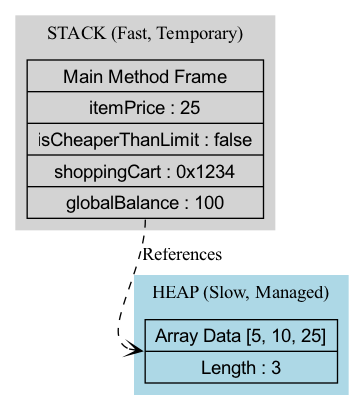

Here is a visual representation of the memory state inside the Main method, specifically during the foreach loop.

A diagram illustrating deterministic memory management in C# shows the Main method's stack frame containing a reference to a List<int> object in the heap, with the foreach loop iterating over the list elements while the Garbage Collector monitors for unreferenced objects. — A diagram illustrating deterministic memory management in C# shows the `Main` method's stack frame containing a reference to a `List` object in the heap, with the `foreach` loop iterating over the list elements while the Garbage Collector monitors for unreferenced objects.

Explanation of the Diagram:

The Stack: Contains the local variables. Notice shoppingCart isn't the numbers 5, 10, 25; it is just an address (0x1234) pointing to the Heap.
The Heap: Contains the actual array data. This data can exist even if the Stack variable changes, as long as something points to it.

Common Pitfalls

1. Expecting Value Types to Persist (Scope Error) A common mistake is trying to use a variable outside the block where it was created.

if (globalBalance > 50)
{
    int discount = 20; // 'discount' is created here
}
// ERROR: Console.WriteLine(discount);
// 'discount' does not exist here. It was destroyed at the closing brace '}'.

Why this happens: The Stack unwinds at the end of a scope. Local variables are strictly temporary.

2. Confusing Reference with Data (Heap Confusion) Beginners often think that if they delete the reference, they delete the data on the Heap.

int[] cart = new int[] { 10, 20 };
int[] otherCart = cart; // Both point to the SAME array on the Heap

cart = null; // 'cart' now points to nothing.
             // The data on the Heap is NOT deleted yet because 'otherCart' still points to it!

Why this happens: The Garbage Collector only deletes Heap data when no references on the Stack point to it anymore. In the example above, the Heap data is safe because otherCart is still holding the address.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
