Chapter 19: Static vs Instance - Shared Data vs Individual Data

Theoretical Foundations

In Chapter 16, you learned how to create classes using the class keyword and instantiate them using the new keyword. You created objects that had their own data. In Chapter 17, you added fields and properties to those classes to store data. In Chapter 18, you used constructors to initialize that data when an object was created.

Now, we must introduce a critical distinction that governs how data exists in memory and how it is accessed: Static versus Instance.

The Core Analogy: The Whiteboard vs. The Notebook

Imagine a classroom.

  1. Instance Data (The Notebook): Every student has their own notebook. If Student A writes "5 + 5 = 10" in their notebook, Student B does not see it. Student B has their own notebook with their own data. This is Instance Data. It is unique to the specific object (the student).
  2. Static Data (The Whiteboard): There is one large whiteboard at the front of the room. If the teacher writes "Homework due Friday" on the whiteboard, every student in the class can see it. If Student A walks up and erases it, it is gone for everyone. This is Static Data. It is shared across the entire class (the application).

In C#, the static keyword is the mechanism that turns a field, property, or method into that shared whiteboard.

Memory Allocation: Stack vs. Heap Revisited

In Chapter 15, we discussed the Stack (local variables) and the Heap (objects). Let's apply this to static members.

Instance Members (The Heap)

When you write Car myCar = new Car(); (Chapter 16), the new keyword does two things:

  1. It allocates memory on the Heap for the object.
  2. It returns a reference (a pointer) to that memory location, stored in the variable myCar.

If you create a second car: Car secondCar = new Car();

You now have two distinct blocks of memory on the Heap. The myCar object has its own fields (like myCar.Color), and the secondCar object has its own separate fields (secondCar.Color). Changing one does not affect the other.

Static Members (A Special Heap Area)

Static members do not live inside the specific object instances. Instead, they live in a special area of memory managed by the CLR (Common Language Runtime), often referred to as the Managed Heap or a dedicated static data area.

  • There is only one copy of a static field, regardless of how many instances of the class you create.
  • The static memory is allocated when the class is first loaded by the application (usually when the program starts or when the class is first referenced).
  • It remains in memory until the application terminates.

Defining Static Members

You can declare fields, properties, and methods as static.

Static Fields

A static field belongs to the class itself, not to an instance.

using System;

public class BankAccount
{
    // Static field: Shared by all bank accounts.
    // Represents the total money held by the bank.
    public static double TotalBankAssets = 0;

    // Instance field: Unique to each specific account.
    public double Balance;

    public BankAccount(double initialDeposit)
    {
        this.Balance = initialDeposit;

        // We add to the static field.
        // This affects the total for the ENTIRE bank.
        BankAccount.TotalBankAssets += initialDeposit;
    }
}

public class Program
{
    public static void Main()
    {
        // Create first account
        BankAccount aliceAccount = new BankAccount(1000);
        Console.WriteLine($"Alice Balance: {aliceAccount.Balance}");
        Console.WriteLine($"Total Bank Assets: {BankAccount.TotalBankAssets}");

        // Create second account
        BankAccount bobAccount = new BankAccount(500);
        Console.WriteLine($"Bob Balance: {bobAccount.Balance}");

        // Notice: TotalAssets increased by 500, even though we didn't
        // touch the static field directly in this line.
        Console.WriteLine($"Total Bank Assets: {BankAccount.TotalBankAssets}");
    }
}

Key Observation: We access the static field using the class name BankAccount.TotalBankAssets, not an instance variable like aliceAccount.TotalBankAssets. While C# sometimes allows accessing static members through instances, it is bad practice and confusing. Always use the class name.

Static Properties

Just like static fields, static properties belong to the class.

public class ApplicationConfig
{
    // Static property to store a configuration setting
    public static string AppVersion { get; set; } = "1.0.0";
}

Static Methods

In Chapter 13, you learned to define static methods. Now we understand why they are static. A static method cannot access instance members (fields or properties) because it doesn't belong to a specific instance—it doesn't have a this reference.

public class MathHelper
{
    // Static method: Calculates the area of a circle.
    // It only needs the inputs provided; it doesn't need data from a specific 'MathHelper' object.
    public static double CalculateCircleArea(double radius)
    {
        return 3.14159 * radius * radius;
    }
}

public class Program
{
    public static void Main()
    {
        // We call the method directly on the class.
        double area = MathHelper.CalculateCircleArea(5.0);
        Console.WriteLine($"Area: {area}");
    }
}

The this Keyword and Static Context

In Chapter 17, we discussed the this keyword. this refers to the current instance of the class.

Rule: You cannot use this inside a static method or static property. Why? Because a static method is called on the class, not on an object. There is no "current object" to refer to.

public class Player
{
    public string Name; // Instance field

    public static void PrintGreeting()
    {
        // ERROR: The name 'this' does not exist in the current context
        // Console.WriteLine(this.Name);
    }
}

Practical Patterns for AI Applications

While we are building foundations, understanding where these concepts apply helps motivation. In AI application development (like building a chatbot or a model manager), static members are crucial for Global State Management.

1. The Singleton Pattern (Simulated with Statics)

In AI applications, you often have a configuration that must be available everywhere. For example, an API Key for OpenAI or a setting for which AI model to use.

Imagine a class AIConfiguration. You want this configuration to be accessible from anywhere in your code without passing it around constantly.

public class AIConfiguration
{
    // Static property: Shared across the entire application.
    // Once set, every part of the app can read it.
    public static string CurrentModel { get; set; } = "GPT-3.5";

    // Static method: A utility to switch models.
    public static void SwitchToLocalModel()
    {
        CurrentModel = "Local Llama 7B";
        Console.WriteLine($"Switched to {CurrentModel}");
    }
}

Usage Scenario: You have a ChatService class and a HistoryLogger class. Both need to know which model generated the text. Instead of passing the model name to every method, they simply read AIConfiguration.CurrentModel.

2. Shared Counters or Registries

When building AI agents that run in parallel (multithreading, though we haven't covered threads yet), you might want to track how many agents are currently active.

public class AIAgent
{
    // Static counter to track active agents
    public static int ActiveAgentCount = 0;

    public AIAgent()
    {
        // Increment the shared counter when a new agent is created
        ActiveAgentCount++;
    }

    public void Stop()
    {
        // Decrement when the agent stops
        ActiveAgentCount--;
    }
}

The Lifecycle and Initialization

Static Constructors

In Chapter 18, you learned about instance constructors (runs when new is called). C# also allows static constructors. These are used to initialize static data before the first instance is created or any static members are accessed.

  • Syntax: No access modifier (public/private) and no parameters.
  • Execution: Runs automatically once per application domain.
public class DatabaseConnection
{
    public static string ConnectionString;

    // Static Constructor
    static DatabaseConnection()
    {
        // This runs automatically before the class is used.
        // It might load a config file or set a default connection string.
        ConnectionString = "Server=myServer;Database=myDB;";
        Console.WriteLine("Static constructor called: Connection string initialized.");
    }

    public static void Connect()
    {
        Console.WriteLine($"Connecting using: {ConnectionString}");
    }
}

public class Program
{
    public static void Main()
    {
        // The static constructor runs right here, before Connect() executes.
        DatabaseConnection.Connect();
    }
}

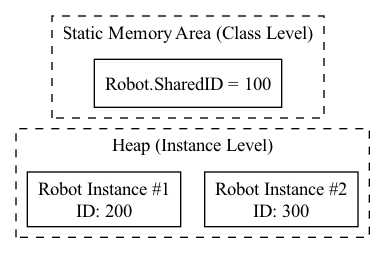

Visualizing the Data Structure

Let's visualize the memory layout of a class Robot that has one static field and one instance field.

A diagram illustrating the memory layout of a Robot class would show the static field stored in a shared memory area accessible to all instances, while each individual instance contains its own unique instance field.
Hold "Ctrl" to enable pan & zoom

A diagram illustrating the memory layout of a `Robot` class would show the static field stored in a shared memory area accessible to all instances, while each individual instance contains its own unique instance field.

Diagram Explanation:

  • The Static Memory holds SharedID. It is a single box.
  • The Heap holds two distinct instances. Each has its own ID (200 and 300).
  • Both instances can read SharedID from the static area, but they cannot see each other's instance data.

Architectural Implications: The "What If"

What if I use Static for everything?

If you make all your fields static, your application effectively becomes a collection of global variables. This is dangerous because:

  1. Tight Coupling: Any part of the code can change the data, making it hard to track where changes happen.
  2. Testing: It is very difficult to write unit tests for static methods that rely on static state because the state persists between tests.
  3. Memory: Static data stays in memory until the program ends. If you store large AI models in static fields, they will never be released from memory (Garbage Collected) until the app closes.

What if I use Instance for everything?

If you make everything instance-based, you might find yourself passing the same configuration object to hundreds of constructors. This is tedious and adds overhead.

The Balance

  • Use Static for: Utilities (Math), Global Configuration, Shared Resources (Database connections), Counters.
  • Use Instance for: Domain Entities (Users, Documents, AI Agents), UI Elements, anything that has unique state.

Summary of Concepts

  1. Instance Members: Belong to a specific object created with new. They live on the Heap. Each object has its own copy.
  2. Static Members: Belong to the class itself. There is only one copy shared by all instances (or no instances at all). They live in static memory.
  3. Access: Instance members are accessed via the variable name (e.g., myCar.Color). Static members are accessed via the class name (e.g., BankAccount.TotalAssets).
  4. Context: Static methods cannot use this or access instance fields directly. They operate in isolation from specific object state.

By mastering the separation of shared (static) and individual (instance) data, you ensure your C# applications are memory-efficient and logically organized, which is a prerequisite for building scalable AI systems.

Basic Code Example

Here is a practical, beginner-friendly code example demonstrating the difference between static and instance members.

Scenario: A Bank Account System

Imagine you are building a simple banking application. We need to track two things:

  1. Shared Data (Static): The total number of accounts created across the entire bank. This number is the same for everyone; if one account is created, the total count increases for the whole system.
  2. Individual Data (Instance): The balance of a specific account. Every customer has their own unique balance that doesn't affect others directly.

We will create a BankAccount class to model this.

using System;

// 1. CLASS DEFINITION
// We define a blueprint for bank accounts.
public class BankAccount
{
    // 2. STATIC MEMBER (Shared Data)
    // The 'static' keyword means this variable belongs to the class itself,
    // not to any specific object. It is shared by all instances.
    // We use 'int' for whole numbers.
    public static int TotalAccountsCreated = 0;

    // 3. INSTANCE MEMBERS (Individual Data)
    // These fields belong to a specific object created using 'new'.
    // Each account has its own balance and owner name.
    public double Balance; // 'double' handles decimal numbers
    public string OwnerName;

    // 4. CONSTRUCTOR
    // This runs automatically when we create a new account (using 'new').
    public BankAccount(string name, double startingBalance)
    {
        // Assign the individual data to this specific instance
        this.OwnerName = name;
        this.Balance = startingBalance;

        // Modify the SHARED static data.
        // Every time a new account is created, we increment the global counter.
        // Notice we don't use 'this.' for static members.
        TotalAccountsCreated++;
    }

    // 5. INSTANCE METHOD
    // This action affects only the specific account's balance.
    public void Deposit(double amount)
    {
        // Update the instance field
        this.Balance += amount;
        Console.WriteLine($"{this.OwnerName} deposited ${amount}. New Balance: ${this.Balance}");
    }

    // 6. STATIC METHOD
    // This action relates to the shared data, not a specific account.
    // It doesn't need a specific account to run.
    public static void DisplayBankStats()
    {
        // We can access the static variable directly
        Console.WriteLine($"--- BANK STATS ---");
        Console.WriteLine($"Total Active Accounts: {TotalAccountsCreated}");
        Console.WriteLine("-------------------");
    }
}

public class Program
{
    public static void Main()
    {
        // 7. CREATING INSTANCES
        // We create two distinct objects. They exist separately in memory.

        // First Account
        BankAccount aliceAccount = new BankAccount("Alice", 100.0);

        // Second Account
        BankAccount bobAccount = new BankAccount("Bob", 50.0);

        // 8. MODIFYING INSTANCE DATA
        // Only Alice's balance changes here. Bob's remains untouched.
        aliceAccount.Deposit(200.0);

        // 9. ACCESSING STATIC DATA
        // We call the static method on the CLASS, not on a specific variable.
        // It shows the total count (2), proving the static variable is shared.
        BankAccount.DisplayBankStats();

        // 10. VERIFYING ISOLATION
        // Let's check Bob's balance to prove it wasn't affected by Alice's deposit.
        Console.WriteLine($"{bobAccount.OwnerName}'s Balance: ${bobAccount.Balance}");
    }
}

Code Breakdown

  1. The Class Definition (BankAccount): This acts as the template. We don't have any actual money or people yet; we are just defining what a bank account looks like.

  2. public static int TotalAccountsCreated = 0;: This is the Static member.

    • Visual: Imagine a whiteboard in the center of the room that everyone can see.
    • Behavior: When Alice creates an account, we write "1" on the board. When Bob creates an account, we change the number to "2". The board belongs to the room (the Class), not to Alice or Bob.

  3. public double Balance; and public string OwnerName;: These are Instance members.

    • Visual: Imagine a personal notebook for each customer.
    • Behavior: Alice has a notebook with her balance (\(100). Bob has a separate notebook with his balance (\)50). Writing in Alice's notebook does not change the numbers in Bob's notebook.

  4. The Constructor (public BankAccount(...)): This is the factory line that builds the objects.

    • It takes the specific details (name, starting money) and stores them in the instance fields (this.OwnerName, this.Balance).
    • Crucially, it increments the Static counter (TotalAccountsCreated++). This happens every single time the constructor runs, regardless of who the customer is.

  5. Deposit Method: This is an Instance method. It requires a specific object to run (aliceAccount.Deposit(...)). It modifies the data inside that specific object's notebook.

  6. DisplayBankStats Method: This is a Static method. It does not need a specific notebook to run. It only looks at the shared whiteboard (TotalAccountsCreated). We call it using the class name: BankAccount.DisplayBankStats().

  7. The Main Execution:

    • We create aliceAccount first. The static counter goes to 1.
    • We create bobAccount second. The static counter goes to 2.
    • We deposit money into Alice's account. Her balance becomes 300. Bob's balance stays at 50.
    • We print the stats. The static method reports 2 accounts.
    • We print Bob's balance to confirm isolation.

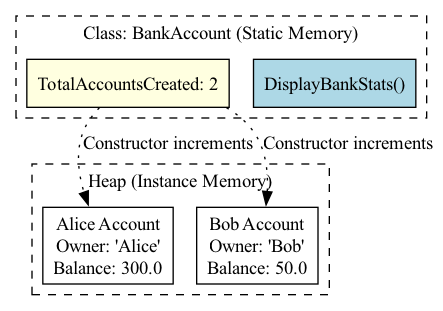

Visualizing Memory

Here is a diagram showing how the computer views these concepts.

A diagram illustrating how Bob's balance is stored in a specific memory location, separate from other variables, to visually demonstrate the concept of data isolation.
Hold "Ctrl" to enable pan & zoom

A diagram illustrating how Bob's balance is stored in a specific memory location, separate from other variables, to visually demonstrate the concept of data isolation.

Common Pitfalls

1. Trying to access instance members from a static context: A very common error for beginners is trying to use an instance variable inside a static method without creating an object first.

// ❌ WRONG CODE
public static void DisplayBankStats()
{
    // Error: Cannot access non-static field 'OwnerName' in static context
    Console.WriteLine($"Account owner: {OwnerName}");
}
Why: The static method belongs to the Class (the blueprint). It doesn't know which specific object's OwnerName you are referring to because no object has been created yet. To fix this, you must pass the specific object as a parameter or make the variable static.

2. Forgetting the static keyword for shared data: If you remove static from TotalAccountsCreated, every account will have its own separate counter starting at 0.

// ❌ LOGIC ERROR
public int TotalAccountsCreated = 0; // Instance variable now

// In Main:
// Alice.TotalAccountsCreated is 1
// Bob.TotalAccountsCreated is 1 (It didn't share!)
Why: Without static, the variable is part of the instance, not the class. Always use static when the data should be the same for everyone using that class.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Code License: All code examples are released under the MIT License. Github repo.

Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
