Chapter 22: Data Normalization - Converting Ranges (Loops + Math)

Theoretical Foundations

The core problem we are solving in this chapter is mapping a value from one range of numbers to another. Imagine you have a physical sensor, like a temperature gauge, that outputs a voltage between 0.0 and 5.0 volts. However, your application needs to display this as a temperature between -10°C and 40°C. You need a mathematical way to translate the voltage reading into the correct temperature value, regardless of what the specific ranges are.

This process is called Linear Interpolation. It is the mathematical foundation for normalizing data, scaling UI animations, and processing sensor inputs in AI applications.

The Mathematical Formula

To convert a value x from a range [minA, maxA] to a range [minB, maxB], we use the following formula:

\[y = \frac{(x - minA)}{(maxA - minA)} \times (maxB - minB) + minB\]

Let's break this down step-by-step using the allowed concepts from Chapter 4: Arithmetic and Chapter 21: System.Math.

Normalization (0 to 1): The first part of the formula, (x - minA) / (maxA - minA), calculates where x sits relative to the start of its range.
- If x is equal to minA, the numerator is 0, resulting in 0.
- If x is equal to maxA, the numerator equals the denominator, resulting in 1.
- This gives us a percentage (or ratio) representing the position of x within its original range.
Scaling: We then multiply this ratio by the size of the target range, (maxB - minB). This stretches or shrinks the ratio to fit the width of the new range.
Shifting: Finally, we add minB. This shifts the result so that it starts at the beginning of the target range rather than at 0.

The C# Implementation

We will implement this using Chapter 9: for loops to iterate through a collection of values and Chapter 2: Variables to store our calculations. We will also rely heavily on Chapter 4: Arithmetic and Chapter 22: Casting types, as mixing integers and floating-point numbers is common in these calculations.

Here is a complete, executable example using only allowed concepts. We will simulate a list of raw sensor data (integers from 0 to 1023) and convert them to a percentage (0.0 to 100.0).

using System;

public class RangeConverter
{
    public static void Main()
    {
        // Simulating raw sensor data (0 to 1023) using an Array (Chapter 11)
        int[] sensorReadings = new int[] { 0, 256, 512, 768, 1023 };

        // Define our ranges
        // Input range (Raw Sensor)
        int minInput = 0;
        int maxInput = 1023;

        // Output range (Percentage)
        double minOutput = 0.0;
        double maxOutput = 100.0;

        Console.WriteLine("Converting Sensor Data to Percentage:");
        Console.WriteLine("-------------------------------------");

        // Iterate through the array using a foreach loop (Chapter 12)
        foreach (int rawValue in sensorReadings)
        {
            // MATH CALCULATION (Chapter 4 & 21)

            // Step 1: Calculate the size of the input and output ranges
            // We cast to double to ensure we don't lose precision during division
            double inputRangeSize = (double)maxInput - (double)minInput;
            double outputRangeSize = maxOutput - minOutput;

            // Step 2: Normalize the input value (0.0 to 1.0)
            // We cast rawValue to double to perform floating-point division
            double normalizedValue = ((double)rawValue - (double)minInput) / inputRangeSize;

            // Step 3: Scale and Shift to the output range
            double finalValue = (normalizedValue * outputRangeSize) + minOutput;

            // Output the result (Chapter 3: String Interpolation)
            Console.WriteLine($"Raw: {rawValue} -> Mapped: {finalValue:F2}%");
        }
    }
}

Visualizing the Flow

The process involves taking a discrete set of inputs and transforming them through a mathematical pipeline. Here is the logical flow of the data:

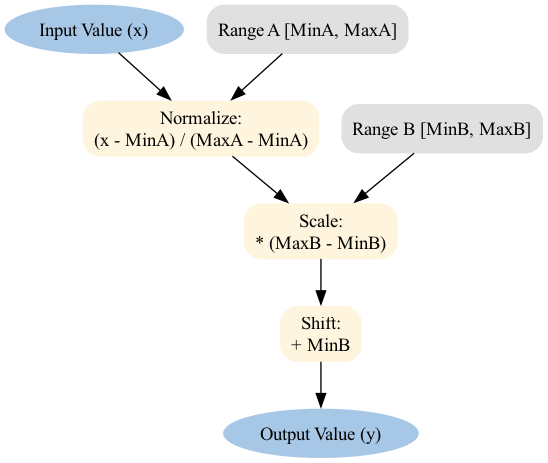

A diagram illustrates the three-step mathematical pipeline for linearly mapping an input range to an output range: normalizing the raw value relative to the input range, scaling it to the output range size, and shifting it to the minimum output value.

Edge Cases and Precision

When implementing this logic, you must be mindful of data types, a concept introduced in Chapter 2: Variables and Chapter 22: Casting types.

1. Integer Division Trap In C#, dividing an integer by an integer results in an integer (truncating the decimal). For example, 5 / 10 equals 0, not 0.5. In our formula, (x - minA) / (maxA - minA) often results in a fraction.

_Solution: You must cast at least one operand to a floating-point type (double or float) before the division. In the code example, we cast rawValue and minInput to double.

2. Division by Zero The denominator (maxA - minA) represents the size of the input range. If maxA equals minA, the size is zero, and dividing by zero will crash the program.

_Solution: Before performing the division, you should check if the input range size is zero using an if statement (Chapter 6). If it is, the input value is technically at the only possible point in the range, so you can return the starting value of the output range (minB) or handle it as an error.

// Example of handling division by zero
double inputRangeSize = maxInput - minInput;

if (inputRangeSize == 0)
{
    // The input range has no width, so we cannot calculate a ratio.
    // Return the start of the output range.
    return minOutput;
}

double normalizedValue = ((double)rawValue - minInput) / inputRangeSize;

Real-World Application: AI and Data Normalization

In Artificial Intelligence, specifically when preparing data for machine learning models, normalization is a critical preprocessing step. Neural networks often perform best when input data is scaled to a specific range, typically between 0 and 1, or -1 and 1.

While the formula we discussed maps a value from [Min, Max] to [0, 1], the logic remains identical to our example. We simply set minOutput = 0 and maxOutput = 1.

Why is this relevant to AI?

Feature Scaling: Imagine an AI model predicting house prices. One feature is "Square Footage" (range 500 to 5000), and another is "Number of Bedrooms" (range 1 to 5). Without normalizing these to a common range (like 0 to 1), the "Square Footage" feature would dominate the model's calculations simply because the numbers are larger, not because they are more important. Normalization ensures fair contribution.
Activation Functions: Many neural networks use activation functions (like Sigmoid or Tanh) that operate efficiently within specific numerical bounds. Feeding raw, unnormalized data can cause "exploding gradients" or "vanishing gradients," preventing the AI from learning effectively.

By mastering the linear interpolation formula and implementing it with C# loops, you are building the mathematical toolkit required to preprocess data before feeding it into complex AI algorithms.

Basic Code Example

using System;

// PROBLEM CONTEXT:
// Imagine you are building a user interface for a music player.
// A volume slider on the screen is 200 pixels wide.
// The internal volume level for the audio system, however, works on a scale of 0.0 to 1.0.
// When a user drags the slider to the middle (100 pixels), we need to calculate
// the corresponding volume level (0.5).
// This is a classic "Range Conversion" problem. We need to convert a value from
// one range (0 to 200) to another (0.0 to 1.0).

public class RangeConverter
{
    public static void Main()
    {
        // --- 1. DEFINING THE RANGES ---
        // We define the input range (the slider's position) and the output range (the volume).
        // Input Range: 0 to 200 pixels
        // Output Range: 0.0 to 1.0 volume

        double inputStart = 0;     // Minimum slider position
        double inputEnd = 200;     // Maximum slider position

        double outputStart = 0.0;  // Minimum volume
        double outputEnd = 1.0;    // Maximum volume

        // --- 2. THE INPUT VALUE ---
        // Let's say the user has dragged the slider to position 150.
        double currentPosition = 150;

        // --- 3. THE MATH LOGIC (Linear Interpolation) ---
        // To convert ranges, we need to perform three specific calculations:

        // Step A: Calculate the size of the input and output ranges.
        double inputRange = inputEnd - inputStart;   // 200 - 0 = 200
        double outputRange = outputEnd - outputStart; // 1.0 - 0.0 = 1.0

        // Step B: Calculate how far the current position is through the input range (as a percentage/decimal).
        // We subtract the start from the current position, then divide by the total range size.
        // (150 - 0) / 200 = 0.75
        double howFarThrough = (currentPosition - inputStart) / inputRange;

        // Step C: Apply that percentage to the output range.
        double result = outputStart + (howFarThrough * outputRange);
        // 0.0 + (0.75 * 1.0) = 0.75

        // --- 4. DISPLAYING THE RESULT ---
        Console.WriteLine($"The slider is at {currentPosition}.");
        Console.WriteLine($"The calculated volume level is: {result}");

        // Let's try another value to be sure.
        currentPosition = 50;

        // We can reuse the logic, or create a method (see below).
        // Recalculating manually for demonstration:
        howFarThrough = (currentPosition - inputStart) / inputRange;
        result = outputStart + (howFarThrough * outputRange);

        Console.WriteLine($"\nIf the slider is at {currentPosition}...");
        Console.WriteLine($"The calculated volume level is: {result}");
    }
}

Explanation of the Logic

Define the Boundaries: We establish the minimum and maximum values for both the source (the slider) and the target (the volume). We use double variables because we need to handle decimal points for precise calculations.
Calculate the Range Sizes: We find the total "distance" of the input and output ranges by subtracting the minimum from the maximum.
Normalize the Input: We determine where the currentPosition sits relative to the start of the input range. By dividing this distance by the total input range size, we get a value between 0.0 and 1.0 (representing 0% to 100%).
Scale to Output: We take that normalized percentage and multiply it by the size of the output range. Adding the outputStart value ensures the result sits correctly within the desired output boundaries.

Refactoring into a Reusable Method

While the math above works, repeating it every time you need to convert a value is tedious. We can use the concepts from Chapter 13 (Defining Methods) and Chapter 14 (Parameters and Return Values) to make this cleaner.

using System;

public class SmartConverter
{
    // We define a method that accepts the value and all range boundaries as parameters.
    // It returns a double containing the converted value.
    public static double ConvertRange(double value, double inStart, double inEnd, double outStart, double outEnd)
    {
        // Calculate the size of the ranges
        double inRangeSize = inEnd - inStart;
        double outRangeSize = outEnd - outStart;

        // Calculate the percentage of the input range the value covers
        double percentage = (value - inStart) / inRangeSize;

        // Apply that percentage to the output range
        double finalValue = outStart + (percentage * outRangeSize);

        return finalValue;
    }

    public static void Main()
    {
        // Scenario: Converting a temperature from Celsius (0-100) to Farenheit (32-212)
        double celsiusValue = 50.0;

        double fahrenheit = ConvertRange(celsiusValue, 0, 100, 32, 212);

        Console.WriteLine($"{celsiusValue}°C is equal to {fahrenheit}°F");
    }
}

Visualizing the Data Flow

The data moves in a straight line (linearly) from the input to the output.

A linear transformation maps an input value from one scale (0–100°C) to a corresponding output value on another scale (32–212°F).

Common Pitfalls

Integer Division Truncation: This is the most common error in range conversion.
- The Mistake: If you perform the calculation (150 - 0) / 200 using int variables, C# performs integer division. Since 0.75 is not a whole number, C# truncates it to 0.
- The Result: 0 * outputRange is always 0. Your conversion will fail for any value that isn't exactly the maximum.
- The Fix: Always use double or float for range calculations to preserve the decimal points. Ensure at least one number in the division is a double (e.g., 150.0 / 200.0).
Dividing by Zero:
- The Mistake: If inputStart and inputEnd are the same number (e.g., 10 and 10), the inputRange becomes 0.
- The Result: The code will crash with a DivideByZeroException.
- The Fix: In a real-world application, you should check if the range is zero before performing the division.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
