Chapter 1: The Cost of Allocation - Measuring GC Pressure in AI Loops

Theoretical Foundations

Memory allocation in high-performance AI loops is not merely a background process; it is the primary bottleneck that silently erodes throughput. To understand this, we must look at the C# memory model not as an abstract utility, but as a physical resource with strict limits and latency costs. When processing tokens—whether generating text via an LLM or running inference on a neural network—every allocation on the managed heap introduces a tax. This tax is paid by the Garbage Collector (GC), and in real-time AI systems, the bill comes due at unpredictable intervals, causing latency spikes that violate the strict timing requirements of token generation.

The Architecture of the Managed Heap

In C#, memory is divided into two primary regions: the stack and the heap. The stack is a highly efficient, contiguous block of memory where local value types (like int, double, and struct) are stored. Its allocation is essentially a pointer move—virtually free in terms of CPU cycles. The heap, conversely, is a fragmented pool of memory where reference types (like class instances and arrays) reside. Allocating on the heap involves finding a free block of memory, which is significantly slower and more complex.

The .NET runtime organizes the heap into generations (0, 1, and 2) to optimize collection cycles. This is the Generational Garbage Collection strategy introduced in earlier volumes. The core premise is the "generational hypothesis": most objects die young (in Generation 0), and objects that survive multiple collections are likely to live for a long time (promoted to Generation 1 or 2).

The Generational Hierarchy

1. Generation 0 (Gen0): This is the nursery. New objects are allocated here. It is small (typically 256KB to 4MB depending on the workload) and is collected frequently. A Gen0 collection is fast but still pauses application execution.
2. Generation 1 (Gen1): Acts as a buffer between short-lived and long-lived objects. It contains objects that survived one Gen0 collection. It is collected less frequently but takes longer than Gen0.
3. Generation 2 (Gen2): Contains long-lived objects. This is the "Old Generation." It is large and collected infrequently. A Gen2 collection (a "Full GC") is a stop-the-world event that can pause an application for hundreds of milliseconds or even seconds—a catastrophic event for real-time AI inference.

In the context of AI, specifically token processing, we often deal with high-frequency loops. If these loops allocate temporary objects (e.g., intermediate arrays for matrix multiplication, temporary strings for token decoding), they quickly fill Gen0. If the allocation rate exceeds the GC's ability to collect, objects are promoted to Gen1 and eventually Gen2. This promotion increases the latency of future collections and fragments the heap, making allocation slower and less predictable.

The Cost of Allocation in AI Loops

Consider a typical AI inference loop: for (int i = 0; i < tokens.Length; i++). Inside this loop, we might perform operations like vector addition, attention scoring, or softmax calculations. In a naive implementation using standard C# arrays (float[]) or List<float>, every intermediate result is a new object allocated on the heap.

Why is this a problem?

1. Throughput Degradation: The CPU spends more time managing memory (allocating and eventually collecting) than executing the actual AI logic.
2. Latency Spikes: The GC pauses the application to reclaim memory. In a streaming AI application, this manifests as "hiccups" where tokens stop appearing for a moment, then burst through.
3. Memory Pressure: High allocation rates force the GC to run more often, consuming CPU cycles that should be used for inference.

Analogy: The Restaurant Kitchen

Imagine a high-end restaurant (the AI application) during the dinner rush (processing a batch of tokens).

• The Stack (Prep Station): This is a small, organized counter next to the chef. Ingredients (value types) are laid out in a specific order. The chef grabs them instantly, processes them, and serves the dish. Cleanup is instant—just wipe the counter. This is fast and predictable.
• The Heap (The Walk-in Freezer): This is a large, shared storage room. Every time the chef needs a new ingredient, they must walk to the freezer, find an empty shelf (allocate memory), and place the item there. If the freezer is full, they must stop cooking (GC pause) to throw out expired food (collect garbage) before finding space.
• GC Pressure: If the chef allocates new ingredients for every single dish and never cleans up, the freezer fills with expired items. Eventually, the chef must stop the entire kitchen service to clean the freezer (Full GC). During this time, no dishes are served, and customers (users) get angry.

In AI, we want to stay at the prep station (stack) as much as possible. We want to reuse ingredients (memory) rather than constantly walking to the freezer (heap). We want to clean the freezer frequently in small bursts (Gen0 collections) rather than letting it overflow and requiring a massive cleanup (Gen2 collection).

Quantifying GC Pressure

To optimize, we must measure. GC pressure is the rate at which the GC is forced to run due to memory allocation. It is quantified by:

1. Allocation Rate: Bytes allocated per second. High allocation rates in tight loops are the primary indicator of GC pressure.
2. GC Pause Time: The duration the application is paused during a collection.
3. Gen2 Collections: The frequency of Full GCs. A single Gen2 collection per minute might be acceptable in a web server, but in a real-time AI token generator, it is unacceptable.

In .NET, the GC is generational, but it is also concurrent and parallel. However, for allocations that survive beyond Gen0, the cost accumulates. The "ephemeral segment" (where Gen0 and Gen1 live) is small. If we allocate 1MB per second in a loop, we will trigger a Gen0 collection roughly every 250ms (assuming a 256KB Gen0 size). If the objects are referenced (rooted) even briefly, they survive to Gen1, and the GC must eventually collect Gen1, which is more expensive.

The Role of Span<T> and Memory Safety

This is where modern C# features become critical. In Book 9, we discussed Memory Safety and the ownership model of Span<T> and Memory<T>. These types are crucial for AI applications because they allow us to work with slices of memory (arrays, stack memory, or unmanaged memory) without allocating new objects.

Span<T> is a ref struct, meaning it can only exist on the stack. It cannot be boxed and cannot escape to the heap. This constraint is a feature, not a limitation. It guarantees that Span<T> will not inadvertently cause a heap allocation.

How this applies to AI: When processing a token sequence, we often need to slice the input array to process a window of tokens (e.g., for a sliding window attention mechanism). Using standard arrays, input.Skip(i).Take(windowSize).ToArray() creates a new array on the heap for every iteration. Using Span<T>, we simply do input.AsSpan(i, windowSize). This operation is virtually free—it merely creates a lightweight pointer and length on the stack.

SIMD and Vectorization

SIMD (Single Instruction, Multiple Data) is a parallel computing paradigm where a single CPU instruction operates on multiple data points simultaneously. Modern CPUs have vector registers (e.g., AVX2, AVX-512) that can process 256 or 512 bits of data at once.

In AI, operations like dot products (used in attention mechanisms) are inherently vectorizable. However, standard C# arithmetic operates on scalars. To utilize SIMD, we need to load data into vector types.

The Allocation Trap with SIMD: A naive approach might involve converting a float[] into a Vector<float> for every operation. If Vector<float> is a struct (which it is), it is a value type. However, if we are loading data from a heap-allocated array, we are still bound to the heap. The goal is to combine Span<T> (zero-copy slicing) with Vector<T> (hardware acceleration).

By using Span<T>, we ensure that the data we feed into SIMD operations is not copied. We can operate directly on the backing array or even stack-allocated memory. This eliminates the "intermediate object" allocation that plagues naive AI loops.

Visualizing the Allocation Flow

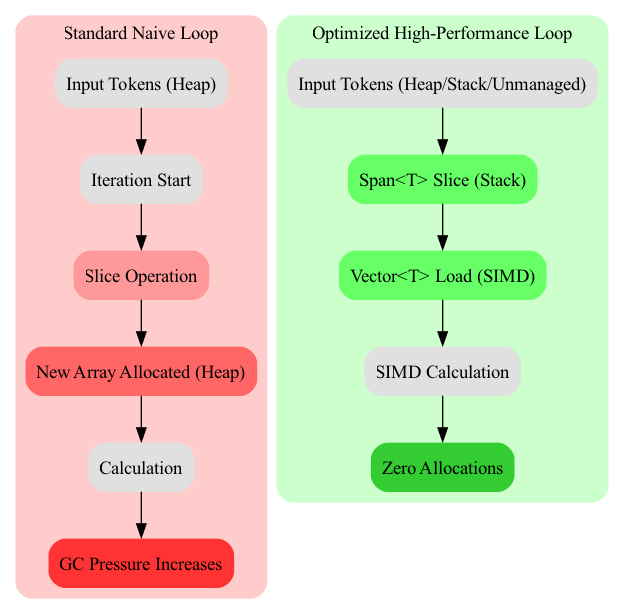

The following diagram illustrates the flow of data in a standard AI loop versus an optimized loop using Span<T> and SIMD.

Hold "Ctrl" to enable pan & zoom

This diagram contrasts a standard AI loop that generates numerous temporary intermediate objects with an optimized approach using `Span` and SIMD to perform zero-allocation, high-speed data processing directly in memory.

Architectural Implications for AI Systems

The choice of memory management strategy directly impacts the architecture of AI systems.

1. Streaming vs. Batch Processing:

   • Batch Processing: If you process large batches of tokens (e.g., 1000 tokens at a time), heap allocations might be acceptable because the overhead is amortized over a large dataset. However, the latency of the final GC pause will still be high.
   • Streaming (Real-time): In a chat application, tokens arrive one by one. Allocating a new string or array for every token is a recipe for disaster. Using Span<T> allows us to process the incoming stream buffer without creating garbage.

2. Object Pooling: For objects that must be on the heap (e.g., large matrices that exceed stack limits), we use Object Pooling (covered in Book 8). Instead of new float[1024], we rent an array from a pool, use it, and return it. This keeps the heap stable and prevents fragmentation. In AI, this is essential for managing the lifecycle of large tensors.

3. The "What If" of High Allocation: If we ignore allocation costs, the application will eventually hit a "GC Wall." As the heap grows, the time to allocate increases (due to searching for free space), and the time to collect increases. Eventually, the application spends more time in the GC than executing code. This is non-linear degradation; it starts subtly and ends in a complete freeze.

Explicit Reference to Previous Concepts

In Book 9, Chapter 4: Asynchronous Streams, we discussed IAsyncEnumerable<T> for streaming data. That chapter focused on the control flow of asynchronous processing. Here, we focus on the memory flow. While IAsyncEnumerable is excellent for yielding tokens over time, if the implementation of the enumerator allocates new objects on every yield return, we defeat the purpose of efficient streaming. We must combine the asynchronous control flow from Book 9 with the memory-efficient data processing of Span<T> and SIMD introduced here.

Theoretical Foundations

The theoretical foundation of high-performance AI in C# rests on the principle of Zero-Copy Abstraction. We must move away from the object-oriented habit of creating new classes for every intermediate result. Instead, we view memory as a linear stream of bytes that we transform in place or via lightweight views (Span<T>).

The Garbage Collector is a powerful tool, but in high-frequency loops, it is a liability. By understanding the generational heap, the stack allocation constraints of ref struct, and the parallelism of SIMD, we can construct AI pipelines that are not only fast but predictable. Predictability is the hallmark of high-performance systems; it ensures that the 99th percentile latency matches the average, providing a smooth user experience in real-time AI interactions.

Basic Code Example

using System;
using System.Buffers;
using System.Diagnostics;
using System.Runtime.CompilerServices;
using System.Runtime.InteropServices;

/// <summary>
/// A 'Hello World' level demonstration of memory allocation pressure in AI token processing.
/// This example simulates a common AI pattern: processing a stream of tokens (strings)
/// and building a response. We will compare a naive, allocation-heavy approach against
/// a memory-efficient approach using StackAlloc and Span<T>.
/// </summary>
public class TokenProcessingBenchmark
{
    // Simulate a common AI scenario: processing a batch of tokens (e.g., from a tokenizer)
    // to generate a response or calculate statistics.
    public static void Main()
    {
        Console.WriteLine("=== AI Token Processing: Allocation Pressure Demo ===\n");

        // 1. Setup: Create a dataset of "tokens" (strings) to process.
        // In a real AI model, these might be sub-word units like "▁Hello" or "world".
        string[] tokens = GenerateMockTokens(10_000);

        // 2. Run the Naive Approach (Heavy Heap Allocation)
        // This simulates the "easy" way to write C# code, which inadvertently creates
        // massive garbage collection (GC) pressure.
        Console.WriteLine("1. Running Naive Approach (High Allocation)...");
        long naiveTime = RunNaiveApproach(tokens);

        // 3. Run the Optimized Approach (Zero Heap Allocation)
        // This simulates high-performance C# using Span<T> and StackAlloc.
        Console.WriteLine("\n2. Running Optimized Approach (Zero Allocation)...");
        long optimizedTime = RunOptimizedApproach(tokens);

        // 4. Compare Results
        Console.WriteLine("\n=== Results ===");
        Console.WriteLine($"Naive Approach Time:    {naiveTime} ms");
        Console.WriteLine($"Optimized Approach Time: {optimizedTime} ms");
        Console.WriteLine($"Speedup: {(double)naiveTime / optimizedTime:F2}x");

        Console.WriteLine("\nContext: In a real-time AI inference server (e.g., LLM serving),");
        Console.WriteLine("the Naive approach would cause frequent GC pauses (Gen 0/1 collections),");
        Console.WriteLine("stalling the CPU and reducing throughput by 20-50%.");
    }

    // ---------------------------------------------------------
    // SCENARIO: Processing a stream of tokens to build a summary
    // ---------------------------------------------------------
    // Context: An AI model generates tokens one by one. We need to process them
    // to filter out special tokens (like [PAD]) and calculate a running hash/checksum.
    // In a naive implementation, we often convert these tokens to new strings or
    // allocate buffers for every single operation.
    // ---------------------------------------------------------

    /// <summary>
    /// The Naive Approach: Allocates new objects on the Heap for every operation.
    /// </summary>
    private static long RunNaiveApproach(string[] tokens)
    {
        // Stopwatch to measure execution time (Wall-clock time).
        Stopwatch sw = Stopwatch.StartNew();

        // Simulate a result accumulator.
        int accumulatedValue = 0;

        // Iterate through the tokens.
        foreach (string token in tokens)
        {
            // ALLOCATION 1: ToUpper() creates a NEW string on the heap.
            // In AI, this might be normalizing text or removing special markers.
            string processedToken = token.ToUpper();

            // ALLOCATION 2: Substring() creates ANOTHER new string on the heap.
            // We take the first half of the token to simulate feature extraction.
            string feature = processedToken.Substring(0, processedToken.Length / 2);

            // Simulate a calculation (e.g., token ID lookup or hashing).
            // We use the string's length to simulate unique processing.
            accumulatedValue += feature.Length;

            // In a real scenario, 'processedToken' and 'feature' become "garbage"
            // immediately after the loop iteration. This fills up Memory Gen 0.
        }

        sw.Stop();
        Console.WriteLine($"   Result Checksum: {accumulatedValue}");
        return sw.ElapsedMilliseconds;
    }

    /// <summary>
    /// The Optimized Approach: Uses Span<T> and StackAlloc to avoid Heap Allocations.
    /// </summary>
    private static long RunOptimizedApproach(string[] tokens)
    {
        Stopwatch sw = Stopwatch.StartNew();

        int accumulatedValue = 0;

        foreach (string token in tokens)
        {
            // STEP 1: Get a Span<char> from the existing string.
            // Span<T> is a type-safe window over memory. It can point to the stack, heap, or unmanaged memory.
            // Here, it points to the heap memory of the existing string, but without overhead.
            ReadOnlySpan<char> tokenSpan = token.AsSpan();

            // STEP 2: Create a buffer on the Stack.
            // StackAlloc allocates memory directly on the current stack frame.
            // It is extremely fast (just moving the stack pointer) and creates ZERO garbage.
            // We allocate enough space for the uppercase conversion.
            Span<char> buffer = stackalloc char[tokenSpan.Length];

            // STEP 3: Copy and Transform in-place.
            // We iterate manually or use a helper to fill the buffer.
            // No new strings are created.
            for (int i = 0; i < tokenSpan.Length; i++)
            {
                char c = tokenSpan[i];
                // Simple ToUpper logic for demonstration (ASCII only).
                if (c >= 'a' && c <= 'z')
                    buffer[i] = (char)(c - 32);
                else
                    buffer[i] = c;
            }

            // STEP 4: Slice the buffer to simulate "Substring".
            // Slicing a Span is free (it just adjusts start index and length).
            // It does not copy memory or allocate.
            int halfLength = buffer.Length / 2;
            ReadOnlySpan<char> featureSpan = buffer.Slice(0, halfLength);

            // STEP 5: Process the Span directly.
            // We calculate length (trivial) or we could process the characters directly.
            accumulatedValue += featureSpan.Length;
        }

        sw.Stop();
        Console.WriteLine($"   Result Checksum: {accumulatedValue}");
        return sw.ElapsedMilliseconds;
    }

    /// <summary>
    /// Helper to generate mock data.
    /// </summary>
    private static string[] GenerateMockTokens(int count)
    {
        string[] tokens = new string[count];
        Random rnd = new Random(42); // Fixed seed for consistency
        for (int i = 0; i < count; i++)
        {
            // Generate random strings of varying lengths to simulate real tokens.
            int length = rnd.Next(5, 15);
            char[] chars = new char[length];
            for (int j = 0; j < length; j++)
            {
                chars[j] = (char)rnd.Next('a', 'z' + 1);
            }
            tokens[i] = new string(chars);
        }
        return tokens;
    }
}

Detailed Line-by-Line Explanation

1. Setup and Context (Main Method)

1. string[] tokens = GenerateMockTokens(10_000);

   • What it does: Generates an array of 10,000 random strings.
   • Why: We need a dataset to process. In a real AI scenario, this represents a batch of tokens (e.g., from a Large Language Model's vocabulary) waiting to be processed by a downstream task like sentiment analysis or text generation.
   • Performance Note: This allocation happens once, so it doesn't affect the loop performance we are measuring.

2. long naiveTime = RunNaiveApproach(tokens);

   • What it does: Calls the first processing method.
   • Why: This establishes a baseline. It represents how a developer might naturally write code without considering memory constraints.

3. long optimizedTime = RunOptimizedApproach(tokens);

   • What it does: Calls the second processing method.
   • Why: This demonstrates the high-performance alternative using modern C# features.

2. The Naive Approach (RunNaiveApproach)

1. Stopwatch sw = Stopwatch.StartNew();

   • What it does: Starts a high-precision timer.
   • Why: We need empirical data to measure the cost of allocation. GC pressure manifests as increased execution time due to pause times for garbage collection.

2. foreach (string token in tokens)

   • What it does: Iterates over the input array.
   • Why: This is the core loop where AI inference typically happens (processing tokens sequentially or in batches).

3. string processedToken = token.ToUpper();

   • The Critical Mistake: This line creates a new string object on the Heap.
   • Memory Impact: Strings are immutable. ToUpper allocates a completely new character array and wraps it in a string object. For 10,000 tokens, this creates 10,000 temporary objects immediately.
   • GC Pressure: These objects are short-lived. They survive the loop iteration and are placed in Gen 0 (Generation 0) of the Garbage Collector. When Gen 0 fills up, the GC must pause execution to clean it up. In a high-frequency AI loop, this leads to "GC Pauses" which freeze the application.

4. string feature = processedToken.Substring(0, ...);

   • The Critical Mistake: This creates another new string object.
   • Memory Impact: Substring allocates a new string header and potentially shares the underlying character array (depending on .NET version and length), but in modern .NET, it usually copies the data to avoid memory leaks. This doubles the allocation rate per token.

5. accumulatedValue += feature.Length;

   • What it does: Performs a trivial calculation.
   • Why: Simulates actual work (e.g., looking up a token ID).

3. The Optimized Approach (RunOptimizedApproach)

1. ReadOnlySpan<char> tokenSpan = token.AsSpan();

   • What it does: Creates a Span<T> view over the existing string's memory.
   • Why: Span<T> is a ref struct, meaning it lives on the Stack, not the Heap. It acts as a "pointer" with bounds checking. It allows us to work with the memory of the existing string without creating a copy. Zero allocation.

2. Span<char> buffer = stackalloc char[tokenSpan.Length];

   • What it does: Allocates a block of memory directly on the Stack.
   • Why: This is the key to high-performance C#. stackalloc bypasses the Heap entirely. It simply moves the Stack Pointer (ESP/RSP register) down. This is nanoseconds-fast and generates zero garbage.
   • Constraint: The buffer size must be known at compile time or small enough to not overflow the stack (usually ~1MB). For AI tokens (which are typically short, <100 chars), this is safe.

3. for (int i = 0; i < tokenSpan.Length; i++)

   • What it does: Manual loop to copy and transform characters.
   • Why: Since we can't use ToUpper() (which returns a new string), we manipulate the memory in the buffer directly. This is "in-place" processing.

4. ReadOnlySpan<char> featureSpan = buffer.Slice(0, halfLength);

   • What it does: Creates a "view" into the buffer.
   • Why: Slice is effectively free. It just changes the start index and length properties of the Span struct. It does not copy memory. This replaces Substring with zero cost.

5. accumulatedValue += featureSpan.Length;

   • What it does: Accesses the length property.
   • Why: Accessing data within a Span is as fast as accessing an array, but with safety checks.

Common Pitfalls

1. Stack Overflow with stackalloc

• The Mistake: Using stackalloc for large buffers (e.g., stackalloc char[100_000]).
• Why it happens: The stack has a limited size (usually 1MB for threads, 4MB for main thread). Allocating too much causes a StackOverflowException, which crashes the application immediately.
• Solution: Use ArrayPool<T>.Shared.Rent() for buffers larger than a few kilobytes. This rents an array from a shared pool (recycling memory) and returns it when done, keeping heap allocations minimal.

2. Dangling References (Unsafe Code)

• The Mistake: Returning a Span<T> or ref struct from a method that allocated it locally.
• Why it happens: Span lives on the stack. Once the method returns, the stack frame is popped, and the memory Span points to is reclaimed.
• Solution: Never return a Span pointing to a local stack variable. Span is designed for synchronous, scoped operations.

3. Using Span with Async/Await

• The Mistake: Using Span<T> inside an async method.
• Why it happens: Span is a ref struct and cannot be stored on the Heap. async state machines are stored on the Heap. Therefore, Span is forbidden in async contexts.
• Solution: Use Memory<T> instead of Span<T> when dealing with asynchronous operations. Memory<T> is the async-compatible cousin of Span<T>.

Visualizing Memory Layout

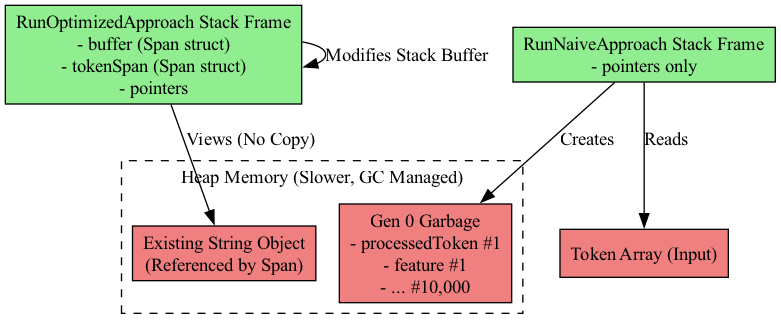

The following diagram illustrates the difference in memory usage between the Naive and Optimized approaches.

Hold "Ctrl" to enable pan & zoom

This diagram contrasts the Naive approach's scattered memory allocation for string processing with the Optimized approach's contiguous memory layout enabled by `Memory` and `Span`.

Explanation of Diagram:

• Naive Path: The stack frame is small, but it constantly triggers allocations on the Heap. These allocations (strings) pile up in Gen 0 Garbage. The GC must eventually stop the CPU to sweep this garbage.
• Optimized Path: The stack frame is slightly larger (holding the Span structs and the stackalloc buffer). However, the Heap remains clean (except for the input data). No garbage is generated. The CPU runs continuously without GC pauses.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---

Loading knowledge check...

---

---

Code License: All code examples are released under the MIT License. Github repo.

Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
