Chapter 4: ReadOnlySpan - High-Performance String and Token Processing

Theoretical Foundations

In high-performance AI systems, particularly those processing massive streams of text for Large Language Models (LLMs), memory allocation is often the silent killer of throughput. While the previous chapters of this series established the foundational patterns for asynchronous processing and interface-driven design—specifically how IAsyncEnumerable<T> enables seamless streaming of tokens from disparate sources like OpenAI or local Llama models—we must now confront the underlying memory mechanics that dictate raw execution speed.

The theoretical core of this chapter revolves around ReadOnlySpan<char>, a ref struct that represents a contiguous region of arbitrary char memory. To understand its significance, we must first visualize the inefficiencies of traditional string handling in the context of AI tokenization.

The Memory Bottleneck in AI Text Processing

In a standard .NET application, a string is an immutable object residing on the managed heap. When you slice a string—say, extracting a sentence from a paragraph to pass to a tokenizer—you create a new string object. This object requires allocation, initialization, and eventually, garbage collection (GC).

Consider an AI inference engine processing a 10MB document. If the tokenizer splits this document into 50,000 tokens, and each token extraction allocates a new substring, you generate 50,000 objects. In a high-throughput scenario, this creates immense GC pressure. The GC must pause execution to mark and sweep these short-lived objects, introducing latency spikes that are unacceptable in real-time AI interactions.

ReadOnlySpan<char> solves this by decoupling the view of the data from the allocation of the data. It is essentially a lightweight structure containing a pointer and a length. It does not allocate; it merely points to existing memory, whether that memory is on the stack, in a managed array, or within an existing string.

The Analogy: The Library and the Photocopy

Imagine you are a researcher (the AI model) needing to read specific paragraphs from a massive encyclopedia (the input text).

1. The string Approach (Traditional): You go to the library, find the encyclopedia, and photocopy every individual paragraph you need. You hand the photocopies to the researcher. This creates a massive pile of paper (heap allocations). Eventually, the janitor (the Garbage Collector) must come in and haul away the pile of paper (memory cleanup), which takes time and stops you from working.
2. The ReadOnlySpan<char> Approach: You go to the library, find the encyclopedia, and simply point to the specific paragraphs with your finger. You tell the researcher, "Read from line 10 to line 15." No paper is used. No photocopying occurs. The researcher reads directly from the source. When you are done, you simply move your finger; no cleanup is required because nothing was created.

This "zero-copy" capability is the theoretical bedrock of high-performance string processing.

Architectural Implications for AI Model Swapping

In the context of building AI applications, flexibility is paramount. As established in the discussion of interfaces in previous chapters, an application might need to swap between an external API (like OpenAI) and a local model (like Llama or Mistral) without rewriting the entire pipeline.

While the interface defines the contract (e.g., IAsyncEnumerable<string> GetTokensAsync()), the implementation of the tokenizer determines the efficiency.

If the local model implementation relies on standard string.Split or Substring, the memory overhead might be acceptable for small prompts but will cause catastrophic performance degradation when processing large context windows (e.g., 32k tokens). By utilizing ReadOnlySpan<char>, the implementation of the tokenizer can process the input text with zero allocations, regardless of whether the text comes from a network stream or a local file. This ensures that the "local model" path is not bottlenecked by memory management, providing a consistent, high-performance experience across different AI backends.

Theoretical Foundations

ReadOnlySpan<char> is a ref struct. This is a critical architectural constraint. A ref struct can only live on the stack or in registers; it cannot be boxed, nor can it be a field in a class or a closure captured by a lambda expression. This restriction exists to ensure that the span never outlive the memory it points to.

The Lifetime Constraint

If a ReadOnlySpan<char> pointed to a stack-allocated buffer, and that span were allowed to escape to the heap (e.g., by being stored in a class field), the stack frame would pop, invalidating the pointer. The span's design prevents this memory safety violation at compile time.

The Slicing Mechanism

When we slice a span (e.g., text[10..20]), we are not copying data. We are simply adjusting the internal pointer and length. This operation is O(1), whereas slicing a string is O(n) because it involves copying characters to a new allocation.

Visualizing the Memory Layout

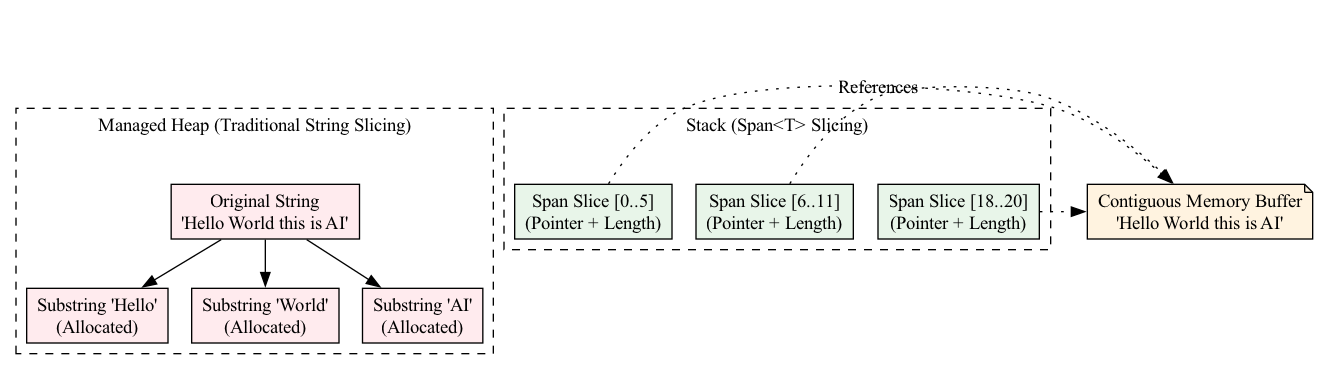

The following diagram illustrates the difference between the traditional string allocation model and the span-based view model in a token processing scenario.

Hold "Ctrl" to enable pan & zoom

A diagram contrasting the traditional string allocation model with the span-based view model visually demonstrates how slicing operations move from O(n) memory copying to O(1) efficiency by referencing existing memory rather than creating new allocations.

Tokenization and Search Algorithms

In AI text processing, tokenization is the process of breaking down text into meaningful units (tokens). This often involves scanning for delimiters (spaces, punctuation) or matching against a vocabulary.

The Inefficiency of string.Split

The standard string.Split method is highly allocation-heavy. It creates an array of strings, and each string is a new object. For AI models, where input text is often pre-processed into chunks, this is a significant bottleneck.

The Efficiency of ReadOnlySpan<char> Iteration

Instead of splitting, we iterate. We use indices to define the start and end of a token within the original buffer. We only allocate a string if absolutely necessary (e.g., to look up a token in a dictionary). However, modern .NET allows us to use ReadOnlySpan<char> as keys in dictionaries via ReadOnlySpan<char> overloads (in .NET Core 2.1+ and .NET 5+), or we can compute hash codes directly on the span to avoid allocations entirely during the lookup phase.

SIMD and Vectorization

While ReadOnlySpan<char> provides the memory layout efficiency, we can further accelerate the scanning of these spans using SIMD (Single Instruction, Multiple Data) intrinsics. In the context of AI text processing, we often need to categorize characters (e.g., "is this whitespace?", "is this punctuation?").

Modern CPUs can process 128-bit, 256-bit, or 512-bit vectors of data in a single instruction. Instead of looping through a span character by character (scalar processing), we can load 16, 32, or 64 characters at once and compare them against a mask of whitespace characters in parallel.

For example, if we are scanning a 1MB buffer to find sentence boundaries, a scalar approach requires 1 million iterations. A SIMD approach using AVX2 (256-bit registers) might process the buffer in roughly 39,000 iterations (1MB / 32 bytes per vector).

The Role of SearchValues in .NET 8+

In the theoretical landscape of .NET 8 and beyond, the SearchValues class (found in System.Buffers) represents a specialized optimization for searching spans. When scanning for a set of characters (e.g., finding the next delimiter in a token stream), SearchValues creates a highly optimized lookup structure, often utilizing SIMD internally.

This abstracts away the complexity of writing raw vector intrinsics. It allows the developer to define a set of values (e.g., SearchValues.Create(" \t\n\r")) and then use span.IndexOfAny(searchValues) to find the next delimiter with maximum hardware acceleration.

Theoretical Foundations

The transition from string to ReadOnlySpan<char> in AI text processing is not merely a syntactic change; it is a paradigm shift from "allocating and copying" to "pointing and viewing."

1. Zero-Allocation Slicing: Allows processing of massive text inputs without triggering the Garbage Collector, ensuring consistent low-latency inference.
2. Stack-Only Safety: The ref struct nature guarantees that memory references remain valid, preventing dangling pointers.
3. Hardware Acceleration: When combined with SIMD and SearchValues, spans allow algorithms to process text at speeds approaching the physical limits of the CPU, rather than being limited by memory bandwidth and allocation overhead.

This theoretical foundation sets the stage for the practical implementation of custom tokenizers that can handle gigabytes of text with the memory footprint of kilobytes.

Basic Code Example

Let's consider a common task in AI text processing: efficiently parsing a large string of user input to extract keywords. A naive approach might use string.Split, which creates a new string object for every word, generating significant garbage collection (GC) pressure. In a high-throughput AI service, this can be a major bottleneck.

Our goal is to achieve the same result—identifying words in a sentence—using ReadOnlySpan<char>. This allows us to work with "views" of the original string without allocating any new memory on the heap.

using System;
using System.Collections.Generic;

public class SpanTokenizer
{
    public static void Main()
    {
        // 1. The Input: A raw string representing user input to an AI model.
        //    In a real scenario, this could be megabytes of text.
        string userInput = "The quick brown fox, jumps over the lazy dog!";

        Console.WriteLine($"Original Input: \"{userInput}\"");
        Console.WriteLine($"Input Length: {userInput.Length} characters");
        Console.WriteLine(new string('-', 40));

        // 2. Create a ReadOnlySpan<char> view of the entire string.
        //    This is a "zero-allocation" slice. It doesn't copy the string data.
        //    It simply points to the existing memory location of the original string.
        ReadOnlySpan<char> remainingText = userInput.AsSpan();

        // 3. Prepare a list to hold our results.
        //    Note: We are NOT storing strings here yet. We will store spans first.
        var tokensAsSpans = new List<ReadOnlySpan<char>>();

        // 4. The Tokenization Loop
        //    We will process the text chunk by chunk, identifying words separated by punctuation or spaces.
        while (!remainingText.IsEmpty)
        {
            // 4a. Trim leading whitespace and punctuation.
            //     Span<T>.TrimStart is highly optimized and allocates no memory.
            remainingText = remainingText.TrimStart(" ,.!?;:");

            if (remainingText.IsEmpty)
            {
                break; // No more content to process.
            }

            // 4b. Find the end of the current word.
            //     We search for the next delimiter (space or punctuation).
            //     IndexOfAny is optimized using SIMD under the hood in modern .NET runtimes.
            int delimiterIndex = remainingText.IndexOfAny(" ,.!?;:");

            ReadOnlySpan<char> token;

            if (delimiterIndex == -1)
            {
                // 4c. If no delimiter is found, the rest of the span is the last word.
                token = remainingText;
                remainingText = ReadOnlySpan<char>.Empty; // Mark as finished.
            }
            else
            {
                // 4d. Slice the span from the start to the delimiter.
                //     This creates a NEW span (a lightweight struct), but NO heap allocation.
                token = remainingText.Slice(0, delimiterIndex);

                // 4e. Advance the view of the remaining text.
                //     We slice from the delimiter + 1 to skip over the delimiter itself.
                remainingText = remainingText.Slice(delimiterIndex + 1);
            }

            // 5. Store the token.
            //    We are adding a struct (ReadOnlySpan<char>) to the list.
            //    The list itself allocates memory for the struct wrappers, but the actual
            //    character data remains in the original string's memory.
            tokensAsSpans.Add(token);
        }

        // 6. Output the results.
        //    We convert the spans back to strings ONLY for display purposes.
        //    In a real processing pipeline, you might pass the spans directly to the next stage.
        Console.WriteLine("Extracted Tokens (via ReadOnlySpan<char>):");
        foreach (var tokenSpan in tokensAsSpans)
        {
            // .ToString() allocates a new string on the heap.
            // This is necessary for printing, but in the processing logic above, we avoided it.
            Console.WriteLine($" - '{tokenSpan.ToString()}' (Length: {tokenSpan.Length})");
        }
    }
}

Detailed Line-by-Line Explanation

1. string userInput = "The quick brown fox, jumps over the lazy dog!";

   • Context: This represents the input data. In an AI context, this could be a prompt, a document to summarize, or a batch of text data.
   • Memory: This string is allocated on the managed heap. It is immutable.

2. ReadOnlySpan<char> remainingText = userInput.AsSpan();

   • The Concept: This is the core of high-performance string manipulation. AsSpan() creates a ReadOnlySpan<char>.
   • Memory Implication: A span is a reference type (technically a ref struct) that contains a pointer and a length. It does not allocate memory on the heap. It simply points to the existing memory where userInput lives.
   • Safety: It is ReadOnly, meaning you cannot modify the characters in the original string through this span. This prevents accidental data corruption.

3. var tokensAsSpans = new List<ReadOnlySpan<char>>();

   • Data Structure: We use a List to store our results.
   • Nuance: ReadOnlySpan<char> is a ref struct, meaning it can only live on the stack. It cannot be stored in a heap object like a List in standard .NET versions prior to .NET 8. However, in .NET 8+, ref struct types can be used as generic arguments if the generic type is stack-only. List<T> is not stack-only, so this line would technically cause a compiler error in older versions.
   • Modern C# (Expert Mode): In .NET 8+, List<T> supports allows ref struct in its generic constraints, allowing this usage. If targeting older frameworks, you would typically process spans immediately or use Span<T> arrays on the stack. For this example, we assume a modern runtime where this is permissible for demonstration, or we are simply collecting them for later conversion (which implies some allocation for the list itself, but not for the string data).

4. while (!remainingText.IsEmpty)

   • Control Flow: We loop until the span has no characters left. IsEmpty is an efficient property check (equivalent to length == 0).

5. remainingText = remainingText.TrimStart(" ,.!?;:");

   • Efficiency: TrimStart returns a new span that points to the first non-whitespace/delimiter character in the existing span. It doesn't modify the original string or allocate new strings. It simply adjusts the starting pointer and length.

6. int delimiterIndex = remainingText.IndexOfAny(" ,.!?;:");

   • Search Algorithm: This searches the current span for the first occurrence of any character in the provided set.
   • SIMD Acceleration: Modern .NET runtimes (Core 3.0+) automatically use SIMD (Single Instruction, Multiple Data) instructions for methods like IndexOfAny when hardware support is detected. This allows the CPU to compare multiple characters simultaneously, drastically speeding up scanning of large text buffers.

7. token = remainingText.Slice(0, delimiterIndex);

   • Slicing: Slice creates a view into a portion of the original memory.
   • Zero Allocation: This is a struct operation. It copies the pointer and calculates the new length. It does not copy the character data itself.

8. remainingText = remainingText.Slice(delimiterIndex + 1);

   • Progressing the Loop: We advance our "cursor" past the delimiter we just found. By updating the remainingText variable, we are effectively discarding the processed part of the text without any memory cleanup required.

9. Console.WriteLine($" - '{tokenSpan.ToString()}' ...");

   • The Allocation Cost: This is the only place in the loop where heap allocation occurs (via ToString()). We are forced to allocate a new string here to display the output because Console.WriteLine expects a string.
   • Key Takeaway: In a pure processing pipeline (e.g., passing tokens to an AI model), we would never call .ToString() inside the loop. We would pass the ReadOnlySpan<char> directly to the next processing stage.

Visualizing Memory Layout

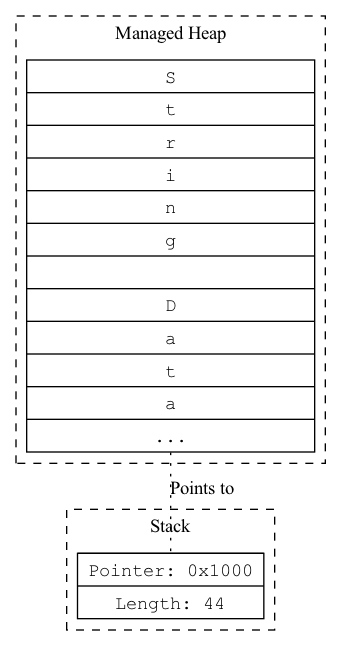

The following diagram illustrates how the ReadOnlySpan<char> points to the original string's memory without copying it.

Hold "Ctrl" to enable pan & zoom

A `ReadOnlySpan` acts as a lightweight reference, pointing directly into the original string's memory allocation to enable efficient, zero-copy data processing.

Common Pitfalls

1. Using ToString() Prematurely:

   • Mistake: Developers often convert ReadOnlySpan<char> back to string immediately after slicing, defeating the purpose of using spans.
   • Consequence: This generates heavy GC pressure, leading to performance degradation and potential "stop-the-world" garbage collections in high-throughput scenarios.
   • Solution: Keep data as ReadOnlySpan<char> for as long as possible in your processing pipeline. Only convert to string at the boundaries of your system (e.g., final output, database storage).

2. Storing Spans in Heap Objects (Pre-.NET 8):

   • Mistake: Attempting to store ReadOnlySpan<char> in a class field, a List<T> (in older frameworks), or an array on the heap.
   • Consequence: Compiler error CS8350: "A span cannot be used as a type argument."
   • Reasoning: Spans are stack-only types. If they were allowed on the heap, the garbage collector could move the underlying data, invalidating the pointer inside the span.
   • Solution: In older .NET versions, process spans immediately or copy the data to a byte[] or char[] array if persistence is required. In .NET 8+, generic collections support ref struct constraints.

3. Lifecycle Management (The "Dangling Span"):

   • Mistake: Creating a span over a local string variable, then returning that span from a method after the string variable goes out of scope.
   • Consequence: The span becomes a "dangling pointer," pointing to memory that has been reclaimed or reused. Accessing it results in undefined behavior or security vulnerabilities.
   • Solution: Ensure that the underlying data (the string or array) lives longer than the span referencing it. Always pass the original data context alongside the span if the span is used across method boundaries.
