Chapter 7: Vectorizing Math - Writing Custom High-Performance Vector Operations

Theoretical Foundations

At the heart of high-performance AI in C# lies a fundamental constraint: modern processors are not designed to process data sequentially one item at a time. They are massive parallel engines capable of performing the same mathematical operation on multiple pieces of data simultaneously. This capability is the foundation of SIMD (Single Instruction, Multiple Data), a paradigm that transforms linear algebra—the mathematical backbone of neural networks and token processing—from a bottleneck into a high-throughput pipeline.

To understand why this is necessary, we must look back at the memory access patterns discussed in Book 9. We spent considerable time optimizing Span<T> to ensure data locality and reduce heap allocations. However, even with perfect memory locality, a standard scalar loop iterating over an array of floating-point numbers to calculate a softmax function or normalize embeddings is inherently inefficient on modern hardware. The CPU's Arithmetic Logic Unit (ALU) is sitting idle most of the time, executing one instruction while the vast resources of the vector processing units remain dormant.

In AI applications, specifically in tokenization and transformer inference, we are constantly performing massive matrix-vector multiplications and activation functions. When we process a token's embedding vector—which might be 768, 1024, or even 4096 dimensions—we are performing the same mathematical operation (e.g., scaling, addition, exponentiation) on every single dimension. Writing this as a for loop is like asking a master chef to chop vegetables one piece at a time using a single knife, while a row of robotic arms sits idle in the kitchen.

The Analogy: The Assembly Line vs. The Craftsman

Imagine a craftsman building a wooden table. He picks up a piece of wood, measures it, cuts it, sands it, and sets it aside. Then he picks up the next piece and repeats the process. This is scalar processing. It is predictable and simple, but slow. The craftsman is the only worker, and he is constantly switching contexts between tasks.

Now, imagine an automated assembly line. A conveyor belt moves 8 pieces of wood simultaneously. A row of saws drops down and cuts all 8 pieces at once. Then, a row of sanders sands all 8 pieces simultaneously. This is SIMD processing. The instruction ("cut") is applied to multiple data points (the wood) in parallel.

In the context of AI, if we are calculating the dot product of two vectors of 1024 dimensions:

1. Scalar: The CPU performs 1024 multiply operations and 1023 add operations, sequentially.
2. SIMD: Using a 256-bit vector register (which holds 8 float values), the CPU performs 128 multiply operations and 127 add operations in a fraction of the time. It processes data in chunks, not grains of sand.

Hardware Intrinsics and Vector<T>

In C#, we access this hardware capability through two primary mechanisms: Hardware Intrinsics and the Vector<T> abstraction.

Hardware Intrinsics are methods that map directly to specific CPU instructions (like AVX2, AVX-512, or SVE). They are exposed via namespaces like System.Runtime.Intrinsics.X86.Avx2. These are "expert mode" tools. They offer maximum control and performance but come with a heavy burden: hardware compatibility. An intrinsic method that runs on an Intel processor with AVX-512 support will crash on an older processor or an ARM-based device if not handled carefully.

Vector<T>, found in System.Numerics, is the abstraction layer. It represents a vector of a specific hardware-dependent width (e.g., 128-bit, 256-bit, or 512-bit). When you use Vector<float>.Count, you are asking the runtime, "How many floats fit into a vector register on this specific machine?"

This abstraction is crucial for building robust AI applications. When you are deploying a local Llama model or a custom BERT tokenizer, you cannot assume the target hardware. Using Vector<T> allows your code to automatically utilize the best available hardware acceleration (SIMD) without rewriting the logic for every architecture.

Theoretical Foundations

To understand how this applies to AI math, we must deconstruct the operations we perform on tokens.

1. Vector Addition and Scaling (Normalization)

In token processing, we frequently normalize vectors. For an embedding vector \(E\), we might calculate a scaled version \(E' = E \times \alpha + \beta\).

In scalar C#, this looks like:

for (int i = 0; i < length; i++)
{
    data[i] = data[i] * scale + bias;
}

With SIMD, we load chunks of the array into vector registers. Let's visualize a 256-bit register holding 8 floats. We load 8 floats from memory into Register A. We load 8 copies of the scale factor into Register B. We perform a single multiplication instruction (vmulps on x86), which multiplies all 8 pairs simultaneously. We do the same for addition.

The memory bandwidth becomes the bottleneck before the CPU calculation does. This is why Span<T> is still critical; we need to ensure the data is aligned in memory so the vector unit can fetch it efficiently.

2. The Softmax Function: A Case Study in Vectorization

Softmax is the activation function used in the attention mechanism of transformers to convert logits into probabilities. The formula is:

\[ \text{Softmax}(x_i) = \frac{e^{x_i}}{\sum_{j} e^{x_j}} \]

This is notoriously difficult to vectorize efficiently because of the denominator (the sum), which introduces a data dependency. However, we can optimize the numerator (\(e^{x_i}\)) and the summation separately.

The Exponentiation Challenge: Calculating \(e^x\) is computationally expensive. In scalar code, we call Math.Exp(x) for every element. In SIMD, we rely on approximations or hardware support. Modern CPUs have vectorized exponential instructions (often via lookup tables or polynomial approximations implemented in hardware intrinsics).

The Summation Reduction: Once we have vectorized the exponentiation, we have a vector of results. To get the denominator, we need to sum them. This is where horizontal addition comes in. We cannot simply "add" a vector to itself; we need to sum the lanes (the elements within the vector).

The process looks like this:

1. Load 8 floats (\(x_0\) to \(x_7\)).
2. Compute \(e^{x_0}...e^{x_7}\) in parallel.
3. Perform a horizontal add: \(x_0+x_4, x_1+x_5, x_2+x_6, x_3+x_7\) (resulting in 4 floats).
4. Repeat until we have a single scalar sum.

This reduction tree is significantly faster than iterating one by one.

Memory Alignment and Cache Lines

A critical aspect of SIMD that is often overlooked is memory alignment. CPUs fetch memory in cache lines (typically 64 bytes). If a vector operation crosses a cache line boundary, it incurs a penalty.

In C#, when we use Vector<T>, the runtime attempts to keep data aligned. However, when working with raw bytes from a tokenizer (like reading a UTF-8 byte stream), we often deal with unaligned memory. We must explicitly handle this.

Consider a tokenizer converting a string to tokens. The raw bytes are often stored in a byte[] or ReadOnlySpan<byte>. To apply vector operations (like searching for specific delimiters or calculating hashes), we must ensure we are reading 32-byte or 64-byte chunks safely.

The "What If": What if the vector size exceeds the remaining data? We must have a fallback strategy. This is the "tail processing" of a loop. We process the bulk of the data with wide vectors, and the final few elements (the remainder) are processed with scalar logic or smaller vectors (e.g., using Vector128<T> if Vector256<T> is too wide).

Visualizing the Data Flow

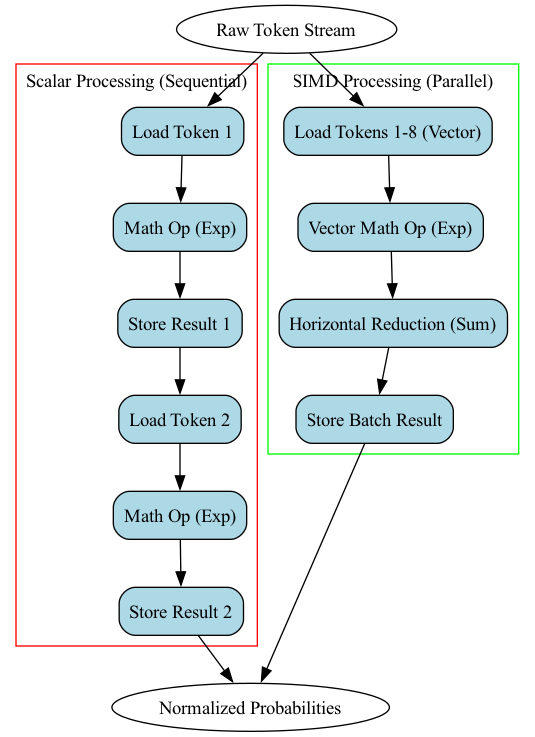

The following diagram illustrates how token data flows through a vectorized mathematical operation compared to a scalar one. Note the reduction in steps for the parallel path.

Hold "Ctrl" to enable pan & zoom

In the diagram, the vectorized operation processes multiple tokens simultaneously in parallel lanes, significantly reducing the number of computational steps compared to the scalar operation, which processes tokens sequentially one at a time.

Contrast with Standard C# Code

The performance gap between scalar and vectorized code in AI is not linear; it is exponential relative to the vector width.

In standard C#, the JIT (Just-In-Time) compiler does generate some SIMD instructions automatically for simple loops, but it is conservative. It cannot optimize complex logic like the softmax denominator calculation because it must guarantee strict IEEE floating-point compliance and handle edge cases (like NaN or Infinity) exactly as specified.

When we write custom vector operations using Vector<T> or intrinsics, we are explicitly telling the compiler: "I accept the responsibility of hardware compatibility and edge-case handling in exchange for raw speed."

For AI, this trade-off is mandatory. A standard scalar softmax on a 4096-dimensional vector might take milliseconds. In a transformer model generating text token-by-token, where this calculation happens at every layer, every step, those milliseconds accumulate into noticeable latency. Vectorization reduces this to microseconds, enabling real-time inference on consumer hardware.

Theoretical Foundations

1. Data Parallelism: AI math is repetitive. The same operation applies to every dimension of every token. This is the ideal scenario for SIMD.
2. Hardware Abstraction: Vector<T> provides a portable way to access SIMD without writing platform-specific assembly, crucial for distributing AI models across diverse hardware.
3. Memory Hierarchy: SIMD amplifies the importance of cache locality. Processing vectors requires feeding the CPU with large, contiguous blocks of data efficiently.
4. Reduction Patterns: Operations like summing a vector (essential for normalization and softmax) require specific vector instructions (horizontal addition) that differ from standard arithmetic.

By mastering these foundations, we move from writing C# code that merely "works" to writing C# code that leverages the full potential of the underlying silicon, turning the mathematical heavy lifting of AI into a streamlined, parallelized process.

Basic Code Example

Let's solve a relatable problem: Accelerating Vector Scaling.

In AI token processing, you often need to normalize a vector of token scores or apply a scaling factor to a batch of embeddings. A naive for loop processes one number at a time (scalar processing). However, modern CPUs support SIMD (Single Instruction, Multiple Data), allowing us to process multiple numbers (e.g., 4 floats at once on AVX2) in a single CPU cycle. This example demonstrates how to use System.Numerics.Vector<T> to perform this scaling operation efficiently.

using System;
using System.Numerics; // Required for Vector<T>
using System.Runtime.CompilerServices; // For MethodImplOptions.AggressiveInlining

public class VectorScalingDemo
{
    public static void Main()
    {
        // 1. Define the input data (e.g., raw token scores).
        // We use a multiple of the typical Vector<float>.Count (which is 4 on AVX, 8 on AVX512).
        // For this "Hello World" example, we stick to 16 elements for clarity.
        float[] tokenScores = { 1.5f, 2.0f, 0.5f, -1.0f, 3.0f, 4.0f, 0.1f, 0.9f,
                                1.5f, 2.0f, 0.5f, -1.0f, 3.0f, 4.0f, 0.1f, 0.9f };

        // The scaling factor (e.g., a learning rate or temperature parameter).
        float scaleFactor = 2.0f;

        Console.WriteLine("--- Scalar Processing (Naive Loop) ---");
        float[] scalarResult = ScaleScalar((float[])tokenScores.Clone(), scaleFactor);
        PrintArray(scalarResult);

        Console.WriteLine("\n--- Vector Processing (SIMD) ---");
        float[] vectorResult = ScaleVector((float[])tokenScores.Clone(), scaleFactor);
        PrintArray(vectorResult);
    }

    /// <summary>
    /// Standard scalar processing: processes one element at a time.
    /// </summary>
    private static float[] ScaleScalar(float[] data, float scale)
    {
        for (int i = 0; i < data.Length; i++)
        {
            data[i] *= scale; // Single multiplication per iteration
        }
        return data;
    }

    /// <summary>
    /// High-performance SIMD processing: processes multiple elements simultaneously.
    /// </summary>
    private static float[] ScaleVector(float[] data, float scale)
    {
        // Convert the scalar 'scale' to a Vector<T> where every lane contains the same value.
        // Example: if Vector<float>.Count is 4, this creates [2.0, 2.0, 2.0, 2.0].
        Vector<float> scaleVector = new Vector<float>(scale);

        // Calculate the number of elements we can process in full vector chunks.
        int i = 0;
        int lastSIMDIndex = data.Length - Vector<float>.Count;

        // Loop through the array in steps of the vector width.
        for (; i <= lastSIMDIndex; i += Vector<float>.Count)
        {
            // Load a chunk of data from memory into a CPU register.
            // This loads 4 floats (if AVX) into a single 128-bit or 256-bit register.
            Vector<float> dataChunk = new Vector<float>(data, i);

            // Perform the multiplication on all lanes simultaneously.
            // This compiles down to a single SIMD instruction (e.g., vmulps on x86).
            Vector<float> resultChunk = dataChunk * scaleVector;

            // Store the result back into the array.
            // This writes the 4 calculated values back to memory in one operation.
            resultChunk.CopyTo(data, i);
        }

        // Handle the "tail" of the array (remaining elements not divisible by Vector.Count).
        // Since Vector<T>.Count is dynamic (hardware dependent), we must handle leftovers scalar-wise.
        for (; i < data.Length; i++)
        {
            data[i] *= scale;
        }

        return data;
    }

    private static void PrintArray(float[] arr)
    {
        Console.WriteLine(string.Join(", ", arr));
    }
}

Code Explanation

Here is a detailed breakdown of the logic:

1. Namespace Imports:

   • System.Numerics: This namespace contains the Vector<T> struct, which is the primary API for SIMD operations in .NET. It abstracts away the specific hardware instructions (like SSE, AVX, AVX512).
   • System.Runtime.CompilerServices: Used for optimization hints (though not explicitly used in this snippet, it is standard in high-performance C#).

2. The ScaleScalar Method:

   • Context: This represents the traditional, non-optimized approach.
   • Mechanism: It iterates through the array index by index. The CPU fetches one float, multiplies it, and writes it back.
   • Limitation: It does not utilize the full width of the CPU's registers. If the CPU has a 256-bit register capable of holding 8 floats, this code only uses 32 bits (1 float) at a time.

3. The ScaleVector Method (The Core Optimization):

   • Step 3.1: Vector<float> scaleVector = new Vector<float>(scale);
     • What it does: It broadcasts the single scale value into every "lane" of the vector register.
     • Why: SIMD instructions require the operands to be present in both input registers. If we have a vector [1, 2, 3, 4] and want to multiply by 2, we need a vector [2, 2, 2, 2] to perform [1*2, 2*2, 3*2, 4*2] in parallel.
   • Step 3.2: The Loop and Vector<float>.Count:
     • What it does: Vector<T>.Count is a static property that returns the number of elements a Vector<T> can hold on the current hardware*. On an x64 CPU with AVX2 support, this is usually 8 (for float); on older hardware, it might be 4.
     • Why: We step through the array by this count to ensure we always load aligned, full registers.
   • Step 3.3: new Vector<float>(data, i):
     • What it does: This constructor loads data directly from the managed array into the CPU registers. It is highly optimized to avoid unnecessary copying.
     • Context: This operation is essentially a "gather" load. It assumes the memory is accessible and safe to read.
   • Step 3.4: dataChunk * scaleVector:
     • What it does: This is an overloaded operator. It does not perform a scalar loop internally. The .NET JIT (Just-In-Time) compiler translates this directly into a hardware intrinsic instruction (e.g., vmulps on x86).
     • Result: 4, 8, or 16 multiplications happen in a single CPU cycle.
   • Step 3.5: result.CopyTo(data, i):
     • What it does: Writes the vector register contents back to the memory location starting at index i.
   • Step 3.6: The "Tail" Loop:
     • What it does: After the main SIMD loop finishes, there might be a few elements left (e.g., if the array length is 10 and Count is 8, we have 2 elements left). This loop processes them using standard scalar math.
     • Why: Vector<T> operates on fixed-width blocks. It cannot process partial blocks efficiently without complex masking, so falling back to scalar code is the standard pattern.

4. Execution Flow in Main:

   • We clone the input array to ensure both methods start with the exact same data.
   • We execute and print both results to verify correctness (they should match).

Visualizing the Data Flow

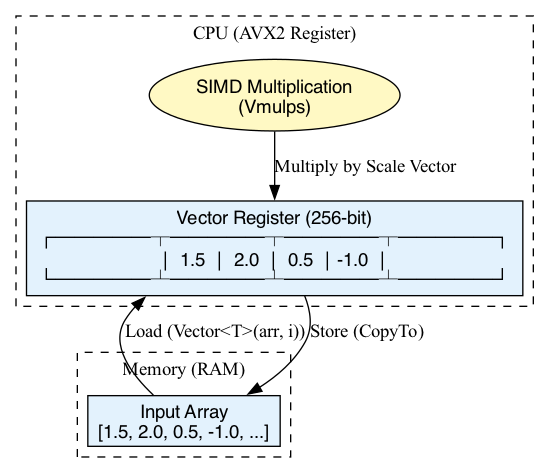

The following diagram illustrates how the data moves from memory to the CPU registers and back.

Hold "Ctrl" to enable pan & zoom

This diagram illustrates the step-by-step flow of data as it is loaded from memory into CPU registers, processed by the CPU, and then written back to memory to produce the final result.

Common Pitfalls

1. Misaligned Memory Access

• The Mistake: Attempting to load a Vector<T> from an unaligned memory address can cause performance penalties or, on strict architectures, hardware exceptions.
• Context: While Vector<T> in .NET Core / .NET 5+ handles alignment gracefully (often at the cost of a slight performance hit if unaligned), using hardware intrinsics directly (like Avx.LoadVector256) requires strict alignment (e.g., 32-byte boundaries).
• Solution: When using Vector<T>, rely on the runtime's ability to handle alignment. If you drop down to unsafe code and intrinsics, use stackalloc or pinned arrays to guarantee alignment.

2. Ignoring the "Tail" (The Remainder Problem)

• The Mistake: Looping strictly with i += Vector<T>.Count until i < length without handling the remaining elements.
• Example: If you have an array of 10 floats and Vector<float>.Count is 8, your loop runs for indices 0-7. Indices 8 and 9 are never processed, leading to incorrect results.
• Solution: Always implement the "tail handler" loop (as shown in the example) to process the remaining elements scalar-wise.

3. Assuming Vector<T>.Count is Constant

• The Mistake: Hardcoding values like 4 or 8 based on your development machine.
• Context: Code running on an ARM64 processor (like an M1 Mac or a server chip) might have a different Vector<float>.Count than an x64 Intel processor. Hardcoding breaks portability and performance.
• Solution: Always use Vector<T>.Count dynamically. The JIT compiler is smart enough to optimize this; if the JIT determines the count is a constant for the target platform, it will unroll the loop automatically.

4. Premature Allocation

• The Mistake: Creating new Vector<T> instances inside a tight loop unnecessarily.
• Context: While Vector<T> is a struct (value type), excessive stack allocation can sometimes hinder optimization if not inlined correctly.
• Solution: The example shows the standard pattern: load, compute, store. Keep operations minimal and let the JIT optimize register usage.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---
