Chapter 10: stackalloc - Blazing-Fast, Temporary Memory on the Stack

Theoretical Foundations

Memory management in high-performance computing is a constant battle between performance, safety, and control. In the context of AI and token processing, where we handle millions of small, transient data structures (tokens, embeddings, intermediate calculations), the standard managed heap introduces significant overhead. The Garbage Collector (GC) must pause execution to scan memory, relocate objects, and compact the heap. While .NET's GC is highly optimized, these pauses can be detrimental to real-time inference pipelines or high-throughput batch processing.

To achieve "zero-allocation" or "low-allocation" patterns in C#, we must look beyond the heap. This brings us to stackalloc, a keyword that allows us to allocate memory directly on the stack. This memory is automatically reclaimed when the method returns, bypassing the GC entirely. However, raw stack allocation is dangerous; it is untyped and prone to buffer overflows. To make it safe and usable in modern AI pipelines, we combine it with Span<T> and SIMD (Single Instruction, Multiple Data) vectorization.

The Heap vs. The Stack: A Real-World Analogy

To understand stackalloc, we must first visualize the difference between the Heap and the Stack.

Imagine a Busy City (The Heap):

Allocation: When you need a new room (memory), you buy a plot of land and build a house. This takes time and money.
Deallocation: When you leave, you can't just demolish the house instantly. The city inspector (The Garbage Collector) must visit, check if anyone is still living there, and if not, schedule a demolition. This inspection halts traffic in the entire city (a "GC Pause").
Use Case: Good for long-term storage (objects that live for the duration of the application).

Imagine a Construction Site Trailer (The Stack):

Allocation: When you start a shift, you place a trailer on the site. You don't "buy" it; you just claim the spot. It is incredibly fast—just moving a pointer.
Deallocation: When the shift ends, the trailer is simply towed away. No inspection is needed. The entire site is cleared instantly.
Use Case: Good for temporary tools needed only for a specific task.
Constraint: The trailer space is limited. You cannot store a skyscraper's worth of equipment in a small trailer (Stack Overflow).

The Mechanics of `stackalloc`

In C#, stackalloc instructs the compiler to reserve a block of memory on the current thread's stack frame rather than the managed heap. This memory is unmanaged and exists only within the scope of the method where it is declared.

The Evolution of Safety

Historically, stackalloc returned a raw byte* or int*. This was powerful but dangerous. Manipulating raw pointers required an unsafe context, and a single miscalculation could lead to an Access Violation or a stack overflow that crashes the process immediately.

In modern C# (specifically .NET Core 2.1+ and .NET 5+), stackalloc is integrated with Span<T>. Span<T> is a type-safe, bounds-checked view over memory (whether it is on the stack, heap, or unmanaged memory).

When you write:

Span<byte> buffer = stackalloc byte[1024];

You are allocating 1024 bytes on the stack, but you are wrapping that raw pointer in a safe, ref-like struct that knows its own length. The JIT compiler can optimize away the bounds checks in tight loops, giving you the speed of raw pointers with the safety of an array.

Theoretical Foundations

In AI applications, specifically Natural Language Processing (NLP), we deal with Tokens. A token is a numerical representation of a piece of text. When an LLM processes a prompt, it breaks the text into tokens (e.g., "The" -> 502, "cat" -> 1245).

Consider a tokenization pipeline:

Receive a string (input prompt).
Convert to a byte array.
Map bytes to token IDs.
Pass IDs to the model.

If we do this naively using List<int> or new byte[], we generate garbage for every prompt. In a high-throughput API serving millions of requests, the GC will constantly run, increasing latency and reducing throughput.

stackalloc solves this for transient buffers. During tokenization, we often need a temporary buffer to hold the bytes of a single word or a sentence fragment before mapping it to the vocabulary. Since this buffer is needed only for the duration of the Tokenize method, allocating it on the stack is ideal.

The Role of `Span<T>`: The Universal View

Span<T> is the glue that makes stackalloc usable in generic or complex logic. It is a ref struct, meaning it can only live on the stack itself (it cannot be boxed to the heap or stored as a field in a class).

Why is this crucial for AI? Imagine you have a method that processes token embeddings. It might accept a float[] from the heap, a Memory<float> from a pooled array, or a stackalloc buffer. Without Span<T>, you would need three different method overloads. With Span<T>, you write one method that accepts Span<float>, and it works with all three sources seamlessly.

This aligns with the architectural goal of Interoperability. In Book 9, we discussed swapping between OpenAI and Local Llama models. Both require passing token arrays. Span<T> allows your internal token processing engine to accept data from any source (network stream, file, or stack) without copying.

SIMD and Vectorization: The Power of Parallelism

Once we have allocated memory on the stack, we want to process it as fast as possible. This is where SIMD (Single Instruction, Multiple Data) comes in.

Modern CPUs contain vector registers (AVX2, AVX-512, SSE). These registers are wide (e.g., 256-bit or 512-bit). Instead of processing one number at a time, they can process 8, 16, or 32 numbers in a single CPU cycle.

The Analogy: Imagine you are a librarian sorting books.

Scalar Processing: You pick up one book, walk to the shelf, place it, and return. Repeat.
SIMD Processing: You grab a whole cart of books (a vector), walk to the shelf, and place them all simultaneously.

In C#, the JIT compiler (specifically on x64 hardware) can auto-vectorize operations on Span<T>. When you iterate over a stackalloc buffer using a for loop, the JIT may generate SIMD instructions to process the data in parallel.

For AI, this is vital for:

Token Embedding Lookups: Mapping a batch of token IDs to their vector embeddings.
Normalization: Applying Layer Normalization to a vector of scores.
Attention Mechanisms: Calculating dot products between query and key vectors.

The Danger: Stack Overflow

The primary limitation of stackalloc is the size of the stack. The default stack size for a thread in .NET is typically 1MB (for main threads, often 4MB; for thread pool threads, usually 1MB).

If you attempt to allocate a large buffer, you will trigger a StackOverflowException:

// DANGEROUS: This will likely crash the process
Span<byte> hugeBuffer = stackalloc byte[2_000_000]; // 2MB > 1MB stack limit

Guidelines for AI Pipelines:

Small Buffers Only: Use stackalloc for buffers smaller than 1KB - 4KB.
Dynamic Sizing: For variable-length inputs (like user prompts), you cannot blindly stackalloc. You must check the length.
Fallback Strategy: If the input is small, use stackalloc. If it is large, fall back to ArrayPool<byte>.Shared.Rent() (Heap, but pooled).

Visualization of Memory Layout

The following diagram illustrates the memory layout of a method executing with stackalloc.

Integrating into Custom Tokenization Pipelines

To build a high-performance tokenizer, we combine these concepts:

Input: A string representing the prompt.
Stack Allocation: We calculate the byte count required. If it fits (e.g., < 2KB), we stackalloc a Span<byte>.
Encoding: We copy the string bytes into this stack buffer without creating a heap string.
SIMD Processing: We iterate over the buffer using vectorized instructions to identify token boundaries or hash values.
Output: We fill a pre-allocated Span<int> (token IDs) which might also be stack-allocated if the result size is known and small.

This approach ensures that the tokenization step—the gateway to the AI model—introduces zero pressure on the Garbage Collector. This is essential for maintaining consistent latency in real-time applications.

Theoretical Foundations

Zero-Copy: stackalloc combined with Span<T> allows us to view and manipulate memory without copying data between buffers.
Deterministic Cleanup: Memory is reclaimed the moment the method returns, providing predictable performance characteristics.
Hardware Acceleration: By keeping data contiguous in stack memory, we maximize the efficiency of SIMD vectorization, which is the backbone of modern AI computation.
Safety: Unlike C++ stack arrays, C# stackalloc inside a Span<T> provides bounds checking (in debug builds) and type safety, preventing buffer overruns while retaining raw speed.

By mastering stackalloc, you move from being a C# developer to a systems programmer within the .NET ecosystem, capable of squeezing every nanosecond out of the hardware for demanding AI workloads.

Basic Code Example

Imagine you are building a high-frequency trading application. Every microsecond counts, especially when parsing incoming market data streams. You need to extract specific token types (like prices or IDs) from a raw byte stream as fast as possible, without triggering the garbage collector (GC) which could introduce unpredictable pauses.

In this context, stackalloc allows us to allocate a small, fixed-size buffer directly on the stack frame of the current method. This memory is automatically reclaimed when the method returns, offering deterministic performance without GC overhead. We combine this with Span<T> to provide a type-safe view over this memory and SIMD (Single Instruction, Multiple Data) to process multiple bytes simultaneously.

Here is a simplified example that simulates parsing a fixed-length token ID from a byte stream.

using System;
using System.Runtime.CompilerServices;
using System.Runtime.InteropServices;
using System.Runtime.Intrinsics;
using System.Runtime.Intrinsics.X86;

public unsafe class StackallocTokenizer
{
    public static void Main()
    {
        // 1. Simulate a raw input buffer (e.g., from a network stream).
        // In a real scenario, this might be pinned or unmanaged memory.
        byte[] rawData = System.Text.Encoding.UTF8.GetBytes("ID:00123456789012345678");

        // 2. Process the data.
        // We wrap the raw data in a ReadOnlySpan to avoid copying.
        ProcessTokenData(rawData);
    }

    private static unsafe void ProcessTokenData(ReadOnlySpan<byte> input)
    {
        // 3. Define the size of the temporary buffer we need.
        // We are looking for a 16-byte GUID-like ID at the end of the string.
        const int TokenLength = 16;

        // 4. Allocate memory on the stack.
        // 'stackalloc' creates a block of memory of type byte* (pointer to byte).
        // This memory is NOT managed by the Garbage Collector.
        byte* tempBuffer = stackalloc byte[TokenLength];

        // 5. Create a Span<T> over the stack memory.
        // Span<T> provides a safe, bounds-checked view over the pointer.
        // This is crucial for preventing buffer overruns.
        Span<byte> tokenSpan = new Span<byte>(tempBuffer, TokenLength);

        // 6. Extract the token from the input into the stack buffer.
        // We assume the ID starts at index 4 ("ID:0" -> index 4 is '0').
        // We use a slice of the input to target the specific segment.
        input.Slice(4, TokenLength).CopyTo(tokenSpan);

        // 7. Process the token using SIMD (if available).
        // We are going to calculate a simple checksum (XOR of all bytes)
        // using Vector<T> to demonstrate high-speed processing.
        ProcessWithSimd(tokenSpan);
    }

    [MethodImpl(MethodImplOptions.AggressiveInlining)]
    private static unsafe void ProcessWithSimd(Span<byte> tokenSpan)
    {
        // Pin the span to get a pointer for SIMD operations.
        // This ensures the garbage collector doesn't move the memory (though stack memory isn't moved anyway,
        // pinning is required for certain low-level API interactions).
        fixed (byte* ptr = tokenSpan)
        {
            // Check for AVX2 support (256-bit vectors).
            if (Avx2.IsSupported)
            {
                // 8. Vectorization Setup.
                // We process 32 bytes at a time (256 bits / 8 bits per byte).
                int i = 0;
                int length = tokenSpan.Length;

                // Initialize a vector accumulator for the XOR operation.
                Vector256<byte> accumulator = Vector256<byte>.Zero;

                // 9. Process chunks of 32 bytes.
                for (; i <= length - 32; i += 32)
                {
                    // Load 32 bytes from memory into a vector register.
                    Vector256<byte> data = Avx.LoadVector256(ptr + i);

                    // Perform XOR operation across the vector lanes.
                    accumulator = Avx2.Xor(accumulator, data);
                }

                // 10. Horizontal XOR (Scalar Cleanup).
                // Since XOR is associative, we can XOR the accumulator parts together
                // to get a single byte result representing the checksum.
                byte checksum = 0;
                for (int j = 0; j < 32; j++)
                {
                    checksum ^= accumulator.GetElement(j);
                }

                // 11. Process remaining bytes (tail).
                for (; i < length; i++)
                {
                    checksum ^= ptr[i];
                }

                Console.WriteLine($"SIMD Checksum: {checksum:X}");
            }
            else
            {
                // Fallback scalar implementation.
                byte checksum = 0;
                for (int i = 0; i < tokenSpan.Length; i++)
                {
                    checksum ^= ptr[i];
                }
                Console.WriteLine($"Scalar Checksum: {checksum:X}");
            }
        }
    }
}

Detailed Explanation

Initialization (Main):
- We create a standard byte[] array to simulate raw data. In a real-world high-performance scenario, this data would likely come from a network stream or a memory-mapped file.
- We wrap this array in a ReadOnlySpan<byte>. Span<T> is a ref struct that lives on the stack and acts as a type-safe window into memory, whether it's on the heap, stack, or unmanaged memory. Passing the Span to ProcessTokenData avoids copying the entire array.
Stack Allocation (ProcessTokenData):
- byte* tempBuffer = stackalloc byte[TokenLength];
- This is the core of the technique. The stackalloc keyword instructs the compiler to allocate a block of memory directly on the current thread's stack.
- The memory is unmanaged (not tracked by the GC) and is automatically freed when the ProcessTokenData method returns. This eliminates GC pressure, which is critical for latency-sensitive applications like AI inference or trading engines.
- The result is a raw pointer (byte*). Using raw pointers requires the unsafe context.
Safety via Span<T>:
- Span<byte> tokenSpan = new Span<byte>(tempBuffer, TokenLength);
- While we have a raw pointer, we immediately wrap it in a Span<T>. This is a best practice. Span<T> provides bounds checking. If we tried to access tokenSpan[TokenLength], it would throw an IndexOutOfRangeException (in debug builds) rather than causing a stack corruption or segmentation fault.
- We use input.Slice(4, TokenLength).CopyTo(tokenSpan) to efficiently copy the relevant portion of the input data into our stack buffer.
SIMD Processing (ProcessWithSimd):
- The method takes the Span<byte> containing our token.
- We use fixed (byte* ptr = tokenSpan) to "pin" the memory. While stack memory isn't subject to garbage collection compaction, pinning is often required when passing pointers to low-level intrinsic APIs to ensure the address remains valid during the operation.
- Vectorization: We check for Avx2.IsSupported. AVX2 allows us to operate on 256-bit registers (32 bytes at once).
- We load 32 bytes into a Vector256<byte> register using Avx.LoadVector256.
- We perform an Xor operation. In vectorized math, this XORs the corresponding bytes in the two vectors simultaneously.
- Horizontal Reduction: After the loop, we have a vector containing 32 partial checksums. We extract the elements and XOR them together to get a final scalar result.
- Cleanup Loop: The SIMD loop processes chunks of 32 bytes. Any remaining bytes (if the token length isn't a perfect multiple of 32) are processed in a standard scalar loop.
Output:
- The program prints the calculated checksum. This demonstrates that the data was successfully moved to the stack and processed efficiently.

Visualizing Memory Layout

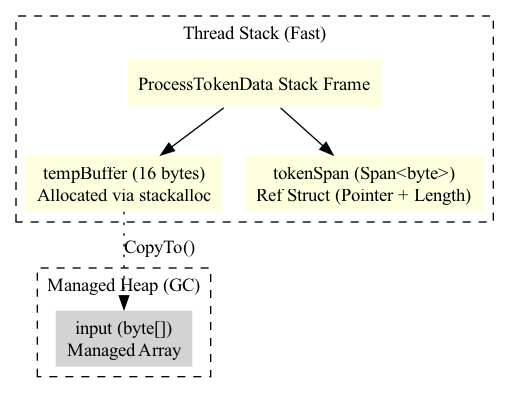

The following diagram illustrates the memory hierarchy during the execution of ProcessTokenData.

A diagram illustrating the memory layout of the ProcessTokenData method, showing the movement of data from the heap to the stack for efficient processing. — A diagram illustrating the memory layout of the `ProcessTokenData` method, showing the movement of data from the heap to the stack for efficient processing.

Common Pitfalls

Stack Overflow: The most dangerous risk with stackalloc is allocating too much memory. The stack is small (typically 1MB per thread on Windows). Allocating large buffers (e.g., stackalloc byte[1024 * 100]) will immediately cause a StackOverflowException. Always limit stackalloc to small, known sizes (usually under a few kilobytes).
Unsafe Scope: The pointer returned by stackalloc is only valid within the unsafe method scope. If you try to return the pointer from the method, the stack memory it points to will be invalid as soon as the method returns (the stack frame is popped). You must copy the data to managed heap or unmanaged memory if persistence is needed.
Span Lifetime: Span<T> is a ref struct, meaning it can only live on the stack. You cannot store a Span in a field of a class or use it in async methods (which move execution between stack frames). This constraint enforces the "temporary" nature of stackalloc memory.
Pointer Validity: While Span provides safety, raw pointers (byte*) do not. Accessing memory beyond the allocated bounds with a raw pointer will corrupt the stack or read invalid memory, leading to undefined behavior or security vulnerabilities. Always prefer Span<T> for indexing and bounds checking, reserving raw pointer arithmetic for tight loops where performance is critical and bounds are manually verified.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
