Chapter 16: The Art of Measurement - Mastering BenchmarkDotNet

Theoretical Foundations

In our journey through high-performance C#, we have meticulously crafted tools to manipulate memory with surgical precision. We learned to bypass the overhead of the garbage collector using Span<T> and to harness the raw power of modern CPUs with SIMD vectorization. We built algorithms that are, on paper, exceptionally fast. But a critical question remains: how do we know they are fast? How do we quantify the improvement, ensure it's real, and guard against it breaking in the future?

This is the chasm between theory and reality. The tools we built are like a Formula 1 car engine, expertly designed and assembled. But to win a race, we need more than the engine; we need a telemetry system, a wind tunnel, and a team of engineers who can interpret complex data to make precise adjustments. This chapter is about building that telemetry system for your code. We are moving from the "artisan's workshop" of crafting algorithms to the "scientific laboratory" of validating them.

The Fallacy of the Simple Stopwatch

Before we can appreciate the solution, we must deeply understand the problem. The most common instinct for a developer wondering "how fast is this code?" is to reach for Stopwatch. It feels intuitive: start it, run the code, stop it, and print the elapsed time.

// The naive approach we must unlearn
var sw = System.Diagnostics.Stopwatch.StartNew();
// ... run our complex AI token processing ...
sw.Stop();
System.Console.WriteLine($"That took {sw.ElapsedMilliseconds}ms");

This approach is fundamentally flawed for serious performance analysis, akin to trying to measure the thickness of a human hair with a lumberjack's axe. The data it produces is not just imprecise; it's dangerously misleading. Let's dissect why.

1. The Noise of the Environment: A modern computer is not a sterile, isolated environment. It's a bustling city. Your operating system is juggling hundreds of processes. The CPU itself is a dynamic beast, constantly adjusting its clock speed based on thermal conditions and power demands (a process called "turbo boost" or "throttling"). The .NET runtime (CLR) is also performing its own background work, such as garbage collection (GC) and Just-In-Time (JIT) compilation. A single GC pause during your 10ms measurement can double the reported time, making your result a random lottery. A single stopwatch measurement is like measuring the length of a coastline by taking one straight-line measurement—it captures a single, arbitrary snapshot that ignores the complex, jagged reality.

2. The Cost of Measurement Itself: The Stopwatch.StartNew() and sw.Stop() calls themselves have a cost. On modern CPUs, Stopwatch often uses high-resolution performance counters, but reading these counters isn't free. This "observer effect" means the very act of measuring your code slightly alters its execution time. For a 10-second operation, this overhead is negligible. But as we optimize, our operations get faster. When we are trying to measure a micro-operation that takes a few microseconds, the measurement overhead can be larger than the operation itself.

3. The JIT Compilation Trap: The .NET runtime compiles your C# code to native machine code on the fly. The first time a piece of code runs, it's executed by the interpreter or compiled by a baseline JIT compiler. This initial run is slow. Subsequent runs may be re-compiled by an optimizing JIT compiler, which can perform incredible transformations like inlining methods, eliminating dead code, and reordering instructions. A single Stopwatch run might be measuring the "warm-up" cost, or a mix of unoptimized and optimized code. The result is an unpredictable average that tells you little about the code's true potential.

4. The Problem of Non-Determinism and Statistical Significance: Performance is not a single number; it's a distribution. A single measurement is an anecdote, not data. A truly high-performance system must be reliable and predictable. To understand the true performance of an algorithm, we need to run it many times and analyze the results statistically. We need to know the mean (average), the median (the middle value), the standard deviation (the spread or variance), and the outliers (the extreme values). A single stopwatch run gives us none of this. It's like a doctor diagnosing a patient based on a single heartbeat.

This is why we need a better tool. We need to move beyond simple timers and embrace a methodology that treats performance measurement as a scientific discipline. We need to understand the statistical nature of execution time and control for the myriad of environmental factors that can corrupt our data.

The Scientific Method for Code: An Analogy

Imagine you are a chef who has created a new, revolutionary recipe for baking bread. You believe your method produces a lighter, fluffier loaf. How do you prove it?

The Naive Chef: You bake one loaf, time it with your phone's stopwatch, and declare it a success because it took 25 minutes and tasted great. This is the Stopwatch approach. It's subjective and unreliable. What if the oven temperature fluctuated? What if today's flour was different?
The Systematic Chef: You decide to be scientific. You know that a single data point is meaningless. You bake 100 loaves using your new recipe and 100 loaves using the old one. You record the time for every single loaf. Now you have data, but it's a chaotic list of numbers. Some loaves took 23 minutes, some 27. You need to make sense of this.
The Master Chef (The BenchmarkDotNet Approach): You now need a rigorous process.
- Control the Environment: You use the same oven, the same brand of flour, the same room temperature, and you bake at the same time of day to minimize external variables. This is equivalent to configuring a benchmark environment to be consistent.
- Run Many Iterations: You don't just bake 100 loaves; you bake them in multiple batches, over several days, to ensure your results are not a fluke. This is the concept of iterations and invocations in benchmarking.
- Warm-up: You know the first few loaves might be imperfect as the oven stabilizes and you get into a rhythm. You discard the first few batches. This is the warmup phase in benchmarking, allowing the JIT to optimize and the CPU to reach a steady state.
- Statistical Analysis: You don't just report the average time. You calculate the mean, median, and standard deviation. You look at the distribution. You might find that your new recipe is on average 5% faster, but it has a much higher variance (higher standard deviation), meaning it's less reliable. Perhaps the old recipe is more consistent. This is exactly what BenchmarkDotNet does—it provides a rich statistical summary.

BenchmarkDotNet is the master chef's laboratory for your code. It provides the framework to conduct these experiments automatically, reliably, and with statistical rigor, turning the art of performance measurement into a science.

What is BenchmarkDotNet?

BenchmarkDotNet is a powerful .NET library designed to automate the entire process of performance measurement. It is the definitive tool for this job because it systematically addresses every flaw of the naive Stopwatch approach. It is not a simple timer; it is a complete benchmarking engine.

When you ask BenchmarkDotNet to measure a method, it performs a complex, orchestrated sequence of operations:

Code Generation: It takes your benchmark method and generates a new, isolated console application. This ensures that the benchmark runs in a clean process, free from the influence of other code in your application.
Tooling Integration: It can integrate with powerful low-level tools like PerfView and ETW (Event Tracing for Windows) to gather deep insights into what the CPU is actually doing, such as cache misses or branch mispredictions.
The Job System: It allows you to define "Jobs." A Job is a complete configuration for a benchmark run. You can specify:
- The .NET Runtime: Do you want to test your code on the .NET Framework, .NET Core 3.1, .NET 6, .NET 8, and .NET 9? You can compare them side-by-side to see the performance improvements of the runtime itself.
- JIT Compiler: You can choose between the Legacy JIT, the RyuJIT, and even specify optimization levels (e.g., JitOptimizations.Disable to see the unoptimized code's performance).
- Runtime Modes: You can test in different modes, such as the default "Concurrent GC" mode versus "Server GC" mode, which is optimized for throughput on multi-core servers. This is critical for AI server applications.
- Launch Mode: You can run in-process (faster, but less isolated) or out-of-process (slower, but more reliable).
The Measurement Loop: It runs your code a huge number of times in a highly controlled loop. It's smart enough to perform a warmup phase first, running the code until the results stabilize. It then runs the main measurement phase, collecting timing data for each iteration.
Statistical Analysis and Reporting: After the run, it analyzes the collected data. It doesn't just give you a single number. It produces a comprehensive report, usually in a Markdown table, that includes:
- Mean: The statistical average. The number you'll most often use.
- Error: The 99.9% confidence interval of the mean. This tells you how confident you can be in the mean value. A small error means a precise measurement.
- StdDev: The standard deviation. This measures the volatility of your method's execution time. A low StdDev is a sign of a stable, predictable algorithm.
- Gen0/Gen1/Gen2: The number of garbage collections that occurred during the benchmark, broken down by generation. This is invaluable for spotting memory allocations you didn't realize were happening.
- Ratio: When comparing two methods, it shows a ratio, making it easy to say "Method A is 1.5x faster than Method B."

Connecting to Our AI World: Why This Matters for Token Processing

In the context of our AI applications, this level of precision is not a luxury; it is a necessity. We are working on the critical path of request processing, where every microsecond counts.

Consider the work we did with Span<T> and SIMD. We might have a method that processes a batch of tokens to calculate logit biases. We could write two versions:

ProcessTokensWithSpan: A version that uses Span<T> to iterate through the token array, avoiding allocations.
ProcessTokensWithSimd: A version that uses System.Numerics.Vector<T> to process multiple tokens in a single CPU instruction.

How do we know which is better? A naive Stopwatch might show them both taking 0.1ms. The difference is invisible. But when we run this through BenchmarkDotNet, a different picture might emerge:

Method	Mean	Error	StdDev	Allocated
ProcessTokensWithSpan	105.2 us	0.98 us	0.87 us	-
ProcessTokensWithSimd	28.7 us	0.12 us	0.10 us	-

This report is a revelation. It tells us that the SIMD version is not just a little bit faster; it's 3.6x faster. The Error and StdDev are tiny, giving us high confidence in these numbers. The Allocated column is zero for both, confirming our Span<T> work was successful in avoiding garbage.

This empirical data allows us to make critical architectural decisions. We can confidently choose the SIMD implementation, knowing we've achieved a significant, measurable, and reliable performance gain for our users. We can also use these benchmarks in our CI/CD pipeline to catch performance regressions. If a future code change causes the mean time to jump to 50us, the benchmark will fail, alerting us to the problem before it reaches production.

The Core Concept Visualized

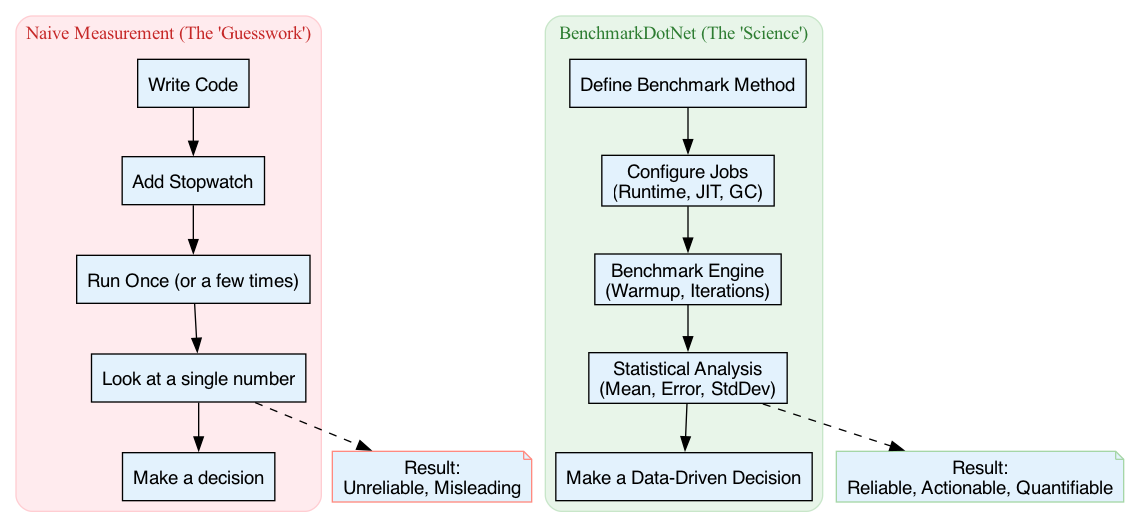

The following diagram illustrates the fundamental difference between the chaotic, unreliable process of naive measurement and the structured, scientific process of professional benchmarking.

The diagram contrasts the erratic, unpredictable results of naive measurement with the stable, repeatable outcomes of professional benchmarking, highlighting how benchmarks provide reliable performance guardrails.

Explicit Reference: Building Swappable AI Models

This connects directly back to the foundational concepts we established earlier. In Book 2, Chapter 4, "Designing for Abstraction: Interfaces and Dependency Injection," we learned how to use interfaces to decouple our application logic from concrete implementations. We defined an IModelProvider interface to allow our application to seamlessly swap between a call to the OpenAI API and a local Llama.cpp model.

// From a previous chapter on Abstraction
public interface IModelProvider
{
    Task<string> GenerateCompletionAsync(string prompt);
}

public class OpenAIProvider : IModelProvider { /* ... */ }
public class LocalLlamaProvider : IModelProvider { /* ... */ }

The power of this pattern is flexibility. However, the performance characteristics of these two providers are worlds apart. The OpenAIProvider is bound by network latency (tens to hundreds of milliseconds). The LocalLlamaProvider is bound by computational throughput (tokens per second).

Benchmarking is the tool we use to measure and validate the performance of these concrete implementations. We would write benchmarks for our LocalLlamaProvider to ensure it meets our throughput targets. We would also write benchmarks for the internal token processing logic within that provider—the very logic we optimized with Span<T> and SIMD—to ensure we are extracting every last drop of performance from our local hardware. Abstraction gives us the architectural flexibility; benchmarking gives us the empirical proof of our performance optimizations.

The Nuances of a Good Benchmark

Creating a meaningful benchmark is an art. It's not just about marking a method with an attribute. We must consider:

What to Measure: Are we measuring the end-to-end time of a full AI request, or just the core token processing loop? Benchmarking the wrong thing is as bad as not benchmarking at all. A full request benchmark might be too noisy and slow for iterative optimization. A micro-benchmark of the core loop is perfect for comparing Span vs. SIMD.
The Setup: The [GlobalSetup] attribute allows you to write code that runs once before all benchmark iterations. This is where you would, for example, load a 1GB AI model into memory or generate a large array of random tokens. You want to measure the operation, not the loading.
The Teardown: [GlobalCleanup] runs once at the end, perfect for releasing resources.
Memory Allocations: As we've stressed, in high-throughput server scenarios, allocations are the enemy. BenchmarkDotNet's ability to report allocations is as important as its timing data. An algorithm that is 10% faster but allocates 1MB per call is likely a net loss in a server application due to GC pressure.

In summary, this section has laid the theoretical groundwork. We've established why our intuition about performance is flawed and why a scientific, data-driven approach is the only way forward. We've introduced BenchmarkDotNet not as a mere tool, but as the embodiment of this scientific methodology. It is the framework that allows us to validate our hypotheses, compare our solutions, and ultimately build AI systems that are not just functionally correct, but also demonstrably and reliably performant. The code we write is our theory; the benchmark is our proof.

Basic Code Example

In the world of high-performance AI, we often obsess over algorithms like matrix multiplication or transformer logic. However, a subtle killer of performance is often hiding in plain sight: memory allocation and access patterns.

Imagine you are building a high-throughput tokenization service. It processes millions of text snippets per second. A naive implementation might look like this:

// Naive approach
List<int> tokenIds = new List<int>();
foreach (var char in text) {
    tokenIds.Add(MapCharToToken(char));
}
return tokenIds;

This code creates a new List<int>, which internally creates an array. As the list grows, it resizes that array, copying all previous elements to a new memory location. This constant allocation and copying is "memory churn." It puts immense pressure on the Garbage Collector (GC), causing unpredictable pauses (latency spikes) that ruin the smooth flow of data in an AI pipeline.

The Goal: We want to benchmark a "naive" approach (allocating new arrays) versus an "optimized" approach (using Span<T> to reuse memory) to prove, with hard data, that the optimization is worth the complexity.

The Code Example

This is a self-contained console application. To run it, you will need to install the BenchmarkDotNet package:

dotnet add package BenchmarkDotNet

Here is the complete code:

using System;
using System.Linq;
using BenchmarkDotNet.Attributes;
using BenchmarkDotNet.Running;
using System.Buffers;

namespace TokenProcessingBenchmarks
{
    // [MemoryDiagnoser] is a crucial attribute that tells BenchmarkDotNet
    // to track memory allocations (GC Gen 0, Gen 1, Gen 2, and total bytes).
    [MemoryDiagnoser]
    public class TokenizerBenchmarks
    {
        // A constant input string to ensure we are benchmarking the logic,
        // not the time it takes to generate random data.
        private const string InputText = "The quick brown fox jumps over the lazy dog. AI models process tokens.";

        // We will benchmark a specific length, but let's make it a parameter to be flexible.
        [Params(100, 1000, 10000)]
        public int StringLength { get; set; }

        private string _testString = "";

        // [GlobalSetup] runs once before any benchmark iterations begin.
        // It prepares the environment so setup time isn't included in the measurement.
        [GlobalSetup]
        public void Setup()
        {
            // Create a string of the specific length required for the current run.
            if (InputText.Length >= StringLength)
            {
                _testString = InputText.Substring(0, StringLength);
            }
            else
            {
                // Repeat the input text until we reach the desired length.
                int repeatCount = (int)Math.Ceiling((double)StringLength / InputText.Length);
                _testString = string.Concat(Enumerable.Repeat(InputText, repeatCount));
                _testString = _testString.Substring(0, StringLength);
            }
        }

        /// <summary>
        /// The "Naive" approach: Allocates a new integer array (heap allocation)
        /// every time it runs. This creates GC pressure.
        /// </summary>
        [Benchmark(Baseline = true)]
        public int[] NaiveAllocation()
        {
            // 1. Allocate a new array on the Heap.
            int[] tokens = new int[_testString.Length];

            // 2. Iterate and fill.
            for (int i = 0; i < _testString.Length; i++)
            {
                // Simulate a simple mapping (e.g., char code to int)
                tokens[i] = _testString[i];
            }

            // 3. Return the array (kept alive by the caller).
            return tokens;
        }

        /// <summary>
        /// The "Optimized" approach: Uses Span<T> to operate on a stack-allocated
        /// buffer or a shared buffer, minimizing GC pressure.
        /// </summary>
        [Benchmark]
        public int SpanOptimization()
        {
            // 1. Rent a buffer from the ArrayPool.
            // This reuses existing arrays from a shared pool instead of allocating new ones.
            // It is effectively "zero allocation" for the array itself after the pool warms up.
            int[] rentedArray = ArrayPool<int>.Shared.Rent(_testString.Length);

            try
            {
                // 2. Create a Span<T> view over the rented array.
                // Span is a ref struct, meaning it lives on the Stack, not the Heap.
                // This allows us to manipulate memory safely without heap allocations.
                Span<int> tokens = rentedArray.AsSpan(0, _testString.Length);

                for (int i = 0; i < _testString.Length; i++)
                {
                    tokens[i] = _testString[i];
                }

                // In a real scenario, we might return a ReadOnlySpan<int> or copy to a result.
                // For the benchmark, we just return the sum to ensure the JIT
                // doesn't optimize away the entire loop (dead code elimination).
                int sum = 0;
                foreach(var t in tokens) sum += t;
                return sum;
            }
            finally
            {
                // 3. CRITICAL: Return the array to the pool so it can be reused.
                // If we forget this, we lose the benefit of the pool and might cause a leak.
                ArrayPool<int>.Shared.Return(rentedArray);
            }
        }
    }

    public class Program
    {
        public static void Main(string[] args)
        {
            // This line triggers BenchmarkDotNet to compile, run, and analyze the benchmarks.
            var summary = BenchmarkRunner.Run<TokenizerBenchmarks>();
        }
    }
}

Detailed Explanation

Here is the line-by-line breakdown of how this code solves the problem of measuring memory performance.

1. The Setup Phase

[GlobalSetup]
public void Setup()
{
    // ... string generation logic ...
}

Why: BenchmarkDotNet runs the [Benchmark] methods many times (usually thousands of iterations) to get a statistically significant average. If we generate the test string inside the benchmark loop, we are measuring string generation speed, not tokenization speed.
Mechanism: [GlobalSetup] runs exactly once per distinct parameter set (e.g., once for length 100, once for 1000) before the timing begins. This ensures the _testString is ready and waiting in memory.

2. The Baseline: Naive Allocation

[Benchmark(Baseline = true)]
public int[] NaiveAllocation()
{
    int[] tokens = new int[_testString.Length];
    // ...
    return tokens;
}

[Benchmark(Baseline = true)]: This marks this method as the reference point. In the final report, other benchmarks will show a column comparing themselves to this one (e.g., "Ratio" or "Diff").
new int[...]: This is the critical line. Every single time this method is called, it requests memory from the Managed Heap.
The Cost: If we run this 10,000 times, we allocate 10,000 arrays. The Garbage Collector must eventually pause execution to inspect and clean up these dead objects. This is the "Latency" we want to avoid.

3. The Optimization: Span and ArrayPool

[Benchmark]
public int SpanOptimization()
{
    int[] rentedArray = ArrayPool<int>.Shared.Rent(_testString.Length);
    Span<int> tokens = rentedArray.AsSpan(0, _testString.Length);
    // ...
    ArrayPool<int>.Shared.Return(rentedArray);
}

ArrayPool<int>.Shared.Rent: Instead of new, we ask a global pool for an array. If the pool has an unused array of the right size, it gives it to us instantly without asking the OS for new memory. This is "Recycling."
AsSpan(...): We wrap the raw array in a Span<int>. Span is a "ref struct," meaning it cannot be boxed or put on the heap. It acts as a type-safe pointer to a contiguous block of memory.
finally { ... Return(...) }: This is the safety net. Even if an exception occurs inside the logic, the finally block ensures the array goes back to the pool. If we fail to do this, the pool thinks that array is still in use and will eventually create new arrays to satisfy future Rent requests, leading to a memory leak.

Visualizing the Flow

The following diagram illustrates the difference in memory management between the two approaches.

The diagram contrasts correct memory management, where returning an array to the pool prevents memory leaks, with incorrect management, where failing to return an array forces the pool to allocate new memory unnecessarily.

Common Pitfalls

When moving from naive code to high-performance Span and ArrayPool code, developers often encounter specific errors that are not immediately obvious.

Forgetting to Return to the Pool:
- The Mistake: Calling ArrayPool.Rent() but failing to call ArrayPool.Return() in a finally block.
- The Consequence: The array is never returned to the pool. The pool assumes it is still in use. Eventually, the pool runs out of arrays and falls back to allocating new ones on the heap, defeating the entire purpose of the optimization and potentially causing a memory leak.
Hanging onto Span<T> too long:
- The Mistake: Storing a Span<T> in a field of a class or returning it from a method.
- The Consequence: Span is a ref struct and lives on the stack. It cannot be stored on the heap (as a field in a class). This will result in a compiler error (CS8345 or similar). If you need to store the data, you must copy it to a field (e.g., int[] or List<int>) or use Memory<T>.
Renting arrays larger than requested:
- The Mistake: Assuming ArrayPool.Rent(100) returns an array exactly of length 100.
- The Consequence: The pool often returns arrays that are the next power of two (e.g., 128) to satisfy internal bucketing logic. If you iterate using array.Length instead of the requested size, you will process garbage data at the end of the array. Always use the requested length or slice the Span immediately: span = rented.AsSpan(0, requestedLength).
Benchmarking in Debug Mode:
- The Mistake: Running the benchmarks in Visual Studio using Ctrl+F5 or building in Debug configuration.
- The Consequence: The JIT compiler does not optimize the code aggressively. You will see inflated numbers that do not reflect production performance. Always run benchmarks in Release mode (BenchmarkDotNet handles this automatically, but it's a common pitfall if you try to run the methods manually).

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
