Chapter 18: Case Study - Optimizing a GPT-2 Tokenizer from Scratch

Theoretical Foundations

The theoretical foundation for building a high-performance GPT-2 tokenizer in C# rests on the paradigm shift from "managed convenience" to "memory-aware precision." In high-performance AI, particularly when dealing with tokenization—the bridge between raw text and model input—inefficiencies are magnified. A single inference request may involve tokenizing thousands of tokens; if each token allocation incurs garbage collection (GC) pressure, latency spikes become unpredictable, rendering real-time applications unusable.

The Memory Hierarchy and the Cost of Abstraction

To understand the necessity of Span<T> and SIMD, we must first analyze the cost of the standard .NET memory model. In previous chapters, we discussed the Managed Heap and the Generational Garbage Collector (Gen 0, Gen 1, Gen 2). When we tokenize text using standard string or byte[] manipulation, we often create intermediate objects. For example, splitting a sentence into words typically involves string.Split(), which returns an array of strings. Each of these strings is a separate object on the heap, containing a header, length, and the character data.

In AI applications, this is catastrophic. Consider the decoding process of a GPT-2 model. The model outputs a stream of integers (token IDs). To make this human-readable, we must map these IDs back to byte sequences using a "merges" table (a dictionary of byte pairs) and a vocabulary (a map of tokens to IDs). If we use standard string concatenation to reconstruct these tokens, we generate massive amounts of short-lived objects. The GC must pause execution to clean these up, introducing latency jitter.

Analogy: The Librarian vs. The Photocopier Imagine you are a librarian (the CPU) trying to reconstruct a shredded document (the token). The standard approach is like using a photocopier (the Heap) for every single word. You copy a word, paste it, copy the next, paste it, creating a new physical page for every step. Eventually, the room fills up with paper (memory pressure), and you must stop everything to clean the room (Garbage Collection).

The Span<T> approach is like having a master index (the stack or a contiguous memory buffer) that tells you exactly where the pieces of the document are located. You don't copy the paper; you simply point to the fragments and read them in order. No new paper is created. The room remains clean, and the librarian never stops working.

The Power of Span<T> and Memory<T>

In C#, Span<T> is a ref struct, meaning it lives exclusively on the stack (or in registers). It cannot be boxed, cannot be a field in a class, and cannot be used in asynchronous methods (because async methods rely on heap-allocated state machines). This rigidity is its strength. It represents a type-safe view of a contiguous block of memory, regardless of whether that memory originates from an array, a string, or native memory.

For a GPT-2 tokenizer, we deal primarily with UTF-8 bytes. GPT-2 uses a byte-level vocabulary, meaning it handles raw bytes directly to avoid Unicode normalization issues. When we read a file or a stream, we get a ReadOnlySpan<byte>. We need to parse this span to find tokens.

Theoretical Application in Tokenization:

1. Byte Pair Encoding (BPE) Decoding: The GPT-2 merges file contains pairs like b'\xe6\x98' b'\x9f'. In standard C#, we might convert these to strings and concatenate. With Span<byte>, we can search the input stream for these specific byte sequences without ever allocating a string. We can slice the span to look at specific windows.
2. Zero-Allocation Slicing: When we find a token, we don't extract it. We keep a Span<byte> that points to the start and end of that token within the original input buffer. This allows us to pass tokens through the decoding pipeline without copying data.

Comparison:

• string: Immutable, UTF-16, Heap-allocated.
• byte[]: Mutable, Heap-allocated, reference type.
• Span<byte>: View of memory, Stack-allocated (practically), zero-copy.

Analogy: The Library Index Card Think of the entire input text as a massive encyclopedia on a shelf. Span<byte> is not the encyclopedia itself; it is an index card with a start page number and an end page number. To find a definition (token), you don't photocopy the page (allocate a string); you simply walk to the shelf, turn to the page numbers on your card, and read. If you need to combine two definitions, you update the index card to span from the start of the first to the end of the second. You never physically move the text.

SIMD: Single Instruction, Multiple Data

While Span<T> optimizes memory access, SIMD (Single Instruction, Multiple Data) optimizes CPU throughput. Modern CPUs (Intel AVX2/AVX-512, ARM NEON) can perform operations on vectors of data simultaneously. Instead of comparing one byte at a time, we can compare 16, 32, or 64 bytes in a single CPU cycle.

In the context of a GPT-2 tokenizer, the most expensive operation is the "Merge" phase. We must scan the byte stream for specific pairs defined in the merges table. This is essentially a pattern matching problem.

Theoretical Application:

1. Vectorization of Pattern Matching: Instead of a for loop iterating i from 0 to length, checking buffer[i] and buffer[i+1], we load a 256-bit vector (32 bytes) from the buffer. We compare this vector against a target pattern vector.
2. Parallel Comparison: If we are looking for the byte 0x20 (space), we can broadcast 0x20 into a vector register and compare it against the loaded data vector. The result is a bitmask indicating which bytes in the 32-byte block match. We can process 32 potential token boundaries in the time it takes to process one.

The "What If": What if the input is smaller than the vector width? We must handle "tails" carefully. We cannot read past the end of the buffer. This requires masking or scalar fallbacks. The theoretical architecture must account for boundary conditions where SIMD cannot be fully utilized.

The Architecture of the Tokenizer Pipeline

To build this theoretically, we visualize the tokenizer not as a monolithic function, but as a pipeline of memory views.

Hold "Ctrl" to enable pan & zoom

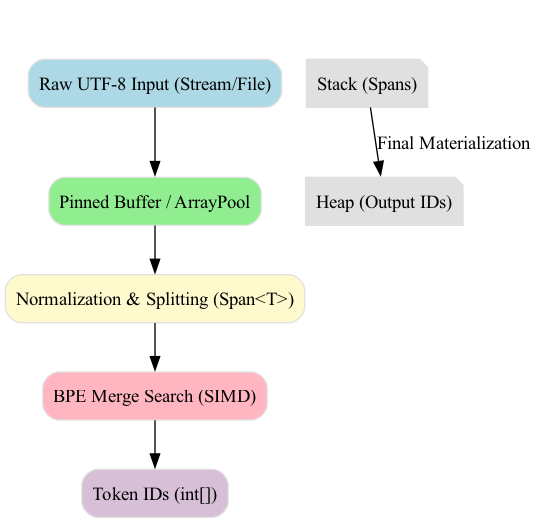

The diagram illustrates the tokenizer pipeline as a sequence of memory views, highlighting boundary conditions where SIMD parallelism is incomplete.

1. The Buffer Pool (Object Pooling)

We cannot rely on new byte[] for every request. This generates heap fragmentation. Instead, we utilize System.Buffers.ArrayPool<T>.Shared. This is a critical concept from high-performance computing. It rents a byte array, uses it, and returns it. This is a circular buffer strategy.

• Why: It prevents the GC from seeing short-lived large objects. The GC thinks the memory is "tenured" because it persists across requests, but the cost is minimal allocation overhead.

2. The UTF-8 Decoder and Rune

In modern .NET, we have System.Text.Rune. A Rune represents a Unicode Scalar Value (a valid code point). GPT-2 operates on bytes, but C# strings are UTF-16. When we ingest text, we must convert UTF-16 (C# string) to UTF-8 (Span<byte>).

• Theory: We use Encoding.UTF8.GetBytes but optimized. We calculate the exact byte length needed first using Encoding.UTF8.GetByteCount, rent a buffer of that size, and then perform the conversion. This is a "two-pass" algorithm that guarantees zero resizing.

3. The BPE Algorithm (The Core Logic)

GPT-2 tokenizer is based on Byte Pair Encoding. The algorithm is greedy:

1. Start with a sequence of bytes.
2. Find the most frequent adjacent pair of bytes (or tokens) in the merges table.
3. Merge them into a new token ID.
4. Repeat until no merges are possible.

The Challenge: The merges table is large (tens of thousands of pairs). Searching this linearly for every position in the text is \(O(N \times M)\), which is too slow.

The SIMD Solution: We categorize merges by the first byte of the pair. For example, all merges starting with byte 0x20 are grouped. When scanning the text with SIMD:

1. Load a vector of bytes from the text.
2. Identify potential merge boundaries (spaces, punctuation).
3. For each boundary, look ahead one byte.
4. Use SIMD to compare the pair against the grouped merge table.

This transforms the search from a linear scan to a parallel check. We are essentially asking the CPU: "In this block of 32 bytes, which positions contain a byte pair that matches any of these 100 known patterns?"

Deep Dive: Memory<T> for Asynchronous Pipelines

While Span<T> is synchronous and stack-only, AI applications often involve asynchronous I/O (e.g., reading a large text file from disk or a network stream). We cannot use Span<T> across await boundaries because the stack frame is destroyed when the method yields.

Here, we use Memory<T> and ReadOnlyMemory<T>. Memory<T> is a heap-allocated wrapper around a buffer (usually an ArrayPool array). It can be awaited.

• Theory: We read chunks of data asynchronously into Memory<byte>. Once a chunk is fully read, we can "Pin" it or get a Span<T> from it for synchronous processing.
• Analogy: Memory<T> is like a shipping container (heap). You can ship it across oceans (async I/O). Once it arrives, you open it and access the goods directly via Span<T> (stack).

Edge Cases and Architectural Implications

1. The "Unknown Token" Problem: GPT-2 has a fixed vocabulary. If the input contains a byte sequence not in the vocabulary, the tokenizer falls back to "byte-level" encoding (representing the byte as <0xXX>).

• Implementation: We need a fallback mechanism. When the SIMD scan finds no match in the merges table, we must check the base vocabulary. This requires a hash lookup. In high-performance C#, we use Dictionary<TKey, TValue> optimized for ReadOnlySpan<byte> keys (available in .NET Core 3.0+). This allows hashing a span without allocating a string key.

2. Alignment and Padding: SIMD operations are most efficient when data is aligned to 16, 32, or 64-byte boundaries. When renting arrays from ArrayPool, they are not guaranteed to be aligned.

• Solution: We may need to over-allocate (rent 33 bytes to get 32 aligned bytes) or use Unsafe APIs to shift data within the buffer to align it. This is a trade-off between memory waste and CPU speed.

3. Thread Safety and Reentrancy: Since we are using stack-based Span<T> and thread-local ArrayPool buckets, the tokenizer can be thread-safe by design, provided we don't share state.

• Concept: We design the tokenizer as a struct or a stateless service. It holds no internal buffers. The caller provides the buffers (Rent/Return pattern). This makes the tokenizer lightweight and suitable for dependency injection in high-throughput ASP.NET Core applications.

Theoretical Foundations

The theoretical model we are building is a Zero-Copy Pipeline.

1. Ingestion: Text enters as bytes. We pin this memory or view it via Span<byte>.
2. Processing: We scan the span using SIMD vectors to identify merge candidates. We manipulate indices (start/end pointers) rather than copying data.
3. Output: We write integer Token IDs directly into a pre-allocated int[] (rented from a pool).

By avoiding the heap for intermediate strings and utilizing the full width of the CPU registers, we transform a typically slow, allocation-heavy process into a tight, CPU-bound loop. This is the essence of High-Performance C# for AI: respecting the hardware and the runtime to squeeze out every nanosecond of performance.

Basic Code Example

Here is a simple, self-contained example demonstrating how to use Span<T> and Memory<T> to process text data efficiently without unnecessary heap allocations.

The Problem: Processing User Input for a Chatbot

Imagine you are building a chatbot that needs to process user messages. A naive approach might involve creating many temporary strings (e.g., splitting a sentence into words) which generates significant garbage collection (GC) pressure. In high-throughput scenarios like real-time NLP tokenization, this GC pressure can cause pauses and degrade performance.

This example demonstrates how to process a raw UTF-8 byte stream (simulating network input) and extract a specific "token" (a substring) using zero-allocation techniques.

Code Example: Zero-Allocation Token Extraction

using System;
using System.Text;

public class ZeroAllocationTokenizer
{
    public static void Main()
    {
        // 1. Simulate raw input data (e.g., from a network stream or file).
        // In a real GPT-2 tokenizer, this would be the raw byte stream of the text.
        byte[] rawInputBytes = Encoding.UTF8.GetBytes("The quick brown fox jumps over the lazy dog.");

        // 2. Wrap the array in a Memory<T>.
        // Memory<T> is the modern abstraction for memory that can be located on the stack or heap.
        Memory<byte> inputMemory = rawInputBytes.AsMemory();

        // 3. Define the "vocabulary" or a specific token we are looking for.
        // We use ReadOnlySpan<char> to represent this token without allocating a string.
        ReadOnlySpan<char> targetToken = "fox".AsSpan();

        Console.WriteLine($"Processing input of length: {inputMemory.Length} bytes");
        Console.WriteLine($"Looking for token: {targetToken}");

        // 4. Process the memory to find the token.
        // We pass the Memory and the target token to our processing method.
        ProcessAndFindToken(inputMemory, targetToken);
    }

    /// <summary>
    /// Processes a block of memory to find a specific token efficiently.
    /// </summary>
    /// <param name="input">The input data wrapped in Memory.</param>
    /// <param name="token">The token to search for, wrapped in a Span.</param>
    private static void ProcessAndFindToken(Memory<byte> input, ReadOnlySpan<char> token)
    {
        // 5. Convert the token (char span) to bytes for comparison.
        // This conversion is done on the stack (using stackalloc if small, or a rented array).
        // We use UTF8 encoding to match the input data format.
        int maxByteLength = Encoding.UTF8.GetMaxByteCount(token.Length);

        // Span<byte> allows us to work with bytes safely without pinning or heap allocation.
        Span<byte> tokenBytes = maxByteLength <= 128
            ? stackalloc byte[maxByteLength] // Fast stack allocation for small tokens
            : new byte[maxByteLength];       // Fallback to heap for very large tokens (rare)

        // Encode the char span into the byte span
        int bytesWritten = Encoding.UTF8.GetBytes(token, tokenBytes);
        tokenBytes = tokenBytes.Slice(0, bytesWritten); // Resize to actual bytes written

        // 6. Slice the input memory to process it in chunks (simulating tokenization).
        // We will look for the token starting at index 16 (which happens to be 'f' in "fox").
        // Slicing Memory<T> creates a new view, not a copy. Zero allocation.
        Memory<byte> chunk = inputMemory.Slice(16, 3);

        // 7. Compare the chunk with the token bytes.
        // We need to check if the memory is contiguous (likely true here) to use Span.
        if (chunk.Span.SequenceEqual(tokenBytes))
        {
            Console.WriteLine("\nSuccess! Found the token 'fox' at the expected position.");
            Console.WriteLine($"Chunk data (UTF-8): {Encoding.UTF8.GetString(chunk.Span)}");
        }
        else
        {
            Console.WriteLine("\nToken not found in the specific chunk.");
        }

        // 8. Demonstrate iterating over the whole buffer using Spans.
        // This is how BPE (Byte Pair Encoding) merging loops work.
        Console.WriteLine("\n--- Iterating over the buffer using Spans ---");

        // Create a ReadOnlySpan of the entire input for safe, bounds-checked iteration.
        ReadOnlySpan<byte> remainingData = input.Span;

        // We simulate finding a boundary (whitespace) to isolate words.
        int wordStart = 0;
        for (int i = 0; i < remainingData.Length; i++)
        {
            // Check for whitespace (ASCII 32)
            if (remainingData[i] == 32)
            {
                // Slice the word (exclusive of the space)
                ReadOnlySpan<byte> word = remainingData.Slice(wordStart, i - wordStart);

                // Convert back to string just for printing (allocation happens here for display only)
                // In a real tokenizer, we would process the byte span directly.
                Console.WriteLine($"Found word: {Encoding.UTF8.GetString(word)}");

                wordStart = i + 1; // Move start to next character
            }
        }

        // Print the last word
        if (wordStart < remainingData.Length)
        {
            Console.WriteLine($"Found word: {Encoding.UTF8.GetString(remainingData.Slice(wordStart))}");
        }
    }
}

Detailed Explanation

Here is the line-by-line breakdown of how this code achieves high performance and memory safety.

1. Data Simulation (rawInputBytes):

   • We start by creating a standard byte array. In a real-world scenario (like a GPT-2 tokenizer), this data would likely come from NetworkStream.ReadAsync or File.ReadAllBytes.
   • Why bytes? GPT models operate on tokens derived from raw bytes. UTF-8 is the standard encoding for text transmission and storage.

2. The Memory<T> Abstraction (inputMemory):

   • rawInputBytes.AsMemory() wraps the array.
   • Why Memory<T>? Unlike Span<T>, Memory<T> can be stored in class fields and used in asynchronous methods (async/await). It represents a potentially non-contiguous buffer. Here, it wraps a contiguous array.

3. The Target Token (targetToken):

   • We define the search term "fox" as a ReadOnlySpan<char>.
   • Zero Allocation: Calling .AsSpan() on the string literal does not create a new string object on the heap. It creates a lightweight struct that points to the existing string data in memory with a specific offset and length.

4. The Processing Method Signature:

   • ProcessAndFindToken(Memory<byte> input, ReadOnlySpan<char> token)
   • This signature is optimized for performance. Memory allows flexibility (async potential), while ReadOnlySpan for the token ensures we don't accidentally modify the search term and avoid heap allocations.

5. Encoding Conversion (tokenBytes):

   • To compare the text token "fox" with the raw byte input, we must convert "fox" into bytes.
   • Stack Allocation (stackalloc): We calculate the maximum byte length needed. Since "fox" is small (3 chars), we allocate memory on the stack using stackalloc byte[...].
   • Benefit: Stack allocation is virtually free (just moving the stack pointer) and requires no Garbage Collection. The memory is automatically reclaimed when the method returns.
   • Fallback: If the token were huge (unlikely for GPT-2 subwords), we fall back to the heap to prevent a stack overflow.

6. Slicing (inputMemory.Slice):

   • We extract a specific section of the input (indices 16-18).
   • Zero Copy: Slice does not copy the data. It simply creates a new Memory<T> struct pointing to the same underlying array but with adjusted start and length properties. This is incredibly fast.

7. Comparison (SequenceEqual):

   • We compare the Span<byte> of the slice with our encoded token bytes.
   • Optimization: SequenceEqual is highly optimized using SIMD (Single Instruction, Multiple Data) instructions under the hood in modern .NET runtimes. It compares 16 or 32 bytes at a time rather than one by one.

8. Iteration Logic:

   • The final loop demonstrates how to parse the buffer manually.
   • Instead of input.Split(' ') (which allocates an array of strings), we iterate manually.
   • We use Slice to define the boundaries of each word. This allows us to pass lightweight ReadOnlySpan<byte> references to the rest of the tokenizer pipeline (e.g., a BPE merge function) without ever creating a substring.

Common Pitfalls

1. Using Span in Async/Await Contexts

• Mistake: Attempting to declare a Span<T> local variable inside an async method and expecting it to survive across await boundaries.
• Why it fails: Span is a stack-only type. It points to memory that might be on the stack frame of the current method. When an async method suspends, the stack frame is lost. If the await resumes on a different thread, the Span would point to invalid memory.
• Fix: Use Memory<T> and .Span when you need to cross await boundaries. Convert Memory to Span only inside the synchronous section of the code.

2. Defensive Copying with Reference Types

• Mistake: Passing a Span<T> to a method that accepts object or an interface (like IEnumerable).
• Why it fails: To pass a Span as an object, the runtime must box it. Boxing allocates memory on the heap, negating the performance benefits of using Span.
• Fix: Ensure your API boundaries accept Span<T> or ReadOnlySpan<T> directly.

3. Stack Overflow with stackalloc

• Mistake: Using stackalloc byte[largeSize] where largeSize is unpredictable or large (e.g., > 1KB).
• Why it fails: The stack has limited size (usually 1MB per thread). Allocating too much causes a StackOverflowException.
• Fix: Always check the size before stackalloc. Use a threshold (e.g., 1KB). If the required size exceeds the threshold, fall back to ArrayPool<T>.Shared.Rent() to rent a buffer from a shared pool, which is still much faster than standard heap allocation.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---
