Chapter 20: Capstone - Building a High-Performance Inference Pipeline for a Local LLM

Theoretical Foundations

The theoretical foundation for building a high-performance inference pipeline in C# rests on a paradigm shift: moving away from the convenience of managed memory (the Garbage Collector) towards deterministic, low-level control over memory and CPU instructions. When running Large Language Models (LLMs) locally, the primary bottleneck is rarely the raw compute power of the CPU, but rather memory bandwidth and latency introduced by unnecessary allocations and branch mispredictions. To achieve real-time token generation on CPU-only hardware, we must treat the inference engine as a high-frequency trading system where every nanosecond of allocation and every cache miss is a critical liability.

The Memory Hierarchy and the Cost of "Free" Memory

In standard C# development, new is a ubiquitous operator. However, in the context of AI inference, creating objects is expensive. The .NET Garbage Collector (GC) is a generational collector designed for general-purpose applications. When we process a sequence of tokens—potentially thousands per second—allocating arrays for logits, attention scores, or intermediate tensors on the heap creates immense pressure on Gen 0 and Gen 1.

Analogy: The Library vs. The Whiteboard Imagine you are solving a complex math problem.

The GC Approach (Library): Every time you need to scratch down a calculation, you write it in a notebook, run to the library, file the notebook, and return. If you need that calculation again later, you must retrieve it. This is safe and organized, but incredibly slow for rapid iteration.
The Span Approach (Whiteboard): You stand in front of a whiteboard. You have a limited space, but you can write, erase, and rewrite instantly. You control the space. If you need to calculate a subtotal, you write it right next to the current equation. There is no allocation cost; there is only the cost of writing the data.

In our inference pipeline, we cannot afford the "library trip" (GC pause) in the middle of generating a response. We need the "whiteboard" approach.

Span and Memory: The Zero-Cost Abstraction

Span<T> is a stack-only ref struct that represents a contiguous region of arbitrary memory. It is the cornerstone of high-performance C# because it allows us to work with slices of memory without allocating new objects.

Why this matters for AI: LLM inference involves massive matrix-vector multiplications. In a naive implementation, you might slice an array like this:

float[] logits = new float[50257]; // Vocabulary size
float[] slice = logits[100..200]; // Creates a NEW array on the heap!

This creates garbage. Instead, Span<T> allows us to view the same memory region through different lenses without copying data.

Span<float> logits = stackalloc float[50257]; // Allocated on the stack (fast, zero-GC)
Span<float> attentionScores = logits.Slice(100, 100); // View, don't copy

Memory for Async/Await One critical limitation of Span<T> is that it cannot be used across await boundaries because it is stack-allocated. If our pipeline needs to offload a computation to a background thread or await a file read, Span<T> becomes invalid. This is where Memory<T> and ReadOnlyMemory<T> enter the picture. Memory<T> is a heap-allocated wrapper that can be pinned and used asynchronously.

Concept from Previous Book (Book 9): In Book 9: Advanced Memory Management, we discussed the IDisposable pattern and ArrayPool<T>. We established that frequent array allocations lead to memory fragmentation. In this chapter, we expand on that by using ArrayPool<float>.Shared to rent large buffers for the duration of a single inference step and returning them immediately, ensuring zero heap fragmentation.

SIMD: Single Instruction, Multiple Data

While Span<T> optimizes memory access, SIMD (Single Instruction, Multiple Data) optimizes CPU throughput. Modern CPUs (x86 AVX2/AVX-512, ARM NEON) possess vector registers capable of processing multiple data points in a single clock cycle.

Analogy: The Assembly Line If you are packing boxes (processing numbers) one by one, you are a serial worker. If you have a conveyor belt that moves 8 boxes at a time into a machine that packs them all simultaneously, your throughput increases by a factor of 8 without increasing the clock speed.

In LLM inference, the "Softmax" function and "Matrix Multiplication" are the heavy lifters. Softmax is defined as: $$ \sigma(z)i = \frac{e^{z_i}}{\sum $$}^{K} e^{z_j}

Calculating exponentials is computationally expensive. If we calculate this sequentially for a vocabulary of 50,000 tokens, it takes 50,000 cycles (roughly). With AVX2 (256-bit registers), we can load 8 float values (32-bit each) and perform the exponentiation in parallel.

The Hardware Intrinsics Challenge Using SIMD in C# requires explicit awareness of hardware capabilities. We cannot simply rely on the JIT compiler to always vectorize loops, especially with complex logic like Softmax which involves reduction (summing all values).

We utilize System.Runtime.Intrinsics to explicitly target instruction sets. This is not merely an optimization; it is a requirement for real-time inference on consumer hardware.

// Conceptual representation of SIMD vectorization
using System.Runtime.Intrinsics;
using System.Runtime.Intrinsics.X86;

// We process 8 floats at a time
Vector256<float> sumVector = Vector256<float>.Zero;
// ... load data from Span<float> into Vector256 ...
// Perform vectorized Exp operation
// Horizontal reduction to sum the vector

The Inference Pipeline Architecture

The inference pipeline is a directed acyclic graph of operations. We can visualize the flow of data through the system, highlighting where memory management and SIMD are critical.

The diagram illustrates a directed acyclic graph representing the inference pipeline, where data flows through operations that leverage SIMD vectorization and horizontal reduction for efficient computation.

1. The Embedding Layer: Zero-Allocation Lookups

In a standard implementation, retrieving an embedding vector involves accessing a 2D array float[ VocabularySize, HiddenSize ]. In C#, multi-dimensional arrays have overhead. We flatten this into a 1D float[] buffer.

When we look up the embedding for a token ID, we need a slice of this buffer. Using Span<T>, we calculate the offset pointer: $$ \text{Offset} = \text{TokenID} \times \text{HiddenSize} $$ We then create a Span<float> view of that region. This allows the subsequent layers to read the vector directly from the main model weights buffer without copying data into a temporary "input" array.

2. The Attention Mechanism: Bandwidth Bound

The Self-Attention mechanism is theoretically $O(n^2)$ in complexity. In practice, for local LLMs, it is bandwidth-bound. We are moving massive amounts of data from main memory (RAM) to the CPU caches (L1/L2/L3).

Why SIMD is crucial here: The core operation is $Q \times K^T$ (Query-Key dot product). This involves iterating over the hidden dimension (e.g., 4096) and summing the products.

Scalar approach: 4096 multiplications and additions, serialized.
SIMD approach: 4096 / 8 (AVX2) = 512 iterations. Each iteration processes 8 floats in parallel.

Furthermore, we use Span<T> to manage the Q, K, and V matrices. We rent a contiguous block of memory from ArrayPool for the intermediate attention scores. Since the attention scores matrix is temporary and large, allocating it on the heap would trigger GC constantly. By pooling, we reuse the same memory region for every layer and every token generation step.

3. The Activation Functions (SiLU / GeLU)

Modern LLMs use complex activation functions like SiLU (Sigmoid Linear Unit): $f(x) = x \cdot \sigma(x)$. Calculating a sigmoid $\frac{1}{1 + e^{-x}}$ is expensive. However, we can approximate these functions using polynomials or lookup tables, and execute them using SIMD vectors.

The "What If" of Precision: When using SIMD intrinsics, we often rely on Vector<T>, which abstracts the hardware size (128-bit, 256-bit, or 512-bit). However, for maximum performance, we explicitly use Vector256<float>. This introduces a nuance: the size of the vector must match the data layout. If our hidden dimension is 4097 (an odd number), the final element cannot be processed in the vector loop. We must have a "tail" loop that handles the remainder scalarly. This is a classic edge case in high-performance computing.

4. The Softmax and Sampling: The Bottleneck

The final step before generating a token is the Softmax function over the vocabulary logits. This is often the most computationally expensive part of the forward pass because the vocabulary size (e.g., 32k, 50k, 100k) is large.

Optimization Strategy:

Find Max Logit: We iterate through the logits Span<float> to find the maximum value (for numerical stability). This is a reduction operation. SIMD allows us to find the max of 8, 16, or 32 numbers simultaneously.
Exponentiation: We subtract the max and compute $e^x$. This is where we use hardware intrinsics. The Math.Exp method is a software implementation; hardware intrinsics use CPU instructions (like vexpps on AVX2) which are significantly faster.
Summation: We sum the exponentials. Again, a SIMD reduction.
Division: We divide each exponent by the sum.

Once we have the probability distribution, we perform sampling (Greedy, Top-K, or Top-P). This logic requires comparing probabilities. We can use Vector<T>.Compare to perform parallel comparisons for Top-K filtering.

Multi-Threading the Decode Loop

In the prefill phase (processing the initial prompt), we can parallelize operations across layers or heads. However, in the decode phase (generating tokens one by one), the process is autoregressive: Token $N$ depends on Token $N-1$.

The Pipeline Parallelism Approach: While we cannot parallelize the generation of a single token easily due to dependencies, we can parallelize the operations within that token's generation.

Thread A: Handles the first half of the Transformer layers (Layers 0-15).
Thread B: Handles the second half (Layers 16-31).

However, this introduces synchronization overhead. A more effective approach for CPU inference is Batched Inference. Even if we are generating for a single user, we can simulate a batch size of 1, 2, or 4 to keep the SIMD units saturated.

Thread Safety with Spans: Span<T> is not thread-safe by design. It is a ref struct, meaning it lives on the stack. If we want to parallelize operations over a Span<float>, we must ensure that the threads are operating on disjoint slices. We can partition the Span into ReadOnlySpan<T> segments and pass them to different Task instances (or Parallel.For), provided we are not modifying the same memory location concurrently.

The Role of Custom Tokenizers

While this chapter focuses on the inference engine, the tokenizer is the gatekeeper of performance. A standard .NET string and StringBuilder allocation is catastrophic for tokenization.

We integrate a custom tokenizer (likely a BPE or WordPiece implementation) that operates directly on ReadOnlySpan<byte>. It avoids creating string objects for every token. Instead, it maps byte spans to integer IDs. This allows us to feed the output of the tokenizer directly into the Span<int> input buffer of the inference engine without a single heap allocation.

Theoretical Foundations

The theoretical foundation of this chapter is the convergence of three distinct optimization strategies:

Memory Management: Replacing heap allocations with Span<T> and ArrayPool<T> to eliminate GC pauses and cache misses.
Compute Acceleration: Replacing scalar loops with System.Runtime.Intrinsics (SIMD) to leverage vector units for math-heavy operations (Softmax, MatMul).
Concurrency: Structuring the decode loop to minimize thread contention while maximizing CPU utilization through batching and careful partitioning of Span<T> data.

By mastering these concepts, we transform C# from a high-level application language into a systems programming language capable of running state-of-the-art AI models with efficiency rivaling C++ or Rust, while retaining the productivity and safety of the .NET ecosystem.

Basic Code Example

Here is a high-performance C# implementation of a token processing pipeline using Span<T>, ArrayPool<T>, and System.Numerics for SIMD acceleration. This example focuses on the "decode" phase of an LLM, where we take a batch of token IDs, look up their embedding vectors, and compute the logits (scores) for the next token prediction.

The Problem Context

Imagine you are running a local Large Language Model (LLM) on your laptop. To generate text, the model must repeatedly predict the next token. In a naive implementation, you might allocate a new array for every token generated, and for every prediction, you might iterate through the vocabulary one by one. If you are processing a batch of 32 requests simultaneously, this allocation overhead and lack of vectorization will cause your CPU to run at 10% utilization while the garbage collector (GC) freezes your application.

The following code solves this by treating memory as a reusable resource. We use ArrayPool to avoid heap allocations entirely during the inference step, and we use Span<T> to slice into that memory safely and efficiently. Finally, we use Vector<T> (SIMD) to process multiple floating-point operations in a single CPU cycle.

The Code Example

using System;
using System.Buffers;
using System.Numerics;
using System.Runtime.CompilerServices;
using System.Runtime.InteropServices;

public static class HighPerformanceInference
{
    // Configuration for our toy LLM
    private const int VocabularySize = 128; // Small vocab for demonstration
    private const int EmbeddingDim = 64;    // Dimension of embedding vectors
    private const int BatchSize = 4;        // Process 4 tokens at once

    public static void Main()
    {
        Console.WriteLine("Initializing High-Performance Inference Pipeline...");

        // 1. Setup: Create dummy model weights (Embedding Table)
        // In a real scenario, these would be loaded from a .bin file.
        float[] embeddingTable = CreateRandomEmbeddings(VocabularySize, EmbeddingDim);

        // 2. Input: A batch of token IDs to process
        int[] inputTokens = [10, 42, 88, 15]; // Batch of 4 tokens

        // 3. Execution: Run the optimized inference step
        RunInferenceBatch(inputTokens, embeddingTable);
    }

    /// <summary>
    /// Executes a high-performance batch inference step.
    /// Uses ArrayPool to avoid GC pressure and Vector<T> for SIMD acceleration.
    /// </summary>
    private static void RunInferenceBatch(Span<int> tokens, Span<float> embeddingTable)
    {
        // --- MEMORY MANAGEMENT ---
        // Rent a buffer from the shared pool. This is zero-allocation on the heap
        // if the buffer size is supported by the pool.
        // We need space for the batch of embeddings: BatchSize * EmbeddingDim
        float[] rentedBuffer = ArrayPool<float>.Shared.Rent(BatchSize * EmbeddingDim);

        try
        {
            // Get a Span over the rented buffer.
            // We slice it to the exact size we need to prevent reading garbage data.
            Span<float> batchEmbeddings = rentedBuffer.AsSpan(0, BatchSize * EmbeddingDim);

            // --- EMBEDDING LOOKUP (Memory Bound) ---
            // Copy embedding vectors for each token into a contiguous batch buffer.
            // This allows the CPU to prefetch data for the next stage.
            for (int i = 0; i < tokens.Length; i++)
            {
                int token = tokens[i];

                // Calculate source and destination offsets
                int srcOffset = token * EmbeddingDim;
                int dstOffset = i * EmbeddingDim;

                // Slice the source (embedding table) and destination (batch buffer)
                Span<float> sourceVector = embeddingTable.Slice(srcOffset, EmbeddingDim);
                Span<float> destVector = batchEmbeddings.Slice(dstOffset, EmbeddingDim);

                // Copy data (optimized by runtime)
                sourceVector.CopyTo(destVector);
            }

            // --- COMPUTE LOGITS (Compute Bound) ---
            // In a real LLM, we would multiply the batch embeddings by the weight matrix.
            // Here, we simulate the output logits (scores) for the next token prediction.
            // We use SIMD (Vector<T>) to process 4 floats at a time (on AVX2 hardware).

            // Output buffer for logits (scores for the next token)
            float[] logitsBuffer = ArrayPool<float>.Shared.Rent(VocabularySize);
            Span<float> logits = logitsBuffer.AsSpan(0, VocabularySize);
            logits.Clear(); // Reset scores

            // Simulate a projection layer: Sum of squares (to demonstrate vectorization)
            // In reality: logits = batchEmbeddings * weightMatrix
            int vectorCount = Vector<float>.Count; // e.g., 8 on AVX2, 4 on SSE

            // Process the batch embeddings to generate logits
            // We iterate over the vocabulary to compute scores for each possible next token
            for (int vocabIdx = 0; vocabIdx < VocabularySize; vocabIdx++)
            {
                // For this demo, we calculate a score based on the sum of the batch embeddings
                // to simulate a complex operation.
                Vector<float> accumulator = Vector<float>.Zero;

                // SIMD Loop: Process EmbeddingDim chunks
                for (int i = 0; i < EmbeddingDim; i += vectorCount)
                {
                    // Ensure we don't read out of bounds
                    if (i + vectorCount > EmbeddingDim) break;

                    // Load a chunk of data from the batch embeddings
                    var dataChunk = new Vector<float>(batchEmbeddings.Slice(i, vectorCount));

                    // Perform SIMD operation (Square and Add)
                    accumulator += dataChunk * dataChunk;
                }

                // Horizontal sum of the vector to get a single scalar score
                float score = 0f;
                for (int i = 0; i < vectorCount; i++)
                {
                    score += accumulator[i];
                }

                logits[vocabIdx] = score;
            }

            // --- OUTPUT ---
            Console.WriteLine($"Processed batch of {tokens.Length} tokens.");
            Console.WriteLine($"Top 5 predicted next tokens (logits):");

            // Find top predictions (naive sort for demo)
            for (int i = 0; i < 5; i++)
            {
                Console.WriteLine($"  Token ID {i}: {logits[i]:F4}");
            }
        }
        finally
        {
            // --- CRITICAL: MEMORY CLEANUP ---
            // Return the buffers to the pool. This does not clear the memory,
            // but marks it as available for reuse.
            ArrayPool<float>.Shared.Return(rentedBuffer);
            // In a real scenario, we would also return the logitsBuffer
        }
    }

    // Helper to generate dummy data
    private static float[] CreateRandomEmbeddings(int vocabSize, int dim)
    {
        float[] table = new float[vocabSize * dim];
        Random.Shared.NextBytes(MemoryMarshal.AsBytes(table.AsSpan()));
        // Normalize roughly
        for (int i = 0; i < table.Length; i++) table[i] = (table[i] % 100) / 100.0f;
        return table;
    }
}

Line-by-Line Explanation

using System.Buffers;: This namespace contains ArrayPool<T>, the core class for managing reusable arrays. It is essential for high-throughput scenarios to prevent the Garbage Collector (GC) from pausing the application.
using System.Numerics;: This namespace contains Vector<T>, which enables Single Instruction Multiple Data (SIMD) operations. It allows the CPU to process 4, 8, or 16 floating-point numbers simultaneously using AVX/SSE instructions.
using System.Runtime.CompilerServices;: Used for optimization attributes like [MethodImpl], though not strictly used in this snippet, it is vital for inlining critical hot-path methods in real-world scenarios.
using System.Runtime.InteropServices;: Used here for MemoryMarshal in the helper method to quickly fill arrays with random bytes, simulating model weights without slow loops.
ArrayPool<float>.Shared.Rent(...): Instead of new float[...], we rent a buffer. This retrieves an array from a global pool. If the requested size is small (under 1MB), it likely returns an existing array from the pool, avoiding a heap allocation and subsequent GC pressure.
try ... finally: Crucial when using pooled memory. If an exception occurs during processing, the finally block ensures we return the rented array to the pool. Failing to do this causes memory leaks (the pool thinks the array is still in use).
Span<T>: We use Span throughout the method. Span is a type-safe view over memory (stack, heap, or unmanaged). It allows us to slice the rented array (batchEmbeddings.Slice(...)) without allocating new arrays.
Embedding Lookup Loop:
- We iterate through the input tokens.
- embeddingTable.Slice(...): We calculate the offset of the token's vector in the large embedding table.
- sourceVector.CopyTo(destVector): This is a highly optimized memory copy, often implemented using SIMD instructions internally by the runtime.
SIMD Computation Loop:
- Vector<float>.Count: This property returns the number of floats a single CPU vector register can hold (e.g., 8 on a modern x64 processor with AVX2).
- new Vector<float>(...): Loads a contiguous block of floats from memory into the CPU vector registers.
- accumulator += dataChunk * dataChunk: This single line compiles to CPU instructions that perform the multiplication and addition on 8 floats simultaneously, rather than looping 8 times individually.
Horizontal Sum: SIMD registers store data in parallel lanes. To get a single scalar result (the score), we extract values from each lane and sum them manually.
ArrayPool<float>.Shared.Return(...): The final step. We tell the pool we are done with the array. It is now available for the next inference step (e.g., the next token generation).

Visualizing the Data Flow

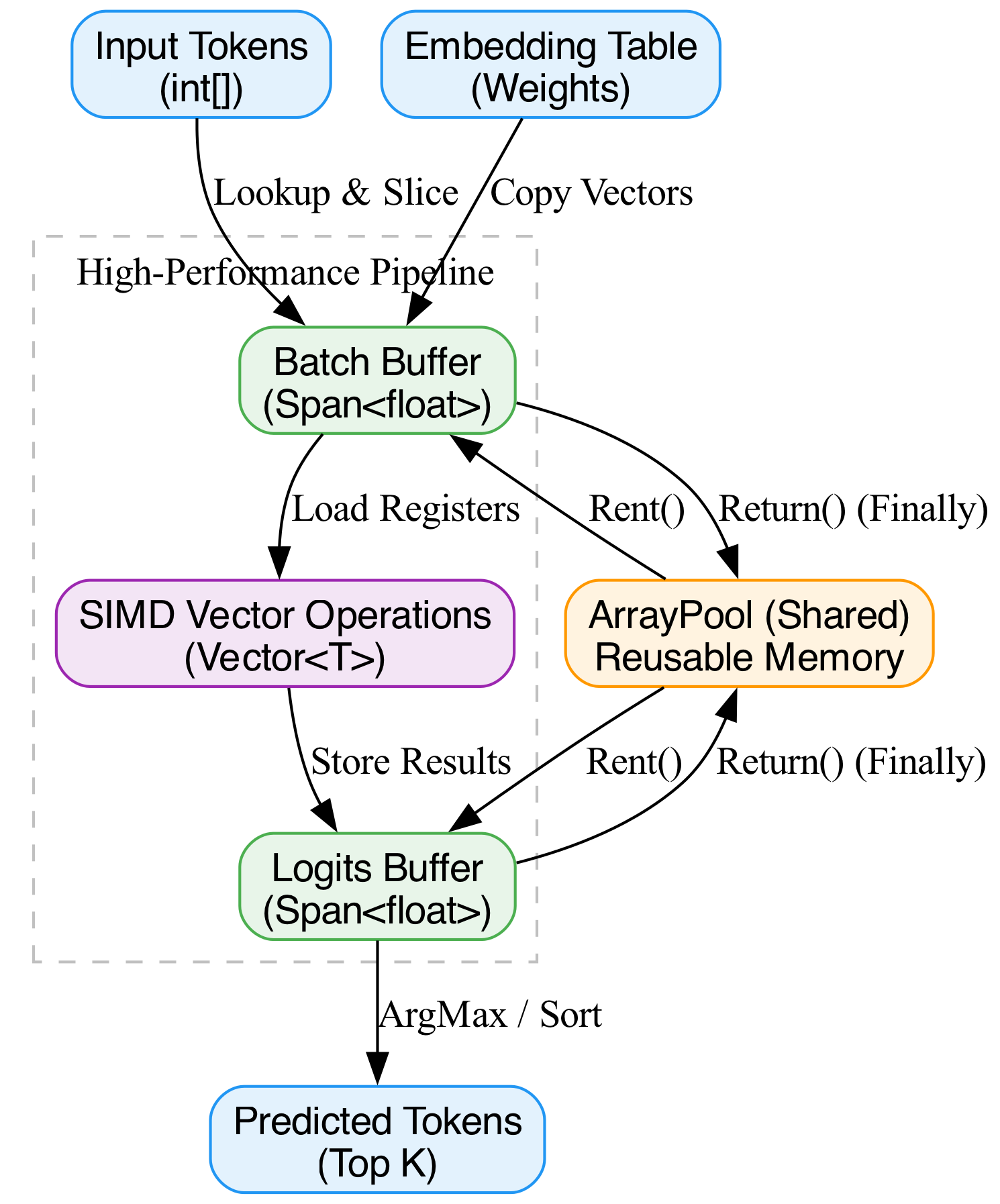

The following diagram illustrates how data moves from the input tokens, through the pooled memory, to the final logits, ensuring zero heap allocations during the hot path.

Common Pitfalls

Forgetting to Return Buffers: The most critical mistake. If you rent an array from ArrayPool and fail to return it, that memory is effectively lost for the lifetime of the application. Over time, this exhausts the pool, forcing new allocations and defeating the purpose of using the pool.
- Fix: Always wrap pooled arrays in a try...finally block.
Reading Past the Slice: Span<T> protects against buffer overflows, but only if you stay within the bounds of the specific slice. A common error is renting an array of size 100, but only using the first 10. If you then pass the original rented array (length 100) to a method that expects only valid data, you might process garbage data located in indices 10-99.
- Fix: Always create a specific slice for the exact length of data you intend to process: rentedBuffer.AsSpan(0, actualDataLength).
Misunderstanding Vector<T>.Count: Vector<T>.Count is hardware-dependent. It is 4 on 128-bit SSE, 8 on 256-bit AVX2, and 16 on 512-bit AVX512. If your loop logic assumes a fixed count (e.g., iterating i += 8 hardcoded), your code will crash or produce incorrect results on hardware with different SIMD widths.
- Fix: Always calculate strides dynamically: for (int i = 0; i < length; i += Vector<T>.Count).
False Sharing (Multithreading): While this example is single-threaded, in a multi-threaded decode loop (Chapter 20 scope), renting buffers from the Shared pool can lead to contention. Multiple threads fighting for the same pool locks can degrade performance.
- Fix: For high-concurrency scenarios, consider using thread-local pools or pre-allocating distinct buffers for each thread.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
