Chapter 6: Enums and Flags - Managing Agent States (Idle, Thinking, Error)

Theoretical Foundations

In the architecture of complex AI systems, particularly those involving autonomous agents, managing state is not merely an organizational preference—it is a fundamental requirement for deterministic behavior. An agent that can be simultaneously Idle, Thinking, and Error is logically incoherent and prone to catastrophic runtime failures. To enforce strict logical boundaries, we utilize Enumerations (Enums).

An Enum is a distinct type that consists of a set of named constants. Unlike simple integers or strings, Enums provide compile-time type safety, preventing the assignment of invalid states. This concept builds upon the Type Safety principles introduced in Book 1, Chapter 4, where we established that distinct data types prevent logical errors. However, while standard Enums enforce mutual exclusivity (an agent can only be in one state at a time), modern AI agents often require composite states—a capability provided by Flags.

The Analogy: Traffic Control Systems

To understand the distinction between standard Enums and Flags, consider a traffic light system versus a vehicle's dashboard.

  1. Standard Enum (Traffic Light): A standard traffic light has strictly defined, mutually exclusive states: Red, Yellow, or Green. It is physically impossible (and dangerous) for a light to be both Red and Green simultaneously. This mirrors the AgentState where an agent is either Idle or Thinking.
  2. Flags (Dashboard Indicators): A car's dashboard, however, displays multiple independent statuses simultaneously. You can have the HighBeams on, the Wipers running, and the CheckEngine light active all at once. These are not mutually exclusive; they are a combination of attributes. This is the domain of Bitmasking.

Enums in AI Agent Lifecycle Management

In the context of an AI agent processing tensor data, we define the core lifecycle states. These states dictate the flow of execution within the agent's internal loop.

using System;

namespace AdvancedOOP.DataStructures
{
    // Represents the primary lifecycle state of an AI agent.
    // These are mutually exclusive; an agent cannot be both Idle and Thinking.
    public enum AgentState
    {
        Idle,       // Awaiting trigger or input
        Thinking,   // Processing tensor operations or reasoning
        Executing,  // Performing external actions based on reasoning
        Error       // Critical failure state requiring intervention
    }
}

Architectural Implications

Using this Enum allows the AgentController to implement a deterministic Finite State Machine (FSM). The strict typing ensures that we cannot accidentally pass a null or arbitrary integer value into a state check. For example, in a tensor processing pipeline, we might check:

public void ProcessTensor(Tensor<float> input)
{
    if (_currentState == AgentState.Error)
    {
        // Prevent processing if the agent is in a faulted state.
        return;
    }

    _currentState = AgentState.Thinking;
    // ... perform operations ...
}

The Limitation of Standard Enums

Standard Enums suffer from a significant limitation: they represent a single value. As AI systems become more complex, agents need to track multiple attributes simultaneously. For instance, an agent might be Thinking (processing a query) but also AwaitingInput (waiting for user clarification) or Locked (preventing race conditions in a multi-threaded environment).

If we were to extend the standard Enum, we would be forced to create a combinatorial explosion of states: ThinkingAndAwaitingInput, ThinkingAndLocked, IdleAndLocked, etc. This is unmaintainable.

Flags: The Bitmasking Solution

To manage composite states, we utilize the Flags attribute combined with bitwise operations. This technique allows a single variable to hold multiple enum values simultaneously by treating the underlying integer representation as a set of binary switches.

Defining Flag Enums

We define a Flag Enum using powers of two (1, 2, 4, 8, 16...). This ensures that each value occupies a unique bit position in the binary representation, allowing them to be combined without collision.

[Flags]
public enum AgentAttributes
{
    None        = 0,      // 0000 in binary
    Processing  = 1 << 0, // 0001 (Decimal 1)
    Awaiting    = 1 << 1, // 0010 (Decimal 2)
    Locked      = 1 << 2, // 0100 (Decimal 4)
    Optimized   = 1 << 3  // 1000 (Decimal 8)
}

Bitwise Operations

The power of Flags lies in the bitwise operators | (OR), & (AND), and ^ (XOR).

  1. Setting Flags (Union): We use the bitwise OR operator to combine states.

    AgentAttributes currentAttributes = AgentAttributes.Processing | AgentAttributes.Locked;
// Binary: 0001 | 0100 = 0101 (Decimal 5)
    The agent is now both Processing and Locked.

  2. Checking Flags (Intersection): We use the bitwise AND operator to test for the presence of a specific flag.

    if ((currentAttributes & AgentAttributes.Locked) == AgentAttributes.Locked)
{
    // The Locked bit is set to 1.
}
    This check isolates the specific bit. If the result of the AND operation equals the flag we are checking, that flag is active.

  3. Removing Flags: We use the AND operator combined with the bitwise NOT (~) to clear a specific bit.

    // Unlock the agent
currentAttributes = currentAttributes & ~AgentAttributes.Locked;
// Binary: 0101 & ~0100 = 0101 & 1011 = 0001 (Decimal 1)
// Result: Only Processing remains.

Integrating Enums and Flags in AI Systems

In a real-world AI application, such as a tensor-based reasoning engine, we typically pair a primary State Enum with a secondary Attribute Flags set.

  • State (Enum): Defines the agent's high-level operational mode (e.g., Idle, Thinking). This controls the main execution flow.
  • Attributes (Flags): Defines the auxiliary conditions or modifiers (e.g., AwaitingInput, Locked, Optimized). This controls fine-grained behavior and resource management.

Visualizing the State Management Architecture

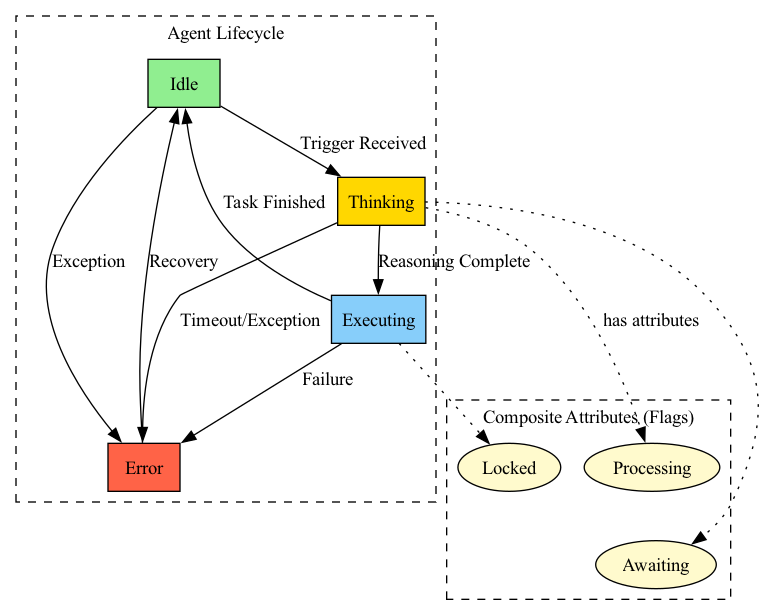

The following diagram illustrates how a State and Attributes interact within an Agent's lifecycle. The State dictates the major phase, while Attributes modify behavior within that phase.

A diagram illustrating how an Agent's lifecycle is driven by its State, which dictates the major phase, while Attributes modify behavior within that phase.
Hold "Ctrl" to enable pan & zoom

A diagram illustrating how an Agent's lifecycle is driven by its State, which dictates the major phase, while Attributes modify behavior within that phase.

Practical Implementation: The State Manager

To utilize these concepts effectively, we implement a StateController that encapsulates the logic for transitioning between states and toggling attributes. This abstraction ensures that the raw bitwise operations are not scattered throughout the codebase, adhering to the Encapsulation principle.

public class AgentController
{
    // Primary State (Mutually Exclusive)
    private AgentState _currentState;

    // Secondary Attributes (Composite)
    private AgentAttributes _currentAttributes;

    public AgentController()
    {
        _currentState = AgentState.Idle;
        _currentAttributes = AgentAttributes.None;
    }

    // Method to transition primary state
    public void TransitionTo(AgentState newState)
    {
        // Validation logic to prevent invalid transitions
        if (_currentState == AgentState.Error && newState != AgentState.Idle)
        {
            Console.WriteLine("Cannot transition from Error state without reset.");
            return;
        }

        _currentState = newState;
        Console.WriteLine($"State changed to: {newState}");
    }

    // Method to set a composite attribute flag
    public void SetAttribute(AgentAttributes attribute)
    {
        _currentAttributes |= attribute;
        Console.WriteLine($"Attribute set: {attribute}. Current attributes: {_currentAttributes}");
    }

    // Method to clear a composite attribute flag
    public void ClearAttribute(AgentAttributes attribute)
    {
        _currentAttributes &= ~attribute;
        Console.WriteLine($"Attribute cleared: {attribute}. Current attributes: {_currentAttributes}");
    }

    // Method to check for specific attributes using bitwise AND
    public bool HasAttribute(AgentAttributes attribute)
    {
        return (_currentAttributes & attribute) == attribute;
    }

    // Example usage in a tensor processing scenario
    public void ProcessTensorData()
    {
        if (_currentState == AgentState.Error)
        {
            Console.WriteLine("System in error state. Halting processing.");
            return;
        }

        // Set attributes to reflect current operation
        SetAttribute(AgentAttributes.Processing | AgentAttributes.Locked);

        try
        {
            // Simulate tensor processing
            TransitionTo(AgentState.Thinking);

            // Check if we are waiting for external data
            if (HasAttribute(AgentAttributes.Awaiting))
            {
                Console.WriteLine("Processing paused, awaiting input...");
            }
            else
            {
                // Continue processing
            }
        }
        catch (Exception ex)
        {
            TransitionTo(AgentState.Error);
            // Clear operational attributes on error
            _currentAttributes = AgentAttributes.None;
        }
        finally
        {
            // Ensure locks are released
            ClearAttribute(AgentAttributes.Locked);
            ClearAttribute(AgentAttributes.Processing);
        }
    }
}

Edge Cases and Architectural Considerations

  1. Flag Exhaustion: In C#, the underlying type of an Enum is int (32-bit) by default. This allows for a maximum of 32 distinct flags. If an AI system requires more than 32 composite attributes, the underlying type must be changed to long (64-bit) using public enum AgentAttributes : long.
  2. Undefined Combinations: While Enums provide type safety, they do not prevent logically invalid combinations. For example, AgentAttributes.Processing | AgentAttributes.Awaiting might be a valid state (processing but waiting for a specific resource), but AgentAttributes.Locked | AgentAttributes.Optimized might be logically contradictory depending on the system design. The developer must enforce logical constraints within the AgentController methods.
  3. Thread Safety: In multi-threaded AI environments (common in tensor processing), modifying Enums and Flags is not atomic. If multiple threads attempt to modify the _currentAttributes bitmask simultaneously, race conditions can occur. While not detailed in this subsection, advanced implementations would require lock statements or Interlocked operations to ensure bitwise modifications are thread-safe.

By mastering Enums and Flags, developers can construct robust, self-documenting state management systems that form the backbone of reliable AI agent architectures.

Basic Code Example

In the context of an AI agent managing a smart home system, an agent might transition through various operational phases: waiting for a command (Idle), processing a complex request (Thinking), or encountering a hardware malfunction (Error). Using integers or strings to represent these states is prone to errors, such as typos or invalid values (e.g., State = "idel"). Enums provide a strongly-typed solution, ensuring that the agent can only ever be in one of the predefined, valid states.

This example demonstrates a SmartHomeAgent class that manages its lifecycle using an AgentState enum. It includes a state transition manager that validates changes, ensuring the agent cannot transition from Error directly to Thinking without a reset, for instance.

using System;

namespace SmartHomeSystem
{
    // Defines the strict, mutually exclusive states an agent can be in.
    // Enums are value types and inherently type-safe.
    public enum AgentState
    {
        Idle,       // Waiting for input
        Thinking,   // Processing data
        Error       // Critical failure
    }

    // Represents the AI agent controlling the home.
    public class SmartHomeAgent
    {
        // Property to hold the current state.
        // We use a private backing field to control access.
        private AgentState _currentState;

        public AgentState CurrentState
        {
            get { return _currentState; }
            private set { _currentState = value; }
        }

        // Constructor initializes the agent to Idle.
        public SmartHomeAgent()
        {
            CurrentState = AgentState.Idle;
            Console.WriteLine("Agent initialized. State: Idle");
        }

        // Attempts to transition to a new state.
        // This method encapsulates the business logic for state management.
        public void TransitionState(AgentState newState)
        {
            Console.WriteLine($"Attempting to transition from {CurrentState} to {newState}...");

            // Logic to validate state transitions.
            // This prevents invalid sequences, such as going from Error to Thinking directly.
            bool isValid = false;

            if (CurrentState == AgentState.Idle && newState == AgentState.Thinking)
            {
                isValid = true; // Idle -> Thinking is valid
            }
            else if (CurrentState == AgentState.Thinking && newState == AgentState.Idle)
            {
                isValid = true; // Thinking -> Idle is valid (task complete)
            }
            else if (CurrentState == AgentState.Thinking && newState == AgentState.Error)
            {
                isValid = true; // Thinking -> Error is valid (processing failed)
            }
            else if (CurrentState == AgentState.Error && newState == AgentState.Idle)
            {
                isValid = true; // Error -> Idle is valid (reset)
            }
            else if (CurrentState == newState)
            {
                isValid = true; // Staying in the same state is allowed
            }

            if (isValid)
            {
                CurrentState = newState;
                Console.WriteLine($"Success. New State: {CurrentState}");
            }
            else
            {
                Console.WriteLine($"Failed. Cannot transition from {CurrentState} to {newState}.");
            }
        }

        // Simulates processing a request.
        public void ProcessRequest(string request)
        {
            if (CurrentState != AgentState.Idle)
            {
                Console.WriteLine($"Cannot process '{request}'. Agent is currently {CurrentState}.");
                return;
            }

            TransitionState(AgentState.Thinking);

            // Simulate work
            Console.WriteLine($"Processing: {request}...");

            // Simulate a random failure during processing
            Random rnd = new Random();
            if (rnd.Next(0, 2) == 0) // 50% chance of error for demonstration
            {
                TransitionState(AgentState.Error);
            }
            else
            {
                TransitionState(AgentState.Idle);
            }
        }
    }

    // Main program to run the simulation.
    class Program
    {
        static void Main(string[] args)
        {
            SmartHomeAgent agent = new SmartHomeAgent();

            // 1. Start a valid request
            agent.ProcessRequest("Turn on living room lights");

            // 2. Demonstrate an invalid transition attempt
            // (Assuming the agent ended in Error state from the previous random chance)
            if (agent.CurrentState == AgentState.Error)
            {
                // Try to go straight to Thinking (Invalid)
                agent.TransitionState(AgentState.Thinking);

                // Correct way: Reset to Idle first
                agent.TransitionState(AgentState.Idle);
            }

            // 3. Process another request
            agent.ProcessRequest("Set thermostat to 72 degrees");
        }
    }
}

Step-by-Step Explanation

  1. Enum Definition (AgentState):

    • We define AgentState with three distinct values: Idle, Thinking, and Error.
    • Why: This creates a closed set of possibilities. The compiler ensures that you cannot assign a value to an AgentState variable that isn't defined here (unlike using strings). This eliminates an entire category of runtime bugs related to invalid state names.

  2. Class Structure (SmartHomeAgent):

    • The class encapsulates the agent's data and behavior.
    • It holds a private field _currentState of type AgentState. Making the field private prevents external classes from arbitrarily changing the state without going through the validation logic.
    • The public CurrentState property provides read-only access (via the getter) to the outside world, while the setter remains private to enforce controlled modification.

  3. State Transition Logic (TransitionState):

    • This is the core of the state machine. Instead of setting the property directly, we call this method.
    • It contains a series of if-else checks to determine if the requested transition is valid based on the current state.
    • Example: It allows Idle -> Thinking but blocks Error -> Thinking.
    • Architectural Implication: By centralizing transition logic, we can easily add logging, auditing, or trigger side effects (like sending notifications) whenever a state changes.

  4. Business Logic (ProcessRequest):

    • This method represents the agent's primary function.
    • It checks CurrentState before acting. If the agent is not Idle, it refuses the new request, preventing the agent from trying to process multiple tasks simultaneously (a simple concurrency control).
    • It triggers the state transition to Thinking at the start and attempts to return to Idle or transition to Error upon completion.

  5. Execution (Main):

    • We instantiate the agent.
    • We simulate a workflow: processing a request, potentially encountering an error, and recovering.
    • The output demonstrates the flow of state changes and how the validation logic prevents illegal operations.

Common Pitfalls

Mistake: Using Enums as Integers for Logic A common error when moving from languages like C++ or older C# patterns is to rely on the underlying integer values of the enum for calculations or comparisons.

  • The Code:

    // BAD PRACTICE
int stateValue = (int)agent.CurrentState;
if (stateValue == 0) { ... } // Checking if Idle

  • The Problem: While enums have default integer values (0, 1, 2...), relying on them makes the code brittle. If you insert a new state into the middle of the enum (e.g., Processing between Idle and Thinking), the integer values shift, breaking any logic that hardcoded 0 or 1.

  • The Fix: Always use the enum type directly for comparisons (if (agent.CurrentState == AgentState.Idle)). This ensures that your logic remains valid even if the underlying integer representation changes.

Visualization of State Flow

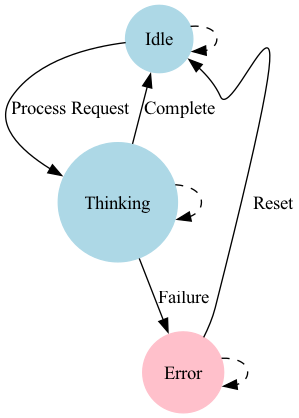

The following diagram illustrates the valid transitions defined in the TransitionState method.

The diagram visually maps the valid state transitions defined in the TransitionState method, illustrating how the system moves between different states based on specific logic rules.
Hold "Ctrl" to enable pan & zoom

The diagram visually maps the valid state transitions defined in the `TransitionState` method, illustrating how the system moves between different states based on specific logic rules.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
