Chapter 13: Events - Reacting to 'ModelFinishedThinking' Signals

Theoretical Foundations

In the architecture of complex AI systems, one of the most significant challenges is managing the lifecycle of long-running operations without freezing the user interface or tightly coupling the core logic to the presentation layer. When an AI model performs inference—generating text, processing an image, or calculating a tensor transformation—this process often runs on a background thread. The main application thread, which handles user input and rendering, must remain responsive. The core problem is: how does the background worker signal the main thread that work is complete, and how does it pass the complex results (like tensors or metadata) safely?

This is where the Observer design pattern becomes critical. As introduced in previous chapters regarding Interfaces (specifically for swapping model providers like OpenAI vs. Local Llama), interfaces define a contract. The Observer pattern extends this philosophy by defining a contract for notification. It allows a subject (the AI model) to maintain a list of dependents (observers, such as UI elements or downstream logic) and notify them automatically of any state changes.

In C#, this pattern is natively implemented through the Event system. An event is a specialized wrapper around a delegate that provides a safer, more restricted mechanism for subscription. While a delegate is a reference to a method, an event ensures that external objects can only add (+=) or remove (-=) handlers; they cannot overwrite the notification list or invoke the event directly. This encapsulation is vital for the stability of AI applications.

The Analogy: The Restaurant Kitchen

To understand the decoupling provided by events, imagine a busy restaurant kitchen.

The Chef (The AI Model/Subject): The Chef is responsible for the heavy lifting—preparing the complex dish (inference). The Chef does not know who the waiters are, nor which table ordered the food.
The Finished Bell (The Event): When the dish is ready, the Chef rings a bell. This is a broadcast. The Chef doesn't care who hears it, just that the signal is sent.
The Waiters (The Event Handlers/Observers): The Waiters are listening for the bell. When they hear it, they perform their specific action: pick up the plate, check the ticket (metadata), and deliver it to the correct table (update the UI).

If the Chef had to walk over to every specific waiter to hand them the plate (tight coupling), the Chef would stop cooking (block the thread). By using the "Event Bell," the Chef remains efficient, and the waiters can react independently. Furthermore, a "Busboy" (a secondary observer) could also listen for the bell to start cleaning the station, without the Chef needing to know the Busboy exists.

Delegates: The Foundation of Event Signatures

Before understanding events, we must understand Delegates. In C#, a delegate is a type that represents references to methods with a particular parameter list and return type. In the context of an AI model finishing its thinking, we need a standard way to describe "a method that handles the completion of a model."

In previous books, we might have defined a simple interface like IModelHandler. Now, we move to the C# native implementation. The standard .NET pattern for events uses two specific arguments in the delegate signature:

object? sender: The source of the event (the AI model instance).
TEventArgs e: A class containing data relevant to the event.

For our AI scenario, we need a custom delegate. However, we rarely define the delegate keyword manually anymore; we use EventHandler<T>. This generic delegate enforces the standard signature, ensuring consistency across the application.

Custom Event Arguments: Passing Tensor Data

When the ModelFinishedThinking event is raised, it is not enough to simply say "I am done." The observers need the result. In AI applications, this result is often heavy: a multi-dimensional tensor, a list of tokens, or confidence scores.

We encapsulate this data in a class inheriting from EventArgs. This class acts as a strongly typed container.

using System;
using System.Collections.Generic; // For List<string>

// In a real scenario, this would likely wrap a Tensor object from a library like TorchSharp or TensorFlow.NET
public class InferenceCompletedEventArgs : EventArgs
{
    // The raw tensor data or result string
    public object ResultData { get; set; }

    // Metadata regarding the inference (e.g., tokens used, time taken)
    public InferenceMetadata Metadata { get; set; }

    // A flag to indicate if the inference was successful
    public bool IsSuccess { get; set; }

    public InferenceCompletedEventArgs(object data, InferenceMetadata meta, bool success)
    {
        ResultData = data;
        Metadata = meta;
        IsSuccess = success;
    }
}

public class InferenceMetadata
{
    public int TokensGenerated { get; set; }
    public TimeSpan Duration { get; set; }
    public string ModelVersion { get; set; }
}

The Event Declaration

Inside the AI Model class (the Subject), we declare the event. Access modifiers are crucial here. To maintain the integrity of the Observer pattern, the event itself should typically be public so observers can subscribe, but the mechanism to raise it should be protected or internal so only the model itself can trigger it.

public class LargeLanguageModel
{
    // The event declaration using the standard .NET EventHandler generic delegate
    // This event is the "Bell" in our restaurant analogy.
    public event EventHandler<InferenceCompletedEventArgs>? ModelFinishedThinking;

    // This method simulates the heavy AI calculation running on a background thread
    public async Task StartInferenceAsync(string prompt)
    {
        // ... (Simulate background processing) ...
        await Task.Delay(2000);

        // Prepare the data to pass to observers
        var resultData = new { Response = "Generated text based on: " + prompt };
        var metadata = new InferenceMetadata
        {
            TokensGenerated = 150,
            Duration = TimeSpan.FromSeconds(2.0),
            ModelVersion = "v2.1-beta"
        };

        var args = new InferenceCompletedEventArgs(resultData, metadata, true);

        // RAISING THE EVENT (The Notification)
        // We use the ?.Invoke operator (Null-conditional operator) to safely raise the event.
        // If no subscribers exist (null), nothing happens. No crash.
        ModelFinishedThinking?.Invoke(this, args);
    }
}

Lambda Expressions: Concise Reaction Logic

In Book 1, we likely wrote separate named methods to handle events:

// Old style
model.ModelFinishedThinking += OnModelFinished;
// ...
private void OnModelFinished(object? sender, InferenceCompletedEventArgs e) { /* logic */ }

In Book 2 (Intermediate), we introduce Lambda Expressions. A lambda expression is an anonymous function that allows us to write inline logic directly at the subscription point. This is incredibly powerful for UI event handling because it keeps the reaction logic immediately visible where the subscription happens, rather than hiding it elsewhere in the class.

The syntax is (parameters) => { body }.

Here is how we subscribe to the ModelFinishedThinking event using a lambda:

public class UserInterface
{
    public void Initialize()
    {
        var model = new LargeLanguageModel();

        // SUBSCRIBING WITH A LAMBDA EXPRESSION
        // We define the handler logic right here.
        // 'sender' is the model that raised the event.
        // 'e' contains our Tensor data and metadata.
        model.ModelFinishedThinking += (sender, e) =>
        {
            if (e.IsSuccess)
            {
                Console.WriteLine($"UI Update: Model finished in {e.Metadata.Duration.TotalSeconds}s");
                Console.WriteLine($"Displaying Result: {e.ResultData}");

                // In a real GUI app, this would be:
                // Dispatcher.Invoke(() => { textBoxResult.Text = e.ResultData.ToString(); });
            }
            else
            {
                Console.WriteLine("UI Update: Model failed.");
            }
        };

        // Trigger the simulation
        model.StartInferenceAsync("What is AI?").Wait();
    }
}

Thread Safety and The `Invoke` Pattern

A critical architectural implication in AI applications is Thread Safety. AI inference usually happens on a background thread (Task/ThreadPool). The UI (like WPF, WinForms, or Unity) usually runs on a specific UI thread. UI controls are not thread-safe; you cannot update a UI element from a background thread directly.

When an event is raised, the event handler executes on the same thread that raised the event. If the AI model raises ModelFinishedThinking from a background thread, the lambda expression attached to it also runs on that background thread.

To handle this, we must ensure that the logic inside the lambda delegates the UI update back to the main thread. While the specific implementation varies by UI framework (e.g., Dispatcher.Invoke in WPF, Context.Post in ASP.NET), the architectural pattern remains the same: The event handler acts as a bridge.

It receives the data safely from the background thread and then marshals that data to the UI thread.

// Conceptual UI Framework Wrapper
public class SafeUIUpdater
{
    // This method would be called inside the lambda
    public void UpdateUI(string message)
    {
        // Pseudo-code for a UI framework
        if (IsOnUIThread)
        {
            Render(message);
        }
        else
        {
            // Marshal the call to the UI thread
            DispatchToUIThread(() => Render(message));
        }
    }
}

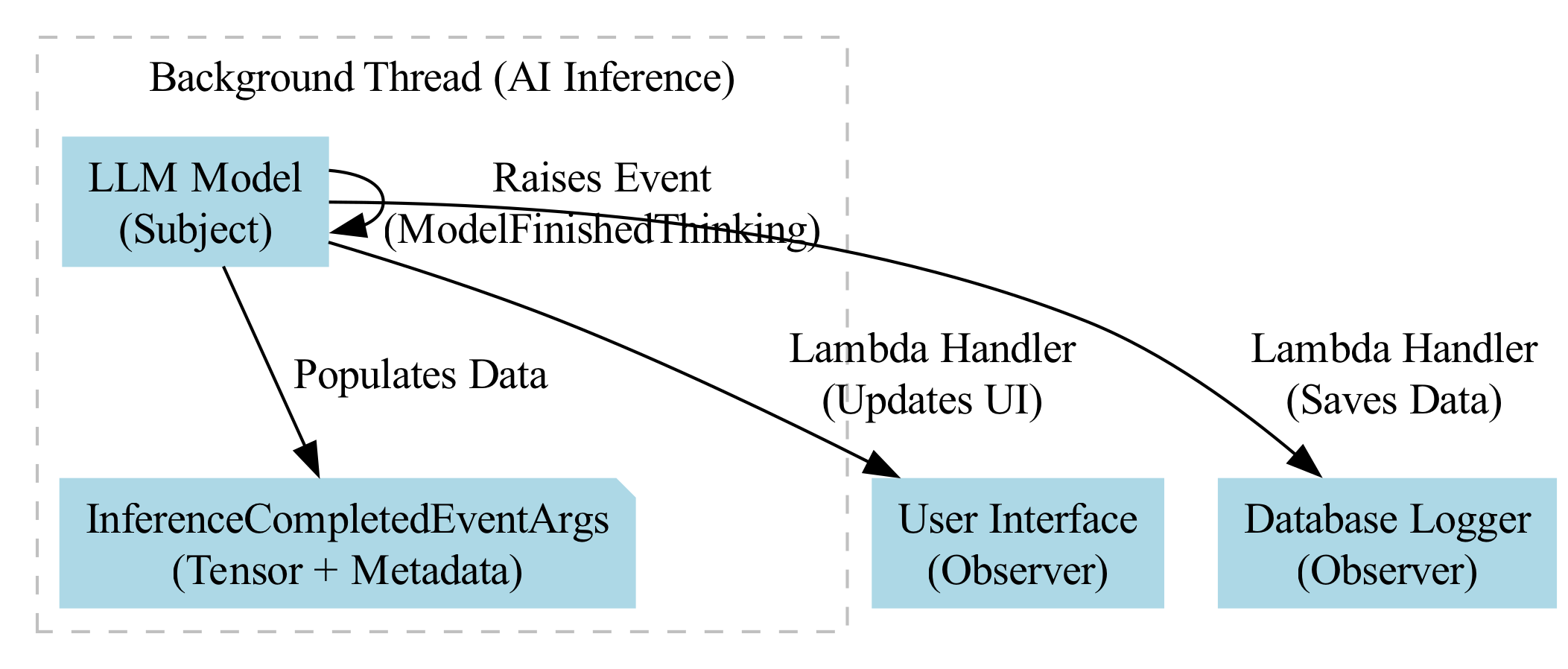

Architectural Implications: Chaining and Modularity

The use of ModelFinishedThinking and Lambda expressions allows for Model Chaining. Because the event is decoupled, we can attach multiple handlers to a single event.

Handler A (UI): Updates the text box.
Handler B (Logging): Writes the inference result to a database.
Handler C (Next Model): Takes the result of Model A and feeds it into Model B (Chain of Thought prompting).

This is the "What If" scenario that makes this pattern essential for complex AI agents. We can build a pipeline where Model A finishes, raises an event, and a lambda expression immediately fires Model B.StartInferenceAsync(e.ResultData). The original Model A never needs to know that Model B exists.

Decoupling: Events separate the "doer" (AI model) from the "reactor" (UI/Logger).
Data Transfer: EventArgs classes act as robust vessels for complex Tensor data and metadata.
Safety: The ?.Invoke pattern prevents null reference exceptions if no listeners exist.
Conciseness: Lambda expressions allow for readable, inline handling of asynchronous results.
Thread Marshaling: The event system is the primary mechanism for crossing thread boundaries safely in responsive AI applications.

Basic Code Example

Modeling the Observer Pattern for Asynchronous AI Inference

In a complex AI system, the component responsible for performing heavy tensor calculations (the "Model") should not be tightly coupled with the component responsible for displaying results (the "UI"). If the model directly calls UI update methods, the model becomes difficult to reuse, test, or run in parallel.

We will model a scenario where a background AI worker processes a tensor. Upon completion, it raises a ModelFinishedThinking event. The main application (or a specific UI handler) listens for this event and reacts accordingly, without the model knowing anything about the listener's implementation.

We will use Delegates to define the event signature and Lambda Expressions to create concise, inline event handlers.

Code Example

using System;
using System.Collections.Generic;
using System.Threading;
using System.Threading.Tasks;

namespace AI_Data_Structures.Events
{
    // 1. Define Custom Event Arguments
    // We need a class to carry data from the event source (the Model) to the listeners.
    // In a real scenario, this would contain complex Tensor objects.
    // Here, we simulate it with a string and a status code.
    public class ModelFinishedThinkingEventArgs : EventArgs
    {
        public string InferenceResult { get; set; }
        public int TensorHash { get; set; }
        public DateTime CompletionTime { get; set; }

        public ModelFinishedThinkingEventArgs(string result, int hash)
        {
            InferenceResult = result;
            TensorHash = hash;
            CompletionTime = DateTime.Now;
        }
    }

    // 2. The AI Model Class (The Subject)
    // This class encapsulates the heavy computation. It knows nothing about the UI.
    public class NeuralNetworkModel
    {
        // Define a delegate type that matches the signature of our event handler.
        // It takes an object (sender) and our custom EventArgs.
        public delegate void ModelFinishedThinkingHandler(object sender, ModelFinishedThinkingEventArgs e);

        // The Event declaration using the delegate.
        // 'event' keyword ensures encapsulation; external classes can only += or -=.
        public event ModelFinishedThinkingHandler ModelFinishedThinking;

        // A method simulating a long-running inference task
        public async Task RunInferenceAsync(string inputPrompt)
        {
            Console.WriteLine($"[Model] Processing input: '{inputPrompt}'...");

            // Simulate heavy tensor calculation (e.g., matrix multiplication)
            await Task.Delay(2000);

            // Create the data payload
            var resultPayload = new ModelFinishedThinkingEventArgs(
                result: $"Analysis of '{inputPrompt}' complete. Confidence: 0.98",
                hash: inputPrompt.GetHashCode()
            );

            // 3. Raising the Event
            // We check for null to ensure there are subscribers.
            // We pass 'this' as the sender (the model itself).
            OnModelFinishedThinking(resultPayload);
        }

        // Helper method to raise the event safely
        protected virtual void OnModelFinishedThinking(ModelFinishedThinkingEventArgs e)
        {
            // Thread safety: Copy the delegate reference to a local variable
            ModelFinishedThinkingHandler handler = ModelFinishedThinking;

            if (handler != null)
            {
                // Invoke all subscribed handlers
                handler(this, e);
            }
        }
    }

    // 4. The UI / Listener Class (The Observer)
    // This class reacts to the event. It could be a Dashboard, a Logger, or a Chart.
    public class DashboardDisplay
    {
        public void Subscribe(NeuralNetworkModel model)
        {
            // 5. Using Lambda Expressions (Book 2 Concept)
            // Instead of creating a separate named method, we define the handler inline.
            // This is concise and captures local variables if needed.
            model.ModelFinishedThinking += (sender, e) =>
            {
                // 'sender' is the object that raised the event (the NeuralNetworkModel)
                // 'e' is our ModelFinishedThinkingEventArgs containing the data
                Console.WriteLine($"\n[Dashboard] Event Received!");
                Console.WriteLine($"   > Result: {e.InferenceResult}");
                Console.WriteLine($"   > Tensor Hash: {e.TensorHash}");
                Console.WriteLine($"   > Processed At: {e.CompletionTime:T}");
            };
        }
    }

    // Main Program Execution
    class Program
    {
        static async Task Main(string[] args)
        {
            // Instantiate the components
            var aiModel = new NeuralNetworkModel();
            var dashboard = new DashboardDisplay();

            // Subscribe the dashboard to the model's event
            dashboard.Subscribe(aiModel);

            // Trigger the async inference
            // The Main thread continues immediately, but the event handler
            // will execute once the background task finishes.
            await aiModel.RunInferenceAsync("Identify tensor shape [4x4]");

            // Keep console open
            Console.WriteLine("\nPress any key to exit...");
            Console.ReadKey();
        }
    }
}

Step-by-Step Explanation

Defining the Payload (ModelFinishedThinkingEventArgs):
- Events need a way to transport data. We inherit from EventArgs (standard practice).
- In a real AI system, this class would hold references to the calculated Tensors, gradient descent metrics, or loss values. For this "Hello World" example, we use strings and integers to represent the data clearly.
The Subject (NeuralNetworkModel):
- Decoupling: Notice that NeuralNetworkModel does not know about DashboardDisplay. It doesn't call Console.WriteLine directly. It only shouts, "I finished!" to anyone listening.
- Delegate Definition: public delegate void ModelFinishedThinkingHandler(...) defines the "shape" of the function that is allowed to listen. It must accept an object and our custom args and return void.
- The Event: public event ModelFinishedThinkingHandler ModelFinishedThinking creates a list of subscribers. The event keyword restricts access so that only this class can trigger the event, while external classes can only subscribe to it.
Thread Safety in Event Raising:
- In the OnModelFinishedThinking method, we assign the event to a local variable handler.
- Why? In multi-threaded environments (common in AI), another thread could unsubscribe between the if check and the actual invocation, causing a NullReferenceException. Copying the reference ensures the list of subscribers is stable for this specific invocation.
The Lambda Expression Handler:
- In DashboardDisplay.Subscribe, we use the += operator to attach a handler.
- (sender, e) => { ... } is a Lambda Expression. It allows us to define the event handling logic right where we subscribe, without needing to declare a separate named method. This is highly idiomatic in modern C#.
Execution Flow:
- RunInferenceAsync simulates a 2-second delay (representing GPU computation).
- await allows the Main method to pause execution of the RunInferenceAsync method without blocking the entire application (though in this simple console app, it effectively pauses the main thread, in a GUI app this would be different).
- When the delay finishes, OnModelFinishedThinking is called, which triggers the Lambda in the DashboardDisplay.

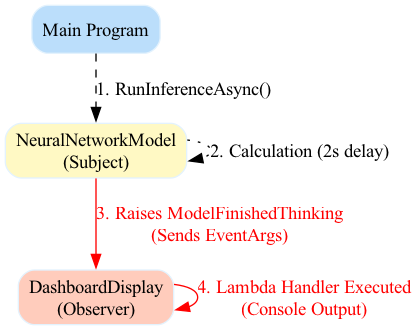

Visualization of the Architecture

The following diagram illustrates the flow of control and data when the event is raised.

When the AI model finishes thinking, it triggers an event that calls a method in the Dashboard, causing the UI to update.

Common Pitfalls

1. Forgetting to Check for Null Subscribers A frequent mistake is raising an event without checking if anyone is listening:

// BAD CODE
ModelFinishedThinking(this, e); // Throws NullReferenceException if no subscribers

Solution: Always check if the event delegate is null before invoking, or use the safe invocation pattern shown in the example (handler?.Invoke(this, e) in newer C# versions, or the local variable copy in older versions).

2. Blocking the Event Handler Event handlers execute on the thread that raises the event. In this example, the event is raised on the background task thread (or the main thread if not properly async).

Mistake: Placing a Thread.Sleep() or heavy synchronous code inside the event handler.
Consequence: If the handler is on a UI thread, the interface freezes. If it's on a background thread, it might starve other listeners.
Solution: Keep event handlers lightweight. If heavy work is required, offload it to a new Task within the handler.

3. Memory Leaks via Unsubscribing If you create a long-lived object (like a Dashboard) that subscribes to a long-lived event source (like a Model), the Dashboard will not be garbage collected as long as the Model holds a reference to it via the event.

Solution: Always unsubscribe using -= when the listener is disposed or no longer needed.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Code License: All code examples are released under the MIT License. Github repo.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
