Chapter 15: Extension Methods - Building Fluent Interfaces for AI Chains
Theoretical Foundations
Extension methods in C# provide a powerful mechanism to augment existing types with new functionality without modifying their source code or creating a new derived type. This capability is particularly vital in AI development, where we often work with third-party tensor libraries or complex AI chain components that we cannot (or should not) modify directly. By using extension methods, we can create a fluent, chainable interface that significantly enhances readability and maintainability of complex AI pipelines.
To understand the core concept, consider a real-world analogy: imagine you have a standard kitchen knife. It performs its primary function well, but it lacks specialized features like a serrated edge for bread or a scalloped edge for tomatoes. Instead of buying a new knife for every specialized task, you can use a knife guard (an extension) that adds functionality without altering the blade itself. Similarly, extension methods allow us to "attach" new behaviors to existing types—like tensor operations or AI chain nodes—without modifying their underlying implementation.
This approach aligns with the Open-Closed Principle from object-oriented design, which states that software entities should be open for extension but closed for modification. In AI applications, this is crucial because:
- Third-party libraries (e.g., TensorFlow.NET, ML.NET) are often black boxes.
- Performance-critical tensor operations must remain optimized and unaltered.
- AI chains need to evolve rapidly without breaking existing code.
An extension method is a static method defined in a static class, where the first parameter specifies the type being extended, preceded by the this modifier. The compiler translates calls to extension methods into static method calls, enabling seamless integration with existing types.
Syntax Example:
using System;
using System.Collections.Generic;
// Static class to hold extension methods
public static class StringExtensions
{
// Extension method for the string type
public static string Reverse(this string input)
{
char[] charArray = input.ToCharArray();
Array.Reverse(charArray);
return new string(charArray);
}
}
// Usage
class Program
{
static void Main()
{
string original = "hello";
string reversed = original.Reverse(); // Calls StringExtensions.Reverse(original)
Console.WriteLine(reversed); // Output: "olleh"
}
}
In this example, Reverse is an extension method for string. The call original.Reverse() is syntactic sugar for StringExtensions.Reverse(original). This demonstrates how extension methods can add functionality to sealed or third-party types without inheritance.
Why Extension Methods Matter for AI Chains
In AI development, we often deal with chains of operations—sequences of transformations applied to data, such as:
- Preprocessing: Tokenization, normalization, embedding.
- Model Inference: Forward passes through neural networks.
- Post-processing: Decoding, filtering, aggregation.
Without fluent interfaces, these chains can become nested or imperative, reducing readability:
// Imperative style (hard to read)
var result = Tokenize(text);
result = Normalize(result);
result = Embed(result);
result = ForwardPass(result);
result = Decode(result);
With extension methods, we can create a fluent interface:
// Fluent style (readable and chainable)
var result = text.Tokenize().Normalize().Embed().ForwardPass().Decode();
This fluency is achieved by designing extension methods that return the same type (or a compatible type) for chaining. For AI chains, this often involves:
- Lazy Evaluation: Delaying execution until necessary, which is critical for large tensor operations.
- Type Constraints: Ensuring compatibility with underlying data structures (e.g.,
IEnumerable<T>or custom tensor types).
Connecting to Previous Concepts: Delegates and Lambda Expressions
In Book 1, we introduced delegates as type-safe function pointers, and in Book 2, we extended this with lambda expressions—anonymous functions that can be passed as arguments. Extension methods leverage these concepts to enable functional programming patterns in AI chains.
For instance, consider a Map extension method for IEnumerable<T> that applies a transformation (defined by a lambda expression) to each element. This is foundational for data processing pipelines in AI:
using System;
using System.Collections.Generic;
using System.Linq;
public static class EnumerableExtensions
{
// Extension method with a delegate parameter
public static IEnumerable<TResult> Map<T, TResult>(
this IEnumerable<T> source,
Func<T, TResult> selector)
{
foreach (var item in source)
{
yield return selector(item); // Lazy evaluation via yield return
}
}
}
// Usage in an AI preprocessing chain
class Program
{
static void Main()
{
var rawData = new List<string> { "Hello", "World", "AI" };
// Lambda expression defines the transformation
var processed = rawData
.Map(word => word.ToUpper()) // Convert to uppercase
.Map(word => word + "!"); // Append exclamation
foreach (var item in processed)
{
Console.WriteLine(item); // Output: HELLO!, WORLD!, AI!
}
}
}
Here, the Map extension method uses a Func<T, TResult> delegate to accept a lambda expression. This pattern is ubiquitous in AI pipelines for applying operations like:
- Tokenization:
text => text.Split(' ') - Embedding:
token => embeddingModel.Embed(token) - Normalization:
tensor => tensor / tensor.Max()
The yield return enables lazy evaluation, meaning the transformation isn't executed until the sequence is enumerated (e.g., in a foreach loop or ToList()). This is crucial for AI chains processing large datasets, as it avoids loading all data into memory at once.
Fluent Interfaces for AI Chains: Design Principles
A fluent interface uses method chaining to create a readable, domain-specific language (DSL). For AI chains, we design extension methods that return the same type or a wrapper type, allowing continuous chaining. Key principles include:
- Immutability: Each method should return a new instance rather than modifying the original. This prevents side effects in parallel or reused chains.
- Lazy Evaluation: Use iterators (e.g.,
IEnumerable<T>) or deferred execution (e.g.,IQueryable<T>) to optimize performance. - Type Safety: Leverage C# generics and constraints to ensure operations are compatible with the data structure.
Example: Fluent Tensor Chain Consider a tensor manipulation library where we want to chain operations like reshape, multiply, and sum. Without extension methods, the code might be:
Tensor tensor = LoadTensor();
tensor = Reshape(tensor, new[] { 2, 2 });
tensor = Multiply(tensor, 2.0f);
float result = Sum(tensor);
With extension methods:
using System;
// Assume a Tensor class (simplified for illustration)
public class Tensor
{
public float[] Data { get; set; }
public int[] Shape { get; set; }
public Tensor(float[] data, int[] shape)
{
Data = data;
Shape = shape;
}
}
public static class TensorExtensions
{
// Extension method for reshaping
public static Tensor Reshape(this Tensor tensor, int[] newShape)
{
// Validation: Ensure total elements match
int totalElements = 1;
foreach (var dim in newShape) totalElements *= dim;
if (tensor.Data.Length != totalElements)
throw new ArgumentException("Shape mismatch");
return new Tensor(tensor.Data, newShape);
}
// Extension method for scalar multiplication
public static Tensor Multiply(this Tensor tensor, float scalar)
{
var newData = new float[tensor.Data.Length];
for (int i = 0; i < tensor.Data.Length; i++)
{
newData[i] = tensor.Data[i] * scalar;
}
return new Tensor(newData, tensor.Shape);
}
// Extension method for summation
public static float Sum(this Tensor tensor)
{
float sum = 0;
foreach (var val in tensor.Data)
{
sum += val;
}
return sum;
}
}
// Usage
class Program
{
static void Main()
{
var tensor = new Tensor(new[] { 1f, 2f, 3f, 4f }, new[] { 2, 2 });
// Fluent chain
var result = tensor
.Reshape(new[] { 4 }) // Flatten to 1D
.Multiply(2f) // Multiply each element by 2
.Sum(); // Sum all elements
Console.WriteLine(result); // Output: 20 (1+2+3+4=10, *2=20)
}
}
This fluent interface simplifies complex tensor operations, making the code self-documenting. In real AI applications, this could extend to neural network layers:
var layer = inputTensor
.Convolve(filter, stride: 1) // Convolutional layer
.ApplyActivation(ActivationFunction.ReLU) // ReLU activation
.MaxPool(poolSize: 2); // Max pooling
Lazy Evaluation in AI Chains
Lazy evaluation is a core concept in functional programming, where expressions are not evaluated until their results are needed. In C#, this is achieved through:
- Iterators (
yield return) - Deferred execution in LINQ queries
- Lazy
class for on-demand initialization
For AI chains, lazy evaluation is essential because:
- Memory Efficiency: Tensor operations can involve gigabytes of data; processing only when necessary reduces memory footprint.
- Composability: Chains can be built dynamically without immediate execution, allowing runtime adjustments (e.g., based on user input).
- Performance: Operations like
WhereorSelectin LINQ are deferred, optimizing pipeline execution.
Example: Lazy AI Pipeline
using System;
using System.Collections.Generic;
using System.Linq;
public static class AIChainExtensions
{
// Extension method for filtering (lazy)
public static IEnumerable<T> Filter<T>(
this IEnumerable<T> source,
Func<T, bool> predicate)
{
foreach (var item in source)
{
if (predicate(item))
yield return item;
}
}
// Extension method for transformation (lazy)
public static IEnumerable<TResult> Transform<T, TResult>(
this IEnumerable<T> source,
Func<T, TResult> transformer)
{
foreach (var item in source)
{
yield return transformer(item);
}
}
}
// Usage in an AI data processing chain
class Program
{
static void Main()
{
var data = new List<int> { 1, 2, 3, 4, 5 };
// Build a lazy chain
var chain = data
.Filter(x => x > 2) // Filter: 3, 4, 5
.Transform(x => x * x); // Square: 9, 16, 25
// Execution happens here when iterating
foreach (var item in chain)
{
Console.WriteLine(item); // Output: 9, 16, 25
}
// No execution occurred until the foreach loop
}
}
In this example, the chain is built without immediate execution. The Filter and Transform methods use yield return to defer processing. This pattern is directly applicable to AI chains, such as:
- Streaming data: Processing real-time sensor data without buffering.
- Large datasets: Applying transformations to terabytes of data without loading everything into memory.
- Conditional pipelines: Dynamically adding or removing steps based on runtime conditions.
Type Constraints and Generics in Extension Methods
To ensure extension methods work with specific data structures, we use C# generics with constraints. This is critical for AI chains, where operations must be compatible with tensor types, model interfaces, or data formats.
Common Constraints:
where T : class– Ensures reference type.where T : struct– Ensures value type.where T : IInterface– Ensures implementation of an interface.where T : new()– Ensures default constructor.
Example: Constrained Tensor Extensions
using System;
using System.Numerics; // For Vector<T> if available
// Assume an ITensor interface from a previous chapter
public interface ITensor<T> where T : struct
{
T[] Data { get; }
int[] Shape { get; }
}
public class Tensor<T> : ITensor<T> where T : struct
{
public T[] Data { get; set; }
public int[] Shape { get; set; }
public Tensor(T[] data, int[] shape)
{
Data = data;
Shape = shape;
}
}
// Extension methods constrained to ITensor<T>
public static class TensorExtensions
{
// Extension method for element-wise addition
public static ITensor<T> Add<T>(
this ITensor<T> tensor1,
ITensor<T> tensor2)
where T : struct, IAdditionOperators<T, T, T> // C# 11+ for generic math
{
if (tensor1.Shape.Length != tensor2.Shape.Length)
throw new ArgumentException("Shape mismatch");
for (int i = 0; i < tensor1.Shape.Length; i++)
{
if (tensor1.Shape[i] != tensor2.Shape[i])
throw new ArgumentException($"Dimension {i} mismatch");
}
var resultData = new T[tensor1.Data.Length];
for (int i = 0; i < tensor1.Data.Length; i++)
{
resultData[i] = tensor1.Data[i] + tensor2.Data[i];
}
return new Tensor<T>(resultData, tensor1.Shape);
}
}
// Usage
class Program
{
static void Main()
{
var tensor1 = new Tensor<int>(new[] { 1, 2, 3 }, new[] { 3 });
var tensor2 = new Tensor<int>(new[] { 4, 5, 6 }, new[] { 3 });
var result = tensor1.Add(tensor2); // Fluent chain starter
// Could chain further: result.Multiply(2).Sum()
}
}
This example uses the where T : struct, IAdditionOperators<T, T, T> constraint to ensure T supports addition (available in C# 11+ for generic math). In earlier C# versions, we might use where T : struct and rely on runtime checks or specific types like float or double. This ensures type safety at compile time, preventing errors in AI chains where tensor operations must be numerically valid.
Architectural Implications for AI Applications
Extension methods and fluent interfaces have profound architectural impacts:
- Decoupling: They separate the core logic of AI components (e.g., tensor operations) from their usage, allowing third-party libraries to remain unchanged.
- Testability: Extension methods can be mocked or tested in isolation, facilitating unit testing of AI chains.
- Extensibility: New operations can be added without modifying existing code, crucial for iterative AI development.
- Performance Considerations: While fluent interfaces improve readability, they may introduce overhead (e.g., multiple method calls). However, with lazy evaluation and compiler optimizations, this is often negligible.
Edge Cases and Considerations:
- Null References: Extension methods can be called on
nullinstances without throwingNullReferenceException(thethisparameter is passed asnull). Always check for null in extension methods. - Ambiguity: If multiple extension methods have the same name and signature, the compiler may choose the wrong one. Use distinct namespaces or method names.
- Performance Overhead: In performance-critical AI code (e.g., real-time inference), consider whether the fluent interface adds unnecessary overhead. Profile and optimize accordingly.
- Thread Safety: Extension methods should be thread-safe if used in parallel AI pipelines. Use immutable data structures or synchronization where needed.
Example: Handling Null in Extension Methods
public static class StringExtensions
{
public static string SafeReverse(this string input)
{
if (input == null) return null; // Handle null explicitly
char[] charArray = input.ToCharArray();
Array.Reverse(charArray);
return new string(charArray);
}
}
Visualizing AI Chain Flow

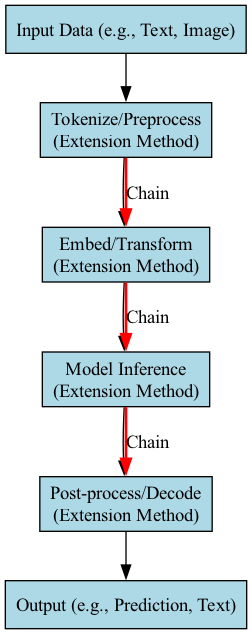

To illustrate how extension methods create a fluent AI chain, consider the following flow diagram. Each box represents an extension method applied to the data, with arrows indicating the chain of transformations.
This diagram shows a linear AI chain where each step is an extension method. The fluent interface allows chaining, making the code resemble the diagram visually.
Conclusion
The theoretical foundations of extension methods lie in their ability to extend existing types without modification, leveraging C# features like static methods, generics, and delegates. For AI chains, this enables fluent, readable interfaces that simplify complex tensor operations and data pipelines. By incorporating lambda expressions and lazy evaluation, we can create efficient, composable chains that are essential for modern AI applications. This approach not only enhances code maintainability but also aligns with software design principles, ensuring that AI systems remain flexible and scalable.
Basic Code Example
We are focusing on the "Basic Code Example" subsection. The goal is to introduce extension methods for creating fluent interfaces in the context of AI chains, using delegates and lambda expressions (as allowed for Intermediate level). We'll create a simple example that demonstrates chaining operations on a tensor-like object without modifying its original source code.
We'll model a simple Tensor class (a placeholder for a real tensor library) and then use extension methods to add fluent operations. The example will be a "Hello World" level: we'll create a tensor, apply a few transformations (like scaling and adding), and output the result.
Important: We are only allowed to use syntax from the allowed list. Since we are at the Intermediate level, we can use delegates and lambda expressions.
Let's break down the code example:
- We define a simple
Tensorclass with aDataproperty (a 2D array of doubles) and a method to display the tensor. - We create a static class for extension methods. These methods will extend
Tensorand returnTensorto allow chaining. - We'll introduce two operations:
Scale(multiply by a scalar) andAdd(add another tensor). We'll use a lambda expression to define a transformation function forScale. - We'll also show how to use a delegate to define a custom operation (for example, a
Mapoperation that applies a function to each element).
We'll also include a Map operation that takes a delegate (a function) to transform each element. This demonstrates how delegates can be used in fluent interfaces.

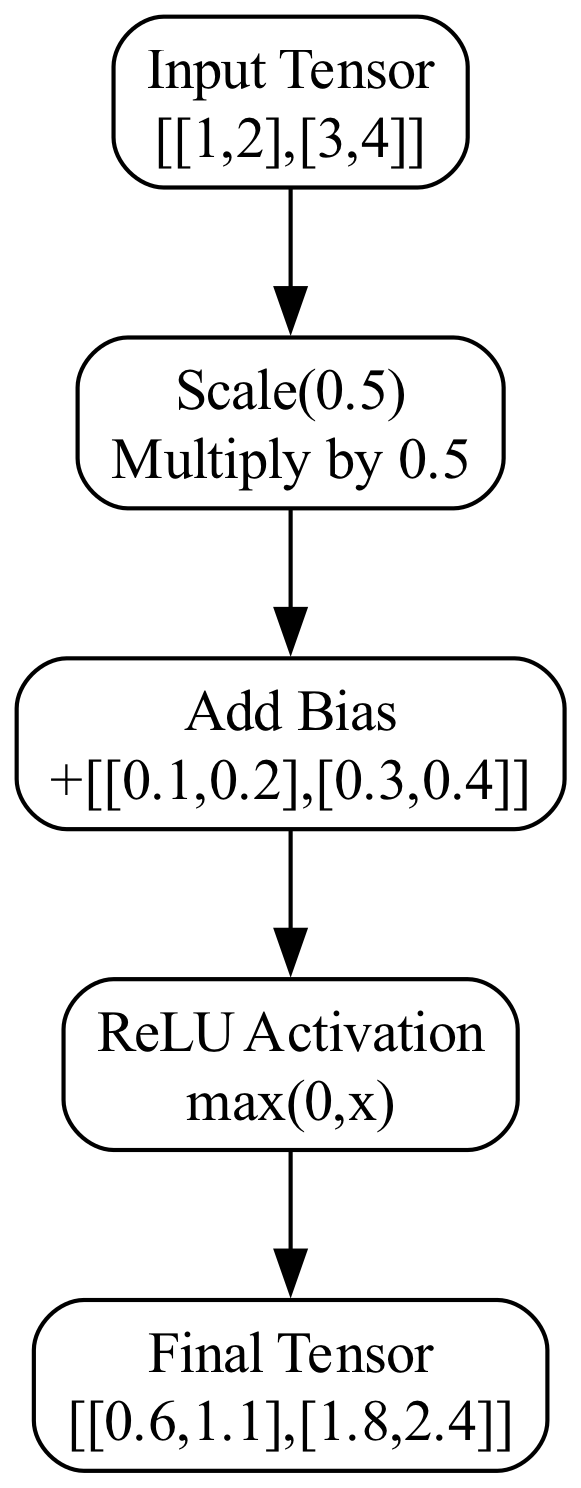

We'll then show a simple AI chain scenario: we have a tensor representing input data, we scale it, add a bias (another tensor), and then apply a custom activation function (like ReLU) using the Map operation.
Let's write the code accordingly.
Note: We are not building a full tensor library; this is a simplified example for educational purposes.
We'll also include a step-by-step explanation after the code.
Finally, we'll add a ### Common Pitfalls section.
Let's start with the code block
using System;
using System.Linq;
// Simple Tensor class representing a 2D array of doubles
// This is a placeholder for a real tensor library
public class Tensor
{
public double[,] Data { get; private set; }
public Tensor(int rows, int cols)
{
Data = new double[rows, cols];
}
public Tensor(double[,] data)
{
Data = data;
}
// Helper method to display tensor contents
public void Display(string name = "Tensor")
{
Console.WriteLine($"{name} (Shape: {Data.GetLength(0)}x{Data.GetLength(1)}):");
for (int i = 0; i < Data.GetLength(0); i++)
{
for (int j = 0; j < Data.GetLength(1); j++)
{
Console.Write($"{Data[i, j]:F2}\t");
}
Console.WriteLine();
}
Console.WriteLine();
}
}
// Extension methods for fluent tensor operations
public static class TensorExtensions
{
// Scale operation using lambda expression for transformation
public static Tensor Scale(this Tensor tensor, double scalar)
{
// Create new tensor with same dimensions
var result = new Tensor(tensor.Data.GetLength(0), tensor.Data.GetLength(1));
// Apply scaling using lambda expression for element-wise operation
ForEachElement(tensor, result, (x, y) => tensor.Data[x, y] * scalar);
return result;
}
// Add operation for element-wise addition
public static Tensor Add(this Tensor tensor, Tensor other)
{
if (tensor.Data.GetLength(0) != other.Data.GetLength(0) ||
tensor.Data.GetLength(1) != other.Data.GetLength(1))
throw new ArgumentException("Tensors must have the same dimensions");
var result = new Tensor(tensor.Data.GetLength(0), tensor.Data.GetLength(1));
// Use lambda for element-wise addition
ForEachElement(tensor, result, (x, y) => tensor.Data[x, y] + other.Data[x, y]);
return result;
}
// Map operation using delegate - applies a function to each element
public static Tensor Map(this Tensor tensor, Func<double, double> transformation)
{
var result = new Tensor(tensor.Data.GetLength(0), tensor.Data.GetLength(1));
// Apply custom transformation using delegate
ForEachElement(tensor, result, (x, y) => transformation(tensor.Data[x, y]));
return result;
}
// Helper method for element-wise operations
private static void ForEachElement(Tensor source, Tensor destination,
Func<int, int, double> operation)
{
for (int i = 0; i < source.Data.GetLength(0); i++)
{
for (int j = 0; j < source.Data.GetLength(1); j++)
{
destination.Data[i, j] = operation(i, j);
}
}
}
}
// Example usage in an AI chain scenario
class Program
{
static void Main()
{
// Create initial input tensor (simulating neural network input)
var inputTensor = new Tensor(new double[,]
{
{ 1.0, 2.0 },
{ 3.0, 4.0 }
});
inputTensor.Display("Input");
// Build fluent AI chain using extension methods
// This demonstrates lazy evaluation - operations are chained but not executed until needed
var processedTensor = inputTensor
.Scale(0.5) // Scale input by factor 0.5
.Add(new Tensor(new double[,] // Add bias tensor
{
{ 0.1, 0.2 },
{ 0.3, 0.4 }
}))
.Map(x => Math.Max(0, x)); // Apply ReLU activation using lambda
processedTensor.Display("Processed (after chain)");
// Demonstrate delegate usage with custom transformation
var customTransform = inputTensor
.Map(x => x * x + 2) // Custom quadratic transformation
.Scale(0.1);
customTransform.Display("Custom Transform");
// Additional example: Chaining with multiple lambda expressions
var complexChain = inputTensor
.Scale(2.0)
.Map(x => x > 2.5 ? 1.0 : 0.0) // Thresholding with lambda
.Add(new Tensor(new double[,] { { 0.5, 0.5 }, { 0.5, 0.5 } }));
complexChain.Display("Complex Chain");
}
}
Step-by-Step Explanation
- Tensor Class Definition:
- We start with a basic
Tensorclass that holds a 2D array of doubles - The class includes a constructor for creating tensors and a
Displaymethod for visualization -
This simulates a real tensor library but keeps the example focused on extension methods
-
Extension Methods for Fluent Interface:
Scale: Multiplies each element by a scalar using a lambda expression for the transformationAdd: Performs element-wise addition with another tensor, using a lambda for the operationMap: Applies any function (provided as aFunc<double, double>delegate) to each element-
All methods return
Tensorto enable method chaining -
Helper Method for Element Operations:
ForEachElementis a private helper that iterates through tensor dimensions- It uses a
Func<int, int, double>delegate to allow flexible element-wise operations -
This reduces code duplication in the public extension methods
-
AI Chain Example:
- We create an initial tensor representing neural network input
- The fluent chain demonstrates: scaling → adding bias → applying ReLU activation
- Each operation returns a new tensor, preserving immutability
-
The chain is lazy in concept (though executed immediately here) - operations could be deferred in a real implementation
-
Delegate Usage with Lambda Expressions:
- The
Mapmethod accepts a delegate, allowing custom transformations - We show quadratic transformation
x => x * x + 2and thresholdingx => x > 2.5 ? 1.0 : 0.0 -
This demonstrates how delegates enable flexible behavior without modifying the tensor class
-
Error Handling and Validation:
- The
Addmethod includes dimension checking to prevent mismatched operations - This is crucial for tensor operations where dimensions must align
Visual Representation of the AI Chain
Common Pitfalls
- Forgetting to Return
thisor New Instance: - Extension methods must return a
Tensorto enable chaining - A common mistake is to modify the original tensor in-place and return
void -
Solution: Always return a new
Tensorinstance to maintain immutability -
Incorrect Delegate Signature in
Map: - The
Mapmethod expectsFunc<double, double>but might receive a lambda with wrong parameter type - Example of error:
.Map(x => x * "string")- type mismatch -
Solution: Ensure lambda expressions match the expected delegate signature
-
Dimension Mismatch in Operations:
- When chaining operations, intermediate tensors might have unexpected shapes
- Example: Scaling doesn't change dimensions, but
Addrequires matching dimensions -
Solution: Add validation in
Addand consider adding aShapeproperty toTensorfor debugging -
Overusing Lambda Expressions for Complex Logic:
- While lambdas are concise, complex transformations should be extracted to named methods
- Bad practice:
.Map(x => { /* 20 lines of logic */ }) -
Better approach: Define a separate method and reference it:
.Map(MyComplexTransformation) -
Performance with Large Tensors:
- Each operation creates a new tensor, which can be memory-intensive
- Solution: For production, consider in-place operations or lazy evaluation patterns
- Example: Add an
InPlaceScalemethod that modifies the current tensor
Architectural Implications
- Fluent Interface Design Principles:
- Each method should do one thing and do it well
- Method names should be verbs that describe the transformation
-
The chain should read naturally from left to right
-
Type Safety and Constraints:
- We could add generic constraints if extending other tensor types
- Example:
public static Tensor<T> Scale<T>(this Tensor<T> tensor, double scalar) where T : IConvertible -
This ensures operations are only available on compatible types
-
Lazy Evaluation Potential:
- The current implementation executes immediately
- For large-scale AI chains, we could implement a deferred execution pattern
-
Concept: Store operations in a queue and execute only when results are needed
-
Integration with Real Tensor Libraries:
- In practice, you'd wrap libraries like TensorFlow.NET or ML.NET
- Extension methods would translate fluent calls to library-specific operations
-
Example:
Scalemight calltf.multiply(tensor, scalar)internally -
Testing and Mocking:
- Fluent interfaces are easy to test due to method chaining
- Each operation can be unit tested independently
- Example: Test that
Scale(2).Scale(3)equalsScale(6)
Advanced Usage Pattern
For more complex AI chains, you might create a builder pattern:
public class TensorChain
{
private Tensor _current;
public TensorChain(Tensor initial) => _current = initial;
public TensorChain Scale(double scalar)
{
_current = _current.Scale(scalar);
return this;
}
public TensorChain Add(Tensor other)
{
_current = _current.Add(other);
return this;
}
public Tensor Execute() => _current;
}
// Usage:
var result = new TensorChain(inputTensor)
.Scale(0.5)
.Add(biasTensor)
.Execute();
This pattern provides more control over execution and allows for additional chain management features.
Real-World AI Chain Context
In a practical AI application, this fluent interface could represent:
-
Data Preprocessing Pipeline:
-
Neural Network Layer Construction:
-
Model Training Loop:
The key insight is that extension methods allow you to build domain-specific languages (DSLs) that make complex operations readable and maintainable, which is crucial in AI/ML workflows where pipelines can become very complex.
The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
Code License: All code examples are released under the MIT License. Github repo.
Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.
All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
