Chapter 20: Capstone Project - Building a Plugin-Based Chatbot Architecture

Theoretical Foundations

In the construction of sophisticated AI systems, particularly those that require modularity and adaptability, the ability to treat behavior as data is paramount. While interfaces and classes provide the structural skeleton of an application, they are often too rigid or verbose for the dynamic, lightweight operations required in AI data pipelines. This is where Lambda Expressions in C# become a critical tool. A lambda expression is an anonymous function that can contain expressions and statements, and it allows us to write inline code that can be passed as an argument or returned as a value from a method.

To understand the necessity of lambdas in AI architectures, consider the Strategy Pattern discussed in previous chapters. We established that the Strategy Pattern allows us to define a family of algorithms, encapsulate each one, and make them interchangeable. In a chatbot context, this might mean swapping between a "Formal Tone" strategy and a "Casual Tone" strategy. Typically, implementing a Strategy requires creating a concrete class for every single variation. If you have five different tone strategies, you create five classes. While this is clean, it introduces a significant amount of boilerplate code for simple, one-off behaviors.

Lambda expressions solve this by allowing us to define the "strategy" behavior inline without the ceremony of a full class definition. Instead of instantiating a class, we assign a function directly to a variable.

The Mechanics of Delegates and Lambdas

In C#, lambda expressions are built upon the foundation of delegates. A delegate is a type that represents references to methods with a particular parameter list and return type. You can think of a delegate as a variable that holds a method rather than a value.

In the context of AI data processing, we often need to transform input data or filter context vectors. Let's look at a scenario where we need to process a list of "context tags" (keywords extracted from user input) before passing them to a neural network embedding layer.

Without lambdas, we would define a delegate type and a separate method:

// Defining a delegate type manually (Verbose)
public delegate List<string> ContextProcessor(List<string> inputTags);

public class TextPreprocessor
{
    public List<string> RemoveStopWords(List<string> tags)
    {
        var stopWords = new HashSet<string> { "the", "is", "at", "which" };
        return tags.Where(t => !stopWords.Contains(t)).ToList();
    }
}

With lambda expressions, we can inline this logic, making the code more concise and readable, which is essential when dealing with complex data pipelines:

using System;
using System.Collections.Generic;
using System.Linq;

// Using Func<T, TResult> delegate (built-in)
// Input: List<string>, Output: List<string>
Func<List<string>, List<string>> processor = (tags) =>
{
    var stopWords = new HashSet<string> { "the", "is", "at", "which" };
    return tags.Where(t => !stopWords.Contains(t)).ToList();
};

// Usage
var rawInput = new List<string> { "the", "weather", "is", "sunny" };
var cleanInput = processor(rawInput);
// Result: ["weather", "sunny"]

Real-World Analogy: The Assembly Line

Imagine a factory assembly line (our AI pipeline). At each station, a worker performs a specific task.

Traditional Approach (Classes): To hire a worker for a new task, you must create a formal job description, interview them, and assign them a permanent station. If you only need them to tighten one screw, this is overkill.
Lambda Approach (Delegates): You have a "Task Board" where you can write a quick instruction: "Pick up the part, tighten the screw, put it back." You can hand this note to any worker instantly. If the task changes tomorrow, you just erase the note and write a new one. You don't need to hire a new person; you just change the instruction.

In our chatbot, the "instruction" is the lambda, and the "worker" is the processor handling the data.

Integrating Lambdas into the Plugin Architecture

In our capstone project, we are building a plugin-based chatbot. A plugin is essentially a unit of functionality that can be hot-swapped. While a complex plugin might be a full class implementing an IPlugin interface, we often need lightweight "micro-plugins" or dynamic behaviors that don't warrant a full class definition.

Let's consider a PluginManager that registers handlers for specific intents (e.g., "Weather", "Timer"). We can use a Dictionary mapping a string intent to a Func<string, string> delegate (a function that takes a query and returns a response).

using System;
using System.Collections.Generic;

public class PluginManager
{
    // A dictionary mapping an intent string to a function that processes it.
    private Dictionary<string, Func<string, string>> _handlers;

    public PluginManager()
    {
        _handlers = new Dictionary<string, Func<string, string>>();
    }

    // Register a new behavior dynamically
    public void RegisterHandler(string intent, Func<string, string> handler)
    {
        if (!_handlers.ContainsKey(intent))
        {
            _handlers.Add(intent, handler);
        }
    }

    // Execute the handler associated with the intent
    public string Execute(string intent, string query)
    {
        if (_handlers.TryGetValue(intent, out var handler))
        {
            return handler(query);
        }
        return "I don't know how to handle that.";
    }
}

Now, we can register behaviors using lambda expressions without writing separate classes:

public class ChatbotDemo
{
    public static void Main()
    {
        var manager = new PluginManager();

        // Registering a "Weather" plugin using a lambda
        manager.RegisterHandler("Weather", (query) =>
        {
            // In a real system, this would call an API or a tensor model
            return $"Fetching weather for: {query}";
        });

        // Registering a "Math" plugin using a lambda
        manager.RegisterHandler("Math", (query) =>
        {
            // Simulate a calculation
            return $"Calculated result for: {query}";
        });

        // Simulate user input
        string intent = "Weather";
        string input = "New York";
        string response = manager.Execute(intent, input);

        Console.WriteLine(response);
    }
}

Advanced Usage: Closures and Context

One of the most powerful features of lambda expressions in C# is closures. A lambda expression can access variables from the method in which it was defined. This is crucial for AI systems that need to maintain state or access a shared context (like a database connection or a configuration object) without passing those objects explicitly as parameters every time.

Imagine a scenario where we have a global configuration for our AI model (e.g., a "temperature" setting that controls randomness). We want to create a processor that uses this configuration.

using System;

public class TemperatureControlledProcessor
{
    public void Process()
    {
        // This variable is local to the Process method
        double temperature = 0.7;

        // We define a lambda that "captures" the 'temperature' variable.
        // Even though 'GenerateResponse' is passed around, it remembers the value of 'temperature'.
        Func<string, string> GenerateResponse = (prompt) =>
        {
            // Simulate AI generation with the captured temperature
            return $"[Temp: {temperature}] AI Response to: {prompt}";
        };

        // Simulate sending this function to a tensor processing unit
        SendToTensorPipeline(GenerateResponse);
    }

    private void SendToTensorPipeline(Func<string, string> processor)
    {
        // The processor is executed here, but it still knows about 'temperature' from Process()
        string result = processor("What is AI?");
        Console.WriteLine(result);
    }
}

This concept of closures allows us to create specialized functions on the fly. In a complex conversational flow, we might generate a specific processing lambda for a user session that captures their personal preferences or conversation history.

Visualizing the Data Flow

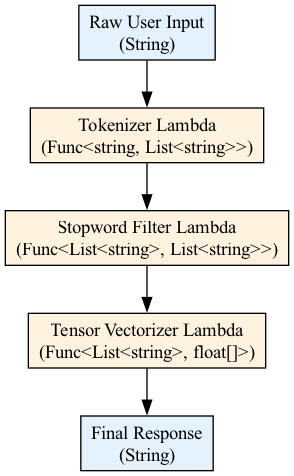

The following diagram illustrates how a raw input string flows through a pipeline of lambda expressions (delegates) to produce a final response. This demonstrates the "Chain of Responsibility" pattern often implemented using functional composition.

A raw input string is processed through a sequential pipeline of lambda expressions, where each delegate handles and transforms the data before passing it to the next, visually demonstrating the Chain of Responsibility pattern via functional composition.

Architectural Implications and Edge Cases

While lambda expressions offer flexibility, they introduce specific architectural considerations for AI systems:

Statelessness vs. Statefulness: Lambdas that capture local variables (closures) hold references to those variables. In a high-concurrency AI server (e.g., handling multiple chatbot sessions simultaneously), if a lambda is shared across threads, changes to the captured variable by one thread will affect others. This is a classic race condition.
- Solution: Ensure that lambdas used in parallel processing (like Parallel.ForEach on a batch of inputs) do not capture mutable shared state, or use thread-safe constructs.
Performance Overhead: While lambdas are syntactically lightweight, they are reference types. Every time you define a lambda, the compiler generates a class (if it captures variables) or a static method (if it doesn't). In tight loops processing millions of tokens in a tensor pipeline, the overhead of delegate invocation can be measurable.
- Optimization: For performance-critical sections, prefer static methods or cached delegates rather than creating new lambda instances inside loops.
Debugging Complexity: Stack traces for exceptions thrown inside lambdas can be harder to read compared to named methods. In a deep learning pipeline, if a tensor operation fails inside a lambda, the stack trace might point to a generic compiler-generated name.
- Mitigation: Keep lambdas small and focused. If a logic block becomes complex, refactor it into a named method and pass that method as the delegate.

Summary

In the context of the Plugin-Based Chatbot Architecture, Lambda Expressions serve as the glue that binds the rigid structure of interfaces to the fluid nature of AI behavior. They allow us to:

Define Strategies Inline: Reducing boilerplate for simple behaviors.
Implement Functional Pipelines: Chaining transformations (Tokenize -> Filter -> Vectorize) cleanly.
Capture Context: Using closures to create context-aware processors without complex object hierarchies.

By mastering delegates and lambdas, we move from writing static, hard-coded logic to creating dynamic, data-driven pipelines that are essential for modern AI applications.

Basic Code Example

In a modern customer support system, you often need to handle different types of user queries—like checking order status, processing returns, or answering FAQs—without rewriting the entire chatbot logic. This is a perfect use case for the Strategy Pattern combined with Delegates and Lambda Expressions.

We will create a simple chatbot that selects the appropriate response strategy based on the user's input. The core logic will be decoupled from the specific response generation, allowing us to easily swap or add new behaviors (plugins) dynamically.

Code Example

using System;
using System.Collections.Generic;
using System.Linq;

// Define a delegate type that represents a strategy for generating a response.
// This delegate takes a user input string and returns a response string.
public delegate string ResponseStrategy(string userInput);

public class SimpleChatbot
{
    // A dictionary to map keywords (or intents) to specific response strategies.
    // This acts as our plugin registry.
    private readonly Dictionary<string, ResponseStrategy> _strategies;

    public SimpleChatbot()
    {
        _strategies = new Dictionary<string, ResponseStrategy>();

        // Register a strategy using a Lambda Expression.
        // This lambda captures the specific logic for handling "order" queries.
        _strategies.Add("order", (input) =>
        {
            // In a real system, we might parse the order ID from the input.
            return "To check your order status, please provide your order ID.";
        });

        // Register another strategy for "return" queries.
        _strategies.Add("return", (input) =>
        {
            return "To process a return, please visit the returns page at our website.";
        });

        // Register a default strategy using a lambda for unmatched queries.
        _strategies.Add("default", (input) =>
        {
            return "I'm sorry, I don't understand that. Can you ask about an order or a return?";
        });
    }

    // Method to process user input and select the correct strategy.
    public string GetResponse(string userInput)
    {
        // Normalize input to lower case for easier matching.
        string normalizedInput = userInput.ToLower();

        // Find the first key in the dictionary that appears in the user's input.
        // This simulates a simple intent recognition system.
        string matchedKey = _strategies.Keys.FirstOrDefault(key => normalizedInput.Contains(key));

        // If no specific key is matched, use the default strategy.
        ResponseStrategy strategy = matchedKey != null ? _strategies[matchedKey] : _strategies["default"];

        // Execute the selected strategy delegate.
        return strategy(userInput);
    }
}

public class Program
{
    public static void Main()
    {
        // Instantiate the chatbot.
        var chatbot = new SimpleChatbot();

        // Simulate a conversation loop.
        Console.WriteLine("Chatbot: Hello! How can I help you today?");
        while (true)
        {
            Console.Write("User: ");
            string input = Console.ReadLine();

            if (input == "exit")
            {
                break;
            }

            // Get the response from the chatbot.
            string response = chatbot.GetResponse(input);
            Console.WriteLine($"Chatbot: {response}");
        }
    }
}

Step-by-Step Explanation

Delegate Declaration (ResponseStrategy):
- We start by defining a delegate type named ResponseStrategy. A delegate is a type-safe function pointer. In this case, it specifies that any method assigned to this delegate must accept a string parameter (the user input) and return a string (the chatbot's response).
- This allows us to treat methods as first-class citizens, passing them around as variables.
Strategy Registration (Lambda Expressions):
- Inside the SimpleChatbot constructor, we initialize a Dictionary<string, ResponseStrategy>. This dictionary maps string keys (representing intents like "order" or "return") to specific delegate instances.
- Instead of defining separate named methods for each strategy, we use Lambda Expressions (e.g., (input) => { return "..."; }). Lambdas provide a concise way to write anonymous inline functions.
- Why Lambdas? They are particularly useful here because the logic is simple and specific to the registration context. They reduce boilerplate code and keep the logic tightly coupled with the registration key.
Strategy Selection (GetResponse):
- The GetResponse method normalizes the user input to lowercase to ensure case-insensitive matching.
- It uses LINQ's FirstOrDefault to scan the dictionary keys and find the first key that appears in the user's input. This simulates a basic intent recognition system.
- If a match is found, the corresponding delegate (strategy) is retrieved; otherwise, the "default" strategy is used.
Execution:
- Finally, the selected delegate is invoked: strategy(userInput). The delegate executes the lambda expression associated with the matched key, generating the appropriate response.

Visualization of the Architecture

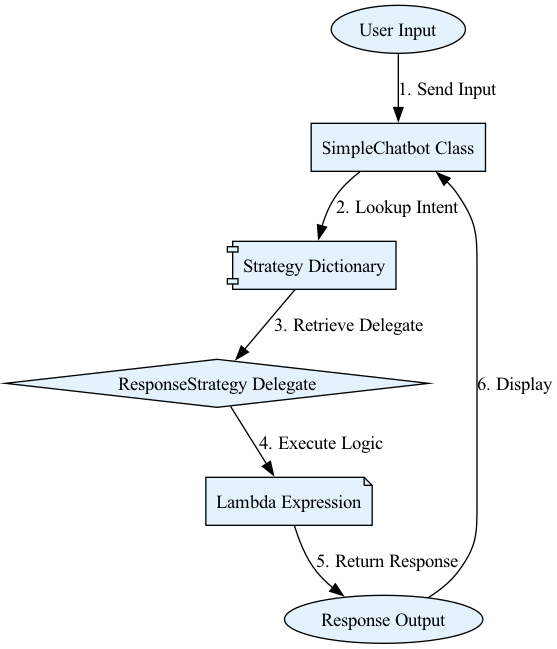

The following diagram illustrates the flow of control and data within the chatbot system:

The diagram illustrates the final execution step, where the selected delegate is invoked with the user's input to run its associated lambda expression and generate a response.

Common Pitfalls

Forgetting to Instantiate the Delegate: A common mistake is declaring a delegate variable but never assigning a method or lambda to it. If you try to invoke an unassigned delegate, it will throw a NullReferenceException. Always ensure your delegate is initialized before use, as done in the dictionary initialization.
Misunderstanding Lambda Closures: When using lambda expressions, they "capture" variables from their surrounding scope. In our example, the lambda captures the input parameter. However, if you were iterating over a collection and creating lambdas inside the loop, be cautious: the lambda captures the variable, not the value at the time of creation. This can lead to unexpected behavior if the variable changes before the lambda is executed. Use local variables inside loops to avoid this.
Over-Reliance on String Matching: Our example uses simple string containment (Contains) for intent matching. In a real-world system, this is fragile (e.g., "I want to return a gift" might match "return" but also "gift"). For production systems, consider using more robust NLP techniques or regular expressions to accurately identify user intent.
