Chapter 1: The Cost of Latency - CPU vs I/O Bound in AI Inference

Theoretical Foundations

In the architecture of modern AI systems, particularly those leveraging Large Language Models (LLMs), performance is not merely a luxury—it is the defining characteristic of a usable application. When a user submits a prompt, the perceived responsiveness dictates the quality of the interaction. However, the path from input to output is fraught with computational and logistical hurdles. To build high-throughput, low-latency systems in C#, we must first dissect the nature of the work being performed. This requires a fundamental understanding of the distinction between CPU-bound and I/O-bound operations, a dichotomy that governs how we manage threads, optimize resources, and structure our asynchronous pipelines.

The Nature of Work: CPU-Bound vs. I/O-Bound

In the context of AI inference, every operation falls into one of two categories: it either crunches numbers or it waits.

CPU-Bound tasks are defined by the limitations of the processor's arithmetic logic unit (ALU). These are operations where the speed of execution is strictly limited by the CPU's clock speed and core count. In an AI pipeline, the most prominent CPU-bound task is the actual model inference. When a request arrives at a local model (like a distilled version of Llama or a transformer-based architecture running via ONNX Runtime), the system performs a massive series of matrix multiplications and activation function evaluations. This is pure math. If you have a complex model with billions of parameters, the time required to calculate the next token is directly proportional to the computational power available. Adding more threads might help (parallelism), but eventually, you hit the physical ceiling of the silicon.

Conversely, I/O-Bound tasks are defined by latency external to the CPU. "I/O" stands for Input/Output, which in the cloud-native era primarily refers to network requests and disk access. In AI applications, this is ubiquitous. Consider a Retrieval-Augmented Generation (RAG) system. Before the model can generate an answer, the application must:

1. Query a vector database (e.g., Azure Cosmos DB or Redis) for relevant context.
2. Fetch data from a REST API (e.g., OpenAI, Azure OpenAI Service, or an internal microservice).
3. Read configuration files or prompt templates from disk.

In these scenarios, the CPU is often idle, waiting for a packet to traverse the network or for a disk head to seek a file. The duration of these operations is measured in milliseconds to seconds, dwarfing the nanosecond-scale operations of the CPU. If a thread is blocked waiting for a database response, that thread is effectively "wasted"—it consumes memory (stack space) and system resources without doing any active processing.

The Cost of Blocking: Thread Starvation and Latency

The traditional synchronous programming model in C# (writing code line-by-line, where each line must complete before the next begins) is disastrous for AI workloads because it treats the thread as a single, sequential execution path.

Imagine a web server handling requests using a thread-per-request model (the classic ASP.NET behavior before async/await became pervasive). If a request involves a network call to an external LLM API that takes 2 seconds to respond, the thread handling that request sits idle for those 2 seconds. It cannot process other requests; it cannot do anything but wait.

In a low-traffic scenario, this is manageable. But in a high-concurrency AI application—say, a chatbot serving thousands of users simultaneously—this leads to Thread Starvation. The thread pool runs out of available threads. New requests arrive, but the system cannot assign a thread to handle them because all existing threads are blocked waiting on I/O. The queue grows, latency spikes, and eventually, the application rejects requests entirely.

This is the "Cost of Latency." It is not just the 2 seconds the user waits for a response; it is the compounding effect of those 2 seconds multiplied by the number of concurrent users. A system that is 90% I/O bound can achieve near-zero CPU utilization while simultaneously failing to scale, simply because its execution model is inefficient.

The Analogy: The Chess Master and the Courier

To visualize this, let us use an analogy involving a Chess Master (the CPU) and a Courier (the Network/Disk).

Scenario A: Synchronous (The Blocking Model) The Chess Master wants to play a game against an opponent across the city. The Master calculates a move (CPU work), writes it down, and hands it to a Courier. The Master then sits and waits (blocking) at the desk, staring at the wall, doing absolutely nothing until the Courier returns with the opponent's response (I/O wait). Once the response arrives, the Master calculates the next move. If the Master is playing 100 games simultaneously, they must sit at 100 different desks, rotating between them, but spending 99% of their time waiting. The Master is exhausted by the waiting, not the thinking.

Scenario B: Asynchronous (The Non-Blocking Model) The Chess Master calculates a move for Game 1 and hands it to the Courier. Instead of waiting, the Master immediately turns to Game 2, calculates that move, and hands it to a second Courier. The Master continues cycling through all active games, calculating moves as fast as possible. When a Courier returns with a response (I/O completion), the Master is notified (via a callback or interrupt), pauses the current calculation, processes the response for that specific game, and continues. The Master is never idle; they are always calculating moves, maximizing the utilization of their brain (CPU).

In C# AI development, we want the Chess Master (the Thread) to be the CPU, constantly calculating, not the Courier (the I/O operation). We achieve this by decoupling the execution of the thread from the completion of the task.

Theoretical Foundations

C# provides a sophisticated model for handling this via the Task Parallel Library (TPL) and the async/await keywords. The core abstraction here is the Task and Task<T>.

When we initiate an I/O-bound operation in C# (like an HTTP request using HttpClient), we do not spawn a new thread to wait. Instead, we initiate the operation and immediately receive a Task object. This Task is a "promise" or a "handle" representing a future result.

// Conceptual representation of an I/O-bound operation signature
public Task<string> GetLlmResponseAsync(string prompt);

When we await this task, the C# compiler transforms the method into a state machine. Crucially, when the execution hits the await keyword, if the Task has not yet completed, the method returns control to the caller immediately. The thread that was executing the method is released back to the thread pool. It is free to handle other work—perhaps processing another user's request or calculating another inference.

Once the I/O operation completes (the Courier returns), the runtime schedules the continuation of the method. A thread (not necessarily the same one) picks up the state machine and resumes execution from where it left off.

CPU-Bound Asynchrony: The Task.Run Pattern

While I/O-bound operations naturally support asynchrony (the OS notifies the driver, which notifies the app), CPU-bound work is different. A CPU-bound operation, by definition, occupies the thread until it finishes. To prevent a heavy AI inference calculation from blocking a request thread in a web server (thereby starving the thread pool), we must offload that work to a background thread.

In C#, we use Task.Run to push CPU-bound work to the thread pool. This is the "Chess Master" delegating a heavy calculation to a "Junior Assistant" so the Master can continue accepting new requests.

using System.Threading.Tasks;

public async Task<string> ProcessRequestAsync(string input)
{
    // This is I/O bound - we await it directly.
    var context = await _vectorDb.QueryAsync(input);

    // This is CPU bound (local model inference).
    // We do NOT await the heavy calculation directly on the request thread.
    // We offload it to a background thread to keep the request thread free.
    var result = await Task.Run(() => PerformHeavyModelInference(input, context));

    return result;
}

Visualizing the Execution Flow

To understand the flow of execution in an asynchronous AI pipeline, we can visualize the lifecycle of a request. The following diagram contrasts the blocking (synchronous) approach with the non-blocking (asynchronous) approach.

Hold "Ctrl" to enable pan & zoom

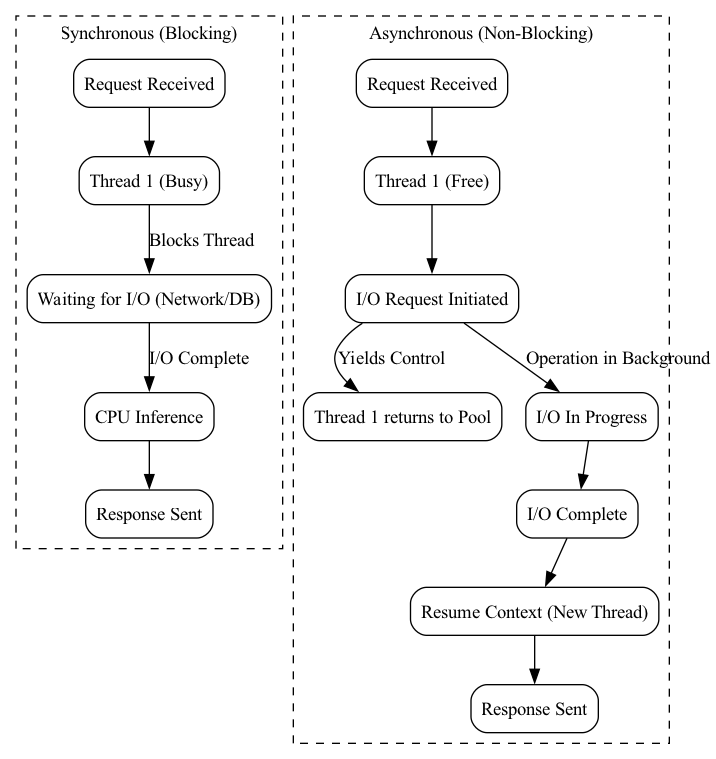

This diagram contrasts the blocking synchronous approach, where each AI inference task holds up the thread until completion, with the non-blocking asynchronous approach, where the system initiates a request and immediately frees the thread to handle other work, resuming only when the AI model finishes processing.

Architectural Implications for AI Systems

Understanding this distinction is not merely academic; it dictates the architecture of high-scale AI systems.

1. The Illusion of Multithreading in Inference When running local models (CPU-bound), simply using Task.Run does not speed up the inference of a single request. If a model takes 5 seconds to generate a response on one core, it will still take 5 seconds (or longer due to overhead) on two cores if you try to parallelize a single inference. However, Task.Run allows the system to handle multiple requests concurrently. While Request A is calculating its 5-second inference on a background thread, the main request thread is free to accept Request B and start its calculation.

2. Hybrid Workloads: The RAG Pipeline Most modern AI applications are hybrid. A typical RAG pipeline looks like this:

1. I/O: Query Vector Database (Async).
2. I/O: Fetch external data if needed (Async).
3. CPU: Construct prompt and run local model inference (CPU-bound).
4. I/O: Stream response to client (Async).

If we block on step 1 (DB query), we waste the thread. If we block on step 3 (Inference), we block the server from accepting new requests. By wrapping step 3 in Task.Run and awaiting the I/O steps naturally, we ensure the thread pool remains healthy.

3. Streaming Responses In LLMs, generating a full response can take seconds. Streaming (yielding tokens as they are generated) is essential for user experience. In a synchronous model, the server cannot send the first token until the last token is calculated. In an asynchronous model using IAsyncEnumerable<T> (introduced in C# 8.0), we can yield tokens back to the client immediately as they are produced by the model. This requires the model inference loop to be non-blocking and cooperative, allowing the system to interleave calculation with network transmission.

Reference to Previous Concepts: Dependency Injection and Interfaces

In Book 3: Modular AI Architectures, we discussed the critical role of Interfaces in decoupling application logic from specific implementations. This concept is tightly coupled with our understanding of latency.

Consider an interface for an AI service:

public interface ILlmService
{
    Task<string> GenerateAsync(string prompt);
}

In Book 3, we used this to swap between a local model (e.g., ONNX) and a remote API (e.g., OpenAI). Now, applying the concepts of latency:

• Local Model (CPU-Bound): The implementation of GenerateAsync will involve heavy computation. We must ensure that the implementation internally uses Task.Run if it blocks the thread, or that the underlying library (like ONNX Runtime) supports native async execution.
• Remote API (I/O-Bound): The implementation will use HttpClient. This is naturally non-blocking if implemented correctly (using await on SendAsync).

By adhering to the interface, we can swap these implementations without changing the calling code. However, the behavior of latency changes. If we swap from a local model (high CPU, low network) to a cloud model (low CPU, high network), the bottleneck shifts. The architectural pattern of async/await abstracts this shift, allowing the system to remain responsive regardless of where the latency originates.

Theoretical Foundations

The "Cost of Latency" in AI inference is the price paid for inefficient resource utilization. CPU-bound tasks (matrix multiplications) consume processing cycles, while I/O-bound tasks (network/database) consume time without CPU activity.

Synchronous programming treats the thread as a rigid, sequential unit, leading to thread starvation when I/O waits occur. Asynchronous programming in C# treats the thread as a fluid resource, decoupling the execution context from the waiting state.

By mastering the distinction between:

1. Natural Async (I/O): Using await directly on I/O operations.
2. Offloaded Async (CPU): Using Task.Run to push heavy computation to background threads.

We build systems that maximize hardware efficiency. This allows an AI application to serve thousands of concurrent users with a small pool of threads, ensuring that the Chess Master is always calculating moves, never waiting for the courier. This foundation is the prerequisite for building the advanced streaming and parallel pipelines discussed in the subsequent chapters.

Basic Code Example

using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Threading;
using System.Threading.Tasks;

public class Program
{
    // Simulated external dependencies (e.g., Vector Database, External API, File System)
    // These represent the I/O-bound portion of an AI pipeline.
    public static async Task Main()
    {
        Console.WriteLine("--- Synchronous (Blocking) Execution ---");
        await RunSynchronousExample();

        Console.WriteLine("\n--- Asynchronous (Non-Blocking) Execution ---");
        await RunAsynchronousExample();
    }

    // 1. Synchronous Example: The "Bad" Way (Blocking the Thread)
    static async Task RunSynchronousExample()
    {
        Stopwatch stopwatch = Stopwatch.StartNew();

        // Simulating a user request that requires fetching context from a vector DB
        // and generating a response from an LLM.
        Console.WriteLine("User Request 1: 'What is the capital of France?'");
        string result1 = FetchContextAndGenerateResponse_Sync("France");
        Console.WriteLine($"Response 1: {result1} (Time: {stopwatch.ElapsedMilliseconds}ms)");

        Console.WriteLine("User Request 2: 'What is 2+2?'");
        string result2 = FetchContextAndGenerateResponse_Sync("Math");
        Console.WriteLine($"Response 2: {result2} (Time: {stopwatch.ElapsedMilliseconds}ms)");

        // In a real web server, blocking like this means the thread is stuck here
        // and cannot handle other incoming requests.
        stopwatch.Stop();
    }

    // 2. Asynchronous Example: The "Good" Way (Non-Blocking)
    static async Task RunAsynchronousExample()
    {
        Stopwatch stopwatch = Stopwatch.StartNew();

        Console.WriteLine("User Request 3: 'Explain Quantum Computing'");
        Console.WriteLine("User Request 4: 'Write a Python Hello World'");

        // Kick off tasks concurrently.
        // We do NOT await immediately. We store the "promise" (Task) in a variable.
        Task<string> task1 = FetchContextAndGenerateResponse_Async("Quantum");
        Task<string> task2 = FetchContextAndGenerateResponse_Async("Python");

        // Now we await them. This allows the thread to do other work while waiting.
        // If task1 finishes first, we process it immediately.
        string result1 = await task1;
        Console.WriteLine($"Response 3: {result1} (Time: {stopwatch.ElapsedMilliseconds}ms)");

        string result2 = await task2;
        Console.WriteLine($"Response 4: {result2} (Time: {stopwatch.ElapsedMilliseconds}ms)");

        stopwatch.Stop();
    }

    // --- SIMULATION HELPERS ---

    // Synchronous I/O Simulation (Blocking)
    // This mimics a database call that halts the thread execution.
    static string FetchContextAndGenerateResponse_Sync(string query)
    {
        // Simulate Network Latency (I/O Bound)
        // Thread sleeps, consuming zero CPU but blocking the thread for 2000ms.
        Thread.Sleep(2000);

        // Simulate Model Inference (CPU Bound)
        // Simulate heavy computation.
        Thread.Sleep(500);

        return $"Processed: {query}";
    }

    // Asynchronous I/O Simulation (Non-Blocking)
    // This mimics a modern async database driver or HTTP client.
    static async Task<string> FetchContextAndGenerateResponse_Async(string query)
    {
        // Simulate Network Latency (I/O Bound)
        // Task.Delay yields control back to the caller. The thread is free to handle other requests.
        await Task.Delay(2000);

        // Simulate Model Inference (CPU Bound)
        // Even though this is CPU work, keeping it on the thread is fine
        // because the I/O part didn't block the thread.
        await Task.Delay(500);

        return $"Processed: {query}";
    }
}

Visualizing the Execution Flow

The difference between synchronous and asynchronous execution can be visualized using a timeline. In the synchronous case, tasks are stacked sequentially. In the asynchronous case, they overlap significantly.

Hold "Ctrl" to enable pan & zoom

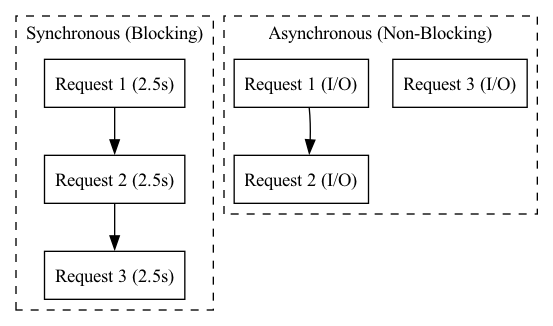

In this diagram, sequential tasks are shown stacked one after another to illustrate synchronous execution, while overlapping tasks are depicted side-by-side to represent asynchronous execution.

Detailed Line-by-Line Explanation

1. using System.Threading.Tasks;

   • This namespace is essential for asynchronous programming in C#. It contains the Task and Task<T> types, which represent asynchronous operations. Without this, you cannot use async or await.

2. public static async Task Main()

   • async: This keyword enables the use of await within the method body. It signals the compiler that this method contains asynchronous operations.
   • Task: The return type. Since C# 7.1, the Main method can return a Task or Task<int>, allowing us to await operations directly in the entry point of the application.

3. Stopwatch stopwatch = Stopwatch.StartNew();

   • We use Stopwatch to accurately measure the elapsed time. This is crucial for demonstrating the performance difference between blocking and non-blocking code.

4. RunSynchronousExample() - The Problem

   • Thread.Sleep(2000): This is a blocking call. It suspends the current thread for 2 seconds. In a web server context (like ASP.NET Core), this thread is tied up and cannot serve any other incoming requests during this time. If you have 100 concurrent users and your server has 10 threads, 90 users will be blocked waiting for a thread to become free, drastically reducing throughput.
   • Sequential Execution: Notice that FetchContextAndGenerateResponse_Sync is called, and the code execution stops at that line until the method returns. Only then does the next line execute.

5. RunAsynchronousExample() - The Solution

   • Task<string> task1 = ...: We invoke the async method but do not await it immediately. This starts the operation and returns a "promise" (the Task object) representing the future result. The code execution continues immediately to the next line.
   • await task1: This is the suspension point. If task1 hasn't finished by the time this line is reached, the method yields control back to the caller. The thread is released to handle other work (e.g., processing other requests or UI events).
   • Concurrency: Because we started task1 and task2 before awaiting, the "I/O" parts (the Task.Delay) happen simultaneously. The total time for both requests is roughly 2.5 seconds (the duration of the longest single task), whereas the synchronous version would take 5 seconds (2.5s + 2.5s).

6. FetchContextAndGenerateResponse_Async()

   • await Task.Delay(2000): This simulates an I/O operation (e.g., a network call to a database or an external API). Task.Delay returns a Task that completes after the specified time. The await keyword pauses the execution of this specific method but frees up the thread.
   • Why not Thread.Sleep here?: Using Thread.Sleep inside an async method is a common anti-pattern. It blocks the thread, defeating the purpose of asynchrony. Task.Delay is the non-blocking equivalent.

Common Pitfalls

1. Mixing Blocking and Async Code (GetAwaiter().GetResult() or .Wait())

   • The Mistake: Calling .Wait() or .GetAwaiter().GetResult() on a Task inside an async method (or on the UI thread). This causes deadlocks in many synchronization contexts (like older ASP.NET or UI apps) because the async method tries to resume on a context that is blocked by the .Wait() call.
   • The Fix: Always use await all the way up the call chain. If you must call an async method from a synchronous method (e.g., in a constructor), use .ConfigureAwait(false) to avoid capturing the context, but be aware of the risks.

2. async void

   • The Mistake: Declaring a method as async void. This is generally only valid for event handlers (like button clicks). Any exception thrown in an async void method cannot be caught by the caller and will likely crash the application.
   • The Fix: Always return Task or Task<T> from async methods unless you are specifically writing an event handler.

3. Ignoring the Returned Task

   • The Mistake: Calling an async method without awaiting it and without storing the returned Task object.
   • Consequence: The operation starts, but if an exception occurs inside it, the exception is swallowed (or lost). You also lose the ability to track the operation's completion.
   • The Fix: Always await the task or store it in a variable to await later.

4. CPU-Bound Work in Async Methods

   • The Mistake: Performing heavy calculations (CPU-bound work) directly inside an async method without offloading it. While this won't block the thread for I/O, it will block the thread for CPU time, preventing it from handling other I/O completions.
   • The Fix: Use Task.Run to offload CPU-bound work to a background thread if you need to keep the calling thread free for I/O, or structure your code to separate I/O and CPU concerns clearly.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---
