Chapter 2: The State Machine - How 'async' and 'await' really work

Theoretical Foundations

The async and await keywords in C# are often misunderstood as mere syntactic sugar for multithreading. While they do enable concurrency, their primary function is to manage the lifecycle of execution—specifically, how a method pauses and resumes without relinquishing control of the underlying thread. To truly master asynchronous programming in AI pipelines—where we often juggle hundreds of concurrent API calls, database fetches, and stream processing—we must visualize these methods not as linear sequences of instructions, but as state machines.

The State Machine Model

In the context of the C# compiler, an async method is transformed into a struct or class that implements a state machine. This machine tracks the current execution point of the method. When a method is called, it begins in the Pending state. As soon as the first await is encountered on an uncompleted task, the method enters the Suspended state, yielding control back to the caller or the scheduler. When the awaited operation completes, the state machine transitions the method back to the Running state to process the result.

This transition is the heartbeat of asynchronous AI pipelines. Consider a scenario where an AI application needs to fetch context from a vector database, generate a response using an LLM, and then stream the result to a client. Without a state machine model, we might block a thread waiting for the database query, wasting resources. With the state machine, the method suspends during the I/O wait, allowing the thread to handle other requests—vital for scalability in high-throughput AI services.

The Three Core States

Pending: The method has been invoked, but the state machine has not yet begun execution or is awaiting initialization.
Running: The state machine is actively executing code on a thread. This continues until it reaches an await expression.
Suspended: The await expression has been evaluated. If the awaited task is not yet completed, the state machine "yields" control. It captures its current location (the instruction pointer) and returns an incomplete Task or ValueTask to the caller. The method effectively goes to sleep, retaining its local variables and context within the state machine object.

The Role of the Event Loop and Task Queue

The transition between Suspended and Running is not magic; it is orchestrated by the Event Loop (specifically, the TaskScheduler and the underlying thread pool). When an async method suspends, it registers a continuation—a callback that tells the runtime, "When this specific task finishes, wake me up and execute the following code."

In an AI application, this is analogous to a restaurant kitchen. The chef (the CPU thread) is cooking a complex dish (processing a request). If the dish requires an ingredient that is currently out of stock (awaiting an API response), the chef doesn't stand idle. Instead, they set a timer (registers a callback) and immediately start chopping vegetables for another order (handling a new request). When the ingredient arrives (the API response returns), the timer rings (the event loop triggers), and the chef resumes cooking the original dish exactly where they left off.

This mechanism is crucial for Streaming LLM Responses. When we await a stream of tokens from an LLM, we are not blocking for the entire response. We are suspending after every token (or chunk), allowing the event loop to process network I/O or other concurrent tasks. This creates the illusion of real-time responsiveness while efficiently utilizing a small pool of threads.

Deep Dive: The Compiler Transformation

To understand the "how," we must look at what the compiler generates. When you write an async method, the compiler rewrites it into a state machine struct (usually a value type for efficiency to reduce heap allocations) that inherits from IAsyncStateMachine.

Source Code:

public async Task<string> GetModelResponseAsync(string prompt)
{
    var context = await FetchContextAsync(prompt);
    var response = await GenerateAsync(context);
    return response;
}

Conceptual Compiler Output (Simplified): The compiler generates a struct containing fields for local variables (prompt, context, response) and an integer _state field. It also generates a MoveNext() method (implementing IAsyncStateMachine) which acts as the dispatcher.

State -1: Initial state.
State 0: After entering the method, before FetchContextAsync.
State 1: After FetchContextAsync completes, before GenerateAsync.
State 2: After GenerateAsync completes, before returning.

When MoveNext() is called:

It checks the _state field to jump to the correct label.
It executes code until an await is hit.
If the awaited task is not complete, it sets _state to the next step, registers the continuation, and returns false (indicating the method is not finished).
When the task completes, the runtime calls MoveNext() again. The switch statement jumps to the correct label, restoring local variables from the struct fields, and execution continues.

Analogy: The Librarian and the Index Cards

Imagine a Librarian (the Event Loop) managing a stack of index cards (Tasks). Each card represents a request for information.

Pending: A patron hands the librarian a card requesting a book from a remote storage facility (an I/O operation). The card is placed on the "To-Do" pile.
Running: The librarian picks up the card and begins the process. They check the catalog (running code).
Suspended: The librarian realizes the book is in off-site storage. They don't wait by the phone for the storage facility to answer. Instead, they write a note on the card: "Call patron when book arrives" (registers a callback). They place the card in a "Waiting" tray and immediately pick up the next card from the "To-Do" pile.
Resumed: When the storage facility calls back (the I/O completes), the librarian moves the card from the "Waiting" tray back to the active desk and continues processing that specific request.

In an AI pipeline, this allows us to manage thousands of concurrent requests. If we have a Task.WhenAll waiting for 50 different LLM generations, the Librarian doesn't block on the first one. He suspends all 50, handles network interrupts, and resumes them as data arrives.

Visualizing the State Transitions

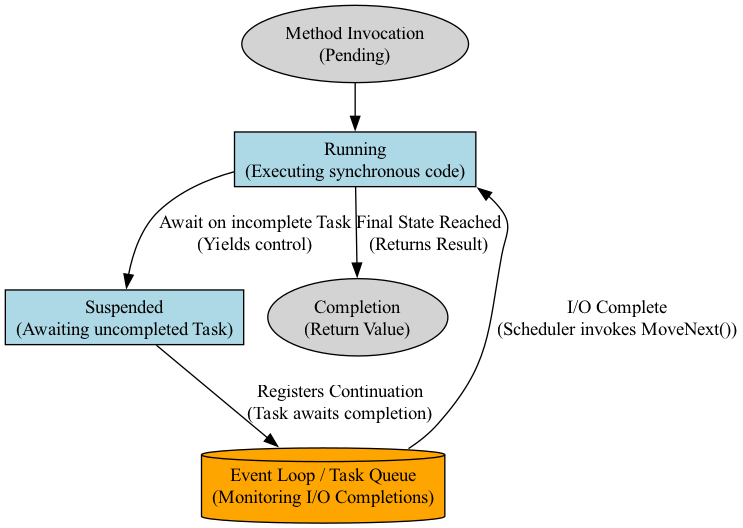

The following diagram illustrates the flow of an async method through the state machine, governed by the Event Loop.

The diagram illustrates how an async method is decomposed into a state machine where the Event Loop suspends and resumes operations, pausing execution at each await point to handle network interrupts and other tasks before continuing. — The diagram illustrates how an async method is decomposed into a state machine where the Event Loop suspends and resumes operations, pausing execution at each `await` point to handle network interrupts and other tasks before continuing.

Architectural Implications for AI Pipelines

Understanding this state machine is not merely academic; it dictates how we structure scalable AI applications.

1. Avoiding Thread Pool Starvation If we misunderstand await and treat it like a blocking call (e.g., using .Result or .Wait()), we force the state machine to stay in the Running state while waiting. This blocks the thread. In an AI server handling thousands of requests, blocking threads leads to thread pool starvation. The thread pool runs out of threads, and the application becomes unresponsive, even if the CPU is idle. By allowing the state machine to transition to Suspended, we free the thread to process other requests.

2. Zero-Allocation Optimization with ValueTask In high-frequency trading or real-time AI inference, every allocation matters. The standard Task is a reference type (heap allocation). If an async method often completes synchronously (e.g., reading from a cached memory stream), we can use ValueTask<T>. This is a struct (stack allocation) that wraps the result. If the operation completes immediately, it returns the value directly without instantiating a Task object. This leverages the state machine's ability to handle both synchronous and asynchronous continuations efficiently.

3. Composing Pipelines with IAsyncEnumerable<T> In Book 4, we deal with streaming LLM responses. The IAsyncEnumerable<T> interface relies entirely on this state machine model. When we await foreach over a stream of tokens, the state machine suspends after every token yielded. This allows the consumer to process the first token while the rest of the stream is still being generated, enabling low-latency UI updates in chat applications.

Connection to Previous Concepts: Dependency Injection

In Book 3, we discussed Dependency Injection (DI) and Interfaces to decouple our business logic from specific implementations (e.g., swapping OpenAI for a local Llama model). This decoupling is essential for testing and flexibility.

However, introducing async requires careful handling of these interfaces. If we define an interface for an AI service, we must ensure that asynchronous operations are properly represented.

Synchronous Interface (Inefficient for AI):

public interface IModelProvider
{
    string Generate(string prompt); // Blocks the thread
}

Asynchronous Interface (Scalable for AI):

public interface IModelProvider
{
    Task<string> GenerateAsync(string prompt); // Returns a Task, allows suspension
}

By defining the contract with Task<string>, we allow the underlying implementation to decide how to handle the execution. Whether the implementation uses HttpClient to call a remote API (high latency, high suspension) or runs a local model on a GPU (low latency, potential synchronous completion), the consumer of the interface remains the same. The state machine logic encapsulated in the async/await keywords ensures that the consumer handles the result correctly without needing to know the implementation details.

Edge Cases and Nuances

1. Synchronous Completion Not all async methods suspend. If an async method performs purely synchronous work or hits an await on a task that is already completed (e.g., Task.CompletedTask or a cached result), the state machine might never leave the Running state. In this case, the overhead is minimal, often just a state check.

2. ConfigureAwait(false) In library code (like the AI service layer), we often use ConfigureAwait(false). This tells the state machine: "When the awaited task completes, do not bother capturing the current SynchronizationContext (like the UI thread context) to resume execution. Resume on any available thread pool thread." This prevents deadlocks in UI applications and improves performance by reducing context switching overhead.

3. Exception Handling The state machine also captures exceptions thrown within the async method. If an exception occurs during the Running state, it is stored in the Task (or ValueTask) returned by the method. When the caller awaits this task, the exception is re-thrown at the suspension point. This allows for standard try-catch blocks to work seamlessly across asynchronous boundaries, which is critical for robust error handling in distributed AI systems where network failures are common.

Summary

The async/await state machine is the engine driving modern C# concurrency. By modeling execution as a set of states—Pending, Running, and Suspended—we can build AI pipelines that are both efficient and scalable. The Event Loop acts as the scheduler, managing the transitions between these states based on I/O completion. This allows a single thread to handle hundreds of concurrent operations, essential for real-time AI applications. Understanding this low-level mechanism empowers developers to write high-performance code, optimize resource usage, and effectively utilize patterns like IAsyncEnumerable for streaming data.

Basic Code Example

using System;
using System.Threading.Tasks;

class AsyncStateMachineDemo
{
    static async Task Main(string[] args)
    {
        // Real-world context: An AI service needs to fetch user profile
        // and product catalog simultaneously to generate a personalized recommendation.
        Console.WriteLine("Starting personalized AI recommendation pipeline...");

        // This is the "Hello World" of async/await state transitions.
        // We simulate a network call to an AI model endpoint.
        string recommendation = await GetPersonalizedRecommendationAsync();

        Console.WriteLine($"Recommendation: {recommendation}");
        Console.WriteLine("Pipeline complete.");
    }

    static async Task<string> GetPersonalizedRecommendationAsync()
    {
        // 1. The method starts executing synchronously.
        Console.WriteLine("  [1] Fetching user profile data...");

        // 2. The 'await' keyword triggers a state transition.
        //    This simulates a network request (e.g., calling an LLM API).
        //    The compiler generates a state machine that pauses here.
        string userProfile = await FetchDataAsync("User Profile");

        // 3. Execution resumes here only after FetchDataAsync completes.
        //    The state machine transitions from 'Suspended' back to 'Running'.
        Console.WriteLine($"  [2] Received profile: {userProfile}");

        Console.WriteLine("  [3] Fetching product catalog...");

        // 4. Another await, another suspension point.
        string productCatalog = await FetchDataAsync("Product Catalog");

        Console.WriteLine($"  [4] Received catalog: {productCatalog}");

        // 5. Synchronous processing after async operations.
        return $"Based on '{userProfile}' and '{productCatalog}', buy this AI gadget!";
    }

    static async Task<string> FetchDataAsync(string source)
    {
        // Simulates an I/O-bound operation (e.g., HTTP request).
        // 'Task.Delay' yields control to the event loop without blocking the thread.
        await Task.Delay(100);

        // Simulates data retrieval.
        return source switch
        {
            "User Profile" => "Tech Enthusiast",
            "Product Catalog" => "Latest Neural Processor",
            _ => "Unknown"
        };
    }
}

Line-by-Line Explanation

using System; using System.Threading.Tasks;
- Why: These namespaces are required. System contains Console, and System.Threading.Tasks contains the fundamental types for asynchronous programming: Task, Task<T>, and the async/await keywords.
class AsyncStateMachineDemo
- Context: This is the container for our demonstration. In a real AI pipeline, this might be an AIOrchestrator class managing multiple microservices.
static async Task Main(string[] args)
- Modern C# Feature: The async Main method (introduced in C# 7.1) allows us to use await directly in the entry point of the application.
- State Machine Implication: The compiler transforms Main into a state machine. Without async Task, you would have to block the main thread using .Result or .Wait(), which causes deadlocks in UI or ASP.NET Core contexts.
Console.WriteLine("Starting...");
- Synchronous Execution: This runs immediately. The state machine is in the Running state.
string recommendation = await GetPersonalizedRecommendationAsync();
- The Critical Transition:
  1. GetPersonalizedRecommendationAsync() is called. It returns a Task<string> immediately (a "hot" task). The task is not yet completed.
  2. The await operator inspects the task. Since it is not completed, the current method (Main) suspends execution.
  3. State Transition: Main moves from Running to Suspended (often called "awaiting").
  4. Control Yield: Control is returned to the Event Loop (or SynchronizationContext). The thread is not blocked; it is free to process other work (e.g., handle UI events or other requests).
  5. Resumption: When GetPersonalizedRecommendationAsync completes, the compiler-generated state machine captures the context and schedules the remainder of Main to run on the appropriate thread.
static async Task<string> GetPersonalizedRecommendationAsync()
- The State Machine Generator: This method is a "factory" for a state machine. The compiler rewrites this method into a struct or class implementing IAsyncStateMachine.
Console.WriteLine(" [1] Fetching user profile data...");
- Synchronous Prologue: This executes immediately upon entering the method.
string userProfile = await FetchDataAsync("User Profile");
- Nested Suspension:
  1. FetchDataAsync is called. It returns a Task.
  2. await checks the task status. It is not complete (due to Task.Delay).
  3. State Transition: GetPersonalizedRecommendationAsync suspends and yields control to the event loop.
  4. Stack Preservation: The local variable userProfile is not yet assigned. The state machine captures the current state (e.g., "I am at step 2") and stores local variables in its generated fields.
await Task.Delay(100); (Inside FetchDataAsync)
- Non-Blocking Wait: Task.Delay creates a timer. The returned Task completes after 100ms.
- Event Loop Role: While waiting, the thread is released. The event loop can pick up other ready tasks. This is the essence of concurrency on a single thread.
return source switch { ... };
- Completion: When the delay finishes, the task transitions to RanToCompletion. The awaiter in GetPersonalizedRecommendationAsync is notified.
Console.WriteLine($" [2] Received profile: {userProfile}");
- Resumption: Execution resumes exactly where it left off. The userProfile variable is now assigned the result of the awaited task. The state machine has restored the context.

Visualizing the State Machine

The compiler transforms the code into a structure similar to this logic (conceptually):

The diagram illustrates the C# compiler's transformation of an async method into a state machine, showing how execution flow is suspended at an await point and later restored to assign the task's result to the userProfile variable. — The diagram illustrates the C# compiler's transformation of an `async` method into a state machine, showing how execution flow is suspended at an `await` point and later restored to assign the task's result to the `userProfile` variable.

Common Pitfalls

1. The "Async Void" Anti-Pattern

Mistake: Declaring an event handler or method as async void instead of async Task.
Why it's bad: If an exception is thrown in an async void method, it cannot be caught by the caller because there is no Task object to propagate the exception. It crashes the application (or process).
Fix: Always return async Task unless you are specifically implementing an event handler signature that requires void.

2. Deadlocking the Synchronization Context

Mistake: Calling .Result or .Wait() on a Task in a context with a single-threaded scheduler (like UI apps or legacy ASP.NET).

Scenario:

// BAD CODE
string result = GetDataAsync().Result; // Blocks the UI thread

Mechanism: The UI thread waits for the task to finish. The task needs the UI thread to complete (due to await capturing the context), but the UI thread is blocked. Deadlock.
Fix: Use await all the way up. Do not block on async code.

3. Mixing Blocking and Async

Mistake: Using Thread.Sleep() inside an async method.
Why it's bad: Thread.Sleep blocks the entire thread. In an async method, you are likely on a thread pool thread. Blocking it prevents the event loop from processing other tasks, reducing concurrency to zero.
Fix: Always use await Task.Delay() for pauses.

4. Forgetting to Await

Mistake: Calling an async method without awaiting it and ignoring the returned Task.
```
// BAD CODE
ProcessDataAsync(); // Fire and forget? Dangerous.
```
Why it's bad: Exceptions thrown in ProcessDataAsync will be lost. The method runs in the background and might be aborted if the main application exits.
Fix: Always await the task or store it and handle exceptions (e.g., var task = ProcessDataAsync(); ... await task;).

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
