Chapter 3: Task vs ValueTask - Optimizing Memory in Hot Loops

Theoretical Foundations

In the high-stakes domain of asynchronous programming, particularly within the latency-sensitive loops of AI pipelines, the allocation of memory is not merely a technical detail—it is the primary bottleneck. When processing thousands of tokens from a Large Language Model (LLM) in a streaming fashion, every microsecond and every byte allocated on the heap contributes to the pressure on the Garbage Collector (GC). If the GC pauses execution to clean up unused objects, the illusion of real-time streaming shatters, resulting in jittery user experiences and inefficient resource utilization.

To understand the optimization of memory in these hot loops, we must first dissect the fundamental building blocks of asynchronous state machines in C#: Task and ValueTask. While they appear similar on the surface, their memory profiles and usage patterns are diametrically opposed. This distinction is critical when designing systems that require both high throughput and low latency, such as tokenizers, vectorizers, or inference engines.

The Anatomy of Asynchronous Overhead

In modern C#, asynchronous methods are transformed by the compiler into state machines. When an async method is invoked, it does not immediately execute. Instead, the compiler generates a struct (or class) that tracks the current state of execution (e.g., which await point it is currently paused at), local variables, and the context. This state machine is the heart of async execution.

However, the return type determines how this state machine is exposed to the caller and how memory is managed.

The Heavyweight: Task and Task Allocation

A Task is a reference type (a class). It represents a promise of a future result. When you return a Task from an asynchronous method, you are returning a reference to an object allocated on the managed heap.

Consider a method that checks if a model is ready:

public async Task<bool> IsModelReadyAsync()
{
    // Simulate I/O
    await Task.Delay(10);
    return true;
}

Every time IsModelReadyAsync is called, the following occurs:

  1. Heap Allocation: A Task<bool> object is allocated on the heap.
  2. State Machine Allocation: The compiler-generated state machine (a class, because it captures the async method's context) is also allocated on the heap.
  3. Continuation Overhead: When the await completes, a continuation delegate is allocated to schedule the rest of the method.

In a typical application, this overhead is negligible. But in an AI pipeline, imagine a loop processing a stream of 4,000 tokens:

foreach (var token in stream)
{
    var processed = await ProcessTokenAsync(token); // Allocates a Task every iteration
}
If ProcessTokenAsync returns a Task, this loop allocates 4,000 objects on the heap. In a high-throughput scenario (e.g., 100 requests per second), this results in millions of allocations per second. The GC must run frequently (Gen 0 collections) to reclaim this memory, causing "stop-the-world" pauses that disrupt the smooth flow of data.

The Lightweight: ValueTask and Stack Allocation

ValueTask (introduced in C# 7.0 and significantly optimized in .NET Core 2.1 and later) is a struct. It is a value type, meaning it can be allocated on the stack rather than the heap.

ValueTask<T> is a discriminated union that can hold one of two things:

  1. A T result (if the operation completes synchronously).
  2. A Task<T> result (if the operation completes asynchronously).

This distinction is the key to memory optimization. If the path of execution leads to a synchronous completion (e.g., data is already cached, or a lock was acquired immediately), ValueTask wraps the result directly in the struct on the stack. No heap allocation occurs.

public ValueTask<bool> IsModelReadyCachedAsync()
{
    if (_isCached)
    {
        // Synchronous path: No heap allocation. Returns a ValueTask wrapping 'true'.
        return new ValueTask<bool>(true);
    }

    // Asynchronous path: Falls back to a Task (which may be pooled or allocated).
    return new ValueTask<bool>(CheckSourceAsync());
}

In the context of an AI pipeline, ValueTask is the scalpel used to carve away unnecessary allocations. When processing tokens, if a token is found in a local cache (a common optimization in tokenizers), the method returns immediately without touching the heap.

The "Hot Loop" in AI Pipelines

To visualize where this matters, consider the architecture of a streaming LLM response. The pipeline typically looks like this:

  1. Inference Engine: Generates tokens one by one.
  2. Tokenizer: Encodes/Decodes tokens (often synchronous or extremely fast).
  3. Network Stream: Sends tokens to the client (asynchronous I/O).

The "Hot Loop" is the innermost cycle of this pipeline. It runs thousands of times per request.

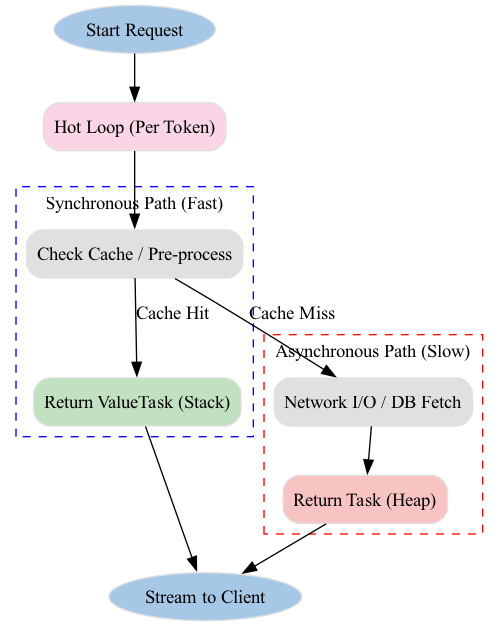

The hot loop is the innermost cycle of the pipeline, running thousands of times per request to process data with maximum efficiency.
Hold "Ctrl" to enable pan & zoom

The hot loop is the innermost cycle of the pipeline, running thousands of times per request to process data with maximum efficiency.

In the diagram above, the left side (Synchronous Path) represents the ideal scenario for ValueTask. The right side (Asynchronous Path) represents the fallback to Task.

The Mechanics of ValueTask and ValueTask<T>

ValueTask is not magic; it is a carefully engineered struct. Its internal structure looks roughly like this (conceptually):

public readonly struct ValueTask<TResult>
{
    private readonly TResult _result; // Used for synchronous completion
    private readonly Task<TResult> _task; // Used for asynchronous completion
    // ... plus a token for pooled tasks
}

When you await a ValueTask, the compiler generates a state machine that checks if the task is completed. If _result is set, it returns immediately. If _task is set, it awaits the task as usual.

The Critical Constraint: "Hot Path" Usage

There is a strict rule when using ValueTask: You can only await it once.

Because ValueTask may wrap a pooled Task (via Task.CompletedTask or a custom pool), awaiting it twice can lead to race conditions where the underlying task is returned to the pool and reused before the second await completes, causing unpredictable behavior.

This makes ValueTask ideal for "hot paths"—methods that are called frequently, complete quickly (often synchronously), and are not designed to be awaited multiple times (e.g., by multiple listeners).

Real-World Analogy: The Library and the Librarian

To understand the memory implications, imagine a library (the Heap) and a Librarian (the Garbage Collector).

The Task Approach (The Book Request): You are a researcher (the CPU) needing facts (the result). Every time you need a fact, you write a formal request slip (allocate a Task object) and hand it to the Librarian. The Librarian files the slip and eventually brings you the book. Once you are done with the fact, you throw the request slip in the trash. If you need 4,000 facts, you generate 4,000 slips. The Librarian (GC) must constantly empty the trash can (collect Gen 0 garbage) to keep the desk clean. This is slow and labor-intensive.

The ValueTask Approach (The Sticky Note): You are a researcher sitting at a desk with a notepad (the Stack). You need a fact that is likely written on a sticky note on your monitor (synchronous completion/cache hit). You glance at it and write it down immediately. No request slip is used. Only when the fact isn't on the sticky note (asynchronous completion/cache miss) do you write a formal request slip (allocate a Task). This drastically reduces the paper waste (memory allocations) and the Librarian's workload (GC pressure).

Integration with Previous Concepts: Async Streams

This concept builds directly upon Book 3, Chapter 2: IAsyncEnumerable and Streaming, where we discussed how to yield data asynchronously. When implementing IAsyncEnumerable<T> for streaming LLM tokens, the MoveNextAsync method returns a ValueTask<bool>.

Why? Because in a high-frequency loop iterating over a stream:

await foreach (var token in llmStream)
{
    // Process token
}
The MoveNextAsync call is the heartbeat of the loop. If the buffer has a token ready (synchronous), it returns true immediately via ValueTask. If it needs to wait for the network (asynchronous), it returns a Task. Using ValueTask here ensures that the loop itself does not induce heap allocations during the synchronous processing of buffered tokens, which is the majority of the time in a buffered stream.

Architectural Implications for AI Systems

When designing AI pipelines, the choice between Task and ValueTask dictates the scalability of the system.

  1. Tokenizer Optimization: Tokenizers often involve dictionary lookups and string manipulations. If a tokenizer is implemented to check a local LRU cache before performing the heavy encoding, the "cache hit" path should return ValueTask<string>. This ensures that the most common operation (retrieving a cached token ID) incurs zero GC pressure.

  2. Vector Database Lookups: When retrieving vector embeddings for a prompt, the data might be cached in memory. A method GetEmbeddingAsync returning ValueTask<float[]> allows the system to return the cached array synchronously. Only when the cache misses does it switch to the asynchronous database fetch (returning a Task<float[]>).

  3. Batching Inference Requests: In a batch processing loop, where the system waits for a batch of tokens to fill up before sending them to the GPU, the wait time is often deterministic. If the wait time is zero (the batch is already full), the method can return a ValueTask representing immediate readiness. This allows the loop to spin faster without allocating objects for every iteration.

The Hidden Cost: The "Task" Fallback

It is vital to understand that ValueTask is not a silver bullet. If the operation always goes down the asynchronous path (e.g., every call requires a network round-trip), ValueTask actually introduces more overhead than Task.

Why?

  1. Struct Copying: ValueTask is a struct. Returning it involves copying its fields (two references: _result and _task). This is a tiny cost, but non-zero.
  2. Double Indirection: If ValueTask wraps a Task, the await keyword has to unwrap the struct to get the Task, then await the Task. This is slightly more work than directly awaiting a Task.

Therefore, ValueTask is strictly for optimistic scenarios where synchronous completion is the dominant path. In an AI pipeline, this optimism is usually justified because in-memory caches and pre-processed data are prevalent.

Theoretical Foundations

The theoretical foundation of Task vs ValueTask rests on the trade-off between abstraction and allocation.

  • Task provides a robust, reference-type abstraction for concurrency. It is safe to share, safe to await multiple times, and flexible. However, it lives on the heap, and the GC must eventually clean it up.
  • ValueTask provides a lightweight, value-type optimization for the specific case where an asynchronous operation completes synchronously. It minimizes heap allocations but imposes constraints (single await) and requires careful architectural planning.

In the context of building high-performance AI applications, mastering this distinction allows the developer to flatten the latency curve. By ensuring that the "happy path" (cache hits, immediate readiness) generates zero garbage, the application maintains a steady throughput, ensuring that the user perceives the AI's response as instantaneous and fluid.

Basic Code Example

Here is a basic code example demonstrating the difference between Task and ValueTask in a hot loop scenario, specifically tailored for processing streaming tokens from an LLM.

using System;
using System.Collections.Generic;
using System.Threading.Tasks;

public class LlmTokenProcessor
{
    // A mock database of cached token embeddings to simulate a real-world scenario.
    // In a real system, this might be a distributed cache like Redis.
    private static readonly Dictionary<string, float[]> _embeddingCache = new()
    {
        { "the", new float[] { 0.1f, 0.2f } },
        { "quick", new float[] { 0.3f, 0.4f } },
        { "brown", new float[] { 0.5f, 0.6f } },
        { "fox", new float[] { 0.7f, 0.8f } }
    };

    public static async Task Main()
    {
        Console.WriteLine("--- Starting LLM Token Processing Simulation ---");

        // Simulate a stream of tokens coming from an LLM response.
        // In a real scenario, this would be an async stream (IAsyncEnumerable<string>).
        var tokens = new[] { "the", "quick", "brown", "fox", "jumps", "over" };

        long initialMemory = GC.GetTotalMemory(true);

        // PROCESSING STRATEGY 1: Using Task (Standard Approach)
        Console.WriteLine("\n[Strategy 1] Using Task (Allocates on Heap):");
        await ProcessTokensWithTask(tokens);

        long memoryAfterTask = GC.GetTotalMemory(true);
        Console.WriteLine($"Memory used: {memoryAfterTask - initialMemory:N0} bytes");

        // Force GC to clean up for a clean comparison
        GC.Collect();
        GC.WaitForPendingFinalizers();
        GC.Collect();

        long memoryBeforeValueTask = GC.GetTotalMemory(true);

        // PROCESSING STRATEGY 2: Using ValueTask (Optimized for Hot Loops)
        Console.WriteLine("\n[Strategy 2] Using ValueTask (Reduces Heap Allocations):");
        await ProcessTokensWithValueTask(tokens);

        long memoryAfterValueTask = GC.GetTotalMemory(true);
        Console.WriteLine($"Memory used: {memoryAfterValueTask - memoryBeforeValueTask:N0} bytes");
    }

    /// <summary>
    /// Standard approach using Task. This is safe and correct but allocates
    /// a new Task object on the heap for every operation, even if the result is synchronous.
    /// </summary>
    private static async Task ProcessTokensWithTask(IEnumerable<string> tokens)
    {
        foreach (var token in tokens)
        {
            // We await a method that returns a Task.
            // Even if the result is ready immediately, the Task object is allocated on the heap.
            var embedding = await GetEmbeddingAsTaskAsync(token);

            // Simulate work (e.g., calculating similarity)
            if (embedding != null)
            {
                Console.Write(".");
            }
        }
        Console.WriteLine();
    }

    /// <summary>
    /// Optimized approach using ValueTask. This avoids heap allocations
    /// when the result is available synchronously (e.g., from a cache).
    /// </summary>
    private static async Task ProcessTokensWithValueTask(IEnumerable<string> tokens)
    {
        foreach (var token in tokens)
        {
            // We await a method that returns a ValueTask.
            // If the result is synchronous (cache hit), no heap allocation occurs.
            var embedding = await GetEmbeddingAsValueTaskAsync(token);

            // Simulate work
            if (embedding != null)
            {
                Console.Write(".");
            }
        }
        Console.WriteLine();
    }

    // --- Helper Methods ---

    /// <summary>
    /// Simulates fetching an embedding. Returns a Task, forcing a heap allocation
    /// even for cached results (unless manually optimized with Task.FromResult,
    /// but the caller still awaits a Task).
    /// </summary>
    private static Task<float[]> GetEmbeddingAsTaskAsync(string token)
    {
        if (_embeddingCache.TryGetValue(token, out var cachedEmbedding))
        {
            // Even though we return a completed task, the Task object itself
            // is typically allocated on the heap (unless using Task.CompletedTask,
            // but that returns a Task, not a float[]).
            return Task.FromResult(cachedEmbedding);
        }

        // Simulate async I/O for unknown tokens
        return Task.Run(async () =>
        {
            await Task.Delay(10); // Simulate network latency
            return new float[] { 0.9f, 0.9f };
        });
    }

    /// <summary>
    /// Simulates fetching an embedding. Returns a ValueTask.
    /// If the result is ready immediately (cache hit), it returns a struct (stack-allocated).
    /// If async (cache miss), it wraps the result in a ValueTask.
    /// </summary>
    private static ValueTask<float[]> GetEmbeddingAsValueTaskAsync(string token)
    {
        if (_embeddingCache.TryGetValue(token, out var cachedEmbedding))
        {
            // CRITICAL: Returning a result directly creates a ValueTask wrapping the result.
            // This is a struct, so it is allocated on the stack (zero heap allocation).
            return new ValueTask<float[]>(cachedEmbedding);
        }

        // If the result requires async I/O, we convert it to a ValueTask.
        // Note: This path DOES allocate a Task internally, but the optimization
        // applies to the synchronous path (the cache hit).
        return new ValueTask<float[]>(Task.Run(async () =>
        {
            await Task.Delay(10);
            return new float[] { 0.9f, 0.9f };
        }));
    }
}

Detailed Explanation

This example simulates a high-frequency operation common in AI pipelines: processing a stream of tokens and retrieving their vector embeddings. In a streaming context, this loop runs thousands of times per second. Memory allocation and Garbage Collection (GC) pressure become critical bottlenecks.

1. The Setup

  • _embeddingCache: We simulate a local cache. In a real-world LLM application, embeddings are often pre-calculated or cached to reduce latency. Cache hits represent the "fast path" where data is immediately available.
  • Main Method: We establish a baseline for memory usage to visually demonstrate the difference between the two approaches.

2. Strategy 1: The Task Approach

  • ProcessTokensWithTask: This method iterates through tokens and awaits GetEmbeddingAsTaskAsync.
  • GetEmbeddingAsTaskAsync: Even though we use Task.FromResult for cache hits, Task is a reference type (class). Every time this method returns, a Task object is allocated on the managed heap.
  • Implication: In a tight loop processing 10,000 tokens, this creates 10,000 objects that the Garbage Collector must eventually trace and clean up. This "GC pressure" causes pauses and reduces throughput.

3. Strategy 2: The ValueTask Approach

  • ProcessTokensWithValueTask: This method iterates through tokens and awaits GetEmbeddingAsValueTaskAsync.
  • GetEmbeddingAsValueTaskAsync: This method returns a ValueTask<float[]>.
    • Cache Hit (Synchronous): We return new ValueTask<float[]>(cachedEmbedding). ValueTask is a struct. It is allocated on the stack, not the heap. When the await completes immediately, no garbage is generated.
    • Cache Miss (Asynchronous): We wrap the Task in a ValueTask. While this still involves an underlying Task allocation, the optimization is realized in the synchronous path, which is often the dominant path in cached systems.
  • Implication: By shifting memory allocation from the heap to the stack for synchronous completions, we drastically reduce GC pressure.

4. Visualizing the Execution Flow

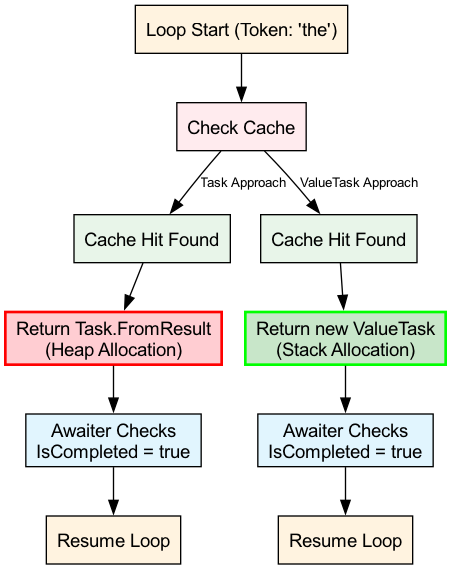

The following diagram illustrates the control flow for a "Cache Hit" scenario. Notice how ValueTask bypasses the Heap Allocation step entirely.

In a Cache Hit scenario, the ValueTask control flow bypasses the Heap Allocation step, directly accessing the cached result to improve performance.
Hold "Ctrl" to enable pan & zoom

In a Cache Hit scenario, the `ValueTask` control flow bypasses the Heap Allocation step, directly accessing the cached result to improve performance.

Common Pitfalls

1. The "Sandwich" Trap (Mixing Task and ValueTask) The most dangerous mistake is awaiting a ValueTask and then doing something else with it before the await completes, or passing it to a method that expects a Task.

  • Why it fails: A ValueTask might wrap a pooled IValueTaskSource object to handle async continuations. Once awaited, the underlying token is often reset. If you try to await it again (e.g., in a finally block or by passing it to Task.WhenAll), you will get an InvalidOperationException.
  • Correct Pattern:
    // CORRECT: Await immediately and consume the result.
var result = await GetValueTaskAsync();
Use(result);

// INCORRECT: Storing the ValueTask for later awaiting.
ValueTask<int> delayedTask = GetValueTaskAsync();
// ... some logic ...
await delayedTask; // Potential crash or undefined behavior!

2. Overusing ValueTask for Async-Heavy Workloads ValueTask is not a silver bullet. If the operation always goes down the asynchronous path (e.g., a cache miss every time), ValueTask adds overhead:

  1. It wraps the Task in a struct.
  2. The await logic has to check if the result is synchronous or asynchronous.
  3. Guideline: Only use ValueTask if you have a high probability (>50-80%) of synchronous completion. If the operation is almost always async (like a network call), Task is often more efficient and definitely safer.

3. Deadlocks on Synchronous Wait Just like Task, if you call .Result or .Wait() on a ValueTask that hasn't completed yet, and you are on a single-threaded context (like a UI thread or ASP.NET Classic without special configuration), you will deadlock.

  • Note: ValueTask lacks the .ConfigureAwait(false) method directly (it's an extension method on ValueTask<T> in newer .NET versions, but the logic remains). Always prefer await over blocking calls.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
