Chapter 4: Context and Deadlocks - ConfigureAwait(false) in Libraries

Theoretical Foundations

The ConfigureAwait(false) directive is a fundamental mechanism for ensuring the robustness and performance of asynchronous library code, particularly within the demanding ecosystem of AI application development. Its primary function is to decouple a method's continuation from the original synchronization context, a decision that carries profound implications for deadlock avoidance and thread efficiency. To understand this, we must first dissect the anatomy of an async state machine and the hidden "context" that governs its execution.

The Synchronization Context: The Invisible Conductor

When an async method is invoked, the C# compiler transforms it into a state machine. This state machine does not execute linearly; it pauses at every await keyword, yielding control back to the caller. The crucial detail lies in where the code following the await (the continuation) resumes.

By default, await captures the current SynchronizationContext (or TaskScheduler if one is active). In UI applications (WPF, WinForms) or legacy ASP.NET (pre-Core), this context acts as a dedicated thread affinity model. It ensures that code resumes execution on the specific thread that owns the UI element or the HTTP request context. While essential for UI updates (which are not thread-safe), this mechanism becomes a trap when synchronous and asynchronous code interact.

Consider the analogy of a Single-Threaded Orchestra. The conductor (the UI thread) dictates the tempo. A musician (an async method) begins playing a note (an I/O operation). When the note is held, the musician signals the conductor and steps back. The conductor continues directing other sections. When the note finishes, the musician steps forward to play the next note, but they must wait for the conductor to point the baton at them specifically. They cannot play out of turn, even if they are ready.

In this analogy, ConfigureAwait(true) (the default) is the rule that says, "Wait for the conductor's specific cue." ConfigureAwait(false) is the rule that says, "When the note finishes, immediately join the pool of available musicians and play the next available part, regardless of who is conducting."

The Deadlock Mechanism: When the Conductor Waits for the Musician

Deadlocks occur in the intersection of synchronous blocking (e.g., .Result or .Wait()) and the default context capturing behavior. This is the "Context and Deadlocks" scenario mentioned in the chapter title.

Imagine a UI application (Book 3 concepts) processing a large dataset using an AI model. The UI thread triggers a synchronous blocking call to an asynchronous library method to fetch a result.

  1. The UI Thread (Conductor) calls GetAiResponseAsync().Result. This blocks the UI thread, freezing the interface.
  2. Inside GetAiResponseAsync, an await is encountered on a network request (e.g., calling an LLM endpoint).
  3. The method captures the UI Synchronization Context.
  4. The network request is sent, and the method yields control back to the UI thread.
  5. The UI thread is currently blocked at .Result, waiting for the task to complete.
  6. Eventually, the network response arrives. The task completes.
  7. The continuation (the code after the await) is scheduled to run on the captured context (the UI thread).
  8. The Deadlock: The UI thread is blocked waiting for the task to finish. The task is finished, but its continuation is waiting for the UI thread to become available to execute it. The UI thread will never become available because it is blocked waiting for the task.

This is a circular dependency. The conductor is waiting for the musician to finish the piece, but the musician is waiting for the conductor to wave the baton so they can start the final movement. Both are frozen.

ConfigureAwait(false): Breaking the Chain

Applying ConfigureAwait(false) to the library method fundamentally alters the resumption logic. It instructs the state machine: "Do not capture the current synchronization context. When the awaited task completes, schedule the continuation on the default thread pool."

Returning to the orchestra analogy, ConfigureAwait(false) allows the musician to finish their note and, instead of looking at the conductor, immediately look at the sheet music for the next bar. If the next bar requires immediate playing, they do so on whatever thread is currently available (the thread pool), without waiting for the conductor's specific cue.

Why is this critical for AI Pipelines?

In AI applications, we frequently build pipelines that mix I/O-bound operations (API calls, database lookups) with CPU-bound operations (tokenization, JSON parsing, tensor manipulation). These pipelines are often reusable components (libraries) intended to be consumed by various host applications—desktop UIs, web servers (ASP.NET), or background services.

If a library method awaits a network call but defaults to ConfigureAwait(true), it implicitly assumes it is running in a context that supports resumption. If that library is consumed by a synchronous ASP.NET controller (pre-Core) or a UI thread that blocks on the result, the application hangs.

By using ConfigureAwait(false) in library code, we guarantee that the library is context-agnostic. It does not care if it was called from a UI thread, a thread pool thread, or a specific ASP.NET request context. It releases the thread back to the pool during I/O waits and picks up a thread pool thread upon completion. This decoupling is the cornerstone of writing deadlock-free reusable asynchronous components.

The Performance Implication: Context Switching Overhead

Beyond deadlock avoidance, ConfigureAwait(false) offers a performance advantage by reducing context switching overhead.

In the default configuration (true), the continuation must marshal back to the original synchronization context. In a UI app, this involves queuing a work item to the UI message loop. In legacy ASP.NET, it involves returning to the specific request context. This marshaling is not free; it involves thread affinity management and queueing logic.

When ConfigureAwait(false) is used, the continuation runs on any available thread pool thread. The thread pool is highly optimized for distributing work across available cores. By avoiding the affinity constraint, the runtime has more flexibility in scheduling the continuation, potentially leading to better throughput in high-load scenarios, such as processing streams of AI tokens.

Visualizing the Flow

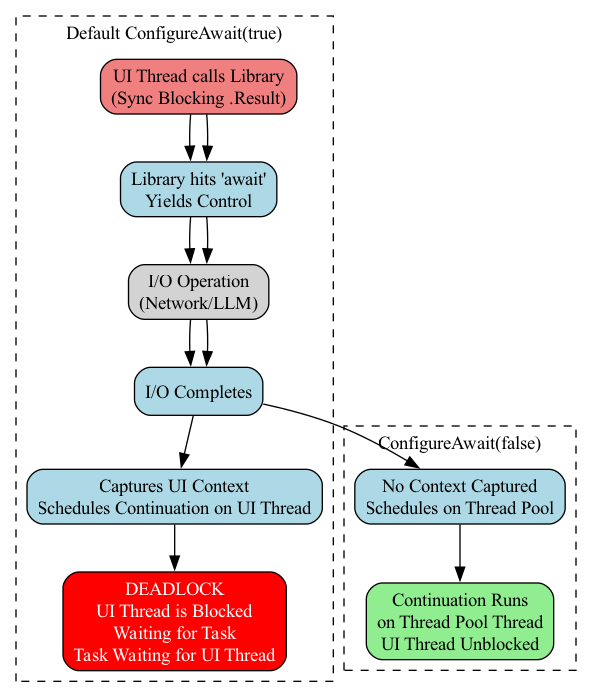

The following diagram illustrates the flow of execution in a library method called by a UI thread, comparing the default behavior with ConfigureAwait(false).

This diagram contrasts how a UI thread's asynchronous method continuation is handled, showing that without ConfigureAwait(false) the continuation is forced back onto the original UI thread (potentially causing a bottleneck), whereas using ConfigureAwait(false) allows the runtime to schedule the continuation on any available thread for improved throughput.
Hold "Ctrl" to enable pan & zoom

This diagram contrasts how a UI thread's asynchronous method continuation is handled, showing that without `ConfigureAwait(false)` the continuation is forced back onto the original UI thread (potentially causing a bottleneck), whereas using `ConfigureAwait(false)` allows the runtime to schedule the continuation on any available thread for improved throughput.

Architectural Implications for AI Components

In the context of building asynchronous AI pipelines (Book 4), the application of ConfigureAwait(false) is a strategic architectural decision.

Consider a StreamingLlmClient class responsible for handling Server-Sent Events (SSE) from a Large Language Model. This class is likely a reusable library component.

  1. The Interface Contract: As discussed in previous chapters regarding interfaces for swapping models (e.g., OpenAI vs. Local Llama), the asynchronous methods of these interfaces must be implementation-agnostic. If the StreamCompletionAsync method in the OpenAI implementation uses await without ConfigureAwait(false), it imposes a hidden constraint on the consumer: "You cannot call this method synchronously from a UI thread."
  2. The Pipeline Architecture: An AI pipeline might look like this: Input -> Tokenizer -> Network Call -> Response Parser -> UI Output.
    • The Tokenizer and Parser might be CPU-bound (though often async versions exist for large payloads).
    • The Network Call is strictly I/O-bound.
    • If the library components (Tokenizer, Network, Parser) are written with ConfigureAwait(true), the entire pipeline inherits the synchronization context of the caller.
    • If the caller is a UI thread processing a stream of tokens, the pipeline will constantly marshal back to the UI thread for every token. This creates a "ping-pong" effect of thread switching, degrading performance.
    • If the library uses ConfigureAwait(false), the pipeline runs efficiently on the thread pool during the I/O and CPU bursts, and only marshals back to the UI context when explicitly required (e.g., updating a UI control at the very end).

The "What If": Edge Cases and Modern Considerations

While ConfigureAwait(false) is the gold standard for library code, there are nuances.

What if the continuation needs the context? In library code, the answer should almost always be: it shouldn't. Library code is infrastructure. It should not be updating UI controls or accessing HttpContext.Current (in legacy ASP.NET). If a library method needs to access context-specific data, it should receive that data as a parameter or have the context passed in explicitly, rather than relying on ambient context capture.

What about ASP.NET Core? ASP.NET Core removed the SynchronizationContext. Consequently, await in ASP.NET Core naturally behaves like ConfigureAwait(false)—it does not capture a context. However, libraries must still support older frameworks (like .NET Framework with legacy ASP.NET or WPF). Therefore, applying ConfigureAwait(false) remains a best practice for maximum compatibility and forward-compatibility.

The ConfigureAwait method signature: In modern C# (NET 5+), ConfigureAwait accepts a boolean continueOnCapturedContext. However, it also has an overload accepting a ConfigureAwaitOptions enum. This allows for more granular control, such as ConfigureAwaitOptions.SuppressThrowing, which prevents the await from re-throwing exceptions on the original context, useful in specific cleanup scenarios.

Theoretical Foundations

The theoretical foundation of ConfigureAwait(false) rests on the separation of concerns between execution context and execution logic.

  1. Execution Context (The "Where"): By default, async methods are coupled to the context in which they are invoked. This coupling provides safety for stateful environments (like UI) but introduces fragility when blocking is introduced.
  2. Execution Logic (The "What"): The logic of an asynchronous operation (e.g., "fetch this JSON, parse it, return the object") is independent of the thread on which it runs.

ConfigureAwait(false) enforces the decoupling of these two concerns. It asserts that the library code is stateless regarding the execution context. This allows the library to be a "good citizen" in any host environment, preventing deadlocks caused by circular thread dependencies and optimizing performance by leveraging the thread pool's scheduling flexibility.

For AI applications, where pipelines are complex, often involve high-throughput I/O (streaming tokens), and must be reusable across different UI and Web backends, mastering this concept is not optional—it is a prerequisite for stability. It ensures that an AI service component designed for a high-performance web API can be safely integrated into a responsive desktop agent without causing the entire application to freeze.

Basic Code Example

Here is the 'Hello World' level code example for using ConfigureAwait(false) in library code to prevent deadlocks.

using System;
using System.Threading.Tasks;

// A library component designed for reusability.
public class LibraryService
{
    // This method simulates fetching data asynchronously.
    public async Task<string> FetchDataAsync()
    {
        // Simulate a network delay (I/O bound operation).
        await Task.Delay(100);

        // CRITICAL: We use ConfigureAwait(false) here.
        // This tells the runtime: "After the await completes,
        // do not resume on the original context (e.g., UI thread or ASP.NET request context).
        // Instead, resume on any available thread pool thread."
        await Task.Delay(100).ConfigureAwait(false);

        return "Data from Library";
    }
}

// The application entry point (e.g., a Console App, UI App, or Web App).
public class Program
{
    // Main method to demonstrate the usage.
    // Note: In a real UI or ASP.NET scenario, this would be an event handler or controller action.
    // For this console demo, we block the main thread to simulate a synchronous call context.
    public static void Main()
    {
        Console.WriteLine("Starting application...");

        // We call the async method synchronously to simulate a context where deadlocks can occur.
        // WARNING: .GetResult() blocks the calling thread until the task completes.
        // In a UI app, this would be the UI thread. In ASP.NET, the request thread.
        string result = new LibraryService().FetchDataAsync().GetResult();

        Console.WriteLine($"Result: {result}");
        Console.WriteLine("Application finished.");
    }
}

Explanation

The problem this code solves is the Asynchronous Deadlock. This occurs when you mix synchronous and asynchronous code, specifically when the asynchronous code attempts to return to a context that is blocked waiting for the asynchronous operation to complete.

Real-World Context: Imagine you are building a reusable library package (like a NuGet package) that other developers will use. You want your library to be asynchronous for performance. However, you cannot control how your consumers call your library. Some might call it from a UI thread (like a WPF button click), and others might call it from an ASP.NET controller. If your library code assumes it must return to the original context, and that context is blocked by a .Result or .Wait() call, the application freezes (deadlocks).

Step-by-Step Breakdown:

  1. The Library Service (LibraryService):

    • This class represents a reusable component. It is unaware of the application hosting it.
    • The FetchDataAsync method performs an asynchronous operation (simulated by Task.Delay).
    • Line 12 (await Task.Delay(100)): This is the default behavior. If this code runs in a UI context, the continuation (the code after the await) tries to marshal back to the UI thread.
    • Line 15 (await Task.Delay(100).ConfigureAwait(false)): This is the fix. By adding .ConfigureAwait(false), we break the context. The continuation is scheduled on the thread pool, not the original synchronization context.

  2. The Application (Program):

    • Line 26 (Main): The entry point.
    • Line 31 (Blocking Call): We simulate a common scenario where a synchronous caller (like a legacy console app or a UI event handler) invokes an async method and blocks waiting for the result using .GetResult() (a helper for blocking on a Task in a console context, equivalent to .Result or .Wait()).
    • The Deadlock Scenario (Without ConfigureAwait(false)):
      1. Main blocks the UI/Thread pool thread waiting for the Task.
      2. FetchDataAsync starts and awaits the first delay.
      3. The first delay completes. The runtime looks for a context to resume.
      4. Because ConfigureAwait(false) was not used (on the first await), it tries to resume on the original thread (the one blocked by Main).
      5. Deadlock: The thread is blocked by Main, so the continuation cannot run. The Task never completes. Main never unblocks.
    • The Solution (With ConfigureAwait(false)):
      1. Main blocks the thread.
      2. FetchDataAsync runs the first delay (default context).
      3. It hits the second delay with ConfigureAwait(false).
      4. When the second delay completes, the runtime sees false. It does not try to return to the blocked thread. It picks a free thread from the pool to run the rest of the method.
      5. The Task completes successfully. Main unblocks and receives the result.

Visualizing the Context Switch

The following diagram illustrates the flow of execution. Notice how ConfigureAwait(false) allows the library code to complete on a background thread, bypassing the blocked main thread.

Common Pitfalls

1. Forgetting ConfigureAwait(false) in Library Code This is the most frequent mistake. If you write a library intended for general use, omitting ConfigureAwait(false) forces your consumers to be aware of your implementation details. If they block on your library (e.g., in a legacy ASP.NET controller), the application will deadlock.

2. Using ConfigureAwait(false) in UI Event Handlers While ConfigureAwait(false) prevents deadlocks in libraries, using it inside a UI application's event handler (e.g., a Button Click) can cause crashes. If you try to update the UI (like changing a label text) after an await with ConfigureAwait(false), the continuation runs on a background thread. UI elements can only be accessed by the UI thread, leading to an InvalidOperationException.

  • Rule of Thumb: Use ConfigureAwait(false) everywhere except in the top-level application layer (UI event handlers, ASP.NET controllers) where you specifically need the context to update the UI or response.

3. Blocking on Async Code (.Result / .Wait()) The root cause of the deadlock is blocking on asynchronous code. The best practice is to use async all the way down. Instead of calling .Result, you should await the task. If you must block (e.g., in a console Main method), ensure your library code uses ConfigureAwait(false) to avoid the deadlock.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
