Chapter 9: System.Threading.Channels - Building Producer/Consumer AI Pipelines

Theoretical Foundations

System.Threading.Channels represents a fundamental shift in how we architect asynchronous data flows within .NET applications, particularly when building high-throughput AI pipelines. At its core, this library provides synchronized, thread-safe, asynchronous data structures that facilitate the producer/consumer pattern, a design paradigm essential for managing the unpredictable latency and variable throughput inherent in AI operations like LLM inference, batch data processing, and real-time streaming.

To understand the necessity of System.Threading.Channels in AI development, we must first look at the limitations of traditional synchronization primitives. In previous chapters, we explored the use of Task<T> and IAsyncEnumerable<T> for handling discrete asynchronous operations and sequences. While IAsyncEnumerable<T> is excellent for iterating over a sequence of values produced asynchronously, it is inherently push-based from the perspective of the iterator (the consumer) and pull-based from the perspective of the iterator (the producer). This creates a tight coupling where the consumer must actively request the next item, and the producer must be ready to generate it immediately. In AI scenarios, this is often inefficient. Consider an application that needs to process thousands of user prompts against a local LLM. If the consumer pulls data one by one, it sits idle while the model generates a response. Conversely, if the producer generates all responses upfront, it consumes massive memory resources before the consumer has even begun processing. System.Threading.Channels decouples these operations, allowing producers to enqueue data as it becomes available and consumers to process it independently, managing flow control and resource utilization dynamically.

The core architectural component is the Channel<T>. A channel is essentially a thread-safe queue that exposes asynchronous reading and writing capabilities. It is defined by two interfaces: ChannelReader<T> and ChannelWriter<T>. These interfaces represent the two distinct sides of the channel. The ChannelWriter<T> is used by producers to write data into the channel, while the ChannelReader<T> is used by consumers to read data out. This separation of concerns is critical for building modular AI pipelines. For instance, in a RAG (Retrieval-Augmented Generation) system, one service might be responsible for vectorizing user queries (the producer), pushing embeddings into a channel. Simultaneously, a separate pool of consumers (the inference engine) reads these embeddings, retrieves relevant context from a vector database, and generates responses. Because the interfaces are distinct, the vectorization service does not need to know anything about the inference logic, allowing for independent scaling and testing.

A crucial distinction in channel configuration is between bounded and unbounded channels. This decision dictates the flow control strategy of the entire pipeline.

An unbounded channel acts as an infinite queue. Producers can write to it without ever waiting, regardless of how slow the consumers are. While this seems ideal for performance, it introduces a significant risk: memory exhaustion. In an AI application processing high-volume streams—such as transcribing real-time audio or generating code snippets for a large codebase—a fast producer (e.g., an audio capture device) could overwhelm a slower consumer (e.g., an LLM inference engine). If the consumer cannot keep up, the unbounded channel grows indefinitely, consuming all available RAM and eventually crashing the application. This is analogous to a water reservoir with no spillway; if the inflow exceeds the outflow, the dam eventually bursts.

Bounded channels, conversely, impose a fixed capacity. When a bounded channel is full, the ChannelWriter<T>.WriteAsync method will yield control until space becomes available. This creates backpressure. Backpressure is a vital concept in distributed systems and AI pipelines; it is the mechanism by which a slow consumer signals upstream producers to slow down, preventing resource exhaustion. In the context of AI, backpressure ensures that an inference engine isn't overwhelmed with requests it cannot process, maintaining system stability. For example, if an LLM is generating tokens slower than new prompts arrive, a bounded channel will pause the enqueueing of new prompts, effectively throttling the input rate to match the processing capacity.

The interaction with async and await is what makes these channels performant and non-blocking. When a producer calls WriteAsync on a full bounded channel, it does not block the thread; it returns a ValueTask that completes only when space is available. Similarly, when a consumer calls ReadAsync on an empty channel, it awaits a ValueTask that completes only when data arrives. This allows the thread to be utilized for other work (e.g., handling HTTP requests or processing other parts of the pipeline) rather than sitting in a busy-wait loop.

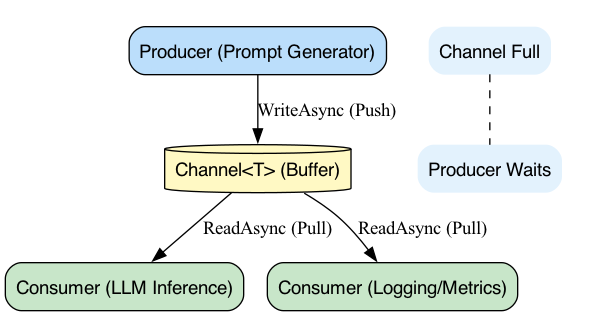

Let us visualize the flow of data through a channel in an AI pipeline. The producer generates data (prompts) and pushes them into the channel. The channel acts as a buffer. Consumers pull data from this buffer asynchronously. If the channel is bounded and full, the producer waits. If the channel is empty, the consumers wait.

A producer waits when a bounded channel is full, while consumers wait when the channel is empty, illustrating a synchronized flow control mechanism.

To understand the "why" behind the specific design of System.Threading.Channels, we must look at the evolution of asynchronous patterns in .NET. Before channels, developers often relied on BlockingCollection<T> for producer/consumer scenarios. However, BlockingCollection<T> is heavily reliant on blocking threads (using Take() and Add()), which scales poorly under high load and consumes valuable threads from the thread pool. System.Threading.Channels was introduced to provide a modern, allocation-efficient, and truly asynchronous alternative that aligns with the async/await paradigm introduced in C# 5.0 and refined in subsequent versions.

In AI pipelines, specifically, the ability to compose channels with IAsyncEnumerable<T> allows for elegant pipeline topologies. While IAsyncEnumerable<T> represents a single sequence, channels allow for fan-out and fan-in patterns.

Fan-Out: This is the process of taking a single input stream and distributing it to multiple consumers. In an AI context, imagine a scenario where a single document is ingested. One consumer might extract entities, another might summarize the text, and a third might translate it. A single ChannelReader<T> can be subscribed to by multiple consumers, each independently reading the same data (using ChannelReader<T>.ReadAllAsync()). This is distinct from IAsyncEnumerable<T>, which can typically only be iterated once. Channels allow multiple observers to react to the same data stream concurrently.

Fan-In: This is the process of merging multiple input streams into a single output stream. Imagine a distributed inference cluster where multiple worker nodes are generating responses. Each worker has its own output channel. A central aggregator can use System.Threading.Channels.Channel.CreateUnbounded() to merge these streams, presenting a unified IAsyncEnumerable<T> of results to the caller. This is essential for building scalable, distributed AI systems where load balancing across multiple GPUs or nodes is required.

Another critical theoretical aspect is cancellation. AI operations can be long-running and resource-intensive. A user might cancel a request mid-generation. System.Threading.Channels integrates natively with CancellationToken. When a CancellationToken is triggered, ReadAsync and WriteAsync operations will throw an OperationCanceledException. This allows for immediate termination of the pipeline flow, releasing resources (like GPU memory) instantly. This is superior to manual flag checking or complex logic to stop background threads.

Let's consider the specific architecture of streaming LLM responses. Traditional HTTP requests are request/response based. However, modern LLMs generate tokens sequentially. To handle this asynchronously in .NET, we often wrap the stream of tokens in an IAsyncEnumerable. However, if we want to process this stream—perhaps to filter profanity, count tokens, or buffer lines—we need a pipeline. System.Threading.Channels provides the buffering mechanism. The LLM stream produces tokens into a channel. A "buffering" consumer reads from this channel, aggregates tokens into lines or sentences, and writes them to a second channel. The UI or API consumer then reads from the second channel. This decouples the raw token generation speed from the display logic.

Furthermore, the theoretical foundation of System.Threading.Channels relies on the concept of ValueTask. Unlike Task<T>, which is a reference type and incurs heap allocation overhead, ValueTask<T> is a struct. In high-throughput AI pipelines where millions of tokens might be processed, minimizing GC pressure is paramount. Channels are designed to work efficiently with ValueTask, ensuring that the overhead of asynchronous coordination does not become a bottleneck in the system.

The architectural implication of using channels is a move towards reactive programming within imperative code. Instead of manually managing threads or locks, the developer defines the flow of data: "When data arrives here, process it and push it there." This declarative style reduces the surface area for race conditions and deadlocks. For example, in a deadlock scenario involving two threads waiting for each other, a channel-based approach avoids this because the waiting is asynchronous and managed by the runtime's task scheduler, not by blocking thread monitors.

To summarize the theoretical landscape: System.Threading.Channels provides the structural skeleton for high-performance AI pipelines. It solves the problem of backpressure via bounded channels, enables concurrency via asynchronous reads/writes, supports scalability via fan-out/fan-in topologies, and ensures responsiveness via cancellation tokens. It bridges the gap between the discrete nature of Task<T> and the sequential nature of IAsyncEnumerable<T>, offering a persistent buffer that can hold state while decoupling the timing of production and consumption. This decoupling is the single most important architectural requirement for building robust AI systems that must handle variable loads and latency without crashing or slowing down the user experience.

Basic Code Example

using System;
using System.Threading.Channels;
using System.Threading.Tasks;

// Simulated AI service that generates responses (simulating an LLM call)
public class SimpleAIService
{
    public async Task<string> GenerateResponseAsync(string prompt)
    {
        // Simulate network latency and processing time
        await Task.Delay(500);
        return $"AI Response to: '{prompt}'";
    }
}

// The core pipeline using System.Threading.Channels
public class SimpleAIPipeline
{
    private readonly Channel<string> _channel;
    private readonly SimpleAIService _aiService;

    public SimpleAIPipeline()
    {
        // 1. Create a bounded channel to handle backpressure
        // Capacity = 5: If the producer fills 5 items and the consumer is slow,
        // the producer will wait (backpressure) instead of crashing memory.
        var options = new BoundedChannelOptions(capacity: 5)
        {
            // Drop the oldest item if full (optional strategy), or wait (default).
            // Here we use Wait mode for strict ordering and reliability.
            FullMode = BoundedChannelFullMode.Wait
        };

        _channel = Channel.CreateBounded<string>(options);
        _aiService = new SimpleAIService();
    }

    // PRODUCER: Simulates receiving user requests (e.g., from a web API endpoint)
    public async Task EnqueueRequestAsync(string prompt)
    {
        // WriteAsync respects backpressure. If the channel is full, it waits.
        await _channel.Writer.WriteAsync(prompt);
        Console.WriteLine($"[Producer] Enqueued: '{prompt}'");
    }

    // CONSUMER: Simulates a background worker processing the queue
    public async Task ProcessQueueAsync()
    {
        // ReadAsync returns a ValueTask<Optional<T>>.
        // We iterate until the channel is completed and empty.
        await foreach (var prompt in _channel.Reader.ReadAllAsync())
        {
            // Process the item
            var response = await _aiService.GenerateResponseAsync(prompt);
            Console.WriteLine($"[Consumer] Processed: {response}");
        }
    }

    // Signal that no more items will be produced
    public void CompleteProducer() => _channel.Writer.Complete();
}

public class Program
{
    public static async Task Main(string[] args)
    {
        var pipeline = new SimpleAIPipeline();

        // Start the consumer on a background thread (fire and forget)
        var consumerTask = pipeline.ProcessQueueAsync();

        // Simulate a burst of incoming requests (The Producer)
        var prompts = new[]
        {
            "Explain quantum computing",
            "Write a haiku about code",
            "Summarize the history of the internet"
        };

        foreach (var prompt in prompts)
        {
            await pipeline.EnqueueRequestAsync(prompt);
        }

        // Signal that we are done producing items
        pipeline.CompleteProducer();

        // Wait for the consumer to finish processing all items in the channel
        await consumerTask;

        Console.WriteLine("Pipeline processing complete.");
    }
}

Line-by-Line Explanation

using System.Threading.Channels;
- This namespace contains the System.Threading.Channels API, introduced in .NET Core 2.1 and refined in later versions. It provides thread-safe, asynchronous data structures for producer/consumer scenarios.
public class SimpleAIService
- This class represents the external dependency (like an LLM API). In a real scenario, this would wrap HttpClient calls to OpenAI, Azure, etc.
- await Task.Delay(500);: We simulate a 500ms latency. This is crucial for the example; without it, the consumer would process items so fast that the asynchronous nature of the pipeline would be less visible.
public class SimpleAIPipeline
- Encapsulates the channel logic. This separation ensures that the application code (Main) doesn't need to know how the channel is configured (bounded vs unbounded).
private readonly Channel<string> _channel;
- The core abstraction. Channel<T> is an abstract class. We use the static factory method CreateBounded to instantiate it. It separates the reading side (Reader) from the writing side (Writer), enforcing strict separation of concerns.
var options = new BoundedChannelOptions(capacity: 5)
- Bounded vs Unbounded: We chose Bounded. Unbounded channels (CreateUnbounded) have no limit on memory usage. If a producer is faster than a consumer, memory usage can spike indefinitely, leading to OutOfMemoryException.
- Capacity: Set to 5. This acts as a buffer. If the consumer is slow, the producer can queue up to 5 items before it must wait.
FullMode = BoundedChannelFullMode.Wait
- This defines the Backpressure Strategy.
- Wait: If the channel is full, WriteAsync suspends the producer until space is available. This is the safest mode for data integrity.
- Alternative: DropNewest discards the new item; DropOldest discards the oldest item. These are useful for real-time telemetry where losing a frame is acceptable.
_channel = Channel.CreateBounded<string>(options);
- Instantiates the channel. Note that _channel.Writer and _channel.Reader are distinct interfaces. You can pass _channel.Reader to a consumer class and _channel.Writer to a producer class without exposing the other side.
public async Task EnqueueRequestAsync(string prompt)
- The Producer: This method simulates an API endpoint receiving a request.
- await _channel.Writer.WriteAsync(prompt);: This is the critical write operation.
  - If the channel has space, the item is added immediately, and the method returns.
  - If the channel is full (capacity 5 reached), this await suspends the execution of EnqueueRequestAsync until the consumer removes an item. This is Backpressure in action.
public async Task ProcessQueueAsync()
- The Consumer: This simulates a background worker or a pool of workers.
- await foreach (var prompt in _channel.Reader.ReadAllAsync()): This is the modern C# way to consume channels. ReadAllAsync returns an IAsyncEnumerable<string>.
- It asynchronously waits for items to arrive. If the channel is empty, the loop pauses (awaits) without blocking the thread. When an item arrives, it resumes.
public void CompleteProducer() => _channel.Writer.Complete();
- This signals "End of Stream". Without calling Complete(), ReadAllAsync() will keep waiting for more items forever, even if the producer has finished its job. Once completed and the channel is empty, ReadAllAsync will terminate the loop.
var consumerTask = pipeline.ProcessQueueAsync();
- We start the consumer before producing data. This is standard for pipelines. The consumer sits idle (awaiting) until data arrives.
pipeline.CompleteProducer();
- After the foreach loop finishes enqueuing the batch of prompts, we explicitly close the channel. This tells the consumer, "There will be no more data; finish what's in the buffer and then stop."
await consumerTask;
- We must await the consumer task to ensure the application doesn't exit before processing is finished. This is the "drain" phase of the pipeline.

Visualizing the Pipeline

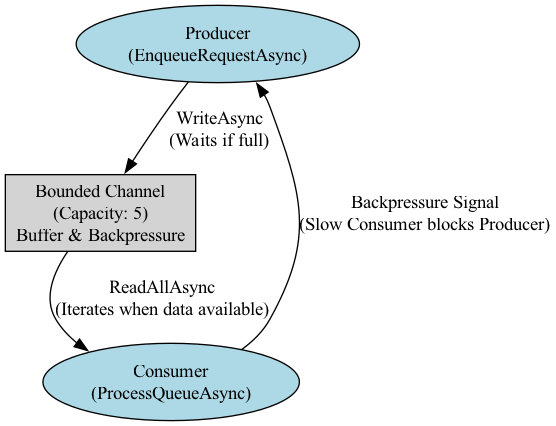

The following diagram illustrates the flow of data and the flow of control (async/await) in the pipeline.

This diagram illustrates the asynchronous pipeline's drain phase, showing the flow of data moving through the stages while the flow of control is managed by async/await operations.

Common Pitfalls

Forgetting to Call Complete():
- The Mistake: The producer finishes its work, but Channel.Writer.Complete() is never called.
- The Consequence: The consumer's await foreach loop runs indefinitely, waiting for the next item that will never arrive. The ProcessQueueAsync task never finishes, leading to a hanging application or a zombie background service.
- The Fix: Always call Complete() (or TryComplete()) on the writer when the source of data is exhausted.
Using Unbounded Channels for High-Throughput Scenarios:
- The Mistake: Using Channel.CreateUnbounded() because it's "simpler" and doesn't require handling backpressure.
- The Consequence: If a sudden burst of data arrives (e.g., a DDoS attack or a spike in user traffic) and the consumer cannot keep up, the channel will store every item in memory. This leads to OutOfMemoryException and process termination.
- The Fix: Use CreateBounded with a reasonable capacity. This forces the producer to slow down (backpressure), protecting system stability.
Blocking the Consumer Loop:
- The Mistake: Performing CPU-bound work synchronously inside the await foreach loop (e.g., Task.Run(() => HeavyCalculation()).Wait()).
- The Consequence: Since the channel reader processes items one by one in the loop, blocking the thread prevents the loop from iterating to the next item. This effectively serializes the processing and negates the benefits of asynchronous pipelines.
- The Fix: Always use async/await all the way down. If you must do CPU-bound work, offload it to Task.Run and await it, or use Parallel.ForEachAsync (in .NET 6+) if the processing of individual items is independent.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
