Chapter 11: Concurrency vs Parallelism - Managing Threads in .NET

Theoretical Foundations

Concurrency and parallelism are foundational concepts in modern software engineering, but their distinction is often blurred, leading to inefficient resource utilization and subtle bugs. In the context of building high-throughput, scalable AI pipelines, mastering this distinction is not merely an academic exercise; it is a prerequisite for handling the non-deterministic latency of Large Language Model (LLM) inference.

At its core, the distinction rests on how we utilize time and hardware resources.

Concurrency is the art of managing multiple tasks over a given period. It is a structural concept, not necessarily an execution one. A concurrent system deals with multiple tasks that are in progress simultaneously, but not necessarily executing at the exact same instant. It is about dealing with lots of things at once.

Parallelism is the act of executing multiple tasks at the exact same instant. It is a subset of concurrency; you cannot have parallelism without concurrency, but you can have concurrency without parallelism.

The Chef Analogy: Synchronous vs. Asynchronous vs. Parallel

Imagine a kitchen preparing a complex banquet (an AI workload involving data retrieval, preprocessing, and inference).

1. Synchronous (One Chef, One Task): A single chef starts chopping onions, finishes, then starts boiling water, waits for it to boil, then adds pasta. If the water takes 10 minutes to boil, the chef stands idle. This is blocking. In C#, this is a thread blocked on Thread.Sleep() or a synchronous HTTP call, consuming a resource while waiting.

2. Concurrency (One Chef, Multiple Tasks): The chef puts water on the stove (starts a task). While waiting for the water to boil (an I/O-bound delay), the chef starts chopping vegetables. The chef switches back and forth. No two things happen at the exact same nanosecond, but the workflow is efficient. This is context switching. In .NET, this is the async/await state machine. The thread is not blocked; it returns to the thread pool to service other requests while waiting for the water (I/O) to complete.

3. Parallelism (Multiple Chefs, Multiple Tasks): The kitchen has four chefs. One boils water, one chops vegetables, one sears meat, and one plates the dish. All actions occur simultaneously. This requires multiple CPU cores. In .NET, this is the Task Parallel Library (TPL) using Parallel.For or Task.Run on a multi-core system.

In AI Pipelines:

• Concurrency is critical for handling thousands of client connections. When an AI model is generating a response (streaming), the server must handle other incoming requests rather than sitting idle waiting for the GPU to finish a token.
• Parallelism is critical for batch processing. If you are fine-tuning a model or running inference on a batch of 64 images simultaneously, you leverage parallelism to saturate the GPU/CPU.

The .NET Execution Model: The Thread Pool and the Synchronization Context

To understand how C# manages this, we must look at the underlying execution engine. .NET relies on a Thread Pool. Creating a raw OS thread is expensive (allocating stack space, kernel resources). The Thread Pool maintains a set of worker threads ready to execute work items.

The Illusion of Concurrency

When you call a synchronous method in C#, the calling thread is dedicated to that method until it returns. If that method performs a blocking I/O operation (e.g., reading a file or calling a database), the thread is put into a wait state by the OS. It cannot do anything else. In a web server like Kestrel, this limits the throughput to the number of threads available, which is a scarce resource.

The async/await State Machine

async/await is the syntactic sugar that enables efficient concurrency on a single thread. It is not magic; it is a compiler transformation.

When the compiler sees the async keyword, it transforms your method into a state machine struct (class in older versions). It tracks where execution should resume after a delay.

The Critical Nuance: When an async method awaits a task that is not yet complete, it yields control. The await checks if the task is already done. If not, it suspends the method and returns the thread to the thread pool. The thread is now free to handle other work (Concurrency). When the awaited operation (e.g., an HTTP response) completes, the runtime schedules a continuation. A thread from the pool picks up the state machine and resumes execution from exactly where it left off.

This is distinct from Task.Run. Task.Run explicitly pushes work onto the thread pool (off the main thread), enabling Parallelism or offloading CPU-bound work.

Architectural Implications for AI Workloads

In the context of AI pipelines (Book 4), these concepts dictate the architecture of the system.

1. I/O-Bound Concurrency (The "Waiting" Phase)

AI inference is often I/O-bound when interacting with external APIs (OpenAI, Azure OpenAI) or when streaming responses. A request arrives, and the server must wait for the model to generate tokens.

• Bad Approach (Synchronous):

  // DO NOT DO THIS in a web server
  public string GetCompletion(string prompt) {
      // The thread blocks here for 5 seconds.
      // The server cannot accept new requests on this thread.
      return HttpCallToLLM(prompt);
  }


  This scales poorly. If you have 100 threads and 100 requests take 5 seconds, the 101st request fails or queues for a long time.

• Good Approach (Concurrent Async):

  public async Task<string> GetCompletionAsync(string prompt) {
      // 'await' yields the thread. The thread returns to the pool.
      // The server remains responsive to other requests.
      return await HttpCallToLLMAsync(prompt);
  }


  This allows a single thread to handle hundreds of concurrent requests, switching context whenever an I/O wait occurs.

2. CPU-Bound Parallelism (The "Thinking" Phase)

If the AI workload involves local model inference (e.g., using ONNX Runtime or ML.NET on the server) or heavy preprocessing (tokenization, embedding generation), the CPU is the bottleneck.

• The Bottleneck: Running a matrix multiplication on the CPU blocks the thread. await does not help here; the CPU is busy, not waiting.
• The Solution: We must parallelize the work across available cores.
  • Data Parallelism: Processing multiple inputs simultaneously.
  • Pipeline Parallelism: Chaining stages where Stage 2 processes the output of Stage 1 while Stage 1 processes the next input.

3. The Hybrid: Streaming LLM Responses

Streaming is the ultimate test of Concurrency vs. Parallelism. When an LLM streams a response, it sends chunks of text as they are generated.

• The Producer (LLM): Runs asynchronously, generating tokens.
• The Consumer (Client/UI): Receives tokens as they arrive.

In C#, we use IAsyncEnumerable<T> (introduced in C# 8.0). This interface bridges the gap between the asynchronous nature of the producer and the sequential nature of the consumer.

public async IAsyncEnumerable<string> StreamTokensAsync(string prompt) {
    while (await llm.HasMoreTokens()) {
        string token = await llm.GetNextTokenAsync();
        yield return token; // Yield control back to the caller immediately
    }
}

This allows the caller to process tokens one by one without blocking the main thread, maintaining a responsive UI or API endpoint.

Visualizing the Execution Flow

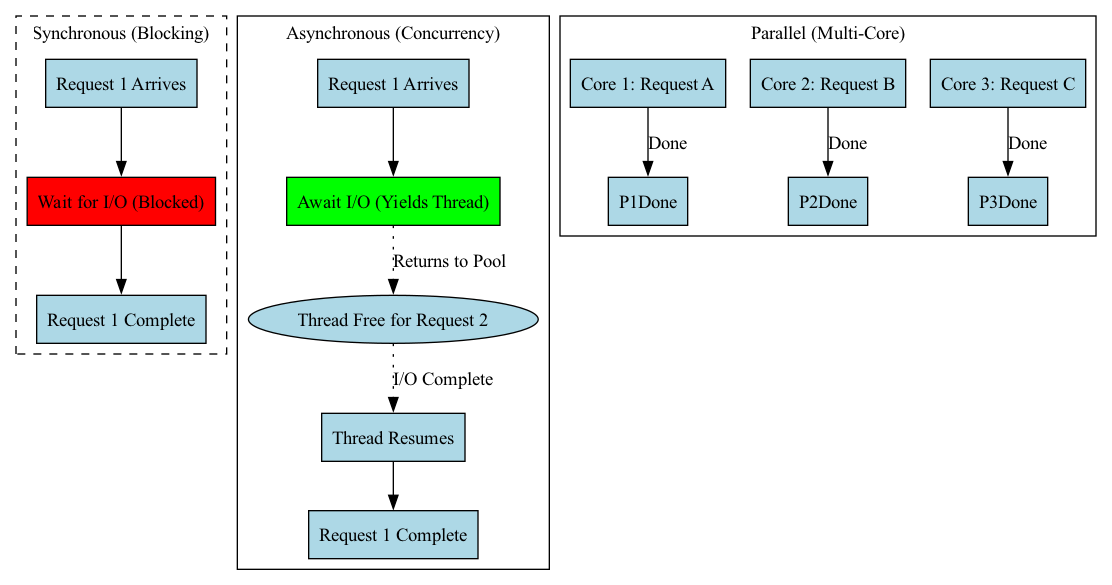

The following diagram illustrates how a single thread handles concurrency via async/await versus how multiple threads achieve parallelism.

Hold "Ctrl" to enable pan & zoom

This diagram visually contrasts the asynchronous execution flow, where a single thread yields control during I/O operations to maintain responsiveness, with the parallel execution flow, where multiple threads simultaneously process tasks.

Deep Dive: The Task and ValueTask Primitives

In C#, the abstraction for a concurrent or parallel operation is the Task. Understanding the lifecycle of a Task is essential for AI pipelines.

1. Task (Reference Type):

   • Represents an asynchronous operation. It is heavy because it is a reference type allocated on the heap.
   • AI Use Case: Used for long-running operations like generating a 1000-token response or training a model. The overhead of allocation is negligible compared to the execution time.

2. ValueTask<T> (Value Type):

   • A struct that wraps a result or a Task. It avoids heap allocation if the result is already available (synchronous completion).
   • AI Use Case: High-performance scenarios where a cache hit is common. If an embedding vector is already cached, we return it synchronously via ValueTask, avoiding the overhead of creating a Task object. This reduces GC pressure, which is critical in high-throughput AI services.

The Critical Role of ConfigureAwait(false)

In UI applications (WPF, MAUI) or legacy ASP.NET, there is a SynchronizationContext. When an await completes, it attempts to resume execution on the original context (e.g., the UI thread).

In modern server-side AI pipelines (ASP.NET Core), there is no SynchronizationContext. However, if you write a library that might be consumed by a UI app, you must be careful.

public async Task<string> ProcessLLMRequestAsync(string input) {
    var result = await CallLLMApiAsync(input).ConfigureAwait(false);
    // Execution resumes on any thread pool thread.
    // No overhead of marshalling back to a specific context.
    return result.ToUpper();
}

Why this matters for AI: AI libraries (like Microsoft.ML or TorchSharp) are often CPU-intensive. If you accidentally resume on a UI thread after an await, you will freeze the UI while the AI processes data. Using .ConfigureAwait(false) ensures the continuation runs on a thread pool thread, maintaining responsiveness.

Concurrency in AI Pipelines: The "Fan-Out/Fan-In" Pattern

A common pattern in AI orchestration is processing a batch of documents through a pipeline: Read -> Chunk -> Embed -> Index.

1. Fan-Out (Parallelism): Reading 10,000 documents from disk is I/O bound. We can initiate all reads concurrently.

   var readTasks = documents.Select(d => ReadDocumentAsync(d));


2. Processing (Concurrency/Parallelism): Chunking and Embedding are CPU bound. We use Parallel.ForEachAsync (available in .NET 6+) to limit concurrency to the number of available cores or to prevent overloading the AI model's rate limits.

   await Parallel.ForEachAsync(chunks, async (chunk, ct) => {
       var embedding = await GenerateEmbeddingAsync(chunk);
       // Save to database
   });


3. Fan-In (Synchronization): Waiting for all tasks to complete and aggregating results.

   var results = await Task.WhenAll(readTasks);


Theoretical Foundations

The distinction between concurrency and parallelism in C# is not just about syntax; it is about resource management.

• Concurrency (async/await) is used to maximize the utilization of a single thread by ensuring it never sits idle waiting for I/O. In AI, this handles the latency of network calls and database fetches.
• Parallelism (Task.Run, Parallel) is used to saturate multiple CPU/GPU cores to process data faster. In AI, this handles the throughput of batch inference and heavy mathematical transformations.

By combining these, we build systems that are both responsive (high concurrency) and fast (high parallelism), capable of handling the demanding workloads of modern Generative AI applications.

Basic Code Example

Here is a simple "Hello World" example demonstrating the difference between synchronous execution and asynchronous concurrency using async and await in C#.

using System;
using System.Diagnostics;
using System.Threading.Tasks;

public class AsyncVsSyncDemo
{
    public static async Task Main(string[] args)
    {
        Console.WriteLine("Starting the demonstration...\n");

        // 1. Run the synchronous version (Blocking)
        Console.WriteLine("--- 1. Synchronous Execution (Blocking) ---");
        Stopwatch syncWatch = Stopwatch.StartNew();
        await RunSynchronousWorkflow();
        syncWatch.Stop();
        Console.WriteLine($"Synchronous workflow completed in {syncWatch.ElapsedMilliseconds}ms\n");

        // 2. Run the asynchronous version (Non-blocking)
        Console.WriteLine("--- 2. Asynchronous Execution (Non-blocking) ---");
        Stopwatch asyncWatch = Stopwatch.StartNew();
        await RunAsynchronousWorkflow();
        asyncWatch.Stop();
        Console.WriteLine($"Asynchronous workflow completed in {asyncWatch.ElapsedMilliseconds}ms");
    }

    // Simulates a blocking I/O operation (e.g., database query without async)
    private static void SimulateBlockingWork(string taskName, int delayMs)
    {
        Console.WriteLine($"[{DateTime.Now:HH:mm:ss.fff}] Starting {taskName} (Thread: {System.Threading.Thread.CurrentThread.ManagedThreadId})");
        // Thread.Sleep blocks the current thread, preventing it from doing anything else.
        System.Threading.Thread.Sleep(delayMs);
        Console.WriteLine($"[{DateTime.Now:HH:mm:ss.fff}] Finished {taskName}");
    }

    // Simulates a non-blocking I/O operation (e.g., database query with async)
    private static async Task SimulateAsyncWork(string taskName, int delayMs)
    {
        Console.WriteLine($"[{DateTime.Now:HH:mm:ss.fff}] Starting {taskName} (Thread: {System.Threading.Thread.CurrentThread.ManagedThreadId})");
        // Task.Delay yields control back to the caller, freeing the thread to do other work.
        await Task.Delay(delayMs);
        Console.WriteLine($"[{DateTime.Now:HH:mm:ss.fff}] Finished {taskName}");
    }

    private static async Task RunSynchronousWorkflow()
    {
        // These run one after another. Total time = Sum of delays.
        SimulateBlockingWork("Database Query", 1000);
        SimulateBlockingWork("Image Processing", 1000);
        SimulateBlockingWork("File Upload", 1000);
    }

    private static async Task RunAsynchronousWorkflow()
    {
        // These run concurrently. Total time ≈ Max(delays).
        Task task1 = SimulateAsyncWork("Database Query", 1000);
        Task task2 = SimulateAsyncWork("Image Processing", 1000);
        Task task3 = SimulateAsyncWork("File Upload", 1000);

        // Wait for all concurrent tasks to finish
        await Task.WhenAll(task1, task2, task3);
    }
}

Visualizing the Execution Flow

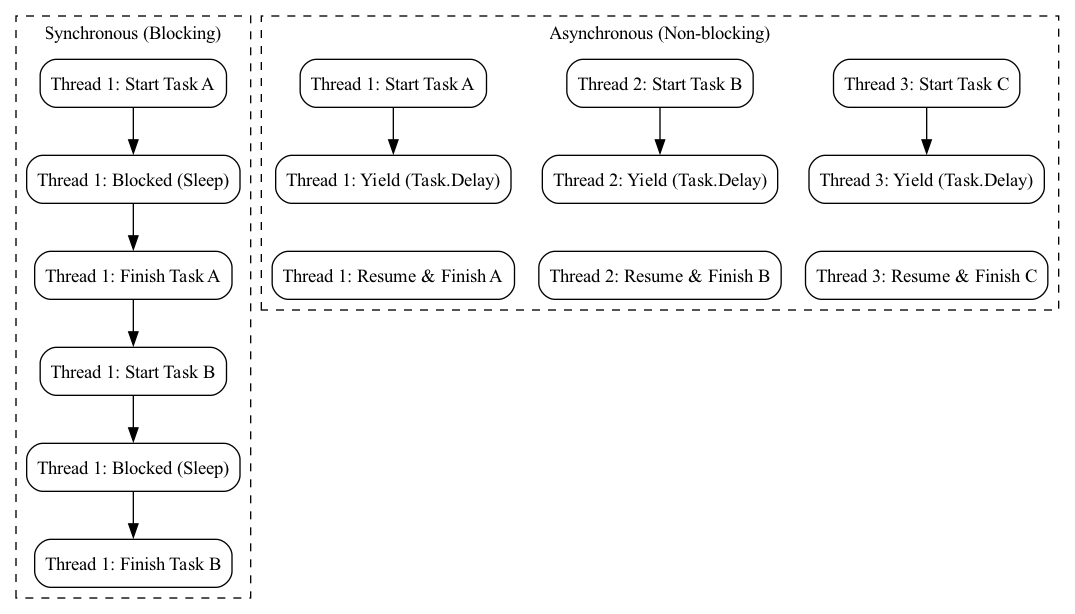

The following diagram illustrates the difference in thread usage between the synchronous (blocking) and asynchronous (non-blocking) approaches.

Hold "Ctrl" to enable pan & zoom

A diagram contrasting synchronous and asynchronous execution visually demonstrates how `Task.WhenAll` enables multiple operations (like database queries, image processing, and file uploads) to run concurrently on the same thread, whereas the synchronous approach would block the thread and execute them sequentially.

Detailed Explanation

1. The Problem Context

In AI pipelines, we often need to orchestrate multiple independent operations: fetching data from a vector database, querying an LLM, and processing the response. If we handle these sequentially (synchronously), the application spends most of its time waiting for I/O operations (network requests) to complete. This wastes CPU cycles and reduces throughput.

2. Code Breakdown

Block 1: Entry Point (Main)

public static async Task Main(string[] args)
{
    // ... stopwatch logic ...
}

• async Task Main: This is the modern entry point for console applications requiring asynchronous operations. It allows the use of await within the main execution flow.
• Stopwatch: We use System.Diagnostics.Stopwatch to accurately measure the wall-clock time taken for each workflow. This is crucial for demonstrating the performance difference.

Block 2: Synchronous Workflow (RunSynchronousWorkflow)

private static void SimulateBlockingWork(string taskName, int delayMs)
{
    // ...
    System.Threading.Thread.Sleep(delayMs);
}

• Thread.Sleep: This method blocks the executing thread. The operating system puts the thread into a "Wait" state, meaning it cannot process any other instructions until the sleep duration expires.
• Sequential Execution: In RunSynchronousWorkflow, we call these methods one by one. Even though the code looks linear, the execution is strictly sequential. If Task A takes 1 second and Task B takes 1 second, the total time is 2 seconds.

Block 3: Asynchronous Workflow (RunAsynchronousWorkflow)

private static async Task SimulateAsyncWork(string taskName, int delayMs)
{
    // ...
    await Task.Delay(delayMs);
}

• Task.Delay: Unlike Thread.Sleep, Task.Delay creates a timer. It returns a Task that completes after the delay.
• await Keyword: When execution hits await, the method pauses and returns control to the caller (RunAsynchronousWorkflow). The thread is not blocked; it is released back to the thread pool to handle other work (like processing UI events or handling other requests).
• Concurrency: In RunAsynchronousWorkflow, we invoke all three tasks immediately. They all start "running" (or rather, waiting) at the same time. We then use Task.WhenAll to wait for all of them to complete. The total time is roughly the duration of the longest task, not the sum of all tasks.

Block 4: Thread Management

• Thread IDs: You will notice in the console output that the Thread ID might change for async methods. This is because the SynchronizationContext or TaskScheduler might resume the execution on a different thread than the one that started it. This is a key feature of async/await in .NET: it abstracts away the specific thread, focusing instead on the logical flow of the task.

Common Pitfalls

1. Mixing Blocking and Async Code (Result or Wait)

A common mistake is blocking on asynchronous code, which can lead to deadlocks, especially in UI or ASP.NET Classic applications.

Bad Code:

// DO NOT DO THIS
var result = SimulateAsyncWork("Bad", 1000).Result; // Blocks the thread waiting for the task

Why it's bad: Calling .Result or .Wait() on a Task blocks the current thread until the task completes. If the task requires the current thread to continue (e.g., to complete a callback), a deadlock occurs. The thread is blocked waiting for the task, and the task is waiting for the thread to be free.

2. The "Async Void" Anti-Pattern

Bad Code:

// DO NOT DO THIS (unless an event handler)
private static async void DoWork()
{
    await Task.Delay(1000);
}

Why it's bad: async void is used primarily for event handlers (like button clicks) where the signature cannot be changed. In general logic, async void makes error handling difficult because exceptions thrown in the method cannot be caught by the caller. Always return async Task or async Task<T>.

3. Forgetting to Await

Bad Code:

// DO NOT DO THIS
SimulateAsyncWork("Forgotten", 1000);
Console.WriteLine("Done"); // This runs immediately, before the task finishes

Why it's bad: If you call an async method without await, the method starts executing, but the compiler generates a "fire-and-forget" behavior. The calling method continues immediately. If the calling method finishes (e.g., Main ends), the application might terminate before the background task completes. Additionally, any exceptions thrown in the unobserved task will be lost or crash the application.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---
