Chapter 14: Thread Safety - Locks, Monitors, and Concurrent Collections

Theoretical Foundations

At the heart of every high-performance asynchronous AI pipeline lies a fundamental tension: the need for speed versus the need for correctness. When we design systems that process LLM responses in parallel or aggregate data from multiple concurrent inference requests, we are essentially managing a shared workspace. If multiple workers try to write to the same memory location simultaneously without coordination, the results become unpredictable. This phenomenon is known as a race condition.

To understand race conditions, consider the analogy of a Whiteboard in a Busy Conference Room. Imagine a whiteboard where the current "state" of an AI model's context window is tracked. You have three AI agents (threads) running in parallel: one summarizing a document, one extracting entities, and one translating the text. All three agents need to update the "Current Token Count" variable written on the whiteboard.

Agent A reads the count (100 tokens).
Agent B reads the count (100 tokens) at the exact same moment.
Agent A calculates the new total (100 + 50 = 150) and writes "150" on the whiteboard.
Agent B calculates its new total (100 + 30 = 130) and writes "130" on the whiteboard, erasing Agent A's work.

The final state is 130, but the true state should be 180. The data is corrupted. In an AI pipeline, this might manifest as a corrupted context window, a hallucinated response due to mixed inputs, or a crash when a collection is modified while being iterated over.

The Mechanics of Shared Mutable State

In C#, the Common Language Runtime (CLR) manages memory in a way that allows multiple threads to access the same object instance. When we build AI pipelines using async and await (as discussed in Book 3), we are often relying on the Thread Pool. The Thread Pool efficiently reuses a limited set of threads to handle thousands of concurrent operations. However, this efficiency comes at a cost: the thread executing a specific Task might change between the start and end of an asynchronous operation.

Consider a scenario where we are aggregating embeddings from multiple sources to perform a vector search. We might have a List<float> that accumulates the results. In a single-threaded environment, this is safe. In an asynchronous pipeline:

// Conceptual unsafe code
var aggregatedEmbeddings = new List<float>();

// Multiple tasks might run this concurrently
async Task ProcessEmbeddingAsync(float[] embedding)
{
    // The 'await' here might yield execution to another thread
    await Task.Delay(10);

    // CRITICAL SECTION: Modifying shared state
    aggregatedEmbeddings.AddRange(embedding);
}

Without synchronization, the internal array of aggregatedEmbeddings might be reallocated while another thread is trying to write to it, leading to an InvalidOperationException or silent data loss.

Synchronization Primitives: The Traffic Directors

To prevent race conditions, we need mechanisms to enforce mutual exclusion. This ensures that only one thread can access a critical section of code at a time.

The `lock` Statement

The lock statement is the most fundamental synchronization primitive in C#. It is syntactic sugar over the Monitor class. When a thread enters a lock block, it attempts to acquire a "token" associated with a specific object. If another thread already holds that token, the current thread blocks (pauses execution) until the token is released.

Analogy: The Single-Occupancy Restroom Key Imagine a critical section of code is a single-occupancy restroom. The lock object is the key to the restroom. If Agent A has the key, Agent B must wait outside the door until Agent A exits and returns the key. This guarantees that Agent A's actions inside the restroom are not interrupted or observed in a half-finished state by Agent B.

In the context of AI pipelines, lock is essential when updating shared metrics or logging systems. For example, if you are tracking the total tokens consumed by a distributed LLM inference job:

private readonly object _tokenLock = new object();
private long _totalTokensConsumed = 0;

void UpdateTokenCount(int tokens)
{
    lock (_tokenLock)
    {
        // Only one thread can execute this block at a time
        _totalTokensConsumed += tokens;
    }
}

Architectural Implication: The object passed to lock (_tokenLock) must be a reference type that is private and readonly. If it were public, external code could lock on it, potentially causing deadlocks. If it were a value type, boxing would create a new object for every lock, rendering the synchronization useless.

The `Monitor` Class

While lock is convenient, it lacks flexibility. The underlying Monitor class offers more control, specifically the ability to use TryEnter. In high-throughput AI pipelines, blocking a thread indefinitely is dangerous. If a thread is blocked waiting for a lock, it cannot process other incoming requests, potentially starving the Thread Pool.

Monitor.TryEnter allows a thread to attempt to acquire a lock with a timeout. If the lock isn't acquired within a specified time, the thread can choose to abort the operation or perform a fallback logic. This is critical for maintaining the responsiveness of an AI service.

Analogy: The Smart Lock with a Timer Instead of a simple key (lock), Monitor.TryEnter is like a smart lock that beeps and unlocks automatically after 5 seconds if you haven't opened the door. This prevents someone from getting stuck waiting forever if the previous occupant fell asleep inside.

Concurrent Collections: Lock-Free(ish) Abstractions

Manually placing lock statements around every collection access is error-prone and can lead to performance bottlenecks due to lock contention (many threads waiting for the same lock). To address this, the .NET Base Class Library (BCL) provides System.Collections.Concurrent.

These collections are designed for high-concurrency scenarios. They use fine-grained locking or lock-free algorithms (often relying on atomic CPU instructions like Compare-And-Swap) to allow multiple threads to read and write simultaneously without corrupting the data structure.

`ConcurrentDictionary<TKey, TValue>`

In AI applications, we often cache model outputs or intermediate results. A standard Dictionary is not thread-safe. If one thread is resizing the dictionary (adding a bucket) while another is reading, the process will crash.

ConcurrentDictionary partitions its internal storage into segments. When a thread writes to a specific key, it only locks that specific segment, allowing other threads to write to different keys concurrently.

Use Case: Real-time Sentiment Analysis Dashboard Imagine a system processing a stream of social media posts. We want to maintain a real-time count of specific keywords (e.g., "AI", "Robot", "Future") using a language model to identify them. Multiple threads are processing posts in parallel.

using System.Collections.Concurrent;

// Thread-safe storage for keyword frequencies
var keywordCounts = new ConcurrentDictionary<string, int>();

void ProcessPost(string postText)
{
    // Assume this method identifies keywords asynchronously
    var keywords = IdentifyKeywords(postText);

    foreach (var keyword in keywords)
    {
        // AddOrUpdate is atomic and thread-safe
        // It handles the logic of adding if missing, or updating if exists
        // without requiring an external lock statement.
        keywordCounts.AddOrUpdate(keyword, 1, (key, oldValue) => oldValue + 1);
    }
}

`BlockingCollection<T>` and Pipelines

In Book 3, we discussed Producer-Consumer patterns. BlockingCollection<T> is the synchronization-aware implementation of this pattern. It is ideal for streaming LLM responses.

When an AI model generates a stream of tokens, one thread (the Producer) adds tokens to the collection, and another thread (the Consumer) removes them to display to the user or write to a database. BlockingCollection handles the thread signaling: if the collection is empty, the consumer thread waits (blocks) efficiently until data is available; if the collection is full, the producer waits.

Analogy: The Assembly Line Buffer Imagine a factory assembly line. The AI model is the machine stamping parts (tokens). The UI renderer is the worker packaging parts. BlockingCollection is the conveyor belt between them. If the belt is full, the stamping machine pauses (back-pressure). If the belt is empty, the packager waits. This decouples the speed of the producer from the consumer, smoothing out latency spikes common in LLM inference.

Deadlocks: The Silent Killer

While synchronization prevents race conditions, it introduces the risk of deadlocks. A deadlock occurs when two or more threads are waiting for each other to release locks, resulting in a permanent standstill.

Analogy: The Four-Way Stop Intersection Imagine four cars arriving at a four-way stop simultaneously.

Car A (North) wants to turn left and is waiting for Car C (East) to move.
Car C wants to turn left and is waiting for Car B (South) to move.
Car B wants to turn left and is waiting for Car D (West) to move.
Car D wants to turn left and is waiting for Car A to move. No one moves. Ever.

In C#, this happens if Thread 1 locks Resource A and tries to lock Resource B, while Thread 2 locks Resource B and tries to lock Resource A.

Prevention Strategy:

Lock Ordering: Always acquire locks in a consistent, global order (e.g., always lock A before B).
Lock Timeouts: Use Monitor.TryEnter to abort and retry if a lock takes too long.

Performance Considerations in AI Pipelines

In the context of high-throughput AI, synchronization is a necessary evil. It introduces overhead. Every lock acquisition requires memory barriers to ensure CPU caches are synchronized, which is expensive compared to standard memory access.

The Cost of Granularity:

Coarse-grained locking: Locking a large object or an entire method. Safe, but limits parallelism severely. If you lock the entire AIModel instance, only one inference can happen at a time, even if the model supports batching.
Fine-grained locking: Locking specific properties or internal fields. High parallelism, but high complexity and risk of deadlocks.

Modern C# Approach: Modern C# encourages the use of System.Threading.Interlocked for simple atomic operations (like incrementing a counter) and immutable data structures. If a state doesn't need to change, it doesn't need a lock. Instead of modifying a shared object, we often create a new instance of the state and swap a reference atomically.

Visualizing the Pipeline

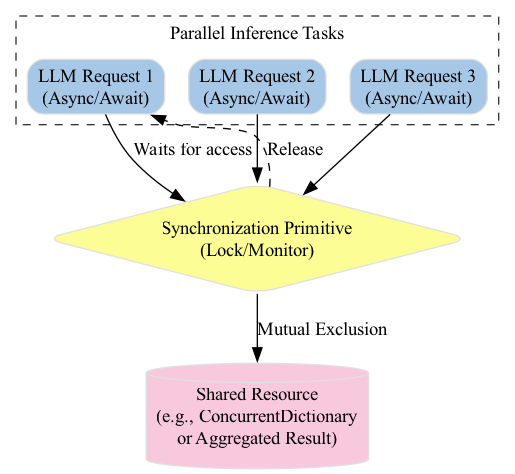

The following diagram illustrates how synchronization points fit into an asynchronous AI pipeline. Notice how the "Lock" acts as a gatekeeper for the shared state, while the parallel tasks flow independently until they need to converge.

The diagram shows parallel AI tasks flowing independently until they reach a synchronization point, where a Lock gatekeeper controls access to the shared state to ensure safe convergence.

Connection to Previous Concepts

In Book 3, we established the pattern of async/await to free up threads during I/O-bound operations (like waiting for an HTTP response from an LLM API). We relied on the Task Parallel Library (TPL) to manage the lifecycle of these operations.

Thread safety is the logical next step. When we move from "fire-and-forget" tasks to "coordinated aggregation," we must bridge the gap between the asynchronous world and the synchronous world of memory management. The await keyword suspends the current method, but the thread itself returns to the pool. When the task resumes, it might be on a completely different thread. Therefore, any local variables captured by closures or shared fields must be treated as potentially accessed by multiple threads over time.

Theoretical Foundations

Race Conditions occur when the outcome of a computation depends on the unpredictable timing of thread execution, leading to data corruption.
Mutual Exclusion is the principle of ensuring that only one thread accesses a critical section at a time.
Locks and Monitors provide the mechanism for mutual exclusion, trading raw speed for data safety.
Concurrent Collections provide higher-level abstractions that handle synchronization internally, offering a balance of safety and performance for common data structures.
Deadlocks are a risk of synchronization that must be managed through strict ordering and timeout strategies.

In the subsequent sections, we will move from these theoretical underpinnings to practical implementations, exploring how to apply these primitives to build robust, high-throughput AI pipelines that are safe from concurrency bugs.

Basic Code Example

Here is a basic code example demonstrating thread safety using a lock statement to prevent race conditions in a simulated AI request processing scenario.

using System;
using System.Collections.Generic;
using System.Threading;
using System.Threading.Tasks;

namespace AsyncAIPipelines.ThreadSafety
{
    public class BasicLockExample
    {
        // Represents a shared resource: a log of processed AI requests.
        // In a real scenario, this could be a database context, a file stream, or a shared cache.
        private readonly List<string> _requestLog = new List<string>();

        // The lock object. This must be a reference type (not a value type like int)
        // and should ideally be private and readonly to prevent accidental reassignment.
        private readonly object _logLock = new object();

        public async Task RunSimulationAsync()
        {
            Console.WriteLine("Starting simulated AI request processing with locking...");

            // Create 10 concurrent tasks simulating simultaneous user requests.
            var tasks = new List<Task>();
            for (int i = 1; i <= 10; i++)
            {
                int requestId = i;
                tasks.Add(Task.Run(() => ProcessRequestAsync(requestId)));
            }

            await Task.WhenAll(tasks);

            Console.WriteLine("\nFinal Request Log:");
            foreach (var entry in _requestLog)
            {
                Console.WriteLine($" - {entry}");
            }
        }

        private async Task ProcessRequestAsync(int requestId)
        {
            // Simulate some network latency or LLM processing time.
            await Task.Delay(new Random().Next(50, 150));

            // CRITICAL SECTION START
            // We enter a lock to ensure that only one thread can modify the shared
            // _requestLog at a time.
            lock (_logLock)
            {
                Console.WriteLine($"[Thread {Thread.CurrentThread.ManagedThreadId}] Processing Request #{requestId} - Lock Acquired");

                // Check current count (simulating a read-then-write operation)
                int currentCount = _requestLog.Count;

                // Simulate a tiny processing delay inside the lock to exaggerate
                // the chance of collision if the lock were missing.
                Thread.Sleep(10);

                // Modify the shared resource
                _requestLog.Add($"Request {requestId} processed at {DateTime.Now:HH:mm:ss.fff} by Thread {Thread.CurrentThread.ManagedThreadId} (Log Index: {currentCount})");

                Console.WriteLine($"[Thread {Thread.CurrentThread.ManagedThreadId}] Request #{requestId} - Lock Released");
            }
            // CRITICAL SECTION END
        }
    }

    class Program
    {
        static async Task Main(string[] args)
        {
            var example = new BasicLockExample();
            await example.RunSimulationAsync();
        }
    }
}

Code Explanation

Real-World Context: Imagine a high-throughput AI API gateway. Multiple users send prompts simultaneously. The application needs to aggregate these prompts into a shared in-memory log (or a batch buffer) before flushing them to a database. Without synchronization, two threads might read the list size as "5", both calculate the next index as "6", and overwrite each other's data, resulting in lost requests or corrupted data.

Step-by-Step Breakdown:

Namespace and Imports:
- using System.Threading.Tasks;: Essential for asynchronous programming (async, await, Task).
- using System.Threading;: Used here to access Thread.CurrentThread.ManagedThreadId for visualization purposes and Thread.Sleep (though Task.Delay is preferred for async contexts).
- using System.Collections.Generic;: Provides the standard List<T> collection.
Shared Resource Definition:
- private readonly List<string> _requestLog = new List<string>();
- This list acts as the "Shared Mutable State." It is mutable (can be changed) and shared across multiple threads executing ProcessRequestAsync. This is the source of potential race conditions.
The Lock Object:
- private readonly object _logLock = new object();
- In C#, locks are established on object instances. Any object can be used, but it is a best practice to use a private readonly object dedicated solely to synchronization.
- Why not lock on this or a public object? Locking on this allows external code to lock on the same instance, potentially causing deadlocks. Locking on a Type (e.g., typeof(BasicLockExample)) is also discouraged for the same reason. A private object ensures exclusive control.
The RunSimulationAsync Orchestrator:
- This method initializes 10 Task instances. Each task represents a concurrent AI request.
- Task.WhenAll(tasks) waits for all concurrent operations to finish before printing the final log. This ensures the program doesn't exit prematurely.
The ProcessRequestAsync Method:
- Async Simulation: await Task.Delay(...) simulates the I/O latency typical of calling an LLM API. Crucially, this happens outside the lock. We only want to lock while modifying memory, not while waiting for network responses.
- The lock Statement: lock (_logLock) { ... }
  - When a thread enters this block, it attempts to acquire the monitor associated with _logLock.
  - If another thread holds the lock, the current thread blocks (waits) until the lock is released.
  - This guarantees Mutual Exclusion—only one thread executes the code inside the brackets at any given moment.
- Read-Modify-Write: Inside the lock, we read _requestLog.Count, simulate a delay (Thread.Sleep(10)), and then write to the list. This sequence is atomic with respect to the lock. Without the lock, two threads could read "5", both calculate the next index as "6", and the second write would overwrite the first, leaving the list with only one entry instead of two.
Output Interpretation:
- You will notice that the thread IDs inside the lock block change frequently, but you will never see two threads printing "Lock Acquired" simultaneously. They queue up waiting for the _logLock.

Visualizing the Execution Flow

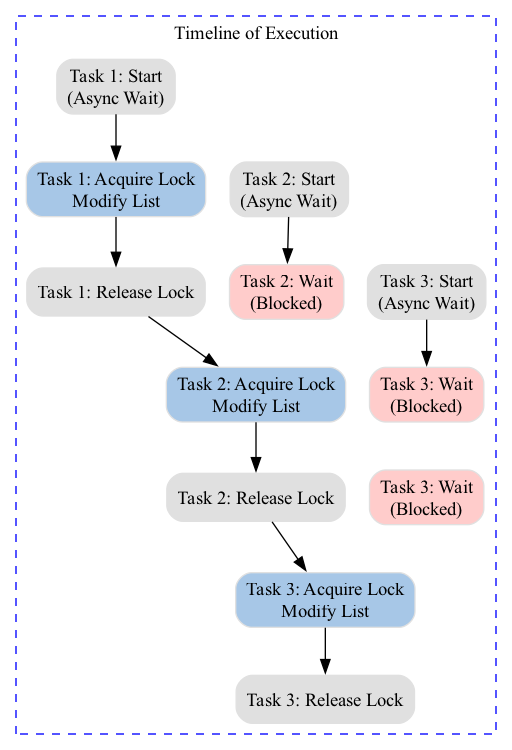

The following diagram illustrates how threads compete for the lock. Even though tasks start simultaneously, they serialize when accessing the critical section.

This diagram visually demonstrates how multiple threads, initially executing in parallel, must sequentially acquire a shared lock to safely access a critical section, effectively serializing their execution to prevent data corruption.

Common Pitfalls

1. Locking on Value Types or this

The Mistake: lock (this) { ... } or lock (5) { ... }.
The Consequence: If you lock on this, external code (e.g., lock (myInstance)) can also acquire a lock on your object, potentially leading to deadlocks caused by code you didn't write. If you lock on a value type (like an int), the compiler boxes the value (creates a new object), meaning every lock creates a different lock object, rendering the lock useless.
The Fix: Always use a private readonly object.

2. Locking on Strings

The Mistake: lock ("myLockString") { ... }.
The Consequence: Due to string interning in .NET, the string literal "myLockString" may be shared across different parts of the application or even different libraries. This increases the risk of deadlocks because unrelated components might be waiting for the same lock object.
The Fix: Use a dedicated object instance.

3. Performing I/O or Long-Running Operations Inside a Lock

The Mistake: Making HTTP requests, database calls, or heavy CPU calculations inside the lock block.
The Consequence: Locks should be held for the shortest duration possible. Holding a lock while waiting for an external resource (I/O) blocks all other threads from accessing any part of the code protected by that lock, drastically reducing application throughput.
The Fix: Perform I/O and async operations outside the lock. Prepare data locally, enter the lock briefly to update the shared state, and then release it.

4. Deadlocks

The Mistake: Acquiring multiple locks in different orders across different threads.
- Thread A: Locks Resource1, then tries to lock Resource2.
- Thread B: Locks Resource2, then tries to lock Resource1.
The Consequence: Both threads wait indefinitely for each other. The application freezes.
The Fix: Always acquire locks in a consistent, global order. If Thread A and B both lock Resource1 before Resource2, the deadlock is avoided. Alternatively, use Monitor.TryEnter with a timeout to detect and recover from potential deadlocks.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
