Chapter 17: Timeouts and Delays - Avoiding Forever-Hanging Requests

Theoretical Foundations

In the landscape of asynchronous AI pipelines, the network is the ultimate bottleneck. Unlike local computation, where execution time is deterministic and bounded by hardware, external API calls—such as querying an LLM hosted on a remote server—introduce a variable latency governed by network topology, server load, and the probabilistic nature of token generation. When we design systems that rely on async/await, we are fundamentally building state machines that yield control back to the event loop while waiting for I/O. However, "waiting" is a double-edged sword. Without explicit boundaries, an await can become an indefinite suspension, freezing the pipeline and consuming system resources (threads, memory, and connection slots) for operations that may never complete.

This subsection establishes the theoretical bedrock for preventing "forever-hanging requests." We must understand that in a distributed AI system, failure is not an anomaly; it is a statistical certainty. The goal is not to prevent failure, but to contain it within a bounded timeframe, ensuring that the system remains responsive even when the LLM provider experiences high latency or partial outages.

The Anatomy of Indefinite Blocking

To understand why timeouts are critical, we must first visualize the lifecycle of an asynchronous request in a modern C# application. When you await a Task representing an HTTP call to an LLM, you are suspending the execution of that method until the underlying Task completes. In a synchronous model, this would block a thread entirely. In async/await, the thread is released back to the thread pool, but the logical execution context remains suspended.

Consider a scenario where an LLM provider's API is experiencing a transient network partition. The TCP SYN packet is sent, but the acknowledgment never arrives. Without a timeout, the HttpClient will wait indefinitely for the operating system's TCP stack to time out the connection. In a high-throughput AI pipeline processing thousands of requests per minute, this creates a "leak" of suspended state machines. Eventually, the thread pool may be exhausted (though async helps mitigate this), or more likely, the connection pool managed by Sockets or HttpClient will be saturated with "zombie" connections. This leads to a cascading failure where new, valid requests cannot be sent because all available sockets are stuck waiting for responses that will never come.

The "Thundering Herd" and Retry Storms

A common strategy for handling transient failures is retrying. However, naive retry logic introduces a secondary problem: the Thundering Herd. Imagine a scenario where a downstream LLM service goes down for 30 seconds. A naive client might retry every 1 second. If 1,000 concurrent requests fail simultaneously, they will all retry at the same time. When the service comes back online, it is immediately hit by 1,000 requests at once, potentially causing it to crash again.

This is where the concept of Exponential Backoff with Jitter becomes theoretically essential. We will explore this in detail, but the core idea is to desynchronize retries. By introducing randomness (jitter) and increasing the delay exponentially, we smooth out the load on the recovering service.

Real-World Analogy: The Emergency Room Triage

To visualize the necessity of timeouts and delays, imagine an Emergency Room (ER). The ER represents our event loop or thread pool.

The Patient (The Request): A patient arrives requesting complex surgery (an LLM inference).
The Doctor (The Resource): A surgeon is assigned to the patient.
The Timeout (The Triage Protocol): If the patient is unresponsive or the surgery takes too long, the doctor cannot stay with them indefinitely. Other patients are waiting. The hospital has a protocol: if a procedure exceeds a maximum duration, the doctor must disengage and attend to the next patient.
The Delay (Recovery Room): If a patient is stable but needs rest before the next procedure, they are moved to a waiting room (the delay). This prevents crowding the operating theater.

If the ER lacks these protocols (timeouts), one patient with a stuck door (a hanging request) blocks the doctor forever, and the entire ER shuts down. If the ER lacks backoff (retries), 50 patients arriving simultaneously after a car crash will all demand immediate attention, overwhelming the staff.

Theoretical Foundations

In C#, the primary mechanism for enforcing timeouts is the CancellationToken. While Task.Delay can be used to simulate a timeout, the robust architectural pattern involves cooperative cancellation. This is a concept we touched upon in Book 3, Chapter 12, where we discussed the IAsyncEnumerable<T> interface for streaming data. Just as IAsyncEnumerable relies on yield return to push data, CancellationToken relies on the code checking its state to abort execution gracefully.

When we wrap a network request in a timeout, we are essentially creating a race condition: Will the LLM respond before the timer expires?

The `Task.WhenAny` Pattern

The classic pattern for implementing a timeout in C# (prior to .NET 6's Task.WaitAsync overloads) involves Task.WhenAny. This method accepts an array of tasks and returns when any one of them completes.

// Conceptual representation of the race condition
Task<LLMResponse> responseTask = CallLLMApiAsync();
Task delayTask = Task.Delay(TimeSpan.FromSeconds(5));

Task completedTask = await Task.WhenAny(responseTask, delayTask);

if (completedTask == delayTask)
{
    // The timeout won the race.
    throw new TimeoutException("LLM response took too long.");
}

However, this approach has a subtle but critical flaw: Task Leakage. If delayTask completes first, responseTask is still running in the background. It is "orphaned." It continues to consume network bandwidth and memory until the LLM eventually responds (or the connection times out at the OS level). In a high-scale AI pipeline, these orphaned tasks accumulate, leading to memory pressure.

The correct theoretical approach is to pass the CancellationToken directly into the API call. This allows the underlying HttpClient to cancel the request at the socket level, freeing resources immediately.

Visualizing the Timeout Architecture

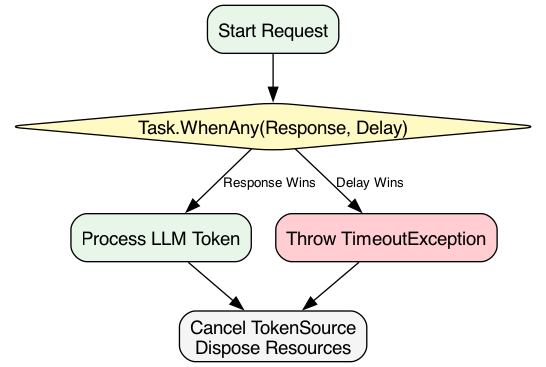

The following diagram illustrates the flow of a request with a timeout mechanism. Note how the decision point (the race) determines the path of execution.

The diagram illustrates a race condition where a request is sent and a timer is started simultaneously, with the outcome determined by whichever event—the response returning or the timeout period elapsing—occurs first.

Deep Dive: Exponential Backoff and Jitter

When an API call fails (e.g., due to a 503 Service Unavailable), we do not want to retry immediately. We want to wait. But how long?

Exponential Backoff

If we wait a fixed amount of time (e.g., 1 second) between retries, we risk synchronizing with other clients. Exponential backoff dictates that the wait time increases with each attempt: 1s, 2s, 4s, 8s, etc. This ensures that if a service is overwhelmed, the clients give it exponentially more time to recover.

Jitter (The Random Element)

Pure exponential backoff can still cause synchronization if all clients fail at the exact same moment (e.g., a deployment finishes at 10:00:00, and 1,000 clients fail at 10:00:01). To solve this, we add Jitter—a random variation to the delay.

The formula for a full jitter backoff is typically: Delay = Random(0, Min(Cap, Base * 2^Attempt))

This randomness spreads the retry attempts out over time, preventing the "thundering herd" and allowing the service to recover gracefully.

Handling Slow LLM Streams

In the context of AI, we often deal with streaming responses (Server-Sent Events or HTTP/2 streams). A standard request timeout measures the time from request send to final response close. However, in streaming, the connection might remain open for minutes while tokens trickle in.

Here, we need two distinct timeout strategies:

Connection Timeout: How long do we wait for the initial handshake and the first byte?
Inactivity Timeout (Keep-Alive): How long do we wait between tokens?

If an LLM stream stalls (e.g., the model is stuck in an infinite loop internally), the connection remains open, but no data flows. Without an inactivity timeout, the client holds a connection slot indefinitely. We must implement a sliding window timer: if no data is received within $X$ seconds, we close the stream and attempt to reconnect or fail gracefully.

Architectural Implications in AI Pipelines

When building complex pipelines (e.g., Retrieval-Augmented Generation or RAG), timeouts become a dependency graph problem.

Imagine a pipeline:

Step A: Query a vector database (Vector Store).
Step B: Send context + query to LLM.
Step C: Post-process the result.

If Step B (LLM call) times out, Step C never executes. However, Step A has already consumed resources (database connection, CPU for embedding). Without proper timeout propagation, you waste resources on steps that cannot complete.

In C#, CancellationToken is designed to be passed down the call stack. This is known as Cancellation Propagation. When a timeout occurs at the top level (the API controller or pipeline orchestrator), the token is canceled. This signal should ripple down to the HttpClient, the database query, and any parallel processing tasks.

Theoretical Foundations

Indefinite Blocking: The default state of network I/O without constraints is waiting. In AI pipelines, this is unacceptable due to the probabilistic nature of LLMs and network instability.
Resource Contention: Hanging requests consume sockets and memory, leading to cascading failures.
Cooperative Cancellation: Modern C# relies on CancellationToken to signal cancellation. This is not a forceful kill but a polite request to stop work, which requires the code to check the token state.
Backoff Strategies: Retries must be staggered using exponential backoff and jitter to prevent overwhelming a recovering service.
Stream Specifics: Streaming LLM responses require distinct timeouts for connection establishment and data inactivity to prevent "zombie" connections.

By mastering these concepts, we ensure that our asynchronous AI pipelines are not just fast, but resilient—capable of weathering the inevitable storms of distributed computing.

Basic Code Example

Imagine you are building a customer support chatbot that relies on a powerful, but occasionally slow, external LLM API. A user asks a question, and your application makes a request to the LLM. If the LLM takes 5 seconds to respond, the user waits 5 seconds. But what if the LLM is under heavy load and takes 2 minutes? Or what if there's a network glitch and the connection simply hangs indefinitely?

Your application cannot afford to let the user stare at a loading spinner forever. This is the problem of "forever-hanging requests." We need a mechanism to say: "If the LLM doesn't respond within a reasonable time (e.g., 5 seconds), give up, log an error, and tell the user we're having trouble."

The following C# code demonstrates how to solve this using CancellationTokenSource with a timeout, a fundamental pattern for building resilient asynchronous systems.

using System;
using System.Threading;
using System.Threading.Tasks;

public class LlmClient
{
    // This method simulates calling an external LLM API.
    // It takes a 'cancellationToken' which allows the caller to cancel this operation.
    public async Task<string> GetLlmResponseAsync(string prompt, CancellationToken cancellationToken)
    {
        Console.WriteLine($"[{DateTime.Now:HH:mm:ss.fff}] Sending prompt to LLM: '{prompt}'");

        try
        {
            // SIMULATION: We simulate a network request that takes a variable amount of time.
            // In a real scenario, you would pass the 'cancellationToken' to the actual HTTP client call.
            // e.g., await _httpClient.GetAsync(url, cancellationToken);
            // Here, we use Task.Delay to represent the work being done.
            // The 'cancellationToken' will cancel this delay if it triggers.
            await Task.Delay(TimeSpan.FromSeconds(10), cancellationToken);

            Console.WriteLine($"[{DateTime.Now:HH:mm:ss.fff}] LLM Response Received.");
            return "This is a simulated response from the LLM.";
        }
        catch (OperationCanceledException)
        {
            // This specific exception is thrown when the CancellationToken is canceled.
            Console.WriteLine($"[{DateTime.Now:HH:mm:ss.fff}] LLM Request was CANCELLED due to timeout.");
            throw; // Re-throw to signal the timeout to the calling method.
        }
        catch (Exception ex)
        {
            Console.WriteLine($"[{DateTime.Now:HH:mm:ss.fff}] An unexpected error occurred: {ex.Message}");
            throw;
        }
    }
}

public class Program
{
    public static async Task Main(string[] args)
    {
        Console.WriteLine("--- Basic Timeout Example ---");
        var llmClient = new LlmClient();

        // 1. DEFINE THE TIMEOUT
        // We decide that if the LLM takes longer than 3 seconds, we should give up.
        // This is our "patience" threshold.
        var timeoutDuration = TimeSpan.FromSeconds(3);

        // 2. CREATE THE CANCELLATION TOKEN SOURCE
        // This class is the controller. It manages the CancellationToken and can trigger its cancellation.
        // We configure it to automatically cancel after the specified timeout duration.
        using var cts = new CancellationTokenSource(timeoutDuration);

        Console.WriteLine($"[{DateTime.Now:HH:mm:ss.fff}] Application started. Timeout is set to {timeoutDuration.TotalSeconds} seconds.");
        Console.WriteLine($"[{DateTime.Now:HH:mm:ss.fff}] The LLM will take 10 seconds to respond, which is longer than our timeout.");

        try
        {
            // 3. PASS THE TOKEN TO THE ASYNC METHOD
            // We call our LLM client and pass the Token from our source.
            // If the timeout expires, the token will be canceled, and the GetLlmResponseAsync method will be interrupted.
            string response = await llmClient.GetLlmResponseAsync("What is async/await?", cts.Token);
            Console.WriteLine($"[{DateTime.Now:HH:mm:ss.fff}] SUCCESS: Received response: {response}");
        }
        catch (OperationCanceledException)
        {
            // 4. HANDLE THE TIMEOUT GRACEFULLY
            // The catch block executes when the timeout is exceeded.
            // Instead of crashing, we can now implement our fallback logic.
            Console.WriteLine($"[{DateTime.Now:HH:mm:ss.fff}] MAIN: The operation timed out. We will now use a cached response or inform the user.");
        }
        catch (Exception ex)
        {
            Console.WriteLine($"[{DateTime.Now:HH:mm:ss.fff}] MAIN: An unexpected error occurred: {ex.Message}");
        }

        Console.WriteLine("\n--- Example with a Fast Response ---");
        // Let's see what happens when the LLM is fast enough.
        // We create a new token source with the same timeout.
        using var fastCts = new CancellationTokenSource(TimeSpan.FromSeconds(3));

        try
        {
            // This time, we simulate a fast response by not passing the token to a delay.
            // We'll just create a task that completes quickly.
            Console.WriteLine($"[{DateTime.Now:HH:mm:ss.fff}] Calling a fast LLM...");
            await Task.Delay(TimeSpan.FromSeconds(1), fastCts.Token); // Simulate 1 second work
            Console.WriteLine($"[{DateTime.Now:HH:mm:ss.fff}] SUCCESS: Fast LLM responded in 1 second.");
        }
        catch (OperationCanceledException)
        {
            Console.WriteLine($"[{DateTime.Now:HH:mm:ss.fff}] MAIN: This should not be printed because the task finished in time.");
        }
    }
}

This C# code snippet demonstrates a task that finishes within its allotted time, preventing the execution of the debug message that indicates a timeout.

Detailed Line-by-Line Explanation

using System;
- Imports the base System namespace, which contains fundamental classes and base types, including DateTime, TimeSpan, and Console.
using System.Threading;
- Imports the System.Threading namespace. This is essential as it contains the definition for CancellationToken and CancellationTokenSource, the core tools for cooperative cancellation.
using System.Threading.Tasks;
- Imports the System.Threading.Tasks namespace. This gives us access to the Task and async/await keywords, which are the foundation of asynchronous programming in C#.
public class LlmClient
- Defines a class to encapsulate the logic for interacting with the external LLM service. This separates concerns, making the code cleaner.
public async Task<string> GetLlmResponseAsync(string prompt, CancellationToken cancellationToken)
- This is the method that performs the slow, external work.
- async Task<string>: This signature indicates the method is asynchronous and will eventually return a string result.
- CancellationToken cancellationToken: This is the crucial parameter. It's a "token" that the caller gives us. It's a signal that can be sent from the outside to tell this method, "Please stop what you're doing as soon as you can."
Console.WriteLine($"[{DateTime.Now:HH:mm:ss.fff}] Sending prompt to LLM: '{prompt}'");
- This line logs the start of the operation with a high-precision timestamp. This is invaluable for debugging timing-related issues.
try { ... } catch (OperationCanceledException) { ... }
- This try-catch block wraps the potentially "dangerous" code—the part that might hang or be canceled.
- catch (OperationCanceledException): This block specifically catches the exception that is thrown when a CancellationToken is canceled while an operation is awaiting it. This is our signal that the timeout occurred.
await Task.Delay(TimeSpan.FromSeconds(10), cancellationToken);
- This is the heart of the simulation.
- Task.Delay(...): This method creates a task that completes after a specified duration. In a real-world scenario, this would be await _httpClient.GetAsync(url, cancellationToken).
- cancellationToken: This is the second argument to Task.Delay. By passing it here, we link the delay (or the real HTTP request) to the cancellation token. If the token is canceled before the 10 seconds are up, Task.Delay will immediately stop waiting and throw an OperationCanceledException. This is how we "unblock" the hanging request.
throw;
- Inside the catch block, we re-throw the exception. This is good practice as it allows the original stack trace to be preserved and lets the Main method know that this specific operation failed due to a timeout.
public static async Task Main(string[] args)
- The entry point of our application. It's an async method so we can use await inside it.
var timeoutDuration = TimeSpan.FromSeconds(3);
- We define our "patience" limit. We are deciding that 3 seconds is the maximum time we are willing to wait for the LLM.
using var cts = new CancellationTokenSource(timeoutDuration);
- This is the most important line in the Main method.
- CancellationTokenSource (CTS): This is the object that creates and controls the CancellationToken.
- using var: This is modern C# syntax. It declares a variable cts and ensures that its Dispose() method will be called automatically when it goes out of scope. This is important for cleaning up resources.
- new CancellationTokenSource(timeoutDuration): We create a new CTS and tell it to schedule its own cancellation after 3 seconds. This is a timer.
await llmClient.GetLlmResponseAsync("...", cts.Token);
- We call our slow method. Crucially, we pass cts.Token. This gives the GetLlmResponseAsync method the "key" to listen for cancellation signals from our CancellationTokenSource.
catch (OperationCanceledException)
- This is where the program logic diverges based on the outcome.
- If the GetLlmResponseAsync method was still running when the 3-second timer in cts expired, it would have been canceled, and this catch block in Main would execute.
- This is where you implement your fallback strategy: return a cached value, inform the user, or log the timeout for monitoring.

Common Pitfalls

Forgetting to Pass the CancellationToken to Downstream Calls:
- The Mistake: You create a token in your top-level method and pass it to your first async method. Inside that method, you call another async method (e.g., a database query) but forget to pass the token along.
- The Consequence: If the user cancels the operation, the first method might stop, but the database query will continue running in the background, consuming resources and potentially causing deadlocks or inconsistent states. Always pass the CancellationToken down the entire call chain of async operations.
Assuming CancellationToken Automatically Stops a Thread:
- The Mistake: Thinking that setting cts.Cancel() will instantly kill the thread running the async method.
- The Reality: Cancellation in .NET is cooperative. It works by signaling. The token doesn't force anything to stop. The operation you are calling (like Task.Delay, HttpClient.GetAsync, or a while loop you wrote) must be written to listen to the token. If you write a long-running CPU-bound loop that doesn't check cancellationToken.IsCancellationRequested, it will run to completion regardless of the token's state. The magic of await Task.Delay(..., token) is that it's built to listen for you. For custom loops, you must check it manually.
Creating a CancellationTokenSource without the using Keyword:
- The Mistake: var cts = new CancellationTokenSource(); without using.
- The Consequence: CancellationTokenSource allocates a timer object internally. If you don't dispose of it (which using does automatically), you can create a memory leak where the timer remains active, preventing garbage collection and consuming resources unnecessarily. Always use using or manually call Dispose() on your CancellationTokenSource.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
