Chapter 20: Capstone Project - Building a High-Throughput Async Document Ingestion Engine (ETL for RAG)

Theoretical Foundations

Asynchronous programming in C# is not merely a performance optimization; it is a fundamental architectural paradigm shift required for building responsive, scalable, and resource-efficient AI applications. In the context of a high-throughput ETL (Extract, Transform, Load) pipeline for Retrieval-Augmented Generation (RAG), the synchronous execution model is not just slow—it is often functionally inadequate. This section dissects the theoretical underpinnings of async/await, Task-based Parallelism, and the Producer-Consumer pattern, specifically tailored for the demands of modern AI data ingestion.

The Synchronous Bottleneck in AI Pipelines

To understand the necessity of asynchrony, we must first visualize the synchronous execution model. In a traditional synchronous pipeline, operations are sequential and blocking. If your application needs to fetch a document from a remote URL, parse its text, and then embed that text into a vector representation, a synchronous approach would look like this:

1. Start Fetching: The application sends a request to a remote server.
2. Wait (Blocking): The application thread sits idle, consuming memory and CPU context, waiting for the network latency to resolve. It cannot process other documents.
3. Fetch Complete: Data arrives.
4. Start Parsing: The CPU processes the raw bytes.
5. Wait (Blocking): If parsing involves I/O (e.g., reading from a disk), the thread blocks again.
6. Start Embedding: The data is sent to an AI model (e.g., OpenAI or a local Llama instance).
7. Wait (Blocking): The thread waits for the model to generate the vector.

In an AI context, where operations are heavily I/O-bound (network requests to LLM APIs, database writes) or CPU-bound (tokenization, parsing), this blocking model leads to Thread Starvation. The .NET Thread Pool has a limited number of threads. If 100 documents arrive simultaneously and each blocks for 2 seconds waiting on a network response, you quickly exhaust the thread pool. The application stops accepting new requests, latency spikes, and throughput collapses.

The Asynchronous Paradigm: The "Non-Blocking" Philosophy

Asynchronous programming in C# solves this by decoupling the logical flow of execution from the physical thread executing it. When an asynchronous operation is initiated (e.g., await client.GetAsync(...)), the thread does not wait. Instead, it returns control to the caller (or the thread pool) immediately, allowing it to handle other work—such as initiating a fetch for the next document—while the current operation is "in-flight."

The Task and Task<T> Types

At the heart of modern C# async lies the Task and Task<T> types. A Task represents a "promise" of future work. It is not a thread itself; it is a state machine that tracks the progress of an operation.

• Task (Hot Tasks): When you call an async method, the work usually starts immediately (a "hot" task). This is distinct from the Task.Run pattern, which explicitly pushes work to the thread pool.
• Task<T>: Represents a promise that will eventually yield a value of type T.

In an AI pipeline, Task<T> is ubiquitous. When you call an embedding API, you don't get a vector immediately; you get a Task<EmbeddingResponse>. You await this task, and the runtime suspends the current method until the result is ready, freeing the thread to do other work.

async and await: The State Machine Compiler Magic

The async and await keywords are syntactic sugar that the C# compiler transforms into a complex state machine.

1. async: This modifier tells the compiler that the method may contain await expressions. It transforms the method signature to return a Task or Task<T>.
2. await: This is the suspension point. When execution hits await, the compiler generates code that checks if the task is already completed.
   • If Completed: Execution continues synchronously (zero overhead).
   • If Pending: The method returns control to the caller immediately. The local state (variables, instruction pointer) is captured and stored in a heap-allocated state machine object. When the awaited operation completes (e.g., the network packet arrives), the runtime schedules the continuation (the rest of the method) to run on an available thread.

Why this matters for AI: In an RAG ingestion engine, you might have a loop iterating over 10,000 documents. Without async, you process doc 1, wait, process doc 2, wait. With async, you fire off the fetch for doc 1, immediately move to doc 2, and so on. While doc 1 is waiting on the network, doc 2 is being parsed, and doc 3 is being fetched. This creates a pipeline of overlapping execution that maximizes hardware utilization.

I/O-Bound vs. CPU-Bound in AI ETL

Understanding the distinction is critical for architectural decisions.

I/O-Bound Operations (The Network Bottleneck)

Most AI pipelines are dominated by I/O-bound work: fetching documents, calling LLM APIs, and writing to vector databases.

• Mechanism: These operations rely on the OS kernel (via I/O Completion Ports on Windows or epoll on Linux). The thread initiates the request and is released.
• Best Practice: Use async/await exclusively. Do not use Task.Run for I/O; it wastes a thread pool thread that could be used for CPU work.

CPU-Bound Operations (The Computation Bottleneck)

Parsing complex formats (PDFs, DOCX) or tokenizing text is CPU-intensive.

• Mechanism: These operations require active CPU cycles.
• Best Practice: Use Task.Run to push the work to the thread pool. This prevents the CPU-heavy parsing from blocking the main thread or the I/O completion threads.

The Hybrid Approach: In our ETL pipeline, we will often see a pattern where an awaited I/O operation (fetching a PDF) is followed immediately by a CPU-bound operation (parsing). To prevent the parsing from blocking the I/O context, we might wrap it:

public async Task<ProcessedDocument> IngestAsync(string url)
{
    // I/O Bound: Fetching
    byte[] rawBytes = await _httpClient.GetByteArrayAsync(url);

    // CPU Bound: Parsing
    // We yield to the caller to free the current thread, then run parsing on the thread pool.
    var parsedText = await Task.Run(() => _parser.Parse(rawBytes));

    return new ProcessedDocument(parsedText);
}

The Producer-Consumer Pattern with Channels

For high-throughput ingestion, a simple loop is insufficient. We need a decoupled architecture. The Producer-Consumer pattern separates the generation of work (fetching documents) from the processing of work (parsing and embedding).

In modern C# (.NET 6+), the System.Threading.Channels namespace provides a high-performance, thread-safe queue optimized for async consumption.

• The Producer: An async method that enumerates a source (e.g., a file system or database), creates a DocumentRequest, and writes it to a ChannelWriter.
• The Consumer: Multiple async methods that read from a ChannelReader, process the item, and write to the vector database.

Why Channels? Unlike ConcurrentQueue, Channel supports async waiting. If the channel is empty, a consumer can await reader.WaitToReadAsync(), yielding its thread until data arrives. This is vastly more efficient than polling or blocking.

Parallelism vs. Concurrency in AI Pipelines

It is vital to distinguish these terms in the context of RAG.

• Concurrency: Dealing with multiple things at once. In C# async, this is the interleaving of execution on a single thread (via state machines) or multiple threads.
• Parallelism: Doing multiple things at the same time, specifically utilizing multiple CPU cores.

The Limit of Parallelism: While we want to process documents concurrently (async), we must be careful with CPU-bound parallelism.

• Vectorization: If you are using a local model (e.g., ONNX runtime) for embedding generation, you can batch inputs to utilize GPU/CPU SIMD instructions. Running 1000 individual embedding tasks in parallel might actually be slower than batching 100 items at a time due to context switching and memory bandwidth limits.
• Database Connections: Writing to a vector database (like Pinecone or Qdrant) has connection limits. A naive implementation that spawns 1,000 concurrent INSERT tasks will result in socket exhaustion or rate limiting.

The Solution: Batching (Batching) We combine async concurrency with batching.

1. Concurrent Fetching: Fetch and parse documents asynchronously (high concurrency).
2. Batched Loading: Accumulate parsed embeddings in a buffer. Once the buffer reaches a size (e.g., 100 items) or a timeout occurs (e.g., 500ms), perform a bulk insert into the vector database.

This minimizes network round-trips and database overhead, which is the primary bottleneck in high-throughput RAG ingestion.

The Role of IAsyncEnumerable<T>

Introduced in C# 8.0, IAsyncEnumerable<T> is the asynchronous equivalent of IEnumerable<T>. It is the theoretical glue for streaming LLM responses and processing infinite streams of documents.

In an ETL context, imagine reading a massive log file or a stream of news articles. Instead of loading the entire file into memory (which is impossible for terabyte-scale data), we expose an IAsyncEnumerable<Chunk>.

public async IAsyncEnumerable<DocumentChunk> StreamDocumentsAsync(string path)
{
    using var stream = new FileStream(path, FileMode.Open, FileAccess.Read);
    using var reader = new StreamReader(stream);

    while (!reader.EndOfStream)
    {
        // Asynchronously read a line (or chunk)
        string line = await reader.ReadLineAsync();

        // Yield the result immediately
        yield return new DocumentChunk(line);
    }
}

This allows the consumer to process one chunk at a time, maintaining a low memory footprint while the I/O happens in the background. This is essential when ingesting datasets that exceed available RAM.

Error Handling and Resilience

In a synchronous pipeline, an exception halts execution immediately. In an asynchronous pipeline, especially one with parallel tasks, error handling becomes more complex.

1. AggregateException: When using Task.WhenAll (waiting for multiple parallel tasks), exceptions are bundled into an AggregateException. You must iterate through the inner exceptions to find the root cause.
2. Individual Task Failure: If one document fails to parse (e.g., a corrupted PDF), it should not crash the entire ingestion engine.
   • Strategy: Wrap the processing logic in a try/catch block within the consumer. Log the error, and optionally push the failed item to a "Dead Letter Queue" (a separate channel or file) for manual inspection later.
3. Cancellation: Long-running ingestion jobs must support cancellation. This is achieved via CancellationToken. When a cancellation is requested (e.g., user presses Ctrl+C), the token is triggered. Every awaited method in the chain (e.g., await httpClient.GetAsync(url, token)) will throw an OperationCanceledException, allowing the application to gracefuly unwind and release resources.

Visualization of the Async ETL Flow

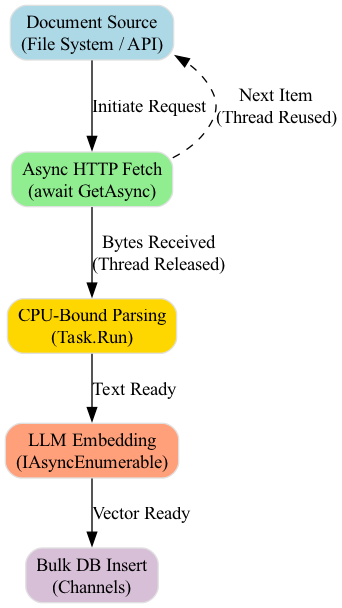

The following diagram illustrates the flow of data through our asynchronous pipeline. Note how the "Async/Await" points represent suspension points where the thread is released, allowing other operations to proceed.

Hold "Ctrl" to enable pan & zoom

The diagram illustrates an asynchronous ETL pipeline where data flows from source to destination through Async/Await suspension points that release threads, enabling concurrent operations to proceed efficiently.

Theoretical Foundations

While this chapter focuses on the pipeline mechanics, the theoretical foundation of async allows for flexible architecture. In Book 3, we discussed Dependency Injection and Interfaces. In an async pipeline, this is crucial for swapping AI models.

Imagine an interface for generating embeddings:

public interface IEmbeddingGenerator
{
    Task<float[]> GenerateEmbeddingAsync(string text, CancellationToken ct = default);
}

Because the method is async, the implementation details are hidden.

• OpenAI Implementation: Uses HttpClient to call the OpenAI API (I/O-bound).
• Local Llama Implementation: Uses a local inference server or ONNX runtime (potentially CPU/GPU-bound).

The ETL pipeline doesn't care. It simply awaits the result. The async pattern ensures that whether the model is remote (high latency) or local (high CPU), the pipeline remains responsive and doesn't block threads unnecessarily.

Theoretical Foundations

1. Non-Blocking I/O: The core principle. Threads are not tied to operations. This allows a small thread pool to handle thousands of concurrent network requests.
2. State Machines: The compiler transforms async methods into state machines that manage execution context and variable lifetimes across suspension points.
3. Task-Based Asynchrony: Task and Task<T> represent units of work. Task.WhenAll and Task.WhenAny allow coordinating multiple concurrent operations.
4. Channels: The modern primitive for producer-consumer patterns, enabling efficient data flow between different stages of the pipeline without blocking.
5. IAsyncEnumerable: The mechanism for streaming data, essential for handling large datasets or infinite streams (like real-time log ingestion) without memory exhaustion.
6. Backpressure: In a high-throughput system, the producer (fetching) might be faster than the consumer (embedding). Channels provide mechanisms (bounded capacity) to apply backpressure, preventing memory overflow by pausing the producer when the consumer is overwhelmed.

By mastering these theoretical constructs, we move from writing scripts that process data to engineering resilient, high-performance systems capable of ingesting the massive datasets required for enterprise-grade RAG applications.

Basic Code Example

Let's consider a real-world scenario: you are building a system that needs to fetch data from multiple external APIs to prepare a dataset for a Retrieval-Augmented Generation (RAG) pipeline. A naive synchronous approach would fetch these documents one by one, waiting for each to complete before starting the next. This is inefficient and slow.

Here is a "Hello World" example of an asynchronous document ingestion engine using modern C# (async/await and Task.WhenAll). This code simulates fetching documents from a remote source concurrently.

using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using System.Threading.Tasks;

public class Program
{
    // Entry point of the application
    public static async Task Main(string[] args)
    {
        Console.WriteLine("Starting Async Document Ingestion Engine...");

        // 1. Define a list of document IDs to fetch (simulating a queue of work)
        var documentIds = new List<string>
        {
            "doc_001.txt", "doc_002.pdf", "doc_003.md", "doc_004.html"
        };

        // 2. Start a stopwatch to measure the performance gain of concurrency
        var stopwatch = Stopwatch.StartNew();

        // 3. Create a list of tasks.
        //    We DO NOT await them immediately. We start them "in parallel"
        //    by not awaiting inside the loop.
        var ingestionTasks = documentIds.Select(id => IngestDocumentAsync(id));

        // 4. Await all tasks to complete concurrently
        var results = await Task.WhenAll(ingestionTasks);

        stopwatch.Stop();

        // 5. Process results
        Console.WriteLine($"\nFinished ingesting {results.Length} documents in {stopwatch.ElapsedMilliseconds}ms.");

        foreach (var result in results)
        {
            Console.WriteLine($" - Processed: {result}");
        }
    }

    /// <summary>
    /// Simulates fetching a document from a remote source and parsing it.
    /// In a real scenario, this would involve HTTP requests (HttpClient) and file I/O (aiofiles equivalent).
    /// </summary>
    /// <param name="docId">The identifier of the document to fetch.</param>
    /// <returns>A string representing the processed content.</returns>
    private static async Task<string> IngestDocumentAsync(string docId)
    {
        Console.WriteLine($"[Start] Fetching {docId}...");

        // Simulate a network delay (e.g., waiting for an API response)
        // Random is used to simulate varying network latency
        var randomDelay = new Random().Next(500, 1500);
        await Task.Delay(randomDelay);

        // Simulate parsing/processing the document
        var processedContent = $"Content of {docId} (processed in {randomDelay}ms)";

        Console.WriteLine($"[Done]  Finished {docId}.");

        return processedContent;
    }
}

Line-by-Line Explanation

1. using System; ... using System.Threading.Tasks;

   • These directives import necessary namespaces. System.Threading.Tasks is critical as it contains the Task and Task<TResult> types required for asynchronous programming in C#.

2. public static async Task Main(string[] args)

   • This is the modern entry point for C# console applications.
   • The async keyword allows the use of await within the method body.
   • Returning Task instead of void allows the caller (the runtime) to properly handle exceptions and wait for the asynchronous operation to complete.

3. var documentIds = new List<string> { ... }

   • We initialize a list of strings representing document identifiers. In a real ETL pipeline, this list might be populated by reading from a message queue (like RabbitMQ or Azure Service Bus) or a database.

4. var stopwatch = Stopwatch.StartNew();

   • We instantiate a Stopwatch to measure execution time. This is crucial for demonstrating the performance benefits of asynchronous parallelism over synchronous sequential execution.

5. var ingestionTasks = documentIds.Select(id => IngestDocumentAsync(id));

   • Crucial Concept: This line does not execute the ingestion immediately.
   • Select projects each docId into a call to IngestDocumentAsync.
   • Because IngestDocumentAsync is async, calling it returns a Task<string> immediately (a "hot" task that has started running).
   • We are effectively launching all four fetch operations "at once" (concurrently). They run in the background while the Main method continues to the next line.
   • If we had used foreach and await inside the loop, the operations would run sequentially, defeating the purpose of async.

6. var results = await Task.WhenAll(ingestionTasks);

   • Task.WhenAll is an aggregator method that accepts a collection of tasks and returns a single task that completes when all input tasks have completed.
   • The await keyword pauses the execution of Main until all four documents have been fetched and processed.
   • The result is an array (string[]) containing the return values of all the tasks in the same order as the input.

7. private static async Task<string> IngestDocumentAsync(string docId)

   • This helper method simulates the heavy lifting of the pipeline.
   • await Task.Delay(randomDelay);: This simulates an I/O-bound operation (like a network request). Task.Delay is the asynchronous equivalent of Thread.Sleep. It releases the thread back to the thread pool while waiting, allowing the CPU to handle other tasks (like starting the next document fetch).
   • Console.WriteLine: Used here to visualize the non-blocking nature of the code. You will notice in the output that "Start" messages appear for all documents before "Done" messages appear, proving they are running concurrently.

Visualizing the Execution Flow

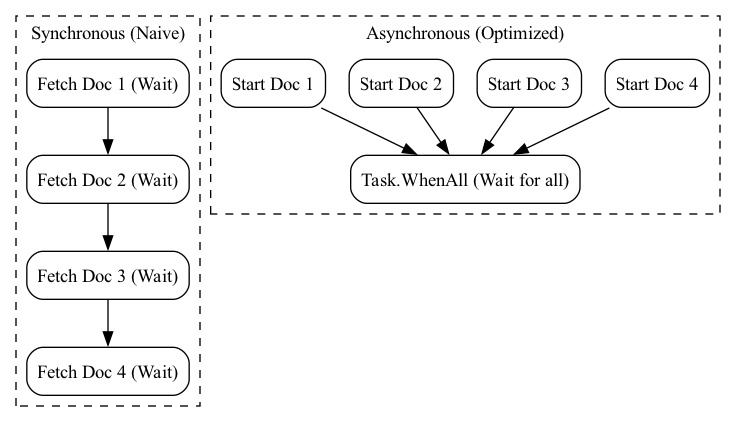

The following diagram illustrates the difference between synchronous (sequential) execution and asynchronous (concurrent) execution in our ingestion engine.

Hold "Ctrl" to enable pan & zoom

This diagram visually contrasts synchronous execution, where each document is processed sequentially in a fixed order, against asynchronous execution, where multiple document processing tasks start concurrently and complete in a non-deterministic order.

Common Pitfalls

1. The "Async Over Void" Trap

   • Mistake: Declaring event handlers or top-level methods as async void instead of async Task.
   • Why it's bad: Exceptions thrown in an async void method cannot be caught by the caller and will usually crash the application.
   • Fix: Always return Task or Task<T> unless you are specifically implementing an event handler signature that requires void.

2. Accidental Sequential Execution

   • Mistake: Writing a loop like this:

     foreach(var id in ids) {
         await IngestDocumentAsync(id); // Blocks until finished!
     }


   • Why it's bad: While the code is technically asynchronous (it uses await), it is not parallel. It waits for one document to finish before starting the next.

   • Fix: Use the pattern shown in the example: instantiate all tasks first, then await Task.WhenAll(...).

3. Blocking on Async Code

   • Mistake: Calling .Result or .Wait() on a Task inside an asynchronous context.
   • Why it's bad: This causes a deadlock. The async method waits for the result, but the thread holding the context is blocked waiting for the task, preventing the task from ever completing.
   • Fix: Always prefer await over .Result or .Wait(). Use await Task.WhenAll(...) instead of waiting on individual tasks.

4. Ignoring Exceptions in Task.WhenAll

   • Mistake: Assuming that if one task fails, Task.WhenAll will silently swallow the exception.
   • Why it's bad: Task.WhenAll will throw an AggregateException containing all exceptions from the faulted tasks. If you don't wrap it in a try/catch, your application might crash or fail to log errors correctly.
   • Fix: Always wrap await Task.WhenAll(...) in a try/catch block to handle partial or total failures gracefully.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---
