Chapter 4: Middleware Pipelines and Request Handling

Theoretical Foundations

The ASP.NET Core request pipeline is the central nervous system of any AI web API. It is the sequence of components through which every incoming HTTP request travels before it reaches the logic that interacts with an AI model, and the sequence of components through which the response travels back to the client. Understanding this pipeline is not merely about knowing how to write code; it is about architecting a system that is resilient, secure, and performant under the unique demands of AI workloads, which are often characterized by high latency, large payloads, and computationally intensive processing.

The Pipeline as a Factory Assembly Line

Imagine a highly sophisticated automobile factory. A raw chassis (the incoming HTTP request) enters the factory. It does not immediately go to the robot arm that welds the doors (the AI model inference). Instead, it first passes through a series of stations:

  1. Security Gate: A guard checks the chassis's paperwork (API Key Authentication).
  2. Quality Control: An inspector checks for dents or missing parts (Input Validation).
  3. Workstation Preparation: The chassis is lifted and positioned correctly (Request Parsing and Model Binding).
  4. The Main Workstation: The robot arm performs the complex welding (AI Model Inference).
  5. Final Inspection: A final check is done on the welded car (Response Formatting).
  6. Packaging and Shipping: The car is wrapped and sent out the door (Streaming the response back to the client).

In ASP.NET Core, each of these stations is a middleware component. A middleware is a piece of code that has access to both the incoming HttpContext (the request) and the outgoing HttpContext (the response). It can perform work, pass the request to the next component in the pipeline, or short-circuit the pipeline entirely by sending a response directly back to the client.

This concept is a direct evolution from the foundational request handling principles introduced in Book 1, Chapter 3, where we first learned about app.Use() and app.Run(). In that chapter, we treated the pipeline as a simple chain of functions. Here, we elevate that understanding to a robust architectural pattern for enterprise-grade AI services.

The Core Abstractions: HttpContext, RequestDelegate, and IMiddleware

At the heart of the pipeline lies the HttpContext object. This is a rich data structure that encapsulates the entire lifecycle of a single request/response cycle. It contains:

  • HttpRequest: Headers, body (stream), query string, path, HTTP method.
  • HttpResponse: Status code, headers, body (stream).
  • User: The authenticated principal.
  • Items: A generic dictionary for passing data between middleware components.
  • RequestServices: The dependency injection container for the current request.

A middleware component is fundamentally a function with a specific signature. This function is known as a RequestDelegate:

public delegate Task RequestDelegate(HttpContext context);

The pipeline is constructed by chaining these RequestDelegates together. Each middleware is responsible for invoking the next middleware in the sequence, typically by calling await next(context). This creates a "call stack" for the HTTP request, where the logic before await next executes on the way in (the request phase), and the logic after await next executes on the way out (the response phase).

There are two primary ways to implement middleware in ASP.NET Core:

  1. Convention-based Middleware: Defined in a class with an Invoke or InvokeAsync method, and registered in the pipeline using app.UseMiddleware<T>(). This is the most common and flexible approach.
  2. Inline Middleware: Defined directly within the Configure method using lambda expressions (app.Use(async (context, next) => { ... })). This is useful for very simple, one-off tasks.

For building robust AI APIs, we will focus on convention-based middleware, as it promotes testability, separation of concerns, and reusability.

The Request Phase: Interception and Preparation

When an AI API receives a request, such as a prompt for a language model, the request phase of the pipeline is responsible for ensuring the request is valid, authenticated, and correctly formatted before it ever reaches the model.

1. Authentication and Authorization Middleware

AI APIs are expensive. They consume significant computational resources and, often, third-party API costs. Therefore, securing the endpoints is paramount. An authentication middleware sits at the very beginning of the pipeline.

Analogy: This is the bouncer at an exclusive nightclub. Before anyone can even see the dance floor (the AI model), they must present a valid ID (API key or JWT token).

The middleware inspects the HttpRequest.Headers collection for an Authorization header or a custom header like X-API-Key. It validates this key against a database, a configuration store, or a signature. If the key is invalid, the middleware short-circuits the pipeline by setting HttpContext.Response.StatusCode = 401 (Unauthorized) and returning immediately. The request never proceeds to the more resource-intensive parts of the pipeline.

This is a critical application of the Dependency Injection (DI) pattern introduced in Book 1, Chapter 5. The authentication service (e.g., IApiKeyValidationService) is injected into the middleware's constructor, allowing for different validation strategies (database, in-memory, external service) without changing the middleware code itself.

// Conceptual Authentication Middleware
public class ApiKeyAuthenticationMiddleware
{
    private readonly RequestDelegate _next;
    private readonly IApiKeyValidationService _validationService;

    public ApiKeyAuthenticationMiddleware(RequestDelegate next, IApiKeyValidationService validationService)
    {
        _next = next;
        _validationService = validationService;
    }

    public async Task InvokeAsync(HttpContext context)
    {
        if (!context.Request.Headers.TryGetValue("X-API-Key", out var apiKey) ||
            !await _validationService.IsValidAsync(apiKey))
        {
            context.Response.StatusCode = 401;
            await context.Response.WriteAsync("Invalid or missing API Key.");
            return; // Short-circuit the pipeline
        }

        // If valid, proceed to the next middleware
        await _next(context);
    }
}

2. Input Validation Middleware

Once authenticated, the request payload (e.g., a JSON body containing a prompt and model parameters) must be validated. AI models are notoriously sensitive to malformed input. A missing parameter or an incorrectly typed value can lead to runtime exceptions, model crashes, or nonsensical outputs.

Analogy: This is the quality control inspector on the factory line. They check that the raw materials (the JSON payload) meet the precise specifications required by the machinery (the AI model). If a part is warped or the wrong size, it's rejected before it can damage the equipment.

This middleware deserializes the request body (e.g., into a PromptRequest DTO) and uses a validation library (like FluentValidation or built-in data annotations) to check for correctness. It checks for things like:

  • Is the Prompt field empty?
  • Is the MaxTokens value within a reasonable range?
  • Is the Temperature value between 0.0 and 2.0?

If validation fails, the pipeline is short-circuited with a 400 Bad Request response, often with a detailed error message explaining what was wrong. This prevents invalid data from consuming GPU cycles and provides immediate feedback to the API consumer.

3. Global Exception Handling Middleware

AI workloads are complex and can fail in unexpected ways. A model might fail to load, a third-party API might be down, or a memory allocation might fail. A global exception handler is a safety net that catches any unhandled exception thrown anywhere downstream in the pipeline.

Analogy: This is the factory's emergency shutdown system and cleanup crew. If a robot arm malfunctions and throws a wrench (an unhandled exception), this system immediately halts the line, contains the damage, and logs the incident for later analysis, ensuring the factory doesn't burn down.

This middleware is typically placed early in the pipeline. It wraps the call to the next middleware in a try...catch block. In the catch block, it:

  1. Logs the exception with full context (request path, headers, etc.).
  2. Does not expose sensitive internal details (like stack traces) to the client.
  3. Returns a generic, user-friendly error response with a correlation ID (a unique ID for this request, which is also logged) so support teams can trace the issue.

This is crucial for maintaining a stable and trustworthy service. A user who sees a raw NullReferenceException stack trace will lose confidence in the API.

The Response Phase: Handling High-Latency AI Workloads

After the request passes through the validation and security middleware, it reaches the endpoint that invokes the AI model. This is the most time-consuming part of the journey. AI inference can take anywhere from a few hundred milliseconds to several minutes. The response phase of the pipeline is designed to manage this latency gracefully.

Asynchronous Processing and the async/await Pattern

The entire ASP.NET Core pipeline is built on the async/await pattern. When an endpoint invokes a long-running AI model call (e.g., var result = await _model.GenerateAsync(prompt);), the thread processing the request is released back to the thread pool. It is not blocked. This allows the server to handle thousands of concurrent requests with a small number of threads, a concept known as I/O-bound concurrency.

Analogy: A chef (the thread) starts cooking a dish that takes 30 minutes (the AI inference). Instead of standing and staring at the pot for 30 minutes (blocking), the chef starts the dish, sets a timer, and moves on to prepare another dish (handle another request). When the timer goes off (the I/O operation completes), the chef returns to the original dish to finish it.

This is not just a performance optimization; it is fundamental to the scalability of an AI API. Without async/await, a server would quickly run out of threads under load, leading to thread pool starvation and request queuing, effectively grinding the service to a halt.

Response Streaming

For AI models that generate text token-by-token (like GPT models), waiting for the entire response to be generated before sending it back to the client results in a poor user experience. The user sees a loading spinner for 10-20 seconds and then a wall of text appears. A much better experience is to stream the response as it is generated.

Analogy: Instead of mailing a finished book to a reader, you are a radio broadcaster reading the book live. The listener hears each sentence as you speak it, getting the information in real-time.

ASP.NET Core's HttpResponse has a Body property which is a Stream. By default, this stream is buffered, meaning the entire response must be written to it before it's sent. To enable streaming, we disable buffering:

// Conceptual Streaming Endpoint Logic
context.Response.Headers.ContentType = "application/x-ndjson"; // Newline Delimited JSON
context.Response.Headers.CacheControl = "no-cache";
context.Response.Headers.Connection = "keep-alive";
context.Response.DisableBuffering(); // Crucial for streaming

// The AI model service returns an IAsyncEnumerable<string> of tokens
await foreach (var token in _model.GenerateStreamingAsync(prompt))
{
    // Write each token directly to the response stream
    await context.Response.WriteAsync(token);
    // Flush the stream to ensure the client receives it immediately
    await context.Response.Body.FlushAsync();
}

This technique, combined with IAsyncEnumerable<T> in C#, allows for a clean, efficient way to stream data. The pipeline must be configured to support this. The response streaming middleware (often part of the endpoint framework itself, like Minimal APIs or MVC) handles the low-level details of flushing the stream, but understanding the concept is key to building responsive AI applications.

Visualizing the Pipeline

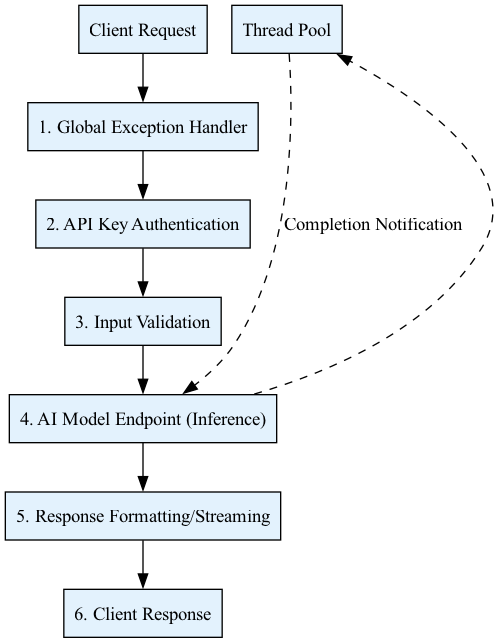

The flow of a request through the middleware pipeline can be visualized as a layered process. The request enters at the top and passes down through each layer. The response is generated at the bottom and travels back up through the layers.

A diagram shows a request descending through stacked layers from top to bottom, where a response is generated at the base and ascends back up through the same layers.
Hold "Ctrl" to enable pan & zoom

A diagram shows a request descending through stacked layers from top to bottom, where a response is generated at the base and ascends back up through the same layers.

Architectural Implications and Edge Cases

The design of the middleware pipeline has profound implications for the architecture of an AI service.

1. Order of Operations is Critical: The sequence of middleware registration in Program.cs is the sequence of execution. Placing the exception handler after the authentication middleware means authentication errors won't be caught by the global handler. Placing validation before authentication is a potential security risk, as it leaks information about your API's expected payload structure to unauthenticated users.

2. Performance of Middleware: Each middleware adds a small amount of overhead. For an AI API where latency is a primary concern, middleware should be as lightweight as possible. Heavy processing, like complex logging or synchronous database calls, should be avoided. All I/O operations within middleware must be asynchronous.

3. State Sharing: Middleware components can share state via the HttpContext.Items dictionary. For example, an authentication middleware might decode a JWT token and place the resulting ClaimsPrincipal into context.User. A subsequent authorization middleware can then use this pre-processed object. This is more efficient than parsing the token multiple times.

4. Middleware for AI-Specific Concerns:

  • Rate Limiting: To prevent abuse and manage costs, a rate-limiting middleware is essential. It can track requests per API key and return a 429 Too Many Requests status if the limit is exceeded.
  • Content Moderation: A middleware could intercept prompts before they reach the model, scanning them for harmful or inappropriate content and rejecting them proactively.
  • Request/Response Logging: For auditing and debugging, a dedicated logging middleware can capture the full request and response for specific endpoints, which is invaluable when troubleshooting model behavior.

In conclusion, the ASP.NET Core middleware pipeline is not just a technical detail; it is the architectural foundation of a robust AI API. By strategically placing components for authentication, validation, and exception handling, and by leveraging asynchronous processing and streaming for the response, we can build services that are not only powerful but also secure, reliable, and performant. This pipeline transforms a simple request into a well-orchestrated workflow, ensuring that the complex and resource-intensive task of AI inference is executed in a controlled and efficient manner.

Basic Code Example

using Microsoft.AspNetCore.Builder;
using Microsoft.AspNetCore.Http;
using System.Text;
using System.Text.Json;
using System.Text.Json.Serialization;

// Minimal API for an AI Chat Endpoint with Middleware
var builder = WebApplication.CreateBuilder(args);
var app = builder.Build();

// 1. Custom Middleware: Request Logging
// Logs every incoming request to the console for observability.
app.Use(async (context, next) =>
{
    var start = DateTime.UtcNow;
    Console.WriteLine($"[INFO] Request received: {context.Request.Method} {context.Request.Path}");

    // Capture the request body for logging (must be done before reading it in the endpoint)
    context.Request.EnableBuffering();
    var body = await new StreamReader(context.Request.Body).ReadToEndAsync();
    context.Request.Body.Position = 0;

    if (!string.IsNullOrEmpty(body))
    {
        Console.WriteLine($"[DEBUG] Request Body: {body}");
    }

    // Call the next middleware in the pipeline
    await next(context);

    var elapsed = DateTime.UtcNow - start;
    Console.WriteLine($"[INFO] Request completed in {elapsed.TotalMilliseconds}ms with status {context.Response.StatusCode}");
});

// 2. Custom Middleware: API Key Authentication
// Simulates checking a header for a valid API key before allowing access to the AI model.
app.Use(async (context, next) =>
{
    // Only protect the /chat endpoint
    if (context.Request.Path.StartsWithSegments("/chat"))
    {
        // Check for the header "X-API-KEY"
        if (!context.Request.Headers.TryGetValue("X-API-KEY", out var apiKey))
        {
            context.Response.StatusCode = 401; // Unauthorized
            await context.Response.WriteAsync("Error: Missing API Key.");
            return;
        }

        // Simulate a valid key check (In production, validate against a database or secrets manager)
        if (apiKey != "sk-1234567890")
        {
            context.Response.StatusCode = 403; // Forbidden
            await context.Response.WriteAsync("Error: Invalid API Key.");
            return;
        }
    }

    await next(context);
});

// 3. AI Chat Endpoint
// Simulates generating an AI response based on a user prompt.
app.MapPost("/chat", async (HttpContext context, ChatRequest request) =>
{
    // Input Validation
    if (string.IsNullOrWhiteSpace(request.Prompt))
    {
        return Results.BadRequest("Prompt cannot be empty.");
    }

    // Simulate AI Model Processing (High Latency Workload)
    // We use a delay to mimic the time an LLM takes to generate text.
    await Task.Delay(2000);

    // Simulate AI Response Generation
    var responseText = $"AI Response to '{request.Prompt}': Hello! I am processing your request asynchronously.";

    // Return JSON response
    var response = new ChatResponse { Response = responseText, Timestamp = DateTime.UtcNow };
    return Results.Json(response);
});

// 4. Global Exception Handling Middleware
// Catches any unhandled exceptions in the pipeline to prevent crashing the app.
app.Use(async (context, next) =>
{
    try
    {
        await next(context);
    }
    catch (Exception ex)
    {
        Console.WriteLine($"[CRITICAL] Unhandled Exception: {ex.Message}");
        context.Response.StatusCode = 500;
        await context.Response.WriteAsync("An internal server error occurred.");
    }
});

// Run the application
app.Run();

// Record definitions for JSON serialization
public record ChatRequest(string Prompt);
public record ChatResponse
{
    [JsonPropertyName("response")]
    public string Response { get; init; } = string.Empty;

    [JsonPropertyName("timestamp")]
    public DateTime Timestamp { get; init; }
}

Code Explanation

This example demonstrates a complete ASP.NET Core request pipeline tailored for an AI API. It solves the problem of securing and monitoring an AI endpoint that simulates high-latency processing (like an LLM call).

Here is the line-by-line breakdown:

  1. Setup (var builder = ...):

    • Initializes the WebApplication builder. This is the modern entry point for .NET web apps, replacing the old Startup.cs pattern.
    • var app = builder.Build(); constructs the pipeline container.

  2. Middleware 1: Request Logging (app.Use(...)):

    • Context: This middleware runs immediately after the request hits the server.
    • context.Request.EnableBuffering(): Essential for reading the request body (JSON) without permanently consuming the stream. If we didn't do this, the subsequent endpoint logic wouldn't be able to read the body.
    • await next(context): This is the critical "pass-through." It hands execution to the next component in the pipeline. Without this, the request hangs indefinitely.
    • Why: In AI APIs, logging inputs is crucial for debugging model hallucinations or bad requests, but it must be done carefully to avoid memory leaks.

  3. Middleware 2: API Key Authentication (app.Use(...)):

    • Context: This acts as a gatekeeper. It runs after logging but before the specific endpoint logic.
    • if (context.Request.Path.StartsWithSegments("/chat")): We scope this middleware to only protect the sensitive AI endpoint, leaving other potential endpoints (like health checks) open.
    • Security Logic: It checks the X-API-KEY header. In a real-world scenario, this key would be hashed and looked up in a database or a distributed cache like Redis.
    • Early Return: If authentication fails, we write a response and return immediately. We do not call await next(context), effectively stopping the pipeline and preventing the AI model from executing on unauthorized requests.

  4. Endpoint Definition (app.MapPost(...)):

    • Routing: Listens for POST requests to /chat.
    • Dependency Injection: The lambda accepts HttpContext and ChatRequest. ASP.NET Core automatically deserializes the JSON body into the ChatRequest record.
    • Validation: Checks if the Prompt is empty. This is "Defense in Depth"—even though the middleware ran, the endpoint validates business logic.
    • Simulation: await Task.Delay(2000) simulates the heavy computational load of an AI model. Because we are using async/await, the server thread is released back to the pool during this delay, allowing it to handle other incoming requests (high scalability).
    • Response: Returns a structured JSON object using Results.Json.

  5. Middleware 3: Global Exception Handling (app.Use(...)):

    • Context: This wraps the execution in a try/catch block.
    • Why: If the AI model crashes or a deserialization error occurs, this middleware ensures the client receives a generic 500 error rather than a raw stack trace or a hanging connection.
    • Placement: In this specific code order, it wraps the entire pipeline (Logging -> Auth -> Endpoint). This is often desirable to catch errors in the auth middleware itself.

Visualizing the Pipeline

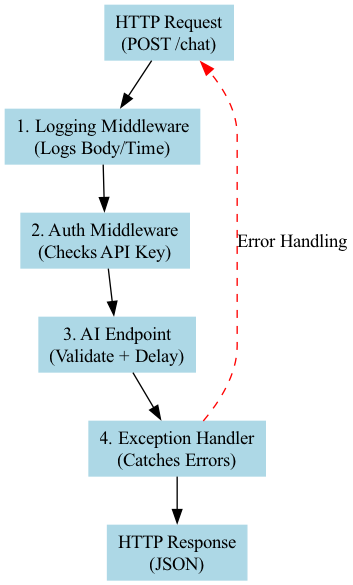

The request flows through the pipeline like a chain. The response flows back up the chain.

A diagram illustrating a request flowing downward through a sequential chain of processing stages, with the response returning upward through the same path to complete the pipeline.
Hold "Ctrl" to enable pan & zoom

A diagram illustrating a request flowing downward through a sequential chain of processing stages, with the response returning upward through the same path to complete the pipeline.

Common Pitfalls

  1. Reading the Request Body Twice:

    • The Mistake: In the Logging middleware, calling context.Request.Body.ReadAsync() without EnableBuffering() or resetting the stream position. The request body is a stream; once read, it is empty. The subsequent endpoint (which needs the JSON data) will receive null.
    • The Fix: Always use EnableBuffering() and reset context.Request.Body.Position = 0 after reading.

  2. Blocking Async Code:

    • The Mistake: Using .Result or .Wait() on a Task inside the middleware (e.g., Task.Delay(2000).Wait()). This blocks the thread, severely limiting the API's ability to handle concurrent requests (scalability).
    • The Fix: Always use await for I/O bound operations like network calls, database queries, or simulated delays.

  3. Incorrect Middleware Order:

    • The Mistake: Placing the Exception Handling middleware before the Authentication middleware. If an auth failure occurs, it might not be caught by the exception handler depending on how the failure is implemented (e.g., context.Response.WriteAsync vs throwing an exception).
    • The Fix: Generally, order middleware from most generic (Exception, Logging) to most specific (Auth, Endpoints). Exception handlers should usually be the outermost wrapper.

  4. Memory Leaks in Global State:

    • The Mistake: Storing request-specific data in static variables within the middleware.
    • The Fix: Rely on HttpContext.Items to pass data between middleware components (e.g., passing the validated User ID from Auth to the Endpoint).

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
