Chapter 8: WebSockets - Low Latency Audio Streaming

Theoretical Foundations

The fundamental challenge of building an interactive AI voice assistant is not just understanding language, but feeling responsive. When a user speaks to a system, the perception of intelligence is tightly coupled with latency. A 500ms delay between a user stopping speaking and the AI responding breaks the illusion of conversation. To achieve this, we must move away from the traditional HTTP request-response model, which is inherently high-overhead and stateless, and embrace a persistent, bi-directional communication channel: the WebSocket.

The Conversation Analogy: HTTP vs. WebSockets

Imagine you are trying to have a complex, hour-long conversation with a friend, but you are restricted to passing handwritten notes back and forth. Every time you want to say something, you must write a full note, hand it to a courier, wait for the courier to go to your friend's house, wait for them to write a reply, and wait for the courier to return. This is HTTP. It is reliable and structured, but for a continuous stream of information, the overhead of the "note" (headers) and the "courier" (TCP handshakes for each request) is immense. You cannot have a fluid conversation.

Now, imagine you and your friend are sitting in the same room, talking directly. The moment you finish a sentence, your friend hears it. The moment they have a thought, they can speak. There is no courier. There is no paper. There is a persistent, open line of communication. This is WebSockets. It establishes a single TCP connection that remains open, allowing data to flow freely in both directions with minimal overhead. For real-time audio streaming, this is not just an optimization; it is the only viable architectural pattern.

The Physics of Latency and the "First Packet"

In the context of AI audio streaming, we are dealing with two distinct types of latency that we must conquer:

Network Latency: The time it takes for a packet of data to travel from the client to the server and back.
Processing Latency: The time the AI model takes to "think"—to ingest audio, transcribe it, generate a response token, and synthesize the audio.

If we use a traditional HTTP approach, we might send a large audio file, wait for the server to process the entire file, and then receive the entire response. The total user-perceived latency is Network Upload + Processing + Network Download. This is unacceptable.

With WebSockets, we can begin streaming audio as the user is speaking. We break the audio into small chunks (e.g., 100ms of audio per WebSocket message). The server can start receiving the first chunk while the user is still speaking the tenth chunk. Crucially, the server-side AI model can begin processing the first chunk before the user has even finished their sentence. This is streaming inference. The server can start sending back synthesized audio chunks as soon as the first response tokens are generated.

The goal is to hide the network latency behind the processing latency. By the time the user finishes their sentence, the AI's response has already begun playing back. This is the "zero-latency" illusion we strive for.

The Mechanics of the WebSocket Handshake

Before any audio can flow, a WebSocket connection must be established. This process begins as a standard HTTP request, which is a critical distinction. The client sends an HTTP GET request to the server, but it includes a set of specific headers that signal an intent to upgrade the protocol:

// Conceptual Client-Side Handshake Request
// This is not server code, but an illustration of the initial HTTP request headers
// that a browser or client library would generate to initiate a WebSocket connection.

GET /api/audio/chat HTTP/1.1
Host: ai-voice-assistant.com
Upgrade: websocket          // Tells the server: "I want to switch protocols"
Connection: Upgrade          // Informs intermediaries to not close this connection
Sec-WebSocket-Key: dGhlIHNhbXBsZSBub25jZQ== // A randomly generated key for validation
Sec-WebSocket-Version: 13   // The WebSocket protocol version

The server must inspect these headers. If it supports WebSockets, it responds with a 101 Switching Protocols status code. This is the moment the connection is transformed. The HTTP protocol is "upgraded," and from this point forward, the TCP connection is no longer governed by HTTP semantics. It is now a raw, bi-directional WebSocket pipe. This handshake is why WebSockets are so powerful—they leverage the existing HTTP infrastructure (ports, firewalls, authentication) to establish the connection before shedding the HTTP baggage.

Data Framing: The Language of WebSockets

Once the connection is open, data is not sent as raw bytes. It is sent in frames. A WebSocket frame is a small unit of data with a specific structure. For our audio streaming scenario, we will primarily be concerned with Binary Frames (Opcode 0x2) and Text Frames (Opcode 0x1).

A frame contains:

A Header: Including a FIN bit (indicating if this is the final frame of a message), an opcode (what kind of data this is), and a mask (for client-to-server security).
A Payload Length: The size of the data.
The Payload: The actual audio data (e.g., a WAV or Opus-encoded byte array) or text metadata.

This framing mechanism is what allows us to treat the stream. We can send one audio chunk as a single frame, or we can fragment a large chunk across multiple frames. For our purposes, a simple 1:1 mapping of "one audio chunk = one WebSocket binary frame" is a robust starting point.

The AI Context: Synchronization and Metadata

This is where the theoretical foundation connects directly to the AI application built in the previous books. In Book 4, Chapter 7, "Stateful Conversational Context," we discussed how to maintain a conversation history using a ConversationState object. That concept is now supercharged by WebSockets.

A WebSocket connection is inherently stateful. The server knows which user is connected and can maintain a ConversationState for the lifetime of that connection. But audio data alone is not enough. The AI model needs to know what to do with the audio.

We must solve the synchronization problem. How does the server know when a user has stopped speaking? We cannot rely on the connection closing. We use a combination of strategies:

Voice Activity Detection (VAD): The client analyzes the audio stream locally. It sends metadata along with the audio chunks. For example, it might send a JSON "control" message as a Text frame between streams of Binary audio frames.
Silence Thresholds: The server monitors the incoming audio stream. If it receives a chunk that is below a certain amplitude threshold for a configured duration, it assumes the user has finished their thought.

Here is a conceptual representation of the data flow, showing how metadata and audio are interleaved:

// Conceptual data structures for the stream.
// These are NOT part of the WebSocket protocol itself, but the data we send over it.

// The client sends these as WebSocket frames.
public class AudioMessage
{
    public byte[] AudioData { get; set; } // Binary frame payload
    public bool IsFinalChunk { get; set; } // Metadata flag
}

public class ControlMessage
{
    public string Type { get; set; } // e.g., "START_STREAM", "END_STREAM", "INTERRUPT"
    public Guid ConversationId { get; set; } // Links to Book 4's state management
    public string UserIntent { get; set; } // Optional: Pre-analyzed intent
}

// The server can then process this stream, feeding audio chunks to the model
// and tracking state based on control messages.
// This is the modern C# representation of handling a stream of discriminated union types.
public record WebSocketFrameData(
    FrameType Type,
    byte[]? AudioPayload,
    ControlMessage? ControlPayload
);

public enum FrameType { Audio, Control }

Architectural Implications: The `System.Net.WebSockets` Abstraction

ASP.NET Core provides the System.Net.WebSockets namespace, which gives us the low-level tools to handle this. The core component is the WebSocket class. It is an abstract class that represents the WebSocket connection itself. The ASP.NET Core runtime provides a concrete implementation that manages the underlying TCP socket.

When a request is "upgraded," you receive an instance of this WebSocket object. From that point on, you do not use HttpContext.Response or HttpContext.Request. You use two primary methods:

ReceiveAsync(ArraySegment<byte>, CancellationToken): This pulls a frame from the wire. It's an asynchronous operation that will complete when a full frame has been received from the client.
SendAsync(ArraySegment<byte>, WebSocketMessageType, bool endOfMessage, CancellationToken): This sends a frame to the client.

This is a state machine. You are now in a loop:

ReceiveAsync -> Get audio chunk.
Feed chunk to AI model.
AI model produces audio response chunk.
SendAsync -> Send response chunk to client.
Repeat until the conversation ends.

The Challenge of Scale: Connections vs. Threads

This model introduces a significant architectural challenge that is unique to WebSockets. Traditional web servers like IIS are optimized for short-lived requests. A request comes in, a thread from the thread pool is assigned to it, it does its work, and the thread is returned to the pool.

WebSockets break this model. A WebSocket connection can last for hours. If you have 1,000 concurrent users, you could have 1,000 long-lived connections. If each connection held onto a server thread while waiting for user input, the server's thread pool would be exhausted, and it would stop responding to new requests.

This is why the entire I/O pipeline in ASP.NET Core is built on asynchronous programming. The await keyword is our most important tool here.

When we call await webSocket.ReceiveAsync(...), the thread is not blocked. It is released back to the thread pool to handle other work (like accepting new connections or processing other requests). The ASP.NET Core runtime uses low-level OS mechanisms (like IOCP on Windows or epoll on Linux) to be notified when data arrives on the socket. Only then does it wake up a thread to continue processing our ReceiveAsync task.

This is the difference between synchronous I/O (tying up a thread) and asynchronous I/O (releasing the thread). For a scalable WebSocket server, asynchronous I/O is not optional; it is mandatory.

Buffering and Flow Control

Audio is a real-time medium. The network is not. Packets can arrive out of order, be delayed (jitter), or be dropped. To provide a smooth playback experience on the client, we must manage buffers.

Server-Side Buffering: The AI model might produce audio faster than the network can send it, or slower. The WebSocket class itself doesn't provide buffering; it just sends data. Our application logic must be responsible for pacing. If we flood the client with data, the client's network buffer might overflow, and packets will be dropped.
Client-Side Buffering: The client must buffer incoming audio chunks and play them at a steady rate. It should have a small buffer (e.g., 200ms) to smooth out network jitter. If the buffer runs dry, playback stutters. If the buffer gets too full (because the server is sending faster than playback), latency increases.

This is a delicate balancing act. We need a system that can adapt. A common strategy is for the client to send "ACK" messages back to the server, indicating how much audio it has successfully buffered, allowing the server to throttle its sending rate.

Visualizing the Full-Duplex Stream

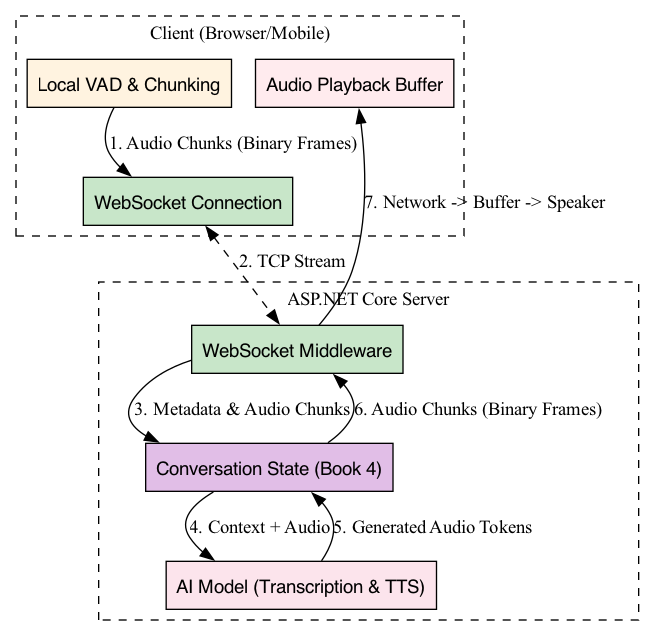

To fully grasp the flow, let's visualize the lifecycle of a single conversational turn.

A client sends ACK messages back to the server to report buffered audio levels, enabling the server to dynamically throttle its transmission rate and maintain a smooth, full-duplex conversational stream.

Theoretical Foundations

We have established that low-latency AI audio is impossible without a persistent, full-duplex communication channel. WebSockets provide this channel by upgrading an HTTP connection. Data is transmitted in frames, allowing us to interleave audio payloads with control metadata. The entire system must be built on an asynchronous foundation to achieve scale, ensuring that server threads are not wasted waiting for data. Finally, we must manage buffers on both client and server to smooth out the inherent unpredictability of network communication, creating a seamless conversational experience. This theoretical framework is the bedrock upon which we will build the practical implementation in the following sections.

Basic Code Example

using System.Buffers;
using System.Net.WebSockets;
using System.Text;

namespace LowLatencyAudioStreaming
{
    public class AudioWebSocketMiddleware
    {
        private readonly RequestDelegate _next;

        public AudioWebSocketMiddleware(RequestDelegate next)
        {
            _next = next;
        }

        public async Task InvokeAsync(HttpContext context)
        {
            // 1. Check if the request is a WebSocket upgrade request
            if (context.WebSockets.IsWebSocketRequest &&
                context.Request.Path.StartsWithSegments("/audio-stream"))
            {
                // 2. Accept the WebSocket connection
                using var webSocket = await context.WebSockets.AcceptWebSocketAsync();

                // 3. Start the bidirectional audio processing loop
                await HandleAudioStream(webSocket);
            }
            else
            {
                // 4. Pass non-WebSocket requests down the pipeline
                await _next(context);
            }
        }

        private async Task HandleAudioStream(WebSocket webSocket)
        {
            // Buffer for incoming audio chunks (approx 4KB, typical for Opus/WebRTC frames)
            var buffer = ArrayPool<byte>.Shared.Rent(4096);

            try
            {
                // 5. Configure cancellation token for graceful shutdown
                using var cts = new CancellationTokenSource();

                // 6. Start a background task to simulate AI processing (e.g., voice recognition)
                var processingTask = Task.Run(() => SimulateAIProcessing(cts.Token));

                // 7. Continuous receive loop
                while (webSocket.State == WebSocketState.Open)
                {
                    // 8. Asynchronously receive audio data from the client
                    var result = await webSocket.ReceiveAsync(
                        new ArraySegment<byte>(buffer),
                        cts.Token);

                    // 9. Handle connection closure
                    if (result.MessageType == WebSocketMessageType.Close)
                    {
                        await webSocket.CloseAsync(
                            WebSocketCloseStatus.NormalClosure,
                            "Closing",
                            CancellationToken.None);
                        break;
                    }

                    // 10. Process the audio chunk immediately (Echo for demo, real-world: send to AI model)
                    // In a real scenario, this buffer would be pushed to a thread-safe queue
                    // consumed by the AI processing engine.
                    if (result.Count > 0)
                    {
                        // 11. Send acknowledgment back to client (Low latency feedback)
                        var responseMessage = Encoding.UTF8.GetBytes($"ACK: {result.Count} bytes");
                        await webSocket.SendAsync(
                            new ArraySegment<byte>(responseMessage),
                            WebSocketMessageType.Text,
                            true,
                            cts.Token);
                    }
                }

                // 12. Signal processing loop to stop
                cts.Cancel();
            }
            finally
            {
                // 13. Return buffer to the pool to prevent GC pressure
                ArrayPool<byte>.Shared.Return(buffer);
            }
        }

        // 14. Mock AI processing method
        private async Task SimulateAIProcessing(CancellationToken token)
        {
            while (!token.IsCancellationRequested)
            {
                // 15. Simulate processing time (e.g., neural network inference)
                await Task.Delay(50, token);
                // In production: Check a ConcurrentQueue for new audio buffers
            }
        }
    }
}

Line-by-Line Explanation

This code implements a basic ASP.NET Core middleware that upgrades an HTTP request to a WebSocket connection for streaming audio data. It is designed for high throughput using modern C# patterns.

1. Middleware Definition

public class AudioWebSocketMiddleware
{
    private readonly RequestDelegate _next;

    public AudioWebSocketMiddleware(RequestDelegate next)
    {
        _next = next;
    }

Context: ASP.NET Core processes requests through a pipeline of middleware components.
RequestDelegate _next: Represents the next middleware in the pipeline. If this middleware doesn't handle the request (e.g., it's not a WebSocket request), it passes control to _next.
Constructor Injection: Standard pattern for middleware registration.

2. Invocation and Protocol Upgrade

public async Task InvokeAsync(HttpContext context)
{
    if (context.WebSockets.IsWebSocketRequest &&
        context.Request.Path.StartsWithSegments("/audio-stream"))
    {
        using var webSocket = await context.WebSockets.AcceptWebSocketAsync();
        await HandleAudioStream(webSocket);
    }
    else
    {
        await _next(context);
    }
}

InvokeAsync: The entry point for every request.
IsWebSocketRequest: Checks the HTTP headers (e.g., Upgrade: websocket, Connection: Upgrade) to validate if the client wants a persistent connection.
Path Matching: We restrict WebSocket upgrades to the specific path /audio-stream to avoid interfering with standard HTTP API calls.
AcceptWebSocketAsync: This performs the handshake. It switches protocols from HTTP to WebSocket and returns a WebSocket object instance. This is an expensive operation, so we only do it when necessary.
using var webSocket: The WebSocket class implements IDisposable. Using a using declaration ensures the underlying TCP socket is closed and resources are released when the scope ends.

3. The Audio Handling Loop

private async Task HandleAudioStream(WebSocket webSocket)
{
    var buffer = ArrayPool<byte>.Shared.Rent(4096);
    try
    {
        // ... logic ...
    }
    finally
    {
        ArrayPool<byte>.Shared.Return(buffer);
    }
}

ArrayPool<byte>.Shared: In high-frequency streaming (like audio), allocating new byte arrays (new byte[]) for every packet triggers the Garbage Collector (GC), causing latency spikes. ArrayPool reuses fixed-size buffers, significantly reducing memory pressure.
Rent(4096): Rents a buffer of at least 4KB. Audio codecs like Opus often operate on 20ms frames, which fit easily within this size.
finally block: Crucial for returning the rented memory. If we forget this, it creates a memory leak in the pool.

4. Bidirectional Communication

var result = await webSocket.ReceiveAsync(
    new ArraySegment<byte>(buffer),
    cts.Token);

ReceiveAsync: This is a blocking call (until data arrives or the connection closes). It fills the buffer with incoming audio bytes.
ArraySegment<byte>: This struct provides a view into the array without copying data. It is the standard way to pass buffers to socket APIs in .NET.
WebSocketReceiveResult: The return object tells us:
- Count: How many bytes were actually received.
- MessageType: Binary (audio) or Text (control messages).
- EndOfMessage: Indicates if this is the final chunk of a frame (WebSockets support message fragmentation).

5. Audio Data Processing

if (result.MessageType == WebSocketMessageType.Close) { ... }

if (result.Count > 0)
{
    var responseMessage = Encoding.UTF8.GetBytes($"ACK: {result.Count} bytes");
    await webSocket.SendAsync(...);
}

Close Handling: WebSockets are full-duplex, but the client can initiate a closure. We must respect this to avoid protocol errors.
Processing Logic: In this "Hello World" example, we simply acknowledge receipt. In a real AI scenario, you would:
1. Copy the buffer to a ConcurrentQueue<byte[]>.
2. Signal a background BackgroundService (Singleton) that new data is ready.
3. The AI model (e.g., Whisper for transcription) consumes the queue asynchronously.
SendAsync: Sends data back to the client. For audio streaming, this might be the AI's response (text-to-speech bytes) or a "keep-alive" signal.

6. Concurrency and Cancellation

using var cts = new CancellationTokenSource();
var processingTask = Task.Run(() => SimulateAIProcessing(cts.Token));

CancellationTokenSource: Essential for managing the lifecycle of background tasks. When the WebSocket closes, we need to stop the AI processing loop immediately to free up CPU resources.
Task.Run: Offloads the simulation of AI work to a thread pool thread, ensuring the WebSocket receive loop isn't blocked by CPU-intensive work.

Common Pitfalls

1. Blocking the Receive Loop

Mistake: Performing synchronous CPU-bound work (like running a neural network inference) directly inside the while loop of HandleAudioStream.
Consequence: The server cannot read incoming audio packets while processing the previous one. This creates a buffer backlog, increases latency, and eventually causes the client to disconnect due to timeouts.
Solution: Always decouple ingestion from processing. Push buffers to a thread-safe queue immediately and let a separate background worker consume them.

2. Memory Allocation Overhead

Mistake: Creating a new byte[4096] inside the while loop for every packet.
Consequence: Audio streams generate thousands of packets per second. This creates massive pressure on the Gen 0 Garbage Collector, causing "Stop-the-world" pauses that ruin low-latency requirements.
Solution: Use ArrayPool<byte>.Shared (as shown) or pre-allocated buffers. For zero-copy scenarios, advanced users might explore System.IO.Pipelines or Span<byte>.

3. Missing Keep-Alives

Mistake: Assuming the connection stays open indefinitely without network supervision.
Consequence: Intermediate proxies or firewalls often drop idle TCP connections after 30-60 seconds. If the user is silent (no audio data sent), the connection might die unexpectedly.
Solution: Implement an application-level heartbeat. If no audio is received for X seconds, send a small Text message (e.g., "ping") to keep the TCP connection active.

Visualizing the Data Flow

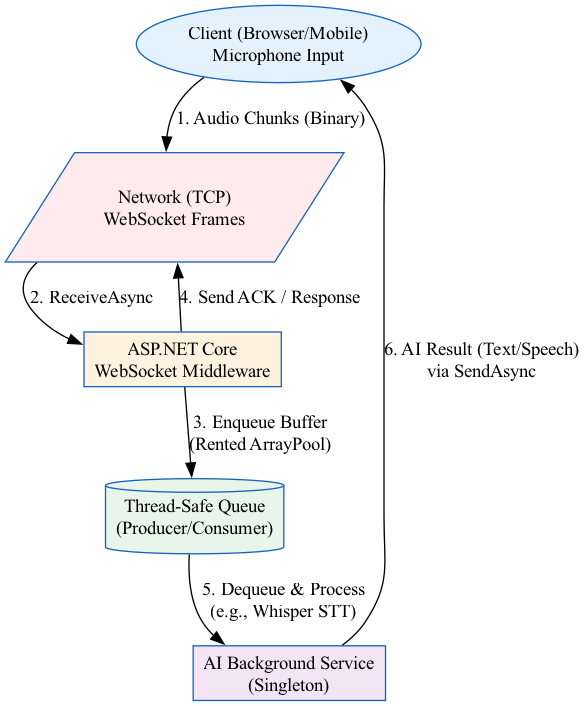

The following diagram illustrates the lifecycle of an audio packet from the client's microphone to the AI model and back.

The diagram traces an audio packet's journey from the client's microphone, through network transmission and a TCP connection, to the AI model for processing, and finally back to the client as a response.

Real-World Context: Voice Assistant Latency

Imagine you are building a voice assistant like "Siri" or "Alexa" for a web application. The user speaks into their microphone, and the browser streams this audio to your ASP.NET Core server.

The Challenge: If you use standard HTTP REST requests (polling), the user has to finish speaking entirely before the server receives the data. This feels sluggish.
The WebSocket Solution: By using WebSockets, the audio flows in real-time. The server receives packets as the user speaks.
Low Latency Requirement: For the AI to feel "instant," the total round-trip time (User speaks -> Server receives -> AI processes -> Server responds) must be under 500ms. The code above minimizes the "Server receives" phase by using non-blocking I/O and efficient memory management.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.

Chapter 8: WebSockets - Low Latency Audio Streaming

Theoretical Foundations

The Conversation Analogy: HTTP vs. WebSockets

The Physics of Latency and the "First Packet"

The Mechanics of the WebSocket Handshake

Data Framing: The Language of WebSockets

The AI Context: Synchronization and Metadata

Architectural Implications: The System.Net.WebSockets Abstraction

The Challenge of Scale: Connections vs. Threads

Buffering and Flow Control

Visualizing the Full-Duplex Stream

Theoretical Foundations

Basic Code Example

Line-by-Line Explanation

Common Pitfalls

Visualizing the Data Flow

Real-World Context: Voice Assistant Latency

Architectural Implications: The `System.Net.WebSockets` Abstraction
