Chapter 9: gRPC for High-Performance Inter-Service AI Calls

Theoretical Foundations

The shift from monolithic AI services to distributed microservices introduces a fundamental challenge: communication overhead. When your ASP.NET Core API gateway receives a request for a complex LLM inference, it cannot process the model itself. It must delegate this work to a specialized model service. The efficiency of this delegation determines the overall system's latency and throughput. While REST over HTTP/JSON has been the default for decades, its text-based, verbose nature becomes a bottleneck in high-throughput AI scenarios. This is where gRPC enters the architecture.

gRPC is a high-performance, open-source universal RPC framework. It leverages HTTP/2 for transport and Protocol Buffers (Protobuf) for interface definition and serialization. In the context of AI, where we often deal with large payloads (e.g., embedding vectors, image tensors) and streaming responses (e.g., LLM token generation), gRPC offers distinct advantages over REST. It is not merely a faster alternative; it is a paradigm shift in how services communicate, specifically tailored for the data-intensive, low-latency demands of modern AI systems.

The Core Problem: The JSON Tax in AI Workloads

To understand why gRPC is essential for AI APIs, we must first dissect the limitations of REST in this specific domain. Consider a typical AI inference request: sending a large block of text for summarization or a high-resolution image for analysis.

REST (HTTP/1.1 + JSON):

Serialization Overhead: JSON is a text-based format. Serializing complex objects (like a tensor or a list of embeddings) into JSON strings, and then parsing them back on the receiving end, is computationally expensive. It involves string manipulation, memory allocation for text buffers, and type conversion.
Payload Size: JSON is verbose. Field names are repeated in every object, and data types are inferred rather than explicit. For a vector of 1536 floating-point numbers (common in text embeddings), JSON might represent each number as a string like 0.123456789, consuming significantly more bytes than a compact binary representation.
HTTP/1.1 Limitations: HTTP/1.1 is a request-response protocol. It does not support multiplexing well (multiple requests over a single TCP connection without waiting for prior responses to complete). This leads to "head-of-line blocking," where a large model response can block subsequent requests from being processed on the same connection.
No Contract Enforcement: JSON is loosely typed. The client and server must implicitly agree on the structure of the data. This often leads to runtime errors when a field is missing or a type is mismatched, which is particularly dangerous in production AI pipelines where data integrity is paramount.

gRPC (HTTP/2 + Protobuf):

Binary Serialization: Protobuf serializes data into a compact binary format. It uses field tags instead of names and stores data in a raw binary stream. The same vector of 1536 floats is serialized into a tightly packed byte array, reducing payload size by 3-10x compared to JSON.
HTTP/2 Multiplexing: HTTP/2 allows multiple streams (requests and responses) to be sent concurrently over a single TCP connection. This eliminates head-of-line blocking and allows a single client connection to handle thousands of concurrent inference requests to a model service.
Strongly-Typed Contracts: The .proto file serves as a single source of truth. It defines the service interface and the message structures with explicit types. This contract is compiled into code for both the client and the server, ensuring type safety at compile time. If a client sends a field of the wrong type, the server rejects it immediately, preventing silent data corruption.
Streaming as a First-Class Citizen: gRPC natively supports four communication patterns: Unary (request-response), Server Streaming, Client Streaming, and Bidirectional Streaming. For AI, this is transformative. LLM responses are inherently streaming; generating a full response token-by-token is more responsive than waiting for the entire completion. gRPC's server streaming allows the model service to push tokens to the API gateway as they are generated, without the overhead of HTTP chunked encoding or establishing multiple connections.

The "What": Protocol Buffers and Service Definitions

At the heart of gRPC is the Protocol Buffer definition. A .proto file is a language-agnostic schema. It defines messages (the data structures) and services (the RPC methods). This is analogous to an interface in C#, but it is defined in a neutral format that can be compiled into code for C#, Java, Python, Go, and many other languages.

Analogy: The Shipping Manifest Imagine you are shipping cargo (data) between warehouses (services).

REST/JSON is like writing a detailed letter describing each item in the cargo, including its name, weight, and dimensions. The receiving warehouse must read the letter, interpret the descriptions, and then unpack the cargo. It is flexible but slow and error-prone if the handwriting is bad.
gRPC/Protobuf is like using a standardized shipping container with a barcode. The manifest (.proto) defines exactly what fits in the container and how it is organized. The container (binary message) is sealed, scanned (serialized/deserialized automatically), and moved efficiently by machinery (HTTP/2). You don't read the manifest; you scan the barcode.

In C#, we use the Google.Protobuf library and the Grpc.Tools NuGet package to compile .proto files into C# classes. The compiler generates a base class for the service and message classes with properties, serialization methods, and equality checks.

For example, a simple message for an AI inference request might look like this:

syntax = "proto3";

option csharp_namespace = "AI.Services.Inference";

package inference;

message InferenceRequest {
  string prompt = 1;
  float temperature = 2;
  int32 max_tokens = 3;
  repeated float embedding_context = 4; // A vector of floats
}

message InferenceResponse {
  string generated_text = 1;
  float finish_reason = 2;
}

service InferenceService {
  rpc Generate (InferenceRequest) returns (InferenceResponse);
}

When compiled, this generates a C# class InferenceRequest with properties Prompt, Temperature, etc. The serialization logic is hidden inside the generated code, optimized for performance. This is critical for AI applications because it allows developers to focus on the business logic (the model invocation) rather than the plumbing of data serialization.

The "Why": Performance and Efficiency in AI Contexts

The performance gains of gRPC are not just theoretical; they have measurable impacts on AI application scalability.

1. Reduced Latency for High-Frequency Calls: In a system where an API gateway calls a vector database service to retrieve embeddings for a RAG (Retrieval-Augmented Generation) pipeline, the round-trip time is critical. If the gateway makes 100 such calls per second, the cumulative overhead of JSON parsing and HTTP/1.1 connection management becomes significant. gRPC's binary format and HTTP/2 multiplexing reduce this overhead, allowing the gateway to handle more concurrent requests with lower latency.

2. Efficient Handling of Large Payloads: AI models often process large inputs. For instance, a vision model might take an image tensor as input. Transmitting this tensor as a base64-encoded string in JSON is inefficient. In Protobuf, the tensor can be represented as a bytes field, allowing the raw binary data to be transmitted without conversion overhead. This is crucial for real-time video analysis or large-scale batch processing.

3. Native Streaming for LLMs: When using a Large Language Model, the response is not generated instantly. It comes token by token. In a REST API, this is typically handled using Server-Sent Events (SSE) or chunked transfer encoding. These mechanisms work, but they add overhead and complexity. gRPC's server streaming is built into the protocol. The client calls a method, and the server returns a stream of messages. The client can iterate over this stream asynchronously, processing each token as it arrives.

This pattern is essential for building responsive chat interfaces. If you were building a chat application using the concepts from Book 4: Integrating LLMs and Vector Databases, you would likely have an endpoint that streams responses from an LLM. Using gRPC, the communication between your API gateway and the LLM service becomes a seamless stream of InferenceResponse messages, rather than a series of HTTP requests.

4. Inter-Service Authentication and Security: In a distributed AI system, services often need to authenticate each other. gRPC integrates natively with SSL/TLS for encryption in transit. Furthermore, it supports OAuth2 and JWT tokens via metadata headers. This is vital when your API gateway (exposed to the internet) communicates with internal model services that should not be publicly accessible. You can enforce mutual TLS (mTLS), where both the client and server present certificates, ensuring that only authorized services can call your model endpoints.

Architectural Patterns: gRPC in the AI Pipeline

Let's visualize how gRPC fits into a typical distributed AI architecture. We have an API Gateway, a Model Service (hosting the LLM), and a Vector Database Service (hosting embeddings).

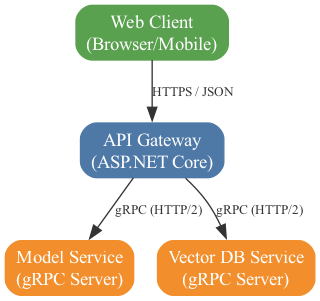

This diagram illustrates the gRPC communication flow between the API Gateway, the Model Service hosting the LLM, and the Vector Database Service storing embeddings in a distributed AI pipeline.

In this diagram, the external client uses REST/JSON because browsers and mobile apps natively support it. However, the internal communication between the API Gateway and the specialized AI services uses gRPC. This hybrid approach is common: use REST for the north-south traffic (client to server) and gRPC for the east-west traffic (server to server).

Why this hybrid approach?

Client Compatibility: Browsers do not support gRPC-Web natively without a proxy. Using REST for the frontend simplifies the client-side code.
Backend Efficiency: The internal services are under your control. You can optimize them for performance using gRPC. The API Gateway acts as a translator, converting REST calls to gRPC calls.

Deep Dive: Streaming Patterns for AI

The most powerful feature of gRPC for AI is streaming. Let's explore the three streaming patterns relevant to AI applications.

1. Server Streaming RPC:

Scenario: The client sends a request (e.g., a prompt), and the server responds with a stream of messages (e.g., tokens of the generated text).
Why it matters: It allows the client to display text as it is generated, creating a "typing" effect. This is the standard for LLM interfaces.
C# Implementation Concept: The server method returns an IAsyncEnumerable<T> (in modern C# 8.0+). The framework handles the HTTP/2 stream management automatically.

2. Client Streaming RPC:

Scenario: The client sends a stream of messages (e.g., chunks of a large video file), and the server responds with a single message (e.g., the classification result after processing the entire video).
Why it matters: Useful for uploading large datasets or continuous data feeds (e.g., sensor data) without buffering the entire payload on the client side before sending.
C# Implementation Concept: The server method accepts an IAsyncEnumerable<T> as a parameter.

3. Bidirectional Streaming RPC:

Scenario: Both client and server send streams of messages. This is the most complex but most powerful pattern.
Why it matters: Essential for real-time conversational AI (chatbots). The client sends a stream of user inputs (or voice chunks), and the server responds with a stream of model responses. It mimics a full-duplex conversation.
C# Implementation Concept: The method signature takes an IAsyncEnumerable<T> for the request stream and returns an IAsyncEnumerable<T> for the response stream.

Comparison with Previous Concepts: From Book 4 to Book 5

In Book 4, we focused on integrating LLMs and Vector Databases. A common pattern was using HttpClient to call an external API (like OpenAI) or a local model server. We often dealt with HttpClient factory patterns, resilience policies (retry logic), and JSON serialization using System.Text.Json.

When moving to Book 5, specifically Chapter 9, we are moving from consuming APIs to building the internal communication layer. The HttpClient abstraction is replaced by the gRPC client generated from the .proto file. Instead of manually constructing JSON payloads and deserializing responses, we work with strongly-typed C# objects generated by Protobuf.

For example, in Book 4, you might have written code like this to call an embedding service:

// Book 4 approach (REST/JSON)
public async Task<float[]> GetEmbeddingsAsync(string text)
{
    var request = new { input = text };
    var response = await _httpClient.PostAsJsonAsync("embeddings", request);
    response.EnsureSuccessStatusCode();
    var result = await response.Content.ReadFromJsonAsync<EmbeddingResponse>();
    return result.Data[0].Embedding;
}

In Book 5, using gRPC, the code becomes:

// Book 5 approach (gRPC)
public async Task<float[]> GetEmbeddingsAsync(string text)
{
    var request = new EmbeddingRequest { Text = text };
    // The call is strongly typed and uses HTTP/2 under the hood
    var response = await _embeddingClient.GetEmbeddingsAsync(request);
    return response.Vectors.ToArray(); // Vectors is a RepeatedField<float>
}

The difference is not just syntax; it is architectural. The gRPC approach ensures that the contract between services is enforced, performance is optimized via binary serialization, and network usage is minimized.

The "What If": Edge Cases and Considerations

While gRPC is superior for internal AI service communication, it is not a silver bullet.

1. Browser Support: As mentioned, browsers do not support gRPC natively. To use gRPC from a browser, you need a proxy (like Envoy) that translates gRPC-Web to standard gRPC. This adds complexity. For public-facing APIs, REST or GraphQL is often still the preferred choice for the client-facing layer, with gRPC used internally.

2. Debugging and Tooling: Debugging binary protocols is harder than debugging JSON. You cannot simply curl a gRPC endpoint. You need specialized tools like grpcurl or Postman (which has limited gRPC support). In development, you often rely on logging interceptors to see the raw data flowing through the streams.

3. Payload Size Limits: HTTP/2 has default limits on frame sizes (16KB) and overall message sizes. While gRPC can handle large messages (up to 2GB by default), it is generally better to use streaming for large payloads. For example, sending a 100MB image tensor in a single unary call might cause memory pressure on the receiving service. Streaming the tensor in chunks (Client Streaming) is more resilient.

4. Versioning: Protobuf handles backward and forward compatibility well due to its field tagging system. Adding new fields does not break existing clients. However, removing or changing field types is a breaking change. In a distributed AI system where model services might be updated independently of the API gateway, careful versioning of .proto files is necessary. A common strategy is to include a version number in the package name (e.g., package inference.v1;).

Conclusion: The Strategic Value of gRPC in AI

gRPC is not just a performance optimization; it is an architectural enabler for scalable AI systems. By reducing serialization overhead, enabling efficient multiplexing, and providing native streaming primitives, it allows you to build complex AI pipelines that are responsive and resilient.

In the context of building AI Web APIs with ASP.NET Core, gRPC serves as the glue between your public-facing REST endpoints and your internal, specialized model services. It allows you to leverage the strengths of both worlds: the ubiquity of HTTP/JSON for clients and the raw performance of binary protocols for internal computation.

As we move forward in this chapter, we will transition from these theoretical foundations to the practical implementation of .proto files, the generation of C# client and server code, and the deployment of gRPC services within a Kubernetes environment. The concepts discussed here—performance, streaming, and strong typing—are the pillars upon which we will build our high-performance AI architecture.

Basic Code Example

In a modern AI application, you might have a centralized API Gateway (built with ASP.NET Core) that needs to offload heavy inference requests to specialized, distributed model services. While REST/HTTP is common, gRPC offers superior performance for these internal, high-frequency calls due to its binary serialization and HTTP/2 multiplexing. This example simulates a "Model Registry" service where a client requests a prediction from a specific AI model.

We will create a self-contained solution comprising:

The Contract (.proto): Defines the service interface.
The Server: An ASP.NET Core application hosting the gRPC service.
The Client: A console application making the call.

1. The Service Contract (`ai_model.proto`)

This Protocol Buffer file defines the data structures and the service interface.

syntax = "proto3";

option csharp_namespace = "AiGrpcDemo";

package ai_model;

// The request message containing the model name and input data.
message PredictionRequest {
  string model_name = 1;
  string input_text = 2;
}

// The response message containing the inference result.
message PredictionResponse {
  string result = 1;
  double confidence_score = 2;
}

// The model service definition.
service ModelService {
  // Unary RPC: Returns a single prediction.
  rpc Predict (PredictionRequest) returns (PredictionResponse);
}

2. The Server Implementation (`Program.cs`)

This ASP.NET Core application hosts the gRPC service.

using AiGrpcDemo;
using Grpc.Core;
using Microsoft.AspNetCore.Builder;
using Microsoft.AspNetCore.Hosting;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Hosting;

// 1. Define the implementation of the gRPC service
public class ModelServiceImpl : ModelService.ModelServiceBase
{
    // Override the generated method from the base class
    public override Task<PredictionResponse> Predict(PredictionRequest request, ServerCallContext context)
    {
        // Simulate AI inference logic
        string result = $"Processed input '{request.InputText}' using model '{request.ModelName}'";

        // Return the response object wrapped in a Task
        return Task.FromResult(new PredictionResponse
        {
            Result = result,
            ConfidenceScore = 0.98 // Mock confidence
        });
    }
}

// 2. Configure the ASP.NET Core host
var builder = WebApplication.CreateBuilder(args);

// Add services to the container
builder.Services.AddGrpc(); // Enable gRPC

var app = builder.Build();

// 3. Map the gRPC endpoint
app.MapGrpcService<ModelServiceImpl>();

// 4. Configure the HTTP pipeline
app.MapGet("/", () => "Communication with gRPC endpoints must be made through a gRPC client.");

app.Run();

3. The Client Implementation (`ClientProgram.cs`)

This console application acts as the API Gateway or calling service.

using System;
using System.Threading.Tasks;
using Grpc.Net.Client;
using AiGrpcDemo;

class ClientProgram
{
    static async Task Main(string[] args)
    {
        // 1. Create the channel (connection) to the server
        // Note: For .NET Core 3.1/5+, use 'http://localhost:5000'.
        // For .NET 6+, gRPC requires HTTPS by default.
        // We use 'http://localhost:5000' for simplicity in this local dev example.
        var channel = GrpcChannel.ForAddress("http://localhost:5000");

        // 2. Create the client
        var client = new ModelService.ModelServiceClient(channel);

        // 3. Prepare the request
        var request = new PredictionRequest
        {
            ModelName = "SentimentAnalysis-v2",
            InputText = "The performance of this API is incredible."
        };

        try
        {
            // 4. Call the remote method
            var response = await client.PredictAsync(request);

            // 5. Process the response
            Console.WriteLine($"Result: {response.Result}");
            Console.WriteLine($"Confidence: {response.ConfidenceScore}");
        }
        catch (Exception ex)
        {
            Console.WriteLine($"Error calling gRPC service: {ex.Message}");
        }

        // Keep console open
        Console.ReadKey();
    }
}

Detailed Line-by-Line Explanation

Server (`Program.cs`) Breakdown

public class ModelServiceImpl : ModelService.ModelServiceBase:
- What: This class inherits from the base class generated by the Protobuf compiler.
- Why: In gRPC, you don't implement the raw HTTP/2 transport; you implement the service contract. The base class provides the abstract method signatures we must fulfill.
- Context: This is the core logic handler. In a real AI scenario, this class would inject an ITensorFlowService or IPyTorchWrapper to execute the actual matrix multiplications.
public override Task<PredictionResponse> Predict(...):
- What: The method signature matches the rpc Predict definition in the .proto file.
- Why: gRPC in ASP.NET Core uses a completion-based pattern. Returning a Task allows the server to handle the request asynchronously, freeing up threads to handle other incoming requests while the AI model is computing.
- Nuance: The ServerCallContext parameter provides access to headers, cancellation tokens, and auth info, which is crucial for secure inter-service communication.
var builder = WebApplication.CreateBuilder(args);:
- What: Initializes a new instance of the WebApplication builder.
- Why: This is the modern .NET 6+ hosting model (Minimal APIs). It sets up the DI container, logging, and configuration by default.
builder.Services.AddGrpc();:
- What: Registers the gRPC services with the dependency injection container.
- Why: This tells ASP.NET Core to look for classes inheriting from ServiceBase and prepare them for request handling. It configures the underlying Kestrel web server to handle the HTTP/2 protocol required by gRPC.
app.MapGrpcService<ModelServiceImpl>();:
- What: Maps the ModelServiceImpl to the routing endpoint.
- Why: This connects the implementation logic to the network route. By default, the service will be available at http://localhost:5000/ai_model.ModelService/Predict.
- Architectural Implication: This is where you would typically add authorization policies in a production environment (e.g., .RequireAuthorization()).

Client (`ClientProgram.cs`) Breakdown

var channel = GrpcChannel.ForAddress("http://localhost:5000");:
- What: Creates a Channel object, which represents a connection to the server.
- Why: In gRPC, a channel is a long-lived object. It manages underlying HTTP/2 connections (including connection pooling and keep-alives). Reusing a channel is significantly more efficient than creating a new client for every request.
- Critical Note: In production, you must use HTTPS (https://localhost:5001). The example uses HTTP for local simplicity, but gRPC for .NET 6+ enforces TLS by default unless explicitly configured otherwise.
var client = new ModelService.ModelServiceClient(channel);:
- What: Instantiates the client wrapper generated from the .proto file.
- Why: This client abstracts away the serialization of the Protobuf message into binary bytes and the transmission over HTTP/2.
var request = new PredictionRequest { ... };:
- What: Creates a Protobuf message object.
- Why: Unlike JSON, Protobuf messages are strongly typed and binary-encoded. This results in a much smaller payload size (often 3-10x smaller than JSON) and faster serialization/deserialization (often 20-100x faster), which is critical when sending large tensors or high-volume metadata.
var response = await client.PredictAsync(request);:
- What: Executes the remote procedure call.
- Why: The Async suffix is standard for gRPC clients. It yields control back to the caller while waiting for the network response, preventing thread blocking.

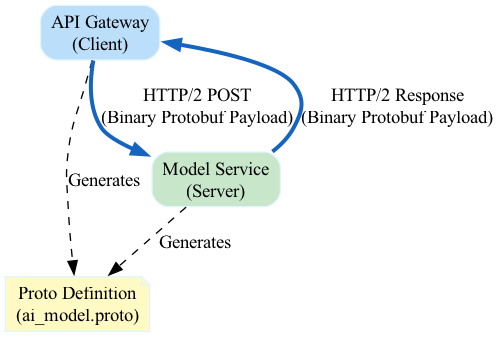

- Under the Hood: The client serializes the request into binary, sends it via HTTP/2 POST, waits for the server response, and deserializes the binary back into the C# PredictionResponse object.

Common Pitfalls

HTTP/2 and TLS Configuration:
- The Mistake: Attempting to run gRPC on HTTP/1.1 or without TLS in production environments.
- The Reality: gRPC strictly requires HTTP/2. Browsers (Chrome, Firefox) only support gRPC over HTTP/2 with TLS (except for localhost). If you get protocol errors, check your Kestrel configuration to ensure HTTP/2 is enabled on the port.
- Fix:
```
builder.WebHost.ConfigureKestrel(options =>
{
    options.ListenLocalhost(5000, o => o.Protocols =
        Microsoft.AspNetCore.Server.Kestrel.Core.HttpProtocols.Http2);
});
```
Channel Lifecycle Management:
- The Mistake: Creating a new GrpcChannel or client instance for every request.
- The Reality: gRPC channels are designed to be long-lived. Creating a new channel for every request exhausts network resources (sockets) and adds significant overhead (TLS handshakes, TCP connections).
- Fix: Use Dependency Injection to register the Channel or Client as a Singleton in your application.
Synchronous Blocking:
- The Mistake: Implementing the gRPC service method as public override PredictionResponse Predict(...) (synchronous) instead of returning a Task.
- The Reality: AI inference is I/O-bound (waiting for the GPU/CPU) or CPU-bound. Blocking the thread reduces server throughput drastically. Always use async/await or return Task.FromResult if the operation is already completed.

Visualization of the gRPC Flow

When an async gRPC call is made, the await keyword yields control until the awaited task completes, at which point execution resumes on the original context. — When an async gRPC call is made, the `await` keyword yields control until the awaited task completes, at which point execution resumes on the original context.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
