Chapter 16: Authentication (JWT) & API Key Management

Theoretical Foundations

Security in AI web APIs is not an optional layer; it is the very foundation upon which trust, scalability, and cost management are built. When we expose powerful models—whether they are generating text, images, or code—we are essentially opening a gateway to computational resources that are expensive to run and potentially dangerous if misused. In this theoretical exploration, we dissect the two primary pillars of access control: JSON Web Tokens (JWT) for user-centric authentication and API Keys for programmatic access. Understanding the interplay between these mechanisms is critical for building robust AI services in ASP.NET Core.

To visualize the architectural flow of these security mechanisms within an AI API context, consider the following diagram:

Hold "Ctrl" to enable pan & zoom

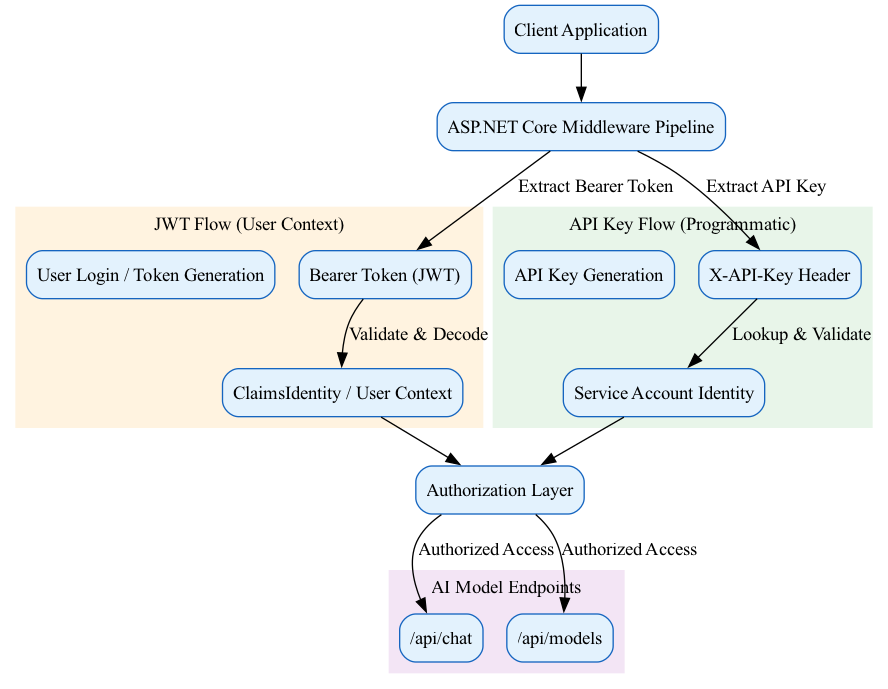

This diagram illustrates the architectural flow of security mechanisms—such as authentication, authorization, and data protection—integrated within an ASP.NET Core AI service to ensure robust and secure API operations.

The Dual Nature of AI API Consumers

In the context of AI applications, we typically deal with two distinct types of consumers, each requiring a different security paradigm. This distinction is crucial and mirrors the separation of concerns we established in Book 4: Data Persistence, where we separated read models from write commands to optimize performance.

1. Interactive Users (Human-in-the-loop): These are users interacting with an AI chat interface via a web browser or mobile app. Their sessions are transient, their permissions vary (e.g., a free user vs. a premium subscriber), and their identity is tied to a human persona.
2. Automated Clients (Machine-to-Machine): These are backend services, cron jobs, or IoT devices calling AI endpoints programmatically. They do not have a "login" screen; they possess a long-lived credential. Their identity is tied to a service account or an integration.

Analogy: The Secure Office Building

Imagine a modern office building that houses a powerful supercomputer (your AI Model).

• The API Key is like a physical keycard given to maintenance staff or delivery services. It grants access to specific floors or service entrances. The keycard doesn't necessarily know who the person is, only that they are authorized to enter a specific area at any time. It is static, durable, and meant for non-human entities.
• The JWT is like a temporary visitor pass issued at the front desk. You present your ID (credentials), and if validated, you receive a badge with your name, photo, and specific permissions (e.g., "Access to Conference Room A until 2:00 PM"). This badge is cryptographically signed so that no one can forge it, and it expires automatically.

JSON Web Tokens (JWT): The Stateful Identity in a Stateless World

JWTs are the industry standard for representing claims securely between two parties. In ASP.NET Core, they are the backbone of stateless authentication. Stateless authentication is vital for AI APIs because they are often deployed in scalable environments (like Kubernetes) where storing session state on the server is a scalability bottleneck.

Structure of a JWT

A JWT consists of three parts separated by dots (.): Header, Payload, and Signature.

1. Header: Contains the token type (JWT) and the signing algorithm (e.g., RS256 or HS256).
2. Payload: Contains the claims. These are statements about the user (e.g., sub (subject/user ID), role, exp (expiration time)).
3. Signature: Ensures the token hasn't been tampered with. It is created by encoding the header and payload with a secret key known only to the server.

Why JWTs are Essential for AI Chat Endpoints

In a chat application, context is king. When a user sends a message to an AI endpoint, the server must know:

• Who sent the message (to retrieve conversation history).
• What tier they are on (to enforce rate limits or access to GPT-4 vs. GPT-3.5).
• Consent status (for data privacy compliance like GDPR).

Using a JWT allows us to embed these details directly into the token. When the request hits the middleware, we decode the token and populate the HttpContext.User object. This eliminates the need for a database lookup on every single chat message, which is critical when handling high-throughput AI inference requests.

API Keys: The Programmatic Workhorse

While JWTs handle human interaction, API Keys handle integration. In the AI ecosystem, developers often want to integrate models into their own applications.

Characteristics of API Keys

• Long-lived: Unlike JWTs which expire quickly (e.g., 15 minutes), API keys might last for years unless revoked.
• Opaque: The server usually stores a hash of the key, not the key itself.
• Scoped: A key might be restricted to specific models or IP addresses.

Why API Keys are Essential for Model Serving

Consider the scenario from Book 3: AI Model Integration, where we discussed loading local models (like Llama 2) alongside cloud models (like OpenAI). If you are building a wrapper service that aggregates these models, your internal orchestrator needs to call these endpoints securely.

If we used JWTs for this, we would need a service account to constantly refresh its token, introducing latency and a point of failure. An API key, passed in the X-API-Key header, provides a lightweight, direct authentication method. It acts as a shared secret between the client and the server.

The Role of Middleware in ASP.NET Core

In ASP.NET Core, authentication is not a monolithic block; it is a pipeline of middleware components. This pipeline is executed in the order it is added to the ConfigureServices and Configure methods.

The Authentication Middleware

The app.UseAuthentication() middleware inspects the incoming HTTP request. It looks for credentials in specific locations:

1. Bearer Token: Looks for the Authorization header with the scheme Bearer.
2. API Key: Looks for a custom header (e.g., X-API-Key) or a query parameter.

Once a credential is found, the middleware invokes the specific authentication scheme (e.g., JwtBearerDefaults.AuthenticationScheme or a custom ApiKeyAuthenticationHandler). If valid, it creates a ClaimsPrincipal and assigns it to HttpContext.User.

The Authorization Middleware

The app.UseAuthorization() middleware runs after authentication. It checks if the authenticated user (or service) has the required policy or role to access the resource. For AI APIs, we often define policies such as:

• RequireScope("ai.chat.generate"): Ensures the token has the specific scope for generation.
• RequireClaim("plan", "premium"): Ensures the user is on a paid plan capable of using expensive models.

Architectural Implications for AI Systems

When designing an AI API, the choice between JWT and API Key dictates the architecture.

1. Rate Limiting and Throttling

Rate limiting is the primary defense against Denial of Service (DoS) attacks and cost overruns.

• With JWTs: We rate limit based on the sub (subject) claim. Since the identity is verified, we can track usage per user in a distributed cache (like Redis).
• With API Keys: We rate limit based on the key itself. This is often simpler but requires careful management to prevent a single key from exhausting global resources.

2. Audit Logging

AI regulations are becoming stricter. We must log who generated what content.

• JWTs: Provide a clear audit trail linked to a human identity.
• API Keys: Provide an audit trail linked to an application or service. If a key is leaked, it can be difficult to trace back to the specific developer without proper metadata management.

3. Token Refresh and Rotation

Security best practices dictate that secrets should not be static.

• JWTs: Use Refresh Tokens to obtain new Access Tokens without requiring the user to log in again. This maintains a seamless user experience in chat applications.
• API Keys: Should support rotation. The system should allow multiple active keys for a short period during rotation to prevent breaking production integrations.

The Concept of "Claims" in Modern C

In modern C# development, specifically with System.Security.Claims, identity is represented as a collection of claims. This is a paradigm shift from older role-based systems. A claim is simply a statement of fact.

For an AI API, the claims might look like this:

// Conceptual representation of Claims
var claims = new[]
{
    new Claim(ClaimTypes.NameIdentifier, "user_12345"),
    new Claim(ClaimTypes.Role, "Subscriber"),
    new Claim("plan_tier", "Pro"),
    new Claim("rate_limit_per_minute", "100"),
    new Claim("allowed_models", "gpt-4-turbo"),
    new Claim("scope", "ai.inference.generate"),
    new Claim("scope", "ai.inference.embedding")
};

This flexibility allows us to decouple the authentication logic from the authorization logic. The middleware authenticates the token (verifies the signature), and the authorization policies evaluate the claims (verifies the permissions).

Edge Cases and Security Considerations

1. Token Theft: If a JWT is intercepted (via XSS or network sniffing), it can be used until it expires. This is why HTTPS (TLS) is non-negotiable.
2. Key Leakage: If an API key is leaked in a GitHub repository, it provides immediate access to the AI endpoints. This is why we often use Environment Variables or Azure Key Vault (referenced in Book 2: Configuration Management) to inject keys at runtime, never hardcoding them.
3. Revocation: JWTs are hard to revoke before expiration because they are stateless. To mitigate this, we maintain a "blocklist" of revoked tokens (often stored in a fast cache like Redis) that the middleware checks before processing a request.

Theoretical Foundations

The theoretical foundation of securing AI APIs rests on the principle of Least Privilege and Contextual Identity.

• JWTs provide a dynamic, short-lived, and richly contextual identity for interactive users, essential for managing complex chat sessions and user-specific billing.
• API Keys provide a static, long-lived, and simple identity for automated systems, essential for integration and backend orchestration.

In ASP.NET Core, these mechanisms are unified through the Authentication and Authorization middleware pipeline. By understanding the distinct use cases and security profiles of these two methods, we can build AI systems that are not only powerful but also resilient against misuse and scalable for future growth.

Basic Code Example

Here is a simple, self-contained example of a Basic API Key Authentication scheme in ASP.NET Core.

The Scenario

Imagine you are building an AI Image Generation API. You have two types of clients:

1. Internal Web App: Uses JWT (covered in the next subsection).
2. External Scripts/Integrations: Partners who integrate your AI model into their workflow via scripts.

For the external partners, managing user logins and JWTs is cumbersome. Instead, we issue them a static API Key (a long random string) that they pass in the X-API-Key header.

The Code Example

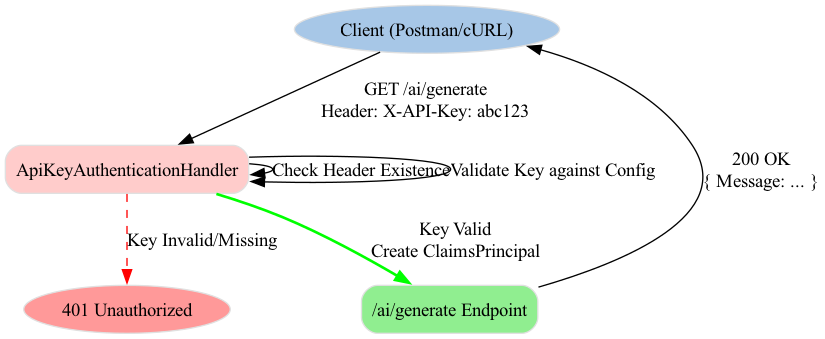

This example creates a minimal API with a single endpoint /ai/generate. It uses a custom ApiKeyAuthenticationHandler to validate the key.

using Microsoft.AspNetCore.Authentication;
using Microsoft.Extensions.Options;
using System.Security.Claims;
using System.Text.Encodings.Web;
using Microsoft.Extensions.Options;

// 1. Configuration Options
// This class holds the configuration settings we will define in appsettings.json.
public class ApiKeyAuthenticationOptions : AuthenticationSchemeOptions
{
    public const string DefaultScheme = "ApiKey";
    public string? AuthenticationScheme { get; set; } = DefaultScheme;
    public string? ApiKeyHeaderName { get; set; } = "X-API-Key";
}

// 2. The Authentication Handler
// This is the core logic that validates the incoming request.
public class ApiKeyAuthenticationHandler : AuthenticationHandler<ApiKeyAuthenticationOptions>
{
    // We inject a configuration instance to retrieve the valid API keys.
    private readonly IConfiguration _configuration;

    public ApiKeyAuthenticationHandler(
        IOptionsMonitor<ApiKeyAuthenticationOptions> options,
        ILoggerFactory logger,
        UrlEncoder encoder,
        ISystemClock clock,
        IConfiguration configuration)
        : base(options, logger, encoder, clock)
    {
        _configuration = configuration;
    }

    protected override async Task<AuthenticateResult> HandleAuthenticateAsync()
    {
        // Step 1: Check if the header exists
        if (!Request.Headers.TryGetValue(Options.ApiKeyHeaderName, out var apiKeyHeaderValues))
        {
            // No header found, skip authentication (allow other schemes to handle it)
            return AuthenticateResult.NoResult();
        }

        // Step 2: Ensure the header has a value
        var providedApiKey = apiKeyHeaderValues.FirstOrDefault();
        if (string.IsNullOrEmpty(providedApiKey))
        {
            return AuthenticateResult.NoResult();
        }

        // Step 3: Retrieve valid keys from configuration
        // In a real app, these would be stored in a database or Azure Key Vault.
        var validApiKeys = _configuration.GetSection("ApiKeys").Get<List<string>>();

        // Step 4: Validate the key
        if (validApiKeys != null && validApiKeys.Contains(providedApiKey))
        {
            // Key is valid! Create a "Claim" identity.
            // We treat the API Key as an identity. In complex scenarios,
            // you might look up the owner of the key (e.g., "PartnerA") here.
            var claims = new[] {
                new Claim(ClaimTypes.Name, "ApiKeyUser"),
                new Claim("ApiKey", providedApiKey)
            };

            var identity = new ClaimsIdentity(claims, Options.AuthenticationScheme);
            var principal = new ClaimsPrincipal(identity);
            var ticket = new AuthenticationTicket(principal, Options.Scheme);

            return AuthenticateResult.Success(ticket);
        }

        // Step 5: Key is invalid
        return AuthenticateResult.Fail("Invalid API Key provided.");
    }
}

// 3. Extension Method for easy registration
public static class ApiKeyAuthenticationExtensions
{
    public static IServiceCollection AddApiKeyAuthentication(this IServiceCollection services)
    {
        services.AddAuthentication(options =>
        {
            options.DefaultAuthenticateScheme = ApiKeyAuthenticationOptions.DefaultScheme;
            options.DefaultChallengeScheme = ApiKeyAuthenticationOptions.DefaultScheme;
        })
        .AddScheme<ApiKeyAuthenticationOptions, ApiKeyAuthenticationHandler>(
            ApiKeyAuthenticationOptions.DefaultScheme,
            options => { });

        return services;
    }
}

// 4. Program.cs (The Application Entry Point)
var builder = WebApplication.CreateBuilder(args);

// Add services to the container.
// Register our custom Authentication Handler
builder.Services.AddApiKeyAuthentication();

// Configure Swagger to allow testing the API Key
builder.Services.AddEndpointsApiExplorer();
builder.Services.AddSwaggerGen(c =>
{
    c.AddSecurityDefinition("ApiKey", new Microsoft.OpenApi.Models.OpenApiSecurityScheme
    {
        Description = "API Key must appear in header: X-API-Key",
        Type = Microsoft.OpenApi.Models.SecuritySchemeType.ApiKey,
        Name = "X-API-Key",
        In = Microsoft.OpenApi.Models.ParameterLocation.Header
    });
    c.AddSecurityRequirement(new Microsoft.OpenApi.Models.OpenApiSecurityRequirement
    {
        {
            new Microsoft.OpenApi.Models.OpenApiSecurityScheme
            {
                Reference = new Microsoft.OpenApi.Models.OpenApiReference
                {
                    Type = Microsoft.OpenApi.Models.ReferenceType.SecurityScheme,
                    Id = "ApiKey"
                }
            },
            new string[] {}
        }
    });
});

var app = builder.Build();

// Configure the HTTP request pipeline.
if (app.Environment.IsDevelopment())
{
    app.UseSwagger();
    app.UseSwaggerUI();
}

// Enable Authentication middleware
app.UseAuthentication();
app.UseAuthorization();

// 5. The Protected Endpoint
// This endpoint requires a valid API Key to access.
app.MapGet("/ai/generate", (HttpContext context) =>
{
    // Retrieve the authenticated user info from the context
    var user = context.User;
    var apiKey = user.FindFirst("ApiKey")?.Value;

    return Results.Ok(new
    {
        Message = "AI Model Generated Image Successfully!",
        AccessedBy = apiKey,
        Timestamp = DateTime.UtcNow
    };
})
.WithName("GenerateImage")
.WithOpenApi(); // Adds this endpoint to Swagger

// Run the app
app.Run();

Detailed Line-by-Line Explanation

1. Configuration Options (ApiKeyAuthenticationOptions)

public class ApiKeyAuthenticationOptions : AuthenticationSchemeOptions
{
    public const string DefaultScheme = "ApiKey";
    public string? AuthenticationScheme { get; set; } = DefaultScheme;
    public string? ApiKeyHeaderName { get; set; } = "X-API-Key";
}

• Line 1: Inherits from AuthenticationSchemeOptions. This is the standard ASP.NET Core base class for configuring authentication schemes.
• Line 3: Defines a constant for the scheme name. This prevents magic strings and ensures consistency when registering the handler.
• Line 4-5: Defines a property for the header name. We default to X-API-Key, which is a common convention, but this allows developers to change it (e.g., to Authorization) if needed via appsettings.json.

2. The Authentication Handler (ApiKeyAuthenticationHandler)

This is where the security logic lives. It intercepts requests before they reach the endpoint logic.

public class ApiKeyAuthenticationHandler : AuthenticationSchemeOptions
{
    private readonly IConfiguration _configuration;

    public ApiKeyAuthenticationHandler(
        IOptionsMonitor<ApiKeyAuthenticationOptions> options,
        ILoggerFactory logger,
        UrlEncoder encoder,
        ISystemClock clock,
        IConfiguration configuration)
        : base(options, logger, encoder, clock)
    {
        _configuration = configuration;
    }

• Constructor Injection: We inject IConfiguration to access the appsettings.json file where valid keys are stored. We also inject the standard ASP.NET Core dependencies (IOptionsMonitor, ILoggerFactory, etc.) and pass them to the base constructor.

protected override async Task<AuthenticateResult> HandleAuthenticateAsync()
{
    // Check if the header exists
    if (!Request.Headers.TryGetValue(Options.ApiKeyHeaderName, out var apiKeyHeaderValues))
    {
        return AuthenticateResult.NoResult();
    }

• HandleAuthenticateAsync: This is the abstract method we must implement.
• Request.Headers.TryGetValue: We check the incoming HTTP headers for the key defined in our options (e.g., X-API-Key).
• NoResult(): If the header is missing, we return NoResult(). This is crucial. It tells the ASP.NET Core middleware pipeline: "I didn't authenticate this request, but I also didn't fail it." This allows the request to proceed to other authentication schemes (like JWT) or to public endpoints if no authentication is required globally.

    var providedApiKey = apiKeyHeaderValues.FirstOrDefault();
    if (string.IsNullOrEmpty(providedApiKey))
    {
        return AuthenticateResult.NoResult();
    }

• Validation Check: We extract the actual string value of the key. If it's empty or null, we treat it as if the header wasn't present.

    var validApiKeys = _configuration.GetSection("ApiKeys").Get<List<string>>();

    if (validApiKeys != null && validApiKeys.Contains(providedApiKey))
    {
        var claims = new[] {
            new Claim(ClaimTypes.Name, "ApiKeyUser"),
            new Claim("ApiKey", providedApiKey)
        };

        var identity = new ClaimsIdentity(claims, Options.AuthenticationScheme);
        var principal = new ClaimsPrincipal(identity);
        var ticket = new AuthenticationTicket(principal, Options.Scheme);

        return AuthenticateResult.Success(ticket);
    }

• Retrieving Keys: We fetch the list of valid keys from the configuration. In a production environment, you would replace this with a database lookup or a call to a secure vault.
• Comparison: We check if the provided key exists in our list of valid keys. Note: In a real-world high-security scenario, use a constant-time comparison algorithm (like CryptographicOperations.FixedTimeEquals) to prevent timing attacks. For this "Hello World" example, a simple list check suffices.
• Creating Claims: If the key is valid, we create a ClaimsIdentity. Claims are pieces of information about the user (or in this case, the API client). We store the key itself as a claim so we can log which key accessed the endpoint.
• AuthenticationTicket: We wrap the identity into a Ticket and return Success. This tells the middleware that the request is authenticated.

    return AuthenticateResult.Fail("Invalid API Key provided.");
}

• Failure: If the key was provided but didn't match any valid keys, we explicitly fail the authentication. This triggers the Challenge logic (usually returning a 401 Unauthorized).

3. Registration Extension (ApiKeyAuthenticationExtensions)

public static class ApiKeyAuthenticationExtensions
{
    public static IServiceCollection AddApiKeyAuthentication(this IServiceCollection services)
    {
        services.AddAuthentication(options =>
        {
            options.DefaultAuthenticateScheme = ApiKeyAuthenticationOptions.DefaultScheme;
            options.DefaultChallengeScheme = ApiKeyAuthenticationOptions.DefaultScheme;
        })
        .AddScheme<ApiKeyAuthenticationOptions, ApiKeyAuthenticationHandler>(
            ApiKeyAuthenticationOptions.DefaultScheme,
            options => { });

        return services;
    }
}

• Fluent API: We create a helper method AddApiKeyAuthentication to keep Program.cs clean.
• AddAuthentication: We set the default schemes. This means if a controller or endpoint is marked with [Authorize], ASP.NET Core will automatically use our ApiKey scheme to authenticate and challenge the request.
• AddScheme: This registers our custom ApiKeyAuthenticationHandler with the DI container, associating it with the scheme name defined in our options.

4. Program.cs Setup

var builder = WebApplication.CreateBuilder(args);

builder.Services.AddApiKeyAuthentication();
// ... Swagger configuration ...

• Registration: We call our extension method to register the handler.
• Swagger Configuration: We configure Swagger to display an "Authorize" button. This allows us to test the API directly from the browser UI. We define a security scheme of type ApiKey and specify the header name.

var app = builder.Build();

app.UseAuthentication();
app.UseAuthorization();

• Middleware Order: This is critical. UseAuthentication() must be called before UseAuthorization(). The authentication middleware inspects the request, populates HttpContext.User, and then the authorization middleware checks if that user has permission to access the resource.

5. The Protected Endpoint

app.MapGet("/ai/generate", (HttpContext context) =>
{
    var user = context.User;
    var apiKey = user.FindFirst("ApiKey")?.Value;

    return Results.Ok(new { ... });
})
.WithName("GenerateImage")
.WithOpenApi();

• Accessing User: Inside the endpoint, we can access HttpContext.User because the authentication middleware has already run.
• Reading Claims: We retrieve the "ApiKey" claim we added in the handler. This allows us to log exactly which key was used for this specific request.
• Execution: If the code reaches this point, the API Key was valid.

Common Pitfalls

1. Exposing Keys in Source Control:

   • Mistake: Hardcoding API keys directly in the ApiKeyAuthenticationHandler or in appsettings.json committed to Git.
   • Fix: Always use User Secrets in development and environment variables or Azure Key Vault in production. In the example, we read from IConfiguration, which abstracts these sources.

2. Timing Attacks:

   • Mistake: Using standard string comparison (e.g., == or .Equals()) to check if the provided key matches the stored key.
   • Why it's bad: Standard string comparison returns false as soon as it finds a differing character. A hacker can measure the response time to guess the key character by character.
   • Fix: Use CryptographicOperations.FixedTimeEquals (available in .NET 6+) to ensure the comparison takes the same amount of time regardless of where the mismatch occurs.

3. Middleware Order:

   • Mistake: Placing app.UseAuthentication() after app.UseAuthorization() or after app.MapEndpoints().
   • Result: HttpContext.User will be null, and authorization will always fail.
   • Fix: Always place UseAuthentication and UseAuthorization in the pipeline before mapping your controllers or minimal API endpoints.

4. Returning 404 instead of 401:

   • Mistake: If the API Key is missing, some developers write logic to return a 404 Not Found to hide the endpoint's existence (security by obscurity).
   • Standard Practice: HTTP standards dictate that if authentication is required and missing/invalid, you should return 401 Unauthorized. Returning 404 can confuse legitimate clients trying to debug their integration.

Visualizing the Request Flow

The following diagram illustrates how a request travels through the ASP.NET Core pipeline when hitting the protected /ai/generate endpoint.

Hold "Ctrl" to enable pan & zoom

This diagram illustrates the sequential flow of an incoming HTTP request as it moves through each middleware component in the ASP.NET Core pipeline, culminating in the execution of the logic within the `/ai/generate` endpoint.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---

Loading knowledge check...

---

---

Code License: All code examples are released under the MIT License. Github repo.

Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
