Chapter 18: API Documentation with Swagger/OpenAPI

Theoretical Foundations

The OpenAPI specification, often manifested through Swagger, serves as the universal Rosetta Stone for modern web APIs. In the context of AI web APIs built with ASP.NET Core, this translation layer is not merely a convenience; it is a critical architectural component that bridges the gap between the deterministic world of traditional HTTP endpoints and the probabilistic, stateful, and often streaming nature of Large Language Model (LLM) interactions.

The Linguistic Analogy: The API as a Conversation

Imagine an AI API not as a simple calculator, but as a sophisticated interpreter in a high-stakes diplomatic summit. The client (a web frontend, a mobile app, or another service) speaks a specific dialect of "HTTP." The server (your ASP.NET Core application) speaks the dialect of "AI Models" (tensors, tokens, and probabilities). Without a shared dictionary, communication is chaotic.

Swagger/OpenAPI is that shared dictionary. It defines:

Vocabulary: What words (JSON properties) are allowed?
Grammar: How must sentences (request payloads) be structured?
Tone: What is the intent (endpoint purpose) of the conversation?
Flow: Is the conversation a single turn (request/response) or a continuous dialogue (streaming)?

In AI development, where models change (switching from OpenAI to a local Llama 3.2 model) and capabilities expand (adding function calling or vision), this dictionary must be dynamic and machine-readable. It allows automated tools to generate client SDKs, ensuring that the client code remains synchronized with the server's capabilities without manual intervention.

The Architectural Imperative: Why Standardization Matters for AI

In Book 4, Chapter 12: "State Management and Context Windows," we established that AI chats are stateful. A single API call often carries the entire history of the conversation to maintain context. This creates complex JSON payloads that are deeply nested and prone to error if documented manually.

Consider the difference between a standard CRUD API and an AI Chat API:

CRUD API: POST /items usually accepts a flat or shallow object. The schema is static.
AI Chat API: POST /chat/completion accepts a list of messages, each with a role (user, assistant, system) and content. Content can be a string, or a complex array of text and images (multimodality).

Without OpenAPI, a developer consuming your API must read documentation, guess the JSON structure, and handle serialization manually. If you update the model to support "Tools" (function calling), the client breaks.

OpenAPI solves this by treating the API contract as a first-class citizen. It allows ASP.NET Core to inspect the C# types (like ChatMessage or ModelOptions) and automatically generate a JSON Schema. This schema is the blueprint that tools like Swagger UI use to render interactive forms.

The Core Concept: The OpenAPI Document as a Living Blueprint

The OpenAPI document is a JSON or YAML file that describes your entire API. In ASP.NET Core, this is not a file you write by hand (though you can); it is generated by reflecting over your controllers, models, and attributes.

The Analogy: The Architectural Blueprint

Think of your ASP.NET Core application as a skyscraper.

Controllers are the floors.
Endpoints are the rooms on those floors.
DTOs (Data Transfer Objects) are the furniture and layout of those rooms.

If you build the skyscraper without a blueprint, inspectors (API consumers) have to walk through it with a tape measure to figure out where the doors are. Swagger generates that blueprint dynamically. If you move a wall (change a property in a DTO), the blueprint updates instantly.

In AI applications, this is vital because the "furniture" changes rapidly. You might start with a simple text prompt:

public class ChatRequest
{
    public string Prompt { get; set; }
}

Later, you upgrade to support system instructions and temperature controls:

public class ChatRequest
{
    public string Prompt { get; set; }
    public string SystemInstruction { get; set; }
    public float Temperature { get; set; } // 0.0 to 2.0
}

OpenAPI captures these constraints (e.g., minimum: 0.0, maximum: 2.0) and exposes them to the consumer automatically.

Deep Dive: The Mechanics of Generation in ASP.NET Core

In ASP.NET Core, the generation process relies on the Swashbuckle.AspNetCore library (or the newer Microsoft.AspNetCore.OpenApi). The process involves three distinct phases:

1. Reflection and Schema Discovery

When the application starts, the generator scans the assembly for controllers. It identifies action methods decorated with HTTP attributes ([HttpGet], [HttpPost]). For each parameter, it attempts to map the C# type to an OpenAPI Schema.

For AI APIs, this is where complexity arises. We often use Records and System.Text.Json for performance.

// Using modern C# records for immutable AI requests
public record ChatCompletionRequest(
    string Model,
    Message[] Messages,
    float? Temperature = 0.7f
);

public record Message(string Role, string Content);

The generator inspects these records. It sees ChatCompletionRequest is a complex object. It recursively inspects Message[]. It determines that Role is a string, but perhaps we want to restrict it to specific values (user, assistant, system, tool). This is where Schema Filters come in. We can inject logic to modify the generated schema, adding enum constraints or examples.

2. The JSON Schema Definition

The output of the generation phase is a JSON Schema. This is a standard (RFC 8927) that defines the structure of JSON data. For an AI endpoint, the schema might look like this conceptual representation:

{
  "type": "object",
  "properties": {
    "messages": {
      "type": "array",
      "items": {
        "type": "object",
        "properties": {
          "role": { "type": "string", "enum": ["user", "assistant", "system"] },
          "content": { "type": "string" }
        }
      }
    }
  }
}

The generator handles nullable reference types (a feature of modern C#), optional parameters, and polymorphism. If you have a base class AIRequest and derived classes TextRequest and VisionRequest, the OpenAPI spec can represent this using oneOf, allowing the Swagger UI to switch between different input forms dynamically.

3. The Swagger Middleware Pipeline

Once the document is generated, it is served via middleware. This is a crucial architectural detail. The middleware intercepts requests to /swagger/v1/swagger.json. It does not interfere with your actual API endpoints (/api/chat).

// Conceptual representation of the middleware pipeline
app.UseSwagger(); // Serves the JSON document
app.UseSwaggerUI(); // Serves the interactive HTML/JS UI

Handling Asynchronous and Streaming Operations

This is the most distinct aspect of AI API documentation. Standard REST APIs are synchronous: Request -> Wait -> Response. AI APIs, particularly chat, often stream tokens to the user to reduce perceived latency (Time to First Token).

OpenAPI 3.0+ supports text/event-stream (Server-Sent Events). Documenting this in Swagger is non-trivial because standard HTML forms cannot easily display a streaming response. However, the theoretical foundation relies on the Content-Type header.

When documenting a streaming endpoint, the OpenAPI spec defines the response as:

Media Type: text/event-stream
Schema: A stream of objects (e.g., ChatCompletionChunk).

In ASP.NET Core, we use IAsyncEnumerable<T> or ChannelReader<T> to handle the stream. The Swagger generator must be configured to recognize that an IAsyncEnumerable<ChatChunk> return type maps to a streaming response in the OpenAPI spec, rather than a single JSON object.

Security and Documentation: The Gatekeeper

In Book 3, Chapter 9: "Authentication and Authorization," we discussed JWT Bearer tokens. AI APIs are high-value targets. Exposing the ability to query a model without limits can lead to resource exhaustion (Denial of Service) or data leakage.

Swagger UI allows us to attach authentication schemes to the documentation.

API Key: Simple header-based auth.
OAuth2 / OpenID Connect: For enterprise scenarios.

The theoretical model here is Documentation Segregation. We do not want the Swagger UI to be accessible to the public internet. It is an internal tool. Therefore, the configuration often involves conditional middleware:

if (app.Environment.IsDevelopment())
{
    app.UseSwagger();
    app.UseSwaggerUI();
}

Or, more securely, protecting the /swagger path with an authorization policy so only internal developers can view it, even in staging environments.

Visualizing the Data Flow

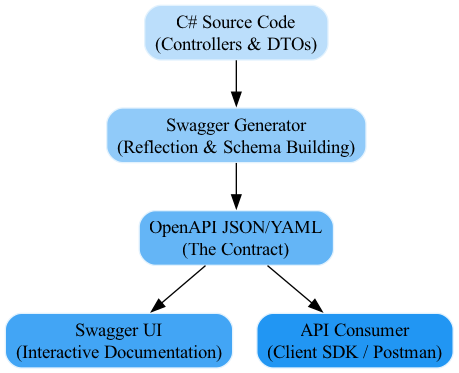

To understand how the OpenAPI document flows from code to client, consider this sequence:

This diagram illustrates the sequence where the OpenAPI document is generated from the source code, served via a secure Swagger endpoint, and subsequently consumed by a client application to enable API interaction.

Edge Cases and Nuances in AI Contexts

Polymorphic Inputs (Discriminators): AI models often accept different input types. For example, a request might be a simple string prompt, or it might be a structured object containing tools. In C#, we might use inheritance:
```
public abstract record AIRequest();
public record TextPrompt(string Text) : AIRequest();
public record ToolPrompt(string Text, List<Tool> Tools) : AIRequest();
```
The OpenAPI spec must handle this. We use the JsonPolymorphicDiscriminator attribute in System.Text.Json. The Swagger generator reads this metadata to produce a schema with a discriminator field. This allows the Swagger UI to render the correct fields based on the selected type.
Binary Data (Vision): When an AI endpoint accepts images (multimodality), the payload is often multipart/form-data or a base64 encoded string in JSON. Documenting base64 strings requires specifying the format (byte or binary). The Swagger UI must be able to handle file uploads. The theoretical challenge is defining the schema for a "union" of text and image data. OpenAPI 3.1 uses oneOf to define that a property can be either a string (text) or a base64 encoded binary object.
Versioning: As AI models evolve, API versions change. v1 might support only text, v2 supports vision. The OpenAPI document must be versioned. ASP.NET Core handles this via API versioning conventions, generating distinct documents (e.g., /swagger/v1/swagger.json vs /swagger/v2/swagger.json). This ensures that clients targeting older models do not see (and potentially break against) new parameters.

The "Why" of Interactive Documentation

Why not just write a Markdown file? Because AI APIs are complex. A developer needs to experiment.

With Swagger UI, a developer can:

Select the endpoint.
Fill in the JSON payload using a form generated directly from the C# DTOs.
Click "Execute".
See the raw cURL command generated (useful for debugging).
See the streaming response in real-time (if the UI supports it).

This interactivity drastically reduces the "Time to First Successful Request" for third-party developers. In the competitive landscape of AI APIs (OpenAI, Anthropic, Cohere), a poor developer experience (DX) can lead to abandonment of the platform.

Theoretical Foundations

The integration of Swagger/OpenAPI in ASP.NET Core for AI applications is not a superficial layer of documentation. It is a contract-first approach enforced by code reflection. It leverages modern C# features like Records, Nullable Reference Types, and System.Text.Json attributes to generate precise JSON Schemas.

These schemas act as the interface between the probabilistic logic of your AI services and the deterministic logic of your clients. By handling complex payloads, polymorphism, and streaming responses, OpenAPI ensures that the "diplomatic summit" between client and server proceeds without misunderstanding, even as the "language" of AI models evolves.

Basic Code Example

using Microsoft.AspNetCore.Builder;
using Microsoft.AspNetCore.Hosting;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Hosting;
using Microsoft.OpenApi.Models;
using System.Text.Json;

var builder = WebApplication.CreateBuilder(args);

// 1. Register Swagger generator services
builder.Services.AddEndpointsApiExplorer();
builder.Services.AddSwaggerGen(c =>
{
    c.SwaggerDoc("v1", new OpenApiInfo
    {
        Title = "AI Chat API",
        Version = "v1",
        Description = "A simple API serving an AI chat model endpoint."
    });

    // Define the complex ChatRequest schema manually to ensure accuracy
    c.SchemaGeneratorOptions.CustomTypeMappings.Add(typeof(ChatRequest), () =>
    {
        var schema = new OpenApiSchema
        {
            Type = "object",
            Properties = new Dictionary<string, OpenApiSchema>
            {
                ["messages"] = new OpenApiSchema
                {
                    Type = "array",
                    Description = "The conversation history.",
                    Items = new OpenApiSchema
                    {
                        Type = "object",
                        Properties = new Dictionary<string, OpenApiSchema>
                        {
                            ["role"] = new OpenApiSchema { Type = "string", Enum = new List<object> { "user", "assistant", "system" } },
                            ["content"] = new OpenApiSchema { Type = "string" }
                        },
                        Required = new HashSet<string> { "role", "content" }
                    }
                },
                ["temperature"] = new OpenApiSchema { Type = "number", Format = "float", Default = 0.7f }
            },
            Required = new HashSet<string> { "messages" }
        };
        return schema;
    });
});

var app = builder.Build();

// 2. Configure the HTTP request pipeline
if (app.Environment.IsDevelopment())
{
    app.UseSwagger();
    app.UseSwaggerUI(c =>
    {
        c.SwaggerEndpoint("/swagger/v1/swagger.json", "AI Chat API v1");
        c.RoutePrefix = string.Empty; // Serve Swagger UI at the root
    });
}

// 3. Define the Data Models (Request/Response)
public record ChatMessage(string Role, string Content);
public record ChatRequest(List<ChatMessage> Messages, float Temperature = 0.7f);
public record ChatResponse(string Id, string Content, string Model);

// 4. Define the AI Service (Mock Implementation)
public static class AiService
{
    public static async Task<ChatResponse> GenerateResponseAsync(ChatRequest request)
    {
        // Simulate AI processing delay
        await Task.Delay(500);

        // Simple mock logic: echo the last message or return a canned response
        var lastMessage = request.Messages.LastOrDefault();
        var responseContent = lastMessage?.Role == "user"
            ? $"Mock AI response to: {lastMessage.Content}"
            : "I am ready to assist.";

        return new ChatResponse(
            Id: Guid.NewGuid().ToString(),
            Content: responseContent,
            Model: "mock-model-v1"
        );
    }
}

// 5. Define the API Endpoint
app.MapPost("/api/chat", async (ChatRequest request) =>
{
    // Input validation (basic)
    if (request == null || request.Messages == null || request.Messages.Count == 0)
        return Results.BadRequest("Messages cannot be empty.");

    // Call the AI service
    var response = await AiService.GenerateResponseAsync(request);

    // Return the result
    return Results.Ok(response);
})
.WithName("ChatCompletion")
.WithOpenApi(); // Ensures this endpoint is included in the Swagger document

app.Run();

Line-by-Line Explanation

1. Service Registration and Swagger Configuration

var builder = WebApplication.CreateBuilder(args);
builder.Services.AddEndpointsApiExplorer();
builder.Services.AddSwaggerGen(c =>
{
    c.SwaggerDoc("v1", new OpenApiInfo
    {
        Title = "AI Chat API",
        Version = "v1",
        Description = "A simple API serving an AI chat model endpoint."
    });
    // ... schema mapping ...
});

WebApplication.CreateBuilder(args): Initializes a new instance of the WebApplicationBuilder with pre-configured defaults (logging, configuration, DI). This is the modern .NET 6+ minimal hosting model.
AddEndpointsApiExplorer(): This is a crucial dependency. It registers the services required for IEndpointExplorer, which allows the framework to inspect the attributes and parameters of Minimal API endpoints to generate metadata. Without this, Swagger cannot "see" your endpoints.
AddSwaggerGen: Registers the ISwaggerGenerator service. This service is responsible for generating the OpenApiDocument (the JSON structure) that describes your API.
c.SwaggerDoc("v1", ...): Creates a named Swagger document named "v1". In complex microservices, you might have multiple documents (e.g., "internal", "public"). Here, we define the basic metadata for our single version.
SchemaGeneratorOptions.CustomTypeMappings: This is the advanced configuration for handling complex types. By default, Swagger generates schemas based on public properties. However, for AI APIs, we often want strict control over the JSON structure (e.g., defining an array of objects with specific enums for role). We manually map the ChatRequest type to a custom OpenApiSchema.

2. The Data Models

public record ChatMessage(string Role, string Content);
public record ChatRequest(List<ChatMessage> Messages, float Temperature = 0.7f);
public record ChatResponse(string Id, string Content, string Model);

ChatMessage: A simple record representing a single turn in the conversation. It contains a Role (user, assistant, system) and the Content.
ChatRequest: The payload sent by the client. It includes a list of ChatMessage objects (history) and a Temperature parameter (controlling randomness). We use a record for immutability and value-based equality.
ChatResponse: The payload returned by the server. It includes the generated content, a unique ID, and the model name used.

3. The AI Service (Mock)

public static class AiService
{
    public static async Task<ChatResponse> GenerateResponseAsync(ChatRequest request)
    {
        await Task.Delay(500);
        // ... logic ...
    }
}

static class: Since this is a simple example, we use a static class to avoid dependency injection complexity. In a real application, this would be a registered service (e.g., IChatService).
await Task.Delay(500): Simulates the latency typical of AI model inference. This is important for demonstrating asynchronous behavior in Swagger.
Logic: A trivial mock implementation that echoes the user's input or provides a default greeting.

4. The API Endpoint Definition

app.MapPost("/api/chat", async (ChatRequest request) =>
{
    if (request == null || request.Messages == null || request.Messages.Count == 0)
        return Results.BadRequest("Messages cannot be empty.");

    var response = await AiService.GenerateResponseAsync(request);
    return Results.Ok(response);
})
.WithName("ChatCompletion")
.WithOpenApi();

app.MapPost("/api/chat", ...): Registers a POST endpoint at the URL /api/chat. The framework automatically binds the incoming JSON body to the ChatRequest parameter.
Results.BadRequest / Results.Ok: Helper methods to create IResult objects. This keeps the code concise and readable.
.WithName("ChatCompletion"): Assigns a name to the endpoint. This is best practice, allowing other parts of the application (like the Swagger configuration) to reference this endpoint reliably by name rather than URL.
.WithOpenApi(): This is the glue for Minimal APIs. It explicitly tells the Swagger generator to include this endpoint in the OpenAPI specification. While sometimes automatic, explicitly adding it ensures no endpoints are missed.

5. The Pipeline Configuration

if (app.Environment.IsDevelopment())
{
    app.UseSwagger();
    app.UseSwaggerUI(c =>
    {
        c.SwaggerEndpoint("/swagger/v1/swagger.json", "AI Chat API v1");
        c.RoutePrefix = string.Empty;
    });
}

UseSwagger(): Adds the middleware that serves the generated JSON document (default path: /swagger/v1/swagger.json).
UseSwaggerUI(): Adds the middleware that serves the interactive Swagger HTML page.
RoutePrefix = string.Empty: By default, Swagger UI sits at /swagger. Setting this to empty serves it at the root URL (/), which is convenient for development.

Common Pitfalls

Missing AddEndpointsApiExplorer(): A frequent mistake in Minimal APIs is registering AddSwaggerGen() but forgetting AddEndpointsApiExplorer(). Without the latter, the Swagger generator has no metadata to inspect, resulting in an empty "Paths" section in the generated JSON, even if endpoints are mapped correctly.
Forgetting .WithOpenApi(): In traditional controllers, Swagger scans attributes automatically. In Minimal APIs, metadata is inferred at runtime. If you use complex parameter binding or custom metadata, you must explicitly chain .WithOpenApi() to ensure the endpoint is documented. Without it, the endpoint functions but remains invisible to the documentation tool.
Circular References in Schemas: When defining custom schemas (as done in CustomTypeMappings), avoid circular references (e.g., Class A contains Class B, which contains Class A). The Swagger generator will throw an exception or produce invalid JSON. Always verify your schema definitions for loops.
Development-Only Exposure: Swagger UI exposes your API structure, potential parameters, and error models. Never deploy UseSwagger() and UseSwaggerUI() to a production environment without strict authentication (e.g., using app.UseAuthorization() or hosting the UI behind a firewall). The code example uses if (app.Environment.IsDevelopment()) to prevent accidental exposure.

Visualizing the Flow

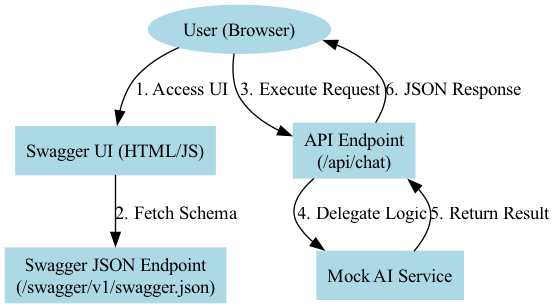

The following diagram illustrates the request flow when interacting with the Swagger UI and the API endpoint.

The diagram visually traces the request flow from Swagger UI to the API endpoint, highlighting the conditional routing logic that applies different middleware configurations based on the development environment.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
