Chapter 2: Code-First Migrations and Database Design

Theoretical Foundations

The theoretical foundation of Code-First Migrations in the context of AI applications rests on a fundamental shift in perspective: the database is no longer a passive repository for simple records, but an active, evolving structural component of the intelligence system itself. In traditional CRUD (Create, Read, Update, Delete) applications, the data schema is often static, representing tabular business entities like Customer or Order. However, in AI-driven systems—specifically those leveraging Vector Databases, Retrieval-Augmented Generation (RAG), and Memory Storage—the data schema is dynamic, multi-modal, and intrinsically linked to the cognitive processes of the application.

The "Why": From Static Tables to Cognitive Graphs

To understand the necessity of Code-First Migrations in AI, we must first analyze the nature of the data involved. Consider a traditional SQL table designed for a customer support system. It might contain columns for TicketID, Subject, and Status. This is flat, structured data.

Now, consider an AI-powered support agent utilizing RAG. This agent does not merely store text; it stores meaning. When a user asks, "How do I reset my password for the legacy system?", the AI doesn't just keyword-match "password" and "reset." It converts the query into a high-dimensional vector (an embedding) and searches for semantically similar content in the database.

Consequently, the database schema must accommodate:

1. Unstructured Data: The raw text of knowledge base articles, chat logs, or PDF content.
2. Vector Embeddings: Arrays of floating-point numbers representing the semantic meaning of that text.
3. Metadata: Timestamps, user IDs, content sources, and confidence scores.
4. Graph-like Relationships: In Memory Storage, concepts are not isolated; they are linked by association, recency, and relevance.

If we were to manage this via "Database-First" (designing the schema in a visual SQL tool and generating code), we would face a bottleneck. The cognitive architecture of an AI system evolves rapidly. We might decide to switch embedding models (e.g., from OpenAI’s text-embedding-ada-002 to a local all-MiniLM-L6-v2), changing the vector dimensionality from 1536 to 384. Or we might need to add a ConversationThread entity to store multi-turn dialogue history for a persistent memory system.

Code-First Migrations allow the domain models—the C# classes that represent our AI's understanding of the world—to dictate the database structure. This ensures that the database schema is always in lockstep with the application's logical model, preventing the "impedance mismatch" that cripples AI systems when data structures diverge.

The "What": Defining the Domain in C

In the context of AI, we define our domain using modern C# features. We use record types for immutable data structures (like embeddings or chat messages) and init properties to enforce state integrity. We leverage the Fluent API within the DbContext to configure complex constraints that standard attributes cannot express.

Imagine we are building a Long-Term Memory system for an AI assistant. We need to store "Memories"—chunks of information the AI has learned about a user.

Here is the theoretical definition of such a domain model. Note that we are focusing on the structure, not the implementation logic.

using System;
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations.Schema;

namespace IntelligentDataAccess.Domain
{
    // Using a 'record' for immutable data structures is crucial in AI systems.
    // Once an embedding is generated, it should not change. If the model changes,
    // we generate a new embedding, we do not mutate the old one.
    public record MemoryEmbedding
    {
        // Storing the vector as a string or byte array depends on the database provider.
        // PostgreSQL with pgvector often uses a float array, but for generic EF Core
        // migrations, we often treat it as a specialized type.
        public required string VectorData { get; init; }

        // The dimensionality of the vector (e.g., 1536 for OpenAI ada-002).
        public int Dimensions { get; init; }
    }

    // The core entity representing a piece of knowledge.
    public class MemoryChunk
    {
        public Guid Id { get; set; }

        // The raw text content. This is the "Source of Truth" for regeneration.
        public string Content { get; set; } = string.Empty;

        // The semantic representation of the content.
        public MemoryEmbedding Embedding { get; set; } = null!;

        // Metadata is critical for RAG filtering.
        // Example: "User:123", "Topic:Finance", "Confidence:0.95"
        public Dictionary<string, string> Metadata { get; set; } = new();

        // Temporal context is vital for memory decay and recency weighting.
        public DateTimeOffset CreatedAt { get; set; }

        // Navigation property for graph-like traversal.
        public ICollection<MemoryAssociation> AssociatedMemories { get; set; } = new List<MemoryAssociation>();
    }

    // Explicit join entity to model weighted relationships between memories.
    // This allows the AI to traverse a graph of concepts.
    public class MemoryAssociation
    {
        public Guid SourceMemoryId { get; set; }
        public MemoryChunk SourceMemory { get; set; } = null!;

        public Guid TargetMemoryId { get; set; }
        public MemoryChunk TargetMemory { get; set; } = null!;

        // A score representing the strength of the association (0.0 to 1.0).
        public float AssociationStrength { get; set; }
    }
}

The "How": The Migration Lifecycle

The migration process bridges the gap between these C# definitions and the physical database. It is an audit trail of the application's cognitive evolution.

1. The Initial State (Add-Migration InitialCreate): When we first define our MemoryChunk and MemoryEmbedding, EF Core analyzes the model. It detects the Guid keys, the Dictionary<string, string> (which EF Core typically serializes into a JSON column in modern databases like SQL Server or PostgreSQL), and the complex relationships.

   The migration engine generates a C# file containing instructions to create tables, indexes, and constraints. For AI, this is where we ensure the database is optimized for vector search. We might configure specific column types (e.g., vector(1536) in PostgreSQL) to ensure the database engine knows how to handle the mathematical operations required for similarity search.

2. The Evolution (Add-Migration AddRecencyScore): As the AI system matures, we realize we need to optimize retrieval. We decide to add a computed column or an index specifically for vector cosine similarity.

   In a Code-First approach, we modify the MemoryChunk class:

   public class MemoryChunk
   {
       // ... existing properties ...

       // New property to optimize retrieval without scanning the entire vector space.
       // This acts as a coarse filter before the expensive vector search.
       public string CategoryTag { get; set; } = "General";
   }


   Running the migration command again generates a new script. This script alters the existing table, adding the new column. Crucially, it does this without dropping the existing data. In an AI context, this is non-destructive evolution. The existing memories remain valid; they simply gain a new attribute.

3. The Application (Apply-Migrations): At startup, the application checks the database's __EFMigrationsHistory table. If the database version lags behind the code version, the migration logic is executed. This ensures that when we deploy a new version of our AI service, the database schema is ready to accept the new data structures required for the updated intelligence logic.

Analogy: The Architectural Blueprint

To visualize this, imagine building a Smart City (The AI Application).

• The C# Models are the Architectural Blueprints. They define the purpose of every building: a library (Vector DB), a power plant (Compute), a residential block (User Data).
• The Database is the physical city infrastructure—roads, pipes, and foundations.
• Code-First Migrations are the City Planning Permits and Construction Logs.

If the city planners (developers) decide that the city needs a new subway system (Vector Search capability) to connect the library to the residential blocks, they don't demolish the city to lay tracks. They draft new blueprints (update C# models), file permits (generate migrations), and execute construction (apply migrations) to integrate the subway into the existing layout without destroying the buildings.

Without this process, you end up with a chaotic city where buildings are erected randomly without roads to reach them—a state often called "Technical Debt" in AI systems, where data becomes siloed and inaccessible to the models that need it.

Visualizing the Schema Evolution

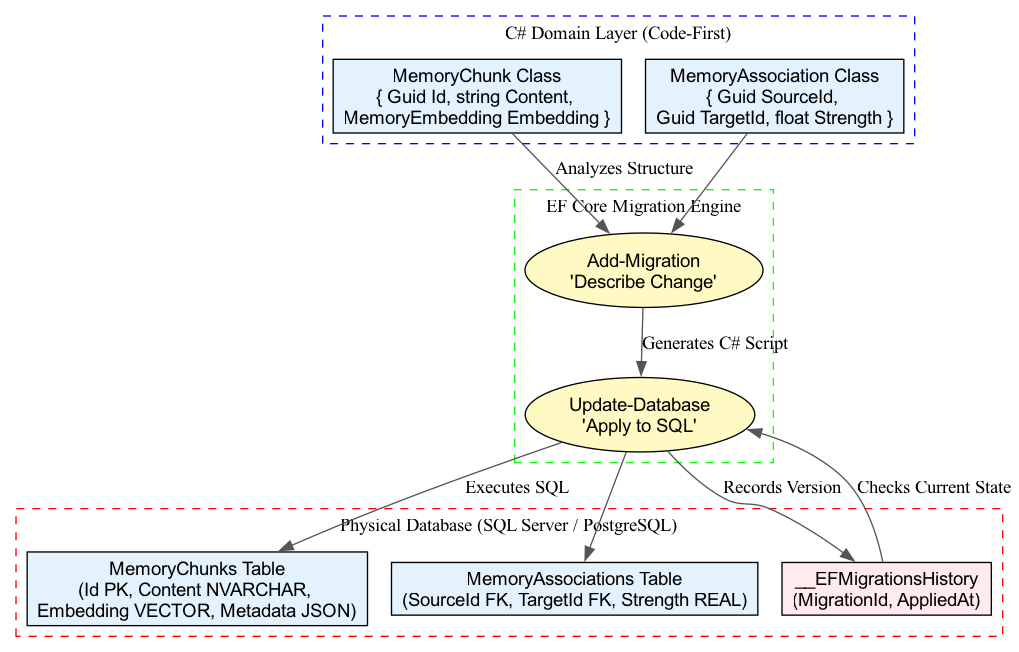

The following diagram illustrates the flow from domain definition to the physical database structure, highlighting the role of the Migration History table as the guardian of state consistency.

Hold "Ctrl" to enable pan & zoom

This diagram visualizes the structured evolution from a domain concept to a physical database, using the Migration History table as the essential guardian that prevents the chaotic state of technical debt by ensuring state consistency.

Architectural Implications for AI Systems

The choice to use Code-First Migrations has profound implications for the scalability and maintainability of AI applications:

1. Vector Dimensionality Management: As noted in the migration evolution example, embedding models have fixed output dimensions. If you switch from a 768-dimensional model to a 3072-dimensional model, the database column must change. Code-First Migrations automate this schema alteration. Without it, manual SQL scripts would be required, introducing a high risk of runtime errors where the application expects a 3072-length array but the database column is fixed at 768.

2. Hybrid Search Capabilities: Modern AI retrieval is rarely vector-only. It is often a hybrid of full-text search (BM25) and semantic search (Vector). This requires composite indexes. In the DbContext configuration (which we will explore in the next subsection), we define these indexes. The migration translates this into CREATE INDEX statements. This ensures that the database engine is optimized for the specific query patterns of the AI, such as "Find semantically similar items created in the last 24 hours."

3. Data Integrity in RAG: In RAG, the "Context Window" of the LLM is limited. We must retrieve the most relevant chunks of data. If the database schema is inconsistent—perhaps due to manual, ad-hoc changes—retrieval fails. Code-First Migrations enforce a contract. If a developer attempts to remove a property used by the retrieval logic (e.g., the Metadata dictionary), the migration system will flag this as a breaking change (via snapshot comparison), preventing the deployment of a broken AI system.

Connection to Previous Concepts

This theoretical foundation builds directly upon the concepts introduced in Book 5: AI Model Integration. In that book, we discussed the IEmbeddingGenerator interface, which abstracts the generation of vectors. The output of that interface—the vector array—is the data that must be persisted here.

Code-First Migrations provide the storage mechanism for the outputs generated by the models defined in Book 5. Without a robust, evolving schema managed by EF Core, the vectors generated by the AI models would have nowhere to live, rendering the intelligent capabilities of the system ephemeral and stateless. We are effectively constructing the long-term memory cortex for the AI, and migrations are the biological mechanism of neuroplasticity.

Basic Code Example

Here is a simple "Hello World" level code example for setting up a Code-First database using Entity Framework Core.

The Real-World Context

Imagine you are building a personal library catalog. You want to store a list of books with their titles and authors. Instead of manually creating a database table and writing SQL scripts, we will define a C# class (Book) that represents the data, and let EF Core generate the database schema for us. This is the essence of Code-First development.

The Code Example

using Microsoft.EntityFrameworkCore;
using Microsoft.Extensions.DependencyInjection;
using System;
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations;
using System.Linq;
using System.Threading.Tasks;

namespace EfCoreCodeFirstDemo
{
    // 1. The Domain Model
    // This class represents the data we want to store.
    // It is a plain C# object (POCO).
    public class Book
    {
        // 'Id' is the Primary Key by convention
        public int Id { get; set; }

        [Required] // Data annotation for validation and database constraints
        public string Title { get; set; }

        public string? Author { get; set; } // Nullable reference type
    }

    // 2. The DbContext
    // This class acts as the bridge between your domain models and the database.
    public class LibraryContext : DbContext
    {
        public DbSet<Book> Books { get; set; } // Represents the 'Books' table

        // Constructor accepting DbContextOptions allows for dependency injection
        public LibraryContext(DbContextOptions<LibraryContext> options)
            : base(options)
        {
        }

        // 3. Model Configuration (Optional but good practice)
        // This method allows us to configure the schema using Fluent API.
        protected override void OnModelCreating(ModelBuilder modelBuilder)
        {
            // Example: Setting a maximum length for the Title column
            modelBuilder.Entity<Book>()
                .Property(b => b.Title)
                .HasMaxLength(200);
        }
    }

    // 4. The Application Entry Point
    class Program
    {
        static async Task Main(string[] args)
        {
            // Setup Dependency Injection (Standard .NET pattern)
            var services = new ServiceCollection();

            // Configure the DbContext to use SQLite (In-memory for this demo)
            // In a real app, this connection string points to a physical file.
            services.AddDbContext<LibraryContext>(options =>
                options.UseSqlite("Data Source=library.db"));

            var serviceProvider = services.BuildServiceProvider();

            // Ensure the database is created
            using (var scope = serviceProvider.CreateScope())
            {
                var context = scope.ServiceProvider.GetRequiredService<LibraryContext>();

                // This applies any pending migrations. If no migrations exist,
                // it creates the database based on the current model.
                // For this simple demo, we use EnsureCreated() instead of Migrations
                // to keep it "Hello World" simple.
                await context.Database.EnsureCreatedAsync();

                Console.WriteLine("Database created successfully.");
            }

            // Perform CRUD Operations
            using (var scope = serviceProvider.CreateScope())
            {
                var context = scope.ServiceProvider.GetRequiredService<LibraryContext>();

                // C: Create
                var newBook = new Book { Title = "The Fellowship of the Ring", Author = "J.R.R. Tolkien" };
                context.Books.Add(newBook);
                await context.SaveChangesAsync(); // Commit to DB
                Console.WriteLine($"Added: {newBook.Title}");

                // R: Read
                var book = await context.Books
                    .FirstOrDefaultAsync(b => b.Title.Contains("Fellowship"));

                if (book != null)
                {
                    Console.WriteLine($"Found: {book.Title} by {book.Author}");
                }

                // U: Update
                if (book != null)
                {
                    book.Author = "J.R.R. Tolkien (Updated)";
                    await context.SaveChangesAsync();
                    Console.WriteLine("Updated author name.");
                }

                // D: Delete
                context.Books.Remove(book);
                await context.SaveChangesAsync();
                Console.WriteLine("Book deleted.");
            }

            Console.WriteLine("Demo completed.");
        }
    }
}

Line-by-Line Explanation

1. using Directives: We import Microsoft.EntityFrameworkCore (the core library), System.ComponentModel.DataAnnotations (for attributes like [Required]), and Microsoft.Extensions.DependencyInjection (for managing the DbContext lifecycle).
2. The Book Class (Model):
   • This is a standard C# class.
   • public int Id { get; set; }: By convention, EF Core recognizes a property named Id or ClassNameId as the Primary Key. It will also configure this as an auto-incrementing identity column (usually INT or BIGINT).
   • [Required]: This Data Annotation tells EF Core that this column must be non-nullable in the database schema (equivalent to NOT NULL in SQL).
   • public string? Author: The ? indicates a nullable reference type (C# 8.0+). EF Core will map this to a nullable column in the database.
3. The LibraryContext Class (DbContext):
   • This is the heart of EF Core. It represents a session with the database.
   • DbSet<Book> Books: This property represents the collection of all books in the database, mapping to a table named Books.
   • OnModelCreating: This method is where you configure the schema using the "Fluent API." While Data Annotations work for simple rules, Fluent API is preferred for complex configurations (relationships, indexes, precision) because it keeps the model clean and separates concerns.
4. The Program Class (Execution):
   • Dependency Injection (DI): We use ServiceCollection to register the LibraryContext. This is the modern .NET way to manage dependencies.
   • UseSqlite: We configure the database provider. SQLite is used here because it's file-based and requires no server installation, making it perfect for a "Hello World" example.
   • EnsureCreatedAsync(): This method checks if the database exists. If not, it creates it and all necessary tables based on the DbSet properties. Note: In production applications, we use Migrations (explained later) rather than EnsureCreated, but this is the simplest way to start.
   • CRUD Operations:
     • Create: context.Books.Add() adds a new entity to the tracking system. SaveChangesAsync() pushes these changes to the database.
     • Read: FirstOrDefaultAsync() executes a query to find the first matching record.
     • Update: We modify the properties of the tracked entity. SaveChangesAsync() detects these changes and generates an SQL UPDATE statement.
     • Delete: Remove() marks the entity for deletion. SaveChangesAsync() executes the SQL DELETE command.

Common Pitfalls

1. Forgetting SaveChangesAsync():

   • The Mistake: Calling Add(), Update(), or Remove() does not immediately send commands to the database. EF Core uses the Unit of Work pattern. It tracks changes in memory.
   • The Consequence: If you run the program without calling SaveChangesAsync(), the database will remain empty even though the code executed without errors.
   • The Fix: Always call SaveChangesAsync() (or SaveChanges()) after modifying data to commit the transaction.

2. Not Disposing the Context:

   • The Mistake: Creating a DbContext and not disposing of it properly.
   • The Consequence: DbContext holds open database connections and manages cached data. Failing to dispose it can lead to memory leaks and connection pool exhaustion (too many open connections).
   • The Fix: Use the using statement (using (var context = new MyContext())) or Dependency Injection scoping (CreateScope()) to ensure the context is disposed of when the scope ends.

3. Infinite Loops in JSON Serialization:

   • The Mistake: If you expose your EF Core entities directly via an API (e.g., ASP.NET Core), circular references (e.g., Author has a list of Books, and Book has an Author) can cause serialization errors or infinite loops.
   • The Fix: Use DTOs (Data Transfer Objects) to shape data before sending it over the wire, or configure JSON options to handle references (e.g., ReferenceHandler.IgnoreCycles).

Visualizing the Data Flow

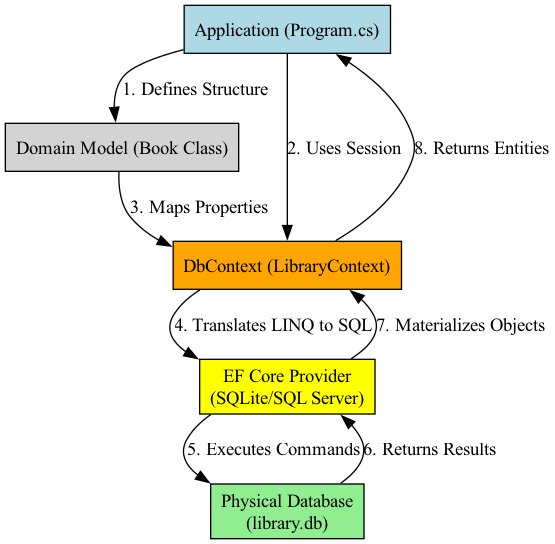

The following diagram illustrates how the C# code interacts with the database engine through the DbContext.

Hold "Ctrl" to enable pan & zoom

This diagram illustrates how the C# DbContext acts as a bridge, managing the flow of data between application logic and the database engine while handling entity tracking and change detection.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---
