Chapter 11: Designing a Schema for Chat History

Theoretical Foundations

At the heart of stateful AI interactions lies the challenge of memory. Unlike a stateless API call that processes a single prompt and returns a result, a conversational AI requires a continuous thread of context. It must remember what was said three turns ago, understand the user’s implicit preferences, and retrieve relevant external knowledge to ground its responses. To achieve this, we must design a data access layer that is not merely a passive store but an active participant in the generation process.

The Dual Nature of Conversational Memory

When designing a schema for chat history, we are essentially building a time machine for the AI. We need to capture the flow of time (the conversation) and the state of mind (the context) at any given moment. This requires a hybrid approach. A purely relational schema, while excellent for transactional integrity and strict querying, often struggles with the fuzzy, semantic nature of language. Conversely, a purely vector-based storage excels at semantic similarity but lacks the rigid structure needed for precise metadata filtering and relational integrity.

To understand this duality, consider a Library Management System.

The Relational Aspect is like the card catalog. It tells you exactly where a book is (Shelf 3, Row B), who checked it out (User ID 45), and when it was due (Date: 10/25). It is structured, precise, and fast for exact lookups.
The Vector Aspect is like a librarian who understands concepts. If you ask for "a sad story about a war," the librarian doesn't look up a specific Dewey Decimal number; they understand the semantic meaning of your query and retrieve the book "All Quiet on the Western Front" because it matches the emotional and topical context, even if the keywords don't align perfectly.

In AI development, we need both. We need the card catalog to track which user owns which conversation, and we need the librarian to retrieve the specific message that semantically relates to the current query.

Theoretical Foundations

In previous chapters, we explored how EF Core acts as a bridge between our C# domain models and the underlying database. We utilized LINQ to express complex queries in a type-safe manner. Now, we apply those principles to the temporal domain of conversation.

1. The Relational Backbone: Structuring the Flow

The foundation of our schema is the conversation thread. In a relational model, this is best represented as a hierarchy of entities. We move away from flat log files (like standard chat logs) and toward a normalized structure.

The Core Entities:

Conversation: Represents a distinct session or topic. It contains metadata (creation date, user ID, status).
ChatMessage: Represents a single turn in the conversation. It links back to the Conversation via a foreign key. It distinguishes between User and Assistant roles.
ChatMetadata: Key-value pairs attached to a message or conversation. This allows for flexible filtering (e.g., Category: "Support", Priority: "High").

Why Relational? Relational schemas provide referential integrity. If a user is deleted, we can cascade delete their conversations (or anonymize them) without leaving orphaned data. Furthermore, EF Core’s change tracking allows us to efficiently update the state of a conversation as it evolves.

The Analogy: The Railway System Think of the relational schema as a railway network. The tracks (foreign keys) are rigidly laid out. Trains (queries) follow specific paths from Station A (Conversation) to Station B (ChatMessage). This is reliable, fast for point-to-point travel, and ensures you never end up on a track that doesn't exist. However, you cannot fly over the city to reach a specific destination; you must follow the tracks.

2. The Vector Dimension: Semantic Search

In the context of AI, specifically Retrieval-Augmented Generation (RAG), we often need to retrieve context not based on when it was said, but what it means. This is where vector embeddings come in.

An embedding is a high-dimensional mathematical representation of text. In C#, we often treat this as a float[] or a specialized Vector<float> type (using libraries like ML.NET or SIMD intrinsics). When we store a ChatMessage, we also store its embedding.

The Challenge of Hybrid Storage: Storing high-dimensional vectors in a traditional SQL database (like SQL Server) is possible using varbinary(max) or specific vector types (if supported), but querying them efficiently for similarity (Cosine Similarity) is computationally expensive without specialized indexing (like HNSW - Hierarchical Navigable Small Worlds).

Therefore, our schema design must account for a Hybrid Storage Strategy:

Relational Database (SQL/SQLite): Stores the structured data (IDs, timestamps, text content, foreign keys).
Vector Database (or Vector Extension): Stores the embeddings, often linked back to the relational ID.

The Analogy: The Librarian's Index Imagine the librarian maintains two tools. The first is the standard card catalog (Relational). The second is a "concept map" (Vector). If you ask, "What did I say about the budget?", the librarian checks the concept map. The map points to a specific location in the library (Message ID 42). The librarian then goes to the shelf (Relational DB) to fetch the full text of that message to provide context to the AI.

Architectural Patterns for Schema Design

When implementing this in EF Core, we must decide how tightly coupled these two storage mechanisms are.

Pattern A: The Unified Entity (Single Source of Truth)

In this pattern, we extend our ChatMessage entity to include a vector property.

public class ChatMessage
{
    public int Id { get; set; }
    public int ConversationId { get; set; }
    public string Role { get; set; } // "User" or "Assistant"
    public string Content { get; set; }
    public DateTime Timestamp { get; set; }

    // The Vector Embedding
    // Stored as a JSON array or binary in the DB,
    // but treated as a float array in C#.
    public float[] Embedding { get; set; }

    public Conversation Conversation { get; set; }
}

Pros:

Simplicity: One DbContext, one migration.
Consistency: The vector is always in sync with the text.

Cons:

Performance: Relational databases are not optimized for vector math. Calculating Cosine Similarity across millions of rows in SQL is slow.
Storage: Vectors are large (e.g., 1536 dimensions for OpenAI text-embedding-ada-002). Storing them in a row can bloat the table.

Pattern B: The Decoupled Hybrid (Best of Both Worlds)

This pattern separates the concerns. The relational DB handles the "What happened" and the Vector DB handles the "What does it mean."

// Relational Entity (SQL)
public class ChatMessage
{
    public int Id { get; set; }
    public string Content { get; set; }
    // No Embedding here
}

// Vector Document (Vector DB like Pinecone, Qdrant, or pgvector)
public class VectorDocument
{
    public string Id { get; set; } // Matches ChatMessage.Id
    public float[] Vector { get; set; }
    public Dictionary<string, string> Metadata { get; set; }
}

Why this matters for AI Applications: In a RAG flow, we perform a two-step retrieval:

Semantic Search: Query the Vector DB for the top 5 messages semantically similar to the user's current input.
Relational Lookup: Use the IDs returned from the vector search to fetch the full ChatMessage objects (including conversation history, timestamps, etc.) from the SQL database via EF Core.

This separation allows us to use the right tool for the job. We use the vector database's specialized indexing (like HNSW) for fast approximate nearest neighbor search, and we use EF Core's LINQ capabilities for complex filtering (e.g., "Find messages from last week regarding 'invoices'").

The Role of Memory Providers

In the context of building AI applications, we abstract these storage details behind a Memory Provider interface. This is a direct application of the Dependency Inversion Principle (referenced in Book 2, Chapter 4).

public interface IChatMemory
{
    Task<int> SaveMessageAsync(ChatMessage message);
    Task<IEnumerable<ChatMessage>> RetrieveContextAsync(string query, int conversationId);
    Task<Conversation> GetConversationAsync(int id);
}

Why Interfaces are Crucial: As mentioned in previous chapters regarding model swapping, interfaces allow us to decouple our AI logic from the underlying storage.

Development Mode: We might use an InMemoryChatMemory that stores data in a ConcurrentDictionary for fast testing.
Production (Relational): We might use EfCoreChatMemory which uses SQL Server.
Production (High-Scale Semantic): We might use HybridChatMemory which utilizes a vector database for retrieval.

Without the interface, our AI service would be tightly coupled to a specific database technology, making it brittle and hard to test.

Edge Cases and Nuances

Designing this schema requires anticipating the quirks of conversational data.

Context Window Overflow: LLMs have a token limit. We cannot simply feed the entire conversation history into the prompt. Our schema must support summarization.
- Strategy: Store a Summary field in the Conversation entity. When the conversation exceeds a certain length, generate a summary (using the LLM itself) and replace the old messages with the summary to free up tokens while retaining semantic meaning.
Metadata Filtering: Users often ask, "What did I tell you about my project in the last conversation?"
- Schema Implication: We need a ConversationMetadata table. This allows for filtering vectors not just by semantic similarity, but by pre-filtering on metadata (e.g., ProjectName = "Phoenix"). This is a "Pre-Filtering" strategy in RAG to reduce the search space before running expensive vector calculations.
Tombstoning (Soft Deletes): Never physically delete chat history immediately. It is valuable for training and audit.
- Schema Implication: Add IsDeleted and DeletedAt columns. EF Core Global Query Filters can automatically exclude these from normal queries, but they remain in the database for recovery or compliance.

Visualizing the Hybrid Schema

The following diagram illustrates how the Relational and Vector stores interact within the EF Core context to serve the AI application.

This diagram illustrates how EF Core's Global Query Filters create a hybrid schema by automatically excluding soft-deleted records from normal relational queries while preserving them in the database for recovery or compliance.

Theoretical Foundations

The theoretical foundation of designing a schema for chat history rests on the principle of appropriate abstraction. We recognize that conversational data is multi-faceted: it has a rigid temporal structure (best handled by relational models) and a fluid semantic meaning (best handled by vector models).

By leveraging EF Core, we can manage the relational complexity with strongly typed C# entities and LINQ. By integrating vector storage, we enable the AI to perform semantic retrieval that transcends keyword matching. The combination of these two allows us to build a "Memory" that is both structured and intelligent, capable of recalling not just what was said, but why it matters in the current context.

Basic Code Example

using Microsoft.EntityFrameworkCore;
using Microsoft.Extensions.DependencyInjection;
using System.ComponentModel.DataAnnotations;
using System.ComponentModel.DataAnnotations.Schema;

// Problem: A customer support chatbot needs to remember the conversation history
// across multiple interactions. Without a proper schema, chat history becomes
// unstructured text blobs that are impossible to query, filter, or analyze.
// Solution: We design a relational schema using EF Core that stores messages
// in threads with metadata, enabling efficient retrieval and context management.

// Define the core entity representing a single message in a conversation
public class ChatMessage
{
    [Key]
    public Guid Id { get; set; } = Guid.NewGuid();

    // Foreign key to the conversation thread
    public Guid ConversationId { get; set; }
    public Conversation Conversation { get; set; } = null!;

    // Distinguish between user and AI messages
    [Required]
    [MaxLength(10)]
    public string Role { get; set; } = "User"; // "User", "Assistant", "System"

    // The actual content of the message
    [Required]
    public string Content { get; set; } = string.Empty;

    // Timestamp for ordering and temporal queries
    public DateTime CreatedAt { get; set; } = DateTime.UtcNow;

    // Metadata for filtering (e.g., department, intent, sentiment)
    // Using JSON serialization for flexibility in a relational schema
    public string? MetadataJson { get; set; }

    // Optional: Vector embedding for semantic search (RAG integration)
    // Stored as a string for SQLite compatibility; use float[] for PostgreSQL/SQL Server
    public string? EmbeddingVector { get; set; }
}

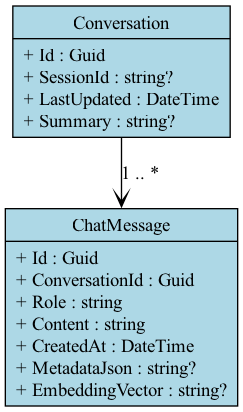

// Define the conversation thread entity
public class Conversation
{
    [Key]
    public Guid Id { get; set; } = Guid.NewGuid();

    // Optional: Link to a user session or customer ID
    public string? SessionId { get; set; }

    // Timestamp of the last activity for cleanup/retention policies
    public DateTime LastUpdated { get; set; } = DateTime.UtcNow;

    // Navigation property
    public ICollection<ChatMessage> Messages { get; set; } = new List<ChatMessage>();

    // Summary or title for quick reference
    public string? Summary { get; set; }
}

// Define the EF Core DbContext
public class ChatContext : DbContext
{
    public DbSet<Conversation> Conversations { get; set; }
    public DbSet<ChatMessage> ChatMessages { get; set; }

    protected override void OnConfiguring(DbContextOptionsBuilder optionsBuilder)
    {
        // Using SQLite for a self-contained, file-based example
        // In production, use PostgreSQL with pgvector or SQL Server with vector extensions
        optionsBuilder.UseSqlite("Data Source=chat_history.db");
    }

    protected override void OnModelCreating(ModelBuilder modelBuilder)
    {
        // Configure indexes for performance
        modelBuilder.Entity<ChatMessage>()
            .HasIndex(m => m.ConversationId);

        modelBuilder.Entity<ChatMessage>()
            .HasIndex(m => m.CreatedAt);

        // Composite index for querying by role and time
        modelBuilder.Entity<ChatMessage>()
            .HasIndex(m => new { m.Role, m.CreatedAt });

        // Relationship configuration
        modelBuilder.Entity<Conversation>()
            .HasMany(c => c.Messages)
            .WithOne(m => m.Conversation)
            .HasForeignKey(m => m.ConversationId)
            .OnDelete(DeleteBehavior.Cascade);

        // Seed data for demonstration
        var convId = Guid.NewGuid();
        modelBuilder.Entity<Conversation>().HasData(
            new Conversation { Id = convId, SessionId = "session_123", Summary = "Billing Inquiry" }
        );

        modelBuilder.Entity<ChatMessage>().HasData(
            new ChatMessage {
                Id = Guid.NewGuid(),
                ConversationId = convId,
                Role = "User",
                Content = "How do I upgrade my plan?",
                CreatedAt = DateTime.UtcNow.AddMinutes(-5),
                MetadataJson = "{\"department\":\"billing\",\"intent\":\"upgrade\"}"
            },
            new ChatMessage {
                Id = Guid.NewGuid(),
                ConversationId = convId,
                Role = "Assistant",
                Content = "You can upgrade via the account settings page.",
                CreatedAt = DateTime.UtcNow.AddMinutes(-4),
                MetadataJson = "{\"department\":\"billing\"}"
            }
        );
    }
}

// Example usage
public class Program
{
    public static async Task Main(string[] args)
    {
        // Setup dependency injection (simulated for brevity)
        var services = new ServiceCollection();
        services.AddDbContext<ChatContext>();
        var serviceProvider = services.BuildServiceProvider();

        using var scope = serviceProvider.CreateScope();
        var context = scope.ServiceProvider.GetRequiredService<ChatContext>();

        // Ensure database is created and seeded
        await context.Database.EnsureCreatedAsync();

        // 1. Create a new conversation
        var newConversation = new Conversation
        {
            Id = Guid.NewGuid(),
            SessionId = "session_456",
            Summary = "Technical Support"
        };
        context.Conversations.Add(newConversation);
        await context.SaveChangesAsync();

        // 2. Add messages to the conversation
        var messages = new[]
        {
            new ChatMessage
            {
                ConversationId = newConversation.Id,
                Role = "User",
                Content = "My app is crashing on startup.",
                MetadataJson = "{\"priority\":\"high\",\"category\":\"bug\"}"
            },
            new ChatMessage
            {
                ConversationId = newConversation.Id,
                Role = "Assistant",
                Content = "Please provide the error logs.",
                MetadataJson = "{\"category\":\"troubleshooting\"}"
            }
        };
        context.ChatMessages.AddRange(messages);
        await context.SaveChangesAsync();

        // 3. Retrieve conversation history with filtering
        // Real-world scenario: Fetch last 5 messages for context window
        var history = await context.ChatMessages
            .Where(m => m.ConversationId == newConversation.Id)
            .OrderBy(m => m.CreatedAt)
            .Take(5)
            .ToListAsync();

        Console.WriteLine($"Retrieved {history.Count} messages for conversation {newConversation.Id}:");
        foreach (var msg in history)
        {
            Console.WriteLine($"[{msg.CreatedAt:HH:mm:ss}] {msg.Role}: {msg.Content}");
        }

        // 4. Demonstrate metadata filtering (e.g., for analytics)
        // Real-world scenario: Find all high-priority issues
        var highPriorityMessages = await context.ChatMessages
            .Where(m => m.MetadataJson != null && m.MetadataJson.Contains("\"priority\":\"high\""))
            .ToListAsync();

        Console.WriteLine($"\nFound {highPriorityMessages.Count} high-priority messages.");
    }
}

Detailed Line-by-Line Explanation

using Microsoft.EntityFrameworkCore;: Imports the Entity Framework Core namespace, which provides the API for database operations (DbContext, DbSet, etc.).
using Microsoft.Extensions.DependencyInjection;: Imports the dependency injection container, which is standard practice for managing DbContext lifetimes in .NET applications.
using System.ComponentModel.DataAnnotations;: Imports attributes like [Key], [Required], and [MaxLength] for defining database schema constraints directly on the model classes.
using System.ComponentModel.DataAnnotations.Schema;: Imports namespace for additional mapping attributes (e.g., [Table], [Column]), though not explicitly used here, it's essential for complex mappings.
public class ChatMessage: Defines the entity representing a single chat message. This is the core unit of data in our schema.
[Key] public Guid Id { get; set; } = Guid.NewGuid();:
- [Key]: Marks this property as the primary key.
- Guid: Using Guid (Globally Unique Identifier) is preferred over int for distributed systems, microservices, and when merging data from multiple sources. It prevents ID collisions.
- = Guid.NewGuid(): Auto-generates a new ID when the object is instantiated in memory.
public Guid ConversationId { get; set; }: The foreign key property. It links this message to a specific conversation thread.
public Conversation Conversation { get; set; } = null!;: The navigation property. This allows EF Core to traverse the relationship (e.g., message.Conversation). The = null! suppresses nullable reference type warnings, indicating we expect this to be populated by EF Core when loading related data.
[Required] [MaxLength(10)] public string Role { get; set; } = "User";:
- [Required]: Ensures the column is NOT NULL in the database.
- [MaxLength(10)]: Sets a database column length limit. Good practice for indexing performance and storage optimization.
- Stores "User", "Assistant", or "System". Using a string is flexible; in a high-performance system, you might use an enum mapped to an integer.
[Required] public string Content { get; set; } = string.Empty;: The actual text of the message. Marked required.
public DateTime CreatedAt { get; set; } = DateTime.UtcNow;:
- Crucial for chronological ordering.
- Best Practice: Always store dates in UTC (DateTime.UtcNow) to avoid timezone ambiguity. The database should store the raw UTC timestamp; conversion to local time happens only at the presentation layer (UI).
public string? MetadataJson { get; set; }:
- Stores unstructured metadata (e.g., {"department":"sales", "sentiment":0.8}).
- Using JSON in a relational column is a hybrid approach. It allows schema flexibility without requiring a separate table for every metadata attribute.
- Note: For complex querying on specific metadata fields, a separate MessageMetadata table (Entity-Attribute-Value pattern) or a database with JSONB support (like PostgreSQL) is better. For this "Hello World" example, JSON is simpler.
public string? EmbeddingVector { get; set; }:
- Placeholder for vector embeddings.
- In a real RAG system, this would store the numerical vector representation of the text (e.g., a float array).
- SQLite stores arrays as text (e.g., "[0.1, 0.2, ...]"). For production vector search, you would use a database extension like pgvector (PostgreSQL) which supports efficient vector operations (cosine similarity, etc.).
public class Conversation: Defines the container for a series of messages.
public string? SessionId { get; set; }: Links to an external session identifier (e.g., from a web browser cookie or mobile app session).
public DateTime LastUpdated { get; set; } = DateTime.UtcNow;: Optimized for queries that need to find active or recent conversations (e.g., for cache invalidation).
public ICollection<ChatMessage> Messages { get; set; } = new List<ChatMessage>();: The inverse navigation property. Allows accessing conversation.Messages.
public class ChatContext : DbContext: The EF Core context acts as the bridge between domain models and the database.
public DbSet<Conversation> Conversations { get; set; }: Represents the table of conversations.
public DbSet<ChatMessage> ChatMessages { get; set; }: Represents the table of messages.
protected override void OnConfiguring(...): Configures the database provider. Here, we use SQLite (UseSqlite) for a self-contained example. In production, you would likely use UseNpgsql for PostgreSQL or UseSqlServer.
protected override void OnModelCreating(ModelBuilder modelBuilder): This method is where we configure the database schema, indexes, and relationships.
modelBuilder.Entity<ChatMessage>().HasIndex(m => m.ConversationId);: Creates a database index on the ConversationId column. This is critical for performance when retrieving messages belonging to a specific conversation (a very common query).
modelBuilder.Entity<ChatMessage>().HasIndex(m => m.CreatedAt);: Index on timestamp for sorting.
modelBuilder.Entity<ChatMessage>().HasIndex(m => new { m.Role, m.CreatedAt });: A composite index. Useful if you frequently filter by Role and sort by time (e.g., "Get the last 10 AI responses").
modelBuilder.Entity<Conversation>().HasMany(...): Configures the one-to-many relationship explicitly. OnDelete(DeleteBehavior.Cascade) means if a Conversation is deleted, all its associated ChatMessages are automatically deleted by the database. This maintains data integrity.
modelBuilder.Entity<Conversation>().HasData(...): Seeds initial data. This is useful for testing and ensuring the database has baseline data after migration.
public class Program / Main: The entry point of the application.
var services = new ServiceCollection(); ...: Sets up Dependency Injection (DI). In a real ASP.NET Core app, this is done in Program.cs automatically. Here we simulate it to manage the DbContext lifetime.
await context.Database.EnsureCreatedAsync();: Creates the database schema and applies seed data if it doesn't exist. Note: For production migrations, MigrateAsync() is preferred over EnsureCreatedAsync().
Creating a new Conversation: We instantiate a Conversation object, add it to the context, and save changes. This inserts a row into the Conversations table.
Adding Messages: We create an array of ChatMessage objects, link them via ConversationId, and use AddRange for efficient bulk insertion. SaveChangesAsync commits the transaction.
Retrieving History:
- Where(m => m.ConversationId == newConversation.Id): Filters by the specific thread.
- OrderBy(m => m.CreatedAt): Ensures chronological order (vital for chat context).
- Take(5): Limits the result set. In RAG, you often fetch the "N most recent messages" to fit into the AI model's context window.
- ToListAsync(): Executes the query asynchronously.
Metadata Filtering:
- Where(m => m.MetadataJson != null && m.MetadataJson.Contains(...)): This is a simple string search within the JSON blob.
- Note: This is inefficient for large datasets. For production, use a database that supports JSON indexing (PostgreSQL JSONB) or a dedicated column for high-priority flags.

Visualizing the Schema

The relationship between Conversation and ChatMessage is a classic one-to-many. A conversation can have many messages, but a message belongs to exactly one conversation.

A single conversation box connects to multiple chat message boxes, illustrating that one conversation can contain many messages, but each message is tied to only one conversation.

Common Pitfalls

Using DateTime.Now instead of DateTime.UtcNow:
- Mistake: Storing local time in the database.
- Consequence: Severe bugs when users are in different timezones or during Daylight Saving Time transitions. Comparisons and sorting become unreliable.
- Fix: Always use DateTime.UtcNow for storage. Convert to local time only for display in the UI.
Missing Indexes on Foreign Keys:
- Mistake: Not creating an index on ConversationId in the ChatMessage table.
- Consequence: As the chat history grows (thousands of conversations, millions of messages), queries retrieving a specific conversation's history will slow down dramatically (table scans instead of index seeks).
- Fix: Always index foreign key columns.
Over-reliance on JSON Columns for Queryable Data:
- Mistake: Storing critical filterable data (like Department or Priority) solely inside a JSON string without database-level support for indexing that JSON.
- Consequence: Querying requires parsing the JSON on every row, which is extremely CPU-intensive and slow. You cannot efficiently perform WHERE Department = 'Sales'.
- Fix: If you need to filter on metadata, either:
  - Extract the field into a dedicated column (normalized).
  - Use a database with JSONB support (PostgreSQL) and create a GIN index on the JSON column.
  - Use a separate MessageMetadata table (Entity-Attribute-Value).
Ignoring Context Window Limits:
- Mistake: Retrieving all messages for a conversation to feed into an LLM.
- Consequence: LLMs have token limits. Sending 10,000 tokens of history will cause errors or truncate the most relevant information.
- Fix: Always use Take(N) (e.g., Take(10) or Take(20)) to retrieve only the most recent messages. For longer contexts, implement a summarization strategy or semantic search (using the EmbeddingVector).
Insecure Direct Object Reference (IDOR):
- Mistake: Retrieving messages solely by ConversationId without checking ownership.
- Consequence: If a user can guess a ConversationId (like a Guid), they might access another user's private chat history.
- Fix: Always filter by the current user's ID or session ID in addition to the conversation ID. E.g., Where(c => c.Id == conversationId && c.SessionId == currentSessionId).

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
