Chapter 3: The AI Agent as a Microservice: Core Principles and Design Patterns

Theoretical Foundations

The shift from monolithic application design to distributed, cloud-native architectures represents one of the most significant paradigm changes in software engineering over the last decade. When this architectural shift collides with the computational intensity and unique lifecycle requirements of Artificial Intelligence, specifically inference workloads, the result is a complex but highly resilient ecosystem known as the AI Inference Microservice. This section explores the foundational theories required to containerize these workloads and orchestrate them effectively.

The Microservice Imperative for AI

To understand why we apply microservices to AI, we must look at the inherent friction between traditional software deployment and model execution. A traditional application might serve thousands of concurrent users with relatively static logic. An AI inference service, however, is stateless, computationally expensive, and often requires specific hardware dependencies (like GPUs) that are scarce and expensive.

The "Restaurant Kitchen" Analogy Imagine a high-end restaurant (our application).

The Monolith: The Head Chef (the AI model) tries to do everything: take orders, cook, plate, and bus tables. If the Head Chef gets overwhelmed by a rush of orders (high traffic), the entire restaurant stops. If the Head Chef needs a specialized knife (a specific GPU driver), the whole kitchen grinds to a halt until the knife is found.
The Microservice Architecture: We hire a specialized team. We have a dedicated Sauté Chef, a Sauce Chef, and a Plater. We give the Sauté Chef a dedicated stove (a GPU node). If the Sauté Chef is overwhelmed, we can quickly hire another Sauté Chef (Horizontal Scaling) without affecting the Sauce Chef. Furthermore, if the Sauté Chef changes their recipe (Model Versioning), it doesn't require the Sauce Chef to relearn their job.

In this analogy, the Model Inference is the cooking. The Request is the order. The Microservice is the station. By isolating the inference logic into its own containerized service, we achieve fault isolation, hardware specialization, and independent scalability.

Containerization: The Standardized Lunchbox

Before we can orchestrate these services, we must solve the "it works on my machine" problem. AI models rely on a fragile chain of dependencies: the operating system, the Python runtime (or .NET runtime), specific versions of libraries like PyTorch or TensorFlow, and GPU drivers.

Docker provides the mechanism to package the code, dependencies, and system tools into a single immutable artifact: the container image.

The "Lunchbox" Analogy Think of a developer trying to send a gourmet meal (the AI model) to a friend across the country (the production server).

The Old Way: They pack the raw ingredients (code) and a note saying "Cook at 350 degrees for 20 minutes." The friend might have a different oven (OS), different ingredients (libraries), or no oven at all. The meal fails.
The Container Way: The developer packs a sealed, insulated lunchbox (the Container). Inside is the meal, the plate, and a battery-powered heating element. The friend just needs to plug it in. The meal is identical to what the developer cooked.

This immutability is crucial for AI. If we update a library in the container, we don't patch the running instance; we build a new image and replace the old one. This guarantees that the model running in production is mathematically identical to the one tested in the lab.

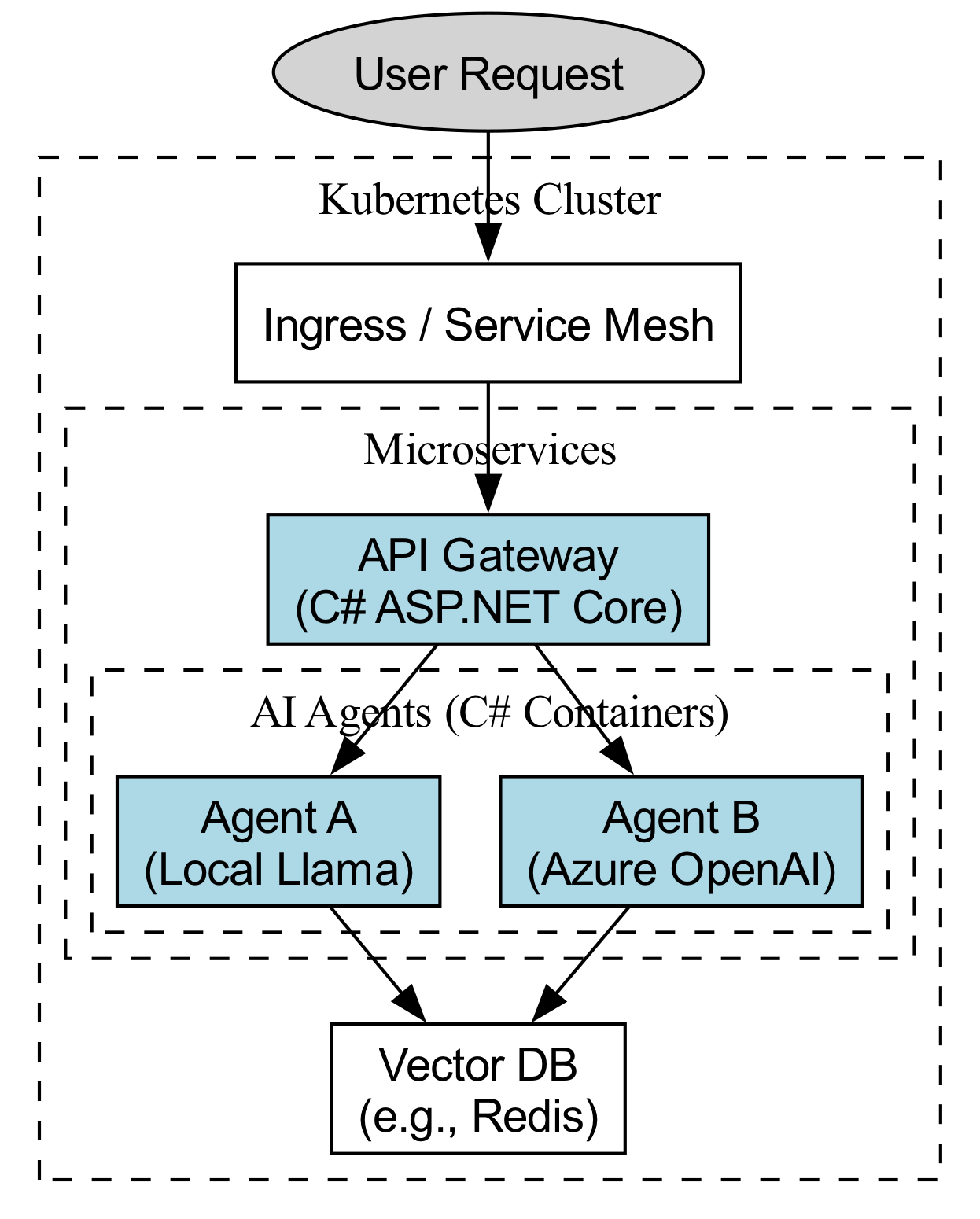

Orchestration: The Traffic Controller

Once our AI agents are packaged in containers, we face a new challenge: managing hundreds or thousands of these containers across a cluster of servers. We need a system to decide where to run containers, how to restart them if they crash, and how to expose them to the network. This is the role of an orchestrator, specifically Kubernetes (K8s).

The "Shipping Port" Analogy Kubernetes acts as the Port Authority for our container ships.

The Cluster: The entire port facility with its cranes and storage yards.
The Node: A specific dock where a ship can dock.
The Pod: The ship itself. In Kubernetes, a Pod is the smallest deployable unit, usually containing one container (our AI agent).
The Service: The address of the dock. Even if a specific ship (Pod) leaves and a new one arrives, the address (Service IP) remains the same so that other ships know where to deliver cargo (requests).

Kubernetes ensures that if a GPU node fails, it automatically moves the AI Pods to a healthy node. It ensures that if traffic spikes, it spins up more Pods (ReplicaSets).

The Role of C# and Modern .NET in AI Microservices

While Python dominates the model training phase, C# and .NET are increasingly vital for the inference and orchestration layer. Modern .NET is high-performance, cross-platform, and possesses a robust type system that excels in building complex, reliable distributed systems.

1. Interfaces for Model Abstraction (Swapping Strategies)

One of the core tenets of microservices is the ability to swap implementations without breaking the system. In AI, we often need to switch between different providers (e.g., Azure OpenAI vs. a self-hosted Llama model) or different versions of a model.

We use Interfaces to define the contract for inference. The rest of the application depends on the interface, not the concrete implementation.

using System.Threading.Tasks;

// The contract defined in the "Domain" layer
public interface IInferenceAgent
{
    Task<string> GenerateResponseAsync(string prompt);
}

// Concrete implementation for a cloud-based LLM
public class AzureOpenAIAgent : IInferenceAgent
{
    public async Task<string> GenerateResponseAsync(string prompt)
    {
        // Logic to call Azure OpenAI API
        return await Task.FromResult("Cloud response");
    }
}

// Concrete implementation for a local, containerized model
public class LocalLlamaAgent : IInferenceAgent
{
    public async Task<string> GenerateResponseAsync(string prompt)
    {
        // Logic to call a local gRPC/HTTP endpoint hosting the model
        return await Task.FromResult("Local response");
    }
}

2. Dependency Injection (DI) and Configuration

In a containerized environment, configuration is dynamic. Connection strings, model paths, and API keys are injected via environment variables or Kubernetes Secrets. Modern .NET's Dependency Injection system is the glue that connects these external configurations to our code.

Recall from Book 4 (Enterprise .NET Patterns) the concept of the Inversion of Control (IoC) container. We apply this here to ensure our AI agents are loosely coupled. We don't new up an agent; we request it via the constructor.

public class InferenceController
{
    private readonly IInferenceAgent _agent;

    // The DI container injects the correct implementation based on configuration
    public InferenceController(IInferenceAgent agent)
    {
        _agent = agent;
    }

    public async Task<IActionResult> Query(string prompt)
    {
        var result = await _agent.GenerateResponseAsync(prompt);
        return new OkObjectResult(result);
    }
}

3. Asynchronous Streams for Inference Latency

AI inference, particularly Large Language Models (LLMs), is a streaming process. The user sends a prompt, and the model generates tokens one by one. If we wait for the entire response to buffer before sending it to the user, we introduce significant latency (Time to First Token).

C#’s IAsyncEnumerable<T> allows us to stream these tokens from the model service to the client immediately as they are generated.

public async IAsyncEnumerable<string> StreamTokensAsync(string prompt)
{
    // Pseudo-code for streaming inference
    var tokenStream = _modelClient.GetStreamingResponse(prompt);

    await foreach (var token in tokenStream)
    {
        yield return token; // Push token to client immediately
    }
}

Scaling Strategies: The Elastic Brain

Once the architecture is established, we must address the "variable workloads" mentioned in the chapter title. AI inference is "bursty." A user request might take 5 seconds of GPU time, while a standard web request takes 50ms.

Horizontal Pod Autoscaling (HPA)

We rely on Kubernetes HPA to monitor metrics like CPU/GPU utilization or Request Per Second (RPS). When the "Kitchen" gets too hot (GPU > 80%), K8s spins up more "Chefs" (Pods).

The "Cold Start" Problem

A critical theoretical challenge in AI scaling is the Cold Start. Loading a 70-billion parameter model into GPU memory can take minutes. If we scale from 0 to 1 replica instantly, the first user waits minutes.

Solution: We use Pre-warming or Sticky Sessions, or we maintain a minimum replica count (MinReplicas = 1) to keep the model "warm" in memory.

Service Mesh and Observability

Finally, we must secure and monitor these moving parts.

The "Secret Service" Analogy Imagine our AI agents need to talk to a database and a payment service. We don't want every agent to know the database password. We install a "Secret Service" (a Service Mesh like Istio or Linkerd) that handles all security and routing. The agents just ask the "Secret Service" to talk to the database, and the mesh handles the mTLS encryption and authentication transparently.

Structured Logging with `ILogger`

In a distributed system, a request might hop through the API Gateway, the Inference Agent, and a Database. If an error occurs, we need to trace it. Modern .NET ILogger combined with Correlation IDs allows us to stitch these logs together.

public async Task<string> ProcessRequest(string prompt, ILogger logger)
{
    using (logger.BeginScope(new Dictionary<string, object>
           { ["TraceId"] = Guid.NewGuid(), ["PromptLength"] = prompt.Length }))
    {
        logger.LogInformation("Starting inference");
        // ... logic ...
        logger.LogInformation("Inference complete");
        return result;
    }
}

Summary of Architectural Implications

By combining these concepts—Containerization, Orchestration, and Modern C# patterns—we move from a fragile, monolithic AI application to a resilient, Cloud-Native AI Agent.

Isolation: Failure in one model inference does not crash the user interface.
Scalability: We can scale the expensive inference services independently of the cheap web services.
Maintainability: We can update models (swap containers) without redeploying the entire application.

This theoretical foundation sets the stage for the practical implementation of building these agents, which we will explore in the subsequent sections.

Basic Code Example

Here is a basic code example demonstrating a containerized AI inference microservice using ASP.NET Core.

The Real-World Context

Imagine you are building a sentiment analysis service for a global e-commerce platform. Product reviews arrive in real-time, and you need to classify them as Positive, Negative, or Neutral to trigger alerts for customer support. You cannot run this heavy computation directly in the user's browser, nor should you block the main web application thread. Instead, you deploy a dedicated Microservice. This service exposes a simple HTTP endpoint. When the main application receives a review, it sends a lightweight HTTP request to this service. The service loads an AI model (in this example, a placeholder), processes the text, and returns the classification. This decouples the AI workload from the main application, allowing you to scale the AI service independently using Kubernetes.

The Code Example

This example uses ASP.NET Core 8.0. It simulates an AI model loading and an inference pipeline. In a production scenario, you would replace the SimulateModelLoad and SimulateInference logic with actual ML.NET, ONNX Runtime, or PyTorch inference calls.

using Microsoft.AspNetCore.Builder;
using Microsoft.AspNetCore.Http;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Hosting;
using System.Text.Json;
using System.Text.Json.Serialization;

// 1. Define the Data Contracts
// We use records for immutable data transfer objects (DTOs).
public record InferenceRequest(
    [property: JsonPropertyName("text")] string Text
);

public record InferenceResult(
    [property: JsonPropertyName("label")] string Label,
    [property: JsonPropertyName("confidence")] double Confidence
);

// 2. Define the AI Service Interface
// Abstraction allows us to swap the implementation later (e.g., from Mock to ONNX).
public interface IInferenceService
{
    Task<InferenceResult> PredictAsync(string text, CancellationToken cancellationToken);
}

// 3. Implement the AI Service
// This service simulates loading a model and running inference.
public class MockInferenceService : IInferenceService
{
    private readonly ILogger<MockInferenceService> _logger;
    private bool _modelLoaded = false;

    public MockInferenceService(ILogger<MockInferenceService> logger)
    {
        _logger = logger;
    }

    // Simulate expensive model loading on startup
    public void Initialize()
    {
        _logger.LogInformation("Loading AI model into memory...");
        // In reality: _model = OnnxRuntime.Load("model.onnx");
        Thread.Sleep(2000); // Simulate 2-second load time
        _modelLoaded = true;
        _logger.LogInformation("AI Model loaded and ready.");
    }

    public async Task<InferenceResult> PredictAsync(string text, CancellationToken cancellationToken)
    {
        if (!_modelLoaded)
        {
            throw new InvalidOperationException("Model not initialized.");
        }

        // Simulate inference latency (GPU/CPU computation)
        await Task.Delay(100, cancellationToken);

        // Mock Logic: Simple keyword-based classification
        string label;
        double confidence;

        if (text.Contains("great", StringComparison.OrdinalIgnoreCase) ||
            text.Contains("love", StringComparison.OrdinalIgnoreCase))
        {
            label = "Positive";
            confidence = 0.95;
        }
        else if (text.Contains("bad", StringComparison.OrdinalIgnoreCase) ||
                 text.Contains("hate", StringComparison.OrdinalIgnoreCase))
        {
            label = "Negative";
            confidence = 0.92;
        }
        else
        {
            label = "Neutral";
            confidence = 0.65;
        }

        _logger.LogInformation("Inference completed for text: '{Text}' -> {Label}", text, label);

        return new InferenceResult(label, confidence);
    }
}

// 4. The Application Entry Point
public class Program
{
    public static void Main(string[] args)
    {
        var builder = WebApplication.CreateBuilder(args);

        // Add services to the container
        builder.Services.AddControllers();

        // Register the Inference Service as a Singleton.
        // CRITICAL: We use Singleton because loading the AI model is expensive.
        // We want to load it once and reuse it for all requests.
        builder.Services.AddSingleton<IInferenceService, MockInferenceService>();

        var app = builder.Build();

        // 5. Lifecycle Hook: Initialize the Model
        // We hook into the ApplicationStarted event to load the model
        // before the server starts accepting traffic.
        var inferenceService = app.Services.GetRequiredService<IInferenceService>();
        if (inferenceService is MockInferenceService mockService)
        {
            mockService.Initialize();
        }

        // 6. Define the API Endpoint
        app.MapPost("/api/inference", async (HttpContext context, IInferenceService inferenceService) =>
        {
            try
            {
                // Deserialize request
                var request = await JsonSerializer.DeserializeAsync<InferenceRequest>(
                    context.Request.Body,
                    cancellationToken: context.RequestAborted);

                if (request is null || string.IsNullOrWhiteSpace(request.Text))
                {
                    context.Response.StatusCode = 400;
                    await context.Response.WriteAsync("Invalid request body.");
                    return;
                }

                // Run Inference
                var result = await inferenceService.PredictAsync(request.Text, context.RequestAborted);

                // Serialize response
                context.Response.ContentType = "application/json";
                await JsonSerializer.SerializeAsync(context.Response.Body, result, cancellationToken: context.RequestAborted);
            }
            catch (Exception ex)
            {
                context.Response.StatusCode = 500;
                await context.Response.WriteAsync($"Internal Server Error: {ex.Message}");
            }
        });

        // 7. Start the Server
        // Maps to port 8080 (standard for containers)
        app.Run("http://0.0.0.0:8080");
    }
}

Visualizing the Architecture

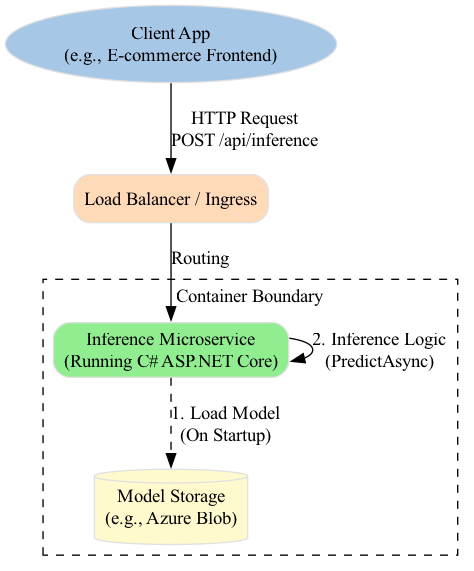

The following diagram illustrates how this code fits into a containerized microservice architecture. The code represents the logic inside the "Inference Service" box.

A diagram illustrating a containerized microservice architecture where an Inference Service box contains the provided C# code logic for handling incoming requests.

Detailed Line-by-Line Explanation

1. Data Contracts (Records)

public record InferenceRequest([property: JsonPropertyName("text")] string Text);
public record InferenceResult([property: JsonPropertyName("label")] string Label, [property: JsonPropertyName("confidence")] double Confidence);

record: In C#, a record is a reference type that provides built-in immutability and value-based equality. This is ideal for Data Transfer Objects (DTOs) in microservices because it prevents accidental modification of request/response data after creation.
[property: JsonPropertyName(...)]: This attribute (from System.Text.Json) maps the C# property names (PascalCase, e.g., Label) to JSON keys (camelCase, e.g., label). This ensures the API adheres to standard REST conventions without needing manual mapping logic.

2. The Service Abstraction

public interface IInferenceService
{
    Task<InferenceResult> PredictAsync(string text, CancellationToken cancellationToken);
}

Dependency Injection (DI): Defining an interface allows us to decouple the implementation from the usage. The Program.cs doesn't need to know how the prediction is made, only that it can request one.
CancellationToken: This is a critical parameter for microservices. It propagates notification that operations should be canceled. If a client disconnects mid-request, the token triggers, allowing the server to stop the heavy AI computation immediately, saving CPU/GPU resources.

3. The Implementation (`MockInferenceService`)

public class MockInferenceService : IInferenceService
{
    private bool _modelLoaded = false;
    // ...
    public void Initialize() { /* ... */ }
}

State Management: Unlike stateless REST principles regarding data, the service itself maintains state regarding the model. The _modelLoaded flag ensures we don't attempt inference before the model is ready.
Initialize(): In a real scenario, loading a Deep Learning model (e.g., a 500MB ONNX file) takes time and memory. This method simulates that expensive startup cost. We call this explicitly in the Program entry point.

4. Dependency Injection Registration

builder.Services.AddSingleton<IInferenceService, MockInferenceService>();

Singleton Lifetime: This is the most important architectural decision here.
- Transient: New instance per request. (Bad for AI: loads model into RAM for every request, causing memory spikes and latency).
- Scoped: New instance per HTTP request. (Bad for AI: same as Transient in a microservice context).
- Singleton: One instance for the application's lifetime. (Correct: The model loads once into memory and serves thousands of requests).

5. Lifecycle Initialization

var inferenceService = app.Services.GetRequiredService<IInferenceService>();
if (inferenceService is MockInferenceService mockService)
{
    mockService.Initialize();
}

Cold Start Handling: This code runs before app.Run(). It ensures that by the time the container starts accepting traffic (port 8080), the AI model is already loaded and "warm." This prevents the first user request from timing out due to model loading.

6. The API Endpoint

app.MapPost("/api/inference", async (HttpContext context, IInferenceService inferenceService) => { ... });

Minimal API: We use ASP.NET Core Minimal APIs (introduced in .NET 6) for a lightweight, high-performance approach. This reduces the overhead compared to traditional Controllers.
Endpoint Logic:
1. Deserialization: Reads the raw JSON body into the InferenceRequest record.
2. Validation: Checks for null/empty text. Returns 400 (Bad Request) if invalid.
3. Inference: Calls the service.
4. Serialization: Converts the InferenceResult record back to JSON and writes it to the response stream.

7. Server Configuration

app.Run("http://0.0.0.0:8080");

0.0.0.0: Binds to all network interfaces. This is mandatory for Docker containers. If you bind to localhost (127.0.0.1), the container will only accept connections from inside itself, making it inaccessible from the host or other pods.

Common Pitfalls

Using Transient/Scoped Lifetimes for AI Models
- Mistake: Registering the inference service without specifying Singleton.
- Consequence: Every HTTP request triggers a reload of the AI model into memory. This causes massive memory consumption (Out of Memory exceptions) and high latency (1-5 seconds per request), defeating the purpose of a microservice.
- Fix: Always use Singleton for services holding heavy resources like ML models, database connections, or HTTP clients.
Ignoring Startup Time (The "First Request" Problem)
- Mistake: Placing model loading logic inside the endpoint handler or relying on "lazy loading."
- Consequence: The first user to hit the API after a deployment will experience a timeout (often 30-60 seconds) while the model loads. Kubernetes might kill the pod, thinking it's unresponsive.
- Fix: Load the model in the constructor or a lifecycle hook (like ApplicationStarted) before the server accepts requests.
Blocking Synchronous Code
- Mistake: Using Thread.Sleep or blocking calls inside the inference logic.
- Consequence: ASP.NET Core is optimized for asynchronous I/O. Blocking a thread starves the thread pool, reducing the server's ability to handle concurrent requests. Under load, the service will crash or become unresponsive.
- Fix: Always use async/await and Task.Delay (simulated inference) or true asynchronous ML library calls.
Missing Graceful Shutdown
- Mistake: Not handling CancellationToken in long-running inference tasks.
- Consequence: When Kubernetes tries to scale down a pod or deploy a new version, it sends a SIGTERM signal. If the current inference request ignores the cancellation token, the pod will be forcefully killed (SIGKILL) mid-computation, potentially corrupting the response or leaving resources dangling.
- Fix: Pass CancellationToken through to the inference engine and check token.ThrowIfCancellationRequested() during processing.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
