Chapter 4: Advanced Containerization: Optimizing Runtimes for AI Workloads

Theoretical Foundations

The deployment of scalable AI inference services within a cloud-native ecosystem represents a paradigm shift from monolithic model serving to distributed, resilient, and dynamically orchestrated microservices. This architectural evolution is driven by the computational intensity of modern AI models, the variability of inference workloads, and the stringent requirements for low-latency, high-throughput responses in production environments.

The Containerization of AI Agents: Beyond Simple Packaging

Containerization of AI agents is not merely about wrapping a Python script in a Docker container; it involves a sophisticated orchestration of model artifacts, runtime dependencies, and inference engines optimized for specific hardware accelerators (GPUs/TPUs). In the context of .NET and C#, this process leverages the Microsoft.ML.OnnxRuntime or TorchSharp libraries to run models natively within the container, ensuring type safety and performance characteristics that align with the host application's lifecycle.

The Analogy of the Modular Factory: Imagine a high-precision manufacturing plant. In a monolithic architecture, all machinery is bolted to a single concrete slab. If one machine overheats, the entire factory halts. In a containerized microservices architecture, each machine (AI Agent) is placed in its own soundproof, climate-controlled booth (Container). These booths can be rearranged, scaled, or replaced without stopping the production line. The booths share a standardized power and communication interface (Kubernetes Services & Ingress), allowing them to work in concert.

C# and Dependency Isolation: In C#, the AssemblyLoadContext (ALC) provides a mechanism for isolating dependencies within a single process. While containers isolate processes, ALCs isolate assemblies. This is critical when deploying AI agents that might rely on different versions of Newtonsoft.Json or Microsoft.Extensions.AI. The ALC acts as a "logical container" inside the "physical container" (Docker), allowing an agent to load a specific version of a library without conflicting with the host application or other agents.

using System.Reflection;
using System.Runtime.Loader;

// Defining a custom AssemblyLoadContext for loading a specific AI model's dependencies
public class ModelAgentContext : AssemblyLoadContext
{
    private readonly AssemblyDependencyResolver _resolver;

    public ModelAgentContext(string pluginPath) : base(isCollectible: true)
    {
        _resolver = new AssemblyDependencyResolver(pluginPath);
    }

    protected override Assembly? Load(AssemblyName assemblyName)
    {
        string? assemblyPath = _resolver.ResolveAssemblyToPath(assemblyName);
        if (assemblyPath != null)
        {
            return LoadFromAssemblyPath(assemblyPath);
        }
        return null;
    }
}

Optimized Runtimes and ONNX: The Open Neural Network Exchange (ONNX) format is the lingua franca of model deployment. By converting models from PyTorch or TensorFlow to ONNX, we decouple the training framework from the inference runtime. In C#, OnnxRuntime provides a high-performance execution engine. When containerizing, the Dockerfile must install the specific GPU-enabled ONNX Runtime NuGet package (Microsoft.ML.OnnxRuntime.Gpu). This ensures the container image is lean, containing only the necessary binaries to execute the model on the available hardware.

Kubernetes: The Orchestrator of Inference Workloads

Kubernetes (K8s) is the control plane for our distributed AI agents. It abstracts the underlying hardware, allowing us to define "desired states" for our inference services.

GPU Resource Management: Standard CPU scheduling is insufficient for AI workloads. K8s uses Extended Resources to manage scarce hardware like NVIDIA GPUs. When a pod requests a GPU, the K8s scheduler ensures it lands on a node with an available GPU device. In C#, we interact with these resources via environment variables injected by the K8s device plugins (e.g., NVIDIA_VISIBLE_DEVICES), which the OnnxRuntime automatically detects to allocate compute kernels.

The Analogy of the Air Traffic Control Tower: Kubernetes acts as an air traffic control tower for incoming inference requests (planes). It doesn't care about the specific model inside the container (the plane's cargo); it only cares about the weight (GPU memory), destination (node affinity), and traffic volume (autoscaling). If the runway (node) is full, it redirects planes to a holding pattern (pending state) or spins up a new runway (Cluster Autoscaler).

Autoscaling Strategies:

1. Horizontal Pod Autoscaler (HPA): Scales the number of replica pods based on CPU/Memory utilization.
2. KEDA (Kubernetes Event-driven Autoscaling): Scales based on external metrics, such as the length of a message queue (e.g., RabbitMQ or Azure Service Bus) holding inference requests. This is superior for bursty AI workloads.
3. Vertical Pod Autoscaler (VPA): Adjusts the CPU/Memory requests of existing pods (less common for stateless inference, but useful for heavy batch processing).

Service Meshes: The Nervous System of Inter-Agent Communication

As AI agents become more complex, they rarely act in isolation. A request might flow from an API Gateway to a Pre-processing Agent, then to a Model Inference Agent, and finally to a Post-processing Agent. A Service Mesh (like Istio or Linkerd) manages this traffic.

Why a Service Mesh? Without a mesh, the application code must handle service discovery, retries, and circuit breaking. This bloats the C# code and couples agents to specific network topologies. A service mesh offloads these concerns to the infrastructure layer using "sidecar" proxies (e.g., Envoy) injected alongside each pod.

The Analogy of the Postal Service: Imagine sending a package (inference request).

• Without a Mesh: You must know the exact address of the recipient, drive it there yourself, and if the recipient isn't home, you must drive back and try again.
• With a Mesh: You drop the package at a local post office (Sidecar Proxy). The post office handles the routing, ensures it reaches the correct sorting facility (Service A), and forwards it to the final destination (Service B). If the destination is unreachable, the post office holds it and retries automatically.

mTLS and Security: In AI deployments, data privacy is paramount. A service mesh automatically enforces mutual TLS (mTLS) between pods. This ensures that the data passed between the Pre-processing Agent and the Inference Agent is encrypted, even within the same cluster.

Performance Optimization for Distributed Inference

Distributing inference introduces network latency. Optimizing this requires specific architectural patterns.

Batching vs. Streaming:

• Static Batching: Grouping multiple requests into a single tensor to maximize GPU utilization. This is done at the inference service level.
• Dynamic Batching: Middleware (like NVIDIA Triton Inference Server) automatically batches requests arriving within a small time window. In C#, we can implement a simple batching queue using System.Threading.Channels or BlockingCollection<T> to aggregate requests before sending them to the model.

The Analogy of the Bus System: Static batching is like a scheduled bus that waits until it is full before departing (high efficiency, higher latency for the last passenger). Dynamic batching is like a shuttle that departs every 5 minutes, picking up everyone waiting at the stop (balance of efficiency and latency).

Quantization and Pruning: Before deployment, models are often quantized (reducing precision from FP32 to INT8) to reduce memory footprint and increase speed. In C#, this is handled transparently by the runtime, but the container must be built with the appropriate execution providers (e.g., CUDAExecutionProvider for GPU acceleration).

CI/CD Pipelines for Continuous Model Updates

AI models are not static; they degrade over time (data drift) and are retrained frequently. A robust CI/CD pipeline is essential.

The GitOps Approach: We treat the model artifact (ONNX file) and the Kubernetes manifests (YAML) as code.

1. Build Stage: The pipeline converts a trained PyTorch model to ONNX, runs unit tests on the inference logic (using xUnit), and builds the Docker image.
2. Test Stage: Deploy to a staging namespace. Run canary tests where a small percentage of live traffic is routed to the new model version to check for performance regressions.
3. Deploy Stage: Update the Kubernetes Deployment manifest. The K8s controller detects the change and performs a rolling update, ensuring zero downtime.

Feature Flags in C#: To manage risk, we can use Feature Flags (e.g., via Microsoft.FeatureManagement) to toggle between model versions or algorithms without redeploying the container.

using Microsoft.FeatureManagement;

public class InferenceService
{
    private readonly IFeatureManager _featureManager;
    private readonly IModelRunner _v1Runner;
    private readonly IModelRunner _v2Runner;

    public InferenceService(IFeatureManager featureManager,
                            V1ModelRunner v1Runner,
                            V2ModelRunner v2Runner)
    {
        _featureManager = featureManager;
        _v1Runner = v1Runner;
        _v2Runner = v2Runner;
    }

    public async Task<InferenceResult> PredictAsync(InputData input)
    {
        // Check if the new model is enabled for this request (e.g., based on user ID or random percentage)
        if (await _featureManager.IsEnabledAsync("V2ModelEnabled"))
        {
            return await _v2Runner.ExecuteAsync(input);
        }

        return await _v1Runner.ExecuteAsync(input);
    }
}

Architectural Visualization

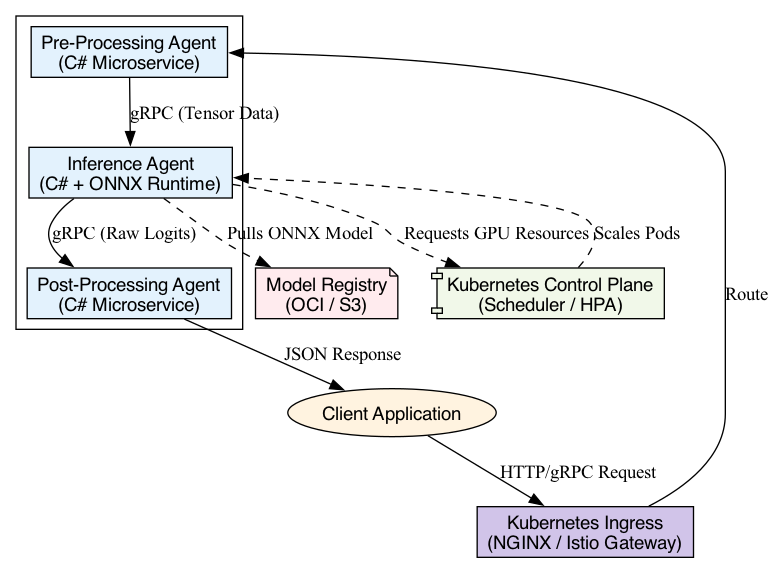

The following diagram illustrates the flow of an inference request through the containerized microservices, managed by Kubernetes and optimized by a service mesh.

Hold "Ctrl" to enable pan & zoom

This diagram illustrates the end-to-end flow of an inference request as it traverses containerized microservices, orchestrated by Kubernetes and optimized for performance by a service mesh.

Theoretical Foundations

Why introduce Kubernetes, Service Meshes, and complex CI/CD for AI? The answer lies in the Non-Functional Requirements (NFRs) of enterprise AI.

1. Latency vs. Throughput Trade-off: A monolithic Python script might be fast for a single user but fails under load. By containerizing and scaling horizontally, we sacrifice a tiny amount of overhead (container startup) for massive horizontal throughput.
2. Resource Fragmentation: Without orchestration, a powerful GPU might sit idle while a CPU-bound service is overloaded. Kubernetes bin-packing ensures that inference pods are co-located with appropriate resources.
3. Observability: In a distributed system, a request might fail at the network layer, the serialization layer, or the model execution layer. C# integrates seamlessly with OpenTelemetry, exporting traces and metrics (Prometheus) that are aggregated centrally. This allows us to pinpoint if a slowdown is due to the model inference (GPU bound) or the network hop (I/O bound).

Conclusion

The theoretical foundation of Cloud-Native AI rests on the principle of decoupling. We decouple the model from the training framework (via ONNX), the compute from the hardware (via Kubernetes), and the network logic from the business logic (via Service Meshes). C# serves as the robust, type-safe glue that binds these components, offering high-performance execution and modern language features (like IAsyncEnumerable for streaming responses) that are essential for handling the asynchronous nature of distributed inference. This architecture transforms AI from a static, brittle monolith into a living, breathing system capable of adapting to real-world demands.

Basic Code Example

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net.Http;
using System.Net.Http.Json;
using System.Text.Json;
using System.Threading;
using System.Threading.Tasks;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Hosting;
using Microsoft.Extensions.Logging;

namespace CloudNativeAiMicroservices.Example
{
    /// <summary>
    /// Represents the core data structure for an AI inference request.
    /// In a real-world scenario, this might contain complex tensors,
    /// image byte arrays, or structured text prompts.
    /// </summary>
    public record InferenceRequest(
        string RequestId,
        string InputData,
        Dictionary<string, object> Parameters
    );

    /// <summary>
    /// Represents the response from the AI model inference.
    /// </summary>
    public record InferenceResponse(
        string RequestId,
        string Result,
        double InferenceTimeMs,
        string ModelVersion
    );

    /// <summary>
    /// Defines the contract for an AI inference service.
    /// This abstraction allows swapping implementations (e.g., local CPU vs. GPU-accelerated).
    /// </summary>
    public interface IInferenceService
    {
        Task<InferenceResponse> PredictAsync(InferenceRequest request, CancellationToken cancellationToken);
    }

    /// <summary>
    /// A mock implementation of an AI inference service.
    /// Simulates the delay and computation of a real model (like BERT or GPT)
    /// without requiring actual GPU hardware or large model files.
    /// </summary>
    public class MockInferenceService : IInferenceService
    {
        private readonly ILogger<MockInferenceService> _logger;
        private readonly Random _random = new();

        public MockInferenceService(ILogger<MockInferenceService> logger)
        {
            _logger = logger;
        }

        public async Task<InferenceResponse> PredictAsync(InferenceRequest request, CancellationToken cancellationToken)
        {
            _logger.LogInformation("Processing request {RequestId} for input: {Input}", request.RequestId, request.InputData);

            // Simulate GPU inference latency (e.g., 50ms to 200ms)
            var delay = _random.Next(50, 200);
            await Task.Delay(delay, cancellationToken);

            // Simulate processing logic
            var result = $"Processed: {request.InputData.ToUpperInvariant()}";

            _logger.LogInformation("Completed request {RequestId} in {Time}ms", request.RequestId, delay);

            return new InferenceResponse(
                RequestId: request.RequestId,
                Result: result,
                InferenceTimeMs: delay,
                ModelVersion: "v1.0-mock"
            );
        }
    }

    /// <summary>
    /// A background service that simulates an incoming request queue.
    /// In a real Kubernetes environment, this would be replaced by an HTTP endpoint
    /// (e.g., ASP.NET Core Minimal API) receiving traffic from an Ingress controller.
    /// </summary>
    public class RequestSimulatorService : BackgroundService
    {
        private readonly IInferenceService _inferenceService;
        private readonly ILogger<RequestSimulatorService> _logger;

        public RequestSimulatorService(IInferenceService inferenceService, ILogger<RequestSimulatorService> logger)
        {
            _inferenceService = inferenceService;
            _logger = logger;
        }

        protected override async Task ExecuteAsync(CancellationToken stoppingToken)
        {
            _logger.LogInformation("Request Simulator started. Waiting 3 seconds before first request...");

            // Allow time for the application to stabilize
            await Task.Delay(3000, stoppingToken);

            int requestCounter = 0;

            while (!stoppingToken.IsCancellationRequested)
            {
                try
                {
                    var requestId = $"req-{++requestCounter:D4}";
                    var request = new InferenceRequest(
                        RequestId: requestId,
                        InputData: $"cloud native ai request {requestCounter}",
                        Parameters: new Dictionary<string, object> { { "temperature", 0.7 } }
                    );

                    // Simulate an HTTP POST request to the inference endpoint
                    _ = await _inferenceService.PredictAsync(request, stoppingToken);

                    // Simulate incoming traffic rate (e.g., 1 request every 2 seconds)
                    await Task.Delay(2000, stoppingToken);
                }
                catch (OperationCanceledException)
                {
                    break;
                }
                catch (Exception ex)
                {
                    _logger.LogError(ex, "Error simulating request");
                    await Task.Delay(5000, stoppingToken);
                }
            }
        }
    }

    /// <summary>
    /// The main entry point and dependency injection composition root.
    /// </summary>
    public class Program
    {
        public static async Task Main(string[] args)
        {
            // Create the host builder using .NET Generic Host
            // This pattern is standard for microservices, providing lifecycle management,
            // logging, and dependency injection out of the box.
            var host = Host.CreateDefaultBuilder(args)
                .ConfigureServices((context, services) =>
                {
                    // Register the inference service as a Singleton.
                    // Why Singleton? In real scenarios, this service might hold
                    // a loaded ML model in memory (which is expensive to load/unload).
                    // For HTTP controllers, we usually use Scoped, but for the service logic itself,
                    // Singleton is efficient if thread-safe.
                    services.AddSingleton<IInferenceService, MockInferenceService>();

                    // Register the background service to simulate traffic.
                    // In a real deployment, this is removed, and the HTTP server handles requests.
                    services.AddHostedService<RequestSimulatorService>();
                })
                .ConfigureLogging(logging =>
                {
                    logging.ClearProviders();
                    logging.AddConsole();
                    logging.SetMinimumLevel(LogLevel.Information);
                })
                .Build();

            await host.RunAsync();
        }
    }
}

Detailed Line-by-Line Explanation

1. using Directives: We import standard .NET namespaces for I/O, collections, and networking. Crucially, we include Microsoft.Extensions.* namespaces. These are part of the .NET Generic Host system, which is the industry standard for building microservices in C#. It abstracts away the complexities of lifecycle management and dependency injection (DI).

2. InferenceRequest Record:

   • public record InferenceRequest(...): We use a record (a C# 9+ feature) for immutable data transfer objects (DTOs). Records provide value-based equality, which is useful for logging and comparing request objects.
   • Fields: RequestId (for tracing), InputData (the payload), and Parameters (hyperparameters like temperature or top-p).

3. InferenceResponse Record:

   • Similar to the request, this defines the output structure. It includes InferenceTimeMs to simulate performance metrics, which is critical when discussing autoscaling later (scaling based on latency).

4. IInferenceService Interface:

   • Dependency Inversion: This interface decouples the application logic from the specific implementation of the AI model. In a real Kubernetes pod, you might swap MockInferenceService for HuggingFaceInferenceService or ONNXRuntimeService without changing the HTTP controller code.
   • Task<InferenceResponse>: The method is asynchronous. AI inference is I/O bound (waiting for the GPU) and compute bound. Using async/await ensures the thread isn't blocked, allowing the server to handle other requests while the "GPU" is working.

5. MockInferenceService Class:

   • Purpose: Since we cannot package a 5GB model in this text example, we simulate the behavior. This is a standard practice for unit and integration testing.
   • Latency Simulation: Task.Delay(delay) mimics the time a GPU takes to process a batch of tokens. Without this, the example would run instantly, hiding the concurrency issues that Kubernetes solves.
   • Randomization: Random.Next(50, 200) creates variable load, allowing us to observe how an autoscaler might react to fluctuating request times.

6. RequestSimulatorService Class:

   • Inheritance: It inherits from BackgroundService. In a real microservice, this class would be replaced by an aspnetcore HTTP server. However, for a pure console example demonstrating the logic of an agent, a background service is cleaner.
   • Loop: The while loop simulates an infinite stream of incoming user requests.
   • Cancellation: stoppingToken is checked. This is vital for Kubernetes. When Kubernetes sends a SIGTERM (during a pod shutdown or rolling update), this token triggers, allowing the service to finish current inferences before terminating (graceful shutdown).

7. Program.Main:

   • Host Builder: Host.CreateDefaultBuilder sets up logging (Console), configuration (JSON files, environment variables), and DI.
   • Dependency Injection (DI):
     • services.AddSingleton<IInferenceService, MockInferenceService>: Registers the service. In a containerized environment, environment variables injected by Kubernetes (via Deployment.yaml) can configure which implementation is registered.
     • services.AddHostedService<RequestSimulatorService>: Starts the simulator automatically when the app starts.
   • await host.RunAsync(): Starts the application and blocks until the process is terminated. This is the "main loop" of the microservice.

Common Pitfalls

1. Blocking Synchronous Calls: A common mistake in AI microservices is calling .Result or .Wait() on a Task inside an HTTP controller or service method.

   • Why it's bad: In a containerized environment with limited threads (limited by the CPU quota), blocking a thread starves the thread pool. If you have 100 concurrent requests and only 4 CPU cores, blocking threads will cause the service to stop responding (thread pool exhaustion) even if the CPU is idle.
   • Fix: Always use async and await all the way down to the I/O boundary.

2. Not Handling Graceful Shutdown: Ignoring the CancellationToken in long-running inference tasks.

   • Why it's bad: Kubernetes terminates pods during deployments. If a request takes 10 seconds and the pod is killed after 5 seconds, the user receives a 502 Bad Gateway error.
   • Fix: Pass the CancellationToken to Task.Delay and inference methods. When the token signals, stop processing immediately (or save state if possible) to allow the pod to exit cleanly.

3. Stateful Singletons: Storing request-specific state in a Singleton service (e.g., a global variable for CurrentRequest).

   • Why it's bad: Microservices must be stateless to scale horizontally. If one pod holds state in memory, load balancing requests across multiple pods will result in inconsistent data.
   • Fix: Keep Singletons for configuration or thread-safe clients (like Database connections). Pass request data as method parameters.

Real-World Context: The "Hello World" of Inference Scaling

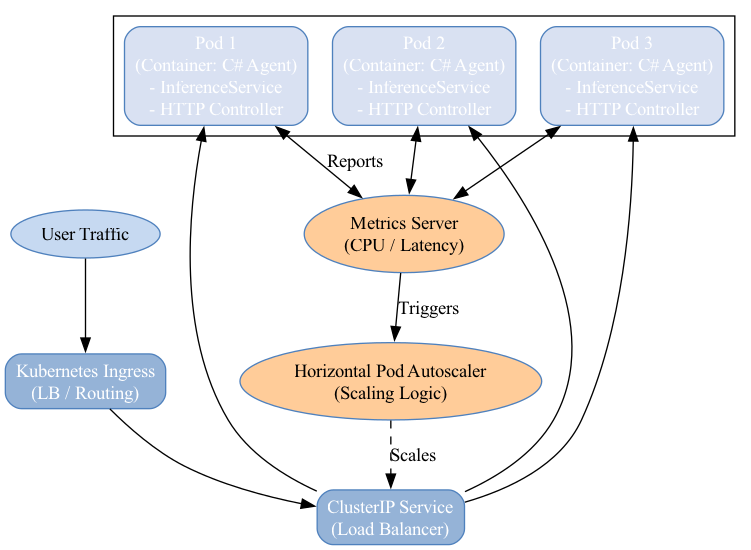

Imagine you are deploying a Sentiment Analysis Agent for an e-commerce site. During a flash sale, traffic spikes from 10 requests/minute to 5,000 requests/minute.

1. The Problem: If your single container (like the code above) cannot process requests fast enough, latency increases, and requests start queuing up.
2. The Kubernetes Solution:
   • Containerization: The code above is Dockerized. The Dockerfile installs the .NET runtime and copies the compiled DLLs.
   • Horizontal Pod Autoscaler (HPA): You configure HPA to watch the CPU utilization or, more specifically, a custom metric like "Request Queue Length".
   • Scaling: When the RequestSimulatorService (representing real users) generates traffic faster than the pod can handle, HPA detects this and creates more replicas of the pod.
   • Load Balancing: An Ingress controller distributes incoming requests across these new pods.

Visualizing the Architecture

The following diagram illustrates how this single code unit fits into a larger Kubernetes ecosystem.

Hold "Ctrl" to enable pan & zoom

This diagram illustrates the load balancing role of an Ingress controller, which acts as a traffic gateway distributing incoming requests evenly across multiple application pods running within the Kubernetes cluster.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---

Loading knowledge check...

---

---

Code License: All code examples are released under the MIT License. Github repo.

Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
