Chapter 6: Architecting for Inference: The Role of C# and Modern .NET

Theoretical Foundations

The theoretical foundation of containerizing AI agents and scaling inference pipelines rests on a fundamental shift in software architecture: the transition from monolithic, stateful applications to distributed, stateless microservices. In the context of Cloud-Native AI, this shift is not merely an operational convenience; it is a prerequisite for handling the computational intensity, variability, and scale of modern generative models. To understand this, we must dissect the interplay between containerization, orchestration, and the specific demands of AI workloads.

The Microservice Paradigm in AI: Decomposing the Monolith

Traditionally, an AI application might be a single executable: it loads a model, listens for requests, processes input, generates output, and logs results. This monolithic approach is brittle. If the model loading phase fails, the entire application crashes. If the model requires a specific GPU driver version incompatible with the logging library, the system is deadlocked.

Microservices architecture addresses this by decomposing the application into single-purpose, loosely coupled services. In an AI context, this decomposition is logical and physical.

Logical Decomposition:

1. Ingestion Service: Handles input validation, sanitization, and perhaps preliminary tokenization.
2. Model Service (The Agent): The core compute unit. It loads the model weights, manages the inference engine (e.g., ONNX Runtime, PyTorch, TensorFlow), and performs the actual tensor computations.
3. Post-Processing Service: Handles output filtering, detokenization, or formatting.
4. Orchestration/Workflow Service: Manages the state of a conversation or a complex multi-step task, calling other services as needed.

Physical Decomposition: This logical separation allows us to scale each component independently. The Model Service is typically the most resource-intensive (CPU/GPU bound), while the Ingestion Service is I/O bound. By separating them, we can scale the Model Service horizontally across multiple GPU nodes while keeping the Ingestion Service lightweight on standard CPU nodes.

Analogy: The Restaurant Kitchen Imagine a high-end restaurant (the monolith). One chef does everything: greets guests, takes orders, chops vegetables, sears the steak, plates the dish, and washes the dishes. If the chef is overwhelmed, the entire restaurant slows down. If the chef is sick, the restaurant closes.

Now, imagine a modern kitchen (microservices). There is a receptionist (Ingestion), a sous-chef prepping ingredients (Pre-processing), a line cook at the grill (Model Service), a saucier (Post-processing), and an expeditor (Orchestration). Each is a specialist. If the grill station is overwhelmed (high inference load), you hire more line cooks (scale replicas) without needing to hire more receptionists. This is the essence of microservices: independent scaling of specialized units.

Containerization: The Unit of Deployment

To deploy these microservices reliably, we need a standardized packaging format. This is where containers come in. A container bundles the code, runtime, system libraries, and system tools into a single artifact.

In the context of AI, containerization solves the "it works on my machine" problem, which is exacerbated by the complex dependencies of AI frameworks. A model trained in PyTorch 2.0 with CUDA 11.8 requires a specific environment. Packaging this into a container ensures that the Model Service runs identically on a developer's laptop (with a GPU), a staging cluster, and a production cloud environment.

The Critical Role of GPU Passthrough: Standard containers share the host kernel but isolate user-space processes. To access GPUs, containers must be configured with specific runtime options (e.g., NVIDIA Container Toolkit). This allows the container to access the GPU device files and libraries on the host node. The container itself does not contain the GPU firmware; it contains the user-space libraries (like libcudnn) that communicate with the host kernel drivers.

Kubernetes: The Brain of the Operation

While containers provide the packaging, Kubernetes provides the orchestration—scheduling these containers onto physical nodes and managing their lifecycle. For AI workloads, Kubernetes is not just a scheduler; it is a resource manager.

1. GPU-Aware Scheduling: Kubernetes traditionally schedules based on CPU and RAM. AI workloads require GPUs. Kubernetes uses the concept of "Extended Resources" to manage hardware accelerators. Nodes expose their available GPU capacity (e.g., nvidia.com/gpu: 2). When a Pod (the smallest deployable unit in K8s) requests a GPU, the Kubernetes scheduler filters nodes that have that capacity available.

• Node Affinity & Taints: To ensure high-performance inference, we often use "GPU nodes" (equipped with high-end accelerators) and "CPU nodes" (for general compute). We can apply taints to GPU nodes (e.g., nvidia.com/gpu=true:NoSchedule) so that general workloads don't land on them. Then, we use tolerations in our Model Service Pods to allow them to be scheduled on these tainted nodes.

2. The Inference Problem: Cold Starts and Batching: AI models are heavy. Loading a 70-billion parameter model into VRAM can take minutes. In a serverless or auto-scaling scenario, a "cold start" (spinning up a new container) introduces unacceptable latency.

• Theoretical Mitigation:
  • Pre-warming: Keeping a pool of "warm" containers ready to accept traffic.
  • Model Caching: Sharing model weights across replicas using a distributed file system (e.g., S3, EFS, or a CSI driver like Rook/Ceph) rather than baking them into the container image. The container pulls weights on startup.

Analogy: The Toll Booth Highway Imagine a highway (the Kubernetes cluster) with toll booths (Pods). Cars (requests) arrive. If a toll booth is closed (Pod crashed or scaled down), the car must wait for it to open (cold start). If the toll booth only accepts exact change (single request processing), throughput is low. Kubernetes acts as the traffic controller. It opens new toll booths (Horizontal Pod Autoscaler) when traffic builds up. It directs cars to booths with the correct change lanes (GPU nodes). It closes booths when traffic subsides to save money (cost optimization).

Scaling Inference: The Art of Throughput vs. Latency

Scaling AI inference is non-trivial because it involves a trade-off between latency (time per request) and throughput (requests per second).

1. Horizontal Scaling (Replicas): The most intuitive approach is to run multiple copies of the Model Service. If one replica can handle 10 requests/second, 10 replicas can handle 100. However, this is expensive. Each replica loads a full copy of the model into VRAM. If the model is 20GB, 10 replicas consume 200GB of VRAM.

2. Vertical Scaling (Resource Allocation): Increasing the resources allocated to a single Pod (e.g., requesting 2 GPUs instead of 1). This is limited by the physical hardware of a single node.

3. Autoscaling Policies: Kubernetes uses the Horizontal Pod Autoscaler (HPA) to scale replicas based on metrics. For AI, standard CPU metrics are often misleading because inference is heavily GPU-bound.

• Custom Metrics: We need to expose metrics like GPU utilization, VRAM usage, or inference queue depth (e.g., via Prometheus). The HPA uses these to make scaling decisions.
• KEDA (Kubernetes Event-driven Autoscaling): A more advanced approach. KEDA can scale based on external events, such as the length of a message queue (e.g., RabbitMQ, Kafka) containing inference requests. This decouples the arrival of requests from the processing, allowing the system to buffer load and scale proactively.

Optimizing Model Serving: Quantization and Batching

To maximize the efficiency of the hardware we scale, we must optimize the model itself and how it processes requests.

1. Quantization: This is the process of reducing the precision of the model's weights. A model trained in FP32 (32-bit floating point) uses 4 bytes per parameter. Converting to FP16 (half-precision) cuts memory usage in half. Quantizing to INT8 (8-bit integer) reduces it by a factor of 4.

• Why it matters for scaling: Smaller models fit into VRAM more easily. This allows us to run more replicas per GPU node or use smaller, cheaper GPU instances. It also speeds up computation, as moving less data is faster.
• The Trade-off: Lower precision can introduce numerical instability or slight degradation in output quality. However, for most LLMs, INT8 quantization has negligible impact on coherence.

2. Dynamic Batching: In traditional web services, requests are processed one by one. In AI inference, the overhead of launching a GPU kernel for a single request is high relative to the computation time.

• The Concept: Instead of processing Request A, then Request B, we wait a few milliseconds to collect Requests A, B, and C. We stack their input tensors into a single batch and process them simultaneously in one GPU kernel launch.
• The Analogy: Instead of a delivery truck making three separate trips for three packages to the same neighborhood, we wait for all three packages, load them into one truck, and make one trip. The fuel cost (GPU overhead) is roughly the same, but the throughput is tripled.
• Implementation: This is often handled by the inference server (e.g., NVIDIA Triton Inference Server) or the model runtime (e.g., ONNX Runtime dynamic batcher), sitting inside the container.

Service Mesh and Inter-Service Communication

In a microservices architecture, services talk to each other. In an AI pipeline, the Ingestion Service talks to the Model Service, which might talk to a Database Service for context retrieval (RAG - Retrieval Augmented Generation).

The Challenges:

1. Security: Traffic between services should be encrypted (mTLS).
2. Reliability: If the Model Service is slow, the Ingestion Service needs to handle timeouts gracefully.
3. Observability: Understanding where a request failed in a chain of calls.

The Solution: Service Mesh (e.g., Istio, Linkerd): A service mesh injects a lightweight proxy (sidecar) into every Pod. This proxy intercepts all network traffic.

• Traffic Management: It can implement "retries" (if the Model Service fails, try again automatically) and "circuit breakers" (if the Model Service fails 5 times in a row, stop sending traffic to it to prevent cascading failure).
• Security: The sidecar automatically upgrades HTTP traffic to HTTPS (mTLS) between services without the application code needing to handle certificates.
• Canary Rollouts: This is critical for AI models. When deploying a new version of a model (e.g., upgrading from GPT-3.5 to GPT-4, or swapping a local model architecture), we don't want to switch all traffic instantly. A service mesh allows us to route 5% of traffic to the new version (the "canary") and 95% to the old version. We monitor the canary for errors or performance degradation. If it passes, we gradually increase traffic. This is the "Safe Deployment" strategy.

Observability: The Eyes of the System

You cannot scale what you cannot measure. In AI microservices, standard logs are insufficient.

1. Metrics: We need to track:

• Latency: Time to first token (TTFT) and total generation time.
• Throughput: Requests per second (RPS).
• Resource Utilization: GPU Memory usage, GPU Compute utilization.
• Business Metrics: Token count per request, error rates (e.g., "Model hallucination" flags).

2. Distributed Tracing: Using tools like OpenTelemetry, we can trace a request as it flows through the Ingestion Service -> Model Service -> Database. If the Model Service is slow, the trace shows exactly where the time was spent (e.g., 200ms in queue, 500ms in inference, 50ms in post-processing).

3. Logging: Structured logging (JSON) is essential. Logs should include a correlation_id to link all events related to a single user request.

Architectural Implications and C# Integration

While the infrastructure is language-agnostic, the application code (the microservices) must be written to leverage these capabilities. In C#, we use specific patterns to build cloud-native AI agents.

Interfaces for Abstraction: As mentioned in Book 6, interfaces are crucial for swapping between different AI providers or model architectures. In a microservice, the IModelService interface defines the contract for inference.

using System.Threading.Tasks;

namespace AiAgents.Core
{
    // This interface abstracts the underlying model implementation.
    // Whether it's a local ONNX model, an OpenAI API call, or a self-hosted Llama instance,
    // the consuming service (e.g., the API Controller) doesn't need to know.
    public interface IInferenceService
    {
        Task<InferenceResult> GenerateAsync(InferenceRequest request);
    }

    public record InferenceRequest(string Prompt, int MaxTokens);
    public record InferenceResult(string Text, float[] Embeddings);
}

Dependency Injection (DI) and Lifetimes: In a containerized environment, managing the lifecycle of heavy objects (like the ONNX Runtime session or a TorchSharp model) is critical.

• Singleton Lifetime: The model loader should be registered as a Singleton. Loading a model is expensive; we want to do it once per application lifetime (per container).
• Scoped Lifetime: The inference context might be scoped to a single HTTP request.

using Microsoft.Extensions.DependencyInjection;

public class Startup
{
    public void ConfigureServices(IServiceCollection services)
    {
        // The model is heavy. Register as Singleton so it's loaded once
        // when the container starts and shared across all requests to this replica.
        services.AddSingleton<IModelLoader, OnnxModelLoader>();

        // The inference service uses the loader. Since it depends on a Singleton,
        // it should also be registered as Singleton or Transient, but usually Singleton
        // for stateless services.
        services.AddSingleton<IInferenceService, OnnxInferenceService>();

        // The API Controller handles HTTP requests. It's usually Scoped.
        services.AddScoped<IApiController, InferenceController>();
    }
}

Resilience with Polly: When communicating between microservices (e.g., the Ingestion Service calling the Model Service), network transient failures happen. Polly is a .NET resilience library.

• Retry Policy: If the Model Service times out (perhaps due to a cold start), Polly can retry the request with exponential backoff.
• Circuit Breaker: If the Model Service is down (e.g., GPU node failure), Polly can "open the circuit," failing fast immediately without waiting for timeouts, preserving resources in the calling service.

using Polly;
using Polly.Retry;

// Example of a retry policy for calling a downstream Model Service
AsyncRetryPolicy retryPolicy = Policy
    .Handle<HttpRequestException>()
    .WaitAndRetryAsync(
        retryCount: 3,
        sleepDurationProvider: attempt => TimeSpan.FromSeconds(Math.Pow(2, attempt)), // Exponential backoff
        onRetry: (exception, timeSpan, retryCount, context) =>
        {
            // Log the retry attempt
            Console.WriteLine($"Retry {retryCount} due to {exception.Message}");
        });

Theoretical Foundations

The theoretical foundation of Cloud-Native AI is the decoupling of concerns. By breaking down a monolithic AI application into specialized microservices (Ingestion, Inference, Post-processing), we gain the ability to scale each part independently. Containerization provides the standardized packaging to run these services anywhere. Kubernetes provides the orchestration logic to manage their lifecycle and resource consumption (GPUs). Finally, optimization techniques like quantization and dynamic batching, combined with service mesh observability, ensure that we can handle high-throughput, low-latency inference reliably. This architecture transforms AI from a static, brittle application into a dynamic, resilient, and scalable system.

Hold "Ctrl" to enable pan & zoom

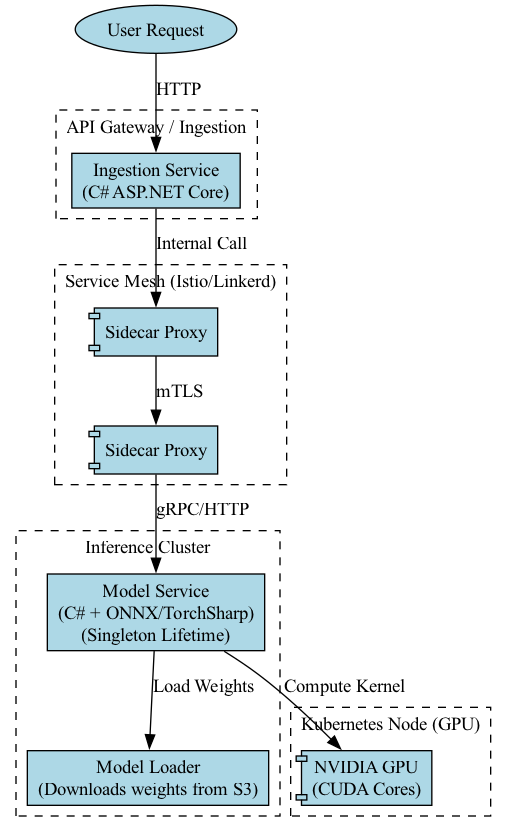

This diagram illustrates how optimization techniques and service mesh observability transform a static AI application into a dynamic, resilient, and scalable system capable of high-throughput, low-latency inference.

Basic Code Example

Here is a simple, self-contained example demonstrating the core logic of a containerized AI agent that accepts a request, performs a mock inference, and returns a response.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text.Json;
using System.Threading.Tasks;

namespace ContainerizedAiAgent
{
    // Represents the incoming request payload from a client or another microservice.
    public class InferenceRequest
    {
        public string Prompt { get; set; } = string.Empty;
        public Dictionary<string, object>? Parameters { get; set; }
    }

    // Represents the outgoing response payload containing the inference result.
    public class InferenceResponse
    {
        public string Result { get; set; } = string.Empty;
        public long ProcessingTimeMs { get; set; }
        public DateTime Timestamp { get; set; }
    }

    // The core service responsible for processing inputs and generating outputs.
    // In a real-world scenario, this would interface with a loaded ML model (e.g., ONNX, TensorFlow.NET).
    public class InferenceService
    {
        // Mock method simulating a complex AI model inference.
        // In a production environment, this would involve tensor operations and GPU acceleration.
        public async Task<InferenceResponse> ProcessRequestAsync(InferenceRequest request)
        {
            var stopwatch = System.Diagnostics.Stopwatch.StartNew();

            // Simulate network latency or model computation time (e.g., 100-500ms)
            await Task.Delay(new Random().Next(100, 500));

            // Simulate AI logic: A simple transformation based on the prompt.
            string processedResult = string.IsNullOrEmpty(request.Prompt)
                ? "I received an empty prompt."
                : $"Processed: {request.Prompt.ToUpper()}";

            stopwatch.Stop();

            return new InferenceResponse
            {
                Result = processedResult,
                ProcessingTimeMs = stopwatch.ElapsedMilliseconds,
                Timestamp = DateTime.UtcNow
            };
        }
    }

    // The entry point of the containerized application.
    // It acts as the HTTP server (e.g., Kestrel) listening for incoming requests.
    public class Program
    {
        public static async Task Main(string[] args)
        {
            Console.WriteLine("Starting Containerized AI Agent...");
            Console.WriteLine("Agent is listening on http://localhost:8080");

            var inferenceService = new InferenceService();

            // Mock HTTP listener loop.
            // In a real ASP.NET Core app, this logic is handled by the HostBuilder and Middleware pipeline.
            // Here we simulate the lifecycle for a standalone executable context.
            while (true)
            {
                try
                {
                    // Simulate receiving a request (e.g., from a Service Mesh sidecar like Envoy)
                    var mockRequest = new InferenceRequest
                    {
                        Prompt = "Hello Kubernetes",
                        Parameters = new Dictionary<string, object> { { "temperature", 0.7 } }
                    };

                    Console.WriteLine($"Received request: {JsonSerializer.Serialize(mockRequest)}");

                    // Delegate to the inference engine
                    var response = await inferenceService.ProcessRequestAsync(mockRequest);

                    // Output the result (simulating sending HTTP 200 OK response)
                    Console.WriteLine($"Response: {JsonSerializer.Serialize(response)}");

                    // Simulate a 5-second interval between health checks or batch processing
                    await Task.Delay(5000);
                }
                catch (Exception ex)
                {
                    Console.WriteLine($"Critical Error: {ex.Message}");
                    // In a containerized environment, this might trigger a restart if the health check fails.
                }
            }
        }
    }
}

Detailed Explanation

The code above demonstrates the fundamental architecture of a microservice hosting an AI agent. Below is a step-by-step breakdown of the logic, data flow, and architectural significance.

1. Data Contracts (InferenceRequest and InferenceResponse)

• Line 8-13 & 16-21: We define Plain Old C# Objects (POCOs) to represent the data exchange.
• Why this matters: In a microservices architecture, services communicate via structured payloads (usually JSON over HTTP/gRPC). Defining strict contracts ensures that the sender (e.g., an API Gateway) and the receiver (the AI Agent) agree on the schema.
• Expert Note: In a high-performance scenario, you might use System.Text.Json source generators (available in modern .NET) to avoid runtime reflection overhead during serialization, which is critical for low-latency inference pipelines.

2. The InferenceService Class

• Line 25-45: This class encapsulates the business logic. It is decoupled from the HTTP transport layer.
• The Simulation: The ProcessRequestAsync method uses Task.Delay to simulate the latency inherent in running a neural network forward pass.
• Architectural Implication: In a real deployment, this service would load a model from disk (e.g., model.onnx) into memory. If running on a GPU node, it would utilize libraries like Microsoft.ML.OnnxRuntime with CUDA execution providers. The logic here is "stateless"—it processes one request and returns a result without modifying internal state, which is a requirement for horizontal scaling in Kubernetes.

3. The Program Entry Point (Container Lifecycle)

• Line 51: The application starts. In a containerized environment (Docker/Kubernetes), this is the process PID 1.
• Line 58-75: The while(true) loop simulates the continuous listening behavior of a web server like Kestrel. In a production ASP.NET Core application, you would use WebApplication.CreateBuilder(args).Build().Run(), but the logic is identical: accept input, process, return output.
• Error Handling (Line 72): The try-catch block is critical. If the AI model crashes or throws an exception, the application logs the error. In Kubernetes, if this process exits (crashes), the RestartPolicy (usually Always) will spin up a new pod to replace it.

4. Execution Flow

1. Initialization: The InferenceService is instantiated. In a real scenario, this is where model weights are loaded into RAM (a time-consuming process done once at startup).
2. Reception: The Main method receives a mock request payload.
3. Processing: The request is passed to ProcessRequestAsync. The await keyword releases the thread while "waiting" for the model inference (simulated), allowing the application to remain responsive to other requests if it were asynchronous.
4. Response: The result is serialized to JSON and logged (sent back to the client).

Common Pitfalls

1. Blocking Synchronous Execution:

   • Mistake: Writing the inference logic as public string ProcessRequest(...) without async/await.
   • Consequence: In a containerized environment, the HTTP request thread is blocked while the model calculates. If you have 10 concurrent requests and only 10 threads in the thread pool, the 11th request will be rejected immediately (HTTP 503), causing a bottleneck. Always use async/await for I/O and long-running CPU tasks.

2. Ignoring Model Loading Time:

   • Mistake: Assuming the container is "Ready" the moment the process starts.
   • Consequence: Kubernetes might send traffic to the pod before the heavy AI model is loaded into memory, resulting in request timeouts.
   • Solution: Implement a Readiness Probe in Kubernetes. The application should expose an endpoint (e.g., /health/ready) that returns 200 OK only after the model has finished loading.

3. Hardcoding Resource Assumptions:

   • Mistake: Assuming the code will always run on a CPU.
   • Consequence: Code written for CPU inference will fail if deployed to a GPU node without the correct drivers or execution providers.
   • Solution: Use dependency injection to switch execution providers based on environment variables (e.g., USE_CUDA=true).

Visualizing the Architecture

The following diagram illustrates how this code fits into the broader Kubernetes ecosystem. The code represents the "AI Agent Pod" in the center.

Hold "Ctrl" to enable pan & zoom

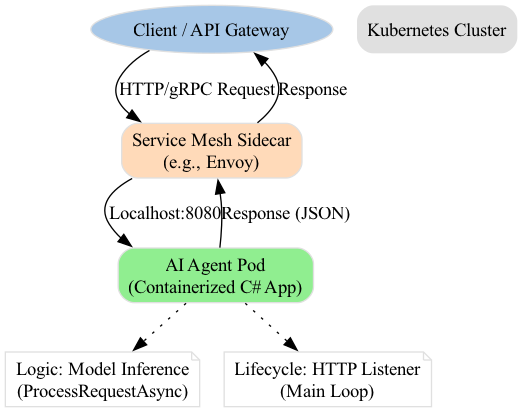

This diagram illustrates the central AI Agent Pod, written in C#, communicating with other Kubernetes components like services and databases within the broader ecosystem.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---

Loading knowledge check...

---

---

Code License: All code examples are released under the MIT License. Github repo.

Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
