Chapter 9: The Distributed Nervous System: Inter-Agent Communication Patterns

Theoretical Foundations

The fundamental challenge of deploying intelligent systems is not the intelligence itself, but the logistics of delivering that intelligence reliably, scalably, and efficiently to the end-user. We are moving from the era of monolithic scripts to distributed intelligence. This transition requires a rigorous theoretical foundation in how software components communicate, how state is managed, and how resources are allocated in a cloud-native environment.

The Analogy: The Central Kitchen vs. The Food Truck Fleet

To understand the architecture we are building, imagine a high-end restaurant (a monolithic AI application). It has one large kitchen, one menu, and if the dinner rush hits, the only way to serve more people is to build a bigger kitchen. It is slow to expand, expensive to maintain, and if the oven breaks, nobody eats.

Now, imagine a Central Cloud Kitchen (Kubernetes) that coordinates a fleet of specialized Food Trucks (Microservices/Containers).

The Kitchen (Kubernetes): It doesn't cook. It provides the infrastructure: the gas lines (power), the water (networking), and the parking spots (scheduling). It monitors the trucks.
The Food Trucks (Containerized Agents): Each truck has a specific job. One makes just the burgers (Text Generation), one makes the fries (Image Recognition), and one handles the drinks (Voice Synthesis). They are self-contained; they have their own engine, their own ingredients, and their own kitchen. You can move them anywhere.
The Menu (The Agent Interface): Even though the trucks are different, the menu is standardized. You order a "Meal" (the request), and the kitchen orchestrates the trucks to deliver the components.
Scaling (Autoscaling): When the lunch rush hits (high traffic), the Kitchen doesn't renovate. It simply calls more Burger Trucks to park in the lot. When the rush ends, it sends them away to save gas.

This is the essence of Cloud-Native AI: Decoupling the model's logic from the execution environment to allow for elastic scaling.

The "What": Containerizing AI Agents

In the context of C# and modern .NET, an "Agent" is not just a class; it is a self-contained unit of execution that perceives its environment, makes decisions based on an LLM (Large Language Model), and acts via tools.

Why Containerization? AI models are heavy. They require specific versions of Python runtimes, CUDA drivers for GPUs, or specific ONNX runtime versions. If you install these directly on a server, you create "Dependency Hell." If you update a driver for one app, you might break another.

Containerization solves this by packaging the Agent Logic (C# code), the Model Inference Engine, and the OS Dependencies into a single immutable artifact (a Docker image).

In C#, we leverage Dockerfile to define this environment. But theoretically, we must understand that the container is the atomic unit of deployment. It allows us to treat an AI model exactly like any other software component.

The "Why": Microservices and The .NET Host Lifecycle

Why break a complex AI application into microservices? Consider a "Customer Support Agent." It needs to:

Read the user's intent (NLP).
Check the user's account balance (Database).
Generate a polite response (LLM).
Send an email (External API).

If this is one monolithic process, a failure in the Email API (step 4) might crash the whole process, losing the context of the NLP and the LLM generation.

By using Microservices, we isolate these concerns. The EmailService can fail, and the Orchestrator can simply retry or notify the user, while the GenerationService remains unaffected.

The Role of IHost and BackgroundService In modern C#, we utilize the Generic Host (IHost) to manage the lifecycle of these agents. This is a concept heavily refined in .NET 6 and beyond. An AI agent is rarely a simple console app that starts, does one thing, and dies. It is a long-running service that must:

Listen for incoming requests (via HTTP, gRPC, or Message Queues).
Manage memory efficiently (handling large model weights).
Handle graceful shutdowns (saving state before the container is killed).

The BackgroundService abstraction is crucial here. It allows us to run the inference loop inside a standard .NET host, which integrates seamlessly with container health checks and orchestration signals.

The "How": Interfaces and Dependency Injection for Model Swapping

A critical architectural pattern in AI engineering is the Strategy Pattern, implemented via Dependency Injection (DI) and Interfaces. This is where C# shines.

AI is volatile. Today you might use OpenAI's GPT-4; tomorrow, cost pressures might force you to switch to a local open-source model like Llama 3, or perhaps a specialized model for code generation like DeepSeek-Coder.

If your business logic is tightly coupled to OpenAiClient, you are trapped.

The Solution: We define the capability of "Generating Text" as an interface, not a concrete implementation.

using System.Threading.Tasks;

// The abstraction: What the agent needs to do.
public interface IInferenceEngine
{
    Task<string> GenerateAsync(string prompt, InferenceParameters parameters);
}

// Concrete implementation 1: Cloud-based
public class OpenAiEngine : IInferenceEngine { /* ... */ }

// Concrete implementation 2: Local/On-Premise
public class LocalLlamaEngine : IInferenceEngine { /* ... */ }

By injecting IInferenceEngine into our Agent's constructor, we decouple the agent's reasoning from the model provider. This allows us to deploy the same container image to different environments (Dev vs. Prod) and simply change the configuration to swap the underlying engine.

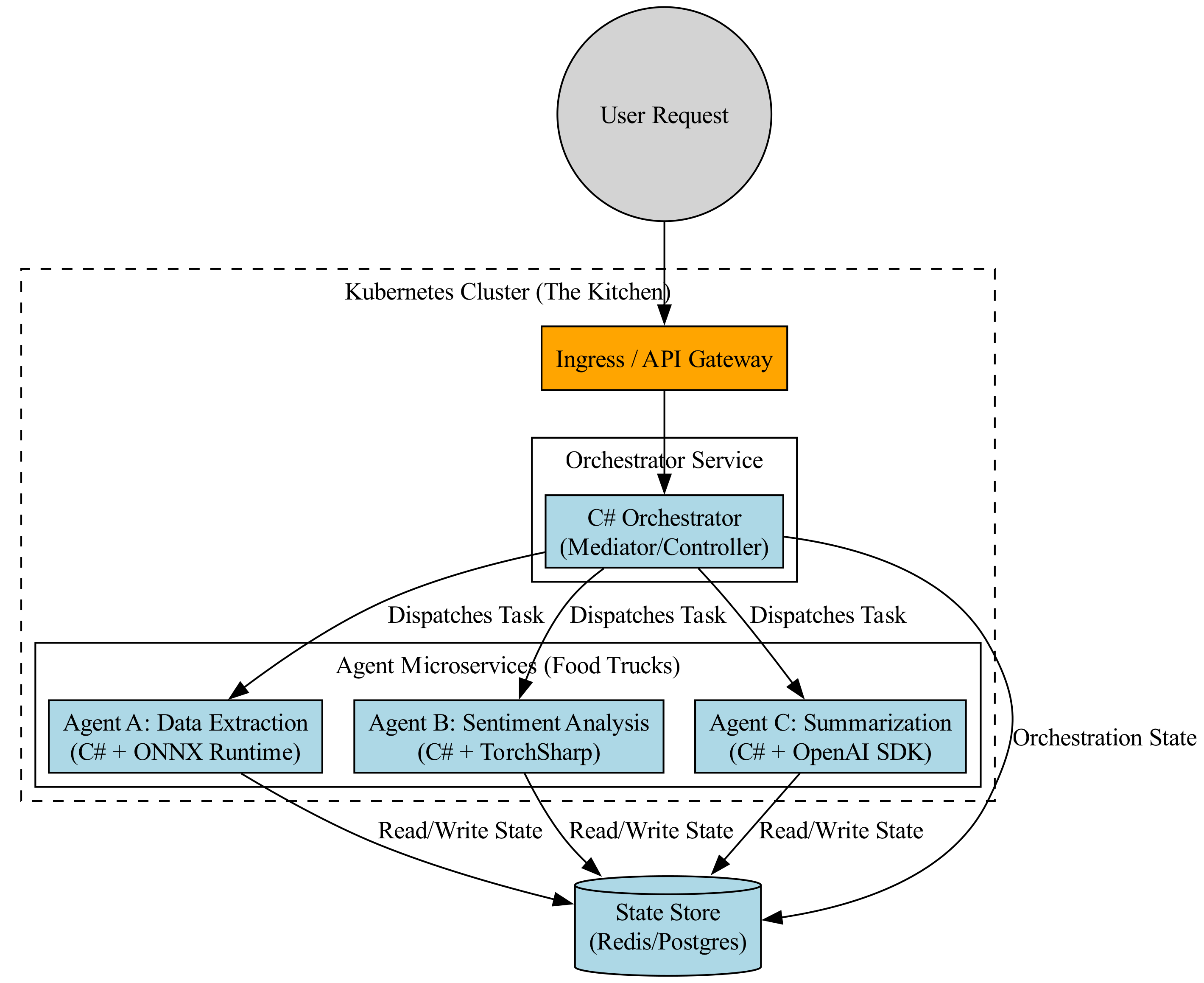

Orchestrating Multi-Agent Systems

When we scale to complex inference, we rarely use one agent. We use a swarm. This introduces the concept of Orchestration vs. Choreography.

Choreography: Each agent acts independently based on events, like dancers in a flash mob who have no conductor.
Orchestration: A central entity (The Orchestrator) directs the agents.

In our C# architecture, we often use a pattern similar to the Mediator Pattern (via libraries like MediatR) or a custom Orchestrator class. The Orchestrator holds a list of registered IAgent instances.

The Flow:

The Orchestrator receives a complex task: "Analyze this financial report."
It decomposes the task.
It dispatches sub-tasks to specific agents:
- DataExtractorAgent (High CPU, short duration).
- SentimentAnalysisAgent (High Memory, long duration).
- SummarizationAgent (Lightweight, fast).

The theoretical foundation here is Asynchronous Message Passing. The Orchestrator does not block. It sends a command and awaits a response event. This is vital for scaling; if the SentimentAnalysisAgent is slow, it doesn't block the DataExtractorAgent from processing its part.

Scaling Inference: The Economics of Latency and Throughput

This is the most complex part of the theoretical foundation. In standard web apps, scaling is about Throughput (requests per second). In AI, we must balance Throughput with Latency (time to first token) and Cost (GPU time).

The GPU Bottleneck: GPUs are expensive. Unlike CPU cycles, which are cheap and plentiful, GPU cycles are gold. You cannot simply "spawn" more GPUs instantly.

Strategies for Scaling:

Horizontal Pod Autoscaling (HPA): This is the standard Kubernetes approach. We monitor metrics like CPU/Memory usage or, more specifically, Queue Depth (how many requests are waiting for the GPU?). If the queue grows, Kubernetes adds more Pods (replicas of our container).
- Constraint: This requires the model to be loaded into memory for each replica. If your model is 50GB, you can only fit a few replicas on a node.
Model Sharding (Tensor Parallelism): For massive models (like GPT-4 scale), a single GPU cannot hold the model. We split the model across multiple GPUs within a single Pod. In C#, we manage this via the underlying runtime (like ONNX Runtime or TorchSharp), configuring the execution provider to utilize multiple CUDA devices.
Batching: Instead of processing one request at a time, the inference engine waits a few milliseconds to collect a "batch" of requests and processes them simultaneously. This drastically improves throughput (requests per second) but increases latency (the wait time to form the batch).
- C# Implementation: We use Channel<T> or Dataflow blocks to buffer requests and flush them to the model at fixed intervals.

Observability: The Nervous System of the Swarm

In a distributed system, "it works" is not enough. We need to know how it works.

Distributed Tracing (OpenTelemetry): When a user prompt travels through the Orchestrator -> SentimentAgent -> InferenceEngine -> Database, we need to see that journey. In C#, we use ActivitySource and Activity classes to instrument our code. This allows us to visualize the request flow and identify bottlenecks.

Metrics: We must expose metrics for the scraping engine (Prometheus).

inference_duration_seconds: How long the model took to generate.
tokens_processed_total: For cost analysis.
gpu_memory_usage: To detect memory leaks.

Logging: Structured logging (using ILogger<T>) is mandatory. We don't log strings; we log JSON objects with correlation IDs. This allows us to query logs for a specific user session across all microservices.

Summary of the Architecture

The theoretical foundation we are building relies on these pillars:

Immutability: Containers ensure consistency.
Abstraction: Interfaces ensure flexibility.
Isolation: Microservices ensure resilience.
Observability: Telemetry ensures trust.

We are not just writing code; we are engineering a distributed nervous system for intelligence. The C# features we use (IHost, BackgroundService, Channels, Interfaces) are the tools that allow us to impose order on the chaotic, resource-intensive nature of AI inference.

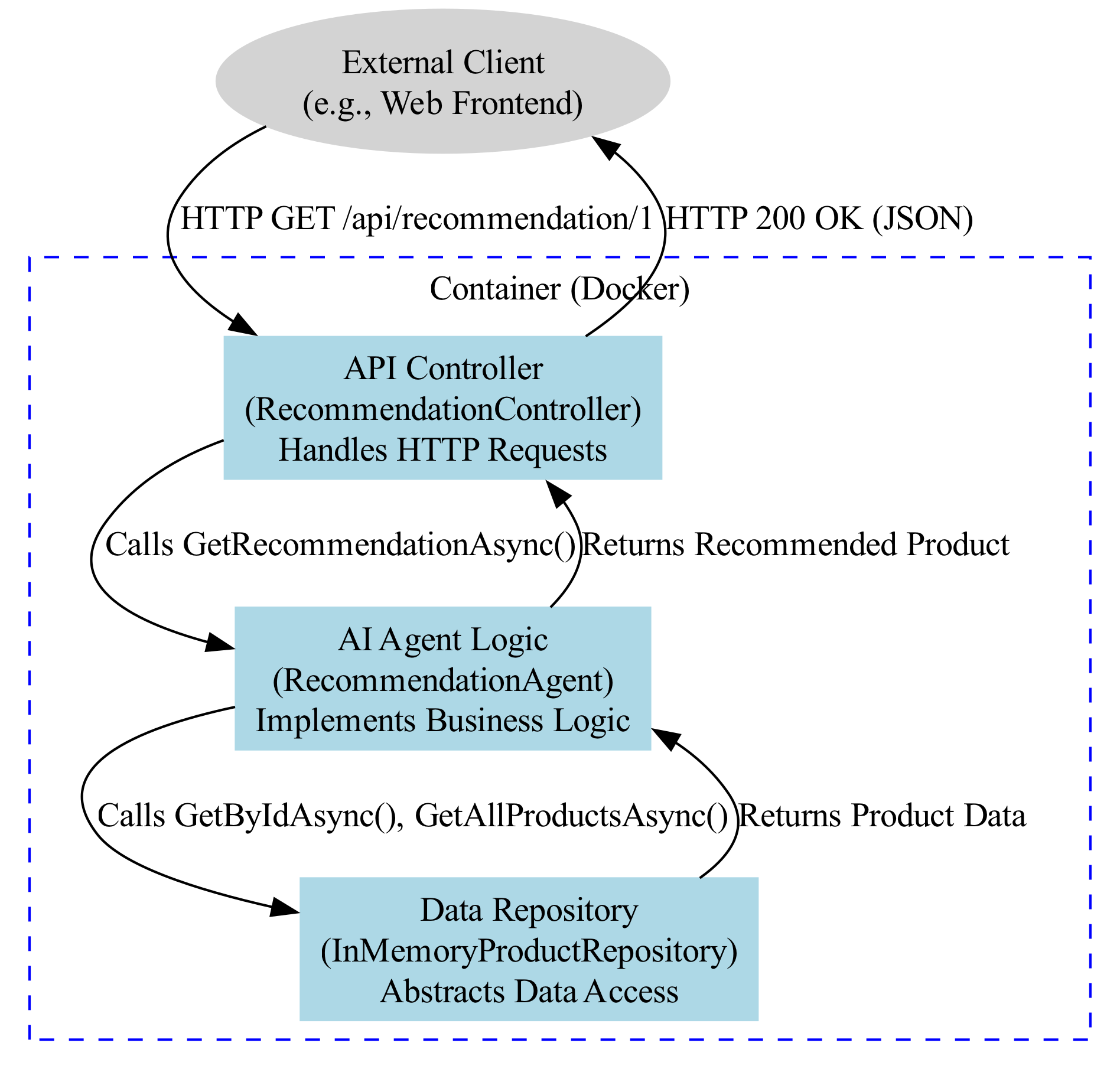

Basic Code Example

Imagine a small e-commerce startup. During a flash sale, the website experiences a massive surge in traffic. The product recommendation engine, a critical component for driving sales, suddenly becomes the bottleneck. A single, monolithic service running on a single server cannot handle the load, leading to slow response times and lost revenue. The solution is not just a bigger server, but a smarter architecture. We need to break down our system into smaller, independent services—microservices—that can be deployed, scaled, and managed individually. In this example, we will build a "Hello World" version of such a system: a simple "Product Recommendation Agent" that is containerized and ready to be deployed as a scalable microservice.

// ProductRecommendationAgent.cs
// This single file contains a fully self-contained ASP.NET Core web API.
// It defines a microservice that acts as an AI agent to provide product recommendations.

using Microsoft.AspNetCore.Builder;         // For configuring the web application pipeline.
using Microsoft.AspNetCore.Mvc;             // For attributes like [HttpGet] and [FromServices].
using Microsoft.Extensions.DependencyInjection; // For the dependency injection container.
using Microsoft.Extensions.Hosting;         // For the application lifetime (IHost).
using System.Collections.Generic;           // For using List<T>.
using System.Linq;                          // For using LINQ's .FirstOrDefault().
using System.Text.Json;                     // For JSON serialization options.
using System.Text.Json.Serialization;       // For [JsonInclude] attribute.

// 1. **Domain Model Definition**: Represents the core data structure for our products.
// This is a simple record to hold product information. Records are immutable by default,
// which is excellent for preventing accidental state changes in a distributed system.
public record Product(
    int Id,
    string Name,
    string Category,
    double Price
);

// 2. **Data Abstraction**: Defines a contract for fetching product data.
// By depending on an interface, we decouple our agent's logic from the concrete data source.
// This is a key principle of microservices, allowing us to swap implementations
// (e.g., from an in-memory list to a database) without changing the agent's core logic.
public interface IProductRepository
{
    Task<IEnumerable<Product>> GetAllProductsAsync();
    Task<Product?> GetByIdAsync(int id);
}

// 3. **Concrete Data Source**: A mock implementation of the repository.
// In a real-world scenario, this would be a service that queries a database,
// another microservice, or an external API.
public class InMemoryProductRepository : IProductRepository
{
    private readonly List<Product> _products = new()
    {
        new Product(1, "Quantum Laptop", "Electronics", 1200.00),
        new Product(2, "ErgoChair Pro", "Furniture", 350.00),
        new Product(3, "AI-Powered Mouse", "Electronics", 75.50),
        new Product(4, "Standing Desk", "Furniture", 450.00),
        new Product(5, "4K Monitor", "Electronics", 600.00)
    };

    public Task<IEnumerable<Product>> GetAllProductsAsync()
    {
        // Asynchronously return the list of products.
        return Task.FromResult(_products.AsEnumerable());
    }

    public Task<Product?> GetByIdAsync(int id)
    {
        // Asynchronously find a product by its ID.
        var product = _products.FirstOrDefault(p => p.Id == id);
        return Task.FromResult(product);
    }
}

// 4. **AI Agent Logic**: The core "brain" of our microservice.
// This class contains the business logic for generating recommendations.
// It's registered in the DI container, making it available to our controllers.
public class RecommendationAgent
{
    private readonly IProductRepository _repository;

    // The constructor uses Dependency Injection to get an instance of the repository.
    // This is known as "Constructor Injection" and is a standard pattern.
    public RecommendationAgent(IProductRepository repository)
    {
        _repository = repository;
    }

    // This method encapsulates the recommendation algorithm.
    // For this "Hello World" example, the logic is simple:
    // Find the product and recommend another product from the same category.
    // In a real AI agent, this could involve a machine learning model inference call.
    public async Task<Product?> GetRecommendationAsync(int forProductId)
    {
        var sourceProduct = await _repository.GetByIdAsync(forProductId);
        if (sourceProduct == null) return null;

        var allProducts = await _repository.GetAllProductsAsync();

        // A simple recommendation logic: find another product in the same category.
        return allProducts
            .Where(p => p.Category == sourceProduct.Category && p.Id != sourceProduct.Id)
            .FirstOrDefault();
    }
}

// 5. **API Controller**: The public-facing entry point for our microservice.
// This class defines the HTTP endpoints that external clients (like a web frontend) can call.
[ApiController]
[Route("api/[controller]")] // Sets the base route to "/api/recommendation"
public class RecommendationController : ControllerBase
{
    private readonly RecommendationAgent _agent;

    // Constructor injection for the agent.
    public RecommendationController(RecommendationAgent agent)
    {
        _agent = agent;
    }

    // Defines an HTTP GET endpoint: e.g., /api/recommendation/1
    // This endpoint takes a product ID as a route parameter.
    [HttpGet("{productId}")]
    public async Task<IActionResult> GetRecommendation(int productId)
    {
        var recommendedProduct = await _agent.GetRecommendationAsync(productId);

        if (recommendedProduct == null)
        {
            // If no recommendation is found, return a 404 Not Found response.
            return NotFound($"No recommendation found for product ID {productId}.");
        }

        // If a recommendation is found, return it as a 200 OK response with the JSON body.
        return Ok(recommendedProduct);
    }
}

// 6. **Application Entry Point**: The main program that builds and runs the web host.
public class Program
{
    public static async Task Main(string[] args)
    {
        // Create a builder for the web application.
        var builder = WebApplication.CreateBuilder(args);

        // Configure services for dependency injection.
        // This is the "composition root" where we wire up our dependencies.
        builder.Services.AddControllers(); // Adds MVC controllers to the DI container.

        // Register our custom services.
        // We use Scoped lifetime because we want a new repository/agent instance per HTTP request.
        // This is important for services that hold state (though ours don't).
        builder.Services.AddScoped<IProductRepository, InMemoryProductRepository>();
        builder.Services.AddScoped<RecommendationAgent>();

        // Build the application.
        var app = builder.Build();

        // Configure the HTTP request pipeline.
        // This sets up how incoming requests are handled.
        app.UseRouting(); // Enables routing for the application.

        // Map the controller routes to the endpoints.
        app.MapControllers();

        // Launch the application.
        // This will start an HTTP listener (by default on http://localhost:5000 and https://localhost:5001).
        // The application will run until it is shut down (e.g., by pressing Ctrl+C).
        Console.WriteLine("Recommendation Agent Microservice is starting...");
        Console.WriteLine("Try navigating to: http://localhost:5000/api/recommendation/1");
        await app.RunAsync();
    }
}

Detailed Line-by-Line Explanation

Here is a step-by-step breakdown of the code, explaining the purpose and significance of each logical block.

Domain Model Definition (Product record):
- public record Product(...): We define a record named Product. In modern C#, records are the preferred way to model data-centric objects. They are immutable by default, meaning once a Product object is created, its properties (Id, Name, etc.) cannot be changed. This is a powerful feature for microservices, as it prevents unintended side effects and makes the application's state more predictable and easier to reason about.
Data Abstraction (IProductRepository interface):
- public interface IProductRepository: This interface defines a contract. It specifies what data operations are possible (get all products, get a product by ID) but not how they are performed. This is a critical architectural pattern called the Dependency Inversion Principle. Our core agent logic will depend on this interface, not on a concrete class.
- Task<IEnumerable<Product>> GetAllProductsAsync(): The methods are async and return a Task. This is essential for building high-performance, scalable web services. It allows the server to handle other incoming requests while it's waiting for a potentially slow operation (like a database query) to complete, rather than blocking the thread.
Concrete Data Source (InMemoryProductRepository class):
- public class InMemoryProductRepository : IProductRepository: This class provides the actual implementation of the data contract. It "implements" the interface.
- private readonly List<Product> _products = new() { ... }: For this simple example, the "database" is just an in-memory list of products. The readonly keyword ensures the list reference cannot be changed after the object is constructed.
- return Task.FromResult(...): Since we are not doing any actual I/O (like a database call), we wrap the result in a completed Task to satisfy the async signature required by the interface.
AI Agent Logic (RecommendationAgent class):
- public class RecommendationAgent: This is the heart of our microservice. It contains the business logic.
- private readonly IProductRepository _repository;: It holds a private reference to the repository interface. It does not know or care if the data comes from memory, a SQL database, or a remote API.
- public RecommendationAgent(IProductRepository repository): The constructor takes an IProductRepository as an argument. This is Constructor Injection. The dependency is "injected" from the outside by the framework's DI container.
- public async Task<Product?> GetRecommendationAsync(int forProductId): This is the main logic method. It's async to properly call other async methods. It first finds the source product, then uses LINQ (.Where(), .FirstOrDefault()) to find a matching product from the same category. The ? in Product? indicates it can return null.
API Controller (RecommendationController class):
- [ApiController] and [Route("api/[controller]")]: These are attributes that provide metadata to the ASP.NET Core framework. They tell the framework that this class is an API controller and define its base URL route (e.g., /api/recommendation).
- public class RecommendationController : ControllerBase: It inherits from ControllerBase, which provides helper methods for handling HTTP requests (like Ok(), NotFound()).
- [HttpGet("{productId}")]: This attribute maps HTTP GET requests with a productId in the URL path to this method. For example, a request to /api/recommendation/5 will invoke this method with productId = 5.
- return Ok(recommendedProduct);: This method returns a standard HTTP 200 OK status code and serializes the recommendedProduct object into a JSON response body.
- return NotFound(...): This method returns an HTTP 404 Not Found status code if no product or recommendation could be found.
Application Entry Point (Program class):
- var builder = WebApplication.CreateBuilder(args);: This is the modern .NET 6+ minimal hosting model. It initializes a new instance of the WebApplication builder with default configurations (logging, configuration sources, etc.).
- builder.Services.AddScoped(...): This is where we configure the Dependency Injection (DI) container.
  - AddScoped means that for each incoming HTTP request, a single new instance of InMemoryProductRepository and RecommendationAgent will be created and shared within that request's scope. This is the most common lifetime for web services.
- var app = builder.Build();: This assembles the application with all the configured services.
- app.UseRouting(); and app.MapControllers();: These methods configure the request processing pipeline. UseRouting matches the incoming URL to an endpoint, and MapControllers tells the framework to look for attributes on our controller classes to find those endpoints.
- await app.RunAsync();: This starts the web server and begins listening for requests. The await ensures the Main method doesn't exit until the server is shut down.

Common Pitfalls

Forgetting await in an async method chain.
- Mistake: A developer might write var product = _repository.GetByIdAsync(id); without the await keyword.
- Consequence: The variable product will not be a Product object. It will be a Task<Product>. The subsequent line of code trying to access product.Name will fail with a compilation error. If the Task is ignored entirely, the method will return immediately (with a default value) before the data has even been fetched, leading to incorrect and unpredictable behavior. Always await the Task if you need its result.
Blocking on asynchronous code (.Result or .Wait()).
- Mistake: In older .NET code, you might see var product = _repository.GetByIdAsync(id).Result;.
- Consequence: This is extremely dangerous in ASP.NET Core. It blocks the thread waiting for the task to complete. In a high-traffic scenario, this can exhaust the thread pool, causing the entire application to become unresponsive and unable to serve other requests. This is known as a "thread pool starvation" deadlock. Always use async/await all the way up the call chain.
Incorrectly configuring Dependency Injection lifetimes.
- Mistake: Registering a service that holds state (like a service with a private field for a user's shopping cart) as Singleton instead of Scoped.
- Consequence: A Singleton service is created only once for the entire application lifetime. If it holds state, that state will be shared by all users across all concurrent requests. User A's shopping cart data could be accidentally mixed with User B's, leading to severe data corruption and security vulnerabilities. Use Scoped for per-request services and Transient for services that are stateless and can be created new each time they are needed.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
