Chapter 10: Dynamic Scaling: Orchestration with Kubernetes Autoscalers

Theoretical Foundations

The theoretical foundation for orchestrating and scaling containerized AI agents rests upon the principles of declarative state management, event-driven elasticity, and resilient service communication. In a cloud-native ecosystem, an AI agent is not merely a static executable; it is a dynamic entity whose lifecycle—creation, scaling, healing, and termination—must be automated to handle the stochastic nature of inference workloads. Unlike traditional web servers where traffic is relatively predictable, AI inference often suffers from "burstiness," where a sudden influx of requests (e.g., a viral user-generated content event) can overwhelm static infrastructure, leading to high latency or dropped requests.

To understand this deeply, we must first establish the architectural shift from monolithic AI deployments to distributed agent microservices.

The Agent as a Stateful Microservice

In previous chapters, we discussed the decomposition of monolithic AI pipelines into discrete functional units: pre-processing, model inference, and post-processing. In Chapter 10, we elevate this concept by treating the inference unit itself as an autonomous agent. This agent is containerized, meaning it packages the model weights, the inference runtime (like ONNX Runtime or PyTorch), and the C# orchestration logic into an immutable artifact.

The "Why" here is critical: Isolation and Density. By containerizing agents, we can pack multiple heterogeneous models (e.g., a text-embedding model and a text-generation model) onto the same GPU node without dependency conflicts. However, this density introduces complexity. How do we ensure that a spike in embedding requests doesn't starve the generation model of VRAM?

This is where Kubernetes (the standard orchestrator) and C# (our language of choice for control logic) intersect. While Kubernetes provides the primitives (Pods, Deployments, Services), C# provides the intelligence to manipulate these primitives dynamically.

The Analogy: The Smart Highway System

Imagine a highway system where cars represent inference requests.

  • Static Scaling is like building a fixed number of lanes. If traffic is low, lanes are wasted. If a traffic jam occurs, the lanes are insufficient, and cars pile up indefinitely.
  • Dynamic Orchestration is a Smart Highway. The road surface itself is modular (containers). Sensors (metrics) monitor traffic density (queue depth). When congestion hits a threshold, the road automatically widens by snapping in new modular segments (pods). When traffic clears, segments detach to save space. Furthermore, there are dedicated lanes (GPU time-slicing) for sports cars (large language models) and buses (batch processing), ensuring they don't collide.

1. Declarative State and the Desired State Loop

The core theoretical concept of orchestration is the Desired State Loop. In C#, we often think imperatively: "If X happens, do Y." In orchestration, we think declaratively: "I want the system to look like this."

Using C#’s Records (introduced in C# 9 and refined in later versions), we can model the desired state of an AI agent cluster with immutable precision. This is crucial because the state of a distributed system is constantly converging toward (or drifting away from) this desired state.

Consider the definition of an AgentDeployment:

// Using modern C# Records to define an immutable desired state
public record AgentDeployment(
    string Name,
    string ModelArtifactUri,
    int MinReplicas,
    int MaxReplicas,
    HardwareConstraint Hardware,
    ScalingPolicy Policy
);

public record HardwareConstraint(
    int RequiredGpuCores,
    MemorySize Memory
);

public record ScalingPolicy(
    ScalingMetric Metric,
    double TargetValue
);

public enum ScalingMetric
{
    QueueDepth,
    InferenceLatencyMs,
    GpuUtilization
}

Why this matters: In a previous chapter (Book 6, perhaps on Microservice Design Patterns), we discussed the Repository Pattern for data access. Here, we apply a similar pattern but for infrastructure. The orchestrator's job is to continuously compare the Actual State (number of running pods) with the Desired State (the record above) and reconcile the differences. C#’s pattern matching features (switch expressions) are ideal for writing these reconciliation loops efficiently.

2. Horizontal Pod Autoscaling (HPA) and Custom Metrics

Standard Horizontal Pod Autoscalers (HPA) in Kubernetes typically rely on CPU and Memory. For AI agents, these are lagging indicators. A GPU can be at 0% utilization while the inference queue is backing up (if the batch size is small or the model is memory-bound).

Therefore, the theoretical foundation requires Custom Metrics. We need to expose a metric like inference_queue_depth from the C# application to the orchestrator.

The Mechanism:

  1. The C# Agent: The agent runs an ASP.NET Core background service that pushes metrics to a Prometheus endpoint.
  2. The Adapter: A metrics adapter (often running as a sidecar or a dedicated service) scrapes these endpoints.
  3. The Controller: The Kubernetes HPA controller queries the adapter and scales the Deployment.

In C#, we use Interfaces to abstract the metric emission. This allows us to swap between different monitoring backends (Prometheus, OpenTelemetry, Azure Monitor) without changing the core inference logic.

public interface IMetricEmitter
{
    void RecordQueueDepth(int depth);
    void RecordInferenceLatency(TimeSpan latency);
}

// Implementation using modern C# Async Streams for efficient reporting
public class PrometheusMetricEmitter : IMetricEmitter
{
    public void RecordQueueDepth(int depth)
    {
        // Expose metric for scraping
        Metrics.Gauge("ai_agent_queue_depth", depth);
    }

    // ... other implementations
}

The "Why" of Custom Metrics: If we rely solely on CPU, we might scale up too late. AI inference is often compute-bound in bursts. By scaling on Queue Depth, we proactively add capacity before the latency degrades. This is the difference between a user waiting 200ms vs 5 seconds.

3. Zero-Downtime Deployments and State Transfer

When updating a model (e.g., swapping a v1.0 model for a v2.0 model), we cannot simply kill the old pods and start new ones. Inference is stateful; requests in flight must be handled gracefully.

We employ two primary strategies here, both heavily reliant on C#’s Graceful Shutdown mechanisms:

  1. Rolling Updates: Kubernetes gradually replaces old pods with new ones.
  2. Blue/Green Deployment: We spin up a full parallel environment (Green) with the new model. Once verified, we switch traffic (via a Service Mesh) instantly.

C#’s Role in Graceful Shutdown: When Kubernetes decides to terminate a pod (during a rollout or scale-down), it sends a SIGTERM signal. The C# runtime catches this. We must ensure that the IHost (in ASP.NET Core) stops accepting new requests but finishes processing the current batch.

// In Program.cs of the AI Agent
var builder = WebApplication.CreateBuilder(args);

// Configure the host to handle shutdown signals
builder.Host.ConfigureHostOptions(options =>
{
    options.ShutdownTimeout = TimeSpan.FromSeconds(30); // Allow time for in-flight inferences
});

var app = builder.Build();

// Middleware to track active requests
app.Use(async (context, next) =>
{
    // Increment active request counter
    await next.Invoke();
    // Decrement counter
});

app.MapPost("/infer", async (InferenceRequest req) =>
{
    // Heavy computation
});

// The application will not exit until the timeout is reached or requests complete
await app.RunAsync();

Why this is critical for AI: GPU memory operations are not instantly interruptible. If a model is halfway through a forward pass, killing the process abruptly leaves the GPU in an undefined state or locks memory. The graceful shutdown window allows the C# runtime to dispose of the IDisposable model resources correctly.

4. Resource Optimization: GPU Sharing and Time-Slicing

A theoretical challenge in AI orchestration is the Granularity of Resource Allocation. A modern GPU (e.g., NVIDIA A100) is a massive resource. Assigning a full GPU to a small, lightweight agent (like a sentiment analysis model) is wasteful.

We solve this using GPU Partitioning or Time-Slicing. While this is often configured at the driver level, the C# application must be aware of its constraints.

We use Environment Variables injected by the orchestrator to inform the C# agent of its "slice" of the GPU.

public class GpuConfig
{
    // Read from environment variables set by Kubernetes Device Plugins
    public int VisibleDeviceIndex { get; } =
        int.Parse(Environment.GetEnvironmentVariable("CUDA_VISIBLE_DEVICES") ?? "0");

    public int MaxVramMb { get; } =
        int.Parse(Environment.GetEnvironmentVariable("NVIDIA_GPU_MEMORY_LIMIT") ?? "4096");
}

The Analogy: This is like Timesharing a Vacation Home. Instead of owning the whole house (GPU), you own a specific week (Time-Slice) or a specific floor (Memory Partition). The C# code must respect these boundaries; it cannot allocate memory beyond its assigned slice, or the orchestrator (via the kernel) will kill the process.

5. Service Mesh and Inter-Agent Communication

In a distributed inference pipeline, agents talk to each other. For example, a OrchestratorAgent might call a TokenizerAgent, which calls a ModelAgent.

The theoretical foundation here is Service Discovery and Resilience Patterns (Circuit Breaking, Retries).

While Kubernetes Services handle basic load balancing, a Service Mesh (like Istio or Linkerd) injects a sidecar proxy next to our C# agent. The C# agent communicates with the proxy via localhost.

C#’s HttpClient and Resilience: Modern C# (IHttpClientFactory) combined with libraries like Polly allows us to implement resilience strategies directly in the agent code, complementing the service mesh.

// Using Polly for resilience within the agent
var retryPolicy = HttpPolicyExtensions
    .HandleTransientHttpError()
    .OrResult(msg => msg.StatusCode == System.Net.HttpStatusCode.TooManyRequests)
    .WaitAndRetryAsync(3, retryAttempt => TimeSpan.FromSeconds(Math.Pow(2, retryAttempt)));

// The agent uses this policy to call downstream agents
public async Task<InferenceResult> CallDownstreamAgent(string url)
{
    return await retryPolicy.ExecuteAsync(async () =>
    {
        // This call is intercepted by the Service Mesh sidecar
        return await _httpClient.GetAsync(url);
    });
}

Why this matters: In a distributed system, network partitions are inevitable. If the TokenizerAgent is down, the ModelAgent shouldn't hang indefinitely. By using C#’s modern async/await patterns combined with resilience libraries, we ensure the agent remains responsive and fails fast, allowing the orchestrator to potentially reschedule the workload or return a graceful degradation message.

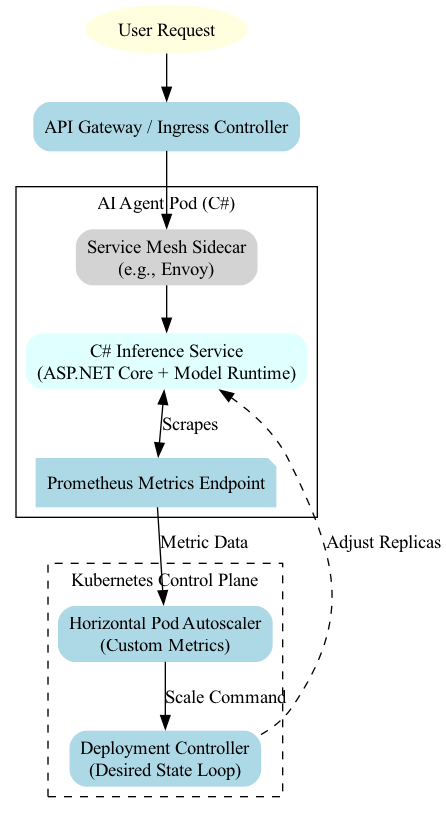

6. Visualization of the Orchestration Flow

To visualize the flow of a request through these orchestrated agents, consider the following interaction between the C# control plane and the Kubernetes runtime.

A C# control plane orchestrates a request through a sequence of Kubernetes agents, visualizing the flow from initial submission to final execution.
Hold "Ctrl" to enable pan & zoom

A C# control plane orchestrates a request through a sequence of Kubernetes agents, visualizing the flow from initial submission to final execution.

Theoretical Foundations

The theoretical foundation of this chapter implies a shift in how we write C# code for AI.

  1. Idempotency: Code must be idempotent. If a request is processed twice due to a retry, the model output should remain consistent.
  2. Observability: Code must emit telemetry. We cannot debug a distributed system without structured logs and metrics.
  3. Decoupling: Logic must be decoupled from infrastructure. The C# code should not care if it runs on a single GPU or a cluster of TPUs; it should rely on abstractions (Interfaces) and environment configuration.

By mastering these patterns, we move from running "scripts" to engineering "systems" that can autonomously scale to meet the demands of global AI workloads.

Basic Code Example

Let's consider a scenario where an AI agent performs sentiment analysis on user reviews. During a flash sale, the number of incoming reviews spikes dramatically. A single container cannot handle the load, leading to timeouts and dropped requests. We need a mechanism to automatically scale the number of agent instances based on the current workload (queue depth) rather than just CPU usage.

Here is a self-contained C# example simulating a Kubernetes Horizontal Pod Autoscaler (HPA) using a custom metric (inference queue depth). This code uses modern C# features like Top-level statements, System.Threading.Channels, and IAsyncEnumerable.

using System.Collections.Concurrent;
using System.Threading.Channels;

// --- Domain Model: The AI Agent's Payload ---
public record SentimentRequest(Guid Id, string Text);
public record SentimentResult(Guid Id, string Sentiment, double Confidence);

// --- The AI Inference Engine ---
// Simulates a heavy computation (e.g., ONNX Runtime inference)
public class InferenceEngine
{
    private static readonly Random _rng = new();

    public async Task<SentimentResult> PredictAsync(SentimentRequest request)
    {
        // Simulate GPU inference latency (100ms - 500ms)
        await Task.Delay(_rng.Next(100, 500));

        // Simulate simple logic based on text length to vary results
        var sentiment = request.Text.Length > 50 ? "Positive" : "Neutral";
        var confidence = 0.5 + (_rng.NextDouble() * 0.5); // 0.5 to 1.0

        return new SentimentResult(request.Id, sentiment, confidence);
    }
}

// --- The AI Agent (Containerized Service) ---
// Represents a single pod running the AI workload
public class AiAgent
{
    private readonly InferenceEngine _engine = new();
    private readonly Channel<SentimentRequest> _queue;
    private readonly string _agentId;
    private int _processedCount = 0;

    public AiAgent(string agentId, int capacity = 10)
    {
        _agentId = agentId;
        // Bounded channel prevents memory overflow if the agent is overwhelmed
        _queue = Channel.CreateBounded<SentimentRequest>(new BoundedChannelOptions(capacity)
        {
            FullMode = BoundedChannelFullMode.Wait
        });
    }

    public string AgentId => _agentId;
    public int QueueDepth => _queue.Reader.Count;
    public int ProcessedCount => _processedCount;

    // Simulates the Kubernetes container entrypoint
    public async Task StartProcessingAsync(CancellationToken cancellationToken)
    {
        await foreach (var request in _queue.Reader.ReadAllAsync(cancellationToken))
        {
            var result = await _engine.PredictAsync(request);
            Interlocked.Increment(ref _processedCount);
            // In a real app, we would send 'result' to an output sink
        }
    }

    public bool TryAcceptRequest(SentimentRequest request)
    {
        return _queue.Writer.TryWrite(request);
    }

    public async Task StopAsync()
    {
        _queue.Writer.Complete();
    }
}

// --- The Orchestrator (Simulates Kubernetes HPA Controller) ---
// Monitors metrics and scales agents up/down
public class HpaOrchestrator
{
    private readonly ConcurrentDictionary<string, AiAgent> _agents = new();
    private readonly int _maxAgents;
    private readonly int _targetQueueDepthPerAgent;

    public HpaOrchestrator(int maxAgents = 10, int targetQueueDepthPerAgent = 5)
    {
        _maxAgents = maxAgents;
        _targetQueueDepthPerAgent = targetQueueDepthPerAgent;
    }

    public int CurrentAgentCount => _agents.Count;

    // Simulates the Kubernetes Metrics Server
    private int GetTotalQueueDepth()
    {
        return _agents.Values.Sum(a => a.QueueDepth);
    }

    // The Core Logic: Calculate desired replicas based on custom metric
    private int CalculateDesiredReplicas()
    {
        int totalDepth = GetTotalQueueDepth();

        // Formula: Desired Replicas = ceil(Total Queue Depth / Target Depth per Agent)
        // This is the standard HPA algorithm for custom metrics.
        int desired = (int)Math.Ceiling((double)totalDepth / _targetQueueDepthPerAgent);

        // Clamp to min/max replicas (Kubernetes behavior)
        if (desired < 1) desired = 1;
        if (desired > _maxAgents) desired = _maxAgents;

        return desired;
    }

    public async Task ManageScalingAsync(CancellationToken cancellationToken)
    {
        while (!cancellationToken.IsCancellationRequested)
        {
            // Check metrics every 2 seconds (like HPA sync period)
            await Task.Delay(2000, cancellationToken);

            int desired = CalculateDesiredReplicas();
            int current = CurrentAgentCount;

            if (desired > current)
            {
                // Scale Out
                int scaleOutCount = desired - current;
                for (int i = 0; i < scaleOutCount; i++)
                {
                    var newAgent = new AiAgent($"agent-{Guid.NewGuid().ToString()[..8]}");
                    _agents.TryAdd(newAgent.AgentId, newAgent);

                    // Start the container (background task)
                    _ = newAgent.StartProcessingAsync(cancellationToken);

                    Console.WriteLine($"[HPA] Scaling OUT: Started {newAgent.AgentId}. Total: {_agents.Count}");
                }
            }
            else if (desired < current)
            {
                // Scale In (Graceful Shutdown)
                // In Kubernetes, we would mark pod for termination (SIGTERM) and wait for active connections to finish.
                // Here, we pick the agent with the shortest queue to drain.
                int scaleInCount = current - desired;

                var agentsToScaleIn = _agents.Values
                    .OrderBy(a => a.QueueDepth)
                    .ThenBy(a => a.ProcessedCount)
                    .Take(scaleInCount)
                    .ToList();

                foreach (var agent in agentsToScaleIn)
                {
                    if (_agents.TryRemove(agent.AgentId, out var removedAgent))
                    {
                        await removedAgent.StopAsync(); // Stop accepting new requests
                        Console.WriteLine($"[HPA] Scaling IN: Stopped {removedAgent.AgentId}. Remaining: {_agents.Count}");
                    }
                }
            }
        }
    }

    public void RouteRequest(SentimentRequest request)
    {
        // Simple Round Robin or Least-Connection strategy
        // We pick the agent with the shortest queue to balance load
        var targetAgent = _agents.Values
            .OrderBy(a => a.QueueDepth)
            .FirstOrDefault();

        if (targetAgent != null)
        {
            if (!targetAgent.TryAcceptRequest(request))
            {
                Console.WriteLine($"[Warning] Agent {targetAgent.AgentId} queue full. Request {request.Id} rejected.");
            }
        }
    }
}

// --- Main Program: Simulation Driver ---
public class Program
{
    public static async Task Main()
    {
        Console.WriteLine("--- Starting AI Agent Autoscaling Simulation ---");

        // 1. Initialize Orchestrator (HPA Controller)
        // Max 5 pods, Target 3 requests per pod
        var hpa = new HpaOrchestrator(maxAgents: 5, targetQueueDepthPerAgent: 3);

        using var cts = new CancellationTokenSource();

        // 2. Start the HPA Control Loop in background
        var scalingTask = hpa.ManageScalingAsync(cts.Token);

        // 3. Simulate Incoming Traffic (Flash Sale)
        var trafficGenerator = Task.Run(async () =>
        {
            for (int i = 1; i <= 20; i++)
            {
                // Burst of 5 requests every second
                for (int j = 0; j < 5; j++)
                {
                    var req = new SentimentRequest(Guid.NewGuid(), $"Review text number {i}-{j}. This is a pretty long review to simulate processing time.");
                    hpa.RouteRequest(req);
                    Console.WriteLine($"[Traffic] Generated Request {req.Id}");
                }
                await Task.Delay(1000);
            }
        });

        // 4. Monitor and Report Status
        var monitorTask = Task.Run(async () =>
        {
            while (!cts.Token.IsCancellationRequested)
            {
                await Task.Delay(3000, cts.Token);
                Console.WriteLine($"[Status] Agents: {hpa.CurrentAgentCount} | Total Processed: {hpa.CurrentAgentCount}");
                // Note: In a real app, we'd aggregate ProcessedCount from agents
            }
        });

        await trafficGenerator;

        // Let the system drain for a bit
        await Task.Delay(5000);
        cts.Cancel();

        await scalingTask;
        Console.WriteLine("--- Simulation Complete ---");
    }
}

Detailed Explanation

1. Domain Model and Inference Engine

  • SentimentRequest / SentimentResult: These record types provide immutable data structures for communication between the API gateway and the AI agents. Records are ideal for DTOs (Data Transfer Objects) in microservices due to their built-in value equality and concise syntax.
  • InferenceEngine: This class simulates the actual AI workload (e.g., loading a PyTorch or TensorFlow model). In a real-world scenario, this would wrap an ONNX Runtime or ML.NET session. We simulate latency using Task.Delay to mimic GPU processing time, ensuring the queue doesn't drain instantly.

2. The AiAgent (Pod Simulation)

  • Channel<T>: We use System.Threading.Channels for the internal queue. This is a modern, high-performance alternative to BlockingCollection or ConcurrentQueue. It supports async/await natively and allows for backpressure handling (using BoundedChannelOptions).
  • FullMode = Wait: If the queue is full (the agent is overwhelmed), TryWrite will return false, or we can use WriteAsync to await availability. This mimics Kubernetes backpressure where requests might be rejected or queued at the load balancer level.
  • StartProcessingAsync: This represents the container's running state. It loops indefinitely, pulling items from the channel and executing the inference. It runs as a background task (_ = agent.StartProcessingAsync(...)).

3. The HpaOrchestrator (The Control Plane)

  • ConcurrentDictionary: Stores the active agents. Thread-safety is crucial here because the scaling logic and request routing happen concurrently.

  • CalculateDesiredReplicas: This implements the core HPA logic. For custom metrics (like queue depth), the formula is generally: $$ \text{Desired Replicas} = \lceil \frac{\text{Current Metric Value}}{\text{Target Value}} \rceil $$ If we have 10 items in the queue and a target of 3 items per pod, we need \(10/3 = 3.33 \rightarrow 4\) pods.

  • Scaling Logic:

    • Scale Out: Instantiates new AiAgent objects and starts their processing loops immediately.
    • Scale In: This is critical. In Kubernetes, you cannot just kill a pod if it's processing a request (stateful inference). We simulate a graceful shutdown by:
      1. Removing the agent from the routing pool (TryRemove).
      2. Calling StopAsync(), which completes the channel writer (preventing new items).
      3. The agent continues processing existing items in its queue until empty before the task terminates.

4. The Simulation (Main)

  • Traffic Generation: We simulate a "flash sale" by generating bursts of requests. This creates a "sawtooth" pattern in queue depth, triggering the HPA to scale out.
  • Routing Strategy: The RouteRequest method uses a "Least Connections" strategy. It finds the agent with the shortest queue (OrderBy(a => a.QueueDepth)). This is a simple but effective load balancing technique for stateful services where processing times vary.

Common Pitfalls

  1. Race Conditions in Scaling Logic:

    • Mistake: Reading the queue depth and spawning a new pod in the same instant without locking.
    • Consequence: If two requests arrive simultaneously, both might see an empty agent list and spawn two agents, leading to over-provisioning.
    • Fix: Use thread-safe collections (like ConcurrentDictionary) and atomic operations for metric aggregation.

  2. Ignoring Graceful Shutdown (The "Zombie Pod" Problem):

    • Mistake: Immediately terminating an agent when scaling down (Environment.Exit(0) or Task.Run cancellation without awaiting).
    • Consequence: If an agent is halfway through a 500ms inference, killing it drops the result and potentially corrupts the model state in memory.
    • Fix: Always implement a drain mechanism. In Kubernetes, this involves handling SIGTERM, waiting for active requests to finish (via health checks), and only then exiting.

  3. Over-Reliance on CPU Metrics:

    • Mistake: Configuring HPA solely on CPU utilization for AI workloads.
    • Consequence: GPU-bound inference often has low CPU usage while the GPU is saturated. The pod won't scale until the CPU spikes (which might never happen), causing latency to skyrocket.
    • Fix: Use custom metrics (Queue Depth, GPU utilization, or Request Latency) as demonstrated in the example.

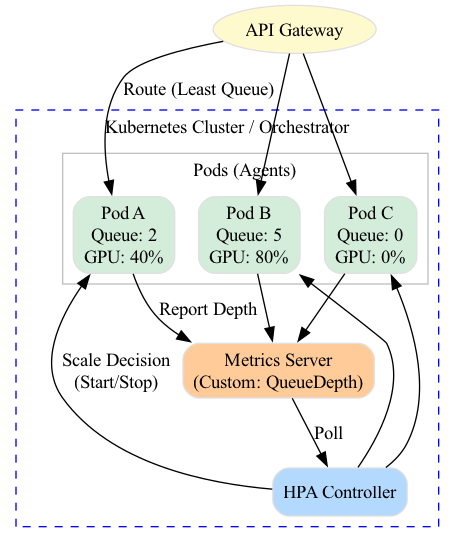

Visualizing the Architecture

A diagram illustrates an application pod that scales based on custom metrics like queue depth or request latency, ensuring performance stability even when CPU usage remains low.
Hold "Ctrl" to enable pan & zoom

A diagram illustrates an application pod that scales based on custom metrics like queue depth or request latency, ensuring performance stability even when CPU usage remains low.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
