Chapter 11: Scaling Inference Pipelines: From Theory to Practice

Theoretical Foundations

The operationalization of AI agents represents a paradigm shift from monolithic, static application architectures to dynamic, distributed systems capable of intelligent decision-making at scale. In the context of cloud-native microservices, an AI agent is not merely a model inference endpoint; it is a discrete, autonomous unit of business logic that encapsulates reasoning, state management, and tool usage. Containerizing these agents and scaling their inference capabilities introduces unique challenges that differ significantly from traditional stateless web services. These challenges stem from the computational intensity of AI models, the latency requirements of real-time inference, and the probabilistic nature of AI outputs.

To understand the operational requirements, we must first dissect the anatomy of a containerized AI agent. Unlike a standard microservice that might perform CRUD operations on a database, an AI agent orchestrates complex workflows. It might receive a user prompt, retrieve relevant context from a vector database, invoke a Large Language Model (LLM) for reasoning, parse the response, and then trigger an external API action. This lifecycle demands a runtime environment that is both lightweight (for fast startup) and resource-rich (for GPU acceleration).

The Microservices Evolution: From Monoliths to Agents

In previous chapters, we discussed the decomposition of monolithic applications into microservices, focusing on domain-driven design and API gateways. We established that microservices improve fault isolation and scalability. However, AI agents extend this concept by introducing intelligence at the service boundary.

Consider a monolithic e-commerce platform. In Book 1, we might have refactored the "Order Processing" module into a dedicated microservice. In Book 7, we elevate this further: the "Order Processing" service becomes an "Order Agent." This agent doesn't just process data; it reasons about it. It might analyze customer sentiment in a support ticket or predict inventory shortages based on unstructured text inputs.

The transition to agent-based architectures requires a shift in how we view state. Traditional microservices are often designed to be stateless to facilitate horizontal scaling. AI agents, however, often maintain conversation history or task context. This introduces the concept of ephemeral state—state that exists only for the duration of a specific inference task but is critical for the agent's coherence.

Containerization: The Standardized Unit of Deployment

Containerization, specifically using Docker, provides the isolation and portability necessary to run these agents consistently across environments—from a developer's laptop to a multi-node Kubernetes cluster.

The "Shipping Container" Analogy: Imagine a global shipping company. In the past, they had to handle loose cargo: boxes, barrels, and crates of varying shapes and sizes. Loading a ship was a logistical nightmare, and goods were often damaged. The invention of the standardized shipping container revolutionized logistics. It didn't matter what was inside—whether it was electronics, textiles, or machinery—the container fit on the same ship, crane, and truck.

In cloud-native AI:

  • The Loose Cargo is the AI model (e.g., a PyTorch .pt file), the inference script (Python/C#), the system dependencies (CUDA drivers), and the configuration files.
  • The Standardized Shipping Container is the Docker image.
  • The Global Logistics Network is Kubernetes.

By packaging the AI agent into a container, we decouple the application logic from the underlying infrastructure. We can run the same container locally with a CPU-only environment (for debugging) and in production with NVIDIA A100 GPUs (for performance), provided we abstract the hardware access correctly.

However, AI containers differ from standard web app containers in two critical ways:

  1. Image Size: AI models are large. A single ONNX or Safetensors file can range from 2GB to 20GB. This bloats the container image size, slowing down startup times (cold starts) and increasing storage costs.
  2. Dependency Hell: AI frameworks rely heavily on specific versions of CUDA, cuDNN, and system libraries. A mismatch between the container's OS-level libraries and the host's GPU drivers can cause runtime failures that are difficult to debug.

Optimizing Model Serving: Caching and Layering

To mitigate the latency of pulling large images, we employ advanced container layering strategies.

Concept: The Immutable Layer In Docker, each instruction in a Dockerfile creates a layer. Layers are cached. If we place the model weights in a lower layer, changes to the application code (upper layers) won't invalidate the cache for the model weights.

// Conceptual Dockerfile structure for an AI Agent
/*
# Layer 1: Base OS (Immutable, rarely changes)
FROM nvidia/cuda:12.1-runtime-ubuntu22.04

# Layer 2: Dependencies (Semi-stable)
RUN apt-get update && apt-get install -y python3.10 dotnet8-runtime

# Layer 3: Model Weights (Heavy, Immutable)
# By placing this early, we avoid re-downloading the model on code changes.
COPY ./models/mistral-7b-v0.1.gguf /app/models/

# Layer 4: Application Code (Volatile)
COPY ./bin/Release/net8.0/publish/ /app/
WORKDIR /app
ENTRYPOINT ["dotnet", "Agent.dll"]
*/

The "Russian Doll" Analogy: Think of a Russian Matryoshka doll. The largest, most solid doll (the base OS and model weights) sits inside. Inside that, you have a slightly smaller doll (the runtime environment). Inside that, the smallest doll (the application code) sits right at the core. When you update the application, you only swap the smallest doll. You don't need to repaint or reshape the large outer dolls. This minimizes the "work" required to deploy a new version.

Model Caching Strategies: In a production cluster, pulling a 10GB model from a registry every time a pod scales up is inefficient. We utilize Node-Level Caching or Init Containers.

  • Init Containers: These run before the main application container starts. They can download the model from a persistent volume or object storage and place it in a shared emptyDir volume. Once the model is cached on the node, subsequent pods on the same node can reuse it.
  • Shared Memory (shm): AI inference often requires passing large tensors between processes. Docker containers have a default /dev/shm size (64MB), which is insufficient for LLMs. We must explicitly mount larger shared memory volumes.

Scaling Inference: The GPU Bottleneck

Scaling AI agents is fundamentally different from scaling web servers because of the hardware constraint: the GPU.

In a typical web microservice, scaling is trivial. If CPU usage hits 80%, Kubernetes spins up another pod. The new pod handles requests immediately. For AI inference, the "heavy lifting" is loading the model into GPU memory (VRAM). VRAM is a finite resource. A single NVIDIA A100 (80GB) might only fit two instances of a 30B parameter model.

The "Valet Parking" Analogy: Imagine a high-end restaurant with a small parking lot (GPU VRAM) managed by a valet (Kubernetes).

  • Standard Web Service: Cars (requests) are small and easy to park. If the lot is full, the valet calls a rideshare (scales horizontally). It's cheap and fast.
  • AI Inference: These are large buses (LLMs). Loading a bus into the parking spot takes time (model loading latency). Once a bus is parked, it takes up 4-5 spots (VRAM consumption). You cannot simply call a rideshare because the buses are specialized. You need a system that predicts when buses will arrive and reserves spots accordingly.

This is why we cannot rely solely on standard Kubernetes Horizontal Pod Autoscalers (HPA) based on CPU usage. CPU usage is a poor proxy for GPU memory pressure or inference latency.

Kubernetes-Native Scaling with KEDA

To solve the scaling problem, we use KEDA (Kubernetes Event-Driven Autoscaling). KEDA acts as an advanced metrics adapter that scales applications based on external events and custom metrics, not just CPU/RAM.

How KEDA Works for AI Agents:

  1. Event Source: KEDA connects to event sources like RabbitMQ, Kafka, or Azure Service Bus.
  2. Scaler: It monitors the "queue length" (number of pending inference requests).
  3. Action: It scales the number of pods (replicas) in a Kubernetes Deployment or StatefulSet.

The "Bank Teller" Analogy: Standard CPU-based scaling is like opening more bank teller windows based on how fast the tellers are breathing (CPU usage). This is inaccurate. A teller might be breathing fast because they are stressed, not because there are customers. KEDA-based scaling is like opening windows based on the length of the line (queue depth). If there are 50 people in line, open 5 windows. If the line is empty, close all but one. This is precise and cost-effective.

KEDA ScaledObject Configuration (Conceptual): We define a ScaledObject that tells KEDA to monitor a specific metric.

apiVersion: keda.sh/v1alpha1
kind: ScaledObject
metadata:
  name: ai-agent-scaler
spec:
  scaleTargetRef:
    name: ai-agent-deployment
  minReplicaCount: 1  # Always keep one warm to avoid cold starts
  maxReplicaCount: 10 # Limit based on GPU availability
  triggers:

  - type: prometheus
    metadata:
      serverAddress: http://prometheus-server
      metricName: inference_queue_length
      threshold: "10" # Scale up if queue length > 10

Managing GPU Resources: Scheduling and Isolation

In Kubernetes, GPUs are treated as extended resources. You cannot request "half a GPU" in the standard scheduler; you request an integer count (e.g., nvidia.com/gpu: 1). However, modern AI workloads often don't saturate a full GPU, leading to waste.

Time-Slicing and MIG (Multi-Instance GPU): To optimize utilization, we use NVIDIA's MIG technology or time-slicing plugins. MIG allows a single physical GPU to be partitioned into isolated virtual GPUs with their own memory and compute cores. This is analogous to partitioning a physical hard drive into multiple logical drives (C:, D:, E:).

In Kubernetes, we use the NVIDIA Device Plugin to expose these partitions as schedulable resources. An AI agent can then request nvidia.com/gpu: 1 (a full GPU) or nvidia.com/mig-1g.10gb: 1 (a slice with 10GB of memory).

The "Office Space" Analogy: Imagine an office building (the GPU).

  • Without MIG: You rent the entire floor (GPU). Even if you only have one employee (AI model), you pay for the whole floor. Other teams cannot use the empty desks.
  • With MIG: The building manager partitions the floor into private offices (GPU instances). You rent a single office (MIG slice) that is secure and has its own resources. Other teams rent other offices. The building is fully utilized.

Efficient Model Serving: Batching and Quantization

The final theoretical pillar is the optimization of the inference computation itself. We must distinguish between Interactive Inference (low latency, single user) and Batch Inference (high throughput, offline).

Dynamic Batching: When multiple users send requests to an AI agent, processing them one by one is inefficient because the GPU is underutilized during memory transfers. Dynamic batching aggregates multiple requests into a single "batch" processed simultaneously.

The "School Bus" Analogy: If 30 students need to get to school, putting them in 30 separate taxis is expensive and slow (sequential processing). A school bus (batch) picks them all up at once. The bus takes the same amount of fuel to traverse the route regardless of whether it carries 10 or 30 students (within limits). Similarly, a GPU processes a batch of 32 tokens almost as fast as a batch of 1 token, dramatically increasing throughput.

Quantization: To fit larger models into limited VRAM or to run faster on less powerful hardware, we use quantization. This reduces the precision of the model's weights (e.g., from 32-bit floating point FP32 to 4-bit integers INT4).

The "Photo Resolution" Analogy: Imagine a high-resolution photograph (FP32). It captures every nuance of light and shadow but takes up massive storage space and is slow to transmit. A low-resolution JPEG (INT4) is smaller and loads instantly. While you lose some fine detail, the main subject remains recognizable. For text generation, the "detail" (mathematical precision) is often less critical than the semantic meaning, making quantization a highly effective trade-off.

Architectural Implications and Edge Cases

Cold Start Latency: The most critical edge case in AI scaling is the cold start. When KEDA scales a deployment from 0 to 1 replica, the pod must start, download the container image, and load the model weights into VRAM. This can take 30 seconds to several minutes.

  • Mitigation: We use Pre-warming or Sticky Sessions. We keep a minimum replica count (minReplicaCount: 1) to ensure capacity is always available. For bursty traffic, we might use Predictive Scaling based on historical patterns (e.g., scaling up at 9 AM when users typically log in).

GPU Memory Fragmentation: In long-running agents, allocating and deallocating memory for inference requests can lead to fragmentation, causing OOM (Out of Memory) errors even when total free memory seems sufficient.

  • Mitigation: We use memory pools or frameworks like TensorRT that manage memory allocation explicitly. In C#, we must be careful with IDisposable patterns and ensure that large tensors are released deterministically using using blocks.

Dependency on Previous Concepts: This architecture relies heavily on the Dependency Injection (DI) patterns established in Book 3. We use DI to inject different inference engines (e.g., IInferenceEngine) into the agent. This allows us to swap a local ONNX runtime for a cloud-based OpenAI client without changing the agent's business logic. The containerization strategy isolates these dependencies, ensuring that the DI configuration matches the runtime environment.

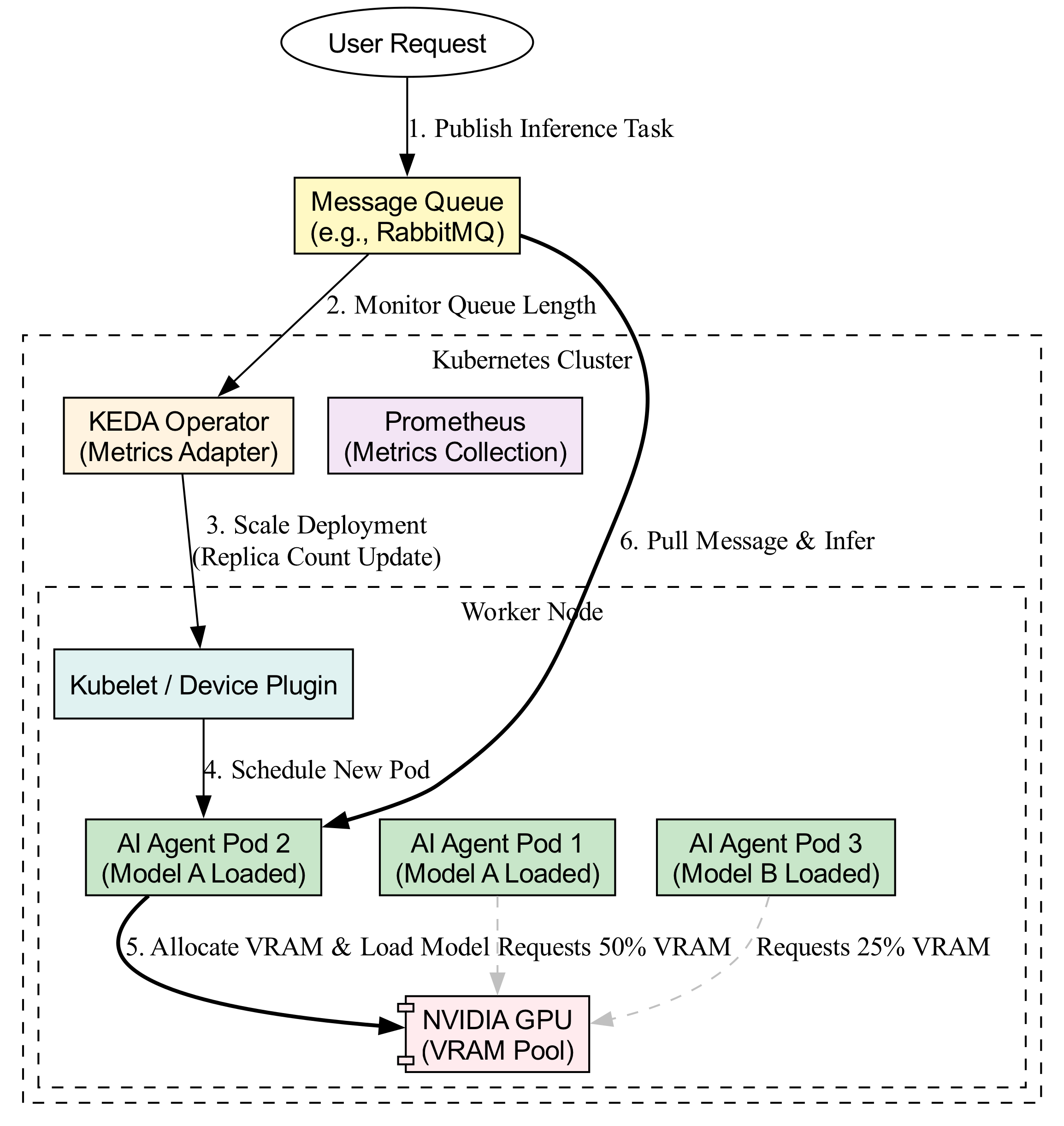

Visualization of the Scaling Architecture

The following diagram illustrates the flow of a request through the containerized AI agent ecosystem, highlighting the interaction between the event driver (KEDA) and the resource scheduler (Kubernetes).

Diagram: Architecture
Hold "Ctrl" to enable pan & zoom

Diagram: Architecture

The Role of C# in High-Performance AI Agents

While Python dominates AI research, C# is increasingly vital in production AI systems due to its performance, strong typing, and robust concurrency models. In the context of containerized agents, C# serves as the orchestration layer.

1. Structured Concurrency with Task<T> and async/await: AI agents are inherently asynchronous. They wait for network I/O (API calls), disk I/O (model loading), and GPU computation. C#'s async/await pattern allows us to write non-blocking code that is easy to read and maintain.

// Conceptual example of an asynchronous AI agent method
public async Task<InferenceResult> GenerateResponseAsync(string prompt)
{
    // 1. Context Retrieval (I/O Bound)
    var context = await _vectorStore.SearchAsync(prompt);

    // 2. Model Inference (Compute Bound / GPU)
    // Note: We use a custom awaiter for GPU operations if not natively supported
    var tensor = await _inferenceEngine.InferAsync(prompt, context);

    // 3. Post-Processing (CPU Bound)
    var text = await _tokenizer.DecodeAsync(tensor);

    return new InferenceResult(text);
}
This structure ensures that while the GPU is churning on inference, the CPU thread is released to handle other requests, maximizing throughput in a containerized environment with limited CPU cores.

2. Span and Memory for Zero-Copy Tensor Manipulation: Moving data between the CPU and GPU is a major bottleneck. C# provides Span<T> and Memory<T> to work with contiguous memory regions without allocating new objects on the heap. When processing tensor data (arrays of floats), we can use these types to slice and dice data efficiently, reducing Garbage Collection (GC) pressure. High GC frequency can cause "stop-the-world" pauses, which are detrimental to real-time inference latency.

3. Dependency Injection and Configuration: As mentioned, DI is crucial for flexibility. We use the Microsoft.Extensions.DependencyInjection library to abstract the inference provider.

// Defining the interface (The "Contract")
public interface IInferenceProvider
{
    Task<Tensor> PredictAsync(Tensor input);
}

// Implementation for Local ONNX
public class OnnxProvider : IInferenceProvider { /* ... */ }

// Implementation for Cloud OpenAI
public class OpenAiProvider : IInferenceProvider { /* ... */ }

// Registration in Startup.cs
public void ConfigureServices(IServiceCollection services)
{
    // Swappable based on environment variables
    if (Configuration.GetValue<bool>("UseLocalModel"))
        services.AddSingleton<IInferenceProvider, OnnxProvider>();
    else
        services.AddSingleton<IInferenceProvider, OpenAiProvider>();
}
This pattern allows the same container image to run in different modes (e.g., a lightweight container for development using a small local model, and a heavy GPU container for production using a large cloud model), simply by changing environment variables in the Kubernetes manifest.

Theoretical Foundations

Operationalizing AI agents requires a synthesis of container orchestration, hardware-aware scheduling, and intelligent concurrency. We move beyond simple request-response cycles to manage complex, stateful workflows. By leveraging Kubernetes for orchestration and KEDA for event-driven scaling, we treat inference not as a continuous load but as a bursty, queue-based workload. C# provides the robust, high-performance runtime necessary to orchestrate these agents, ensuring type safety and efficient resource management. The ultimate goal is to create a system that is as resilient and scalable as traditional web microservices, while accommodating the unique computational demands of artificial intelligence.

Basic Code Example

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text.Json;
using System.Threading.Tasks;
using Microsoft.Extensions.Hosting;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Logging;
using Microsoft.Extensions.Options;
using Microsoft.Extensions.Configuration;
using Microsoft.Extensions.Configuration.Json;
using System.IO;
using System.Text.Json.Serialization;

namespace CloudNativeAI.Microservices
{
    // ==================== CORE DOMAIN MODELS ====================
    // These models represent the data contracts for our AI inference service.
    // In a production environment, these would likely be defined in a shared library
    // or generated via gRPC/Protobuf for strict schema enforcement.

    /// <summary>
    /// Represents an incoming inference request from a client.
    /// In a real-world scenario, this might be a user prompt, an image tensor,
    /// or a batch of data points.
    /// </summary>
    public record InferenceRequest
    {
        [JsonPropertyName("prompt")]
        public string Prompt { get; init; } = string.Empty;

        [JsonPropertyName("request_id")]
        public string RequestId { get; init; } = Guid.NewGuid().ToString();

        [JsonPropertyName("timestamp")]
        public DateTime Timestamp { get; init; } = DateTime.UtcNow;

        [JsonPropertyName("parameters")]
        public Dictionary<string, object>? Parameters { get; init; }
    }

    /// <summary>
    /// Represents the response generated by the AI model.
    /// </summary>
    public record InferenceResponse
    {
        [JsonPropertyName("result")]
        public string Result { get; init; } = string.Empty;

        [JsonPropertyName("request_id")]
        public string RequestId { get; init; } = string.Empty;

        [JsonPropertyName("processing_time_ms")]
        public long ProcessingTimeMs { get; init; }

        [JsonPropertyName("model_version")]
        public string ModelVersion { get; init; } = "v1.0";
    }

    // ==================== ABSTRACTIONS ====================

    /// <summary>
    /// Defines the contract for an AI model executor.
    /// This abstraction allows us to swap out different model backends
    /// (e.g., ONNX Runtime, TensorFlow.NET, or a remote HTTP API) without changing the service logic.
    /// </summary>
    public interface IModelExecutor
    {
        Task<InferenceResponse> ExecuteAsync(InferenceRequest request);
    }

    // ==================== CONCRETE IMPLEMENTATIONS ====================

    /// <summary>
    /// A mock implementation of an AI model executor.
    /// In a real containerized environment, this would interface with a loaded model file
    /// (e.g., a .onnx file) and a runtime engine.
    /// </summary>
    public class MockTransformerModelExecutor : IModelExecutor
    {
        private readonly ILogger<MockTransformerModelExecutor> _logger;
        private readonly ModelConfig _config;
        private bool _isModelLoaded = false;

        public MockTransformerModelExecutor(ILogger<MockTransformerModelExecutor> logger, IOptions<ModelConfig> config)
        {
            _logger = logger;
            _config = config.Value;
        }

        public async Task<InferenceResponse> ExecuteAsync(InferenceRequest request)
        {
            EnsureModelLoaded();

            // Simulate the latency of model inference.
            // In a real GPU-bound workload, this delay represents the time to transfer
            // data to VRAM, execute kernels, and retrieve results.
            var stopwatch = System.Diagnostics.Stopwatch.StartNew();

            _logger.LogInformation("Processing request {RequestId} with prompt: {Prompt}",
                request.RequestId, request.Prompt);

            // Simulate "thinking" time based on prompt length (heuristic for demo)
            await Task.Delay(Math.Min(2000, request.Prompt.Length * 10));

            stopwatch.Stop();

            // Simulate a simple generative response
            string result = $"Generated response for: '{request.Prompt}' (Model: {_config.Name}, Version: {_config.Version})";

            _logger.LogInformation("Completed request {RequestId} in {Elapsed}ms",
                request.RequestId, stopwatch.ElapsedMilliseconds);

            return new InferenceResponse
            {
                Result = result,
                RequestId = request.RequestId,
                ProcessingTimeMs = stopwatch.ElapsedMilliseconds,
                ModelVersion = _config.Version
            };
        }

        private void EnsureModelLoaded()
        {
            if (!_isModelLoaded)
            {
                _logger.LogInformation("Loading model '{ModelName}' into memory...", _config.Name);
                // Simulate I/O bound model loading (reading from disk/network)
                Thread.Sleep(500);
                _isModelLoaded = true;
                _logger.LogInformation("Model '{ModelName}' loaded successfully.", _config.Name);
            }
        }
    }

    // ==================== CONFIGURATION ====================

    public class ModelConfig
    {
        public string Name { get; set; } = "DefaultModel";
        public string Version { get; set; } = "1.0.0";
        public int MaxBatchSize { get; set; } = 32;
    }

    public class ServiceConfig
    {
        public int Port { get; set; } = 8080;
    }

    // ==================== HTTP API LAYER ====================

    /// <summary>
    /// A minimal HTTP API endpoint handler.
    /// In a production setting, this would be an ASP.NET Core Controller or Minimal API endpoint.
    /// </summary>
    public class InferenceApiHandler
    {
        private readonly IModelExecutor _modelExecutor;
        private readonly ILogger<InferenceApiHandler> _logger;

        public InferenceApiHandler(IModelExecutor modelExecutor, ILogger<InferenceApiHandler> logger)
        {
            _modelExecutor = modelExecutor;
            _logger = logger;
        }

        public async Task HandleRequestAsync(HttpListenerContext context)
        {
            try
            {
                if (context.Request.HttpMethod != "POST" || !context.Request.Url.AbsolutePath.Equals("/infer"))
                {
                    context.Response.StatusCode = 404;
                    await context.Response.OutputStream.WriteAsync(System.Text.Encoding.UTF8.GetBytes("Not Found"));
                    return;
                }

                using var reader = new StreamReader(context.Request.InputStream);
                var json = await reader.ReadToEndAsync();
                var request = JsonSerializer.Deserialize<InferenceRequest>(json);

                if (request == null || string.IsNullOrWhiteSpace(request.Prompt))
                {
                    context.Response.StatusCode = 400;
                    await context.Response.OutputStream.WriteAsync(System.Text.Encoding.UTF8.GetBytes("Invalid Request: Prompt is required."));
                    return;
                }

                var response = await _modelExecutor.ExecuteAsync(request);

                var jsonResponse = JsonSerializer.Serialize(response, new JsonSerializerOptions { WriteIndented = true });

                context.Response.ContentType = "application/json";
                context.Response.StatusCode = 200;
                var buffer = System.Text.Encoding.UTF8.GetBytes(jsonResponse);
                await context.Response.OutputStream.WriteAsync(buffer);
            }
            catch (Exception ex)
            {
                _logger.LogError(ex, "Error handling inference request");
                context.Response.StatusCode = 500;
                await context.Response.OutputStream.WriteAsync(System.Text.Encoding.UTF8.GetBytes($"Internal Server Error: {ex.Message}"));
            }
            finally
            {
                context.Response.Close();
            }
        }
    }

    // ==================== HOSTING INFRASTRUCTURE ====================

    /// <summary>
    /// Background service that listens for HTTP requests and delegates to the handler.
    /// This mimics the behavior of a web server running inside a container.
    /// </summary>
    public class InferenceHostedService : IHostedService
    {
        private readonly HttpListener _listener;
        private readonly InferenceApiHandler _handler;
        private readonly ILogger<InferenceHostedService> _logger;
        private readonly ServiceConfig _config;
        private Task? _listeningTask;
        private CancellationTokenSource? _cts;

        public InferenceHostedService(InferenceApiHandler handler, ILogger<InferenceHostedService> logger, IOptions<ServiceConfig> config)
        {
            _handler = handler;
            _logger = logger;
            _config = config.Value;
            _listener = new HttpListener();
            // Note: HttpListener requires URL ACL setup (netsh) or running as admin on Windows.
            // For Linux/macOS, prefix usually requires sudo or specific capabilities.
            // For this example, we use localhost.
            _listener.Prefixes.Add($"http://localhost:{_config.Port}/");
        }

        public async Task StartAsync(CancellationToken cancellationToken)
        {
            _cts = CancellationTokenSource.CreateLinkedTokenSource(cancellationToken);
            _listener.Start();
            _logger.LogInformation("Inference Service started on port {Port}", _config.Port);

            _listeningTask = Task.Run(async () =>
            {
                while (!_cts.Token.IsCancellationRequested)
                {
                    try
                    {
                        // Asynchronously wait for an incoming connection
                        var context = await _listener.GetContextAsync();

                        // Handle request in a fire-and-forget manner (or use a limited concurrency queue)
                        // For production, use a SemaphoreSlim or Channels to limit concurrent requests
                        // to prevent OOM on the container.
                        _ = Task.Run(() => _handler.HandleRequestAsync(context), _cts.Token);
                    }
                    catch (HttpListenerException) when (_cts.Token.IsCancellationRequested)
                    {
                        // Expected when stopping
                        break;
                    }
                    catch (Exception ex)
                    {
                        _logger.LogError(ex, "Error accepting connection");
                    }
                }
            }, _cts.Token);
        }

        public async Task StopAsync(CancellationToken cancellationToken)
        {
            _logger.LogInformation("Stopping Inference Service...");
            _cts?.Cancel();
            _listener.Stop();
            _listener.Close();

            if (_listeningTask != null)
                await _listeningTask;
        }
    }

    // ==================== MAIN PROGRAM ENTRY ====================

    public class Program
    {
        public static async Task Main(string[] args)
        {
            // Configure the host with Dependency Injection
            var host = Host.CreateDefaultBuilder(args)
                .ConfigureAppConfiguration((context, config) =>
                {
                    // In a container, we might mount a ConfigMap as a JSON file
                    config.AddJsonFile("appsettings.json", optional: true, reloadOnChange: true);
                })
                .ConfigureServices((context, services) =>
                {
                    // Bind configuration sections
                    services.Configure<ModelConfig>(context.Configuration.GetSection("Model"));
                    services.Configure<ServiceConfig>(context.Configuration.GetSection("Service"));

                    // Register dependencies
                    services.AddSingleton<IModelExecutor, MockTransformerModelExecutor>();
                    services.AddSingleton<InferenceApiHandler>();

                    // Register the hosted service (the actual server)
                    services.AddHostedService<InferenceHostedService>();
                })
                .ConfigureLogging(logging =>
                {
                    logging.ClearProviders();
                    logging.AddConsole();
                    logging.SetMinimumLevel(LogLevel.Information);
                })
                .Build();

            // Run the host
            await host.RunAsync();
        }
    }
}

Code Explanation

This example demonstrates a container-ready microservice architecture for AI inference. It separates concerns into distinct layers: Domain Models, Business Logic (Model Execution), API Handling, and Hosting Infrastructure.

1. Domain Models (InferenceRequest, InferenceResponse)

  • Line-by-Line:
    • public record InferenceRequest: We use C# 9+ record types. Records are immutable reference types ideal for DTOs (Data Transfer Objects) in microservices, ensuring thread safety and predictable state.
    • [JsonPropertyName("prompt")]: Attributes from System.Text.Json control the JSON serialization mapping. This decouples the internal C# property names from the external API contract (e.g., snake_case for JSON vs PascalCase for C#).
    • Guid.NewGuid(): Generates a unique ID for distributed tracing. In a Kubernetes environment, this ID would be correlated with logs across multiple pods.

2. Abstractions (IModelExecutor)

  • Line-by-Line:
    • public interface IModelExecutor: Defines a contract. This is critical for testability and swapping implementations. You might have a LocalOnnxExecutor for edge devices and a RemoteHttpExecutor for serverless architectures.
    • Task<InferenceResponse> ExecuteAsync: Async signatures are mandatory for I/O-bound operations (network, disk) to prevent thread starvation, especially in high-throughput .NET applications.

3. Concrete Implementation (MockTransformerModelExecutor)

  • Line-by-Line:
    • private bool _isModelLoaded: Simulates the "Cold Start" problem. Loading a large model (e.g., 7B parameters) into GPU memory takes time. In Kubernetes, we must handle this latency during pod startup.
    • EnsureModelLoaded(): A guard pattern to lazy-load the model. In a real scenario, this would read a .onnx file or .safetensors file.
    • await Task.Delay(...): Simulates the compute time of a Transformer model. Note that Thread.Sleep blocks the thread, whereas Task.Delay frees the thread to handle other requests (if properly awaited), which is crucial for async/await efficiency.

4. API Layer (InferenceApiHandler)

  • Line-by-Line:
    • HttpListenerContext: Used here for a self-contained example without requiring the full ASP.NET Core framework. In a real production app, this logic would live inside an [HttpPost] Controller action.
    • JsonSerializer.Deserialize: Uses the high-performance System.Text.Json (STJ). STJ is preferred over Newtonsoft.Json in modern .NET for its lower allocation rates and UTF-8 native support.
    • try/catch: Essential for container resilience. If an unhandled exception crashes the process, Kubernetes will restart the pod (RestartPolicy: Always), but we want to return a 500 error to the client gracefully first.

5. Hosting Infrastructure (InferenceHostedService)

  • Line-by-Line:
    • IHostedService: This is the standard .NET interface for long-running background tasks. By implementing this, we integrate our listener into the application's lifecycle (Start/Stop).
    • _listener.GetContextAsync(): The core of the server loop. It awaits a connection without blocking a thread pool thread.
    • _ = Task.Run(...): We offload the request processing to the thread pool. Note: In a real high-load scenario, we would use a Channel<T> or SemaphoreSlim to limit concurrency, ensuring we don't exceed the container's memory/CPU limits.

6. Program Entry (Main)

  • Line-by-Line:
    • Host.CreateDefaultBuilder: Sets up the generic host, which provides dependency injection, configuration, and logging by default.
    • ConfigureServices: The composition root. We register services into the DI container. AddSingleton ensures one instance of the model executor exists for the lifetime of the pod, sharing the loaded model in memory (crucial for GPU efficiency).
    • AddHostedService: Registers our InferenceHostedService to start automatically when the app runs.

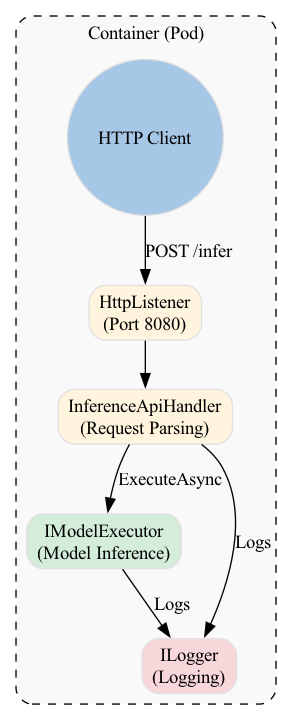

Visualizing the Architecture

The following diagram illustrates the request flow within a single container instance.

A diagram illustrating the request flow within a single container instance, where the AddHostedService method registers the InferenceHostedService to start automatically when the application runs.
Hold "Ctrl" to enable pan & zoom

A diagram illustrating the request flow within a single container instance, where the `AddHostedService` method registers the `InferenceHostedService` to start automatically when the application runs.

Common Pitfalls

1. Blocking Synchronous Calls in Async Code

  • The Mistake: Using Thread.Sleep() or calling .Result (or .Wait()) on a Task inside an async method.
  • Why it's bad: In a containerized environment, you typically have a limited number of threads available (ThreadPool). If you block a thread waiting for I/O (like model inference or a network call), you reduce the number of threads available to handle incoming requests. This leads to ThreadPool starvation, causing the application to hang even though CPU usage is low.
  • The Fix: Always use await Task.Delay() instead of Thread.Sleep(). Never use .Result or .Wait(); propagate async all the way up to the entry point.

2. Ignoring Container Lifecycle (SIGTERM)

  • The Mistake: Not implementing IHostedService or not handling graceful shutdown.
  • Why it's bad: Kubernetes sends a SIGTERM signal before killing a pod (e.g., during scaling down or rolling updates). If your application doesn't listen for this, active inference requests might be abruptly terminated, resulting in corrupted responses or data loss.
  • The Fix: Use IHostedService (as shown in the example). The Microsoft.Extensions.Hosting infrastructure automatically listens for shutdown signals and calls StopAsync, allowing you to finish processing current requests and release resources (like GPU context) cleanly.

3. Hardcoding Configuration

  • The Mistake: Putting model paths or ports directly in the code.
  • Why it's bad: Containers are immutable. To change a config, you shouldn't recompile; you should update the environment variables or mounted config files.
  • The Fix: Use IConfiguration (as shown in Program.cs) and bind it to strongly typed options (IOptions<T>). This allows you to inject values via Kubernetes ConfigMaps or Secrets.

4. Mismanaging GPU Memory

  • The Mistake: Loading a new model instance for every request.
  • Why it's bad: GPU VRAM is scarce. Creating and destroying tensors/models per request causes massive overhead and fragmentation.
  • The Fix: Register the model executor as a Singleton (as shown in Program.cs). This keeps the model loaded in memory for the lifetime of the container, ensuring that the "Warm-up" cost is paid only once (on startup).

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
