Chapter 12: High-Throughput Inference: Implementing Asynchronous Pipelines

Theoretical Foundations

The theoretical foundations of containerizing AI agents and scaling inference services are built upon a fundamental shift from monolithic, stateful application design to distributed, stateless, and declarative systems. To understand this, we must first dissect the nature of AI agents in a production environment. An AI agent is not merely a model; it is a complex state machine that perceives its environment, reasons about inputs, and acts upon external tools or data sources. In a microservices architecture, this agent logic must be isolated, portable, and scalable.

The Agent as a Microservice: Isolation and Dependency Management

In traditional software engineering, we often rely on the host operating system to provide shared libraries. This leads to "dependency hell," where different agents require conflicting versions of CUDA, Python, or specific ML runtimes. Containerization solves this by bundling the agent's code, dependencies, and runtime into a single immutable artifact.

Consider the analogy of a modular kitchen appliance. In a monolithic architecture, you have a single, built-in oven that handles baking, broiling, and toasting. If the heating element fails, the entire unit is useless. Furthermore, you cannot easily upgrade the broiler without replacing the whole oven. In contrast, a containerized approach is like a set of high-end, standalone kitchen gadgets (a sous-vide machine, an air fryer, a stand mixer). Each gadget has a specific purpose, its own power supply (dependencies), and can be swapped out or upgraded independently without disrupting the rest of the kitchen. If the air fryer breaks, you simply replace that unit while the rest of the kitchen continues to function.

In C#, this isolation is critical when integrating disparate AI models. We often use Interfaces to abstract the inference logic. This allows us to swap between a cloud-based model (like OpenAI's GPT-4) and a locally hosted open-source model (like Llama 2) without changing the core application logic.

using System.Threading.Tasks;

// The abstraction defined in the core domain layer
public interface IInferenceEngine
{
    Task<string> GenerateAsync(string prompt);
}

// Implementation for a cloud provider (e.g., OpenAI)
public class OpenAIEngine : IInferenceEngine
{
    private readonly string _apiKey;
    public OpenAIEngine(string apiKey) => _apiKey = apiKey;

    public async Task<string> GenerateAsync(string prompt)
    {
        // Logic to call OpenAI API
        return await Task.FromResult("Cloud response");
    }
}

// Implementation for a local model served via Triton or ONNX Runtime
public class LocalLlamaEngine : IInferenceEngine
{
    private readonly string _modelPath;
    public LocalLlamaEngine(string modelPath) => _modelPath = modelPath;

    public async Task<string> GenerateAsync(string prompt)
    {
        // Logic to run inference on local GPU
        return await Task.FromResult("Local response");
    }
}

By wrapping these implementations in containers, we ensure that the OpenAIEngine container has the necessary HTTP client libraries, while the LocalLlamaEngine container contains the heavy ONNX Runtime or CUDA dependencies. They can run side-by-side on the same cluster without version conflicts.

The Orchestration Layer: Kubernetes as the Operating System for AI

Once agents are containerized, they need an environment to run in. This is where Kubernetes (K8s) comes in, acting as the "operating system" for the data center. It abstracts away the underlying hardware (CPU/GPU nodes) and provides a unified API for scheduling and managing workloads.

We must recall the concept of Statelessness introduced in Book 6. In the context of AI inference, statelessness is paramount. An inference request should be idempotent; the same input should yield the same output regardless of which node processes it. This allows Kubernetes to treat our AI agents as "cattle, not pets." If a node hosting an agent fails, K8s simply terminates the pod and spins up a replacement on a healthy node.

However, AI inference is computationally expensive. Unlike a simple web server that might return a static HTML page in milliseconds, an LLM inference might take seconds to generate a response. This introduces the concept of Long-Running Processes (LRPs) within a containerized environment. We must configure Kubernetes to handle these LRPs differently than bursty, stateless HTTP requests.

The architecture relies heavily on the Kubernetes Scheduler. When a request for inference arrives, the scheduler must decide which node has the capacity (GPU memory, CPU cycles) to handle it. This is not a simple round-robin distribution; it requires awareness of hardware accelerators.

GPU Resource Management and Virtualization

The "Why" behind specific orchestration strategies lies in the scarcity and cost of GPUs. A single physical GPU can be shared among multiple containers using technologies like NVIDIA's Multi-Process Service (MPS) or time-slicing. In Kubernetes, we expose these capabilities via Extended Resources.

Think of the GPU not as a monolithic block, but as a timeshare apartment complex. A physical GPU is the building. Without virtualization, only one tenant (container) can occupy the entire building, which is wasteful if the tenant only uses one room (a fraction of the VRAM). With virtualization (like MPS or MIG - Multi-Instance GPU), the building is partitioned into distinct units. Tenants can rent individual units, allowing for higher density and better utilization.

In C#, when we deploy an agent that utilizes GPU acceleration (e.g., using CUDA.NET or TorchSharp), we must declare these resource requirements in the deployment manifest. The C# application itself doesn't manage the hardware scheduling; it relies on the runtime environment to pass through the correct device drivers.

// Conceptual representation of a resource-aware service registration
public class InferenceService
{
    private readonly IInferenceEngine _engine;

    // Dependency Injection automatically selects the correct engine
    // based on environment variables (e.g., running in K8s with GPU node)
    public InferenceService(IInferenceEngine engine)
    {
        _engine = engine;
    }

    public async Task<InferenceResult> ProcessAsync(InferenceRequest request)
    {
        // The complexity of GPU memory management is hidden behind the interface
        // The underlying engine (e.g., ONNX Runtime) handles the CUDA context
        var result = await _engine.GenerateAsync(request.Prompt);
        return new InferenceResult(result);
    }
}

Auto-Scaling Strategies: Horizontal Pod Autoscaling (HPA) vs. KEDA

The core challenge of AI inference is variable workload. Traffic can spike unpredictably (e.g., a viral social media post driving users to a chatbot). We cannot provision for peak capacity 24/7 due to cost, nor can we provision for average capacity because latency will suffer during spikes.

We use Horizontal Pod Autoscaling (HPA) to dynamically adjust the number of replicas of our agent service. However, standard HPA in Kubernetes typically scales based on CPU or memory usage. This is often insufficient for AI workloads.

Why CPU/Memory is a poor metric for AI scaling: An AI inference service might be GPU-bound (waiting for matrix multiplications) while CPU usage remains low. Scaling based on CPU might under-provision, leading to queueing and high latency. Conversely, memory usage might remain stable until the moment of an Out-Of-Memory (OOM) crash, at which point scaling is too late.

This leads us to KEDA (Kubernetes Event-Driven Autoscaling). KEDA allows us to scale based on external metrics, such as the number of messages in a queue (e.g., RabbitMQ or Kafka) waiting to be processed by the agent.

Analogy: The Taxi Dispatch System Imagine a fleet of taxis (AI agents).

• Static Scaling: You hire 50 taxis for the entire day. If no one rides, you pay for idle drivers (wasteful).
• CPU-based HPA: You hire more drivers only when the existing drivers are driving fast (high CPU). But if drivers are stuck in traffic (waiting for GPU compute), they aren't driving fast, so you don't hire more, and customers wait forever.
• KEDA (Queue-based): You hire drivers based on the number of people waiting at the taxi stand (queue depth). If 100 people are waiting, you immediately dispatch 20 more taxis. This is reactive and efficient.

In the context of C# and microservices, we often use Background Services (IHostedService) to consume these queues. An agent might not be a simple HTTP API; it might be a worker service listening to a message queue.

using Microsoft.Extensions.Hosting;
using System.Threading;
using System.Threading.Tasks;

public class InferenceWorker : BackgroundService
{
    private readonly IInferenceEngine _engine;
    private readonly IMessageQueue _queue;

    public InferenceWorker(IInferenceEngine engine, IMessageQueue queue)
    {
        _engine = engine;
        _queue = queue;
    }

    protected override async Task ExecuteAsync(CancellationToken stoppingToken)
    {
        // Continuously poll the queue for inference requests
        while (!stoppingToken.IsCancellationRequested)
        {
            var message = await _queue.ReceiveAsync(stoppingToken);
            if (message != null)
            {
                var result = await _engine.GenerateAsync(message.Payload);
                await _queue.PublishResultAsync(message.Id, result);
            }
        }
    }
}

Observability and Distributed Tracing

In a distributed system of AI agents, a single user request might trigger a chain of microservices: a Gateway -> Agent A (Reasoning) -> Agent B (Tool Use/Database) -> Agent C (Synthesis). If one of these agents slows down, the entire system suffers.

We must implement Distributed Tracing (using OpenTelemetry). This propagates a TraceId across service boundaries. In C#, we use ActivitySource and Activity classes to instrument our code.

Analogy: The Courier Passport Imagine a package (the request) moving through a logistics network. Each time it enters a warehouse (microservice), it gets stamped with a timestamp and location. If the package is delayed, you can look at the passport to see exactly which warehouse caused the bottleneck.

For AI agents, we also need specialized metrics:

1. Tokens Per Second (TPS): The throughput of the model.
2. Time To First Token (TTFT): How long the user waits before seeing the first word (latency).
3. GPU Memory Utilization: Critical for preventing OOM errors.

Without these observability pillars, scaling is blind. We cannot optimize what we cannot measure.

Architectural Implications of Scaling Inference

When scaling inference services, we must consider the Cold Start Problem. Loading a large language model (often 7GB+ for FP16) into GPU memory takes time (seconds to minutes). If we scale from 0 to 1 replica instantly, the first user experiences a massive delay.

To mitigate this, we use Pre-warming or Sticky Sessions. However, in a true serverless environment, we might accept the cold start cost for the benefit of zero idle cost.

Another implication is Model Sharding. For extremely large models (like GPT-4 class models), the model weights do not fit on a single GPU. We must shard the model across multiple GPUs (Tensor Parallelism) and potentially across multiple nodes (Pipeline Parallelism). This requires a sophisticated orchestration layer that understands the topology of the model and the network interconnects (e.g., NVLink).

In C#, managing this complexity is usually offloaded to a model serving framework like Triton Inference Server or KServe. Our C# application acts as the "control plane" or "aggregator," sending requests to these specialized inference runtimes via gRPC or HTTP.

Visualization of the Architecture

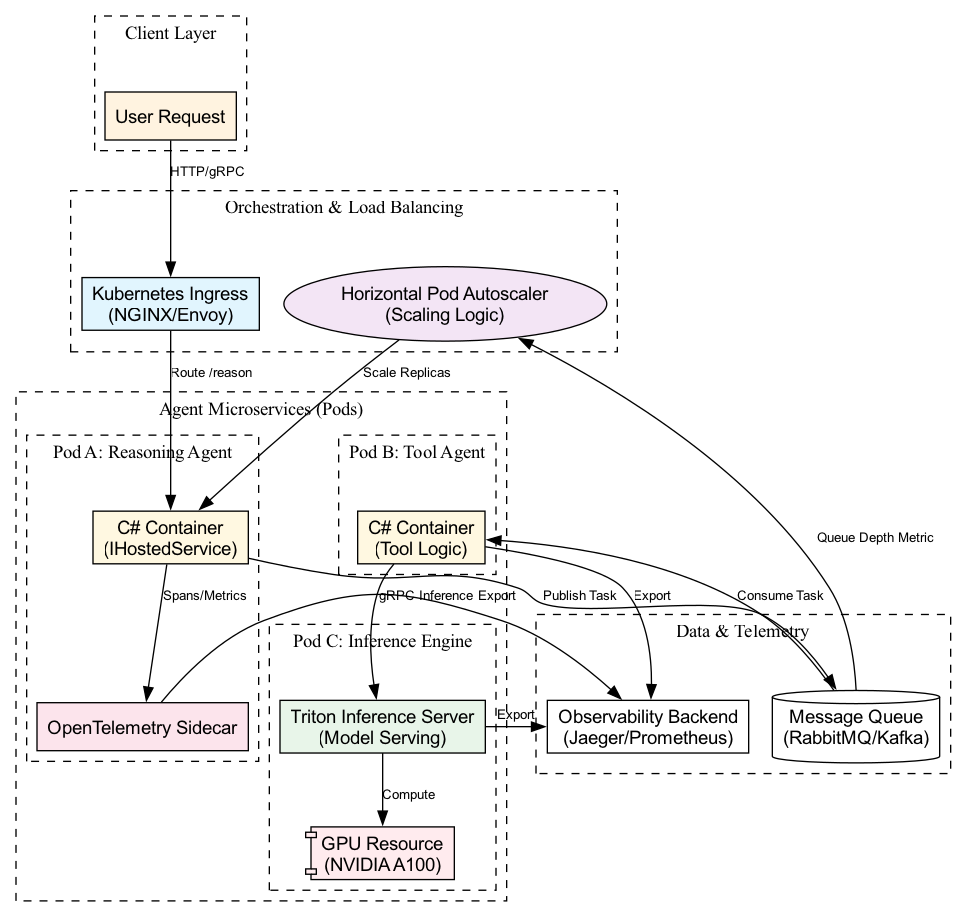

The following diagram illustrates the flow of a request through a containerized, scaled AI agent system.

Hold "Ctrl" to enable pan & zoom

A C# control plane orchestrates requests that flow through containerized, specialized inference runtimes connected via gRPC or HTTP.

Theoretical Foundations

The theoretical foundation of this chapter rests on the convergence of three paradigms:

1. Containerization: Providing isolation and dependency encapsulation for complex AI runtimes.
2. Orchestration: Managing the lifecycle and placement of these containers across a cluster of heterogeneous hardware (CPU/GPU).
3. Event-Driven Scaling: Moving beyond static resource allocation to dynamic scaling based on actual workload metrics (queues).

By leveraging C#'s strong typing and interface-driven design, we create agent systems that are testable and modular. By utilizing Kubernetes and KEDA, we ensure these agents are resilient and cost-efficient. The ultimate goal is to treat AI inference not as a monolithic beast, but as a fluid, elastic fabric of microservices that can expand and contract in real-time to meet demand.

Basic Code Example

Here is a basic code example demonstrating a containerized AI inference microservice using C# and ASP.NET Core.

Real-World Context

Imagine you are building a "Sentiment Analysis Service" for an e-commerce platform. Customer reviews need to be processed in real-time to determine if they are positive, negative, or neutral. Instead of running a heavy monolith, you deploy this specific logic as a lightweight, isolated microservice. This service exposes an HTTP endpoint, accepts a review text, runs it through an AI model (simulated here for simplicity), and returns the sentiment score. This allows the service to be scaled independently of the rest of the application, especially during high-traffic events like Black Friday.

The Code Example

using Microsoft.AspNetCore.Builder;
using Microsoft.AspNetCore.Hosting;
using Microsoft.AspNetCore.Http;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Hosting;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text.Json;
using System.Threading.Tasks;

namespace AiInferenceService
{
    // 1. Data Models: Defines the structure of the request and response.
    public class InferenceRequest
    {
        public string Text { get; set; } = string.Empty;
    }

    public class InferenceResult
    {
        public string Label { get; set; } = string.Empty;
        public float Score { get; set; }
    }

    // 2. AI Service Interface: Abstraction for the inference logic.
    public interface IInferenceService
    {
        Task<InferenceResult> PredictAsync(string text);
    }

    // 3. Mock AI Service: Simulates a real model (e.g., BERT/Transformer)
    // without requiring heavy dependencies or GPU access for this example.
    public class MockInferenceService : IInferenceService
    {
        // Simulating a model vocabulary and weights for simple keyword matching
        private readonly Dictionary<string, float> _sentimentWeights = new()
        {
            { "good", 0.8f },
            { "great", 0.9f },
            { "excellent", 1.0f },
            { "bad", -0.8f },
            { "terrible", -1.0f },
            { "awful", -0.9f }
        };

        public Task<InferenceResult> PredictAsync(string text)
        {
            // Normalize input
            var words = text.ToLower().Split(new[] { ' ', '.', ',', '!' }, StringSplitOptions.RemoveEmptyEntries);

            float score = 0;
            foreach (var word in words)
            {
                if (_sentimentWeights.TryGetValue(word, out var weight))
                {
                    score += weight;
                }
            }

            // Determine label based on score
            string label = score > 0.1f ? "Positive" : (score < -0.1f ? "Negative" : "Neutral");

            // Simulate processing delay (common in real AI inference)
            // This highlights the need for async processing in microservices.
            return Task.Delay(50).ContinueWith(_ =>
                new InferenceResult { Label = label, Score = Math.Clamp(score, -1.0f, 1.0f) }
            );
        }
    }

    // 4. Program Entry Point: Configures the web host and dependency injection.
    public class Program
    {
        public static void Main(string[] args)
        {
            var builder = WebApplication.CreateBuilder(args);

            // Register services into the Dependency Injection container.
            // Singleton ensures the model is loaded once in memory (crucial for AI models).
            builder.Services.AddSingleton<IInferenceService, MockInferenceService>();

            // Add Controllers (if using MVC pattern, though we use Minimal API here for brevity)
            builder.Services.AddControllers();

            var app = builder.Build();

            // 5. Minimal API Endpoint: The entry point for the microservice.
            // This handles HTTP POST requests to /predict
            app.MapPost("/predict", async (HttpContext context, IInferenceService inferenceService) =>
            {
                // Parse the incoming JSON request
                var request = await JsonSerializer.DeserializeAsync<InferenceRequest>(
                    context.Request.Body,
                    new JsonSerializerOptions { PropertyNameCaseInsensitive = true }
                );

                if (request == null || string.IsNullOrWhiteSpace(request.Text))
                {
                    context.Response.StatusCode = 400;
                    await context.Response.WriteAsync("Invalid request: Text is required.");
                    return;
                }

                // Execute the AI inference
                var result = await inferenceService.PredictAsync(request.Text);

                // Return the result as JSON
                context.Response.ContentType = "application/json";
                await JsonSerializer.SerializeAsync(context.Response.Body, result);
            });

            // 6. Health Check Endpoint: Essential for Kubernetes liveness/readiness probes.
            app.MapGet("/health", () => "Service is healthy.");

            // Start the server (default port 5000)
            app.Run("http://0.0.0.0:5000");
        }
    }
}

Line-by-Line Explanation

1. Data Models (InferenceRequest, InferenceResult)

• Lines 11-14 & 16-19: These are simple POCOs (Plain Old CLR Objects).
• Why: Microservices communicate via structured data (JSON over HTTP). Defining explicit types ensures type safety and allows the JSON serializer to map incoming HTTP bodies directly to C# objects. InferenceRequest captures the user's raw text, while InferenceResult captures the model's output (the predicted label and a confidence score).

2. Abstraction (IInferenceService)

• Lines 21-24: Defines a contract for the inference logic.
• Why: Dependency Injection (DI) is a cornerstone of microservices. By programming to an interface, we decouple the HTTP handling logic from the actual AI model execution. This makes it easy to swap the MockInferenceService for a real TritonInferenceService or ONNXRuntimeService later without changing the API layer.

3. The Mock AI Service (MockInferenceService)

• Lines 26-50: This class simulates a real AI model.
• Line 31: We define a dictionary of "weights." In a real scenario, this would be replaced by loading a binary model file (e.g., .onnx or .bin) into memory or calling an external inference server.
• Lines 37-44: The logic tokenizes the input string and calculates a sentiment score.
• Line 47: Task.Delay(50) is critical. Real AI inference is computationally expensive and asynchronous. Simulating this delay ensures our code example handles concurrency correctly. If we used synchronous code, the web server thread would be blocked, severely limiting throughput (requests per second).

4. Dependency Injection Setup (Program.Main)

• Line 56: WebApplication.CreateBuilder initializes the ASP.NET Core host, which handles configuration, logging, and the web server (Kestrel).
• Line 60: builder.Services.AddSingleton<IInferenceService, MockInferenceService>().
  • Significance: AI models are large. Loading them into memory is expensive (high RAM usage) and slow (seconds to minutes). We use Singleton lifetime so the model is loaded once when the application starts and reused for every subsequent request. Using Transient or Scoped lifetimes for heavy AI models is a major performance anti-pattern.

5. The API Endpoint (MapPost)

• Line 67: We define a POST endpoint at /predict.
• Lines 70-74: We manually deserialize the JSON body. In a production app, you might use Minimal API parameter binding (e.g., async (InferenceRequest req) => ...), but explicit handling here illustrates how the raw bytes flow into the system.
• Lines 76-80: Input validation. Microservices must be defensive. If the input is null or empty, we return a 400 Bad Request immediately, saving the cost of running the AI model on garbage data.
• Line 83: inferenceService.PredictAsync is called. Because this is awaited, the thread is released back to the thread pool while the "AI" is processing. This allows the server to handle other incoming requests concurrently.
• Lines 85-86: The result is serialized back to JSON and written to the response stream.

6. Health Check (MapGet)

• Lines 91-92: A simple health check.
• Why: In Kubernetes (orchestration), the cluster needs to know if your container is alive. If the /health endpoint stops responding, Kubernetes will kill the pod and restart it. This is vital for resilient distributed systems.

Common Pitfalls

1. Blocking Synchronous Calls

   • Mistake: Calling .Result or .Wait() on a Task inside an ASP.NET Core application, or implementing the inference logic synchronously.
   • Consequence: ASP.NET Core relies on a thread pool to handle thousands of concurrent connections. Blocking a thread (waiting for a model to predict) starves the pool, causing the application to stop accepting new requests and leading to timeouts.
   • Fix: Always use async/await all the way down, ensuring the I/O or CPU-bound work yields control appropriately.

2. Incorrect Service Lifetimes

   • Mistake: Registering a service holding a loaded AI model as Transient or Scoped.
   • Consequence: The model would be loaded from disk (or a slow remote source) into memory for every single HTTP request. This adds massive latency (hundreds of milliseconds to seconds per request) and spikes memory usage, eventually crashing the container.
   • Fix: Register heavy services (Database Contexts, Model Runners) as Singleton.

3. Missing Containerization Considerations

   • Mistake: Hardcoding localhost or binding to 127.0.0.1 only.
   • Consequence: When deployed to Kubernetes, containers get their own IP addresses. Binding to localhost makes the service unreachable from outside the pod.
   • Fix: As seen in app.Run("http://0.0.0.0:5000"), explicitly bind to 0.0.0.0 to listen on all available network interfaces inside the container.

Architectural Visualization

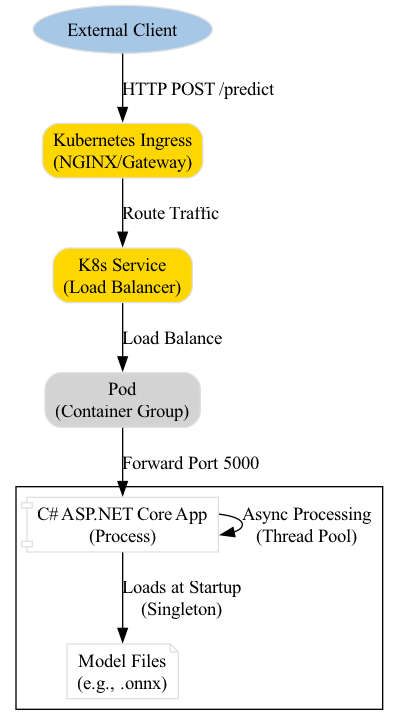

The following diagram illustrates how this code fits into a containerized microservice architecture.

Hold "Ctrl" to enable pan & zoom

This diagram shows a microservice running inside a container, where the code configures the web server to listen on `0.0.0.0`, enabling it to accept incoming requests from the broader network rather than being restricted to internal container communication.

Explanation of the Flow:

1. Client: Sends the JSON payload.
2. Ingress/Service: Kubernetes networking layers route the traffic to the correct pod.
3. Pod: The runtime environment. It contains the C# application and the model files.
4. App: The C# code provided above. It loads the model once (Singleton) and processes requests asynchronously.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---

Loading knowledge check...

---

---

Code License: All code examples are released under the MIT License. Github repo.

Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
