Chapter 15: Scaling Inference Workloads: From HPA to Event-Driven Autoscaling

Theoretical Foundations

The theoretical foundation of deploying scalable AI inference pipelines using microservices rests on a fundamental shift from monolithic, statically-scaled application design to a distributed, dynamically-managed ecosystem. This shift is not merely an operational convenience; it is a mandatory architectural evolution to handle the unique computational characteristics of Large Language Models (LLMs) and other deep learning models, specifically their massive resource consumption, bursty traffic patterns, and latency sensitivity.

The Inference Agent as a First-Class Citizen

In traditional software engineering, we treat business logic as the core component. In Cloud-Native AI, we must elevate the Inference Agent—the code responsible for preparing prompts, calling models, and parsing responses—to a first-class citizen. This agent is not just a function call; it is a stateful, potentially long-running process that manages context windows and token streams.

The Analogy of the Specialized Kitchen: Imagine a high-end restaurant (your application). In a monolithic design, a single chef (a massive server) does everything: takes orders, chops vegetables, cooks the steak, and plates the dessert. If 50 customers order steak simultaneously, the chef collapses, and the entire restaurant halts.

In our microservices architecture, we treat the "Model Inference" as a specialized station in that kitchen—a sous-vide machine that takes exactly 45 minutes to cook a steak perfectly, regardless of how many steaks are in the bath (batching). We cannot just "add more chefs" to the machine; we need to parallelize the stations. We hire a "Sous-Chef" (the Microservice/Container) solely to manage that machine. If orders spike, we don't hire more chefs; we install more sous-vide machines (Horizontal Scaling) and hire a "Kitchen Manager" (Kubernetes/Orchestrator) to route orders to whichever machine is free.

Containerization: The Standardized Environment

The first step in this architecture is encapsulating the Inference Agent into a container. AI models are notoriously fragile regarding their environment; they depend on specific versions of CUDA drivers, Python runtimes, PyTorch, and specialized libraries like transformers or vLLM.

Why Containerization is Non-Negotiable:

1. Dependency Isolation: A container bundles the model weights, the inference server (e.g., ONNX Runtime, TensorRT), and the wrapper code into an immutable artifact.
2. Reproducibility: The "It works on my machine" problem is fatal in AI. A container ensures that the exact same mathematical operations occur in development and production.
3. The Wrapper Pattern: In C#, we use Interfaces to abstract the underlying complexity. We do not want our core business logic to know if it's calling a Python script or a C++ shared library. We define a contract.

// The contract defined in C#. This allows swapping a Local Llama model for an OpenAI call
// without changing a single line of the application's business logic.
public interface IInferenceAgent
{
    Task<string> GenerateAsync(PromptContext context, CancellationToken ct);
}

// The implementation is hidden inside the container, abstracting the environment.
public class LocalLlamaAgent : IInferenceAgent
{
    // Internal logic handling C++ bindings or HTTP calls to a local inference server
    public async Task<string> GenerateAsync(PromptContext context, CancellationToken ct) { /* ... */ }
}

By containerizing this implementation, we treat the AI model as a "Callable Microservice" rather than a library dependency. This decoupling is vital because model updates (e.g., upgrading from GPT-3.5 to GPT-4) are infrastructure changes, not code changes.

Orchestration and Dynamic Scaling: The Traffic Cop

Once containerized, the agents must be managed. We cannot simply provision a server with enough RAM to hold the largest model and leave it running 24/7. This is financially wasteful and operationally brittle.

The Analogy of the Surge Protector: Think of your AI cluster as a power grid. The model is a heavy industrial machine that draws a massive spike of power (GPU VRAM) when it starts up, but runs at a steady, lower draw during inference.

• Vertical Scaling (Bigger Wire): Trying to run a massive model on a single, huge machine. If that machine fails, the power goes out entirely.
• Horizontal Scaling (Multiple Circuits): We use Kubernetes to spin up multiple smaller containers. The "Autoscaler" acts like a smart surge protector. It monitors the "voltage" (CPU/GPU utilization or Queue Length). If it sees a spike, it flips a switch to energize a new circuit (Pod) to handle the load. If the load drops, it cuts power to unused circuits to save money.

In Kubernetes, this is achieved via the Horizontal Pod Autoscaler (HPA) or, more effectively for AI, the KEDA (Kubernetes Event-driven Autoscaling).

Latency vs. Throughput: The core theoretical challenge here is balancing Latency (how fast one user gets a response) vs. Throughput (how many users we can serve total).

• Low Latency: Requires "Pre-warming" containers. We keep a few replicas always running, ready to accept requests instantly.
• High Throughput: Requires "Scale-to-Zero." We shut down all containers when no one is using them and spin them up only when a request arrives.

The C# Role in Orchestration: While Kubernetes handles the plumbing, C# applications often act as the Control Plane or the Gateway. Using modern C# features like IAsyncEnumerable<T>, we can stream tokens back to the user as they are generated, rather than waiting for the full response. This improves perceived latency significantly.

// Streaming response pattern crucial for LLMs
public async IAsyncEnumerable<string> StreamInference(string prompt)
{
    var inferenceStream = await _agent.GenerateStreamAsync(prompt);

    // The C# runtime handles the backpressure automatically
    await foreach (var token in inferenceStream)
    {
        yield return token;
    }
}

Architectural Implications and Edge Cases

1. Cold Starts: The greatest enemy of scalable AI is the "Cold Start." Loading a 70-billion parameter model into GPU memory can take minutes.

• Solution: We use Init Containers or Sidecars in Kubernetes to keep the model weights in a shared memory cache or use specialized hardware like NVIDIA Triton Inference Server which manages model lifecycle separately from the application lifecycle.

2. The "Noisy Neighbor" Problem: In a microservices cluster, if one agent is performing a massive batch processing job (generating 10,000 summaries), it might saturate the GPU memory, causing latency spikes for real-time chat users.

• Solution: Resource Isolation. We define strict Limits and Requests in Kubernetes manifests. We use Node Affinity to pin latency-sensitive agents to specific high-performance nodes, while batch jobs go to spot instances (cheaper, interruptible nodes).

3. Circuit Breaking: AI models can hang. They can enter infinite loops or get stuck on a malformed prompt.

• Solution: We implement Circuit Breakers (using libraries like Polly in C#) at the API Gateway level. If an inference pod fails to respond within 30 seconds, the Gateway "trips" and stops sending traffic to that pod, preventing a cascading failure across the entire system.

The Role of C# Modern Features

In this ecosystem, C# acts as the glue. It is rarely the code running inside the model (that's Python/C++), but it is the code orchestrating the flow of data.

• Dependency Injection (DI): Essential for testing. We can inject a "MockInferenceAgent" during unit tests that returns static text, avoiding the cost of calling a real model.
• Channels (System.Threading.Channels): For high-performance data passing between the API layer and the background processing workers. Channels are more efficient than ConcurrentQueue for the producer/consumer patterns found in queuing inference requests.
• Source Generators: To reduce the startup overhead of C# applications managing these agents. We can generate serialization code for the complex JSON payloads sent to and from models at compile time, avoiding reflection costs during runtime.

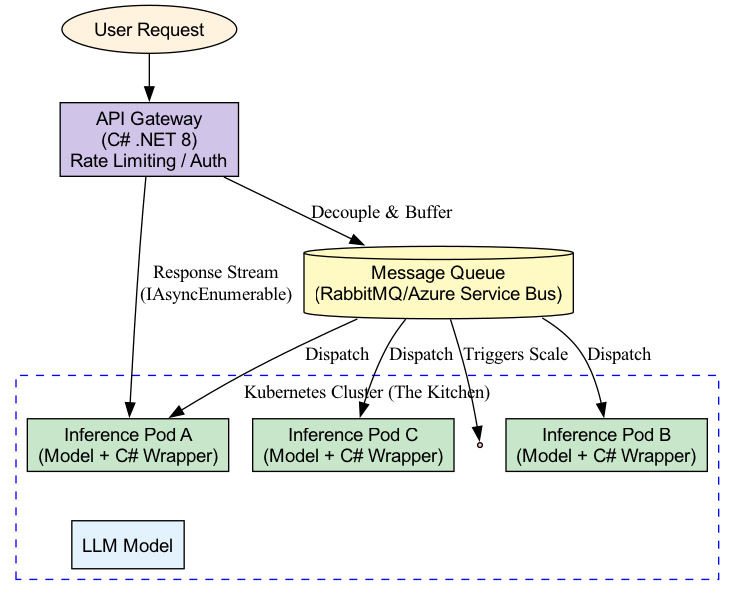

Visualization of the Architecture

The following diagram illustrates the flow of a request through the theoretical architecture. Note the separation between the "Inference Plane" (the heavy lifting) and the "Control Plane" (the C# orchestration).

Hold "Ctrl" to enable pan & zoom

A C# control plane orchestrates the workflow by routing a request to the dedicated inference plane, which handles the computationally intensive AI processing.

Theoretical Foundations

The move to "Cloud-Native AI" is a move away from treating AI as a magical black box and toward treating it as a standard, albeit heavy, software component. It requires:

1. Standardization: Containers to encapsulate complexity.
2. Abstraction: Interfaces (C#) to decouple business logic from model specifics.
3. Elasticity: Kubernetes to dynamically manage resources based on real-time demand.
4. Resilience: Circuit breakers and queues to handle the inherent instability of large-scale inference.

By mastering these concepts, we transform a brittle, expensive AI prototype into a robust, production-grade service that can handle the unpredictable nature of real-world user traffic.

Basic Code Example

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading;
using System.Threading.Tasks;

namespace CloudNativeAI.Microservices.Inference
{
    /// <summary>
    /// Represents a simple AI inference agent that processes text inputs.
    /// In a real-world scenario, this would load a machine learning model (e.g., ONNX, TensorFlow).
    /// For this "Hello World" example, we simulate inference logic.
    /// </summary>
    public class InferenceAgent
    {
        private readonly string _agentId;
        private readonly Random _random = new Random();

        public InferenceAgent(string agentId)
        {
            _agentId = agentId;
        }

        /// <summary>
        /// Simulates processing an input text (e.g., sentiment analysis).
        /// </summary>
        /// <param name="input">The text to analyze.</param>
        /// <returns>A task representing the asynchronous operation, with the result being the inference score.</returns>
        public async Task<double> ProcessAsync(string input)
        {
            // Simulate model loading latency (common in cold starts)
            await Task.Delay(100);

            // Simulate inference computation
            // In reality, this would be: tensor.Run(input);
            double score = _random.NextDouble();

            // Simulate post-processing
            await Task.Delay(50);

            return score;
        }
    }

    /// <summary>
    /// Manages a pool of InferenceAgents.
    /// This acts as a rudimentary "Model Server" or "Agent Pool" to handle concurrent requests.
    /// </summary>
    public class AgentPool
    {
        private readonly Queue<InferenceAgent> _availableAgents = new Queue<InferenceAgent>();
        private readonly int _maxPoolSize;
        private int _currentAgentCount = 0;

        public AgentPool(int maxPoolSize)
        {
            _maxPoolSize = maxPoolSize;
        }

        /// <summary>
        /// Acquires an agent from the pool. If none available and under max size, creates a new one.
        /// </summary>
        public async Task<InferenceAgent> AcquireAgentAsync()
        {
            lock (_availableAgents)
            {
                if (_availableAgents.Count > 0)
                {
                    return _availableAgents.Dequeue();
                }
            }

            // If pool is empty but we haven't reached max capacity, create a new agent
            if (_currentAgentCount < _maxPoolSize)
            {
                Interlocked.Increment(ref _currentAgentCount);
                return new InferenceAgent($"Agent-{_currentAgentCount}");
            }

            // If at capacity, wait (blocking) - in a real system, we'd use async semaphores or backpressure
            // For this simple example, we spin-wait.
            while (true)
            {
                lock (_availableAgents)
                {
                    if (_availableAgents.Count > 0)
                    {
                        return _availableAgents.Dequeue();
                    }
                }
                await Task.Delay(10); // Yield CPU
            }
        }

        /// <summary>
        /// Returns an agent to the pool for reuse.
        /// </summary>
        public void ReleaseAgent(InferenceAgent agent)
        {
            lock (_availableAgents)
            {
                _availableAgents.Enqueue(agent);
            }
        }
    }

    /// <summary>

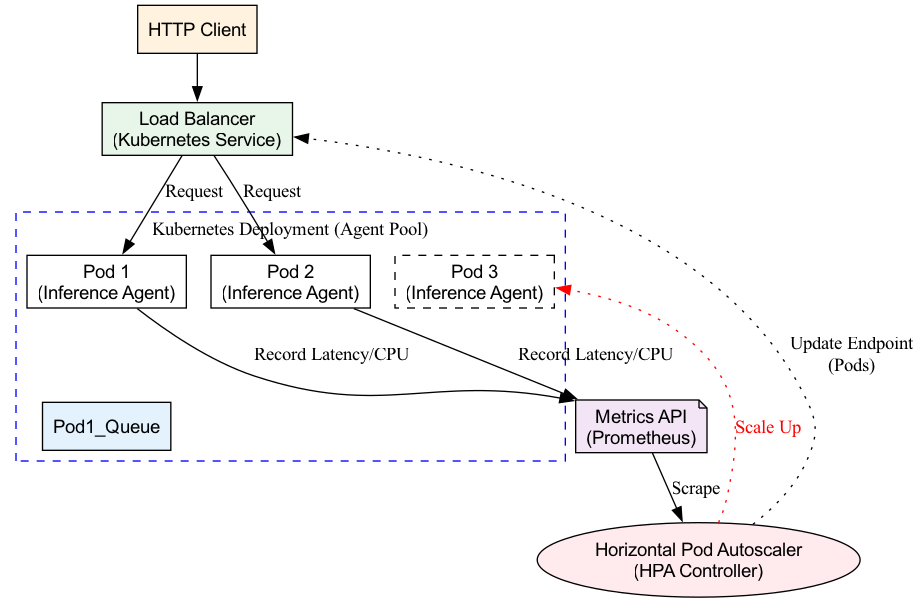

    /// Simulates the Kubernetes Horizontal Pod Autoscaler (HPA) logic.
    /// It monitors load and decides whether to scale the AgentPool up or down.
    /// </summary>
    public class Autoscaler
    {
        private readonly AgentPool _pool;
        private readonly int _targetRequestsPerSecond;
        private readonly TimeSpan _evaluationInterval = TimeSpan.FromSeconds(5);

        // Metrics tracking
        private int _requestsInLastInterval = 0;
        private DateTime _lastEvaluationTime = DateTime.UtcNow;

        public Autoscaler(AgentPool pool, int targetRequestsPerSecond)
        {
            _pool = pool;
            _targetRequestsPerSecond = targetRequestsPerSecond;
        }

        /// <summary>
        /// Records a request to calculate throughput.
        /// </summary>
        public void RecordRequest()
        {
            Interlocked.Increment(ref _requestsInLastInterval);
        }

        /// <summary>
        /// Starts the monitoring loop (simulates the K8s controller manager).
        /// </summary>
        public async Task StartMonitoringAsync(CancellationToken cancellationToken)
        {
            while (!cancellationToken.IsCancellationRequested)
            {
                await Task.Delay(_evaluationInterval, cancellationToken);
                await EvaluateAndScaleAsync();
            }
        }

        private async Task EvaluateAndScaleAsync()
        {
            int currentRequests = Interlocked.Exchange(ref _requestsInLastInterval, 0);
            double actualRps = currentRequests / _evaluationInterval.TotalSeconds;

            // Simple logic: if actual RPS > target RPS, we need more capacity.
            // In a real K8s HPA, this is calculated based on CPU/Memory or custom metrics.
            // Here we simulate scaling by adjusting the pool's internal capacity (simplified).

            Console.WriteLine($"[Autoscaler] Current RPS: {actualRps:F2} | Target RPS: {_targetRequestsPerSecond}");

            if (actualRps > _targetRequestsPerSecond)
            {
                Console.WriteLine("[Autoscaler] SCALING UP: High load detected.");
                // In a real K8s scenario, this would trigger: kubectl scale deployment inference-agent --replicas=N
                // Here, we just log the action.
            }
            else if (actualRps < _targetRequestsPerSecond * 0.5) // Scale down if load is 50% of target
            {
                Console.WriteLine("[Autoscaler] SCALING DOWN: Low load detected.");
                // Real K8s: kubectl scale deployment inference-agent --replicas=N
            }
            else
            {
                Console.WriteLine("[Autoscaler] STABLE: Load within acceptable range.");
            }
        }
    }

    /// <summary>
    /// Main entry point simulating the Microservice receiving HTTP requests.
    /// </summary>
    class Program
    {
        static async Task Main(string[] args)
        {
            Console.WriteLine("Initializing Cloud-Native Inference Service...");

            // 1. Initialize the Agent Pool (Simulating a Kubernetes Deployment)
            // We limit the pool size to simulate resource constraints (CPU/Memory limits).
            var agentPool = new AgentPool(maxPoolSize: 4);

            // 2. Initialize the Autoscaler (Simulating the HPA Controller)
            var autoscaler = new Autoscaler(agentPool, targetRequestsPerSecond: 10);

            // 3. Start the Autoscaler monitoring loop in the background
            var cts = new CancellationTokenSource();
            _ = autoscaler.StartMonitoringAsync(cts.Token);

            // 4. Simulate incoming traffic (Incoming Requests)
            Console.WriteLine("Simulating incoming request traffic...");
            var tasks = new List<Task>();

            // Burst 1: Simulate a sudden spike in traffic
            for (int i = 0; i < 50; i++)
            {
                tasks.Add(ProcessRequest(agentPool, autoscaler));
                // Randomize delay to simulate real-world traffic patterns
                await Task.Delay(new Random().Next(10, 100));
            }

            await Task.WhenAll(tasks);
            Console.WriteLine("Burst 1 complete. Waiting for autoscaler evaluation...");

            // Wait for autoscaler to evaluate the burst
            await Task.Delay(6000);

            // Burst 2: Simulate low traffic (potential scale down)
            tasks.Clear();
            Console.WriteLine("Simulating low traffic...");
            for (int i = 0; i < 5; i++)
            {
                tasks.Add(ProcessRequest(agentPool, autoscaler));
                await Task.Delay(500);
            }

            await Task.WhenAll(tasks);

            // Allow final evaluation
            await Task.Delay(6000);

            cts.Cancel();
            Console.WriteLine("Simulation complete.");
        }

        static async Task ProcessRequest(AgentPool pool, Autoscaler autoscaler)
        {
            // Record metric for autoscaler
            autoscaler.RecordRequest();

            // Acquire agent (simulates getting a pod from service)
            var agent = await pool.AcquireAgentAsync();

            try
            {
                // Perform inference
                var result = await agent.ProcessAsync("Hello World Input");
                // Console.WriteLine($"Processed with score: {result:F4}");
            }
            finally
            {
                // Return agent to pool (simulates keeping pod alive for reuse)
                pool.ReleaseAgent(agent);
            }
        }
    }
}

Line-by-Line Explanation

This code example demonstrates a self-contained simulation of a microservice architecture designed for AI inference, incorporating concepts of resource pooling and dynamic scaling.

1. The InferenceAgent Class (The Worker)

• public class InferenceAgent: Defines the core unit of work. In a production Kubernetes environment, this would represent a single containerized process running inside a Pod.
• private readonly Random _random: Used to simulate the non-deterministic nature of inference results (e.g., varying confidence scores).
• ProcessAsync(string input):
  • await Task.Delay(100): Crucial for realism. Loading a neural network model (e.g., from disk to GPU memory) takes time. This "cold start" latency is a primary reason why Kubernetes autoscaling strategies must be tuned carefully.
  • double score = _random.NextDouble(): Simulates the actual mathematical operation of the AI model (e.g., matrix multiplication).
  • await Task.Delay(50): Simulates data transfer time (serialization/deserialization) or post-processing logic.

2. The AgentPool Class (Resource Management)

• Queue<InferenceAgent> _availableAgents: Represents the pool of "warm" containers. Reusing agents avoids the expensive cold-start penalty (Task.Delay(100)) for every request.
• AcquireAgentAsync():
  • Locking: Uses lock for thread safety. In a distributed system, this logic is handled by the Kubernetes scheduler assigning Pods to Services.
  • Creation Logic: If the queue is empty and _currentAgentCount < _maxPoolSize, it creates a new agent. This simulates the Kubernetes control plane spinning up a new Pod when demand exceeds capacity.
  • Blocking/Waiting: If the pool is at max capacity, the code enters a spin-wait loop. In a real system, this would result in HTTP 503 (Service Unavailable) or request queuing at the load balancer.
• ReleaseAgent(InferenceAgent agent): Returns the agent to the queue. This is equivalent to an HTTP connection keep-alive, allowing the container to handle subsequent requests without restarting.

3. The Autoscaler Class (The "Brain")

• RecordRequest(): Increments a counter atomically. This mimics an observability stack (Prometheus) scraping metrics from the application.
• StartMonitoringAsync(): Runs a background loop (every 5 seconds) to evaluate metrics. In Kubernetes, the Horizontal Pod Autoscaler (HPA) controller runs a similar reconciliation loop.
• EvaluateAndScaleAsync():
  • Calculates Requests Per Second (RPS).
  • Decision Logic:
    • Scale Up: If actualRps > targetRequestsPerSecond, it indicates the system is overloaded.
    • Scale Down: If actualRps < target * 0.5, it conserves resources (cost savings).
  • Real-world Mapping: The Console.WriteLine statements map directly to Kubernetes API calls like kubectl scale deployment/inference-agent --replicas=5.

4. The Program Class (Orchestration)

• Initialization: Sets up the pool and the autoscaler.
• Traffic Simulation:
  • Burst 1 (High Load): Generates 50 requests rapidly. This overwhelms the initial pool size, triggering the AcquireAgentAsync to create new agents up to the limit, and the Autoscaler to detect high RPS.
  • Burst 2 (Low Load): Generates few requests. The Autoscaler detects low utilization and would theoretically trigger a scale-down event.
• ProcessRequest: Encapsulates the full lifecycle of a request: Metric Recording -> Acquisition -> Processing -> Release.

Common Pitfalls

1. Ignoring Cold Start Latency:

   • The Mistake: Assuming that scaling up a replica count (e.g., from 1 to 10) provides instant capacity.
   • Why it happens: The Task.Delay(100) in the code represents model loading. In real AI inference (especially GPU-bound), this can take seconds.
   • Consequence: If traffic spikes faster than the scale-up time (including image pull and container boot), requests will fail or time out.
   • Solution: Implement Over-provisioning (keeping a minimum number of "warm" replicas) or Pre-warming hooks.

2. Blocking the Event Loop:

   • The Mistake: Using Thread.Sleep or synchronous locks in InferenceAgent.ProcessAsync.
   • Why it happens: C# developers transitioning from legacy frameworks might use blocking I/O.
   • Consequence: In a microservice handling thousands of requests, blocking threads reduces throughput significantly (Thread Starvation).
   • Solution: Always use async/await and non-blocking I/O (as demonstrated with Task.Delay).

3. Misconfiguring Autoscaler Thresholds:

   • The Mistake: Setting the target RPS too close to the actual capacity of a single instance.
   • Consequence: The autoscaler oscillates (flapping) — scaling up, then immediately scaling down because the load drops slightly, repeating infinitely.
   • Solution: Set appropriate margins (like the 0.5 factor in the code) and stabilization windows to prevent thrashing.

Visualizing the Architecture

The following diagram illustrates the flow of a request through the containerized agents and the feedback loop to the autoscaler.

Hold "Ctrl" to enable pan & zoom

The diagram depicts a user request flowing into containerized agents, which then triggers a feedback loop that sends metrics like CPU usage to an autoscaler, which in turn scales the agents up or down to maintain performance.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---

Loading knowledge check...

---

---

Code License: All code examples are released under the MIT License. Github repo.

Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
