Chapter 16: Production-Ready Agents: CI/CD and Zero-Downtime Model Updates

Theoretical Foundations

The fundamental challenge of deploying AI agents in a production environment is not the intelligence of the model itself, but the plumbing required to deliver that intelligence reliably, scalably, and efficiently. We are moving from the era of the monolithic, static application to the era of distributed, ephemeral, and intelligent microservices. In this context, "containerization" is not merely a deployment convenience; it is the architectural bedrock that allows AI agents to exist as composable, resilient units of compute.

The Agent as a Stateless, Ephemeral Microservice

To understand why we containerize AI agents, we must first reframe what an agent is in a production context. During development, an agent might be a long-running Python script or a Jupyter notebook with state held in memory. In production, this is untenable. A production agent must be treated as a stateless, ephemeral compute unit.

Analogy: The Specialized Kitchen Station

Imagine a high-volume restaurant kitchen. A monolithic application is like a single chef trying to cook every dish from appetizer to dessert. This chef is a bottleneck; if they get sick, the kitchen stops.

A microservices architecture is like a modern kitchen with specialized stations: a grill station, a salad station, a pasta station, and a dessert station. Each station is staffed by a specialist (a microservice) who does one thing perfectly.

An AI agent is the Sous Chef at the Pasta Station. Their job is specific: receive an order for "Cacio e Pepe" (a user prompt), execute the complex steps (run the LLM inference), and deliver the finished plate (the response).

Why containerize this Sous Chef?

Isolation: The pasta chef's fire doesn't burn the salad chef's lettuce. In software, the dependencies for a PyTorch-based agent (specific CUDA versions, Python libraries) cannot conflict with the dependencies for a .NET-based web API. A container provides a sealed, isolated environment for the agent and its entire runtime world.
Portability: If the restaurant opens a new branch, you don't want to retrain the chef from scratch. You want to clone their exact skills, knowledge, and tools. A Docker container is the "culinary blueprint" for our Sous Chef. It contains the model weights, the inference runtime (like vLLM or Triton), the agent logic, and the OS dependencies. This blueprint can run on a developer's laptop, an on-premise GPU server, or in the cloud, behaving identically.
Scalability: It's Friday night, and the pasta orders are flooding in. The head chef (the orchestrator, Kubernetes) doesn't try to make the single pasta chef work faster. Instead, they quickly hire and onboard several new pasta chefs, each equipped with the exact same blueprint. This is horizontal scaling. We don't scale up the single container; we scale out by adding more identical container instances.

The Role of C# in the Agent's Lifecycle

While the agent's core inference might be in Python, C# often serves as the Orchestrator, Gateway, and Control Plane for these AI microservices. Modern C# is exceptionally well-suited for this role due to its performance, strong typing, and robust ecosystem for building distributed systems.

Interfaces for Model Abstraction

A critical architectural pattern is the Strategy Pattern, implemented in C# using interfaces. This allows us to decouple our application logic from the specific AI model provider.

Consider a IChatCompletionService interface. This contract defines what an AI service must do (e.g., Task<ChatResponse> CompleteAsync(ChatRequest request)).

using System.Threading.Tasks;

// The contract, defined in our core application logic
public interface IChatCompletionService
{
    Task<ChatResponse> CompleteAsync(ChatRequest request);
}

// Our concrete implementation that calls a containerized agent
public class ContainerizedAgentService : IChatCompletionService
{
    private readonly HttpClient _agentHttpClient;

    public ContainerizedAgentService(HttpClient agentHttpClient)
    {
        _agentHttpClient = agentHttpClient;
    }

    public async Task<ChatResponse> CompleteAsync(ChatRequest request)
    {
        // Logic to serialize the request and call the agent's HTTP endpoint
        // inside its container.
        var response = await _agentHttpClient.PostAsJsonAsync("/invoke", request);
        return await response.Content.ReadFromJsonAsync<ChatResponse>();
    }
}

This is crucial for building AI applications because it allows us to swap the underlying implementation without changing a single line of our application's business logic. We can start by pointing this interface to a container running a local open-source model. Later, we can switch to a container that calls the OpenAI API, or a container running a fine-tuned model on a private GPU cluster. The consuming application remains blissfully unaware of the change.

This builds directly upon the concept of Dependency Injection explored in Book 3. We don't hard-code the agent's location; we inject the IChatCompletionService implementation. This makes our system testable (we can inject a mock service) and flexible.

The Runtime: Packaging the Agent's Brain

Containerizing an AI agent is more complex than docker build for a standard web app. The "image" is a multi-layered artifact.

Base OS Layer: A minimal Linux distribution (e.g., ubuntu:22.04 or gcr.io/distroless/base).
Dependency Layer: This is the heaviest and most critical. It includes the Python interpreter, pip, and libraries like torch, transformers, accelerate, and vLLM. These libraries are massive and have their own complex dependency trees.
Model Weights Layer: This is often the largest component, frequently exceeding 10GB. Storing these weights inside the container image itself is inefficient. Modern best practices involve:
- Volume Mounts: The container is built without the model. At runtime, the orchestrator mounts a persistent volume (like a network-attached storage disk) that contains the model weights.
- Artifact Registries: Using specialized registries (like Hugging Face's Hub or cloud-specific model registries) to pull weights on-demand.
Agent Logic Layer: The Python or C# code that wraps the model call. This code handles pre-processing (tokenization), post-processing (de-tokenization), and potentially tool-calling logic (e.g., if the model decides to query a database, this code executes that).
Inference Server Layer: Instead of writing a custom Flask/FastAPI server, we often package a dedicated high-performance inference server inside the container. The agent logic becomes a client to this server. Examples include NVIDIA Triton Inference Server or vLLM. These servers are highly optimized for batching requests, managing GPU memory, and handling multiple concurrent users.

The Orchestrator: Kubernetes and GPU-Aware Scheduling

Once our agent is packaged, it needs a home. That home is Kubernetes (K8s). K8s is the "operating system for the data center." Its job is to take our desired state (e.g., "I want 5 replicas of the 'sentiment-analysis-agent'") and make it a reality.

GPU-Aware Scheduling: The Critical Piece for AI

This is where K8s moves from a generic orchestrator to an AI-specific platform. A standard K8s scheduler places containers on nodes (machines) based on CPU and RAM. But AI agents are GPU-starved.

To make K8s "AI-aware," we need two components:

Kubernetes Device Plugins: A daemon that runs on each GPU node and advertises the available GPUs to the K8s scheduler.
Resource Requests/Limits in Pod Specs: When defining our agent's container (in a Kubernetes "Pod" manifest), we explicitly request GPU resources.

# A conceptual Kubernetes Pod spec for an AI agent
apiVersion: v1
kind: Pod
metadata:
  name: llm-agent-pod
spec:
  containers:

  - name: agent-runtime
    image: my-registry/llm-agent:v1.2
    resources:
      requests:
        nvidia.com/gpu: 1  # "I need one GPU to run"
        memory: "32Gi"     # "I need 32GB of RAM for my model weights"
      limits:
        nvidia.com/gpu: 1  # "I cannot use more than one GPU"

When this pod is submitted, the Kubernetes scheduler will only place it on a node that has an available NVIDIA GPU and enough free memory. This is GPU-aware scheduling. It ensures our expensive hardware is utilized efficiently and that our agents don't get scheduled onto CPU-only nodes where they would fail or perform abysmally.

Scaling Inference: The Difference Between "Up" and "Out"

In traditional software, we scale "up" by using a bigger machine (more CPU, more RAM). For AI, this has limits. A single massive model might not fit on one machine's GPUs, or the latency of a single huge model might be too high.

In the agent world, we scale "out" (horizontally). We run many smaller, concurrent instances of our agent. This is where Horizontal Pod Autoscaling (HPA) and KEDA (Kubernetes Event-driven Autoscaling) come in.

Analogy: The Call Center

Imagine a call center for customer support.

HPA (CPU-based): This is like the manager hiring more agents because they see the existing agents' phones are constantly blinking (high CPU usage). It's a reactive, general-purpose metric.
KEDA (Queue-based): This is smarter. The manager has a dashboard showing the number of people waiting in the online queue. If the queue length hits 50 people, they immediately hire 5 new agents. If the queue drops to 0, they send the extra agents home. This is event-driven scaling.

For AI agents, KEDA is superior. We don't care about CPU usage; we care about the inference queue length. We can configure KEDA to monitor a message queue (like RabbitMQ or Azure Service Bus). When a user request arrives, it's placed in the queue. KEDA sees the queue depth increasing and instructs Kubernetes to spin up more agent pods. When the queue is drained, KEDA scales the pods back down to zero (or one) to save costs.

This is cost-aware scaling. GPU instances are expensive. Running 10 idle agents 24/7 is a waste. KEDA allows us to have zero agents running during off-peak hours, and have 50 agents running during a traffic spike, all automatically.

Efficient Inference Patterns: Batching and Streaming

The final piece of the theoretical puzzle is how the agent itself processes requests inside the container.

Request Batching

A single GPU is a massively parallel processor. Sending one user request at a time is like using a Formula 1 car to deliver a single pizza. You're using immense power for a tiny task.

Dynamic Batching is the practice of the inference server (like Triton or vLLM) collecting multiple user requests that arrive within a small time window and feeding them all to the GPU at once in a single batch. This dramatically increases throughput and GPU utilization.

// Pseudo-code for a client-side batching pattern in C#
// (The server does this automatically, but we can also do it at the gateway)
public async Task<List<ChatResponse>> CompleteBatchAsync(List<ChatRequest> requests)
{
    // 1. Collect requests from users over a short window (e.g., 50ms)
    // 2. Send one large HTTP request to the agent container
    // 3. The agent's inference server batches them
    // 4. The GPU processes them in parallel
    // 5. Return a list of responses
    return await _agentHttpClient.PostAsJsonAsync("/batch", requests);
}

Streaming (Server-Sent Events)

For interactive applications like chatbots, waiting for the full response can feel slow. Streaming is the solution. The agent container sends the response back chunk-by-chunk as it's generated by the model.

Analogy: The Water Tap vs. The Water Bottle.

Standard Request: You ask for water. The bartender fills an entire 1-liter bottle, caps it, and hands it to you. You wait until it's full.
Streaming: You ask for water. The bartender turns on the tap. You can start drinking immediately, drop by drop.

In the containerized world, the agent's HTTP endpoint doesn't return a single 200 OK with a body. It returns a 200 OK with a Content-Type: text/event-stream. The C# client application must be built to handle this, reading the stream asynchronously and updating the UI as tokens arrive.

Visualizing the Architecture

The entire flow, from user request to scaled inference, can be visualized as a multi-tiered system. The C# application acts as the intelligent gateway, while Kubernetes manages the ephemeral agent fleet.

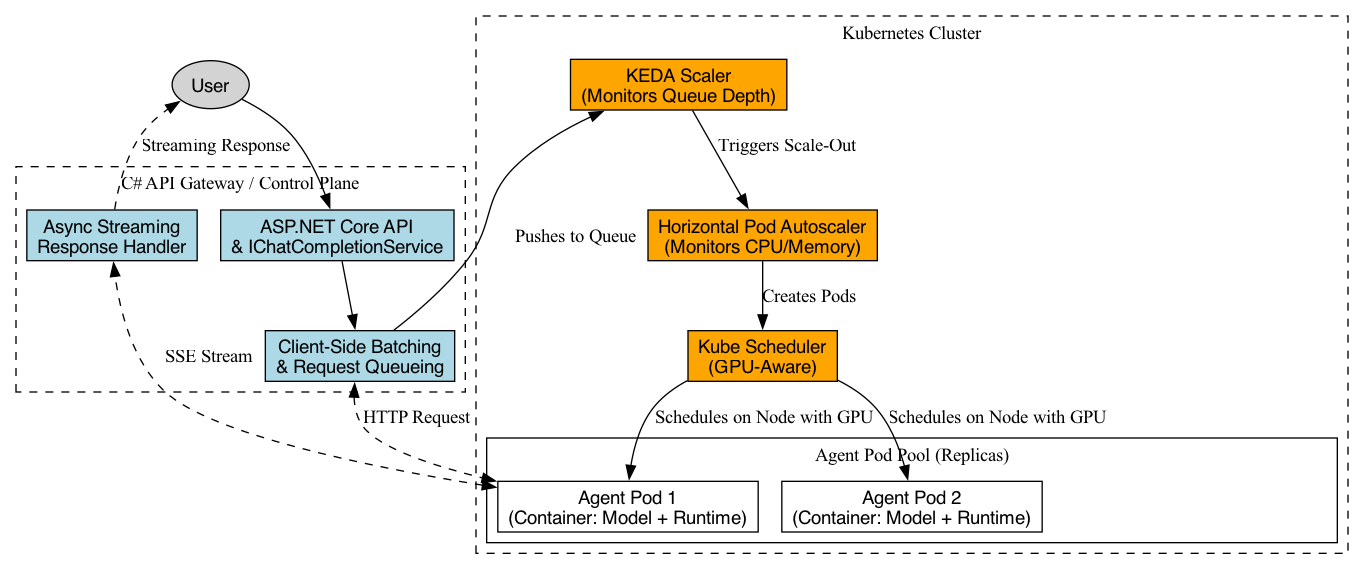

A diagram illustrates a multi-tiered architecture where a C# application serves as the intelligent gateway processing user requests, which are then routed to a scalable fleet of ephemeral AI agents managed by Kubernetes for inference.

This architecture represents a paradigm shift. We are no longer building a single, monolithic "AI Application." We are building a distributed system where C# provides the robust, type-safe, and high-performance control plane, and Kubernetes provides the dynamic, resilient, and hardware-aware execution environment for our specialized AI agents. The container is the atomic unit of this new world.

Basic Code Example

Here is a simple "Hello World" level example demonstrating how to containerize a basic AI agent (a simple text sentiment analyzer) using .NET and Docker, ready for orchestration.

Real-World Context: The Microservice AI Agent

Imagine you are building a social media monitoring tool. You need a service that accepts a stream of user comments and returns a sentiment score (Positive, Negative, Neutral). In a monolithic architecture, this logic might be buried deep in the application. In a cloud-native architecture, we extract this logic into a standalone AI Agent Microservice. This service can be deployed independently, scaled horizontally based on traffic, and updated without affecting other parts of the system.

This example creates that standalone agent.

The Code Example

using Microsoft.AspNetCore.Builder;
using Microsoft.AspNetCore.Http;
using Microsoft.Extensions.DependencyInjection;
using System.Text.Json;
using System.Text.Json.Serialization;

namespace AiAgentMicroservice
{
    // 1. Domain Model: Represents the data structure for the AI Agent's input and output.
    public class SentimentRequest
    {
        [JsonPropertyName("text")]
        public required string Text { get; set; }
    }

    public class SentimentResponse
    {
        [JsonPropertyName("sentiment")]
        public string Sentiment { get; set; } = string.Empty;

        [JsonPropertyName("confidence")]
        public double Confidence { get; set; }
    }

    // 2. The AI Logic: A mock inference engine.
    // In a real scenario, this would load a TensorFlow/PyTorch model or call a specialized inference server.
    public interface IInferenceEngine
    {
        SentimentResponse Analyze(string text);
    }

    public class SimpleInferenceEngine : IInferenceEngine
    {
        // Deterministic logic for "Hello World" purposes.
        public SentimentResponse Analyze(string text)
        {
            if (string.IsNullOrWhiteSpace(text))
                return new SentimentResponse { Sentiment = "Neutral", Confidence = 0.0 };

            var lower = text.ToLowerInvariant();

            if (lower.Contains("good") || lower.Contains("great") || lower.Contains("happy"))
                return new SentimentResponse { Sentiment = "Positive", Confidence = 0.95 };

            if (lower.Contains("bad") || lower.Contains("terrible") || lower.Contains("sad"))
                return new SentimentResponse { Sentiment = "Negative", Confidence = 0.92 };

            return new SentimentResponse { Sentiment = "Neutral", Confidence = 0.5 };
        }
    }

    // 3. The Web API: Exposes the agent via HTTP for Kubernetes to route traffic to.
    public class Program
    {
        public static void Main(string args)
        {
            var builder = WebApplication.CreateBuilder(args);

            // Register the inference engine into the Dependency Injection container.
            // This makes the AI logic testable and swappable.
            builder.Services.AddSingleton<IInferenceEngine, SimpleInferenceEngine>();

            var app = builder.Build();

            // Define the API endpoint.
            // Kubernetes Health Checks will hit this root.
            app.MapGet("/", () => "AI Agent Microservice is running.");

            // The actual inference endpoint.
            app.MapPost("/analyze", async (HttpContext context, IInferenceEngine engine) =>
            {
                // Deserialize the incoming JSON request.
                var request = await context.Request.ReadFromJsonAsync<SentimentRequest>();

                if (request == null || string.IsNullOrWhiteSpace(request.Text))
                {
                    context.Response.StatusCode = 400;
                    await context.Response.WriteAsync("Invalid request body.");
                    return;
                }

                // Perform the AI inference.
                var result = engine.Analyze(request.Text);

                // Return the result as JSON.
                await context.Response.WriteAsJsonAsync(result);
            });

            // Listen on all interfaces (crucial for Docker container networking).
            // Default port is 8080, often used in containerized environments.
            app.Run("http://0.0.0.0:8080");
        }
    }
}

Dockerfile

To containerize this application, we use a multi-stage build. This is a best practice that keeps the final image small and secure by separating the build environment from the runtime environment.

# STAGE 1: Build the application
# Uses the .NET SDK image to compile the C# code.
FROM mcr.microsoft.com/dotnet/sdk:8.0 AS build
WORKDIR /src
COPY . .
RUN dotnet publish -c Release -o /app/publish

# STAGE 2: Runtime
# Uses the smaller ASP.NET runtime image.
# We do NOT use the SDK image here to reduce attack surface and image size.
FROM mcr.microsoft.com/dotnet/aspnet:8.0 AS runtime
WORKDIR /app
COPY --from=build /app/publish .

# Expose the port the application listens on.
EXPOSE 8080

# Define the entry point.
ENTRYPOINT ["dotnet", "AiAgentMicroservice.dll"]

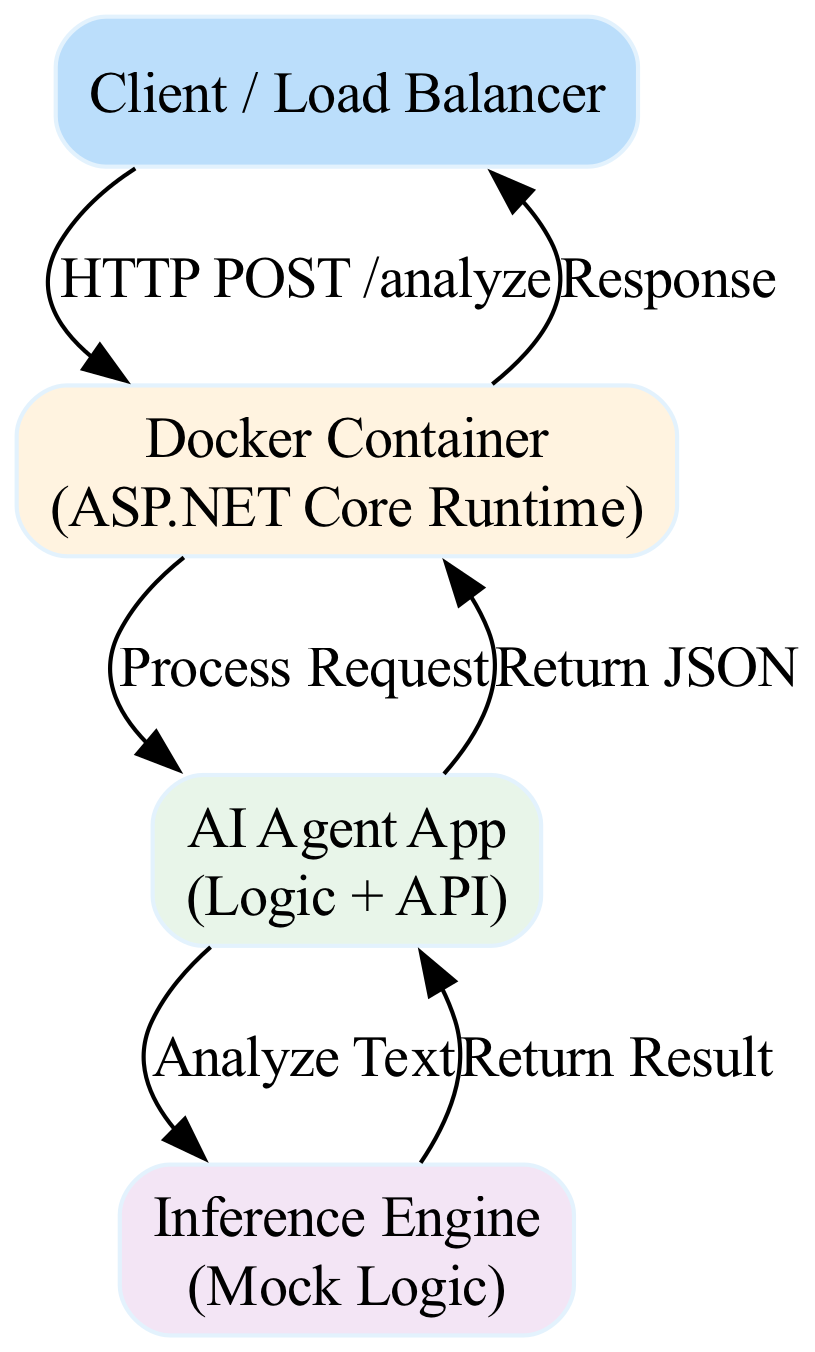

Graphviz Visualization

This diagram illustrates the architecture of this simple microservice.

Detailed Line-by-Line Explanation

1. The Domain Models (`SentimentRequest`, `SentimentResponse`)

public class SentimentRequest: Defines the structure of the data we expect to receive from the client.
[JsonPropertyName("text")]: This attribute (from System.Text.Json) maps the C# property Text to the JSON key text. This ensures our API adheres to standard JSON conventions (camelCase) expected by most web clients.
required string Text: Uses the C# 11 required keyword. This enforces that the client must provide the "text" field in the JSON payload; otherwise, deserialization will fail immediately.

2. The Inference Engine (`IInferenceEngine`, `SimpleInferenceEngine`)

public interface IInferenceEngine: Defines a contract. In a real-world scenario, you might have TensorFlowInferenceEngine or ONNXInferenceEngine implementations. Using an interface allows us to swap the underlying AI model without changing the API code.
SimpleInferenceEngine: A concrete implementation.
lower.Contains(...): For this "Hello World" example, we use simple string matching. In a production system, this method would call a heavy ML model (e.g., BERT) running on a GPU. The logic here is purely to demonstrate the flow of data.

3. The Program Entry Point (`Main`)

var builder = WebApplication.CreateBuilder(args);: Initializes the ASP.NET Core host. This sets up logging, configuration, and dependency injection (DI) by default.
builder.Services.AddSingleton<IInferenceEngine, SimpleInferenceEngine>();: Registers the AI logic. AddSingleton ensures that only one instance of the inference engine is created for the lifetime of the application. This is efficient if the engine loads a large model into memory.
var app = builder.Build();: Constructs the request pipeline.

4. The API Endpoints

app.MapGet("/", ...): A simple health check. Kubernetes will use this to verify the container is alive.
app.MapPost("/analyze", ...): Defines the core logic.
- await context.Request.ReadFromJsonAsync<SentimentRequest>(): Efficiently parses the incoming HTTP body as JSON into our C# object.
- engine.Analyze(request.Text): Calls the registered AI service.
- await context.Response.WriteAsJsonAsync(result): Serializes the result back to JSON and writes it to the response stream.

5. `app.Run("http://0.0.0.0:8080")`

This is critical for Docker. By default, ASP.NET Core listens on localhost (127.0.0.1). Inside a Docker container, localhost refers only to the container itself. To allow the Docker host (or Kubernetes) to communicate with the container, we must bind to 0.0.0.0 (all network interfaces). Port 8080 is a standard port often used in cloud environments.

6. The Dockerfile

FROM ... sdk AS build: We start with the SDK image, which contains the compilers (dotnet) and NuGet package managers.
COPY . .: Copies the source code from your local directory into the container's working directory.
dotnet publish -c Release: Compiles the code and restores dependencies. The -c Release flag optimizes the binary for performance.
FROM ... aspnet:8.0 AS runtime: The "Final Stage". We switch to the aspnet image, which is much smaller (approx 200MB vs 800MB for SDK) and contains only the .NET runtime, not the compilers.
COPY --from=build /app/publish .: Copies the compiled binaries from the build stage into the runtime stage. This is called a Multi-Stage Build.
ENTRYPOINT ["dotnet", "AiAgentMicroservice.dll"]: Tells Docker what command to run when the container starts.

Common Pitfalls

Binding to Localhost in Containers:
- Mistake: Using app.Run("http://localhost:8080") or the default app.Run().
- Consequence: The container will start, but the host machine (and Kubernetes) cannot reach it. The container will appear to be running, but all connection attempts will time out.
- Fix: Always bind to 0.0.0.0 (e.g., http://0.0.0.0:8080) to expose the service to the network outside the container.
Using the SDK Image for Production:
- Mistake: Deploying the mcr.microsoft.com/dotnet/sdk:8.0 image to production.
- Consequence: Massive security risk. The SDK image includes compilers, shells, and package managers. If an attacker compromises your app, they have access to these tools to download malware or modify the container.
- Fix: Always use the aspnet (runtime) image for the final stage, as shown in the Dockerfile.
Ignoring Dependency Injection Lifetimes:
- Mistake: Registering a service that holds state (like a model loader) as AddTransient or AddScoped without understanding the implications.
- Consequence: If you load a 2GB AI model into memory for every single request (Transient), your application will crash due to Out Of Memory (OOM) errors.
- Fix: Use AddSingleton for heavy services like Inference Engines to ensure the model is loaded once and reused for all requests.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
