Chapter 21: Advanced Orchestration: Building Custom Controllers and Schedulers

Theoretical Foundations

The theoretical foundation of containerizing AI agents and scaling inference rests on a fundamental paradigm shift: treating artificial intelligence not as monolithic, static applications, but as ephemeral, composable microservices. In the context of Cloud-Native AI, the "agent" is no longer a single executable; it is a distributed system of specialized components—data ingestion, preprocessing, model inference, and post-processing—each encapsulated within its own lightweight container. This architectural evolution demands a rigorous understanding of how container orchestration platforms, specifically Kubernetes, manage the lifecycle of these stateless inference workloads while optimizing for high-throughput, low-latency interactions.

To understand this, we must first establish the core analogy: The Modern Restaurant Kitchen.

Imagine a high-end restaurant during peak hours. In a traditional monolithic architecture, you have one master chef who handles every single task: taking orders, chopping vegetables, grilling the steak, plating the dish, and washing the dishes. If the chef is overwhelmed, the entire kitchen grinds to a halt. If the chef is sick, the restaurant closes. This is the "Fat Agent" pattern—inefficient, fragile, and difficult to scale.

In the Cloud-Native AI model (the microservices architecture), we deconstruct the kitchen into specialized stations:

  1. The Order Taker (Ingestion): A dedicated station that only takes orders and validates them.
  2. The Prep Station (Preprocessing): A team that chops vegetables and preps ingredients (tokenization, normalization).
  3. The Grill (Inference Engine): A specialized station with high-heat equipment (GPUs) that cooks the main course (runs the model).
  4. The Expediter (Post-processing): A station that assembles the dish and ensures quality (decoding output, applying filters).

Each station operates independently. If the grill is backed up, we don't hire a new master chef; we hire more grill cooks (Horizontal Pod Autoscaling). If the grill requires specialized equipment (GPUs), we ensure only the grill station gets it. This separation of concerns allows the restaurant to scale dynamically based on demand.

The Containerization of the AI Agent

In C#, the AI agent is typically implemented as a set of microservices. The theoretical power of containerization lies in the abstraction of the execution environment. We package the agent's logic, its dependencies, and the .NET runtime into an immutable image.

Consider the IInferenceService interface defined in a previous chapter (Book 6: Microservices Patterns). It established a contract for model interaction. In the containerized world, this interface becomes the boundary between containers.

using System.Threading.Tasks;

namespace CloudNativeAI.Agents.Core
{
    // Reference to Book 6: The "Contract" pattern for service decoupling.
    // This interface allows us to swap implementations without recompiling the agent.
    public interface IInferenceService
    {
        Task<InferenceResult> PredictAsync(InferenceRequest request);
    }
}

When we containerize this, we are not just packaging the C# class. We are packaging the environment in which this interface is implemented. This is crucial because AI agents often have heavy, conflicting dependencies (e.g., one model requires PyTorch 2.0, another requires TensorFlow). Containers isolate these dependencies, ensuring that the "Prep Station" (preprocessing) doesn't break because the "Grill Station" (inference) updated its drivers.

The Orchestration Layer: Kubernetes as the Kitchen Manager

Kubernetes acts as the General Manager of our restaurant. It doesn't cook the food, but it decides how many cooks to hire, where to station them, and how to route traffic.

1. The Inference Pod: The Atomic Unit of Scaling

In Kubernetes, the smallest deployable unit is the Pod. A Pod can contain one or more containers. For an AI agent, we often use the Sidecar Pattern. The main container runs the C# inference server (e.g., an ASP.NET Core Web API), while a sidecar container might handle logging, metrics collection, or even lightweight pre-processing.

Why this matters for AI: AI models are memory-intensive. A single GPU might be able to hold one large model (e.g., a 70B parameter LLM) but not two. Kubernetes uses Resource Requests and Limits to manage this.

  • Request: The minimum resources guaranteed to the Pod (e.g., 4 CPU cores, 16GB RAM, 1 NVIDIA GPU).
  • Limit: The maximum resources the Pod can use (preventing a memory leak from crashing the node).

In C#, we design our services to be stateless to align with this. The PredictAsync method should not rely on local memory between requests. All state (like conversation history) must be externalized to a distributed cache (like Redis) or a database. This allows Kubernetes to spin up new Pods (replicas) instantly without worrying about local state synchronization.

2. Autoscaling: The Dynamic Workforce

The core of scaling inference is the Horizontal Pod Autoscaler (HPA). Unlike Vertical Pod Autoscaling (VPA), which adjusts CPU/RAM limits of existing Pods (resizing the chef), HPA adds more Pods (hiring more chefs).

The Metric Problem: Scaling web servers is easy; we scale on CPU usage. If CPU > 70%, add a pod. Scaling AI inference is complex. GPU utilization is a better metric, but it can be misleading. A GPU can be "busy" but not actually computing (e.g., waiting for data transfer). Therefore, the theoretical foundation suggests scaling on custom metrics, such as:

  • Inference Queue Length: How many requests are waiting to be processed?
  • Requests Per Second (RPS): Throughput.
  • GPU Memory Utilization: Critical for preventing Out-Of-Memory (OOM) errors.

The C# Integration: Our C# application must expose these metrics. We use libraries like OpenTelemetry to instrument the IInferenceService.

using System.Diagnostics.Metrics;

public class InstrumentedInferenceService : IInferenceService
{
    private static readonly Meter _meter = new("AI.Inference");
    private static readonly Histogram<double> _inferenceDuration = _meter.CreateHistogram<double>("inference.duration.ms");
    private static readonly UpDownCounter<int> _queueLength = _meter.CreateUpDownCounter<int>("inference.queue.length");

    public async Task<InferenceResult> PredictAsync(InferenceRequest request)
    {
        _queueLength.Add(1);
        var stopwatch = Stopwatch.StartNew();

        try
        {
            // Actual model inference logic
            return await InternalPredictAsync(request);
        }
        finally
        {
            stopwatch.Stop();
            _inferenceDuration.Record(stopwatch.ElapsedMilliseconds);
            _queueLength.Add(-1);
        }
    }
}
Kubernetes scrapes these metrics via the Prometheus adapter and makes scaling decisions. If the queue length exceeds a threshold, HPA creates new Pods.

3. GPU Resource Allocation and Bin Packing

In the restaurant analogy, the Grill Station (GPU) is a scarce, expensive resource. You cannot simply place a grill anywhere; it requires ventilation, power, and safety clearance.

In Kubernetes, Node Pools are used to segregate workloads. We create a node pool of GPU-enabled VMs (e.g., AWS P3 instances or Azure NCv3).

  • Taints and Tolerations: We "taint" the GPU nodes so that general workloads (like the Order Taker) cannot run there. The AI Inference Pods must have a "toleration" for that taint, allowing them to schedule on the GPU nodes.
  • Affinity/Anti-Affinity: We use affinity rules to ensure that Pods from the same agent (or different versions) are not scheduled on the same node (to prevent resource contention) or to ensure they are close to data sources (low latency).

The C# Nuance: When running on GPU nodes, the C# application must interact with the GPU drivers. In .NET, this is typically done via ML.NET (for ONNX models) or interop with CUDA libraries. The container image must include the necessary CUDA drivers. However, the theoretical beauty of containerization is that the C# code remains largely platform-agnostic. The IInferenceService implementation abstracts whether the calculation happens on a CPU tensor or a GPU tensor.

Inter-Service Communication: The Waiter Protocol

An AI Agent rarely works in isolation. A "Chat Agent" might need to call a "RAG (Retrieval-Augmented Generation) Agent" to fetch documents and a "Safety Agent" to filter output.

In the restaurant, the Waiter (Service Mesh) routes the order. In Kubernetes, we use a Service Mesh (like Istio or Linkerd) or native Kubernetes Services.

The Challenge of Inference Latency: Unlike standard CRUD operations, AI inference is slow (seconds, not milliseconds). Blocking a thread waiting for a model response in a microservices architecture is disastrous.

  • Synchronous (Request/Response): The Agent calls the Model Service and waits. This is simple but ties up resources.
  • Asynchronous (Event-Driven): The Agent publishes an event to a message queue (e.g., RabbitMQ, Azure Service Bus). The Model Service processes it when ready.

C# Async/Await Pattern: For synchronous scaling, C#'s async/await is critical. It allows the web server to release the request thread while the model is computing, freeing up the thread pool to handle other incoming requests (like taking orders while the food is cooking).

public async Task<IActionResult> Chat([FromBody] ChatMessage message)
{
    // Non-blocking call to the inference service
    var response = await _inferenceService.PredictAsync(message);
    return Ok(response);
}

However, for massive scale, we often move to an Event-Driven Architecture. The C# application uses BackgroundService (part of .NET Core) to consume messages from a queue. This decouples the "Ingestion" from the "Inference," allowing the queue to act as a buffer during traffic spikes (backpressure).

Visualizing the Architecture

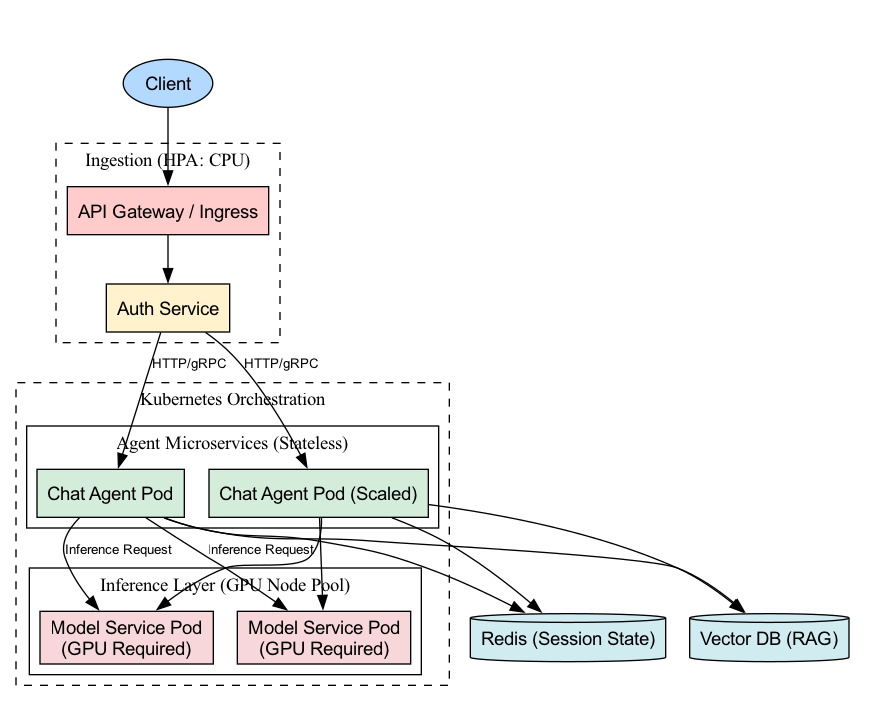

The following diagram illustrates the flow of a request through the containerized AI agent ecosystem, highlighting the separation of concerns and the scaling boundaries.

A diagram visualizes the containerized AI agent architecture, where an ingestion service places requests into a queue that decouples it from the inference service, allowing the queue to act as a buffer during traffic spikes.
Hold "Ctrl" to enable pan & zoom

A diagram visualizes the containerized AI agent architecture, where an ingestion service places requests into a queue that decouples it from the inference service, allowing the queue to act as a buffer during traffic spikes.

Deep Dive: Optimization and Edge Cases

1. The Cold Start Problem

In the restaurant analogy, imagine hiring a new cook who has never seen the kitchen. It takes time to find their apron, learn the menu, and heat the grill. This is the Cold Start in AI containers.

  • The Issue: Loading a 50GB model into GPU memory can take minutes. If HPA scales from 0 to 10 pods instantly, the first requests will time out.
  • The Solution:
    • Readiness Probes: Kubernetes must be configured to not send traffic to a Pod until the C# application has fully loaded the model into memory.
    • Minimum Replicas: Always keep a "warm" pool of at least 1-2 replicas running, even at zero traffic.
    • Model Caching: Using an init-container to preload models from persistent storage (like S3) into an emptyDir volume, which is then mounted to the application container.

2. GPU Fragmentation

If we have one GPU node with 4 GPUs, and we request Pods that need 1 GPU each, we might end up with a situation where 3 Pods are running, but the 4th Pod cannot start because the remaining GPU memory is fragmented or insufficient (due to overhead).

  • The Solution: Kubernetes device plugins manage this, but from a C# perspective, we must be precise with memory allocation. We should avoid allocating more VRAM than necessary in our tensor operations.

3. Inter-Service Communication Latency

When the Chat Agent calls the Model Service, there is network overhead (serialization/deserialization).

  • gRPC vs. HTTP/REST: For high-throughput AI agents, we prefer gRPC (over HTTP/1.1) because it uses HTTP/2 multiplexing and Protocol Buffers, which are binary and smaller than JSON. In C#, we use Grpc.AspNetCore for the server and Grpc.Net.Client for the client.
  • Batching: To maximize GPU utilization, the Model Service shouldn't process one request at a time. It should implement dynamic batching. The C# service can accumulate requests over a few milliseconds and run them as a single batch on the GPU. This increases throughput significantly (requests/sec) at the cost of slight latency increase.

The "What If": Failure Scenarios

Scenario: The GPU node crashes. Architecture Response:

  1. Kubernetes detects the node is NotReady via the Kubelet.
  2. The Control Plane schedules the Pods (Chat Agent and Model Service) to a different node.
  3. Because the Chat Agent is stateless (state is in Redis), it recovers instantly.
  4. The Model Service attempts to restart. If the model loading takes too long, the Readiness Probe fails, and Kubernetes retries.
  5. Circuit Breaking: If the Model Service is down, the Chat Agent (using a library like Polly) should implement a circuit breaker. Instead of hammering the failing service, it returns a fallback response (e.g., "I am currently busy, please try again later") or routes to a smaller, CPU-based fallback model.

Theoretical Foundations

The theoretical foundation of Cloud-Native AI is the decoupling of the agent's logic from the inference hardware. By containerizing C# microservices and orchestrating them with Kubernetes, we achieve:

  1. Scalability: We scale the "Grill Station" (Inference) independently of the "Waiter" (API Gateway).
  2. Resilience: Failures are isolated to specific pods, not the entire system.
  3. Efficiency: GPU resources are treated as schedulable commodities, optimized via bin-packing and autoscaling.

This architecture transforms AI from a static resource into a fluid, elastic capability that can adapt to the unpredictable demands of real-world user interactions. The C# ecosystem, with its robust support for async I/O, interfaces, and containerization, provides the ideal language construct to build these resilient, distributed agents.

Basic Code Example

// ============================================================
// BASIC CODE EXAMPLE: Containerized AI Inference Microservice
// ============================================================
// CONTEXT: In a cloud-native AI system, an "agent" (e.g., a sentiment analyzer)
// receives text, processes it via a model, and returns a result.
// This code demonstrates a minimal, self-contained microservice using ASP.NET Core.
// It simulates an AI model inference call and exposes it via an HTTP endpoint.
// This is the foundational unit that will be containerized and scaled in Kubernetes.

using Microsoft.AspNetCore.Builder;
using Microsoft.AspNetCore.Hosting;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Hosting;
using Microsoft.Extensions.Logging;
using System.Text.Json;
using System.Text.Json.Serialization;

// 1. Define the Data Contracts (DTOs)
// -----------------------------------------------------------
// Real-world context: The API needs structured input and output.
// We use Records (C# 9+) for immutable, concise data models.
public record InferenceRequest(string Text);
public record InferenceResult(string Sentiment, double Confidence);

// 2. Define the "AI Model" Service
// -----------------------------------------------------------
// Real-world context: In a real scenario, this would load a ONNX model
// or call an external service like Azure Cognitive Services.
// Here, we simulate the inference logic for the "Hello World" example.
public interface IInferenceService
{
    Task<InferenceResult> AnalyzeAsync(InferenceRequest request);
}

public class MockSentimentModel : IInferenceService
{
    private readonly ILogger<MockSentimentModel> _logger;

    public MockSentimentModel(ILogger<MockSentimentModel> logger)
    {
        _logger = logger;
    }

    public async Task<InferenceResult> AnalyzeAsync(InferenceRequest request)
    {
        // Simulate network latency or GPU processing time
        await Task.Delay(50);

        // Basic keyword-based simulation (not a real model)
        var text = request.Text.ToLowerInvariant();
        double confidence = 0.5;
        string sentiment = "Neutral";

        if (text.Contains("good") || text.Contains("great") || text.Contains("excellent"))
        {
            sentiment = "Positive";
            confidence = 0.95;
        }
        else if (text.Contains("bad") || text.Contains("terrible") || text.Contains("poor"))
        {
            sentiment = "Negative";
            confidence = 0.92;
        }

        _logger.LogInformation("Analyzed text: '{Text}' -> {Sentiment} ({Confidence:P})",
            request.Text, sentiment, confidence);

        return new InferenceResult(sentiment, confidence);
    }
}

// 3. Define the API Controller
// -----------------------------------------------------------
// Real-world context: This is the entry point for the microservice.
// It handles HTTP requests, validates input, and delegates to the service.
[ApiController]
[Route("[controller]")]
public class InferenceController : ControllerBase
{
    private readonly IInferenceService _inferenceService;

    public InferenceController(IInferenceService inferenceService)
    {
        _inferenceService = inferenceService;
    }

    [HttpPost("analyze")]
    [ProducesResponseType(typeof(InferenceResult), 200)]
    [ProducesResponseType(400)]
    public async Task<IActionResult> Analyze([FromBody] InferenceRequest request)
    {
        if (string.IsNullOrWhiteSpace(request.Text))
        {
            return BadRequest("Text cannot be empty.");
        }

        var result = await _inferenceService.AnalyzeAsync(request);
        return Ok(result);
    }
}

// 4. Program Entry Point (Minimal API Style)
// -----------------------------------------------------------
// Real-world context: This sets up the dependency injection container,
// configures logging, and starts the HTTP server.
public class Program
{
    public static void Main(string[] args)
    {
        var builder = WebApplication.CreateBuilder(args);

        // Add services to the container
        builder.Services.AddControllers();
        builder.Services.AddSingleton<IInferenceService, MockSentimentModel>();

        // Configure JSON options for cleaner API responses
        builder.Services.ConfigureHttpJsonOptions(options =>
        {
            options.SerializerOptions.PropertyNamingPolicy = JsonNamingPolicy.CamelCase;
            options.SerializerOptions.WriteIndented = true;
        });

        var app = builder.Build();

        // Configure the HTTP request pipeline
        if (app.Environment.IsDevelopment())
        {
            app.UseDeveloperExceptionPage();
        }

        app.MapControllers();

        // Start the service
        app.Run("http://0.0.0.0:8080"); // Listen on all interfaces, port 8080
    }
}

Architecture Diagram

The following diagram illustrates the flow of data within this microservice and how it fits into the broader containerized ecosystem.

This diagram illustrates the data flow from a C# microservice listening on port 8080 to an AI model, highlighting its integration within a containerized ecosystem.
Hold "Ctrl" to enable pan & zoom

This diagram illustrates the data flow from a C# microservice listening on port 8080 to an AI model, highlighting its integration within a containerized ecosystem.

Detailed Line-by-Line Explanation

1. Data Contracts (Lines 13-14)

public record InferenceRequest(string Text);
public record InferenceResult(string Sentiment, double Confidence);
  • record: Introduced in C# 9, a record is a reference type that provides built-in immutability and value-based equality. In microservices, immutability is critical because it prevents accidental state mutation when data is passed between threads or services.
  • InferenceRequest: Defines the input payload. In a production environment, you would add data annotations (e.g., [Required], [MaxLength]) for automatic validation.
  • InferenceResult: Defines the output payload. By defining strict types here, we ensure that the API contract is self-documenting and that serialization errors are minimized.

2. The Service Interface (Lines 16-19)

public interface IInferenceService
{
    Task<InferenceResult> AnalyzeAsync(InferenceRequest request);
}
  • Dependency Injection (DI): We define an interface rather than a concrete class. This allows the ASP.NET Core DI container to inject the implementation. This is vital for testing (mocking) and for swapping out the "Mock" model for a real GPU-based model later without changing the Controller code.
  • async/await: AI inference, especially when calling external APIs or running on GPU, is I/O bound or compute-bound. Using async ensures the thread isn't blocked waiting for the result, improving the service's throughput (requests per second).

3. The Implementation (Lines 21-44)

public class MockSentimentModel : IInferenceService
{
    private readonly ILogger<MockSentimentModel> _logger;

    public MockSentimentModel(ILogger<MockSentimentModel> logger)
    {
        _logger = logger;
    }

    public async Task<InferenceResult> AnalyzeAsync(InferenceRequest request)
    {
        // Simulate network latency or GPU processing time
        await Task.Delay(50);

        // Logic...
        return new InferenceResult(sentiment, confidence);
    }
}
  • Constructor Injection: We inject ILogger. This is a standard pattern in .NET for observability. In a containerized environment, logs are stdout/stderr, which are captured by the orchestrator (Kubernetes) and shipped to monitoring tools (e.g., Elasticsearch, Azure Monitor).
  • Task.Delay(50): This simulates the latency of a real AI model. In a real scenario, this line would be replaced by session.Run(input) (ONNX) or an HTTP call to a model server. This simulation is crucial for testing how the container handles load before deploying expensive hardware.
  • Business Logic: The keyword matching is simplistic but demonstrates that the service transforms input data into a domain-specific output.

4. The Controller (Lines 46-64)

[ApiController]
[Route("[controller]")]
public class InferenceController : ControllerBase
{
    // ... Constructor injection ...

    [HttpPost("analyze")]
    [ProducesResponseType(typeof(InferenceResult), 200)]
    [ProducesResponseType(400)]
    public async Task<IActionResult> Analyze([FromBody] InferenceRequest request)
    {
        if (string.IsNullOrWhiteSpace(request.Text))
        {
            return BadRequest("Text cannot be empty.");
        }

        var result = await _inferenceService.AnalyzeAsync(request);
        return Ok(result);
    }
}
  • Attributes: [HttpPost("analyze")] defines the specific route. [ProducesResponseType] is used for Swagger/OpenAPI documentation generation, which is essential for microservice discovery.
  • [FromBody]: Tells ASP.NET Core to deserialize the JSON body of the HTTP request into the InferenceRequest record.
  • Validation: The if check is a manual validation guard. While FluentValidation or DataAnnotations are preferred for complex logic, this explicit check ensures the service fails fast if the input is invalid, saving compute resources.

5. The Program Entry Point (Lines 66-90)

public static void Main(string[] args)
{
    var builder = WebApplication.CreateBuilder(args);
    // ... Service Registration ...
    var app = builder.Build();
    // ... Middleware Configuration ...
    app.Run("http://0.0.0.0:8080");
}
  • WebApplication.CreateBuilder: This is the modern "Minimal API" host builder (introduced in .NET 6). It sets up default configurations, logging providers, and Kestrel (the web server).
  • Service Registration:
    • AddControllers(): Registers the API controller types.
    • AddSingleton<IInferenceService, MockSentimentModel>: Registers the inference service as a Singleton. This means one instance of the service handles all requests. This is efficient for AI models because loading a model into memory (especially onto a GPU) is expensive. We only want to do it once per container instance.
  • app.Run("http://0.0.0.0:8080"): This is critical for containerization.
    • 0.0.0.0: Binds to all network interfaces inside the container. If you bind to localhost (the default), the service will not be accessible from outside the container (e.g., from the Kubernetes Node or LoadBalancer).
    • Port 8080: A common convention for non-root applications. The Dockerfile and Kubernetes Service will map external traffic to this port.

Common Pitfalls

  1. Binding to Localhost (The "Silent Failure"):

    • Mistake: Using app.Run("http://localhost:8080") or relying on the default binding without configuration.
    • Consequence: The container starts successfully, but Kubernetes cannot route traffic to it. The pod appears running (READY 1/1), but kubectl port-forward or the LoadBalancer returns "Connection Refused".
    • Fix: Always explicitly bind to 0.0.0.0 or rely on the default configuration which usually binds to * (all interfaces) in ASP.NET Core 6+, but verifying this is crucial.

  2. Blocking I/O in the Inference Method:

    • Mistake: Performing synchronous heavy computation (e.g., Thread.Sleep or a blocking GPU call) inside the controller action without async/await.
    • Consequence: In a containerized environment, you typically run with a limited thread pool. Blocking threads starves the pool, causing the server to stop accepting new connections even if CPU usage looks low.
    • Fix: Ensure all I/O and compute-bound operations are properly awaited. If using a library that doesn't support async, run it in a Task.Run to offload it to a background thread, though this adds overhead.

  3. Mismanaging Model Lifecycle (Singleton vs. Scoped):

    • Mistake: Registering the AI model service as Transient or Scoped.
    • Consequence: If the model loads weights into memory (RAM/GPU VRAM) on instantiation, doing so per request will quickly exhaust resources and cause OutOfMemory (OOM) errors or extreme latency spikes.
    • Fix: Use Singleton for services that hold expensive resources (like models, database connections, or HTTP clients). Ensure the class is thread-safe (stateless) or uses locking if necessary.

  4. Ignoring Graceful Shutdown:

    • Mistake: Not handling ApplicationStopping tokens.
    • Consequence: When Kubernetes scales down a deployment, it sends a SIGTERM signal. If the container ignores this and keeps processing for 30 seconds (default grace period), Kubernetes kills it abruptly (SIGKILL), potentially corrupting model state or losing in-flight request data.
    • Fix: In a real scenario, register a callback with IHostApplicationLifetime to dispose of GPU resources or save temporary state before the process exits.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
