Chapter 4: The ChatCompletion Service

Theoretical Foundations

At the heart of every conversational AI application lies a singular, critical capability: the ability to generate a coherent, contextually relevant response based on a sequence of messages. In Microsoft Semantic Kernel, this capability is abstracted behind the IChatCompletionService interface. This interface is not merely a wrapper around a REST API call; it is the architectural linchpin that decouples the logic of your application from the specific large language model (LLM) powering it. It represents the "brain" of the agent, the component responsible for the act of thinking and speaking.

The Philosophy of Abstraction: Why `IChatCompletionService` Matters

To understand the IChatCompletionService, we must first understand the problem it solves. In the early days of AI integration, developers often wrote code that was tightly coupled to a specific provider, such as OpenAI. If you wrote a method that directly called the OpenAI REST endpoint, you were locked into that ecosystem. If you wanted to switch to a different model, perhaps a local model like Ollama or a different cloud provider like Azure AI, you would need to rewrite significant portions of your application.

This is analogous to building a car engine that only runs on a specific brand of gasoline. If that brand becomes unavailable or too expensive, you are stranded. You cannot simply swap the engine without rebuilding the entire chassis.

The IChatCompletionService is the universal fuel injector standard for AI engines. It defines a contract—a set of methods and properties—that any AI model provider can implement. Your application code interacts with this interface, not with the underlying provider. This means you can swap from GPT-4 to a local Llama model, or to a future model that doesn't even exist yet, with minimal to no changes in your application logic.

This abstraction is built upon concepts introduced in earlier chapters, specifically the Kernel. The Kernel acts as a service container, a central registry where services like IChatCompletionService are registered and made available to plugins and planners. When you ask the Kernel for a chat completion service, it retrieves the configured instance, allowing your code to remain agnostic of the underlying implementation.

The Anatomy of the Interface

The IChatCompletionService interface in C# is defined with a clear, asynchronous-first design. Its primary responsibility is to take a conversation history and return a new message. Let's look at the core method signature:

public interface IChatCompletionService : IAIService
{
    Task<IReadOnlyList<ChatMessageContent>> GetChatMessageContentsAsync(
        ChatHistory chatHistory,
        PromptExecutionSettings? executionSettings = null,
        Kernel? kernel = null,
        CancellationToken cancellationToken = default);

    IAsyncEnumerable<StreamingChatMessageContent> GetStreamingChatMessageContentsAsync(
        ChatHistory chatHistory,
        PromptExecutionSettings? executionSettings = null,
        Kernel? kernel = null,
        CancellationToken cancellationToken = default);
}

`GetChatMessageContentsAsync`: The Synchronous-Style Async Method

This method is the workhorse for non-streaming interactions. It accepts a ChatHistory object, which is essentially a list of messages (user inputs, assistant responses, system instructions). It processes this entire history and returns a single, complete ChatMessageContent object containing the model's full response.

Why is this asynchronous? Even though the method name might imply a synchronous operation, the Async suffix is a C# convention indicating that the method performs I/O-bound work (network calls to an AI service) and should be awaited. This prevents blocking the calling thread, which is crucial in server applications (like ASP.NET Core) where thread pool efficiency determines scalability. If you were to call this synchronously (e.g., using .Result), you could cause deadlocks or thread starvation in a web application.

`GetStreamingChatMessageContentsAsync`: The Real-Time Experience

This method is designed for scenarios where you want to display the AI's response as it is being generated, character by character or token by token. This is the "typing indicator" effect that makes AI feel more responsive and human-like.

Instead of returning a single Task<IReadOnlyList<ChatMessageContent>>, it returns an IAsyncEnumerable<StreamingChatMessageContent>. This is a modern C# feature (introduced in C# 8.0) that allows you to iterate over a sequence of values that are produced asynchronously. You can await foreach over the results and update your UI in real-time.

The Analogy: Imagine a news reporter. GetChatMessageContentsAsync is like waiting for the reporter to finish their entire report and then handing you a full transcript. GetStreamingChatMessageContentsAsync is like listening to the reporter speak live on television. You get each word as it's spoken, allowing you to process the information in real-time.

`PromptExecutionSettings`: The Steering Wheel of the Model

The IChatCompletionService interface is generic by design. It doesn't know if you're using GPT-4, GPT-3.5, or a local model. The fine-grained control over how the model behaves is provided through the PromptExecutionSettings parameter.

This is a base class that can be extended by specific service implementations. For example, the AzureOpenAIPromptExecutionSettings or OpenAIPromptExecutionSettings classes contain properties specific to OpenAI's API, such as Temperature, MaxTokens, TopP, FrequencyPenalty, and StopSequences.

Creative Writing: You might use a higher temperature (e.g., 0.8) to encourage randomness and creativity. * Code Generation: You might use a lower temperature (e.g., 0.1) for deterministic, precise outputs. * Summarization: You might set a MaxTokens limit to ensure the summary is concise.

By passing PromptExecutionSettings into the service call, you can dynamically adjust the model's behavior at runtime without changing the underlying service or model. This is like having a single car engine but with a dashboard full of knobs and dials to adjust its performance for different driving conditions (e.g., highway vs. off-road).

The Chat History: The Contextual Memory

The ChatHistory class is the vessel for the conversation's context. It is a list of ChatMessageContent objects. Each message has a Role (System, User, Assistant) and Content.

The Role of the System Message: The System message is a special instruction that sets the context and personality for the AI. It's the "meta-instruction" that guides the assistant's behavior for the entire session. For example, "You are a helpful assistant that speaks like a pirate." This is typically the first message in the history.

The User/Assistant Dance: The conversation flows in a turn-based manner. The user sends a message (Role.User), and the assistant responds (Role.Assistant). This new assistant message is then appended to the history, becoming part of the context for the next user message. This is how the AI maintains memory of the conversation.

The Context Window Limitation: A critical architectural constraint is the model's context window. This is the maximum number of tokens (roughly 4 characters per token) the model can process in a single call. If your ChatHistory exceeds this limit, the model will either fail or, more likely, silently truncate the oldest messages. This is a major challenge in building long-running conversations. Strategies to mitigate this, such as summarization or vector-based memory retrieval (which we will cover in later chapters), are essential for production applications.

Error Handling and Resilience

Rate Limiting: The service provider (e.g., Azure OpenAI) may throttle your requests if you exceed your quota. This typically throws an HttpStatusCode.TooManyRequests exception. 2. Service Unavailability: Network issues or provider outages can cause HttpRequestException or TimeoutException. 3. Content Filtering: The model's output may be blocked by safety filters, resulting in a specific error. 4. Invalid Parameters: Sending a MaxTokens value that is too high for the model will result in a validation error.

Best Practice: Always wrap your calls to IChatCompletionService in a try-catch block. Implement retry logic with exponential backoff (using libraries like Polly) to gracefully handle transient failures. This is the "what if" of AI engineering: what happens when the brain fails? You need a contingency plan.

The Execution Flow: A Visual Representation

To solidify the concepts, let's visualize the flow of a single chat completion request.

This diagram illustrates the contingency-aware execution flow of a chat completion request, mapping the journey from the user's prompt through the AI model's processing to the final response, while highlighting potential failure points and the corresponding backup protocols.

This diagram illustrates that the IChatCompletionService is the central orchestrator. It receives the conversation's context (ChatHistory) and the rules for generation (PromptExecutionSettings), and it leverages the Kernel's service resolution to find the correct implementation to communicate with the actual AI Model.

Architectural Implications and Advanced Patterns

The use of IChatCompletionService enables sophisticated architectural patterns. Because it's an interface, you can create decorator patterns. For instance, you could create a LoggingChatCompletionService that wraps the real service, logging every request and response for debugging and auditing purposes, without modifying the core logic.

Furthermore, this abstraction is the foundation for agentic patterns. An agent, as we will explore in later chapters, is essentially a loop that uses a planner to decide which plugin to use and then uses the IChatCompletionService to formulate the final response to the user. The service is the agent's voice and intellect.

In summary, the IChatCompletionService is not just a technical detail; it is a strategic architectural choice. It promotes flexibility, testability (you can mock the interface for unit tests), and future-proofing. By understanding its contract, its parameters, and its role within the Semantic Kernel ecosystem, you are laying the groundwork for building robust, scalable, and model-agnostic AI applications.

Basic Code Example

Here is a simple, self-contained example demonstrating the basic usage of the IChatCompletionService.

using Microsoft.SemanticKernel;
using Microsoft.SemanticKernel.ChatCompletion;
using Microsoft.SemanticKernel.Connectors.OpenAI;
using System;
using System.Threading.Tasks;

// This example simulates a customer service chatbot for a bookstore.
// The bot maintains conversation history to provide context-aware responses.
public class Program
{
    public static async Task Main(string[] args)
    {
        // 1. Setup the Kernel
        // In a production environment, this configuration usually comes from appsettings.json.
        // We use OpenAI's GPT-4o-mini for this example.
        var builder = Kernel.CreateBuilder();

        // CRITICAL: Replace with your actual API key or use environment variables.
        builder.AddOpenAIChatCompletion(
            modelId: "gpt-4o-mini",
            apiKey: "YOUR_API_KEY_HERE");

        Kernel kernel = builder.Build();

        // 2. Retrieve the ChatCompletion Service
        // The kernel automatically registers the IChatCompletionService when adding OpenAI/Azure AI.
        var chatService = kernel.GetRequiredService<IChatCompletionService>();

        // 3. Initialize Conversation History
        // ChatCompletion relies on a sequence of messages, not a single string prompt.
        var chatHistory = new ChatHistory();

        // 4. Define Execution Settings (Optional but recommended)
        // We can control model behavior like temperature (randomness) here.
        var executionSettings = new OpenAIPromptExecutionSettings
        {
            Temperature = 0.7f,
            MaxTokens = 500
        };

        // 5. The Interaction Loop
        string userPrompt = "I'm looking for a mystery novel set in London.";

        Console.WriteLine($"User: {userPrompt}");

        // A. Add user input to history
        chatHistory.AddUserMessage(userPrompt);

        // B. Get the streaming response
        // We use streaming for a better user experience (typing effect).
        // Alternatively, use GetChatMessageContentAsync for a single block response.
        Console.Write("Assistant: ");

        await foreach (var content in chatService.GetStreamingChatMessageContentsAsync(
            chatHistory,
            executionSettings,
            kernel))
        {
            // Stream output to console immediately
            Console.Write(content.Content);
        }

        Console.WriteLine("\n"); // New line after streaming finishes

        // C. Capture the full response and add it back to history
        // Note: In streaming scenarios, you usually reconstruct the full message
        // from the chunks before adding it to history, or use a helper method.
        // For simplicity here, we will fetch the non-streaming version to ensure history is correct.
        var fullResponse = await chatService.GetChatMessageContentAsync(
            chatHistory,
            executionSettings,
            kernel);

        chatHistory.AddAssistantMessage(fullResponse.Content);

        // 6. Second Interaction (Demonstrating Context Retention)
        string followUp = "Does it have a hardboiled detective?";
        Console.WriteLine($"\nUser: {followUp}");

        chatHistory.AddUserMessage(followUp);

        Console.Write("Assistant: ");
        await foreach (var content in chatService.GetStreamingChatMessageContentsAsync(
            chatHistory,
            executionSettings,
            kernel))
        {
            Console.Write(content.Content);
        }
        Console.WriteLine();
    }
}

Detailed Line-by-Line Explanation

1. Setup the Kernel ``csharp var builder = Kernel.CreateBuilder(); builder.AddOpenAIChatCompletion( modelId: "gpt-4o-mini", apiKey: "YOUR_API_KEY_HERE"); Kernel kernel = builder.Build(); **Kernel.CreateBuilder()**: This initializes aKernelBuilder, which is the standard entry point for configuring the Semantic Kernel. It sets up the dependency injection container. * **AddOpenAIChatCompletion**: This extension method registers the specific implementation ofIChatCompletionServicerequired to communicate with OpenAI's API. It handles the HTTP client setup and serialization logic. * **kernel.Build()**: Finalizes the configuration. The resultingKernel` object is a lightweight orchestrator that holds the registered services and plugins.

2. Retrieving the Service ``csharp var chatService = kernel.GetRequiredService<IChatCompletionService>(); **IChatCompletionService**: This is the core interface defined in Semantic Kernel. It abstracts away the underlying provider (OpenAI, Azure, HuggingFace, etc.). * **GetRequiredService**: This retrieves the service from the kernel's service provider. If the service hasn't been registered (e.g., if you forgot to callAddOpenAIChatCompletion`), this will throw an exception, ensuring fail-fast behavior.

3. Managing Conversation History ``csharp var chatHistory = new ChatHistory(); **ChatHistory**: Unlike traditional text generation (which uses a single string prompt), chat completion is stateful. It requires a list of messages, each tagged with a specific role (User, Assistant, or System). * **Why this matters**: The model's response is heavily influenced by previous turns. By maintaining aChatHistory` object, we preserve the context of the conversation (e.g., the user previously mentioned "London" and "mystery novel").

4. Execution Settings ``csharp var executionSettings = new OpenAIPromptExecutionSettings { Temperature = 0.7f, MaxTokens = 500 }; **PromptExecutionSettings**: This class allows you to pass parameters to the model that control generation without changing the prompt text. * **Temperature**: Controls randomness.0.0is deterministic, while1.0is highly creative.0.7is a balanced default for creative writing. * **MaxTokens`**: Limits the response length to prevent runaway generation and manage costs.

5. The Interaction Loop ```csharp chatHistory.AddUserMessage(userPrompt); We explicitly add the user's input to the history. This ensures the model sees the input in the correct format (role: user).

6. Streaming vs. Synchronous ``csharp await foreach (var content in chatService.GetStreamingChatMessageContentsAsync(...)) **GetStreamingChatMessageContentsAsync**: This method returns anIAsyncEnumerable`. It sends the request to the API and yields chunks of text as they are generated by the model. * User Experience: This allows the UI to display text progressively (like a typing effect), which feels more responsive to the user than waiting for the entire response to load.

7. Context Retention ``csharp chatHistory.AddAssistantMessage(fullResponse.Content); **Crucial Step**: After the AI responds, you must add that response back into thechatHistory` as an "Assistant" message. * Why: If you do not do this, the next time you call the API, the model will not know what it just said. It treats every request as a fresh, isolated interaction.

Visualizing the Flow

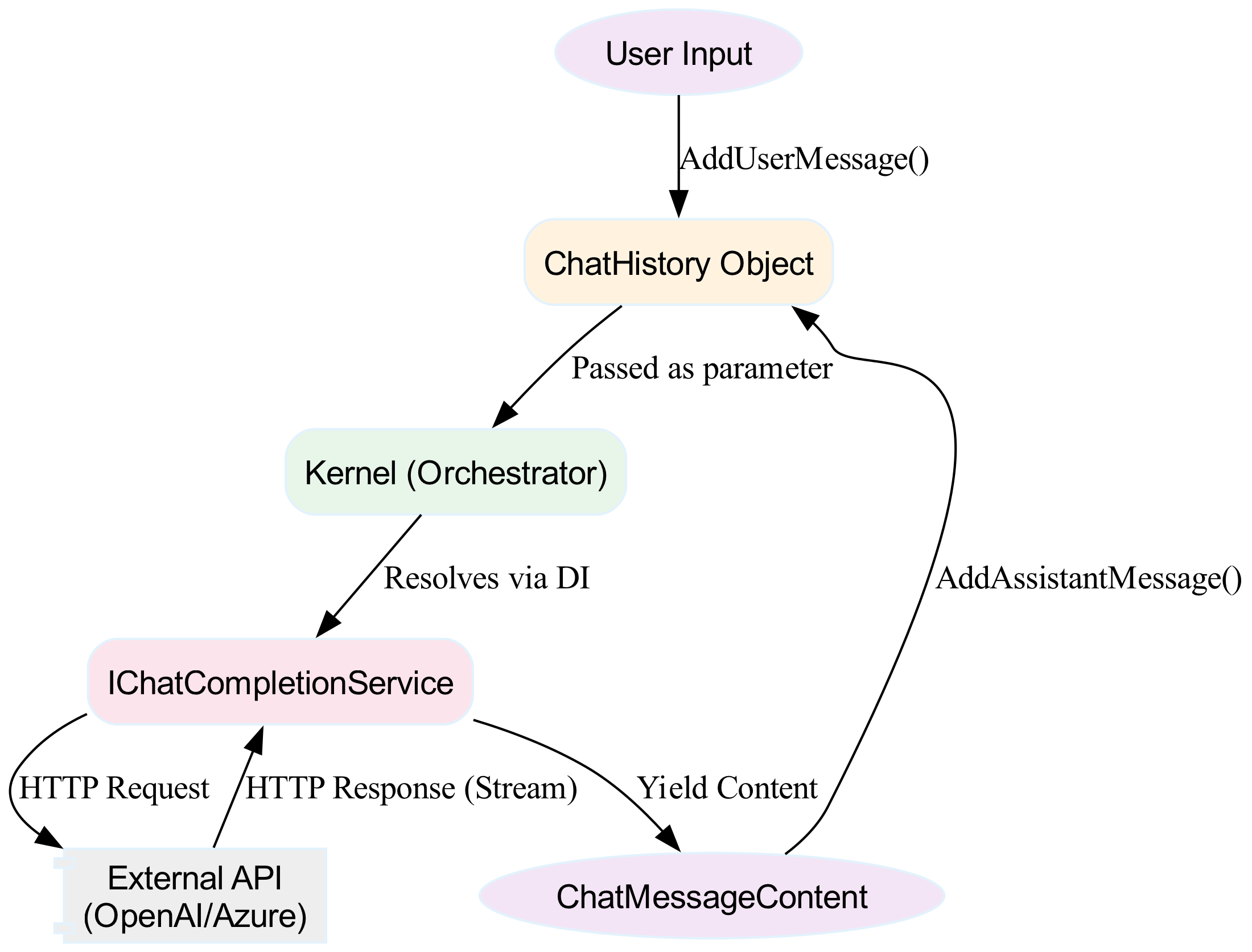

The following diagram illustrates the lifecycle of a single chat completion request within the Semantic Kernel architecture.

Common Pitfalls

1. Forgetting to Update the ChatHistory The Result: The AI will have amnesia. It will not remember the user's name, the topic of the conversation, or instructions given in previous turns. * The Fix: Always append the user's message before the request and the assistant's message after the request.

2. Mixing Synchronous and Asynchronous Calls The Fix: Use await consistently. If you need to run synchronous code, ensure you are on a thread pool thread or use Task.Run carefully.

3. Incorrect Service Registration The Fix: Ensure builder.AddOpenAIChatCompletion (or the equivalent for your provider) is called before builder.Build().

4. Security: Hardcoding API Keys The Risk: Committing secrets to source control is a major security vulnerability. * The Fix: Use dotnet user-secrets, environment variables, or Azure Key Vault. The AddOpenAIChatCompletion method has overloads that read from environment variables automatically if the apiKey parameter is omitted.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
