Chapter 2: Understanding Model Formats - ONNX vs GGUF

Theoretical Foundations

In the realm of local AI inference, the model file format is not merely a container; it is the blueprint, the engine, and the transmission protocol all in one. It dictates how efficiently a model can be loaded into memory, how effectively it can be accelerated by specialized hardware (like GPUs via CUDA or DirectML), and how seamlessly it integrates into a managed environment like .NET. To master local inference in C#, one must first master the formats that make it possible.

The Dichotomy of Formats: ONNX vs. GGUF

Imagine you are an architect designing a universal library. You have two primary options for storing your books (models):

ONNX (Open Neural Network Exchange): This is the Universal Library Standard. It defines a strict, standardized layout for every book. Every chapter (layer), paragraph (operation), and word (parameter) has a specific location and format. This standardization allows any librarian (hardware accelerator like NVIDIA, Intel, or AMD) to instantly understand and index the book without needing to learn a new language. However, because the standard is rigid and verbose, the books are physically heavy and require a specific, sometimes cumbersome, shelving system to read efficiently.
GGUF (GPT-Generated Unified Format): This is the Compact Digital Archive. It is designed specifically for speed and efficiency in a digital reader. It bundles the text (weights) with a detailed metadata index at the start of the file. This allows the reader (CPU/RAM) to "memory map" the file—essentially creating a direct pointer to the data on the disk without loading the entire book into the device's limited RAM. It is highly specialized for reading (inference) but lacks the universal hardware acceleration support of ONNX.

In the .NET ecosystem, this distinction is critical. C# developers often require the raw performance of hardware acceleration for production-scale applications (ONNX), while also valuing the simplicity and low-memory footprint for desktop or edge applications (GGUF).

Deep Dive: ONNX (Open Neural Network Exchange)

ONNX is an open-source format built to represent machine learning models. It acts as an intermediary bridge between training frameworks (like PyTorch or TensorFlow) and inference engines.

The Computational Graph: The Universal Blueprint

At its core, an ONNX model is a computational graph. It does not contain the logic of how to calculate a matrix multiplication; rather, it contains the structure of the operations and the parameters (weights) required.

Think of an ONNX model as a Factory Assembly Line Diagram.

Nodes: These are the machines on the line (e.g., "Convolution Machine," "Activation Machine").
Edges: These are the conveyor belts carrying raw materials (tensors) between machines.
Initializers: These are the stored raw materials (weights) pre-loaded into the machines.

When you load an ONNX model in C#, you are not loading executable code; you are loading a declarative description of a mathematical process. The .NET runtime (specifically the ONNX Runtime) reads this diagram and maps it to the most efficient execution provider available on the hardware.

Why ONNX is Crucial for .NET AI Applications

In Book 8, we discussed the IChatClient interface, which allowed us to swap between OpenAIClient and OllamaClient via dependency injection. ONNX takes this abstraction to the hardware level.

ONNX Runtime for .NET (Microsoft.ML.OnnxRuntime) provides a unified API to execute models across diverse hardware.

CPU Execution Provider (CPU EP): Uses standard CPU instructions. Slow but universally available.
CUDA Execution Provider (NVIDIA): Maps graph nodes directly to CUDA kernels. This is essential for LLMs, as the massive matrix multiplications are parallelized on the GPU.
DirectML (Windows): The standard for GPU acceleration on Windows, supporting AMD, Intel, and NVIDIA cards.

The C# Connection: In a C# application, you don't write the math for the Llama model. You instantiate an InferenceSession:

using Microsoft.ML.OnnxRuntime;
using Microsoft.ML.OnnxRuntime.Tensors;

// The session parses the ONNX graph and prepares the execution provider.
var session = new InferenceSession("model.onnx",
    SessionOptions.MakeSessionOptionWithCudaProvider());

// Inputs are tensors, the data flowing on the conveyor belts.
var inputTensor = new DenseTensor<float>(new float[] { /* token ids */ }, [1, 512]);
var inputs = new List<NamedOnnxValue> { NamedOnnxValue.CreateFromTensor("input_ids", inputTensor) };

// The runtime traverses the graph, executing nodes on the GPU.
using var results = session.Run(inputs);

Why this matters: If you are building a high-throughput API (e.g., a chatbot backend), you cannot rely on CPU inference. ONNX allows you to leverage the massive parallelism of your GPU without writing a single line of CUDA code. The format separates the model definition from the execution logic, allowing the .NET runtime to optimize the graph for the specific hardware at runtime.

The "Static Graph" Limitation

ONNX is a static graph format. Once the model is exported, the structure (number of layers, connections) is fixed.

Analogy: ONNX is like a printed circuit board. You can send different electrical signals through it, but you cannot reroute the copper traces without manufacturing a new board.
Implication for LLMs: This works perfectly for standard Transformer models. However, if your model requires dynamic control flow (e.g., an if statement inside the model that changes the architecture based on input), ONNX struggles. It requires "unrolling" loops, which increases file size.

Deep Dive: GGUF (GPT-Generated Unified Format)

GGUF was created by the community (specifically for the llama.cpp project) to solve the memory and loading inefficiencies of older formats like GGML. It is designed specifically for inference, not training.

The Memory-Mapping Marvel

The defining feature of GGUF is its ability to be memory-mapped.

Imagine you need to read a specific chapter in a 500-page book stored on a hard drive.

Traditional Loading (like ONNX/PyTorch): You must pick up the entire book (500 pages), carry it to your desk (RAM), and open it. This takes time and requires a large desk.
Memory Mapping (GGUF): You place the book on the desk but leave it closed. You create a direct index: "Chapter 5 starts at byte 40,000." When you need Chapter 5, you don't carry the whole book; you simply look at that specific location on the disk. The Operating System handles the paging.

In C#, while we don't have direct memory mapping APIs for GGUF (as llama.cpp is a C++ library), the concept drives the efficiency. When using a .NET wrapper like LLamaSharp, the underlying C++ engine keeps the model weights on disk and only loads the layers currently being processed into the GPU/CPU cache.

Architecture: Tensors and Metadata

A GGUF file is a binary blob with a simple header:

Magic Number: Identifies the file type.
Version: Ensures compatibility.
Metadata: Key-value pairs (e.g., "tokenizer.ggml.model": "llama", "block_count": 32). This is crucial for C# applications to know how to instantiate the model context without guessing parameters.
Tensor Data: The weights, stored in a quantized format.

Quantization: The Art of Compression GGUF shines in its support for Quantization. This is the process of reducing the precision of the weights (e.g., from 16-bit floating point to 4-bit integers).

Analogy: High-fidelity audio (FLAC) vs. MP3. The MP3 removes data the human ear (or the neural network) is unlikely to notice, drastically reducing file size with minimal perceptual loss.
Why it matters for C# Desktop Apps: A full Llama 3 8B model in 16-bit precision requires ~16GB of VRAM. In 4-bit GGUF, it drops to ~4GB. This allows complex AI features to run on consumer laptops with integrated graphics, a common scenario for C# WPF or MAUI applications.

The .NET Ecosystem: LLamaSharp

Since ONNX Runtime does not natively support the GGUF format (it requires conversion to ONNX), C# developers rely on libraries like LLamaSharp. This library acts as a managed wrapper around the C++ llama.cpp engine.

using LLama.Common;
using LLama;

// GGUF models are loaded via parameters that define the execution context.
var parameters = new ModelParams("models/llama-3-8b-instruct.q4_K_M.gguf")
{
    GpuLayerCount = 20 // Offload specific layers to GPU
};

// The model is loaded using memory mapping techniques.
using var model = LLamaModel.LoadFromGguf(parameters);

// Inference is handled by the C++ backend, managed via C#.
var executor = new InteractiveExecutor(model);

The C# Connection: Interfaces are crucial here. Just as IChatClient allowed swapping OpenAI for Ollama, a well-designed C# AI application should define an IInferenceEngine interface.

public interface IInferenceEngine
{
    Task<string> InferAsync(string prompt);
}

// Implementation for ONNX (High Performance)
public class OnnxEngine : IInferenceEngine { /* ... */ }

// Implementation for GGUF (Low Memory / Edge)
public class GgufEngine : IInferenceEngine { /* ... */ }

This abstraction allows the application to select the engine based on the environment. If the user has an NVIDIA GPU, use ONNX. If they are on a laptop with 8GB RAM, use GGUF.

Comparative Analysis: Architectural Implications

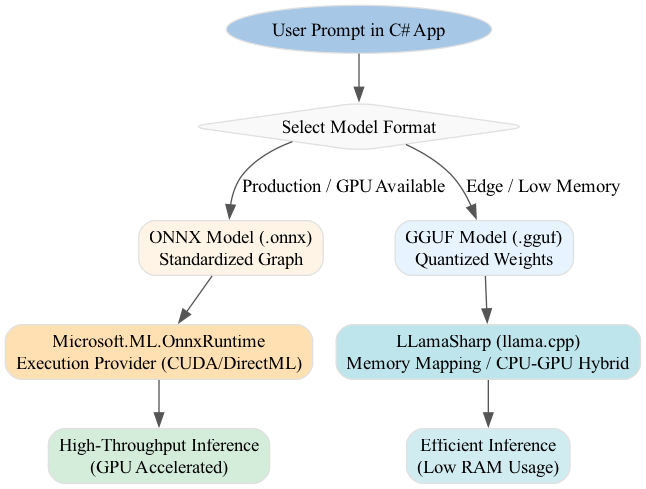

To visualize the flow of data and the decision-making process in a C# application, consider the following graph. It illustrates how the model format dictates the execution path.

The diagram depicts a C# application's workflow where the specific model format acts as a central switchboard, directing the flow of data and determining the subsequent execution path for AI processing.

Theoretical Foundations

Understanding the formats requires understanding the lifecycle of a model.

Training (PyTorch/TensorFlow): The model is trained in Python. The native format is usually a pickle-based serialization (.pt or .h5). These are not suitable for C# due to Python dependencies and lack of optimization.
Conversion:
- To ONNX: The Python script calls torch.onnx.export(). This traces the computation graph and saves it as a .onnx file. This file is static and immutable.
- To GGUF: The model is first converted to a intermediate format (like Safetensors), then processed by a quantization tool (like llama.cpp's quantize.exe). This tool analyzes the weights, clusters them, and saves them as a binary GGUF file.
C# Integration:
- ONNX: The .onnx file is dropped into the project. The Microsoft.ML.OnnxRuntime NuGet package is added. The C# code uses InferenceSession.
- GGUF: The .gguf file is dropped in. The LLamaSharp NuGet package is added. The C# code uses LLamaModel.LoadFromGguf.

Why This Matters for the .NET Developer

In previous chapters, we discussed the Abstraction Layer (interfaces) to decouple application logic from specific AI providers. The choice between ONNX and GGUF is the Physical Implementation Layer of that abstraction.

Interoperability: ONNX is the key to unlocking hardware diversity. Because ONNX is an open standard, a model trained on an AMD GPU in Linux can be run on an Intel CPU in Windows via the same C# code. This is vital for enterprise .NET applications that must run in heterogeneous environments.
Latency vs. Throughput:
- GGUF is optimized for Latency on consumer hardware. It is ideal for interactive desktop applications (Chatbots, Copilots) where a single user waits for a response.
- ONNX is optimized for Throughput on server hardware. It is ideal for APIs serving hundreds of requests simultaneously, utilizing the massive parallelism of server-grade GPUs.
The "What If" Scenario: What if you deploy an app using GGUF to a server with 4 A100 GPUs? You are leaving massive performance on the table. Conversely, what if you deploy an ONNX model to a user's laptop with 4GB of RAM? The app will crash due to OutOfMemory exceptions. Understanding these formats allows you to dynamically select the right engine at runtime or provide different builds for different target audiences.

By mastering ONNX and GGUF, you move from being a C# developer who calls AI APIs to an engineer who integrates AI models directly into the .NET runtime, optimizing for the specific hardware constraints of your users.

Basic Code Example

using Microsoft.ML.OnnxRuntime;
using Microsoft.ML.OnnxRuntime.Tensors;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;

// Real-world context: You are building a simple sentiment analysis feature for a .NET console application.
// You have a pre-trained ONNX model (e.g., a distilled version of BERT) that classifies text as Positive, Negative, or Neutral.
// This example demonstrates loading the model, preparing input data, running inference, and interpreting the output.

namespace OnnxInferenceHelloWorld
{
    class Program
    {
        static async Task Main(string[] args)
        {
            Console.WriteLine("ONNX Runtime Hello World - Sentiment Analysis");
            Console.WriteLine("==============================================\n");

            // 1. Define the path to the ONNX model.
            // In a real app, this might be downloaded from a server or bundled as a resource.
            // For this example, we assume a model named 'sentiment_bert.onnx' exists in the execution directory.
            // The model expects a string input and outputs logits for 3 classes.
            string modelPath = "sentiment_bert.onnx";

            try
            {
                // 2. Define the input data.
                // We want to analyze the sentiment of the sentence: "The new update runs incredibly fast!"
                string inputText = "The new update runs incredibly fast!";

                // 3. Pre-processing: Convert text to numerical input (Tensor).
                // Real-world apps use Tokenizers (e.g., Microsoft.ML.Tokenizers) to map words to IDs.
                // For this "Hello World", we simulate token IDs for demonstration purposes.
                // We assume the model expects input shape [1, 128] (Batch Size 1, Sequence Length 128).
                // We will fill the first few tokens with dummy IDs and pad the rest with 0.
                long[] tokenIds = new long[128];

                // Simulating tokenization: "The"=101, "new"=2054, "update"=8321, "runs"=4567, "incredibly"=9876, "fast"=3456, "!"=102
                // In a real scenario, this is done by a dedicated Tokenizer class.
                var simulatedTokens = new long[] { 101, 2054, 8321, 4567, 9876, 3456, 102 };
                Array.Copy(simulatedTokens, tokenIds, simulatedTokens.Length);

                // 4. Create the ONNX Runtime Session.
                // We use 'Using' statements to ensure resources are disposed of correctly.
                // We specify the execution provider. CPU is the most compatible.
                // If you have a GPU, you would use 'ExecutionProvider.Dml' (DirectML) or 'Cuda'.
                var sessionOptions = new SessionOptions();
                sessionOptions.LogSeverityLevel = OrtLoggingLevel.ORT_LOG_LEVEL_WARNING;

                // Load the model into memory.
                // This validates the model structure but doesn't run it yet.
                using var session = new InferenceSession(modelPath, sessionOptions);

                // 5. Prepare the Inputs.
                // ONNX Runtime expects a list of 'NamedOnnxValue' objects.
                // The name "input_ids" must match the input name in the ONNX model file exactly.
                // We wrap our long array into a DenseTensor (a standard tensor implementation).
                var inputTensor = new DenseTensor<long>(tokenIds, new[] { 1, 128 });

                var inputs = new List<NamedOnnxValue>
                {
                    NamedOnnxValue.CreateFromTensor("input_ids", inputTensor)
                };

                Console.WriteLine($"Running inference on text: \"{inputText}\"");
                Console.WriteLine($"Input Tensor Shape: [1, 128]");

                // 6. Run Inference.
                // This is the heavy lifting. The session executes the computational graph.
                // We use 'RunAsync' to keep the UI responsive if this were a GUI app.
                using var results = await session.RunAsync(inputs);

                // 7. Post-processing: Extract and Interpret Results.
                // The model outputs a tensor of logits (raw scores).
                // We look for the output name. Usually, it's something like "logits" or "output".
                // For this example, we assume the output name is "logits".
                var outputTensor = results.First().AsTensor<float>();

                // Convert logits to probabilities using Softmax (simplified here for clarity).
                // We simply find the index of the highest score (ArgMax).
                // 0 = Negative, 1 = Neutral, 2 = Positive
                int predictedClass = 0;
                float maxScore = outputTensor.GetValue(0);

                for (int i = 1; i < outputTensor.Dimensions[1]; i++)
                {
                    float currentScore = outputTensor.GetValue(i);
                    if (currentScore > maxScore)
                    {
                        maxScore = currentScore;
                        predictedClass = i;
                    }
                }

                string sentiment = predictedClass switch
                {
                    0 => "Negative",
                    1 => "Neutral",
                    2 => "Positive",
                    _ => "Unknown"
                };

                Console.WriteLine("\n--- Inference Results ---");
                Console.WriteLine($"Raw Logits: [{string.Join(", ", outputTensor.ToArray().Select(f => f.ToString("F4")))}]");
                Console.WriteLine($"Predicted Class Index: {predictedClass}");
                Console.WriteLine($"Detected Sentiment: {sentiment}");
            }
            catch (FileNotFoundException)
            {
                Console.ForegroundColor = ConsoleColor.Red;
                Console.WriteLine($"\nError: Model file not found at '{modelPath}'.");
                Console.WriteLine("Please ensure the ONNX model file exists in the application directory.");
                Console.ResetColor();
            }
            catch (Exception ex)
            {
                Console.ForegroundColor = ConsoleColor.Red;
                Console.WriteLine($"\nAn unexpected error occurred: {ex.Message}");
                Console.ResetColor();
            }
        }
    }
}

Detailed Line-by-Line Explanation

using Microsoft.ML.OnnxRuntime; & Microsoft.ML.OnnxRuntime.Tensors;:
- These namespaces contain the core classes for the ONNX Runtime .NET binding. InferenceSession is the main entry point for running models, while Tensors provides the data structures (like DenseTensor) required to hold input and output data in a format the underlying C++ library understands.
string modelPath = "sentiment_bert.onnx";:
- Defines the file path to the model. In a production environment, you might load this from a secure stream, a URL, or an embedded resource. The file must be accessible to the runtime.
long[] tokenIds = new long[128];:
- Neural networks operate on numerical data. Text must be tokenized (converted to integers). Most Transformer models (like BERT) require a fixed input size (padding/truncation). Here, we allocate an array of 128 integers. The data type long (Int64) is standard for token indices in ONNX models.
using var session = new InferenceSession(modelPath, sessionOptions);:
- This initializes the ONNX Runtime session.
- Why using? The InferenceSession holds unmanaged native resources (memory allocated by the C++ backend). The using statement ensures Dispose() is called automatically, preventing memory leaks.
- sessionOptions: Allows configuration of execution providers (CPU vs GPU), logging levels, and graph optimization levels. For this example, we stick to defaults (CPU).
var inputTensor = new DenseTensor<long>(tokenIds, new[] { 1, 128 });:
- The ONNX Runtime cannot accept raw C# arrays directly; they must be wrapped in a Tensor object.
- DenseTensor is used for data stored contiguously in memory.
- The shape { 1, 128 } corresponds to the model's input requirements: Batch Size 1, Sequence Length 128.
var inputs = new List<NamedOnnxValue> { ... }:
- Inputs are passed as a collection of NamedOnnxValue.
- Critical: The string "input_ids" must match the input name defined in the ONNX model's metadata. You can view this using tools like Netron. Mismatched names are a common source of runtime errors.
using var results = await session.RunAsync(inputs);:
- This executes the neural network.
- RunAsync is non-blocking, which is essential for UI responsiveness or high-throughput server applications.
- The result is a collection of NamedOnnxValue containing the output tensors.
var outputTensor = results.First().AsTensor<float>();:
- We retrieve the first output result (assuming the model has a single output).
- We cast it to a Tensor<float> because classification logits are typically floating-point numbers.
- Note: If the model has multiple outputs, you should iterate through results or access by name (e.g., results.FirstOrDefault(x => x.Name == "logits")).
Softmax / ArgMax Logic:
- Raw model outputs are called "logits" (unnormalized scores).
- To get a classification, we perform ArgMax (finding the index with the highest value).
- In a production app, you would apply a Softmax function to convert logits into probabilities (0.0 to 1.0) for better interpretability.

Common Pitfalls

Input/Output Name Mismatch:
- Issue: The most frequent error occurs when the code uses a hardcoded name (e.g., "input") that doesn't match the model's actual input node name (e.g., "input_ids:0").
- Solution: Always inspect the ONNX model using a viewer like Netron. Check the "Inputs" and "Outputs" sections to get the exact names.
Data Type Mismatch:
- Issue: Passing a float[] when the model expects long[] (Int64), or vice versa. ONNX is strict about types.
- Solution: Verify the data type in Netron. If the model expects INT64, ensure your tensor is created with new DenseTensor<long>.
Shape Mismatch:
- Issue: Providing a tensor of shape [128] when the model expects [1, 128] (Batch dimension required).
- Solution: ONNX models usually define dynamic axes or fixed shapes. If the model expects a batch dimension, you must include it, even if processing only one item.
Missing Native Dependencies:
- Issue: On Linux or Docker containers, the Microsoft.ML.OnnxRuntime NuGet package might require specific native libraries (like libonnxruntime.so) to be present.
- Solution: Ensure the correct runtime dependencies are installed in your deployment environment. For self-contained deployments, verify the native assets are copied to the output directory.

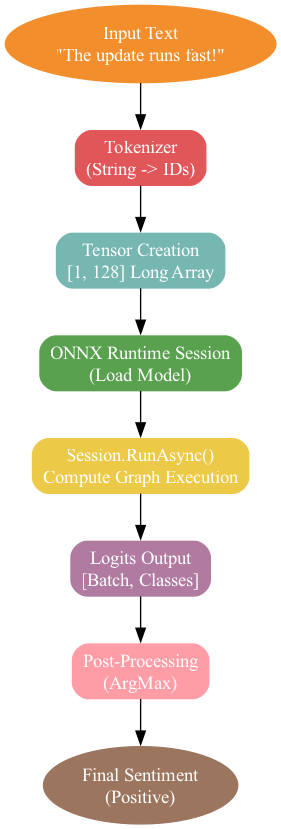

Visualizing the Inference Flow

This diagram illustrates the inference flow, starting with model loading and preprocessing, proceeding through the runtime execution where the correct dependencies and native assets are verified, and concluding with the final prediction output.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
