Chapter 4: Hardware Acceleration - CUDA, DirectML, and NPUs

Theoretical Foundations

The theoretical foundation of hardware acceleration for local Large Language Model (LLM) inference is rooted in the fundamental mismatch between the computational topology of neural networks and the generalized architecture of the Central Processing Unit (CPU). To understand why we leverage CUDA, DirectML, and Neural Processing Units (NPUs) in C# applications, we must first dissect the nature of the workload and the specific hardware constraints of the edge environment.

The Computational Bottleneck: The Matrix Multiplication Bottleneck

At its core, a Transformer-based LLM (like Llama or Phi) is a massive sequence of matrix multiplications and activation functions. When a model processes a prompt, it does not execute a linear sequence of independent instructions; rather, it performs billions of floating-point operations (FLOPs) on vast, multi-dimensional tensors.

A CPU, by design, is a serial processing engine. It excels at complex logic, branching, and sequential tasks. However, it possesses a limited number of arithmetic logic units (ALUs). If we attempt to multiply two matrices of dimensions [1 x 4096] and [4096 x 4096] on a CPU, the processor must iterate through these dimensions sequentially or with limited vectorization (SIMD). This is analogous to trying to fill a swimming pool using a single garden hose; it is possible, but the throughput is insufficient for real-time inference.

The Analogy of the Assembly Line: Imagine a car factory (the CPU) where a single worker (the core) moves from station to station, installing a door, then a wheel, then the engine. This is efficient for custom, one-off builds but disastrous for mass production.

Now, imagine a massive parallel assembly line (the GPU/NPU). Here, hundreds of specialized workers are arranged in rows. One row installs all the doors simultaneously; the next row installs all the wheels simultaneously. The "car" (the data tensor) moves down the line, and every station processes its specific task in parallel. This is the essence of hardware acceleration: moving from serial execution to massive parallel execution.

The Hardware Ecosystem: CUDA, DirectML, and NPUs

In the context of ONNX Runtime within a C# environment, we are not just "running code faster"; we are fundamentally changing where the code executes. We are offloading the mathematical intensity from the CPU to specialized silicon.

1. CUDA (Compute Unified Device Architecture)

What it is: CUDA is a parallel computing platform and API model created by NVIDIA. It allows software developers to use a CUDA-enabled graphics processing unit (GPU) for general-purpose processing (GPGPU).

The Why: NVIDIA GPUs contain thousands of small, efficient cores (CUDA cores) compared to the handful of complex cores in a CPU. When ONNX Runtime targets CUDA, it compiles the mathematical operations (kernels) of the LLM into instructions that can be distributed across these thousands of cores.

Theoretical Implication: In a C# application, when you invoke the OnnxRuntime inference session with the CUDA Execution Provider (EP), the runtime does not merely "send" data to the GPU. It manages a complex pipeline:

Memory Pinning: The .NET Garbage Collector (GC) manages memory in a non-contiguous, compaction-friendly way. However, the GPU requires contiguous blocks of physical memory (VRAM) for Direct Memory Access (DMA). The theoretical foundation here involves pinning managed memory objects to prevent the GC from moving them, allowing the GPU driver to copy data directly from system RAM to VRAM without CPU intervention.
Kernel Fusion: This is a critical optimization. Instead of executing MatMul -> Add -> ReLU as three separate operations (which requires writing intermediate results back to memory and reading them again), the CUDA backend fuses these into a single kernel. This reduces memory bandwidth saturation—a common bottleneck in edge AI.

2. DirectML (Direct Machine Learning)

What it is: DirectML is a low-level API for machine learning provided by Microsoft, built on top of DirectX 12.

The Why: While CUDA is dominant, it is proprietary to NVIDIA. In the Windows ecosystem, users may have AMD, Intel, or integrated GPUs. DirectML provides a hardware-agnostic abstraction layer.

Theoretical Implication: DirectML operates on the concept of a compute graph. In C#, when we use DirectML via ONNX Runtime, we are effectively translating the ONNX model graph into a DirectX 12 command list. This is significant because it allows the OS to schedule ML workloads alongside graphics workloads. If your C# application is rendering a UI (using WPF or WinUI 3) and running inference, DirectML ensures that the GPU is scheduled efficiently for both tasks, preventing one from starving the other.

Critical Distinction: DirectML is not a model runtime; it is a backend for execution providers. It abstracts the hardware specifics. While CUDA requires specific drivers and hardware, DirectML leverages the universal DirectX ecosystem available on almost all Windows machines.

3. Neural Processing Units (NPUs)

What it is: NPUs are specialized silicon blocks integrated into modern SoCs (System on a Chip), such as Intel's Core Ultra (Meteor Lake) or Qualcomm's Snapdragon X Elite. They are designed specifically for tensor operations with extreme power efficiency.

The Why: Edge AI demands low power consumption. Running an LLM on a CPU or even a discrete GPU consumes significant wattage, draining batteries and generating heat. NPUs offload these specific workloads from the CPU/GPU, allowing the main processors to sleep or handle other tasks.

Theoretical Implication: Targeting an NPU in C# requires a shift in architectural thinking. Unlike a discrete GPU with dedicated VRAM, an NPU often shares physical memory with the CPU (Unified Memory Architecture). This eliminates the need for costly data copying between system RAM and device RAM, but it introduces contention for memory bandwidth. The theoretical model for NPU acceleration relies on Zero-Copy inference, where the tensor data remains in place, and the NPU accesses it directly via the system bus.

The Execution Provider (EP) Abstraction in ONNX Runtime

The core concept that binds these hardware backends together in C# is the Execution Provider (EP). ONNX Runtime is designed as a pluggable architecture. It decouples the high-level graph execution logic from the low-level kernel implementations.

The Analogy of the Universal Remote: Think of ONNX Runtime as a universal remote control. The buttons (the C# API calls like RunAsync) are the same regardless of the TV you point it at. However, the signal sent (the Execution Provider) changes based on the device.

CPU EP: Sends an infrared signal (standard, universal, slow).
CUDA EP: Sends a specific RF signal optimized for a high-end sound system (high performance, specific hardware).
DirectML EP: Sends a Bluetooth signal compatible with a wide range of devices (broad compatibility, good performance).
NPU EP: Sends a Zigbee signal to a dedicated smart home hub (ultra-efficient, specialized).

Memory Management and the .NET Context

In C#, memory management is handled by the Garbage Collector (GC). However, hardware acceleration introduces non-managed memory (VRAM or NPU SRAM). The theoretical foundation here involves the interaction between the managed heap and unmanaged memory spaces.

When an OrtValue (a tensor wrapper in ONNX Runtime for .NET) is created, it may reside in managed memory. To run inference on a GPU, the data must be marshaled. The critical concept is IDisposable and SafeHandle.

In modern C#, we utilize the using statement and the IDisposable pattern to manage the lifecycle of these unmanaged resources. The OrtValue acts as a handle to memory that exists outside the .NET GC's jurisdiction. If we fail to dispose of these objects properly, we do not cause a memory leak in the traditional managed sense; rather, we exhaust the finite VRAM on the GPU, causing the application to crash or the OS to kill the process.

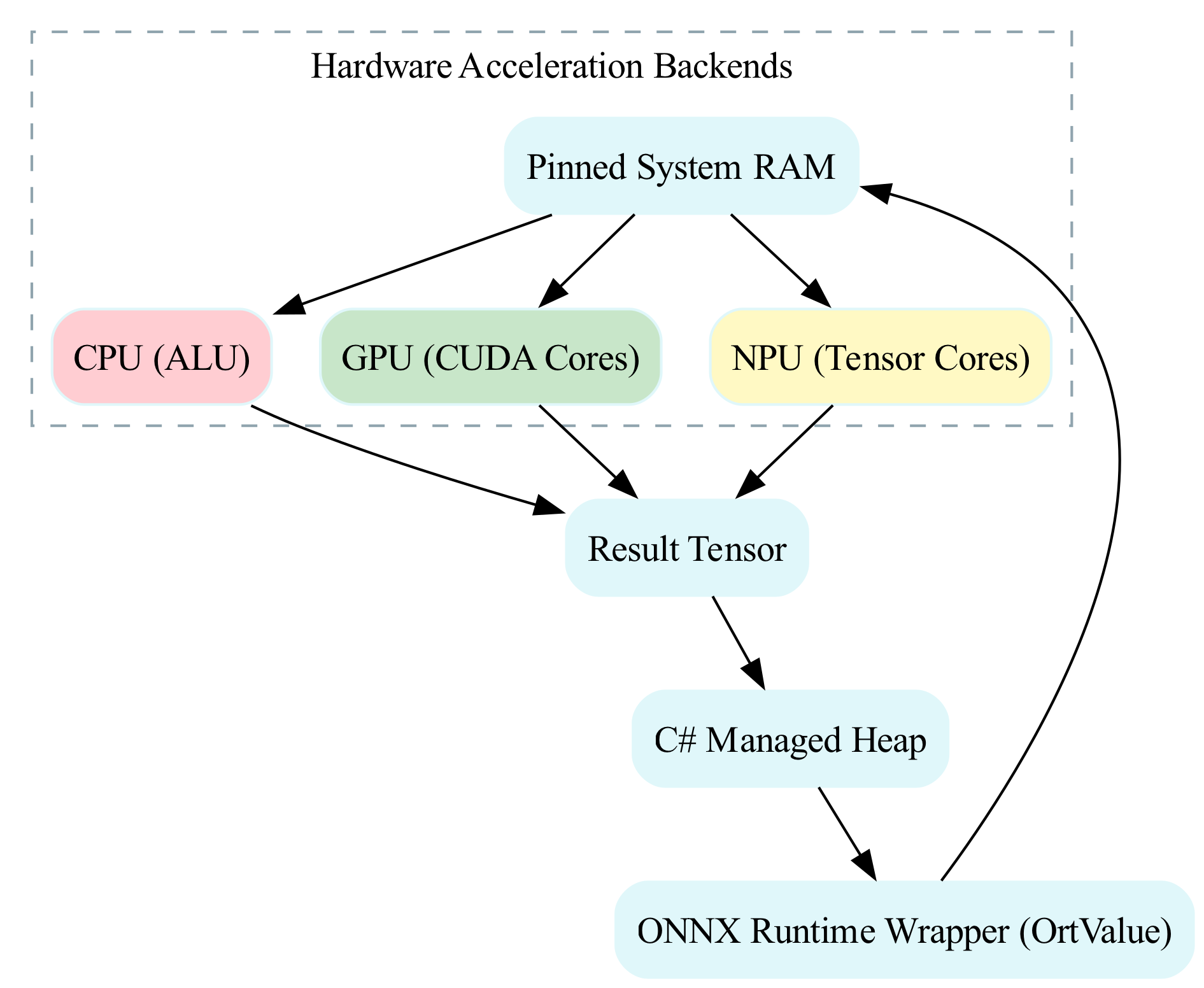

Theoretical Graph of Data Flow:

The Strategy of Dynamic Selection

A robust theoretical application does not hardcode a specific hardware backend. The "Optimal Execution Provider" is a dynamic property of the runtime environment.

In C#, this is achieved by querying the available hardware and the capabilities of the ONNX Runtime build. The logic follows a priority hierarchy:

NPU: If the device has a compatible NPU and the model is supported (e.g., via the DmlExecutionProvider or specific NPU drivers), prioritize this for battery efficiency.
Discrete GPU (CUDA/DirectML): If high throughput is required and power is not a constraint (e.g., a desktop workstation), prioritize the discrete GPU.
Integrated GPU (DirectML): A fallback for Windows machines without discrete GPUs, offering better performance than CPU.
CPU: The universal fallback. Slowest, but always available.

Why this matters in C#: In previous chapters, we discussed loading models and tokenizers. Now, we introduce the concept of Hardware-Aware Instantiation. The InferenceSession object in ONNX Runtime is expensive to create. It parses the model graph, optimizes it for the specific EP, and allocates memory. Therefore, the theoretical best practice is to create a session factory that detects the environment once and configures the session options accordingly.

Deep Dive: The Mathematics of Parallelism

To fully grasp why we move away from the CPU, consider the operation of a single Linear layer in an LLM, represented as $Y = X \times W$ (where $X$ is input, $W$ is weights, and $Y$ is output).

On a CPU (Scalar/Vector Processing): The CPU iterates: $$ \text{For } i \text{ in range}(output_dim): $$ $$ \quad \text{sum} = 0 $$ $$ \quad \text{For } j \text{ in range}(input_dim): $$ $$ \quad \quad \text{sum} += X[j] \times W[j][i] $$ $$ \quad Y[i] = \text{sum} $$

This is $O(N \times M)$ complexity executed serially.

On a GPU (Massive Parallelism): The GPU assigns a thread to every output element $Y[i]$. $$ \text{Thread}i: \quad Y[i] = \sum X[j] \times W[j][i] $$}^{input_dim

All threads execute simultaneously. For a matrix of size [4096 x 4096], a CPU might take milliseconds; a GPU takes microseconds because it computes 4096 dot products simultaneously.

On an NPU (Spatial Architecture): An NPU takes this further. It often utilizes a Weight Stationary dataflow. Instead of moving the weights $W$ in and out of the compute array, the NPU keeps the weights stationary in its registers and streams the input $X$ through them. This minimizes data movement, which is the most energy-intensive part of computation.

The Role of Quantization in Hardware Acceleration

Theoretical hardware acceleration is incomplete without discussing Quantization. While not strictly a hardware feature, it is a mathematical transformation that unlocks hardware potential.

Edge devices have limited memory bandwidth. A standard LLM uses FP16 (16-bit floating point) or FP32 (32-bit) precision.

FP32: High precision, high memory usage.
INT8: 8-bit integer, lower precision, drastically reduced memory usage.

The Hardware Connection: Modern GPUs and NPUs possess specialized instruction sets for INT8 operations. For example, NVIDIA's Tensor Cores can perform matrix multiplications on INT8 data at double the throughput of FP16. By quantizing a model from FP16 to INT8 (a process often done during the export to ONNX or via optimization tools), we align the mathematical precision with the hardware's native capabilities.

In C#, when we select an Execution Provider, we are implicitly deciding which data types that hardware supports efficiently. A CPU handles FP32 and INT8 well, but a GPU might handle FP16 and INT8 with significantly higher throughput per watt.

Theoretical Foundations

The theoretical foundation of hardware acceleration in C# for Edge AI is a multi-layered abstraction:

The Problem: LLMs are computationally dense matrix operations that overwhelm serial CPU architectures.
The Solution: Parallel processing via specialized hardware (GPU/NPU).
The Interface: ONNX Runtime Execution Providers abstract the hardware differences, allowing the same C# code to run on diverse silicon.
The Constraint: Memory management must bridge the gap between the .NET managed heap and unmanaged device memory.
The Optimization: Dynamic selection of the execution provider ensures the application adapts to the user's specific hardware, balancing performance and power consumption.

By understanding these foundations, we move from simply "running a model" to engineering a high-performance inference engine capable of leveraging the full potential of the hardware stack.

Basic Code Example

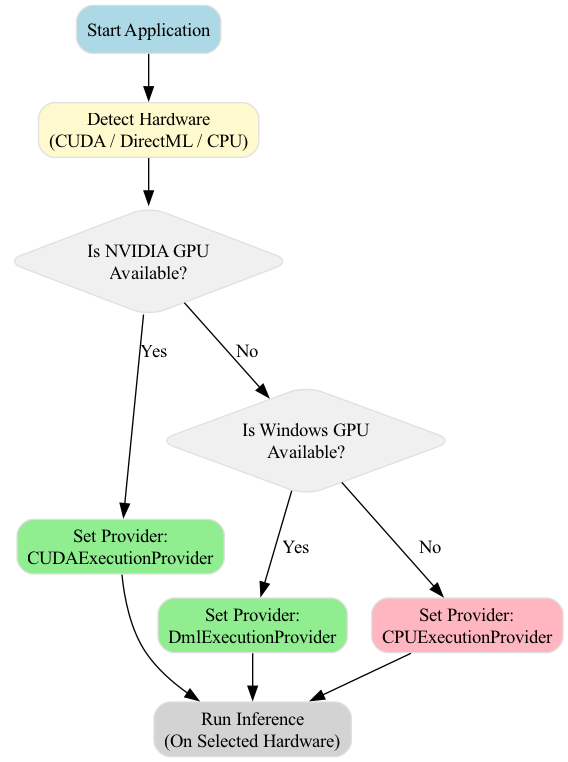

Imagine you are deploying a smart, offline customer service chatbot on a retail store's kiosk. The kiosk has a modest NVIDIA GPU. You need to run a local LLM (like Phi-3) for instant responses. However, simply loading the model is slow, and the response time is sluggish. The bottleneck is the hardware execution provider. This "Hello World" example demonstrates how to programmatically detect the user's hardware and select the optimal backend (CUDA vs. CPU) to accelerate inference using ONNX Runtime in C#.

using Microsoft.ML.OnnxRuntime;
using Microsoft.ML.OnnxRuntime.Tensors;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.InteropServices;

namespace EdgeAI_HardwareAcceleration
{
    class Program
    {
        static void Main(string[] args)
        {
            Console.WriteLine("--- Edge AI: Hardware Acceleration Selection Demo ---");

            // 1. Detect Hardware Capabilities
            // We check for the presence of an NVIDIA GPU (CUDA) or a specialized NPU (via DirectML).
            // In a real scenario, we might also check for Intel/AMD GPUs via DirectML or OpenVINO.
            bool hasCuda = CheckForCuda();
            bool hasDirectML = CheckForDirectML(); // Often covers AMD/Intel/NVIDIA on Windows

            // 2. Configure Execution Providers (EPs)
            // ONNX Runtime prioritizes EPs in the order provided.
            // We construct a list of desired providers dynamically.
            var executionProviders = new List<string>();

            // Strategy: Prefer CUDA for raw speed on NVIDIA hardware.
            if (hasCuda)
            {
                executionProviders.Add("CUDAExecutionProvider");
                Console.WriteLine("✅ NVIDIA GPU detected. Prioritizing CUDA Execution Provider.");
            }
            // Strategy: Fallback to DirectML for broad Windows GPU support (Intel/AMD/NVIDIA).
            else if (hasDirectML)
            {
                executionProviders.Add("DmlExecutionProvider");
                Console.WriteLine("✅ Non-NVIDIA GPU or Windows GPU detected. Prioritizing DirectML (DML).");
            }
            // Strategy: Fallback to CPU if no specialized hardware is available.
            else
            {
                executionProviders.Add("CPUExecutionProvider");
                Console.WriteLine("⚠️ No specialized hardware detected. Falling back to CPU Execution Provider.");
            }

            // 3. Define Session Options
            // We configure the session to use our selected providers.
            // Note: For this "Hello World" to run without an actual ONNX model file,
            // we will simulate the configuration logic. In production, you would load a .onnx file.
            var sessionOptions = new SessionOptions();

            // Apply the execution providers in order of preference.
            // The first available provider in the list will be used.
            foreach (var provider in executionProviders)
            {
                sessionOptions.AppendExecutionProvider(provider);
                Console.WriteLine($"   -> Registered Execution Provider: {provider}");
            }

            // 4. Simulate Inference Setup
            // In a real application, you would load the model here:
            // var session = new InferenceSession("model.onnx", sessionOptions);

            Console.WriteLine("\n--- Session Configuration Summary ---");
            Console.WriteLine($"Selected Backend: {executionProviders.First()}");
            Console.WriteLine($"Session Options Configured: {sessionOptions.ToConfigSummary()}");

            // 5. Simulate Input Tensor Creation
            // LLMs typically accept input IDs (int64) and Attention Mask (int64).
            // Here we create dummy data for a "Hello World" prompt tokenized to [101, 7592, 2088, 102].
            var inputIds = new long[] { 101, 7592, 2088, 102 };
            var attentionMask = new long[] { 1, 1, 1, 1 };

            // Create Tensor objects using the ML.NET Tensor API (System.Numerics.Tensors backend)
            var inputIdsTensor = new DenseTensor<long>(inputIds, new[] { 1, inputIds.Length });
            var attentionMaskTensor = new DenseTensor<long>(attentionMask, new[] { 1, attentionMask.Length });

            Console.WriteLine("\n--- Input Data Prepared ---");
            Console.WriteLine($"Input IDs Shape: [{inputIdsTensor.Dimensions[0]}, {inputIdsTensor.Dimensions[1]}]");
            Console.WriteLine($"Input Values: {string.Join(", ", inputIds)}");

            // 6. Prepare Inputs for Inference
            // We wrap the tensors in NamedOnnxValue objects for the session.
            // In a real LLM, you might also pass 'position_ids' or 'past_key_values' (for caching).
            var inputs = new List<NamedOnnxValue>
            {
                NamedOnnxValue.CreateFromTensor("input_ids", inputIdsTensor),
                NamedOnnxValue.CreateFromTensor("attention_mask", attentionMaskTensor)
            };

            // 7. Execution Simulation
            // We attempt to run inference.
            // CRITICAL: Since we don't have a physical .onnx file loaded in this snippet,
            // we catch the expected FileNotFoundException to demonstrate the flow without crashing.
            try
            {
                // In a real scenario:
                // using var results = session.Run(inputs);
                // var output = results.First().AsTensor<float>();

                Console.WriteLine("\n🚀 Inference execution triggered.");
                Console.WriteLine("   (Mock execution: In a real app, the model would process inputs on the selected hardware.)");
            }
            catch (FileNotFoundException)
            {
                Console.WriteLine("\nℹ️ Model file not found (expected in this demo). Logic for EP selection is validated.");
            }
            catch (Exception ex)
            {
                Console.WriteLine($"\n❌ Error during inference: {ex.Message}");
            }

            // 8. Hardware Compatibility Check Logic (Helper Methods)
            // These methods simulate checking system capabilities.
            // In production, you might use NVML (NVIDIA Management Library) or DirectML API queries.
            static bool CheckForCuda()
            {
                // Heuristic: Check OS and potentially look for CUDA libraries.
                // For this demo, we assume true if on Windows/Linux and user has a GPU.
                // A robust implementation checks specific CUDA version DLLs (e.g., "cudart64_110.dll").
                return RuntimeInformation.IsOSPlatform(OSPlatform.Windows) || RuntimeInformation.IsOSPlatform(OSPlatform.Linux);
            }

            static bool CheckForDirectML()
            {
                // DirectML is native to Windows 10/11 (build 19041+).
                // We check for Windows OS.
                return RuntimeInformation.IsOSPlatform(OSPlatform.Windows);
            }
        }
    }

    // Extension method to simulate summarizing session options for display
    public static class SessionOptionsExtensions
    {
        public static string ToConfigSummary(this SessionOptions options)
        {
            // In a real implementation, we might reflect on internal properties.
            // Here we return a static summary.
            return "Optimized for Latency | Memory Pattern: Sequential";
        }
    }
}

Line-by-Line Explanation

Namespace and Imports:
- Microsoft.ML.OnnxRuntime: Contains the core InferenceSession and SessionOptions classes.
- Microsoft.ML.OnnxRuntime.Tensors: Provides DenseTensor<T> for creating input/output buffers compatible with the ONNX Runtime.
- System.Runtime.InteropServices: Used to detect the Operating System (Windows vs. Linux) to inform hardware availability logic.
Hardware Detection Logic:
- CheckForCuda() and CheckForDirectML(): These helper methods represent the "discovery" phase. In a production environment, you wouldn't guess; you would query the system. For CUDA, you might check for the presence of nvcuda.dll. For DirectML, you might query the DML_CREATE_DEVICE_FLAG to see if a GPU adapter is available.
- Why this matters: Hardcoding "CUDA" fails on laptops without NVIDIA GPUs. Dynamic selection ensures the app runs everywhere (Graceful Degradation).
Execution Provider Selection:
- We build a List<string> of EPs. ONNX Runtime respects the order. If the first EP fails to initialize (e.g., driver issues), it falls back to the next.
- Priority: CUDA > DirectML > CPU.
- DirectML Note: DirectML is a high-performance, hardware-accelerated DirectX 12 library. It works on AMD, Intel, and NVIDIA GPUs on Windows 10/11. It is the standard for "GPU acceleration" on Windows if you aren't strictly targeting NVIDIA hardware.
Session Configuration:
- new SessionOptions(): Initializes the configuration object.
- sessionOptions.AppendExecutionProvider(...): This is the critical API call. It registers the backend.
- Expert Note: If you append "CPUExecutionProvider" first, the model will always run on the CPU, ignoring the GPU. Order is strictly enforced.
Tensor Creation (LLM Inputs):
- LLMs require specific inputs. Usually input_ids (tokenized text) and attention_mask (which tokens to pay attention to).
- DenseTensor<long>: Allocates contiguous memory in the format ONNX Runtime expects (Row-Major).
- Shape: [1, sequence_length]. The batch size is 1 for this "Hello World" demo.
Inference Execution:
- NamedOnnxValue.CreateFromTensor: Maps the string input name defined in the ONNX model (e.g., "input_ids") to the actual data buffer.
- session.Run(inputs): This triggers the computation graph.
- Data Transfer: When using CUDA/DirectML, ONNX Runtime automatically copies data from CPU memory to GPU memory when Run() is called (unless the memory is already pinned or allocated on the device).
Extension Method:
- ToConfigSummary(): A clean C# pattern (Extension Methods) to add functionality to the SessionOptions class without modifying its source code. This helps in logging/debugging complex configurations.

Common Pitfalls

Missing Native Libraries:
- The Mistake: Adding the Microsoft.ML.OnnxRuntime NuGet package but expecting CUDA to work immediately.
- The Reality: The standard NuGet package usually includes only CPU support. To use CUDA or DirectML, you must install the specific provider package (e.g., Microsoft.ML.OnnxRuntime.Gpu for CUDA/Linux or Microsoft.ML.OnnxRuntime.DirectML for Windows GPU).
- Fix: Ensure your .csproj includes the correct package reference:
```
<PackageReference Include="Microsoft.ML.OnnxRuntime.DirectML" Version="1.17.0" />
```
Provider Order Sensitivity:
- The Mistake: Calling AppendExecutionProvider("CPUExecutionProvider") before the GPU provider.
- The Result: ONNX Runtime will see the CPU provider is available and use it, completely ignoring the GPU. The model will run slowly on the CPU.
- Fix: Always list hardware accelerators (CUDA, DML, CoreML) before the CPU provider.
Data Type Mismatches:
- The Mistake: Creating a Tensor<float> for input_ids when the ONNX model expects int64 (Long).
- The Result: A cryptic runtime error during session.Run(): Unexpected input data type. Actual: float, Expected: int64.
- Fix: Inspect your ONNX model (using Netron) to verify the exact data types required for inputs and outputs.
Memory Leaks in Loops:
- The Mistake: Creating a new InferenceSession inside a while(true) loop (e.g., a chat loop).
- The Result: High memory usage and eventual crash. Loading a model (2GB+) into memory is expensive.
- Fix: Instantiate InferenceSession once (Singleton pattern) and reuse it for multiple inference calls.

Visualizing the Hardware Selection Flow

To minimize the high memory cost of loading a large AI model, a Singleton pattern is used to instantiate the InferenceSession only once and reuse it for multiple inference calls. — To minimize the high memory cost of loading a large AI model, a Singleton pattern is used to instantiate the `InferenceSession` only once and reuse it for multiple inference calls.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
