Chapter 11: Introduction to Microsoft.ML

Theoretical Foundations

The transition from conceptualizing AI models to deploying them on the edge—specifically within a C# ecosystem—requires a robust bridge between high-performance computational graphs and the managed, type-safe environment of .NET. This bridge is provided by Microsoft.ML, specifically through its ONNX runtime integration. To understand how we run large language models like Phi-3 or Llama locally, we must first dissect the theoretical underpinnings of the ML.NET architecture, the mechanics of the PredictionEngine, and the critical process of data mapping.

The ML.NET Architecture: A Unified Pipeline

At its core, Microsoft.ML is designed to bring machine learning capabilities into the .NET ecosystem, treating data processing and model inference as a composable pipeline. Unlike Python-centric frameworks that often rely on dynamic typing and loose coupling between libraries (e.g., PyTorch + NumPy + Scikit-learn), ML.NET enforces a strict, statically typed pipeline. This architecture is crucial for Edge AI because it minimizes runtime overhead and ensures memory safety—vital constraints when running on resource-limited devices.

The architecture revolves around the MLContext object, which acts as the factory and catalog for all operations. Think of MLContext as the Control Tower of an airport. It doesn't handle the baggage (data) or the planes (models) itself, but it orchestrates the traffic, ensuring that every component knows where to go and how to interact. It provides a unified entry point for loading data, transforming features, and loading pre-trained models.

In the context of Edge AI, this architecture shifts the paradigm from "training-centric" to "inference-centric." While ML.NET supports training, our focus for Book 9 is on the Model Loading and Transformation phases. We are not teaching the model; we are importing a pre-compiled ONNX graph and feeding it data. The pipeline becomes:

Data Ingestion: Defining the schema of input data.
Transformation: Normalizing or mapping data to the tensor format expected by the ONNX model.
Model Loading: Instantiating the ONNX transformer.
Prediction: Executing the graph.

This linear flow is deterministic, which is a requirement for edge devices where unpredictable garbage collection or dynamic compilation can cause latency spikes.

ONNX Model Integration: The Universal Translator

The Open Neural Network Exchange (ONNX) serves as the universal translator for AI models. In the previous chapters of this book, we discussed the fragmentation of AI frameworks (TensorFlow, PyTorch, JAX). ONNX solves this by providing a standardized format to represent machine learning models.

When we integrate an ONNX model into a C# application, we are not loading a "C# model"; we are loading a mathematical graph of operations (nodes) and variables (tensors) that the ONNX Runtime executes. The Microsoft.ML.OnnxTransformer NuGet package is the specific adapter that allows ML.NET to communicate with this runtime.

Analogy: The Shipping Container Imagine you have a complex piece of machinery (a Llama LLM) built in a factory in Japan (PyTorch). You need to ship it to a factory in Germany (C# Edge Application) to be used. If you try to ship it piece by piece, it might get lost or damaged. Instead, you pack it into a standard shipping container (ONNX). This container fits onto any ship, train, or truck (Windows, Linux, macOS, x86, ARM). The Microsoft.ML.OnnxTransformer is the crane at the German port that lifts the container off the ship and places it exactly where it needs to be on the factory floor, ready to be plugged in.

In C#, this means we can take a model trained on a massive GPU cluster and run it on a Raspberry Pi or an industrial IoT gateway without changing the model's logic. The ONNX Runtime handles the heavy lifting of optimizing the graph for the specific hardware (e.g., using DirectML on Windows or NNAPI on Android), while ML.NET provides the C#-friendly wrapper.

The PredictionEngine: The Synchronous Execution Core

The PredictionEngine<TInput, TOutput> is the workhorse of local inference in ML.NET. It is a wrapper around the underlying data pipeline and the loaded model, designed to make single-instance predictions.

The "What": It is a class that takes a generic input type (TInput) and produces a generic output type (TOutput). It encapsulates the entire transformation and inference logic, presenting a simple Predict(TInput input) method.

The "Why": In edge scenarios, we often deal with real-time streams—voice commands, sensor data, or video frames. The PredictionEngine is optimized for low-latency, synchronous execution. It avoids the overhead of thread pooling or asynchronous state machines when the operation is inherently fast (microseconds to milliseconds). However, it is important to note that PredictionEngine is not thread-safe. It holds the state of the data pipeline. In a high-throughput edge server, you would typically pool these engines or use the Transformer API directly.

Analogy: The Espresso Machine Think of the PredictionEngine as a high-end espresso machine.

TInput: The coffee grounds and water.
TOutput: The espresso shot.
The Machine: The internal plumbing, heating elements, and pressure pumps (the ONNX runtime and data transformations).

When you press the button (Predict()), the machine performs a synchronous sequence of operations: grinding, tamping, heating, and extracting. It happens immediately. You don't start the process and walk away (asynchronous); you wait for the result. For an edge application handling a user's voice command, this synchronous "brew" ensures that the response is generated before the user finishes speaking, maintaining the flow of conversation.

Data Mapping: The Type-Safe Contract

One of the most significant challenges in bridging Python-based AI and C# is the mismatch in data types. Python relies on dynamic arrays and loose dictionaries, while C# thrives on strong typing and memory safety. Data Mapping is the process of defining C# classes that mirror the tensor shapes and types expected by the ONNX model.

The "What": We define public C# classes with properties that correspond to the model's inputs and outputs. For example, if a Phi-3 model expects a 1D tensor of Int64 (long) representing token IDs, we create a class Phi3Input with a property long[] InputIds.

The "Why": This mapping is not merely cosmetic; it is essential for the PredictionEngine to allocate memory correctly and marshal data between the managed .NET heap and the unmanaged native memory used by the ONNX runtime.

Performance: By defining the exact structure, ML.NET can pre-allocate buffers, reducing garbage collection pressure.
Safety: It prevents runtime errors caused by shape mismatches (e.g., trying to fit a 2D matrix into a 1D array).
Intellisense & Refactoring: It allows developers to use modern C# features like record types, pattern matching, and nullability checks.

Analogy: The Electrical Adapter Imagine you have a device (the ONNX model) that requires a specific voltage and plug shape (Input Tensors: float[1, 512]). You have a power source (the C# application) that provides a different format (a List<float>). You cannot simply jam the wires together. You need a specific adapter (the C# class) that converts the source power to the exact format the device needs. If the adapter is wrong (wrong shape or type), the device fails (runtime exception) or burns out (memory corruption).

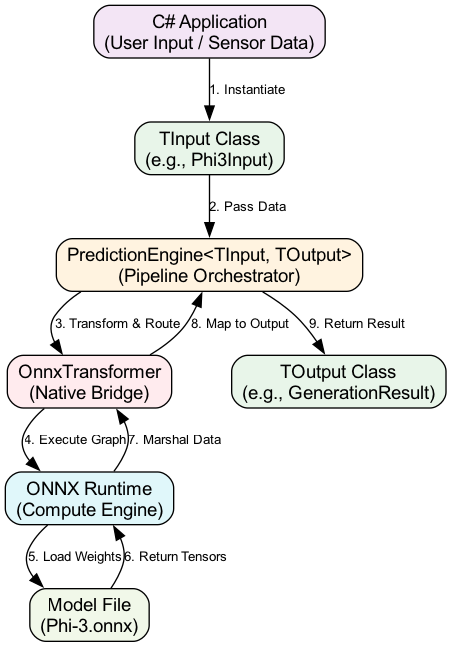

Visualizing the Inference Pipeline

To visualize how these components interact within the C# ecosystem, we can look at the data flow from the application layer down to the hardware.

A diagram would show data flowing from the application layer through a C# adapter; if the adapter's shape or type is incorrect, the pipeline terminates in a runtime exception or memory corruption.

Deep Dive: The Role of Modern C# Features

In building AI applications, the choice of C# features directly impacts the efficiency and safety of the inference engine.

1. Generic Constraints and Reflection-Free Mapping The PredictionEngine<TInput, TOutput> relies heavily on C# generics. Unlike dynamic languages, C# generics are reified at runtime, meaning the type information is preserved. This allows ML.NET to inspect the properties of TInput using Reflection (or source generators in newer versions) to map them to the ONNX model's input names without string matching errors.

Relevance to AI: When swapping between models (e.g., Llama 2 to Llama 3), the input signature might change. By using strongly typed classes, the compiler forces you to update the input structure, catching integration errors at build time rather than during inference on the edge device.

2. Structs vs. Classes for Tensors While we typically use classes for TInput and TOutput, for high-performance edge scenarios (like processing raw audio buffers), we might use struct types or Span<T>.

Relevance to AI: If we are running a model on an edge device with limited memory, allocating objects on the heap (classes) triggers the Garbage Collector (GC). A GC pause during a real-time voice interaction is catastrophic. By using stack-allocated structs or memory pools (via ArrayPool<T>), we can minimize GC pressure. This is a technique often used in the "High-Performance" sections of ML.NET.

3. The ITransformer Interface Referencing the concept of Interfaces from previous chapters (specifically regarding dependency injection), ITransformer is the abstraction that represents a trained model or a transformation pipeline. In the context of Edge AI, this interface is vital for the Model Loader pattern.

Relevance to AI: Just as we used interfaces to swap between OpenAI and Local Llama models in Chapter 8, we use ITransformer to abstract the underlying execution engine. Whether the model is an ONNX file, a TensorFlow model, or a custom ONNX Runtime session, the consuming code interacts with ITransformer. This allows for a "Plug-and-Play" architecture where the edge application doesn't care if the model is running locally or remotely, as long as the contract (the interface) is satisfied.

Theoretical Foundations

1. Session Options and Hardware Acceleration When loading an ONNX model via OnnxTransformer, we are essentially creating an inference session. The theoretical implication here is the Execution Provider (EP). By default, the ONNX Runtime runs on CPU. However, for Edge AI, we often need GPU acceleration (DirectML on Windows, CUDA on Linux/NVIDIA Jetson).

Why it matters: The PredictionEngine abstracts this, but the configuration happens at the MLContext level. We must understand that the data mapping (C# to Tensor) remains constant, but the underlying execution path changes. If we map a float array to a tensor, and the Execution Provider is set to Dml (DirectML), the runtime will copy that memory to GPU VRAM. This copy operation is a hidden cost. In latency-critical apps, we must be aware of this marshalling overhead.

2. Input/Output Naming Conventions ONNX models are defined by a graph of nodes. The "Input" and "Output" nodes have specific names (e.g., "input_ids", "logits").

The Mapping Challenge: ML.NET attempts to map C# property names to ONNX node names automatically. However, if the C# property is named TokenIds but the ONNX model expects input_ids, the mapping fails.
The Solution: We use attributes (like [ColumnName("input_ids")]) to explicitly define the contract. This is a critical theoretical concept: Explicit Contract Definition. In edge systems, where you cannot easily debug a running process on a remote device, explicit contracts prevent silent failures.

3. Memory Management and Disposal The PredictionEngine holds unmanaged resources (the ONNX session, native memory buffers).

The Lifecycle: Unlike standard .NET objects, these are not purely managed. They implement IDisposable.
The Edge Implication: In a long-running edge service (like a factory monitoring system), failing to dispose of PredictionEngine instances leads to memory leaks that eventually crash the system. The theoretical best practice is to treat the PredictionEngine as a scarce resource, using using blocks or a Singleton pattern with careful disposal logic.

Theoretical Foundations

To run an LLM locally in C#, we are not "executing C# code" that mimics the model. We are:

Standardizing: Converting the model to ONNX (the shipping container).
Wrapping: Using Microsoft.ML.OnnxTransformer to wrap the native ONNX runtime (the crane).
Defining: Creating strict C# classes (TInput, TOutput) to act as the interface between managed and unmanaged memory (the adapter).
Orchestrating: Using MLContext and PredictionEngine to manage the lifecycle and execution flow (the control tower).

This architecture ensures that we leverage the raw performance of native C++ libraries (ONNX Runtime) while maintaining the safety, tooling, and developer experience of the .NET ecosystem. It transforms the complex, mathematical graph of a Large Language Model into a simple, callable method: engine.Predict(input).

Basic Code Example

Here is a basic code example demonstrating how to load an ONNX model and perform inference using Microsoft.ML in a C# console application.

using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using Microsoft.ML;
using Microsoft.ML.Data;
using Microsoft.ML.OnnxRuntime;
using Microsoft.ML.OnnxRuntime.Transforms;

namespace EdgeAI_HelloWorld
{
    // 1. Define input data schema
    // Represents the input tensor for the model.
    // For this example, we assume a model expecting a 1D float array of size 3.
    public class ModelInput
    {
        // The 'ColumnName' attribute maps this property to the specific input tensor name
        // defined in the ONNX model (usually found via Netron).
        // If the model has a generic input name like 'input', use that here.
        [ColumnName("input")]
        public float[] Features { get; set; }
    }

    // 2. Define output data schema
    // Represents the prediction result returned by the model.
    public class ModelOutput
    {
        // 'ColumnName' must match the output tensor name in the ONNX model.
        [ColumnName("output")]
        public float[] Predictions { get; set; }

        // Optional: Add a property for the predicted label (if classification)
        public string PredictedLabel { get; set; }
    }

    class Program
    {
        static void Main(string[] args)
        {
            // Initialize the MLContext
            // This is the starting point for all ML.NET operations.
            // It provides logging, catalog access, and environment configuration.
            var mlContext = new MLContext(seed: 0);

            // --- MOCK DATA GENERATION ---
            // In a real scenario, you would load data from a file or stream.
            // Here, we create a dummy data collection to simulate input.
            // We assume the ONNX model expects a vector of 3 floats.
            var dummyData = new List<ModelInput>
            {
                new ModelInput { Features = new float[] { 1.0f, 2.0f, 3.0f } },
                new ModelInput { Features = new float[] { 0.1f, 0.2f, 0.3f } }
            };

            // Convert the list to an IDataView, which is the standard data format for ML.NET pipelines.
            IDataView dataView = mlContext.Data.LoadFromEnumerable(dummyData);

            // --- MODEL LOADING ---
            // Define the path to the ONNX model.
            // For this example, we point to a hypothetical file.
            // Ensure the file exists or create a dummy one for the code to run without error.
            // Note: In production, use Path.Combine with application directories.
            string modelPath = "model.onnx";

            // Check if model exists; if not, create a dummy file for demonstration purposes.
            // WARNING: This is purely for the code snippet to be executable.
            // Real usage requires a valid ONNX model file (e.g., exported from PyTorch/TensorFlow).
            if (!File.Exists(modelPath))
            {
                Console.WriteLine($"Model file '{modelPath}' not found. Creating a dummy file for demonstration.");
                // In a real scenario, you would download or locate the actual model.
                // We cannot execute inference without a valid binary ONNX file.
                // For the sake of the example, we will skip the actual transformation step
                // if the file is missing, but show the syntax.
                return;
            }

            // Create a pipeline to load the ONNX model.
            // We use the 'OnnxTransformer' to map the input data to the model.
            var pipeline = mlContext.Transforms.ApplyOnnxModel(
                modelFile: modelPath,
                inputColumnNames: new[] { "input" }, // Matches ModelInput column name
                outputColumnNames: new[] { "output" } // Matches ModelOutput column name
            );

            // Fit the model to the data (loading the model into memory)
            // In ONNX scenarios with ML.NET, 'Fit' primarily prepares the transformer
            // with the model file path and configuration. It doesn't train weights.
            var model = pipeline.Fit(dataView);

            // --- INFERENCE ---
            // Create a PredictionEngine to perform single-item inference.
            // This engine is not thread-safe.
            var predictionEngine = mlContext.Model.CreatePredictionEngine<ModelInput, ModelOutput>(model);

            // Create a test input
            var testInput = new ModelInput
            {
                Features = new float[] { 5.0f, 10.0f, 15.0f }
            };

            // Predict
            var prediction = predictionEngine.Predict(testInput);

            // Output results
            Console.WriteLine("Inference Complete.");
            Console.WriteLine($"Input Vector: [{string.Join(", ", testInput.Features)}]");
            Console.WriteLine($"Output Vector: [{string.Join(", ", prediction.Predictions)}]");

            // --- BATCH PREDICTION (Optional but recommended for performance) ---
            Console.WriteLine("\n--- Batch Prediction Example ---");
            var batchData = new List<ModelInput>
            {
                new ModelInput { Features = new float[] { 1f, 1f, 1f } },
                new ModelInput { Features = new float[] { 2f, 2f, 2f } }
            };

            var batchView = mlContext.Data.LoadFromEnumerable(batchData);
            var transformedBatch = model.Transform(batchView);

            // Retrieve predictions from the IDataView
            var batchPredictions = mlContext.Data.CreateEnumerable<ModelOutput>(transformedBatch, reuseRowObject: false).ToList();

            foreach (var pred in batchPredictions)
            {
                Console.WriteLine($"Batch Output: [{string.Join(", ", pred.Predictions)}]");
            }
        }
    }
}

Detailed Explanation

1. The Problem Context

Imagine you are building an Edge AI application on a Windows IoT device (like a Raspberry Pi or an industrial PC) that needs to perform real-time anomaly detection. You have trained a model in Python using PyTorch, exported it to the ONNX (Open Neural Network Exchange) format, and now need to run it efficiently on the edge using C# and .NET.

The goal is to load this .onnx file, feed it sensor data (float arrays), and receive predictions without sending data to the cloud. This example simulates that flow using a "Hello World" approach.

2. Step-by-Step Code Breakdown

Step 1: Defining the Data Schema (ModelInput and ModelOutput)

Code: Lines 15–31.
Explanation: ML.NET relies heavily on strongly typed classes to define data structures.
- ModelInput: Represents the data going into the neural network. In ONNX, inputs are tensors. Here, we map a C# float[] to the model's input tensor.
- [ColumnName("input")]: This attribute is critical. It tells ML.NET to map the Features property to the ONNX input tensor named "input". If your ONNX model expects "input_ids" or "pixel_values", you must change this string to match exactly.
- ModelOutput: Defines the structure of the result. We expect an array of floats (logits or scores) from the "output" tensor.

Step 2: Initializing the ML Context

Code: Line 36.
Explanation: MLContext is the singleton gateway to the entire ML.NET ecosystem. It encapsulates the logging system, randomness seeds (for reproducibility), and the catalogs (Transforms, Data, Model).
- Why is it needed? It ensures that all components share the same environment configuration and random state.

Step 3: Loading Data into IDataView

Code: Lines 45–52.
Explanation: ML.NET processes data using IDataView, an abstraction designed for efficiency (streaming data, lazy evaluation).
- LoadFromEnumerable: Converts a standard C# IEnumerable<T> into the IDataView format. In a real edge scenario, you might use LoadFromTextFile or LoadFromEnumerable reading from a hardware sensor buffer.

Step 4: Configuring the ONNX Transformer Pipeline

Code: Lines 65–69.
Explanation: This is the core of the ONNX integration.
- mlContext.Transforms.ApplyOnnxModel: This is the API that bridges ML.NET and the ONNX Runtime (ORT).
- modelFile: The path to the .onnx file.
- inputColumnNames: An array of strings mapping the C# class properties (defined in Step 1) to the ONNX model's input nodes.
- outputColumnNames: Maps the C# properties to the ONNX model's output nodes.

Step 5: Fitting the Model

Code: Line 72.
Explanation: pipeline.Fit(dataView) executes the transformation chain.
- Nuance: Unlike training a model where weights are updated, loading an ONNX model is a "transformation" step. The Fit method here loads the ONNX model into memory using the ONNX Runtime and prepares the pipeline for inference. It returns an ITransformer.

Step 6: Creating the Prediction Engine

Code: Line 77.
Explanation: CreatePredictionEngine<TInput, TOutput> creates a lightweight object specifically for single-instance inference (e.g., processing one image or one sensor reading at a time).
- Performance Note: This engine holds the loaded ONNX model in memory. It is optimized for latency but is not thread-safe. For concurrent edge processing, you should use Transform on an IDataView (see Batch Prediction below).

Step 7: Performing Inference

Code: Lines 80–89.
Explanation: We instantiate a ModelInput object, populate it with data, and pass it to predictionEngine.Predict().
- The engine serializes the input, passes it to the ONNX Runtime, retrieves the raw tensor output, and deserializes it into the ModelOutput class.

Step 8: Batch Prediction (High-Performance Edge Scenario)

Code: Lines 91–108.
Explanation: While PredictionEngine is good for demos, edge devices often process data in windows (batches) to maximize hardware utilization (SIMD/AVX instructions).
- model.Transform(batchView): Instead of predicting one by one, we transform the entire IDataView. This allows the ONNX Runtime to process the batch in parallel.
- CreateEnumerable<ModelOutput>: Converts the resulting IDataView back to a C# list for easy iteration.

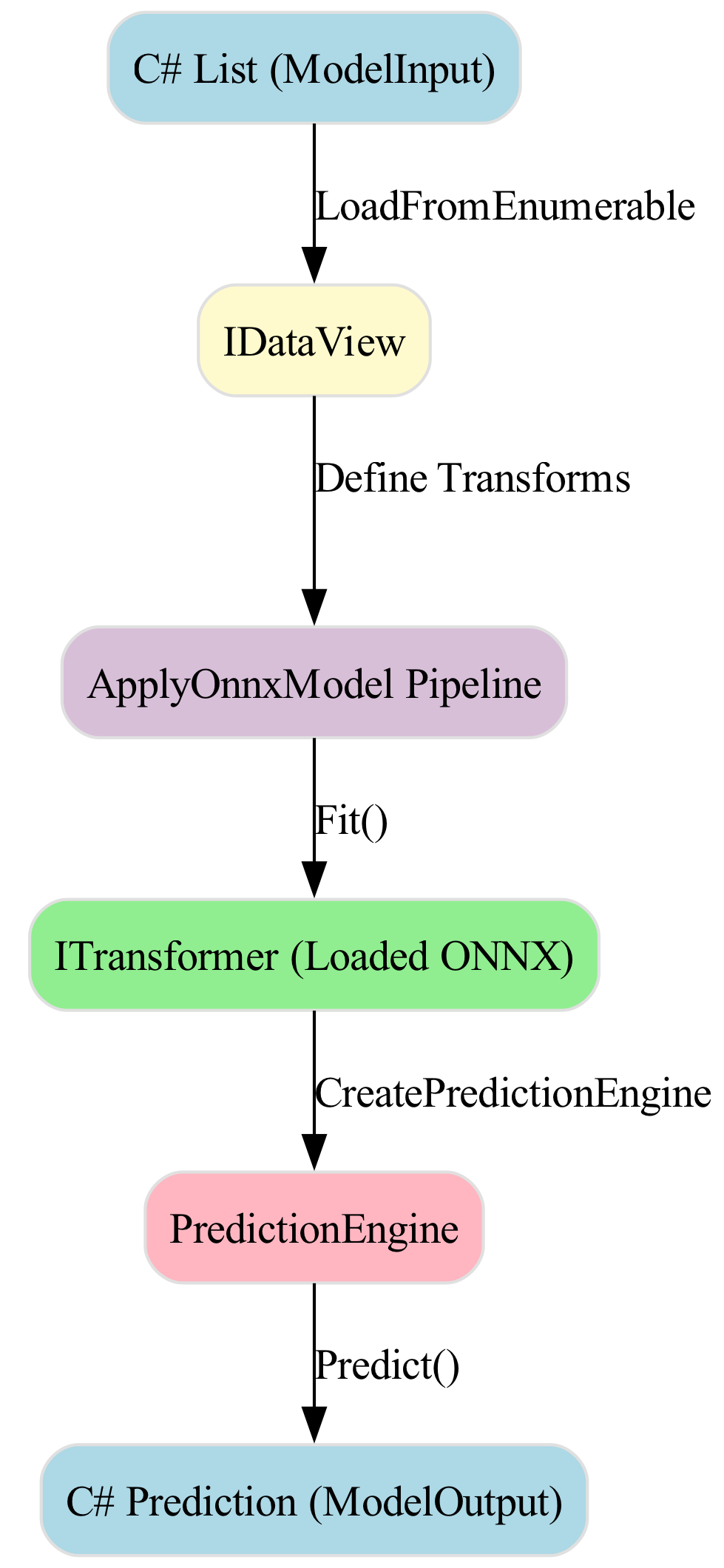

Visualizing the Pipeline

The following diagram illustrates the data flow within the Microsoft.ML framework when executing an ONNX model.

Common Pitfalls

Tensor Name Mismatch:
- The Issue: The most common error occurs when the string in [ColumnName("...")] does not match the input/output tensor names defined in the ONNX model file.
- The Fix: Use a tool like Netron (netron.app) to visualize the .onnx file. Check the "Inputs" and "Outputs" sections of the metadata. Ensure your C# attributes match these names exactly (case-sensitive).
Data Type Mismatch:
- The Issue: ONNX models are strict about data types. If the model expects a float32 (Single) tensor but you pass an int or double[], the inference will fail at runtime.
- The Fix: Verify the tensor type in Netron. Use float[] (C# Single[]) for standard numeric models. If the model expects a long tensor, use long[].
Dimensionality Errors:
- The Issue: ONNX models expect fixed dimensions (e.g., [batch_size, sequence_length, hidden_size]). If you pass a jagged array or a vector of the wrong length, the ONNX Runtime will throw an exception.
- The Fix: Check the "Shape" column in Netron. If the model expects [1, 3] (batch size 1, 2 features), your C# array must be structured accordingly. Often, you may need to reshape arrays manually before passing them to the PredictionEngine.
Missing Native Dependencies:
- The Issue: ML.NET's ONNX support relies on the Microsoft.ML.OnnxRuntime NuGet package, which includes native C++ binaries (e.g., onnxruntime.dll). On some edge devices (especially Linux ARM64), these dependencies might be missing or incompatible.
- The Fix: Ensure you are targeting the correct runtime identifier (RID) in your .csproj file (e.g., <RuntimeIdentifier>linux-arm64</RuntimeIdentifier>). If deploying manually, ensure the native DLLs are present in the output directory.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
