Chapter 15: Whisper.net - Local Audio Transcription

Theoretical Foundations

The theoretical foundation of local audio transcription with Whisper.net rests on the convergence of three distinct domains: the architectural principles of Transformer-based sequence-to-sequence models, the computational efficiency of the ONNX (Open Neural Network Exchange) runtime, and the memory management capabilities of the .NET runtime. To understand how we achieve real-time, edge-based transcription in C#, we must dissect the Whisper architecture and map its requirements to the specific abstractions provided by the .NET ecosystem.

The Whisper Architecture: From Audio to Token Sequences

At its core, the Whisper model is not merely a speech recognition engine; it is a multi-task, multi-lingual model trained on approximately 680,000 hours of audio data. Unlike traditional Automatic Speech Recognition (ASR) systems that rely on Hidden Markov Models (HMM) or Connectionist Temporal Classification (CTC), Whisper utilizes a Transformer-based encoder-decoder architecture.

The Encoder (Audio Representation): The input to the system is not raw PCM audio samples, which are high-frequency and noisy. Instead, the audio undergoes a critical pre-processing step known as the Short-Time Fourier Transform (STFT). This converts the raw audio signal into a log-Mel spectrogram—a visual representation of the spectrum of frequencies of the signal as they vary with time.

Imagine looking at a piano roll in music production software. The horizontal axis represents time, and the vertical axis represents pitch (frequency). The intensity of the color represents the loudness at that specific pitch at that specific moment. This 2D image-like representation is what the Whisper encoder processes. The encoder is a standard Transformer encoder stack (specifically based on the Vision Transformer architecture, adapted for audio). It does not "hear" the audio; it "sees" the spectrogram patterns and extracts high-level semantic features from them.

The Decoder (Token Generation): The decoder is an auto-regressive Transformer decoder. It takes the features extracted by the encoder and generates a sequence of tokens. These tokens represent text characters, but also special "task tokens" (e.g., transcribe, translate) and "timestamp tokens" (to synchronize text with audio time).

This is where the Sequence-to-Sequence (Seq2Seq) paradigm becomes vital. The model maps a variable-length input sequence (audio frames) to a variable-length output sequence (text tokens). The critical theoretical concept here is Attention, specifically the Self-Attention mechanism. The model learns to attend to relevant parts of the audio spectrogram when generating a specific word. For instance, when generating the word "Hello," the decoder attends to the high-frequency components of the spectrogram corresponding to the "H" sound, effectively focusing on the relevant "region" of the input data.

The ONNX Runtime: Bridging Frameworks to Hardware

While the model architecture is defined in PyTorch or TensorFlow, running it efficiently in a C# environment requires a standardized interchange format. This is where ONNX plays a pivotal role.

ONNX is an open-source format for representing machine learning models. It decouples the model definition from the hardware execution. When a Whisper model (originally trained in PyTorch) is exported to ONNX, it is converted into a computational graph—a directed acyclic graph (DAG) of operators (Add, MatMul, LayerNorm, etc.).

Why ONNX is Critical for Edge AI: In the context of Edge AI, hardware heterogeneity is the primary challenge. A C# application might run on an x64 Windows desktop with an NVIDIA GPU, an ARM-based Raspberry Pi, or an Android device. Writing native code for each hardware target is infeasible.

ONNX Runtime (ORT) acts as a highly optimized execution engine. It parses the ONNX graph and applies graph optimizations (like operator fusion, constant folding, and layout optimization) specific to the available hardware. For example, on a CPU, ORT might fuse a LayerNorm and an Add operation into a single kernel to reduce memory bandwidth. On a GPU, it might leverage CUDA or DirectML kernels for parallel execution.

In C#, the Microsoft.ML.OnnxRuntime NuGet package provides the managed wrapper. It abstracts the underlying C++ execution provider. This allows the developer to write a single C# codebase that dynamically switches execution providers (CPU, CUDA, TensorRT, OpenVINO) based on the deployment environment, ensuring maximum performance without recompiling the application.

The C# Ecosystem: Memory Management and Asynchrony

Transcribing audio locally presents significant computational and memory challenges. A 60-minute audio file processed by Whisper generates a massive spectrogram tensor, which is then fed into a model that may have billions of parameters (e.g., Whisper Large).

The Role of IDisposable and Span<T>: In a managed language like C#, the Garbage Collector (GC) is responsible for memory management. However, in high-throughput AI pipelines, unmanaged memory (memory allocated outside the GC heap, typically used by the ONNX Runtime for tensor data) must be handled precisely. If not managed correctly, memory leaks will occur, crashing the application on resource-constrained edge devices.

The IDisposable pattern is the standard mechanism in .NET for releasing unmanaged resources. In Whisper.net, objects representing the ONNX session, the audio stream, and the inference tensors implement IDisposable. The theoretical imperative is to ensure that the lifecycle of these unmanaged resources is strictly tied to a using statement or a try-finally block. This mimics the RAII (Resource Acquisition Is Initialization) pattern found in C++, ensuring that memory is released deterministically the moment the transcription of a segment is complete.

Furthermore, modern C# utilizes Span<T> and Memory<T> to handle buffer pooling. When reading raw audio bytes or processing the spectrogram array, Span<T> allows us to work with slices of memory without allocating new objects on the heap. This is crucial for real-time transcription, as it prevents "GC pauses" that would cause audio glitches or latency spikes.

Asynchronous Pipelines: Real-time transcription requires the application to capture audio input (microphone) and process it concurrently. In C#, the async/await pattern is the architectural backbone of this concurrency.

The theoretical model here is a Producer-Consumer queue.

Producer: An audio capture loop runs on a separate thread, filling a buffer with PCM samples.
Consumer: The Whisper inference engine runs asynchronously, taking filled buffers, converting them to tensors, and performing inference.

By using Task<T> and ValueTask<T>, we offload the heavy matrix multiplication operations to the thread pool, preventing the UI thread (or the main application loop) from blocking. This is essential for "Edge AI" applications where the user expects immediate feedback.

Analogy: The Multilingual Librarian

To visualize the entire process, imagine a highly specialized librarian (the Whisper Model) working in a soundproof room (the Edge Device).

Input (The Spectrogram): You hand the librarian a continuous strip of ticker tape (the audio spectrogram). The tape has holes punched in it representing frequencies and intensities. The librarian does not read the tape like a text; they look at the shape of the holes (the visual pattern).
The Encoder (The Cataloger): The librarian takes the ticker tape to a cataloging desk (the Encoder). They analyze the patterns and write down abstract concepts on index cards. For example, instead of "high pitch spike," they write "Sound of a flute."
The Decoder (The Translator): The librarian takes these index cards to a writing desk (the Decoder). Based on the cards and the context of previous cards (Attention), they start writing words on a piece of paper.
The Execution Engine (The Librarian's Assistant): The assistant (ONNX Runtime) organizes the index cards and writing tools on the desk in the most efficient order possible, so the librarian doesn't have to waste time searching for them.
The C# Application (The Librarian's Manager): The manager (C# code) ensures the librarian has a steady stream of ticker tape (Audio Capture) and that the written pages (Transcription Results) are filed away immediately without piling up (Memory Management).

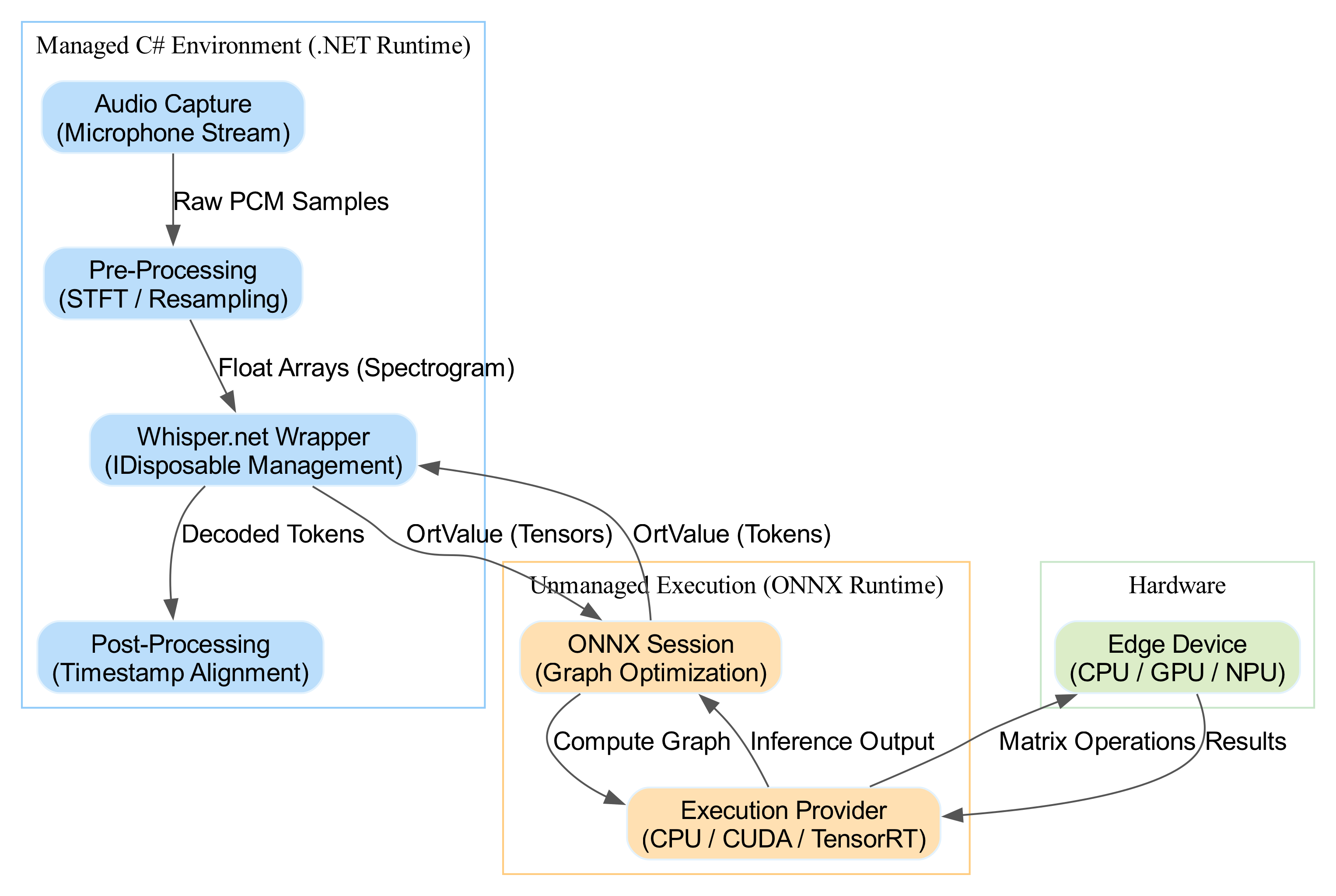

Architectural Flow Visualization

The following diagram illustrates the data flow from raw audio to transcribed text, highlighting the separation between managed C# code and unmanaged ONNX execution.

Deep Dive: The Inference Pipeline Mechanics

To understand the "how" of local transcription, we must look at the specific tensor manipulations occurring within the ONNX session.

1. Audio Pre-processing (The Mel Filter Bank): Before the data ever reaches the ONNX model, the C# application must perform the same pre-processing used during training. This is not optional; a mismatch in input representation will result in garbage output. The raw audio (usually 16kHz, 16-bit signed integers) is converted to floating-point values between -1.0 and 1.0. A Mel filter bank is applied to the spectrogram. This mimics human auditory perception, where we are more sensitive to differences in lower frequencies than higher ones.

Why this matters in C#: This operation is computationally expensive. While ONNX can handle some pre-processing, doing it in C# using optimized libraries (or SIMD via System.Numerics) allows us to prepare the tensor buffer before inference, reducing latency.

2. The Encoder Pass: Once the Mel spectrogram tensor is ready (shape: [batch_size, 80, 3000] for a 30-second chunk), it is passed to the Encoder. In the ONNX graph, this involves multiple layers of Multi-Head Attention and Feed-Forward networks.

Theoretical Note: The Encoder outputs a hidden state vector (context vector) for every time step. This vector encapsulates the semantic meaning of the audio at that moment.

3. The Decoder Pass (Auto-Regression): The Decoder generates tokens one by one. It starts with a special "Start of Transcript" token.

Step A: The Decoder takes the Encoder's output and the previously generated tokens (if any) and predicts the next token.
Step B: The predicted token is fed back into the Decoder as input for the next step.
Step C: This continues until an "End of Transcript" token is generated.
C# Implementation: This loop must be implemented carefully. In a naive implementation, this would block the thread. In an advanced C# implementation, we use IEnumerable or IAsyncEnumerable to yield tokens as they are generated, allowing the UI to update incrementally.

4. Timestamp Prediction: Whisper is unique because it predicts timestamps alongside text. It uses special tokens like <|0.00|> to mark the start and end of a segment. This requires the model to align the audio representation with the text generation.

Theoretical Implication: The model is not just mapping Audio->Text; it is mapping Audio->(Text + Time). This requires the decoder to attend to the positional embeddings of the encoder output (the time dimension of the spectrogram).

Edge AI Considerations and Optimization

When deploying this in a C# application on the edge, several theoretical constraints must be managed:

1. Quantization: Standard Whisper models use 32-bit floating-point numbers (FP32). This provides high precision but consumes significant memory and bandwidth. For edge devices (especially mobile or IoT), we often use Quantization. This converts the model weights to 16-bit floats (FP16) or 8-bit integers (INT8).

Impact: Quantization reduces model size by 2x-4x and speeds up inference on hardware that supports integer math (like NPUs). ONNX Runtime handles this transparently if the model is quantized correctly. In C#, we simply load the quantized ONNX file; the code remains identical.

2. Beam Search vs. Greedy Decoding:

Greedy Decoding: At every step, pick the token with the highest probability. It's fast but can miss the best overall sentence.
Beam Search: Keeps track of the top \(k\) (beam width) most probable sequences. It's more accurate but computationally heavier.
C# Strategy: For real-time transcription on low-power devices, Greedy Decoding is often preferred for speed. However, for offline transcription of critical files, Beam Search (implemented via ONNX Runtime's generation parameters) is superior. The choice depends on the "Latency vs. Accuracy" trade-off specific to the application.

3. Streaming vs. Chunking: Whisper was trained on 30-second chunks. To transcribe a 1-hour meeting, you cannot feed the whole hour into the model at once (memory constraints).

Sliding Window: The audio is sliced into 30-second segments with a stride (overlap). The overlap ensures that a word split between two segments is captured fully in at least one.
Context Carry-over: In a sophisticated C# implementation, the final hidden state of the previous chunk can sometimes be used to initialize the next chunk, maintaining context. However, standard Whisper treats chunks independently. The C# application must stitch the results together, removing duplicate words at the boundaries.

Integration with Previous Concepts: The ONNX Session

Referencing the foundational concepts established in Book 8 (ONNX Runtime Integration), the InferenceSession class is the central object. However, in the context of Whisper, we utilize advanced features of this session.

Specifically, we utilize SessionOptions to configure the execution provider. In a previous chapter, we discussed how to load a model. Here, we must consider the specific memory requirements of the Whisper model. Whisper Large v3 has approximately 1.55 billion parameters. In FP32, this requires roughly 6GB of VRAM or RAM just for the weights, plus activation memory.

The InferenceSession constructor in C# allows us to pass ExecutionMode.ORT_SEQUENTIAL (default) or ORT_PARALLEL. For audio transcription, sequential is usually sufficient as the graph is a linear pipeline, but for multi-streaming (transcribing multiple audio sources simultaneously), parallel execution becomes relevant.

The Role of Interfaces in Abstraction

As emphasized in previous chapters regarding model swapping, the theoretical design of a transcription system should rely on interfaces. While this subsection is theoretical, the architecture implies the following:

// Theoretical Interface Definition
public interface IAudioTranscriber
{
    // Allows swapping between Whisper (ONNX) and other models (e.g., Wav2Vec2)
    Task<TranscriptionResult> TranscribeAsync(Stream audioStream, CancellationToken token);
}

// Theoretical implementation signature
public class WhisperTranscriber : IAudioTranscriber, IDisposable
{
    // Depends on ONNX Runtime session
    private readonly InferenceSession _session;

    // Depends on a specific Execution Provider (CPU/GPU)
    private readonly SessionOptions _options;

    public Task<TranscriptionResult> TranscribeAsync(Stream audioStream, CancellationToken token)
    {
        // Implementation details hidden behind the interface
    }
}

This abstraction is vital. If a more efficient native library for Whisper emerges (e.g., a Rust-based backend), we can implement IAudioTranscriber without changing the consuming C# application logic. This adheres to the Dependency Inversion Principle, a cornerstone of robust software engineering.

Theoretical Foundations

The ability to run Whisper locally in C# is not magic; it is the orchestration of complex mathematical operations managed by a robust runtime environment.

Mathematical Foundation: The Transformer architecture (Encoder-Decoder) utilizing Self-Attention to map Spectrograms (Time-Frequency representations) to Token Sequences.
Computational Foundation: The ONNX Runtime providing a hardware-agnostic execution engine that optimizes the computational graph for specific edge devices.
Software Engineering Foundation: The .NET runtime providing memory safety (IDisposable, GC), concurrency (async/await), and buffer efficiency (Span<T>) to handle high-throughput data streams without resource exhaustion.

By mastering these theoretical underpinnings, the developer moves from simply "calling an API" to architecting a self-contained, efficient, and private AI system capable of running on any edge device supported by .NET.

Basic Code Example

The Problem: Local Audio Transcription for a Smart Meeting Assistant

Imagine you're building a smart meeting assistant that runs entirely on a user's laptop. This assistant needs to transcribe audio from a meeting recording in real-time, without sending sensitive corporate data to a cloud service like Google Speech-to-Text or AWS Transcribe. You need a solution that is fast, private, and works offline. This is where Whisper.net comes in, allowing you to run OpenAI's powerful Whisper models locally using the ONNX runtime directly within your C# application.

Here is a simple "Hello World" example that transcribes a WAV audio file into text using Whisper.net.

using System;
using System.IO;
using System.Threading.Tasks;
using Whisper.net;
using Whisper.net.Ggml;

namespace WhisperLocalDemo
{
    class Program
    {
        // The main entry point of the application.
        static async Task Main(string[] args)
        {
            // 1. Define the path to the audio file we want to transcribe.
            //    In a real app, this might come from a microphone stream or a file picker.
            string audioFilePath = "sample.wav";

            // Check if the audio file exists before proceeding.
            if (!File.Exists(audioFilePath))
            {
                Console.WriteLine($"Error: Audio file not found at '{audioFilePath}'.");
                Console.WriteLine("Please ensure a 'sample.wav' file exists in the execution directory.");
                return;
            }

            Console.WriteLine($"Starting transcription for: {audioFilePath}");

            // 2. Define the path where the Whisper model file will be downloaded.
            //    Whisper.net handles downloading the model if it's not present.
            //    We'll use the 'Tiny' model for speed and low resource usage (ideal for 'Hello World').
            string modelPath = "ggml-tiny.bin";

            // 3. Initialize the WhisperFactory.
            //    This is the central factory class that manages the model loading and inference engine.
            //    It abstracts away the complexity of the underlying ONNX runtime or Ggml backend.
            using var whisperFactory = WhisperFactory.FromPath(modelPath);

            // 4. Build the processor.
            //    We configure the processing parameters here. This is where we define:
            //    - The language (optional, but helps performance if known).
            //    - The strategy for handling partial results (e.g., real-time vs. full file).
            //    - Callbacks for when a segment of text is fully transcribed.
            using var processor = whisperFactory.CreateBuilder()
                .WithLanguage("en") // Explicitly set English to improve accuracy and speed.
                .WithSegmentEventHandler(segment =>
                {
                    // This callback is triggered whenever Whisper finalizes a segment of text.
                    // A "segment" is typically a sentence or a logical chunk of speech.
                    Console.WriteLine($"[{segment.Start}->{segment.End}]: {segment.Text}");
                })
                .Build();

            // 5. Open the audio file and process it.
            //    We use a FileStream to read the audio data.
            //    Whisper.net expects the audio data to be in a specific format (usually 16-bit PCM, 16kHz, mono).
            //    The library handles the internal buffering and chunking automatically.
            using var fileStream = File.OpenRead(audioFilePath);

            // The 'ProcessAsync' method streams the audio data to the model and invokes the callbacks.
            await processor.ProcessAsync(fileStream);

            Console.WriteLine("Transcription completed.");
        }
    }
}

Line-by-Line Explanation

using System; ... using Whisper.net.Ggml;
- What: These are the necessary namespace imports.
- Why: We need System and System.IO for file operations. Crucially, we import Whisper.net (the main API) and Whisper.net.Ggml (specifically for handling Ggml format models, which are the standard for Whisper).
- Architectural Implication: The separation of Whisper.net and Whisper.net.Ggml allows the library to support different backends in the future (e.g., pure ONNX) while keeping the core API stable.
string audioFilePath = "sample.wav";
- What: Defines the input file.
- Why: Whisper models are trained on specific audio formats (16kHz, 16-bit PCM, mono). Using a standard WAV file ensures compatibility. If you use MP3 or other compressed formats, you must decode them first (Whisper.net does not include an audio decoder).
- Real-World Context: In a production app, this path would be dynamic, perhaps passed via command-line arguments or selected by the user in a GUI.
if (!File.Exists(audioFilePath))
- What: A guard clause to check for the audio file.
- Why: File I/O is a common point of failure. Failing early with a clear message is better than a cryptic FileNotFoundException deep inside the library.
- Edge Case: If the file is locked by another process, File.Exists returns false, but File.OpenRead would throw an exception. Robust applications need try-catch blocks around file operations.
string modelPath = "ggml-tiny.bin";
- What: Specifies the location of the Whisper model weights.
- Why: Whisper.net does not bundle models due to their large size (Tiny is ~45MB, Base is ~75MB, Large is ~3GB+). The library can download models automatically if they don't exist, but for this example, we assume the file is present or will be downloaded to this path.
- Model Selection: We chose Tiny because it is the smallest model, offering the fastest inference speed at the cost of some accuracy. This is ideal for a "Hello World" example where responsiveness is key.
using var whisperFactory = WhisperFactory.FromPath(modelPath);
- What: Instantiates the WhisperFactory.
- Why: This is the entry point of the library. It loads the model file from disk into memory and prepares the underlying inference engine (ONNX or Ggml).
- Performance Note: Loading the model is I/O and CPU intensive. In a long-running application, you should create the factory once and reuse it for multiple transcriptions to avoid the overhead of reloading the model.
using var processor = whisperFactory.CreateBuilder()...
- What: Configures and builds the inference processor.
- Why: The builder pattern allows for flexible configuration without cluttering the constructor.
- .WithLanguage("en"): While Whisper is multilingual, specifying the language prevents the model from wasting cycles on language detection, improving speed and accuracy for known languages.
- .WithSegmentEventHandler(...): This is the core of the output handling. Whisper processes audio in segments (usually ending in punctuation like a period). This callback receives the Segment object containing the text, start time, and end time. This is how you get the transcribed text.
using var fileStream = File.OpenRead(audioFilePath);
- What: Opens the audio file as a stream.
- Why: ProcessAsync expects a Stream rather than a byte array. This allows the library to buffer the audio in chunks, which is memory-efficient for large files. It also enables streaming from other sources like a network stream or a microphone buffer.
await processor.ProcessAsync(fileStream);
- What: Executes the transcription.
- Why: This method drives the entire inference pipeline. It reads the audio stream, converts it into audio frames (Mel spectrograms), feeds them into the neural network, and decodes the output tokens into text.
- Asynchrony: The method is asynchronous to prevent blocking the main thread, which is crucial for UI applications or high-throughput servers. It yields control back to the caller while waiting for I/O or heavy computation.

Common Pitfalls

Audio Format Mismatch:
- The Mistake: Passing an MP3, AAC, or other compressed audio file directly to Whisper.net.
- The Consequence: The transcription will be silent or produce garbage output. Whisper expects raw PCM audio data (16-bit, 16kHz, mono).
- The Fix: Use a library like NAudio or FFmpeg to decode the audio file into a WAV stream before passing it to Whisper.net.
Model Loading Overhead:
- The Mistake: Creating a new WhisperFactory for every single transcription request in a high-throughput server application.
- The Consequence: Significant latency and memory pressure due to repeatedly loading the multi-hundred-megabyte model file from disk.
- The Fix: Use a Singleton pattern or Dependency Injection to ensure the WhisperFactory is instantiated once and reused for the lifetime of the application.
Missing Native Dependencies:
- The Mistake: Running the application on a platform (e.g., Linux ARM64) where the underlying native Whisper library (libwhisper.so or whisper.dll) is not compiled for that architecture.
- The Consequence: A DllNotFoundException or similar runtime error when calling WhisperFactory.FromPath.
- The Fix: Ensure you are using a Whisper.net version that supports your target platform, or compile the native backend yourself and place it in the runtime directory.

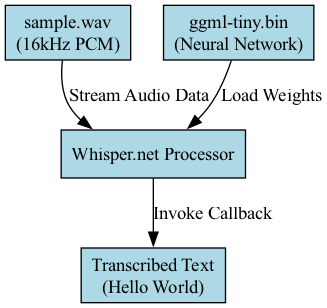

Visualizing the Data Flow

The following diagram illustrates the pipeline from audio file to transcribed text.

This diagram illustrates the AI pipeline, where an audio file is processed by a native backend (either pre-installed or self-compiled via .NET) to generate transcribed text.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
