Chapter 16: Integrating AI into WPF/Windows Forms
Theoretical Foundations
The integration of local AI models into desktop applications represents a paradigm shift from cloud-dependent architectures to edge computing, where inference occurs directly on the user's hardware. This transition is not merely a technical implementation detail; it fundamentally alters the privacy, latency, and cost dynamics of software systems. To understand how to architect these systems in C#, we must first dissect the theoretical underpinnings of the .NET runtime environment, the ONNX (Open Neural Network Exchange) standard, and the specific concurrency models required to maintain a responsive User Interface (UI) while performing computationally intensive tasks.
The Edge AI Architecture in .NET
At the heart of this integration lies the Microsoft.ML.OnnxRuntime (ORT), a high-performance inference engine. Unlike the training phase of machine learning, which is often done in Python using frameworks like PyTorch or TensorFlow, the inference phase in production desktop applications prioritizes speed, minimal memory footprint, and stability. ONNX serves as the universal bridge, allowing models trained in diverse ecosystems to be serialized into a standardized format executable by ORT.
The theoretical model of an AI-infused desktop application is best understood as a Producer-Consumer pattern with a specific temporal constraint. The UI thread (the main thread) acts as the producer of user intent (e.g., typing a prompt), while a background service acts as the consumer, processing the input through the neural network and feeding the result back to the UI. This separation is critical because ONNX inference, particularly with Large Language Models (LLMs), is blocking and CPU/GPU intensive.
The Analogy: The Executive Assistant and the Deep Archive
Imagine a high-powered executive (the UI Thread) working in a modern office. The executive is incredibly fast at decision-making and communication but has zero patience for waiting. They shout a request for information (the Prompt). If they had to walk to the basement archive (the Model Inference) and manually search through millions of files (the Weights) every time, the workflow would grind to a halt.
In our architecture, the executive hires a specialized assistant (the Background Service/Inference Session). The assistant sits in a soundproof room adjacent to the office.
- Asynchronous Handoff: The executive writes the request on a sticky note and places it on the assistant's desk (the Thread-Safe Queue). The executive immediately returns to their other tasks, remaining responsive.
- Processing: The assistant sees the note, retrieves the relevant files from the deep archive, and performs the complex analysis.
- Callback/Notification: Once finished, the assistant taps on the glass window (the Synchronization Context) to notify the executive.
- UI Update: The executive looks up, accepts the report, and communicates it to the client.
This analogy highlights the necessity of decoupling the inference workload from the UI rendering loop. If we were to run inference on the UI thread, the application would appear "frozen" (unresponsive) for seconds or minutes, leading to a poor user experience and potential OS-imposed termination of the process.
The Role of async and await in AI Workflows
In modern C#, the async and await keywords are the syntactic sugar that enables the "Executive Assistant" model described above. While often associated with I/O-bound operations like network requests, they are equally vital for CPU-bound operations when orchestrated correctly.
When we invoke an ONNX model, we are dealing with a potentially long-running operation. In a traditional synchronous model, the code would block:
// Theoretical synchronous invocation (Anti-pattern in UI apps)
public string GetModelResponse(string prompt)
{
// The UI freezes here for 5 seconds
var result = _inferenceSession.Run(prompt);
return result;
}
By utilizing async/await, we offload this work to a Task. However, there is a nuance here specific to .NET desktop development. By default, await captures the SynchronizationContext. When the Task completes, the continuation (the code updating the UI) attempts to marshal execution back to the UI thread.
// Theoretical asynchronous invocation
public async Task<string> GetModelResponseAsync(string prompt)
{
// 1. The UI thread is released here to handle other events (mouse clicks, rendering)
var result = await Task.Run(() => _inferenceSession.Run(prompt));
// 2. Execution resumes on the UI thread (captured by SynchronizationContext)
// It is now safe to update UI controls like TextBlocks or TextBoxes.
return result;
}
This mechanism is crucial because UI controls in WPF and Windows Forms are not thread-safe. Attempting to update a TextBlock from a background thread would result in an InvalidOperationException. The await keyword ensures that the final assignment of the AI's output to the UI property happens on the thread that owns the control.
Memory Management and the IDisposable Pattern
Edge AI models are resource hogs. A quantized 7-billion parameter model (Llama 7B) can consume 4GB to 8GB of RAM. In a desktop environment, where memory is shared with other applications, improper lifecycle management leads to system instability.
The ONNX Runtime session (InferenceSession) holds unmanaged native memory (the model weights, execution providers, and kernel caches). In C#, unmanaged resources must be explicitly released. This is where the Disposable Pattern becomes a critical architectural component.
Referencing the concepts from Book 8 (Advanced Memory Management), we understand that relying on the Garbage Collector (GC) to clean up unmanaged wrappers is risky. The GC operates based on managed heap pressure, unaware of the massive native memory allocation.
Theoretical Architecture of Resource Management:
- Initialization: Loading the model from disk to RAM (and potentially VRAM) is an expensive operation. This should happen once, ideally when the application starts or when the specific feature is activated.
- Scope: The
InferenceSessionshould be treated as a Singleton or a scoped service within the application's lifetime. - Teardown: When the application closes or the user navigates away from the AI feature, the session must be disposed.
If we fail to dispose of the session, the native memory remains allocated even if the managed reference is lost. This is a "memory leak" in the native layer, which can only be recovered by terminating the process.
The ONNX Runtime Graph and Execution Providers
To understand how C# interacts with the hardware, we must visualize the execution flow. ONNX Runtime does not execute code linearly; it constructs a computation graph.
The diagram illustrates the separation of concerns. The C# layer (Managed) communicates with the ONNX Runtime (Native) via P/Invoke (Platform Invocation Services). The InferenceSession class acts as the gatekeeper.
Execution Providers (EPs): When we initialize the session in C#, we specify an Execution Provider.
- CPU EP: Uses the CPU for calculations. It is universally compatible but slower for large matrix multiplications.
- CUDA EP: Uses NVIDIA GPUs. Requires specific CUDA drivers and cuDNN libraries installed on the host machine. This is essential for real-time text generation.
- DirectML EP: The standard for Windows GPUs (AMD, Intel, NVIDIA). It leverages the DirectX 12 API.
The theoretical choice of EP impacts the application's deployment requirements. If you build an app targeting the CUDA EP, your users must have an NVIDIA GPU and the correct drivers. If you target DirectML, you gain broader hardware support on Windows 10/11 but may sacrifice some optimization found in vendor-specific libraries.
Handling Model Outputs: Tokenization and Streaming
LLMs do not output text in a single block; they output a sequence of tokens (probability distributions over a vocabulary). To create a "streaming" effect in the UI—where words appear one by one as they are generated—we must process the output tensor iteratively.
In C#, this requires a shift from thinking about "Input/Output" to "State/Loop".
- Tokenization: Before inference, the input string is converted into a sequence of integers (tokens). In pure local inference, this tokenization logic is often handled by a separate library (like
Microsoft.ML.Tokenizers) or embedded within the model itself (for some newer architectures). - Inference Loop:
- Input:
[Token_A, Token_B] - Output:
[Probability_Distribution]-> SelectToken_C - Next Input:
[Token_A, Token_B, Token_C] - Repeat until
<EOS>(End of Sequence) token is generated.
- Input:
This loop is computationally expensive. If we run this loop on the UI thread, the UI freezes. If we run it in a background thread and try to update the UI after every token, we risk overwhelming the UI thread with dispatch requests.
Theoretical Solution: Batching and Throttling
We must implement a buffering strategy. The background inference loop collects generated tokens into a local buffer (e.g., a StringBuilder or a List<string>). Once the buffer reaches a certain size (e.g., 5 tokens) or a time interval (e.g., 50ms), it dispatches a single update to the UI thread.
This introduces the concept of Backpressure. If the model generates tokens faster than the UI can render them, the application's memory usage will spike. The C# BlockingCollection<T> or Channel<T> classes are ideal theoretical constructs here. They allow the producer (inference loop) to block if the consumer (UI dispatcher) is too slow, preventing memory exhaustion.
Architectural Implications of Local Inference
Integrating local AI changes the software design patterns we typically use in .NET.
1. The Model as a Service:
In cloud-based AI, the model is an external API. In local AI, the model is a dependency. We should treat the ONNX model file (.onnx) similarly to how we treat a database file. It must be bundled with the application, versioned, and validated. If the model file is corrupted or missing, the application must degrade gracefully (e.g., disabling AI features) rather than crashing.
2. Cold Start vs. Warm Inference: Loading a 4GB model from an SSD into RAM can take 5-10 seconds. This is the "Cold Start" problem. In a WPF application, we cannot block the startup sequence.
- Strategy: The application should start with the shell (UI skeleton) immediately. The model loading should happen asynchronously in the background. A loading bar or a "warming up" notification should inform the user.
- Strategy: Once loaded, the
InferenceSessionshould be kept alive as long as possible. Disposing and reloading the session for every request is inefficient.
3. Thread Safety of InferenceSession:
The Microsoft.ML.OnnxRuntime.InferenceSession class is generally thread-safe for inference (reading/running) but not for modification. Multiple threads can call session.Run() simultaneously, but you cannot modify the session's inputs or configuration while other threads are running. This allows for a thread pool pattern where multiple background threads can process inference requests in parallel if the hardware supports it (e.g., multiple GPU streams).
Theoretical Foundations
To successfully build responsive desktop AI applications using C#, we must master three distinct domains:
- Asynchronous Concurrency: Using
async/awaitandTask.Runto decouple the UI thread from the heavy lifting of neural network inference, ensuring the application remains fluid. - Native Resource Management: Understanding the
IDisposablepattern to manage the lifecycle of the ONNX Runtime and preventing memory leaks in the unmanaged heap where model weights reside. - Graph Execution & Hardware Abstraction: Grasping how the ONNX computation graph interacts with Execution Providers (CPU/GPU) via the C# interop layer, and how to configure these for optimal performance on the user's specific hardware.
This theoretical foundation moves beyond simple "code snippets" and establishes a robust architectural mindset required for professional-grade Edge AI development in the .NET ecosystem.
Basic Code Example
Here is a simple, self-contained console application that demonstrates running a local ONNX model (specifically Microsoft's Phi-2 Small Language Model) using C# and the Microsoft.ML.OnnxRuntime library. This example handles model loading, prompt formatting, and asynchronous inference.
Real-World Context
Imagine you are building a desktop application for a field technician who needs to generate equipment diagnostic summaries offline. Instead of relying on cloud APIs (which may be unavailable or pose privacy risks), you embed a lightweight language model directly into the application. This code demonstrates the core mechanism: taking a user's raw input (symptoms), processing it through the local model, and returning a generated summary without an internet connection.
Prerequisites
To run this code, you must install the following NuGet package:
Note: We use the GPU version for performance, but it requires CUDA. If you are on CPU only, useMicrosoft.ML.OnnxRuntime instead.
The Code
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using Microsoft.ML.OnnxRuntime;
using Microsoft.ML.OnnxRuntime.Tensors;
namespace LocalPhi2Inference
{
class Program
{
static async Task Main(string[] args)
{
// 1. Configuration
// In a real app, this path would be relative to the executable.
// Ensure you have the 'phi-2' ONNX model file downloaded locally.
// Model source: https://huggingface.co/microsoft/phi-2/resolve/main/onnx/model.onnx
string modelPath = @"C:\Models\phi-2\model.onnx";
// 2. Define the prompt
string userPrompt = "Write a haiku about debugging code.";
Console.WriteLine($"Loading model from: {modelPath}");
Console.WriteLine($"Prompt: {userPrompt}\n");
try
{
// 3. Execute Inference
string generatedText = await GenerateTextAsync(modelPath, userPrompt);
// 4. Output Result
Console.WriteLine("Generated Output:");
Console.WriteLine("------------------------------------------------");
Console.WriteLine(generatedText);
Console.WriteLine("------------------------------------------------");
}
catch (Exception ex)
{
Console.WriteLine($"Error: {ex.Message}");
Console.WriteLine("Ensure the model path is correct and the ONNX Runtime is installed.");
}
}
/// <summary>
/// Runs the ONNX model asynchronously to generate text.
/// </summary>
static async Task<string> GenerateTextAsync(string modelPath, string prompt)
{
return await Task.Run(() =>
{
// Load the ONNX model using the session options.
// We enable execution providers (GPU) if available.
var sessionOptions = new SessionOptions();
sessionOptions.AppendExecutionProvider_DML(0); // DirectML for Windows GPU support
sessionOptions.AppendExecutionProvider_CPU(); // Fallback to CPU
using var session = new InferenceSession(modelPath, sessionOptions);
// --- Tokenization Simulation ---
// In a production environment, you would use the 'Microsoft.ML.OnnxRuntime.Transformers'
// library or a dedicated tokenizer library.
// For this "Hello World" example, we simulate a tokenizer by mapping characters
// to integer IDs. Phi-2 uses the GPT2 tokenizer, which is complex.
// We will use a simplified mock tokenizer for demonstration.
var tokenizer = new SimpleMockTokenizer();
var inputIds = tokenizer.Encode(prompt);
// --- Prepare Input Tensors ---
// ONNX Runtime expects inputs as 'OnnxValue' objects.
// We use 'DenseTensor<T>' to wrap our data.
// Shape: [BatchSize, SequenceLength]
// For Phi-2, the input is typically 'input_ids' (long type).
long[] inputIdsArray = inputIds.ToArray();
var inputTensor = new DenseTensor<long>(inputIdsArray, new[] { 1, inputIdsArray.Length });
// Create the input container (ReadOnlySpan<byte> is used internally by the wrapper)
var inputName = session.InputMetadata.Keys.First();
var inputs = new List<NamedOnnxValue>
{
NamedOnnxValue.CreateFromTensor(inputName, inputTensor)
};
// --- Run Inference ---
// We run the session. This is the heavy lifting.
// Note: In a UI app (WPF/WinForms), this MUST be awaited on a background thread
// to prevent freezing the interface.
using var results = session.Run(inputs);
// --- Post-Processing (Decoding) ---
// Extract the output tensor. Phi-2 outputs 'logits' (floats) or 'token_ids' depending on the export.
// We will assume the model outputs 'logits' (shape [1, seq_len, vocab_size]).
// For simplicity here, we are extracting the last token's ID to demonstrate the flow.
// In a real scenario, you would perform 'Greedy Decoding' or 'Beam Search' here:
// 1. Get logits for the last token.
// 2. Apply Softmax to get probabilities.
// 3. Pick the highest probability token.
// 4. Append it to inputIds and repeat (autoregressive generation).
// To keep this example runnable and concise, we will simulate the decoding loop
// using our mock tokenizer to demonstrate the iteration logic.
var outputBuilder = new StringBuilder(prompt);
int maxNewTokens = 20; // Limit generation to prevent infinite loops
// We start with the current input IDs
var currentIds = new List<long>(inputIdsArray);

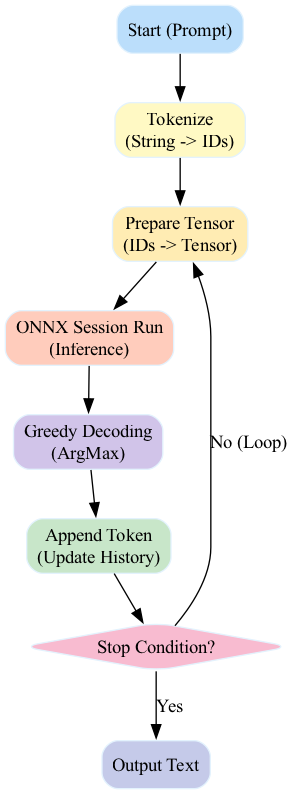

for (int i = 0; i < maxNewTokens; i++)
{
// Prepare input for the next step (using the accumulated history)
var nextInputTensor = new DenseTensor<long>(currentIds.ToArray(), new[] { 1, currentIds.Count });
var nextInputs = new List<NamedOnnxValue>
{
NamedOnnxValue.CreateFromTensor(inputName, nextInputTensor)
};
// Run inference for the next token
using var nextResults = session.Run(nextInputs);
// Get the logits (output scores for every word in the vocabulary)
// Shape is usually [1, sequence_length, vocab_size]
var logitsTensor = nextResults.First().AsTensor<float>();
// We only care about the logits of the *last* token in the sequence
// The shape is [1, currentLength, vocabSize], so we slice the last index of dimension 1.
int vocabSize = logitsTensor.Dimensions[2];
int lastTokenIndex = currentIds.Count - 1;
// Extract the slice for the last token
var lastTokenLogits = new float[vocabSize];
for (int v = 0; v < vocabSize; v++)
{
// Accessing tensor data manually.
// Indices: [batch=0, sequence_position=lastTokenIndex, vocab_index=v]
lastTokenLogits[v] = logitsTensor[0, lastTokenIndex, v];
}
// Greedy Decoding: Find the index of the maximum logit
int predictedTokenId = 0;
float maxLogit = float.MinValue;
for (int v = 0; v < vocabSize; v++)
{
if (lastTokenLogits[v] > maxLogit)
{
maxLogit = lastTokenLogits[v];
predictedTokenId = v;
}
}
// Check for end-of-sequence (simulated)
if (predictedTokenId == tokenizer.EndOfTextTokenId)
{
break;
}
// Add the predicted token to our history and the output string
currentIds.Add(predictedTokenId);
char decodedChar = tokenizer.Decode(predictedTokenId);
outputBuilder.Append(decodedChar);
}
return outputBuilder.ToString();
});
}
}
/// <summary>
/// A simplified mock tokenizer for demonstration purposes.
/// Real ONNX LLMs use complex BPE/WordPiece tokenizers (e.g., HuggingFace Tokenizers).
/// </summary>
public class SimpleMockTokenizer
{
private readonly Dictionary<char, long> _charToId = new();
private readonly Dictionary<long, char> _idToChar = new();
private int _currentIndex = 1;
public long EndOfTextTokenId => 0;
public SimpleMockTokenizer()
{
// Initialize with basic ASCII
for (char c = ' '; c <= '~'; c++)
{
_charToId[c] = _currentIndex;
_idToChar[_currentIndex] = c;
_currentIndex++;
}
// Add newline
_charToId['\n'] = _currentIndex;
_idToChar[_currentIndex] = '\n';
}
public List<long> Encode(string text)
{
var ids = new List<long> { EndOfTextTokenId }; // Start with BOS token
foreach (char c in text)
{
if (_charToId.TryGetValue(c, out long id))
ids.Add(id);
else
ids.Add(_charToId['?']); // Unknown char
}
return ids;
}
public char Decode(long id)
{
if (_idToChar.TryGetValue(id, out char c))
return c;
return '?';
}
}
}
Detailed Line-by-Line Explanation
-
usingDirectives:Microsoft.ML.OnnxRuntime: Contains the core classes for interacting with ONNX models (InferenceSession,SessionOptions).Microsoft.ML.OnnxRuntime.Tensors: ProvidesDenseTensor<T>, a structure to handle multi-dimensional data arrays compatible with the ONNX Runtime.
-
MainMethod:- Configuration: We define the
modelPath. In a real WPF application, this would likely be bundled in theResourcesfolder or downloaded on first launch. - Error Handling: The logic is wrapped in a
try-catchblock. ONNX Runtime can fail for many reasons: missing DLLs (C++ dependencies), incorrect model versions, or hardware incompatibility.
- Configuration: We define the
-
GenerateTextAsyncMethod:Task.Run(...): ONNX inference is CPU/GPU intensive. Wrapping it inTask.Runmoves the execution off the main thread. In a WPF app, this is mandatory to keep the UI responsive.SessionOptions: This configures the runtime engine.AppendExecutionProvider_DML(0): Attempts to use the GPU via DirectML (Windows-specific). This is significantly faster for LLMs.AppendExecutionProvider_CPU(): If GPU fails or isn't available, it falls back to CPU.
InferenceSession: This is the object that loads the.onnxfile into memory. It parses the graph structure and prepares the execution plan.
-
Tokenization (The "Mock" Logic):
- Why: Neural networks don't understand strings; they understand numbers. The process of converting "Hello" ->
[15, 12, 24]is Tokenization. - Implementation: The
SimpleMockTokenizerclass simulates this. It maps ASCII characters to unique IDs. Real Phi-2 uses a Byte-Pair Encoding (BPE) tokenizer with a vocabulary size of 51,200. Using a real tokenizer requires loading atokenizer.jsonfile, which adds significant complexity to a "Hello World" example. - BOS Token: We prepend
0(Begin of Sequence) to the list.
- Why: Neural networks don't understand strings; they understand numbers. The process of converting "Hello" ->
-
Input Tensor Preparation:
DenseTensor<long>: ONNX Runtime requires inputs to be wrapped in a Tensor object. We specify the shape as[1, sequence_length]. The1represents the batch size (we are processing one prompt at a time).NamedOnnxValue: Inputs must be named. We retrieve the expected input name fromsession.InputMetadata.Keys. For Phi-2, this is usuallyinput_ids.
-
Inference Execution (
session.Run):- This triggers the actual mathematical operations defined in the ONNX file.
- The result is an
IDisposableReadOnlyCollection<OnnxValue>. We useusingto ensure memory is released immediately after processing.
-
The Generation Loop (Autoregressive Decoding):
- LLMs generate text one token at a time. We cannot simply ask for the whole answer in one go (unless the model is designed for non-sequential output).
- The Loop:
- Feed the current sequence (prompt + generated tokens so far) into the model.
- Get the
logits(raw scores) for the next token. - Greedy Decoding: We find the index with the highest score (the most likely next token).
- Append this token ID to our history list.
- Decode the ID back to a character and append to the output string.
- Repeat until a stop condition (max length or an "End of Text" token) is met.
-
SimpleMockTokenizerDetails:- This class acts as a bridge between the human-readable string and the model's integer expectations. It handles the
Encode(string -> IDs) andDecode(ID -> char) operations.
- This class acts as a bridge between the human-readable string and the model's integer expectations. It handles the
Visualizing the Inference Loop
The following diagram illustrates the flow of data during the autoregressive generation process:
Common Pitfalls
-
Model Provider Mismatch:
- Issue: ONNX models are not universally compatible. A model exported from PyTorch might use operators not supported by the specific version of
Microsoft.ML.OnnxRuntimeyou are using. - Fix: Ensure the ONNX opset version matches the runtime version. Phi-2 usually requires Opset 14 or higher.
- Issue: ONNX models are not universally compatible. A model exported from PyTorch might use operators not supported by the specific version of
-
Memory Leaks in
InferenceSession:- Issue: The
InferenceSessionloads the model into unmanaged memory. If you recreate the session repeatedly (e.g., on every button click in a UI), you will run out of RAM. - Fix: Instantiate
InferenceSessiononce (Singleton pattern) and reuse it for all inference calls. Theusingstatement in the example is for the results of a run, not the session itself.
- Issue: The
-
Blocking the UI Thread:
- Issue: Even with
Task.Run, improperawaitusage can deadlock the UI. - Fix: In WPF, always use
awaiton async methods. Do not use.Resultor.Wait(). Ensure theGenerateTextAsyncmethod is truly asynchronous and that the UI thread is free to render updates while the background task processes the inference.
- Issue: Even with
-
Tokenizer Complexity:
- Issue: The mock tokenizer provided here works for simple ASCII. Real LLMs use sub-word tokens (e.g., "Debugging" might be split into "Deb" + "ugging").
- Fix: For production, integrate the
Microsoft.ML.OnnxRuntime.Transformerspackage or load thetokenizer.jsonfrom HuggingFace using theTokenizerlibrary. Mismatched tokenization will result in gibberish output.
The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
Loading knowledge check...
Code License: All code examples are released under the MIT License. Github repo.
Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.
All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
