Chapter 17: Background Processing without Freezing UI

Theoretical Foundations

The fundamental challenge in any interactive application is the illusion of infinite responsiveness. When a user clicks a button, they expect an immediate acknowledgment—a visual cue that the system has accepted their command and is processing it. This expectation is trivially met for simple operations like updating a text field. However, when that button click initiates a local Large Language Model (LLM) inference, such as generating a paragraph using a locally hosted Llama or Phi model via ONNX Runtime, the computational cost is immense. A single inference step can take hundreds of milliseconds, and generating a full response requires thousands of such steps. On a single-threaded graphical user interface (GUI) architecture, this would result in a "frozen" application: the window becomes unresponsive, animations stop, and the operating system may flag the application as "Not Responding." This is not merely a cosmetic issue; it destroys user trust and utility.

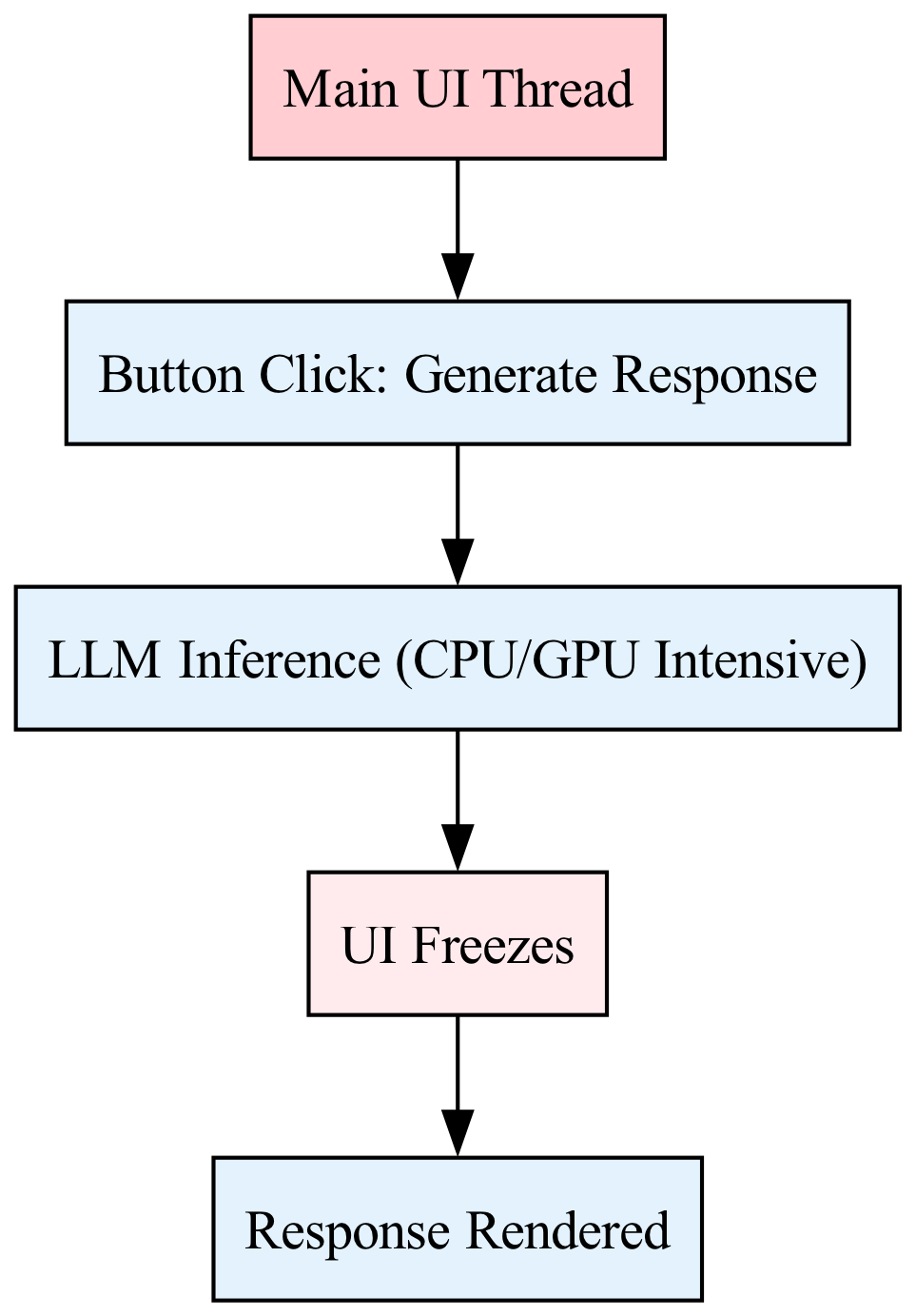

To understand the solution, we must first visualize the execution flow. In a naive implementation, the main UI thread—responsible for drawing the interface, handling mouse clicks, and processing keyboard input—also bears the burden of the inference.

Hold "Ctrl" to enable pan & zoom

In the diagram above, the "UI Freezes" state is unavoidable because the thread executing the inference cannot simultaneously process the Windows message pump (or the equivalent on macOS/Linux). The solution lies in decoupling the heavy computational workload from the event loop. This is achieved through asynchronous programming and background threading, specifically leveraging C#'s async/await pattern combined with Task.Run.

The Conductor and the Orchestra Analogy

To visualize this architecture, imagine the main UI thread as the conductor of an orchestra. The conductor maintains the tempo, cues the musicians, and ensures the performance flows smoothly. If the conductor were to stop conducting to personally play a complex violin solo, the entire orchestra would halt, and the audience would experience an awkward silence.

In our application:

• The Conductor is the UI thread (the main synchronization context). It holds the baton (the message loop) and dictates the rhythm of the interface.
• The Violin Solo is the LLM inference. It is intricate, mathematically dense, and time-consuming.
• The Musicians are the background threads. They are capable of playing the music without the conductor's direct involvement.

Background Processing is the act of the conductor handing the sheet music to a section of the orchestra (a background thread) and instructing them to play while the conductor continues to wave the baton, keeping the audience (the user) engaged with visual cues (loading spinners, progress bars).

The Mechanics of async and await

In modern C#, async and await are not merely keywords; they are a compiler transformation that rewrites your code into a state machine. This allows a method to pause its execution (await) without blocking the thread, freeing it to do other work (like processing UI events), and resume later when the awaited task completes.

When we apply this to LLM inference, we are not just "waiting" for a result. We are dealing with a continuous stream of data (tokens). The inference pipeline typically looks like this:

1. Tokenization: Converting the user's text prompt into numerical tokens.
2. Model Warm-up: Initializing the ONNX Runtime session and allocating memory (buffers) for input and output tensors.
3. Inference Loop: Iteratively feeding tokens into the model, calculating probabilities (logits), sampling the next token, and appending it to the context.
4. Detokenization: Converting the generated numerical tokens back into human-readable text.

If we run the Inference Loop on the UI thread, the loop blocks the thread for the duration of the generation. If we offload the entire loop to a background thread using Task.Run, we solve the freezing issue, but we introduce a new problem: How does the background thread communicate the generated tokens back to the UI thread to display them in real-time?

The Producer-Consumer Pattern and IProgress<T>

The background thread acts as a Producer, generating tokens (data). The UI thread acts as a Consumer, rendering those tokens. They operate at different speeds and on different threads. We need a thread-safe mechanism to bridge this gap.

This is where the IProgress<T> interface becomes critical. It is a standard abstraction in .NET for reporting progress asynchronously. It decouples the progress reporter (the background thread) from the progress handler (the UI thread).

Why IProgress<T> is superior to direct event invocation: Directly raising an event from a background thread to update a UI element is dangerous. UI elements in most frameworks (WPF, WinForms, MAUI) are thread-affine—they can only be accessed by the thread that created them (the UI thread). If a background thread tries to set Label.Text, it will throw a cross-thread exception. IProgress<T> handles the marshalling automatically. When the background thread calls reporter.Report(token), the implementation of IProgress<T> (usually created via Progress<T>.Create) captures the SynchronizationContext of the thread that created it (the UI thread) and ensures the callback executes on that specific context.

Cancellation: The Safety Valve

When a user initiates an LLM generation and then changes their mind, or if the model starts generating gibberish, we need a way to stop the inference immediately. Continuation is a waste of battery and CPU cycles.

We use CancellationTokenSource and CancellationToken. This is a cooperative cancellation pattern.

1. The Source: The UI thread creates a CancellationTokenSource. This acts as the "kill switch."
2. The Token: It passes the CancellationToken (the "wire" connected to the switch) to the background task.
3. The Check: Inside the inference loop (on the background thread), we periodically check cancellationToken.IsCancellationRequested. If true, we break the loop, dispose of resources, and return.

If the cancellation request happens while the background thread is deep inside a heavy matrix multiplication (part of the ONNX Runtime execution), the cancellation won't be instantaneous. It will take effect at the next logical checkpoint (usually between token generation steps).

Architectural Flow of Local Inference

Let's map this to the specific context of running Llama/Phi locally with ONNX. The ONNX Runtime is highly optimized but still computationally expensive. We must manage memory buffers (Tensors) carefully to avoid pressure on the Garbage Collector (GC), which could cause "stop-the-world" pauses even on the background thread.

The theoretical pipeline involves three distinct phases, separated by await points:

1. Initialization (UI Thread -> Background Thread): The user clicks "Generate." We immediately offload the heavy lifting.

   // Conceptual flow
   var inferenceTask = Task.Run(() => PerformInference(prompt, cancellationToken), cancellationToken);


   The UI thread is now free. It can show a loading spinner.

2. Streaming Execution (Background Thread): The background thread loads the ONNX model (if not cached) and runs the loop. As each token is generated, it reports it via IProgress<T>.

   • Optimization Note: To prevent flooding the UI thread with thousands of rapid updates (which can cause lag even if the UI thread isn't frozen), we might buffer tokens and report them in chunks (e.g., every 5 tokens or every 50ms).

3. Completion and Cleanup (Background Thread -> UI Thread): When the loop finishes (either by reaching a maximum token length or hitting a stop token), the background thread completes the Task. The await keyword in the UI thread resumes execution, allowing us to finalize the UI state (e.g., hide the spinner, enable the button).

The Role of SynchronizationContext

The magic of await relies on the SynchronizationContext. When an awaited task completes, the compiler generates code that captures the current context. If the method was called from the UI thread, the context is the UI dispatcher. The continuation (the code after the await) is then posted back to that dispatcher.

However, when we use Task.Run, we are explicitly jumping to a ThreadPool thread. The code inside Task.Run executes on a background thread with a null synchronization context (or a generic ThreadPool context). This is exactly what we want for CPU-bound work. We avoid the UI context entirely until we explicitly need it (via IProgress<T>).

Visualizing the Asynchronous Pipeline

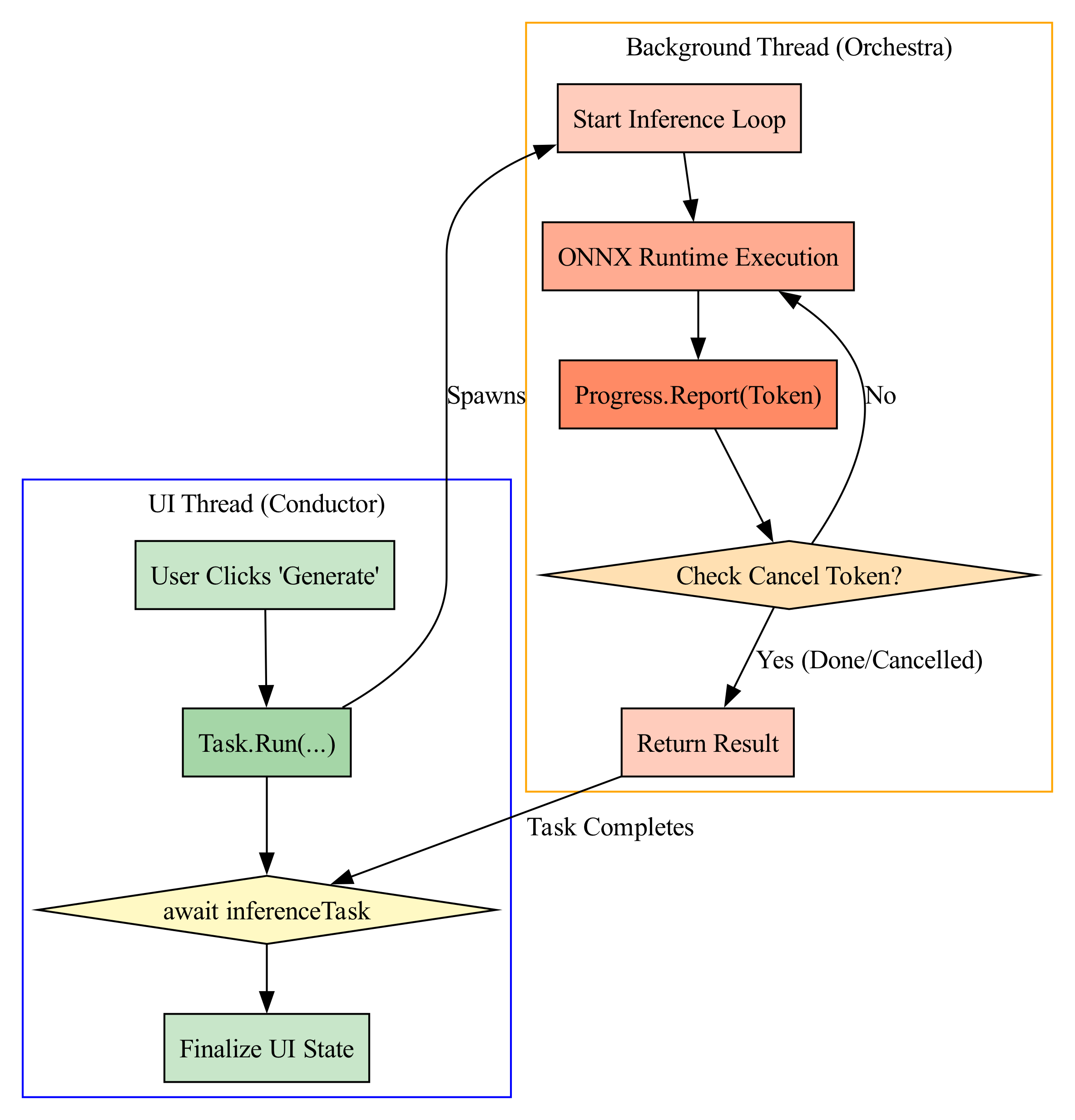

The following diagram illustrates the separation of concerns between the UI thread and the background worker thread, highlighting the flow of data and control.

Hold "Ctrl" to enable pan & zoom

Edge Cases and Resource Management

In the context of local AI, resource management is paramount. ONNX Runtime sessions hold onto memory (weights) and may utilize GPU resources.

1. Model Warm-up: Loading a model from disk into memory and preparing the execution providers (CPU vs. CUDA vs. DirectML) can take seconds. This should ideally happen asynchronously during application startup or the first inference, but never on the UI thread.
2. Memory Leaks: If a cancellation occurs, we must ensure IDisposable resources (like the ONNX InferenceSession or Tensor allocations) are properly disposed. try/finally blocks inside the background task are essential.
3. Thread Starvation: While Task.Run uses the ThreadPool, if the inference is extremely heavy (e.g., running on the CPU alongside other tasks), it might starve other background tasks. For local LLMs, the inference is usually the dominant workload, so this is acceptable, but in complex apps, TaskScheduler configurations might be necessary to prioritize UI responsiveness.

Theoretical Foundations

• Responsiveness: Achieved by moving CPU-bound work off the UI thread.
• Asynchrony: async/await allows the UI thread to "fire and forget" a task and resume when the result is ready, without blocking.
• State Machines: The compiler transforms async methods into state machines that track execution progress across suspension points.
• Thread Marshalling: IProgress<T> handles the complex logic of crossing thread boundaries safely to update UI elements.
• Cooperative Cancellation: CancellationToken allows the UI to signal the background worker to stop, preventing wasted resources.

By mastering these concepts, we transform a potentially sluggish, freezing local AI application into a fluid, responsive experience that feels as polished as a cloud-based API call, while retaining all the privacy and offline benefits of local execution.

Basic Code Example

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Diagnostics;
using System.Linq;
using System.Runtime.CompilerServices;
using System.Threading;
using System.Threading.Tasks;

namespace LlmBackgroundInferenceDemo
{
    // Simulates a heavy LLM inference engine (like ONNX Runtime or a native wrapper)
    public class MockLlmEngine : IDisposable
    {
        private bool _disposed;

        // Simulates model warm-up time (e.g., loading weights into GPU memory)
        public async Task WarmUpAsync(CancellationToken cancellationToken)
        {
            Console.WriteLine("[Engine] Warming up model...");
            // Simulate non-blocking CPU work
            await Task.Delay(500, cancellationToken);
            Console.WriteLine("[Engine] Model ready.");
        }

        // Simulates the inference loop.
        // In a real scenario, this calls the ONNX Runtime session and iterates over the tokenizer.
        public async IAsyncEnumerable<string> GenerateAsync(
            string prompt,
            [EnumeratorCancellation] CancellationToken cancellationToken)
        {
            Console.WriteLine($"[Engine] Processing prompt: '{prompt}'");

            // Simulate processing latency per token
            var tokens = new[] { "The", " quick", " brown", " fox", " jumps", " over", " the", " lazy", " dog." };

            foreach (var token in tokens)
            {
                // Check cancellation before yielding
                cancellationToken.ThrowIfCancellationRequested();

                // Simulate the time it takes to compute a single token (forward pass)
                await Task.Delay(100, cancellationToken);

                yield return token;
            }
        }

        public void Dispose()
        {
            if (!_disposed)
            {
                Console.WriteLine("[Engine] Disposing resources (GPU memory released).");
                _disposed = true;
            }
        }
    }

    // Handles the orchestration of background tasks and UI updates
    public class InferenceOrchestrator
    {
        private readonly MockLlmEngine _engine;
        private CancellationTokenSource? _cts;

        public InferenceOrchestrator(MockLlmEngine engine)
        {
            _engine = engine;
        }

        // Starts the inference on a background thread
        public async Task<string> RunInferenceAsync(string prompt, IProgress<string> progress)
        {
            // 1. Safety: Cancel any previous running inference
            if (_cts != null)
            {
                _cts.Cancel();
                _cts.Dispose();
            }

            _cts = new CancellationTokenSource();
            var token = _cts.Token;

            // 2. Warm-up (Offloaded to background to prevent UI freeze)
            // We use Task.Run to ensure the warm-up CPU work happens off the UI thread.
            await Task.Run(async () => await _engine.WarmUpAsync(token), token);

            // 3. Inference Loop
            // We capture the result in a StringBuilder-like structure (string.Join is inefficient for
            // long streams but fine for this demo).
            var resultBuilder = new List<string>();

            // The core background processing block
            try
            {
                // Get the async stream of tokens
                var tokenStream = _engine.GenerateAsync(prompt, token);

                // Iterate over the stream asynchronously
                await foreach (var tokenChunk in tokenStream)
                {
                    resultBuilder.Add(tokenChunk);

                    // Report progress to the UI thread safely
                    progress.Report(tokenChunk);
                }

                return string.Join("", resultBuilder);
            }
            catch (OperationCanceledException)
            {
                Console.WriteLine("\n[Orchestrator] Inference was cancelled by user.");
                return string.Join("", resultBuilder) + " [Cancelled]";
            }
            catch (Exception ex)
            {
                Console.WriteLine($"\n[Orchestrator] Error: {ex.Message}");
                throw;
            }
        }

        public void Cancel()
        {
            _cts?.Cancel();
        }
    }

    // Represents the UI Layer (Console or WPF/MAUI)
    public class UserInterface
    {
        private readonly InferenceOrchestrator _orchestrator;

        public UserInterface(InferenceOrchestrator orchestrator)
        {
            _orchestrator = orchestrator;
        }

        public async Task SimulateUserInteraction()
        {
            Console.WriteLine("=== UI Thread: User clicks 'Generate' ===");
            var sw = Stopwatch.StartNew();

            // IProgress<T> implementation handles marshalling back to the UI thread automatically
            var progress = new Progress<string>(token =>
            {
                // In a real UI (WPF/WinUI), this callback automatically runs on the UI thread.
                // We simulate that here by checking thread ID.
                Console.Write(token);
            });

            try
            {
                // Start the long-running task.
                // IMPORTANT: We do NOT await inside the UI event handler in a way that blocks.
                // Here, we are in an async method, so 'await' yields control.
                var result = await _orchestrator.RunInferenceAsync("Tell me a story", progress);

                sw.Stop();
                Console.WriteLine($"\n\n=== UI Thread: Generation Complete in {sw.ElapsedMilliseconds}ms ===");
                Console.WriteLine($"Final Result: {result}");
            }
            catch (Exception ex)
            {
                Console.WriteLine($"UI Error: {ex.Message}");
            }
        }
    }

    class Program
    {
        static async Task Main(string[] args)
        {
            // Setup
            using var engine = new MockLlmEngine();
            var orchestrator = new InferenceOrchestrator(engine);
            var ui = new UserInterface(orchestrator);

            // Run
            await ui.SimulateUserInteraction();

            // Simulate a cancellation scenario
            Console.WriteLine("\n\n=== Testing Cancellation ===");
            var cancelTask = Task.Run(async () =>
            {
                await Task.Delay(350); // Cancel halfway through generation
                Console.WriteLine("\n[System] User pressed Stop!");
                orchestrator.Cancel();
            });

            // Attempt to run again while cancelling
            try
            {
                // Note: This demonstrates concurrency handling
                await ui.SimulateUserInteraction();
            }
            catch (OperationCanceledException)
            {
                // Handled inside orchestrator
            }
        }
    }
}

Line-by-Line Explanation

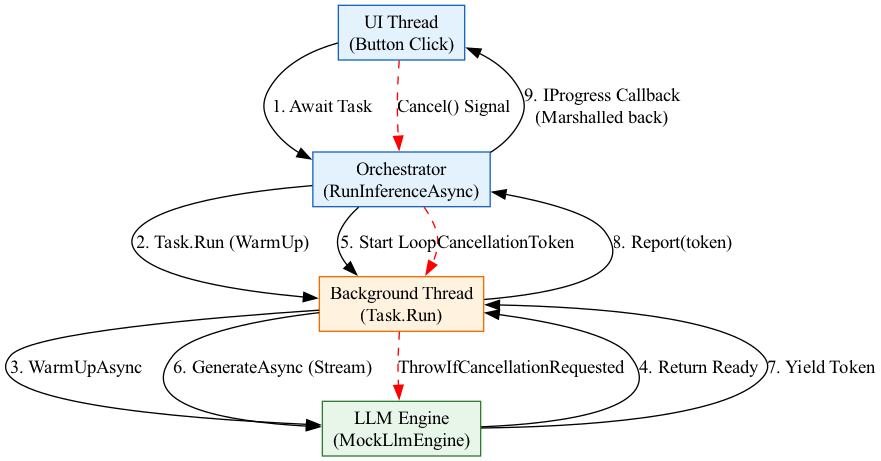

This example demonstrates a robust architecture for running local LLM inference without freezing the application UI. It separates concerns into distinct classes: the Engine (heavy computation), the Orchestrator (logic flow), and the UI (presentation).

1. The Mock LLM Engine (MockLlmEngine)

This class simulates the behavior of an ONNX Runtime wrapper or a native C++ binding.

• WarmUpAsync:
  • Console.WriteLine(...): Logs the state. In a real app, this maps to loading the ONNX model file into memory.
  • await Task.Delay(500, ...): Simulates the I/O and initialization cost. Crucially, this is await-ed, allowing the calling thread to yield if necessary, though in this specific context, we wrap it in Task.Run later to ensure it runs on a background thread.
• GenerateAsync:
  • Return Type (IAsyncEnumerable<string>): This is the modern C# equivalent of yield return. It allows the method to return a stream of data (tokens) as they are generated, rather than waiting for the entire sequence to finish. This is critical for LLMs to display text word-by-word (streaming).
  • [EnumeratorCancellation]: An attribute that allows the cancellation token passed to GetAsyncEnumerator to propagate into the method body.
  • The Loop: It iterates through a mock array of tokens.
  • Task.Delay: Simulates the time cost of a single inference step (forward pass of the neural network).
  • yield return token: This keyword pauses the method execution, sends the token back to the caller, and waits for the caller to request the next item. This "pull" model is efficient for streaming UI updates.

2. The Orchestrator (InferenceOrchestrator)

This is the core logic controller. It bridges the gap between the background worker and the UI.

• Cancellation Management (_cts):
  • We maintain a CancellationTokenSource as a class field.
  • if (_cts != null) { ... }: Before starting a new inference, we check if a previous one is running. If so, we call Cancel() and Dispose(). This prevents memory leaks and ensures the previous model execution stops immediately, freeing up CPU/GPU resources for the new request.
• RunInferenceAsync:
  • Task.Run(...): This is the most important line for background processing. WarmUpAsync involves CPU work (loading weights). If we ran this on the UI thread, the interface would freeze. Task.Run pushes this work to the ThreadPool.
  • IProgress<string> progress: This standard .NET interface allows the background thread to report progress safely. Under the hood, it captures the SynchronizationContext of the thread that created it (the UI thread), ensuring the progress callback executes on that specific context.
  • await foreach: This syntax consumes the IAsyncEnumerable stream from the engine. It asynchronously waits for each token.
  • progress.Report(tokenChunk): Sends the token to the UI. Because we are using IProgress<T>, this call is thread-safe and marshals execution back to the UI thread automatically.
  • Exception Handling:
    • OperationCanceledException: Thrown automatically when token.ThrowIfCancellationRequested() is triggered in the engine. We catch this to gracefully handle user interruptions.
    • Exception: Catches other errors (e.g., model loading failure).

3. The User Interface (UserInterface)

In this console app, this class represents the entry point of user interaction.

• Progress<string>: We instantiate the progress reporter. The constructor takes an Action<string> lambda.
• Console.Write(token): Inside the lambda, this writes to the console. In a WPF or WinUI app, this lambda would update a TextBlock or append to a TextBox. The Progress class ensures this happens on the UI thread, preventing cross-thread access exceptions.
• await _orchestrator.RunInferenceAsync: We await the result. In a GUI application (e.g., a Button Click event handler marked async void), this await yields control back to the message loop, keeping the window responsive.

4. Execution Flow (Main)

1. Initialization: Creates the engine (disposable), orchestrator, and UI.
2. First Run: Calls SimulateUserInteraction. The UI thread starts the orchestrator.
3. Backgrounding: The orchestrator spins up a Task.Run for warm-up.
4. Streaming: The engine yields tokens. The orchestrator reports them via IProgress. The UI prints them.
5. Cancellation Test:
   • A separate Task is started to simulate a user clicking "Stop" after 350ms.
   • orchestrator.Cancel() is called.
   • The CancellationToken propagates to the MockLlmEngine, causing ThrowIfCancellationRequested to trigger.
   • The await foreach throws OperationCanceledException, which is caught and handled gracefully.

Common Pitfalls

1. Blocking the UI Thread with .Result or .Wait():

   • Mistake: Calling RunInferenceAsync().Result or GetAwaiter().GetResult() on the UI thread.
   • Consequence: This creates a deadlock. The UI thread waits for the background task to finish, but the background task often needs to update the UI (via IProgress or Dispatcher). Since the UI thread is blocked waiting for the task, it cannot process the progress updates, causing a freeze.
   • Fix: Always use await in asynchronous event handlers.

2. Forgetting Task.ConfigureAwait(false) in Library Code:

   • Mistake: In the MockLlmEngine (which acts as a library), if you await internal operations without ConfigureAwait(false), the continuation might try to resume on the captured SynchronizationContext (the UI thread), even though the engine is running on a background thread.
   • Consequence: While less critical in this specific Task.Run wrapper, in pure async methods without Task.Run, this can cause deadlocks or unnecessary context marshalling overhead.
   • Fix: In library-level code (non-UI specific logic), use await SomeOperation().ConfigureAwait(false);.

3. Disposing Resources Too Early:

   • Mistake: Wrapping the entire RunInferenceAsync in a using block for the engine.
   • Consequence: If the user cancels, the Dispose method might run before the background thread has fully cleaned up native resources (like CUDA contexts), leading to Access Violations or memory leaks.
   • Fix: Manage the lifecycle of the heavy Engine object outside the inference loop (as done in Main with using var engine).

4. Not Checking CancellationToken in Tight Loops:

   • Mistake: Running a while(true) inference loop without checking token.IsCancellationRequested or token.ThrowIfCancellationRequested().
   • Consequence: The background thread continues consuming CPU/GPU cycles indefinitely even after the user clicks "Cancel" or closes the window, leading to battery drain and unresponsive apps.
   • Fix: Check the token at every iteration of the generation loop.

Visualizing the Flow

The following diagram illustrates the interaction between the UI Thread and the Background Thread (ThreadPool).

Hold "Ctrl" to enable pan & zoom

This diagram illustrates the asynchronous flow of an AI response, where the UI thread remains responsive to user input while a background thread processes the generation and continuously checks for completion tokens to update the interface.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

---

Loading knowledge check...

---

---

Code License: All code examples are released under the MIT License. Github repo.

Content Copyright: Copyright © 2026 Edgar Milvus | Privacy & Cookie Policy. All rights reserved.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
