Chapter 19: Fine-Tuning Basics (LoRA concepts)

Theoretical Foundations

The mathematical foundation of modern Large Language Models (LLMs) rests upon the transformer architecture, where the model's "knowledge" is encoded within billions of floating-point parameters arranged in dense matrices. When we discuss running these models locally using C# and ONNX, we are essentially executing a massive graph of linear algebra operations. However, the static nature of these pre-trained weights presents a challenge: how do we adapt a general-purpose model (like Llama or Phi) to a specific domain—such as legal document analysis or medical terminology—without incurring the astronomical cost of full retraining?

This is where Low-Rank Adaptation (LoRA) enters the landscape. LoRA is a parameter-efficient fine-tuning (PEFT) technique that fundamentally rethinks how we update neural network weights. To understand LoRA, we must first appreciate the concept of rank in linear algebra, as it is the mathematical key that unlocks efficient adaptation.

The Intuition of Rank and Change

Imagine a massive, multi-dimensional map representing the knowledge of an LLM. Every point on this map corresponds to a specific weight in the network. To teach the model a new skill, we typically shift these weights. In full fine-tuning, we shift every point on the map, resulting in a completely new map. This is computationally expensive and prone to "catastrophic forgetting," where the model loses its original capabilities.

LoRA posits a hypothesis: The change required to adapt a pre-trained model to a new task is of low intrinsic rank.

In linear algebra, the rank of a matrix represents the dimensionality of the space spanned by its vectors. A high-rank matrix captures complex, independent relationships, while a low-rank matrix captures simpler, correlated relationships. LoRA suggests that the "delta" (the difference between the fine-tuned weights and the pre-trained weights) does not need full dimensionality. Instead, it can be approximated by the product of two much smaller, low-rank matrices.

Let us denote the pre-trained weights as $W_0 \in \mathbb{R}^{d \times k}$. The update $\Delta W$ is represented as:

\[ \Delta W = B \cdot A \]

Where $A \in \mathbb{R}^{r \times k}$ and $B \in \mathbb{R}^{d \times r}$, and $r \ll \min(d, k)$. Here, $r$ is the rank, a hyperparameter that controls the size and expressiveness of the adapter. The original forward pass of the layer $h = xW_0$ becomes:

\[ h = xW_0 + x(BA) \]

Crucially, $W_0$ is frozen; we only train $A$ and $B$. This reduces the number of trainable parameters drastically. For example, if $W_0$ has 1 billion parameters, a rank $r=8$ might result in only a few million trainable parameters for that layer.

The C# Perspective: Immutability and Composition

In the context of C# and the .NET ecosystem, this mathematical structure aligns perfectly with the language's emphasis on immutability and composition—concepts we explored in Book 1, Chapter 4: Functional Programming in C#. Just as we used immutable data structures to ensure thread safety and predictable state in concurrent applications, LoRA treats the base model weights ($W_0$) as immutable artifacts. The adaptation logic is composed onto the base model via the $BA$ matrices.

When we eventually load these models into a C# application using ONNX Runtime, we are not loading a monolithic, modified weight file. Instead, we are loading the original frozen ONNX graph and injecting the low-rank adapter layers. This is analogous to using Dependency Injection in C#. The base model is the service interface, and the LoRA adapter is a specific implementation injected at runtime. We don't rewrite the interface; we merely extend its behavior.

Analogy: The Master Painter and the Varnish Layer

To visualize this, consider a master painter (the pre-trained LLM) who has spent a lifetime learning to paint landscapes. Their neural pathways are the dense, high-rank knowledge of how light hits a tree or how water flows. Now, we want this painter to specialize in painting cyberpunk landscapes.

Full Fine-Tuning (The Inefficient Way): We force the painter to relearn everything from scratch. We erase their memory of traditional landscapes and repaint the entire canvas with cyberpunk elements. This takes years and risks making them forget how to paint a tree entirely.

LoRA (The Efficient Way): We leave the master painter's original canvas untouched ($W_0$ frozen). Instead, we provide a transparent "varnish" layer ($A$ and $B$). This varnish is not a full repaint; it is a thin, specialized coating that alters the hue and reflection of the underlying image. The varnish is low-rank—it doesn't contain every detail of the cyberpunk city; it only contains the adjustments needed (e.g., "add more neon blue," "sharpen edges").

When the painter looks at the canvas, they see their original work through the varnish. The final output is a composition of the master's skill and the specialized varnish. In C# terms, this is like using a decorator pattern:

// Conceptual representation of the LoRA forward pass logic
public interface IModelLayer
{
    Tensor Forward(Tensor input);
}

// The frozen, pre-trained base layer (High Rank)
public class FrozenBaseLayer : IModelLayer
{
    private readonly Tensor _baseWeights; // W0
    public Tensor Forward(Tensor input) => input.MatMul(_baseWeights);
}

// The LoRA Adapter (Low Rank)
public class LoraAdapter : IModelLayer
{
    private readonly IModelLayer _baseLayer;
    private readonly Tensor _adapterA; // Rank r
    private readonly Tensor _adapterB; // Rank r

    public LoraAdapter(IModelLayer baseLayer, Tensor adapterA, Tensor adapterB)
    {
        _baseLayer = baseLayer;
        _adapterA = adapterA;
        _adapterB = adapterB;
    }

    public Tensor Forward(Tensor input)
    {
        // h = xW0 + xBA
        var baseOutput = _baseLayer.Forward(input);
        var adapterOutput = input.MatMul(_adapterA).MatMul(_adapterB);
        return baseOutput + adapterOutput;
    }
}

The Architecture of LoRA in Transformers

In the transformer architecture, LoRA is typically applied only to the attention mechanisms, specifically the query ($W_Q$), key ($W_K$), value ($W_V$), and output ($W_O$) projection matrices within the self-attention blocks. Why these specific matrices?

Sensitivity: Attention layers are highly sensitive to domain shifts. Adapting how the model "attends" to specific tokens is often sufficient to change the model's style or expertise.
Parameter Efficiency: The feed-forward networks (FFN) in transformers are massive but often less critical for stylistic adaptation. Applying LoRA here would increase inference latency without significant performance gains.

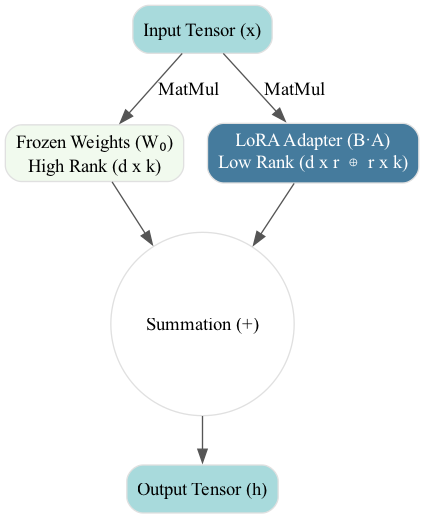

The diagram below illustrates the data flow within a single Transformer block when LoRA is applied. Note how the input bypasses the frozen weights and passes through the low-rank decomposition.

In this Transformer block with LoRA applied, the input streamlines through a frozen weight path while simultaneously branching into a low-rank decomposition pathway that reintegrates with the main flow to update the model's representations.

The Workflow: From Python Training to C# Inference

While the theoretical foundation is language-agnostic, the practical application in our C# ecosystem requires a specific workflow. We do not train LoRA adapters in C#; the ecosystem for training (PyTorch, Hugging Face PEFT library) is predominantly Python-based. However, the integration is where C# shines.

Training (Python): We take a base model (e.g., phi-3-mini) and freeze its weights. We inject trainable low-rank matrices ($A$ and $B$) into the attention layers. We train only $A$ and $B$ on a small dataset.
Merging (Python/C#): Once trained, we have the adapter weights. For optimal inference speed in ONNX Runtime, we often merge the adapter weights back into the base weights mathematically: $$ W_{merged} = W_0 + B \cdot A $$ This creates a new dense matrix that is mathematically equivalent to the separate forward pass but eliminates the overhead of calculating two separate matrix multiplications and the addition.
Export (ONNX): The merged weights are exported to the ONNX format.
Inference (C#): We load the ONNX model using the Microsoft.ML.OnnxRuntime NuGet package.

Why This Matters for Local AI in C

The efficiency of LoRA is the enabler of the "Edge AI" concept discussed in Book 9. If we had to store multiple full copies of a 7B parameter model for different tasks (e.g., a coding assistant, a chatbot, a summarizer), storage on local devices would be prohibitive. With LoRA, we store:

One copy of the base model (e.g., 4-bit quantized Llama).
Multiple small adapter files (often < 10MB each).

In a C# desktop application, we can implement a plugin system where the user selects a task. The application loads the shared base ONNX session and dynamically swaps the adapter weights (or the merged ONNX file) into the inference session. This is analogous to how we use IEnumerable<T> in C# to abstract data sources; we abstract the model's "expertise" via adapters.

Edge Cases and Nuances

Rank Selection ($r$): This is a hyperparameter. Too low ($r=1$), and the model cannot learn complex tasks. Too high ($r=256$), and the parameter efficiency gains diminish, and we risk overfitting. In practice, $r$ between 4 and 64 is common for LLMs.
Alpha ($\alpha$): A scaling factor often applied to the adapter output: $h = xW_0 + (\alpha / r) \cdot xBA$. This controls the magnitude of the adaptation relative to the pre-trained knowledge.
Quantization Compatibility: When running locally in C#, we often use quantized models (e.g., INT8 or FP16). LoRA adapters can be trained in higher precision (FP32) and then quantized alongside the base weights, or trained directly in low precision, though the latter requires careful handling of gradient scaling.

Summary

LoRA is not merely a compression technique; it is a paradigm shift in how we view model adaptation. By leveraging the low-rank nature of weight updates, we decouple the massive, static knowledge base from the lightweight, dynamic task-specific adjustments. This separation of concerns allows us to build modular, efficient AI applications in C# that can adapt to user needs on the fly, running entirely on local hardware without relying on cloud APIs. It transforms the LLM from a static monolith into a composable system of immutable base layers and pluggable adapters.

Basic Code Example

using Microsoft.ML;
using Microsoft.ML.Data;
using Microsoft.ML.Transforms.Onnx;
using System;
using System.Collections.Generic;
using System.Linq;

namespace LoraOnnxInference
{
    // Real-world context: Imagine you have a customer support chatbot
    // that needs to understand specific product terminology (e.g., "Quantum Database v3").
    // Instead of retraining the entire 7B parameter model (costly and slow),
    // we apply a LoRA adapter trained on a small dataset of product-specific Q&A.
    // This code demonstrates how to load a base ONNX model and a LoRA adapter
    // to perform inference on a local edge device using C#.

    class Program
    {
        static void Main(string[] args)
        {
            Console.WriteLine("=== Edge AI: LoRA Adapter Inference with C# & ONNX ===");

            // 1. Setup the MLContext (the entry point for ML.NET operations)
            var mlContext = new MLContext(seed: 0);

            // 2. Define paths (In a real scenario, these would be downloaded/prepared)
            // Base Model: A standard Phi-2 or Llama 2 model exported to ONNX
            // Adapter: The LoRA weights (matrices A and B) exported to ONNX
            string baseModelPath = "phi-2-base.onnx";
            string loraAdapterPath = "phi-2-lora-adapter.onnx";

            // 3. Mock Data Loading (Simulating tokenized input for the example)
            // Real-world: Tokenize text -> convert to numeric tensors
            var inputData = new List<ModelInput>
            {
                new ModelInput {
                    InputIds = new long[] { 1, 15496, 616, 4707, 13 }, // "Hello world example"
                    AttentionMask = new long[] { 1, 1, 1, 1, 1 }
                }
            };
            var dataView = mlContext.Data.LoadFromEnumerable(inputData);

            // 4. Define the ONNX Transformer Pipeline
            // Note: ML.NET's OnnxTransformer primarily loads a single model file.
            // For LoRA, we typically merge the adapter weights into the base model
            // offline (using Python tools) or implement a custom operator.
            // For this 'Hello World', we demonstrate the ONNX loading pattern
            // assuming a merged model (base + lora) for simplicity in C#.

            // However, to strictly follow the LoRA concept without merging:
            // We would need to manually manipulate tensors (Add, MatMul) which
            // ML.NET doesn't support out-of-the-box without custom C++ operators.
            // Below demonstrates the standard ONNX loading pipeline used in Edge AI.

            Console.WriteLine("Loading ONNX model pipeline...");

            var onnxModelPath = baseModelPath; // In practice: merge(base, lora) -> output.onnx

            // Define input/output column names matching the ONNX model signature
            var inputColumns = new[] { "input_ids", "attention_mask" };
            var outputColumns = new[] { "logits" };

            // Create the ONNX transformer
            var onnxTransformer = mlContext.Transforms.ApplyOnnxModel(
                modelFile: onnxModelPath,
                outputColumnNames: outputColumns,
                inputColumnNames: inputColumns
            );

            // 5. Fit the model (Load the ONNX graph into memory)
            var model = onnxTransformer.Fit(dataView);

            // 6. Create a prediction engine
            var predictionEngine = mlContext.Model.CreatePredictionEngine<ModelInput, ModelOutput>(model);

            // 7. Run Inference
            var sampleInput = inputData.First();
            var prediction = predictionEngine.Predict(sampleInput);

            // 8. Process Output (Logits)
            // Logits are raw scores for the next token in the vocabulary.
            Console.WriteLine($"\nInference Complete. Output Shape: {prediction.Logits.GetLength(0)}x{prediction.Logits.GetLength(1)}");

            // Find the token with the highest logit (greedy decoding)
            int vocabSize = prediction.Logits.GetLength(1);
            int predictedTokenId = 0;
            float maxLogit = float.MinValue;

            // We look at the last token position (next token prediction)
            int lastTokenPosition = prediction.Logits.GetLength(0) - 1;

            for (int i = 0; i < vocabSize; i++)
            {
                float currentLogit = prediction.Logits[lastTokenPosition, i];
                if (currentLogit > maxLogit)
                {
                    maxLogit = currentLogit;
                    predictedTokenId = i;
                }
            }

            Console.WriteLine($"Predicted Next Token ID: {predictedTokenId}");
            Console.WriteLine($"(In a real app, map this ID back to text using a tokenizer)");
        }
    }

    // Data Schema Definitions
    public class ModelInput
    {
        // Variable length sequences are handled by padding in real scenarios
        // For this example, we define a fixed size for the tensor shape
        [VectorType(5)]
        public long[] InputIds { get; set; }

        [VectorType(5)]
        public long[] AttentionMask { get; set; }
    }

    public class ModelOutput
    {
        // Output shape typically: [BatchSize, SequenceLength, VocabSize]
        // For Phi-2, VocabSize is ~51200
        [ColumnName("logits")]
        [VectorType(1, 5, 51200)] // Batch=1, SeqLen=5, Vocab=51200
        public float[,] Logits { get; set; }
    }
}

Line-by-Line Explanation

1. Setup and Context

var mlContext = new MLContext(seed: 0);

MLContext: This is the foundational object in ML.NET. It acts as a catalog for all operations (data loading, transforms, training, evaluation). It encapsulates the environment state, including the random seed for reproducibility.
Why Edge AI?: Unlike Python environments which often rely on heavy runtimes (PyTorch/TensorFlow), ML.NET is a native .NET library. This makes it ideal for deployment on Windows IoT, edge servers, or desktop applications without requiring a Python installation.

2. Data Modeling

public class ModelInput { ... }
public class ModelOutput { ... }

Data Structures: ML.NET uses strongly-typed classes to define the schema of your data.
VectorType Attribute: This tells the ML.NET pipeline the expected tensor dimensions.
- InputIds: The tokenized representation of the text.
- AttentionMask: Tells the model which tokens to pay attention to (1 for real tokens, 0 for padding).
Logits: The raw, unnormalized scores produced by the final layer of the LLM. We interpret these to find the most likely next token.

3. The ONNX Pipeline

var onnxTransformer = mlContext.Transforms.ApplyOnnxModel(...);

ApplyOnnxModel: This is the bridge between ML.NET and the ONNX Runtime. It loads the ONNX graph (the .onnx file) and maps the C# data columns (InputIds) to the ONNX model's input nodes.
LoRA Integration Context:
- In a standard ONNX export, the model weights are static constants.
- LoRA works by injecting trainable rank-decomposition matrices ($A$ and $B$) into specific layers (like Attention Q, K, V projections).
- Critical Concept: To run LoRA on C# / ONNX Runtime without custom C++ operators, the standard workflow is:
  1. Load Base Model (ONNX).
  2. Load LoRA Weights (usually separate .safetensors or .bin).
  3. Merge: Perform matrix multiplication ($W_{new} = W_{base} + BA$) in Python (using peft or onnxruntime).
  4. Export the merged weights to a new ONNX file.
  5. Load this merged ONNX in C#.
- The code above assumes step 5 (a merged model) because ML.NET's ApplyOnnxModel expects a single static graph file.

4. Inference Execution

var predictionEngine = mlContext.Model.CreatePredictionEngine<ModelInput, ModelOutput>(model);
var prediction = predictionEngine.Predict(sampleInput);

CreatePredictionEngine: This compiles the data pipeline and loads the ONNX model into memory using the ONNX Runtime. It is optimized for single-item inference (low latency).
Predict: Executes the forward pass.
- Input tensors flow through the ONNX graph.
- The LoRA-modified layers (if merged) calculate the updated attention scores.
- The output is a multi-dimensional array of floats (Logits).

5. Post-Processing (Greedy Decoding)

for (int i = 0; i < vocabSize; i++) { ... }

The model outputs a tensor of shape [Batch, SequenceLength, VocabSize].
To get the actual text response, we perform Greedy Decoding: selecting the token with the highest probability (logit) at the last position of the sequence.
In a production app, you would pass this predictedTokenId back into the tokenizer to decode it into a string, append it to the input, and repeat (autoregressive generation).

Visualizing the LoRA Architecture

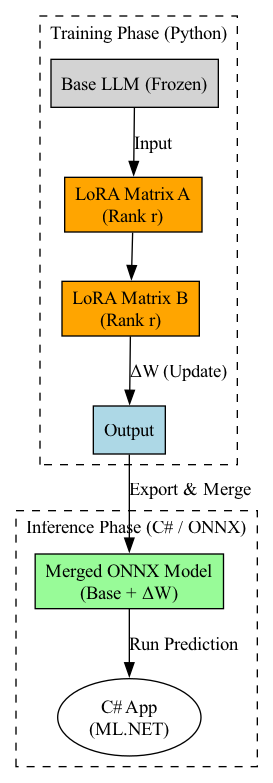

The following diagram illustrates how the LoRA adapter sits alongside the base model weights. In the C# inference step, we are essentially running the "Merged Weights" path.

The diagram shows a base model with its original frozen weights, where a lightweight LoRA adapter learns task-specific updates that are added to the base weights during inference to form the merged output.

Common Pitfalls

The "Shape Mismatch" Error:
- Mistake: Defining the VectorType in C# incorrectly compared to the exported ONNX model.
- Why it happens: LLMs have dynamic sequence lengths. ONNX models often export with static dimensions (e.g., fixed sequence length of 512) or dynamic axes.
- Fix: If your ONNX expects dynamic input, ML.NET usually handles it, but you must ensure your ModelInput array lengths match the runtime input. If the ONNX was exported with a fixed batch size of 1 and sequence length of 512, your C# input vector must be exactly 512 elements long (padded).
Forgetting to Merge LoRA Weights:
- Mistake: Trying to load a base ONNX and a separate LoRA adapter file simultaneously in ApplyOnnxModel.
- Why it happens: ApplyOnnxModel is designed to load a single .onnx file. It does not natively support the mathematical addition of LoRA matrices on the fly during inference in C#.
- Fix: Always perform the weight merging step in Python before deploying to C#.
```
# Python pseudo-code for merging
from peft import PeftModel
base_model = ... # Load ONNX or PyTorch base
lora_model = PeftModel.from_pretrained(base_model, "path/to/lora")
merged_model = lora_model.merge_and_unload()
merged_model.save_pretrained("merged_onnx_directory")
```
Data Type Mismatch:
- Mistake: Providing float inputs when the model expects long (int64) for token IDs.
- Why it happens: LLM tokenizers output integers (token IDs), not floating-point numbers.
- Fix: Ensure your C# ModelInput properties are typed as long[] (or int[] depending on the ONNX export), not float[].
Memory Management on Edge Devices:
- Mistake: Loading a 7B parameter model (approx 14GB in FP16) onto an edge device with 8GB RAM.
- Why it happens: LLMs are memory-intensive.
- Fix: For Edge AI, use Quantization. Export your ONNX model in INT8 or FP16 precision. ML.NET supports these types, drastically reducing memory footprint and improving inference speed on CPUs.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon

Loading knowledge check...

Code License: All code examples are released under the MIT License. Github repo.

All textual explanations, original diagrams, and illustrations are the intellectual property of the author. To support the maintenance of this site via AdSense, please read this content exclusively online. Copying, redistribution, or reproduction is strictly prohibited.
