Chapter 10: Handling Multimodality - Images & Vision in Node.js

Theoretical Foundations

Multimodality, in the context of artificial intelligence, refers to the ability of a model to understand, process, and generate information across different types of data modalities—primarily text, images, audio, and video. In previous chapters, we explored the foundations of text-based Large Language Models (LLMs) and how they process sequential data using tokenization and attention mechanisms. We established that text is converted into numerical representations (embeddings) that capture semantic meaning. However, the real world is inherently multimodal. A photograph of a sunset, a scanned medical document, or a screenshot of a user interface conveys information that text alone cannot fully encapsulate.

This chapter shifts focus from the unimodal world of pure text to the rich, complex domain of visual data within the Node.js ecosystem. The core challenge is bridging the gap between the pixel-based data of images and the token-based processing of LLMs. To understand this, we must look at how models like GPT-4 with Vision (GPT-4V) perceive images not as static files, but as structured data that can be analyzed, interpreted, and described.

The Mechanics of Vision: From Pixels to Tokens

When we talk about "vision" in AI, we are not referring to biological sight but to a mathematical process of pattern recognition and semantic mapping. A standard LLM operates on a discrete sequence of tokens. An image, however, is a continuous grid of pixel values (typically RGB channels). To make an image intelligible to a model, it must be transformed into a format the model can "read."

1. Image Encoding and Tokenization Unlike text, which is tokenized by a vocabulary, images are processed by a vision encoder (often a variant of a Vision Transformer, ViT). The image is sliced into patches (e.g., 16x16 pixel squares). Each patch is flattened and projected into a vector space, creating a sequence of visual embeddings. These embeddings are structurally similar to text embeddings but represent visual features like edges, textures, shapes, and eventually high-level objects.

Analogy: The Mosaic vs. The Paragraph Imagine a text-based LLM reading a paragraph. It processes words one by one, understanding the context and grammar. Now, imagine a vision model looking at a painting. It doesn't see the painting as a whole initially; it sees it as a grid of tiny tiles (patches). It analyzes the color and texture of each tile individually, then looks at how adjacent tiles relate to each other (edges), and eventually recognizes that a cluster of specific tiles forms a "cat." The model converts this visual mosaic into a "visual paragraph"—a sequence of vector representations that describe the image's content mathematically.

2. The Role of the Multimodal Projector Once the image is encoded into visual embeddings, it cannot be directly fed into a text-based LLM without a translation layer. This is where a multimodal projector (often a linear layer or a more complex neural network) comes in. It maps the visual embeddings into the same vector space as the text embeddings.

This is a critical concept to grasp from Chapter 9 (LangChain.js Chains). Just as we used chains to connect different LLM calls or tools, the multimodal projector acts as a bridge between two distinct "worlds" of data. It ensures that a visual representation of a "cat" aligns vectorially with the text token "cat," allowing the model to reason across modalities seamlessly.

Handling Image Inputs in Node.js

In a Node.js environment, we rarely deal with raw pixel arrays directly when using high-level APIs like OpenAI or LangChain.js. Instead, we handle references to image data. There are two primary methods for providing images to the model:

Image URLs: The model fetches the image from a public URL. This is efficient for web-based applications where images are hosted on CDNs (Content Delivery Networks).
Base64 Encoded Strings: The image data is converted into a Base64 string and embedded directly within the JSON payload of the API request. This is necessary for local files, images generated dynamically, or scenarios requiring strict data privacy where external fetching is restricted.

The Base64 Analogy: The Shipping Container Think of an image file (like a JPEG) as a complex piece of machinery. Sending it over the internet via a URL is like shipping it via a freight service. However, if you need to include that machinery inside a standard text document (like a JSON payload), it won't fit. Base64 encoding is like disassembling the machinery, packing it into a standardized shipping container (a string of ASCII characters), and labeling it. The receiving end (the API) unpacks the container and reassembles the machinery. While this increases the data size by roughly 33%, it ensures the data can travel through channels that only support text.

Structuring Multimodal Prompts

When interacting with a multimodal model, the prompt structure changes. We are no longer sending a simple string of text. We are sending a structured message history that can contain both text and image content blocks.

In LangChain.js, this is abstracted through the HumanMessage class, which can accept an array of content blocks. This allows for complex interactions, such as asking a question about a specific part of an image or providing context through multiple images.

Analogy: The Visual Interrogation Imagine a detective (the LLM) in an interrogation room. You (the user) can hand them a photograph (the image) and ask a question (the text prompt). The detective looks at the photo, analyzes the details, and answers based on the visual evidence. If you hand them multiple photos and ask to compare them, they must hold all visual context in their working memory while formulating a response. The multimodal prompt is the dossier containing both the evidence (images) and the line of questioning (text).

LangGraph and the State of Multimodal Processing

While the OpenAI API handles the raw processing, building complex workflows requires orchestration. This is where LangGraph becomes essential. In a multimodal application, the "state" of the application is no longer just a conversation history; it is a composite object containing text messages, image data, and potentially extracted metadata (like OCR results or object detection labels).

The Entry Point Node in a Multimodal Graph In the context of LangGraph, the Entry Point Node is the designated starting node where the workflow begins. In a multimodal application, this node has a specific responsibility: it must validate and normalize the incoming data.

Consider a scenario where a user uploads an image. The Entry Point Node must: 1. Check if the input is a URL or a file. 2. If a file, convert it to Base64. 3. Format the message into the structure required by the model (e.g., an array of content blocks). 4. Initialize the state for the rest of the graph.

Without a robust Entry Point Node, the subsequent nodes (which might be LLM calls, tool executions, or conditional logic) would receive malformed data, causing the graph to fail.

Visualizing the Multimodal Workflow

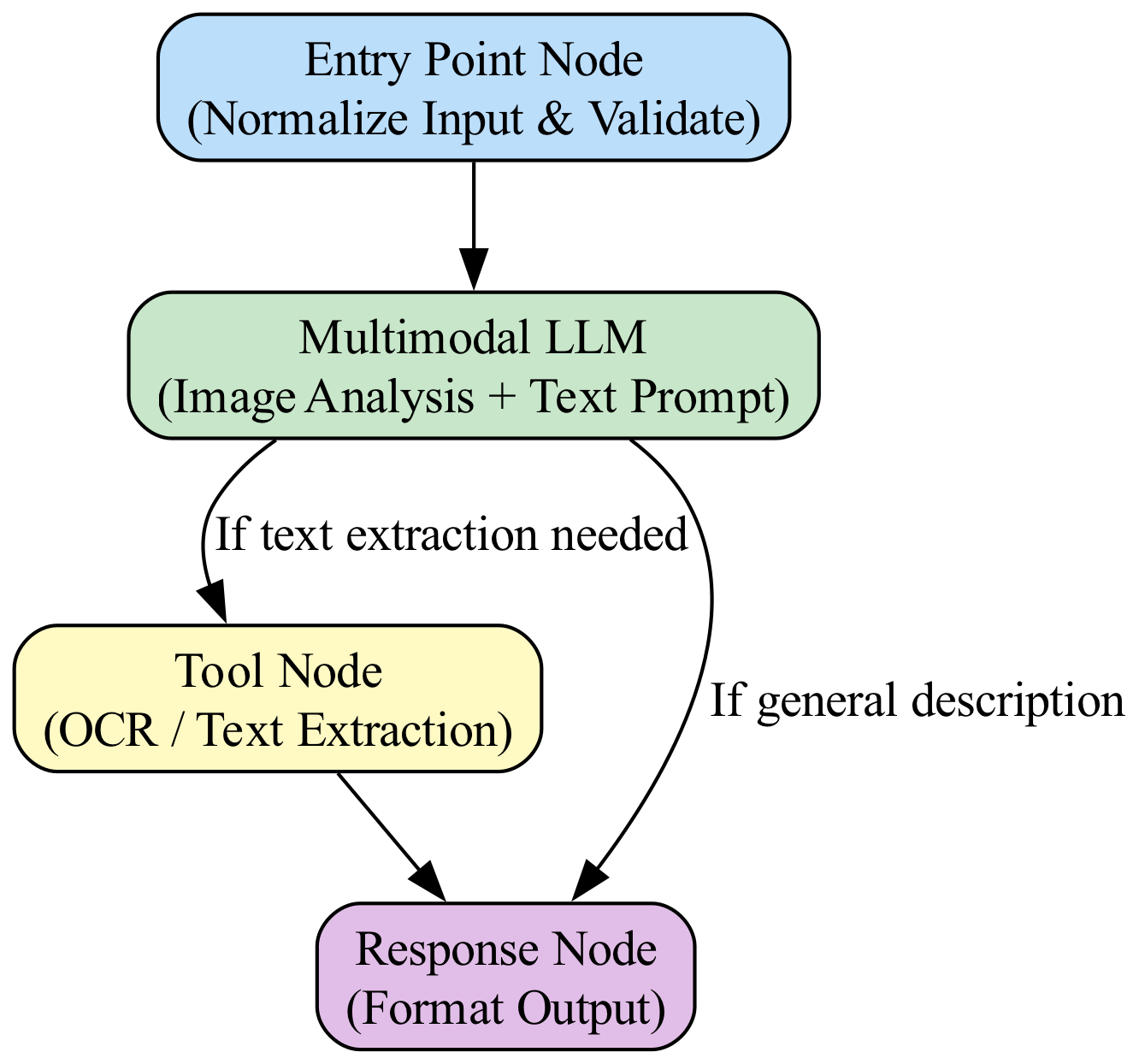

The following diagram illustrates a simple LangGraph for processing an image query. It starts at the Entry Point, routes the data to the Vision Model, and then potentially to a tool (like an OCR service) if text extraction is needed.

This diagram visualizes a LangGraph workflow that begins at the Entry Point, routes image data to a Vision Model, and conditionally directs the output to an OCR tool for text extraction.

Practical Applications: OCR and Captioning

The theoretical power of multimodality translates into two primary use cases in Node.js applications:

Optical Character Recognition (OCR): This is the process of extracting text from images. While traditional OCR libraries (like Tesseract) exist, LLM-based OCR is superior because it understands context. It can distinguish between a handwritten note and a printed label, or interpret a table in a receipt and format it as JSON.
Image Captioning: Generating descriptive text for images. This is crucial for accessibility (alt-text for screen readers) or organizing digital assets.

The "Why" of Multimodal Integration Why move OCR and captioning to the cloud via an API? In Node.js, CPU-intensive tasks like image processing can block the event loop, degrading server performance. Offloading these tasks to a specialized model via the OpenAI API allows the Node.js server to remain non-blocking and responsive. Furthermore, the model's ability to understand context means it can answer questions like "What is the total price on this receipt?" rather than just extracting raw numbers.

Under the Hood: The Vision API Pipeline

When you send a request to the OpenAI Vision API from Node.js, the following happens:

Serialization: Your TypeScript code serializes the image (URL or Base64) and the text prompt into a JSON payload.
Transmission: The payload is sent over HTTPS to the API endpoint.
Decoding: The API server decodes the image, passing it through the vision encoder (ViT) to generate visual embeddings.
Fusion: The visual embeddings and the text prompt embeddings are fused. This fusion happens within the model's attention layers, allowing the text tokens to "attend" to the visual embeddings.
Generation: The model generates a response token by token, which is streamed back to the Node.js client.

Integration with the Vercel AI SDK (useChat Hook)

In full-stack TypeScript applications, managing the UI state for multimodal inputs can be complex. The useChat hook from the Vercel AI SDK simplifies this. While traditionally used for text chat, it can be extended to handle image uploads.

The hook manages the message history, user input state, and streaming responses. When a user selects an image, the hook can handle the conversion to a data URL and append it to the message array. This abstracts away the complexity of managing FormData or manual WebSocket implementations, allowing the developer to focus on the logic of the multimodal prompt.

Analogy: The useChat Hook as a Project Manager Think of the useChat hook as a project manager for your frontend conversation. You tell it, "I have a text message and an image." The hook takes care of packaging these items, sending them to the backend (or directly to the API), listening for the stream of responses, and updating the UI state in real-time. Without it, you would be manually managing the lifecycle of every HTTP request and the synchronization of the UI, which is error-prone and tedious.

To summarize, handling multimodality in Node.js requires understanding:

Data Transformation: Converting images into tokenized embeddings that models can process.
State Management: Handling complex data structures (images + text) within the application state.
Orchestration: Using tools like LangGraph to control the flow of multimodal data through Entry Points and conditional nodes.
Abstraction: Leveraging hooks like useChat to manage the frontend complexity of multimodal interactions.

This foundation sets the stage for the subsequent sections, where we will implement these concepts using the OpenAI API and LangChain.js, moving from theory to practical, code-driven application.

Basic Code Example

This example demonstrates a fundamental "Hello World" application for image analysis within a Node.js/TypeScript environment. It simulates a SaaS backend endpoint where a user uploads an image (or provides a URL), and the system returns a detailed textual description of that image using the OpenAI Vision API.

We will use the openai npm package. This code is designed to be self-contained and can be run directly in a Node.js environment.

Prerequisites

You will need to install the following dependencies:

npm install openai dotenv

You must also have an OPENAI_API_KEY set in your environment variables (or a .env file).

The Code

// Import necessary modules from the 'openai' package and 'dotenv' for environment variables.
import OpenAI from 'openai';
import dotenv from 'dotenv';

// Load environment variables from a .env file (e.g., OPENAI_API_KEY).
dotenv.config();

/**
 * A simple function to analyze an image using the OpenAI Vision API.
 *
 * @param {string} imageUrl - The publicly accessible URL of the image to analyze.
 * @returns {Promise<string>} A promise that resolves to the descriptive text from the model.
 * @throws {Error} Throws an error if the API key is missing or the API call fails.
 */
async function analyzeImage(imageUrl: string): Promise<string> {
  // 1. Validate Environment Variables
  // We need an API key to interact with the OpenAI service.
  const apiKey = process.env.OPENAI_API_KEY;
  if (!apiKey) {
    throw new Error('OPENAI_API_KEY is not defined in environment variables.');
  }

  // 2. Initialize the OpenAI Client
  // This creates an instance of the client configured with our API key.
  const openai = new OpenAI({
    apiKey: apiKey,
  });

  // 3. Construct the Multimodal Prompt
  // The prompt must be an array of message objects. For vision, we typically use the 'user' role.
  // The content is an array of text and image_url objects.
  const promptMessages = [
    {
      role: 'user',
      content: [
        {
          type: 'text',
          text: 'Describe this image in detail. What are the main objects, colors, and mood?',
        },
        {
          type: 'image_url',
          image_url: {
            // The Vision API supports both URLs and base64 encoded images.
            // Here we use a URL for simplicity.
            url: imageUrl,
          },
        },
      ],
    },
  ];

  try {
    // 4. Call the OpenAI Chat Completions API
    // We use the 'gpt-4-vision-preview' model (or the latest compatible model) which supports image inputs.
    const response = await openai.chat.completions.create({
      model: 'gpt-4-vision-preview', // Ensure you use a model that supports vision capabilities.
      messages: promptMessages,
      max_tokens: 500, // Limit the response length to control costs and output.
    });

    // 5. Extract and Return the Response
    // The response contains a list of choices. We take the first one.
    const description = response.choices[0]?.message?.content;
    if (!description) {
      throw new Error('No content returned from the API.');
    }

    return description;
  } catch (error) {
    // Handle potential API errors (e.g., network issues, invalid image URL, rate limits).
    console.error('Error analyzing image:', error);
    throw error;
  }
}

// --- Example Usage ---
// This block simulates a web app calling the function.
(async () => {
  try {
    // A sample image URL (a golden retriever puppy playing in a field).
    // In a real app, this URL would come from a user upload (e.g., AWS S3 bucket).
    const sampleImageUrl = 'https://upload.wikimedia.org/wikipedia/commons/thumb/4/47/PNG_transparency_demonstration_1.png/800px-PNG_transparency_demonstration_1.png';

    console.log('Analyzing image...');

    // Call the function and await the result.
    const description = await analyzeImage(sampleImageUrl);

    console.log('\n--- Image Analysis Result ---');
    console.log(description);
    console.log('-----------------------------\n');

  } catch (error) {
    console.error('Failed to run the analysis:', error);
  }
})();

Detailed Line-by-Line Explanation

This section breaks down the logic of the code block above into a numbered list for clarity.

Imports and Setup:
- import OpenAI from 'openai';: Imports the official OpenAI Node.js SDK, which provides a typed interface for making API calls.
- import dotenv from 'dotenv';: Imports the dotenv library, which loads environment variables from a .env file into process.env. This is a standard security practice to avoid hardcoding API keys.
Function Definition (analyzeImage):
- async function analyzeImage(imageUrl: string): Promise<string>: Defines an asynchronous function that takes a string imageUrl as input and returns a Promise that resolves to a string (the image description). Using async/await is crucial for handling I/O operations like network requests without blocking the Node.js event loop.
Environment Validation:
- const apiKey = process.env.OPENAI_API_KEY;: Retrieves the API key from the environment variables.
- if (!apiKey) { throw new Error(...) }: A critical check to ensure the API key is present before proceeding. This prevents the application from crashing with a cryptic authentication error later on.
Client Initialization:
- const openai = new OpenAI({ apiKey: apiKey });: Creates an instance of the OpenAI client. This object is the gateway to all API endpoints (chat, images, embeddings, etc.).
Prompt Construction (Multimodal Input):
- const promptMessages = [...]: We construct the prompt as an array of message objects, following the standard chat completion format.
- role: 'user': Specifies that the message comes from the user.
- content: [...]: The content is an array allowing mixed media. We include two items:
  - { type: 'text', text: '...' }: A standard text prompt instructing the model on how to analyze the image.
  - { type: 'image_url', image_url: { url: imageUrl } }: This is the key part for vision. It tells the API to include the image at the given URL in the context of the prompt. The model processes the image pixels and the text prompt simultaneously.
API Call:
- await openai.chat.completions.create(...): This is the core network request. It sends the structured prompt to the OpenAI API.
- model: 'gpt-4-vision-preview': Specifies the model to use. Vision capabilities are integrated into specific GPT-4 models. Note: Model names may change; always check the latest OpenAI documentation.
- max_tokens: 500: Sets a limit on the response length. This is important for cost management and predictability in a SaaS application.
Response Handling:
- const response = await ...: The await keyword pauses the function execution until the API responds.
- response.choices[0]?.message?.content: The API returns a complex object. We safely navigate to the content property of the first choice using optional chaining (?.). This prevents runtime errors if the response structure is unexpected.
- if (!description) { throw new Error(...) }: A defensive check to ensure we actually received a description.
Error Handling:
- try { ... } catch (error) { ... }: The entire API call is wrapped in a try...catch block. This is essential for catching network failures, API rate limits (429 errors), invalid image URLs, or other runtime exceptions.
Example Usage (IIFE):
- (async () => { ... })();: We use an Immediately Invoked Function Expression (IIFE) with async to run the example code. This allows us to use await at the top level in a Node.js script.
- const sampleImageUrl = '...': We define a sample image. In a real web app, this URL would be generated after a user uploads a file to a storage service like AWS S3 or Cloudinary.
- const description = await analyzeImage(sampleImageUrl);: We call our main function and wait for the result.
- console.log(...): We output the result to the console, simulating a response sent back to a client in a web application.

Common Pitfalls

When working with the OpenAI Vision API in a Node.js environment, be aware of these specific issues:

Image URL Accessibility: The OpenAI API must be able to access the image URL from its servers. It cannot access localhost URLs or images behind authentication walls. For production apps, always use publicly accessible URLs from a CDN or object storage.
Cost Management (Token Usage): Image analysis consumes tokens for both the image data (processed at a fixed rate per image) and the text response. Without max_tokens, a verbose model could generate a very long, expensive response. Always set limits.
Asynchronous Race Conditions: In a full-stack app, if you are processing multiple images concurrently, ensure you handle the Promise returned by analyzeImage correctly (e.g., using Promise.all if needed) to avoid blocking the Node.js event loop or mixing up results.
Hallucinations: While powerful, vision models can sometimes "hallucinate" details not present in the image, especially in low-resolution or abstract images. For critical applications (e.g., medical imaging), the output should be treated as a suggestion, not a ground truth, and may require human review.
Vercel/Serverless Timeouts: If you deploy this to a serverless platform like Vercel, be mindful of the default timeout (often 10 seconds). Large images or complex prompts can cause the API call to exceed this limit. You may need to increase the timeout setting or process the image asynchronously in a background job.

System Flow Visualization

The data flow for this simple image analysis can be visualized as follows:

A diagram illustrating the asynchronous processing flow for large images, showing the client request being offloaded to a background job to avoid API timeout limits.

The chapter continues with advanced code, exercises and solutions with analysis, you can find them on the ebook on Leanpub.com or Amazon
